220 Controls in detailDual-zone automatic climate controlActivating
Switch off the ignition.

Press buttonT (
page 209).
REST
in the display4 (
page 209)
comes on.
Deactivating

Press buttonT (
page 209) again.
REST
in the display4 (
page 209)
goes out.Rear passenger compartment
adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 208).The air vents for the rear passenger
compartment are located in the rear
center console.
1Left center air vent, adjustable
2Right center air vent, adjustable
3Thumbwheel for air volume control for
right rear center air vent
4Thumbwheel for air volume control for
left rear center air vent
i
The residual heat is automatically turned off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops


if the coolant temperature is too low
i
The temperature at the center air vents1
and2 for the rear passenger compartment is
nearly the same as at the dashboard center air
vents.

221 Controls in detail
Dual-zone automatic climate control
Adjusting air distribution
Push the slider for the left center air
vent1 or right center air vent2 to
the left, right, up or down.
The air flow is directed in the corre-
sponding direction.Adjusting air volume

Turn thumbwheel3 or4 up or down.
The air volume is increased or
decreased.
i
For draft-free ventilation, move the sliders
for the center air vents1 and2 upward.

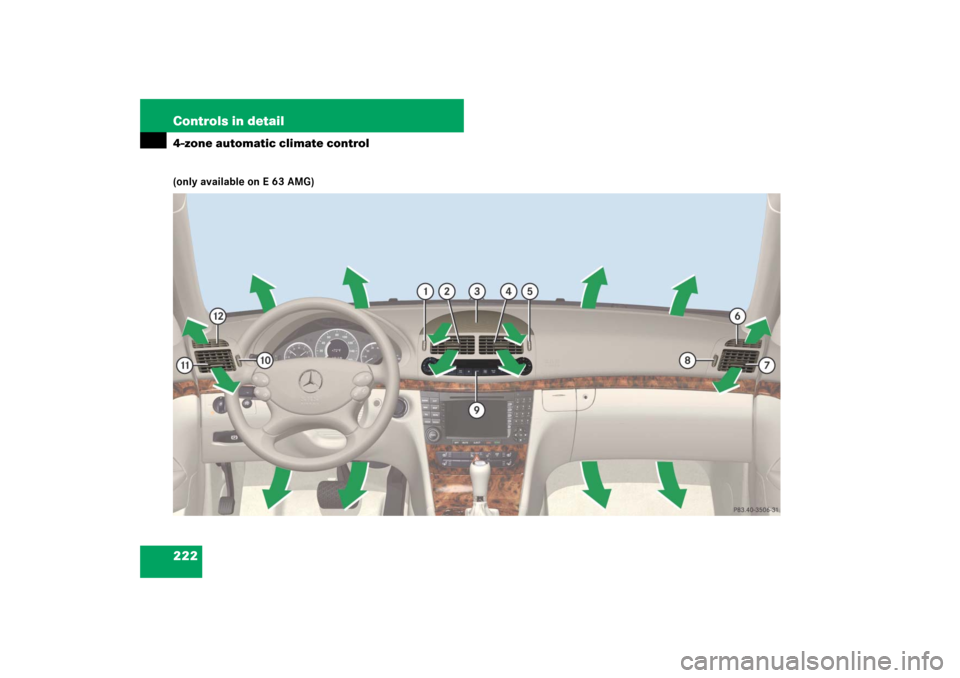

222 Controls in detail4-zone automatic climate control(only available on E 63 AMG)

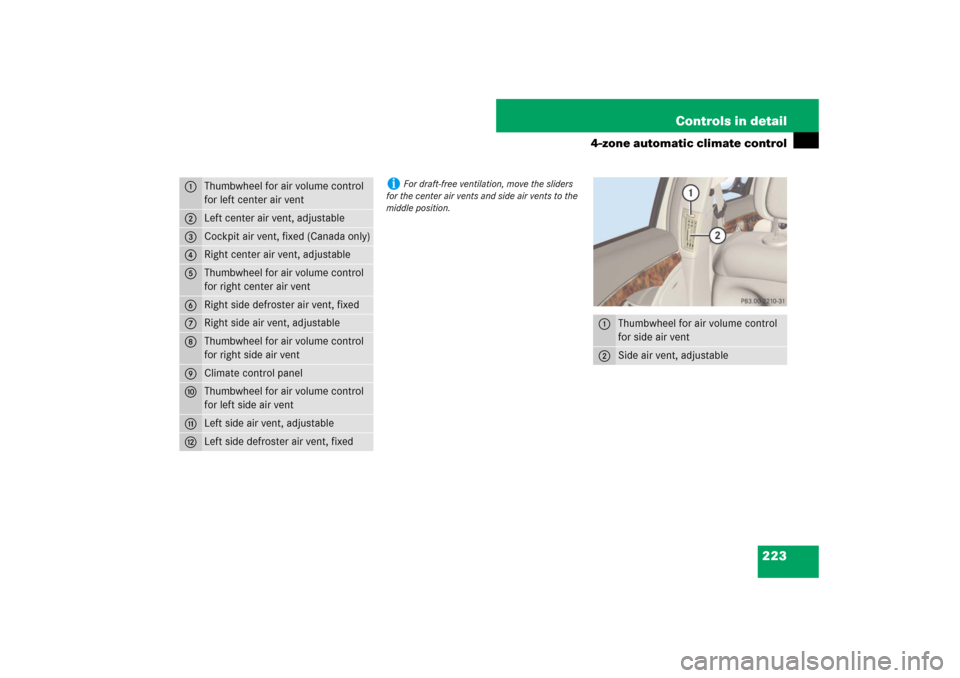

223 Controls in detail
4-zone automatic climate control
1
Thumbwheel for air volume control
for left center air vent
2
Left center air vent, adjustable
3
Cockpit air vent, fixed (Canada only)
4
Right center air vent, adjustable
5
Thumbwheel for air volume control
for right center air vent
6
Right side defroster air vent, fixed
7
Right side air vent, adjustable
8
Thumbwheel for air volume control
for right side air vent
9
Climate control panel
a
Thumbwheel for air volume control
for left side air vent
b
Left side air vent, adjustable
c
Left side defroster air vent, fixed
i
For draft-free ventilation, move the sliders
for the center air vents and side air vents to the
middle position.
1
Thumbwheel for air volume control
for side air vent
2
Side air vent, adjustable

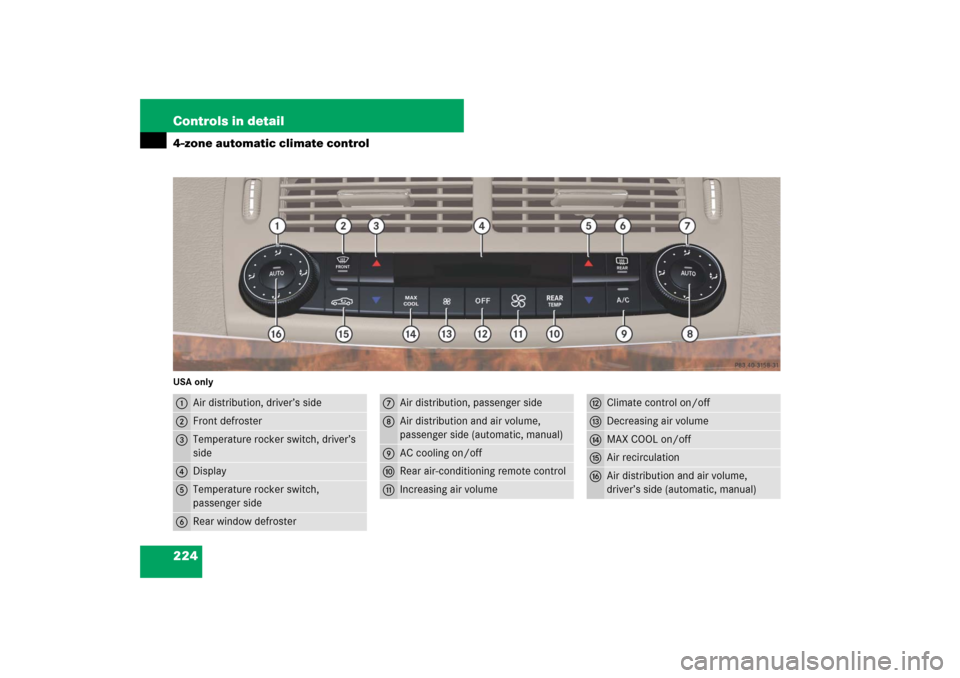

224 Controls in detail4-zone automatic climate controlUSA only1
Air distribution, driver’s side
2
Front defroster
3
Temperature rocker switch, driver’s
side
4
Display
5
Temperature rocker switch,
passenger side
6
Rear window defroster
7
Air distribution, passenger side
8
Air distribution and air volume,
passenger side (automatic, manual)
9
AC cooling on/off
a
Rear air-conditioning remote control
b
Increasing air volume
c
Climate control on/off
d
Decreasing air volume
e
MAX COOL on/off
f
Air recirculation
g
Air distribution and air volume,
driver’s side (automatic, manual)

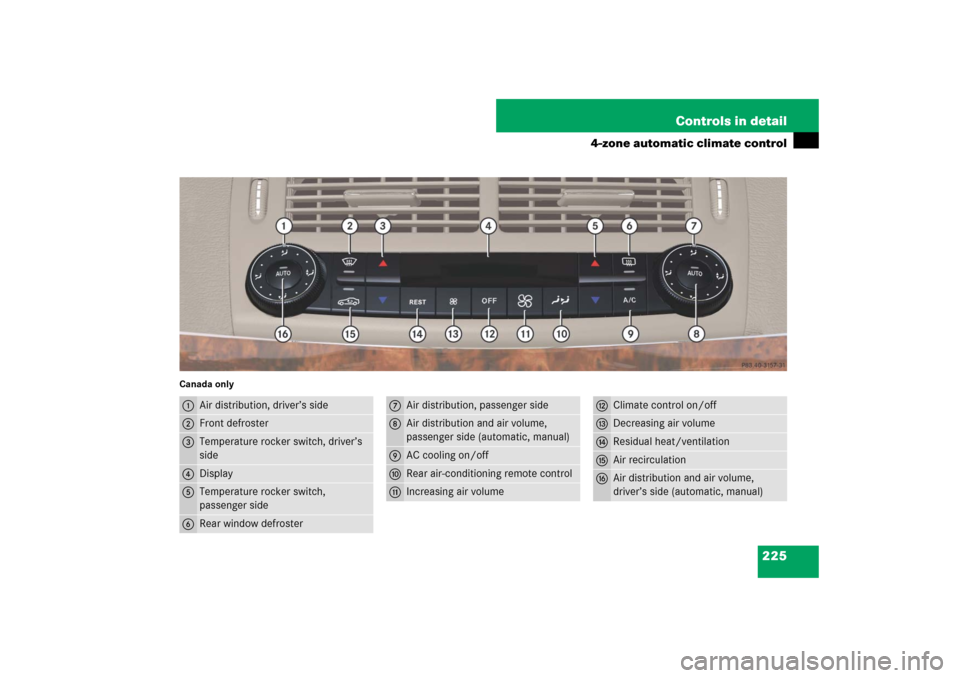

225 Controls in detail
4-zone automatic climate control
Canada only1
Air distribution, driver’s side
2
Front defroster
3
Temperature rocker switch, driver’s
side
4
Display
5
Temperature rocker switch,
passenger side
6
Rear window defroster
7
Air distribution, passenger side
8
Air distribution and air volume,
passenger side (automatic, manual)
9
AC cooling on/off
a
Rear air-conditioning remote control
b
Increasing air volume
c
Climate control on/off
d
Decreasing air volume
e
Residual heat/ventilation
f
Air recirculation
g
Air distribution and air volume,
driver’s side (automatic, manual)

226 Controls in detail4-zone automatic climate control

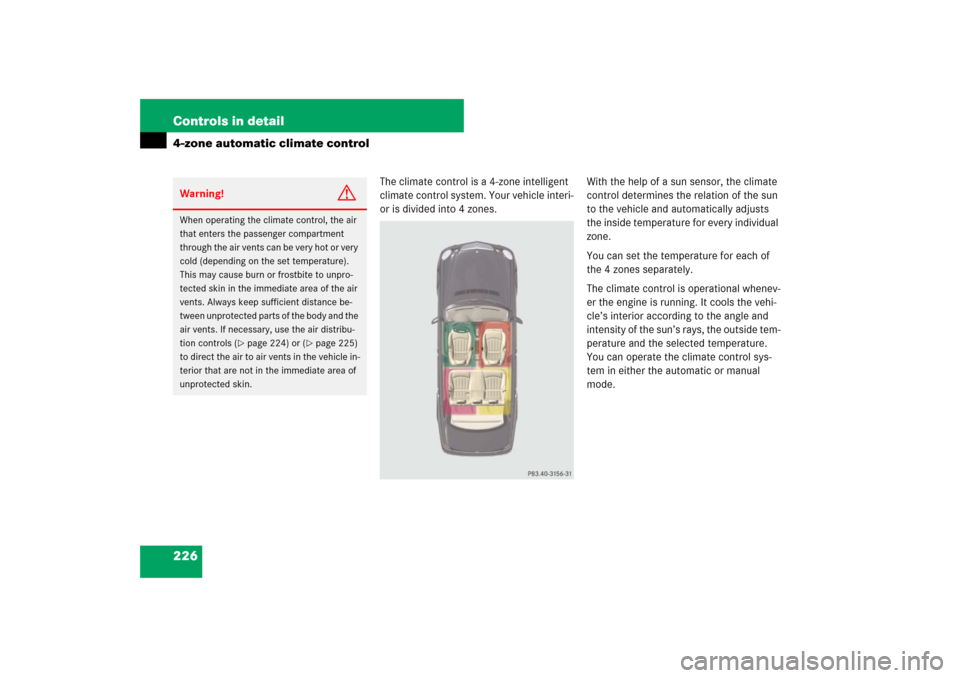

The climate control is a 4-zone intelligent
climate control system. Your vehicle interi-
or is divided into 4 zones.With the help of a sun sensor, the climate
control determines the relation of the sun
to the vehicle and automatically adjusts
the inside temperature for every individual
zone.
You can set the temperature for each of
the 4 zones separately.
The climate control is operational whenev-
er the engine is running. It cools the vehi-
cle’s interior according to the angle and
intensity of the sun’s rays, the outside tem-
perature and the selected temperature.
You can operate the climate control sys-
tem in either the automatic or manual
mode.
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burn or frostbite to unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion controls (
page 224) or (
page 225)
to direct the air to air vents in the vehicle in-
terior that are not in the immediate area of
unprotected skin.

227 Controls in detail
4-zone automatic climate control
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode (
page 235) is
deactivated. Deactivating the climate control
system
Deactivating
Press button´ (
page 224) or
(
page 225) until the display4
(page 224) or (
page 225) is
cleared.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (page 241). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
Do not obstruct air flow by placing objects on the
air flow-through exhaust slots below the rear
window.
Warning!
G
When the climate control is switched off, the
outside air supply and circulation are also
switched off. Only choose this setting for a
short time. Otherwise the windows could
fog up, impairing visibility and endangering
you and others.

228 Controls in detail4-zone automatic climate controlReactivating
Make sure the ignition is switched on.

Press button´ (
page 224) or
(
page 225) again.
The previous settings are once again in
effect.Operating the climate control system
in automatic modeActivating

Press buttonU (
page 224) or
(
page 225) while the engine is run-
ning.
The indicator lamp on the button
comes on.
AUTO
appears in the
display4 (
page 224) or
(
page 225). The air volume and air
distribution are adjusted automatically.

Use temperature rocker switches3
and5 (
page 224) or (
page 225)
to separately adjust the air tempera-
ture on each side of the passenger
compartment.
The temperature of the vehicle interior
is adjusted automatically.
i
To switch the system on, you can also press
another button, with the exception of 1
(USA only) (
page 224) or F and T
(Canada only) (page 225).
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off.Warning!
G
If you switch off the cooling function the
windows can fog up more quickly. Window
fogging may impair visibility and endanger
you and others.i
You can switch the automatic climate con-
trol system on and off for each side of the pas-
senger compartment as desired.

229 Controls in detail
4-zone automatic climate control
Deactivating
Press button
orQ
(page 224) or (
page 225).
The
AUTO
indicator in the display4
(
page 224) or (
page 225) goes
out. The automatic function for air vol-
ume is switched off, and air volume is
controlled according to the desired set-
ting.
or

Turn air distribution controls1
and7 (
page 224) or (
page 225)
on each side of the passenger compart-
ment to the desired symbol.
The indicator lamp on the correspond-
ing button goes out. Automatic air dis-
tribution is switched off in the
corresponding zone, and air distribu-
tion is controlled according to the de-
sired position.
Automatic air volume remains
switched on.
Setting the temperature
Use temperature control rocker
switches3 and5 (
page 224) or
(
page 225) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The adjusted temperature appears in the
display 4 (
page 224) or (
page 225).
The climate control will adjust to the set
temperature as fast as possible.Increasing

Push top of temperature control rocker
switch3 and/or5 (
page 224) or
(
page 225).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing

Push bottom of temperature control
rocker switch3 and/or 5
(page 224) or (
page 225).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
i
You can also adjust the temperature in the
rear passenger compartment (
page 237).
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
