MERCEDES-BENZ E43AMG 2017 W213 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2017, Model line: E43AMG, Model: MERCEDES-BENZ E43AMG 2017 W213Pages: 482, PDF Size: 6.31 MB

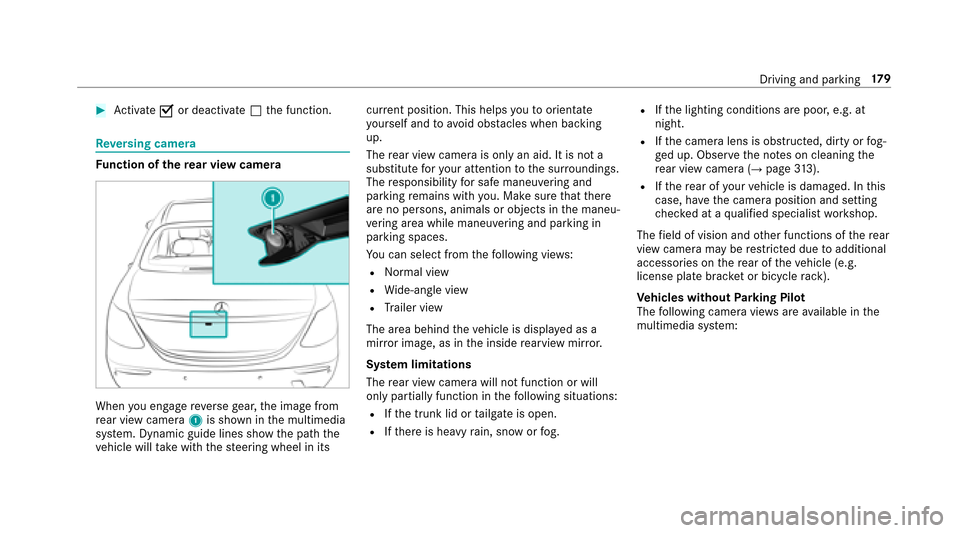

Page 181 of 482
#Activate Oor deacti vate ª the function.
Re versing camera
Fu nction of there ar view camera
When you enga gereve rsege ar, the image from
re ar view camera 1is shown in the multimedia
sy stem. Dynamic guide lines show the path the
ve hicle will take with thesteering wheel in its cur
rent position. This helps youto orientate
yo urself and toavo id obs tacles when back ing
up.
The rear view camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with you. Make sure that there
are no persons, animals or objects in the maneu‐
ve ring area while maneu vering and pa rking in
parking spaces.
Yo u can select from thefo llowing vie ws:
RNo rmal view
RWide-angle view
RTrailer view
The area behind theve hicle is displa yed as a
mir ror image, as in the inside rearview mir ror.
Sy stem limitations
The rear view camera will not function or will
only pa rtially function in thefo llowing situations:
RIf th e trunk lid or tailgate is open.
RIfth ere is heavy rain, snow or fog.
RIf th e lighting conditions are poor, e.g. at
night.
RIf th e camera lens is obstructed, dirty or fog‐
ge d up. Obser vethe no tes on cleaning the
re ar view camera (
→page 313).
RIfth ere ar of your vehicle is damaged. In this
c
ase, ha vethe camera position and setting
ch ecked at a qualified specialist workshop.
The field of vision and other functions of there ar
view camera may be restricted due toadditional
accessori es onthere ar of theve hicle (e.g.
license plate brac ket or bicycle rack ).
Ve hicles without Parking Pilot
The following camera vie wsare available in the
multimedia sy stem:
Driving and parking 17
9
Page 182 of 482

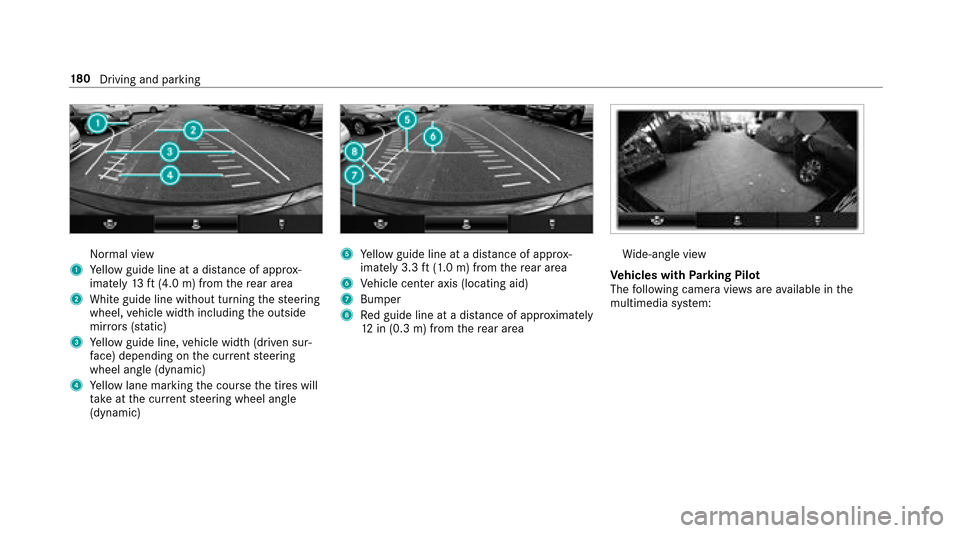

Normal view
1Yellow guide line at a dis tance of appr ox‐
imately 13ft(4.0 m) from there ar area
2White guide line without turning thesteering
wheel, vehicle width including the outside
mir rors (sta tic)
3Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
4Ye llow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
5Ye llow guide line at a dis tance of appr ox‐
imately 3.3 ft(1.0 m) from there ar area
6Ve hicle center axis (locating aid)
7Bumper
8Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
Wi de-angle view
Ve hicles with Parking Pilot
The following camera vie wsare available in the
multimedia sy stem:
18 0
Driving and pa rking

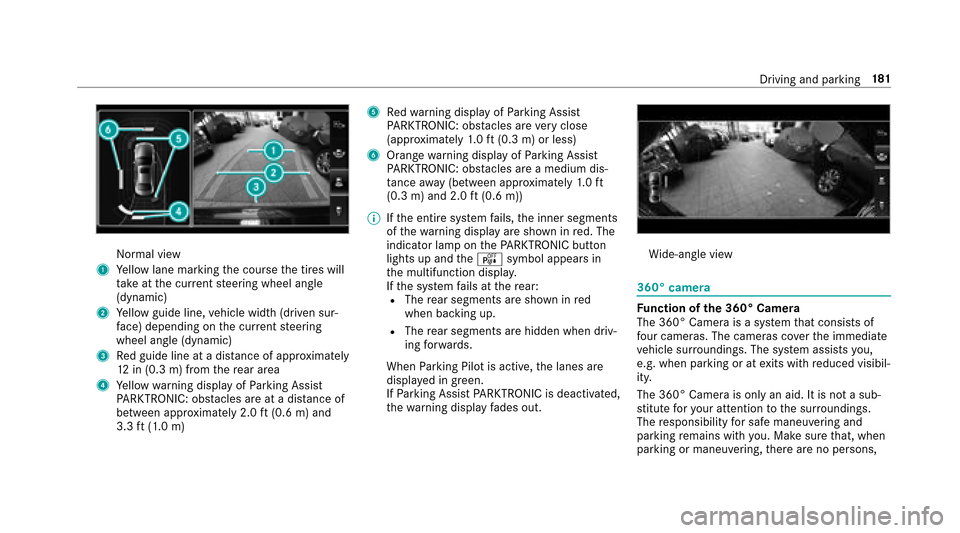

Page 183 of 482
Normal view
1Yellow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
4Ye llow warning display of Parking Assist
PA RKTRONIC: obstacles ar eat adis tance of
between appr oximately 2.0 ft(0.6 m) and
3.3 ft(1.0 m)
5Re dwa rning display of Parking Assist
PA RKTRONIC: obstacles ar eve ry close
(appr oximately 1.0 ft (0.3 m) or less)
6Orange warning display of Parking Assist
PA RKTRONIC: obstacles ar e amedium dis‐
ta nce away (between appr oximately 1.0 ft
(0.3 m) and 2.0 ft(0.6 m))
% Ifth e entire sy stem fails, the inner segments
of thewa rning display are shown in red. The
indicator lamp on thePA RKTRONI Cbut ton
lights up and theé symbol appears in
th e multifunction displa y.
If th e sy stem fails at there ar:
RThe rear segments are shown in red
when backing up.
RThe rear segments are hidden when driv‐
ing forw ards.
When Parking Pilot is active, the lanes are
displa yed in green.
If Pa rking Assist PARKTRONI Cis deacti vated,
th ewa
rnin
g display fades out.
Wi de-angle view
360° camera
Fu nction of the 360° Camera
The 360° Camera is a sy stem that consists of
fo ur cameras. The cameras co verth e immediate
ve hicle sur roundings. The sy stem assists you,
e.g. when parking or at exits with reduced visibil‐
ity.
The 360° Camera is only an aid. It is not a sub‐
st itute foryo ur attention tothe sur roundings.
The responsibility for safe maneu vering and
pa rking remains with you. Make sure that, when
parking or maneuvering, there are no persons,
Driving and parking 18
1

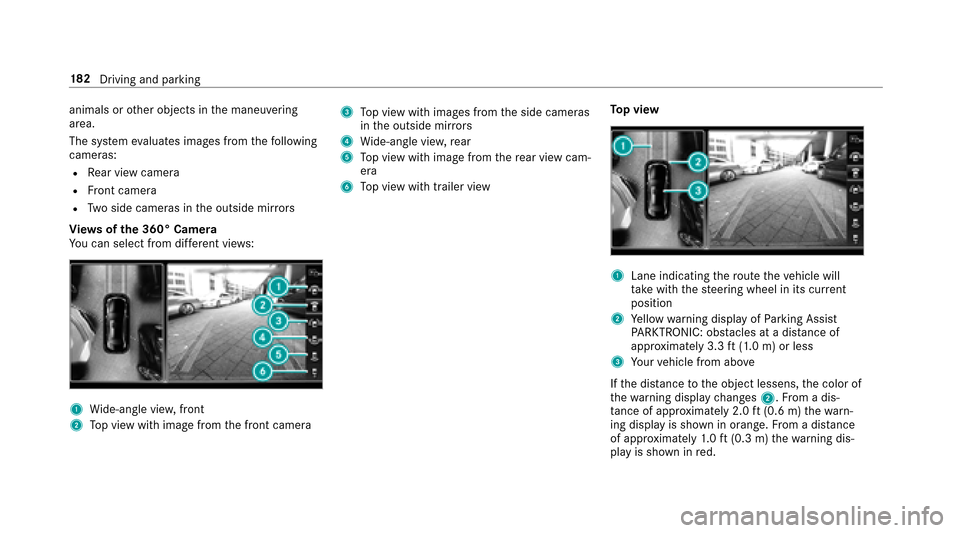

Page 184 of 482
animals orother objects in the maneuvering
area.
The sy stem evaluates images from thefo llowing
cameras:
RRe ar view camera
RFront camera
RTw o side cameras in the outside mir rors
Vi ew s of the 360° Camera
Yo u can select from differe nt vie ws:
1Wide-angle vie w,front
2Top view with image from the front camera
3To p view with images from the side cameras
in the outside mir rors
4Wi de-angle vie w,rear
5To p view with image from there ar view cam‐
era
6To p view with trailer view To
p view
1Lane indicating thero ute theve hicle will
ta ke with thesteering wheel in its cur rent
position
2Ye llow warning display of Parking Assist
PA RKTRONIC: obstacles at adis tance of
appr oximately 3.3 ft(1.0 m) or less
3Yo ur vehicle from abo ve
If th e dis tance tothe object lessens, the color of
th ewa rning display changes 2.From a dis‐
ta nce of appr oximately 2.0 ft(0.6 m) thewa rn‐
ing display is shown in orange. From a dis tance
of appr oximately 1.0 ft (0.3 m) thewa rning dis‐
play is shown in red.
18 2
Driving and pa rking

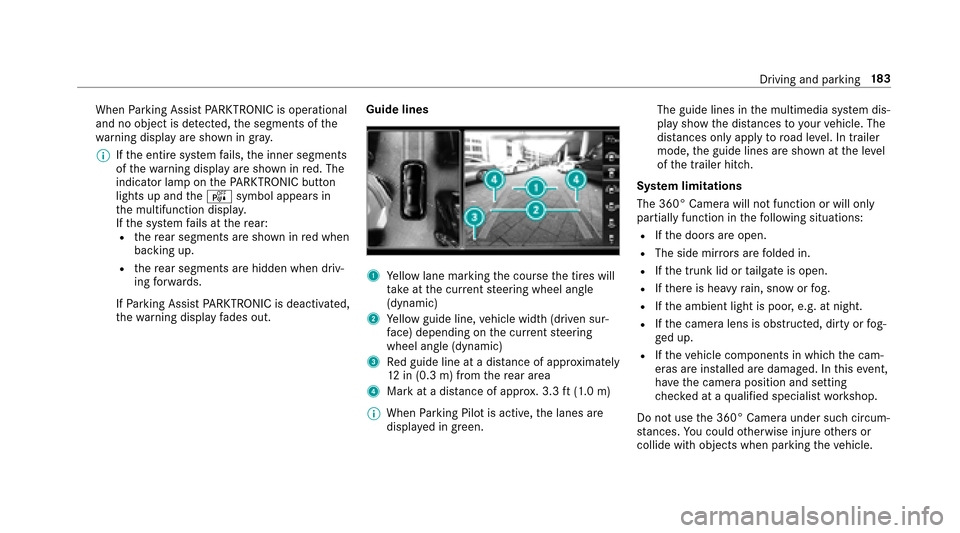

Page 185 of 482
WhenParking Assist PARKTRONI Cis operational
and no objec tis de tected, the segments of the
wa rning display are shown in gray .
% Ifth e entire sy stem fails, the inner segments
of thewa rning display are shown in red. The
indicator lamp on thePA RKTRONI Cbut ton
lights up and theé symbol appears in
th e multifunction displa y.
If th e sy stem fails at there ar:
Rthere ar segments are shown in red when
backing up.
Rth ere ar segments are hidden when driv‐
ing forw ards.
If Pa rking Assist PARKTRONI Cis deacti vated,
th ewa rning display fades out. Guide lines1Ye
llow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2Ye llow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3Re d guide line at a dis tance of appr oximately
12 in (0.3 m) from there ar area
4Mark at a distance of appr ox. 3.3 ft(1.0 m)
% When Parking Pilot is active, the lanes are
displa yed in green. The guide lines in
the multimedia sy stem dis‐
play show the dis tances toyour vehicle. The
dis tances only apply toroad le vel. In trailer
mode, the guide lines are shown at the le vel
of the trailer hitch.
Sy stem limitations
The 360° Camera will not function or will only
partially function in thefo llowing situations:
RIf th e doors are open.
RThe side mir rors are folded in.
RIf th e trunk lid or tailgate is open.
RIfth ere is heavy rain, snow or fog.
RIf th e ambient light is poor, e.g. at night.
RIfth e camera lens is obstructed, dirty or fog‐
ge d up.
RIfth eve hicle components in which the cam‐
eras are ins talled are damaged. In this eve nt,
ha ve the camera position and setting
ch ecked at a qualified specialist workshop.
Do not use the 360° Camera under such circum‐
st ances. You could otherwise injure others or
collide wit h objects when parking
theve hicle.
Driving and parking 18
3
Page 186 of 482
Onvehicles with height-adjus table suspension or
if th eve hicle is car rying a heavy load, leaving the
st andard height can result in inaccuracies in the
guide lines and in the display of thege nerated
ima ges, depending on tech nical conditions.
The field of vision and other functions of the
came rasystem may be restricted due toaddi‐
tional accessori es onthere ar of theve hicle (e.g.
license plate brac ket, bicycle rack ).
See the no tes on cleaning the 360° Camera
(
→page 313).
Selec ting a view fo r the 360° Camera
The $ X W R 5 H D U 9 L H Z & D P function is selected in
th e multimedia sy stem.
#En gage reve rsege ar.
#In the multimedia sy stem, select the desired
vie w. Opening
the camera co ver of the rear view
camera
Multimedia sy stem:
, 9 H K L F O H.k $ V V L V W D Q F H. 3 D U N L Q J
3 L O R W
#Select 2 S H Q & D P H U D & R Y H U .
% The camera co ver closes au tomatical lyafte r
some time or af ter an ignition cycle.
Assigning the camera as a favo rite
Yo u can call up the camera view directly in the
multimedia sy stem byassigning it as a favo rite .
#Press theò button on theto uchpad or
cont roller.
The main functions are displa yed.
#Na vigate down wards twice.
The Favorite s menu appears .
#Select 1 H Z ) D Y R U L W H .
#Select 9 H K L F O H .
#Select & D P H U D .
Parking Pilot
Fu nction of Parking Pilot
Pa rking Pilot is an elect ronic pa rking assis tance
sy stem which uses ultrasound and is automati‐
cally activated during forw ard tra vel. The sy stem
is operational at speeds of up toappr oximately
22 mph (35 km/h). When all the conditions are
fulfilled, thec symbol appears in the multi‐
function display and the sy stem automatically
sear ches for and measu res parking spaces on
bo th sides of theve hicle parallel and perpendic‐
ular tothe direction of tra vel. If Parking Pilot is
activated, suitable parking spaces are displa yed
in the multimedia sy stem. The ësymbol
appears in the multifunction displa y.The ar rows
show which side of thero ad free parking spaces
are located.
The parking space and, if necessar y,the parking
direction can be selected as desired. Parking
Pilot calculates a suitable vehicle path and
assists you in the parking and exiting procedure.
Ve hicles with automatic transmission: Park‐
ing Pilot accelerates, brakes, steers theve hicle
and changes gear.
18 4
Driving and pa rking

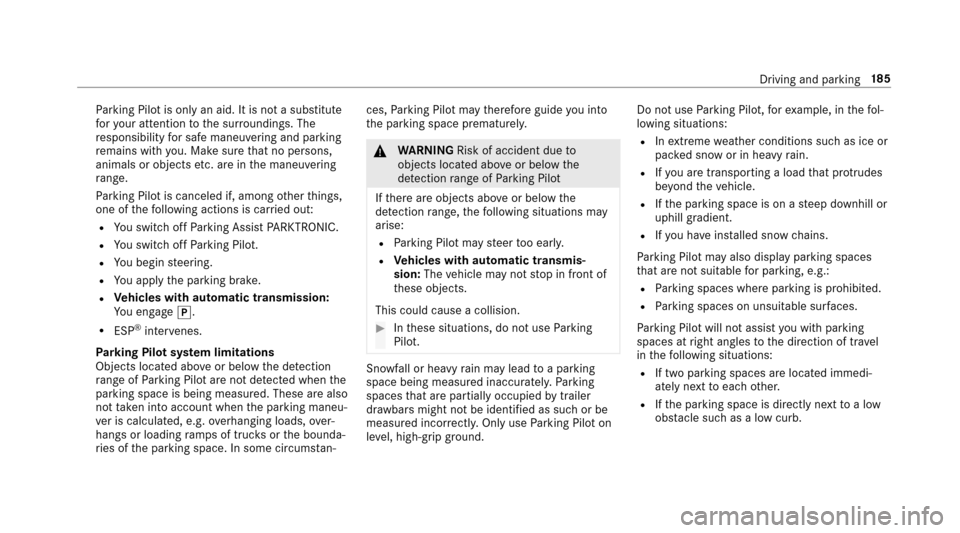

Page 187 of 482
Parking Pilot is only an aid. It is not a substitute
fo ryo ur attention tothe sur roundings. The
re sponsibility for safe maneu vering and pa rking
re mains with you. Make sure that no persons,
animals or objects etc. are in the maneuvering
ra nge.
Pa rking Pilot is canceled if, among other things,
one of thefo llowing actions is car ried out:
RYo uswit choff Parking Assist PARKTRONIC.
RYouswit choff Parking Pilot.
RYo u begin steering.
RYo uappl yth e parking brake.
RVe hicles with automatic transmission:
Yo u enga gej.
RESP®inter venes.
Pa rking Pilot sy stem limitations
Objects located abo veor below the de tection
ra nge of Parking Pilot are not de tected when the
parking space is being measured. These are also
not taken into account when the parking maneu‐
ve r is calculated, e.g. overhanging loads, over‐
hangs or loading ramp s of truc ksorthe bounda‐
ri es of the parking space. In some circums tan‐ ces,
Parking Pilot may therefore guide you into
th e parking space prematurely.
&
WARNING Risk of accident due to
objects located abo veor below the
de tection range of Parking Pilot
If th ere are objects abo veor below the
de tection range, thefo llowing situations may
arise:
RPa rking Pilot may steer too early.
RVe hicles with automatic transmis‐
sion: Thevehicle may not stop in front of
th ese objects.
This could cause a collision.
#In these situations, do not use Parking
Pilot.
Sn owfa ll or heavy rain may lead toa parking
space being measured inaccuratel y.Pa rking
spaces that are partial lyoccupied bytrailer
dr aw bars might not be identified as such or be
measured incor rectly. Only use Parking Pilot on
le ve l, high-grip ground. Do not use
Parking Pilot, forex ample, in thefo l‐
lowing situations:
RIn extreme weather conditions such as ice or
pac ked snow or in heavy rain.
RIfyo u are transport ing a loadthat pr otru des
be yond theve hicle.
RIfth e parking space is on a steep downhill or
uphill gradient.
RIf yo u ha veins talled snow chains.
Pa rking Pilot may also display parking spaces
th at are not suitable for parking, e.g.:
RPa rking spaces where parking is prohibited.
RPa rking spaces on unsuitable sur faces.
Pa rking Pilot will not assist youwit h parking
spaces at right angles tothe direction of tr avel
in thefo llowing situations:
RIf two parking spaces are located immedi‐
ately next toeach other.
RIfth e parking space is directly next toa low
obs tacle such as a low curb.
Driving and parking 18
5
Page 188 of 482
Parking Pilot will not assist youwit h parking
spaces parallel or at right angles tothe direction
of tra vel in thefo llowing situations:
RIf th e parking space is on a curb.
RIfth e parking space is bordered byan obs ta‐
cle, e.g. a tree, a post or a traile r.
Park ing with Parking Pilot
% Depending on theve hicle's equipment, the
button may also be located at a dif fere nt
position in the center console.
#Press button 1.
The Parking Pilot view appears on the display
of the multimedia sy stem. Area 2displa ys
de tected park ing spaces 4and vehicle path
3.
% Vehicle path 3shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
#Ifyo u ha vedriven past a suitable parking
space: bring theve hicle toast andstill.
#Select desired parking space 4.
#Where necessary,select the parking direc‐
tion: forw ards or reve rse.
Ve hicle path 3is shown, depending on the
selected parking space and parking direc‐
tion.
#Confirm the selected parking space.
18 6
Driving and pa rking
Page 189 of 482

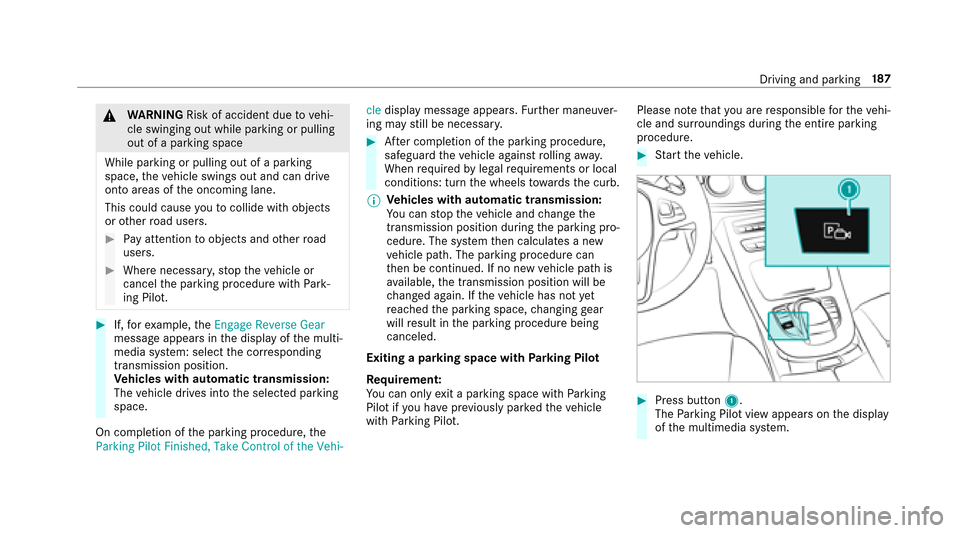

&WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or pulling out of a parking
space, theve hicle swings out and can drive
onto areas of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
#Pa yattention toobjects and other road
users.
#Where necessar y,stop theve hicle or
cancel the parking procedure with Park‐
ing Pilot.
#If, forex ample, the ( Q J D J H 5 H Y H U V H * H D U
message appears in the display of the multi‐
media sy stem: select the cor responding
transmission position.
Ve hicles with automatic transmission:
The vehicle drives into the selected parking
space.
On completion of the parking procedure, the
3 D U N L Q J 3 L O R W ) L Q L V K H G 7 D N H & R Q W U R O R I W K H 9 H K L F O H
display message appears. Further maneuver‐
ing may still be necessar y.
#After completion of the parking procedure,
safeguard theve hicle against rolling away.
When requ ired bylegal requirements or local
conditions: turn the wheels towa rdsth e curb.
% Ve
hicles with automatic transmission:
Yo u can stop theve hicle and change the
transmission position du ring the parking pro‐
cedure. The sy stem then calculates a new
ve hicle path. The parking procedure can
th en be continued. If no new vehicle path is
av ailable, the transmission position will be
ch anged again. If theve hicle has not yet
re ached the parking space, changing gear
will result in the parking procedure being
canceled.
Exiting a parking space with Parking Pilot
Re quirement:
Yo u can only exit a parking space with Parking
Pilot if you ha veprev iously par kedth eve hicle
with Parking Pilot. Please no
tethat you are responsible forth eve hi‐
cle and sur roundings during the entire parking
procedure.#St art theve hicle.
#Press button 1.
The Parking Pilot view appears on the display
of the multimedia sy stem.
Driving and parking 18
7
Page 190 of 482

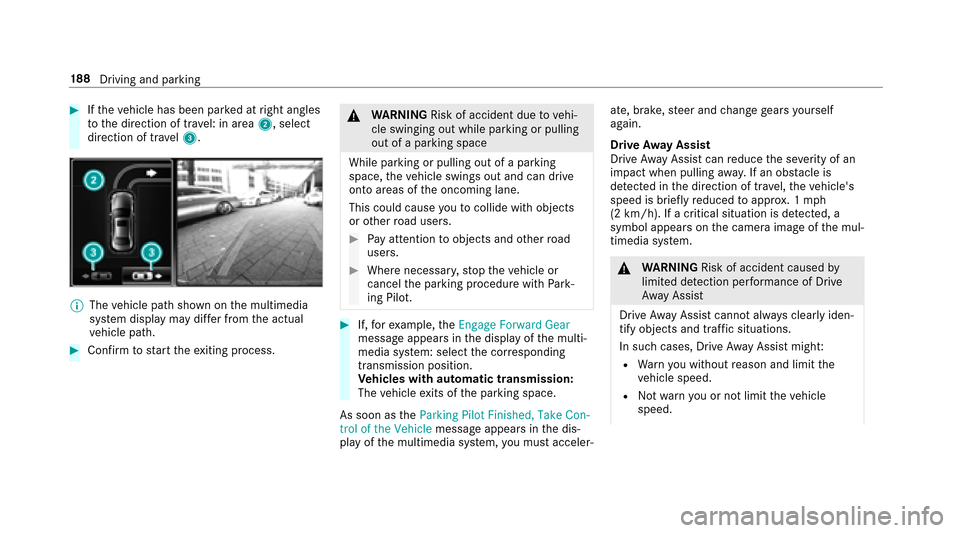

#Ifth eve hicle has been par ked at right angles
to the direction of tra vel: in area 2, select
direction of tra vel3.
%
The vehicle path shown on the multimedia
sy stem display may dif fer from the actual
ve hicle path.
#Confirm tostart theex iting process.
&
WARNING Risk of accident due tovehi‐
cle swinging out while parking or pulling
out of a parking space
While parking or pulling out of a parking
space, theve hicle swings out and can drive
onto areas of the oncoming lane.
This could cause youto collide wi thobjects
or other road users.
#Pa yattention toobjects and other road
users.
#Where necessar y,stop theve hicle or
cancel the parking procedure with Park‐
ing Pilot.
#If, forex ample, the ( Q J D J H ) R U Z D U G * H D U
message appears in the display of the multi‐
media sy stem: select the cor responding
transmission position.
Ve hicles with automatic transmission:
The vehicle exits of the parking space.
As soon as the 3 D U N L Q J 3 L O R W ) L Q L V K H G 7 D N H & R Q
W U R O R I W K H 9 H K L F O H message appears in the dis‐
play of the multimedia sy stem, you must acceler‐ ate,
brake, steer and change gears yourself
again.
Drive Away Assist
Drive AwayAssist canreduce the se verity of an
impact when pulling away. If an obs tacle is
de tected in the direction of tr avel, theve hicle's
speed is brief lyreduced toappr ox. 1 mph
(2 km/h). If a critical situation is de tected, a
symbol appea rson the camera image of the mul‐
timedia sy stem.
&
WARNING Risk of accident caused by
limited de tection per form ance of Drive
Aw ayAssist
Drive AwayAssist cannot al ways clearly iden‐
tify objects and traf fic situations.
In such cases, Drive AwayAssist might:
RWarnyouwit hout reason and limit the
ve hicle speed.
RNot warnyou or not limit theve hicle
speed.
18 8
Driving and pa rking
