Page 381 of 482

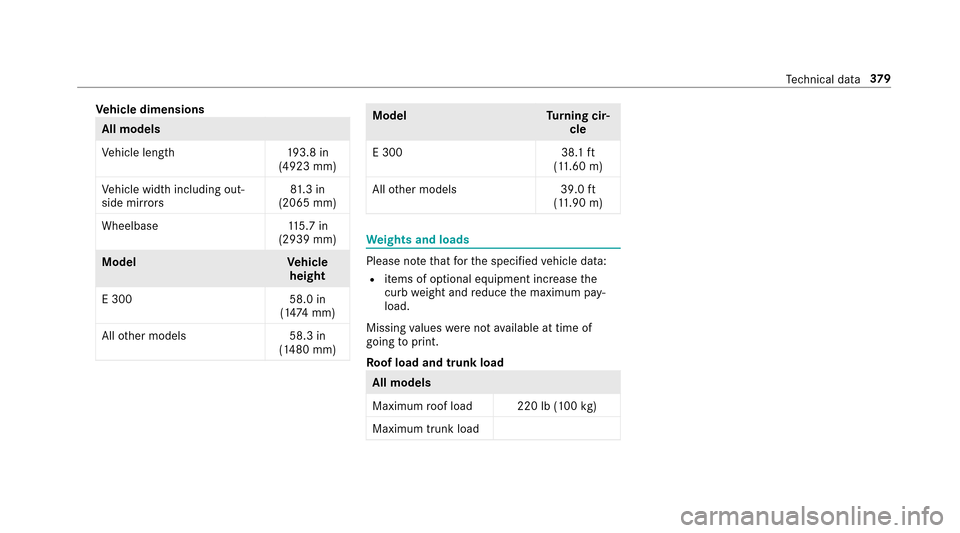

Vehicle dimensions
All models
Vehicle lengt h1 93.8 in
(4923 mm)
Ve hicle width including out‐
side mir rors 81
.3 in
(2065 mm)
Wheelbase 115.7 in
(2939 mm)
Model Vehicle
height
E 300 58.0 in
(1 47 4 mm)
All other models 58.3 in
(1480 mm)
Model Turning cir‐
cle
E 300 38.1ft
(1 1. 60 m)
All other models 39.0ft
(1 1. 90 m)
We ights and loads
Please no tethat forth e specified vehicle data:
Ritems of optional equipment increase the
curb weight and reduce the maximum pay‐
load.
Missing values werenot available at time of
going toprint.
Ro of load and trunk load
All models
Maximum roof load 220 lb (100 kg)
Maximum trunk load
Te ch nical da ta37
9
Page 382 of 482

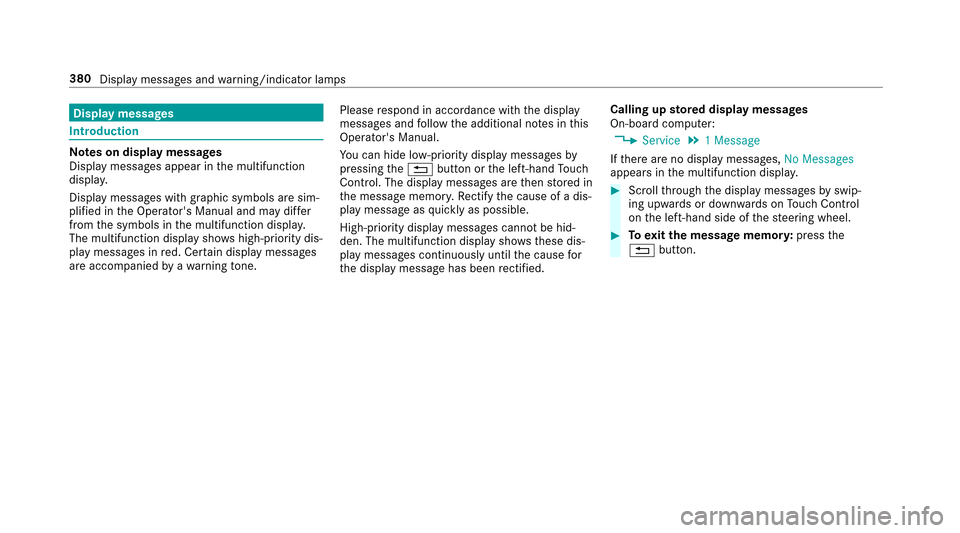

Displaymessages
Int roduction
Note s on display messages
Display messages appear in the multifunction
displa y.
Displ aymessage s with graphic symbols are sim‐
plified in the Operator's Manual and may dif fer
from the symbols in the multifunction displa y.
The multifunction display sho wshigh-priority dis‐
play messages in red. Cer tain display messages
are accompanied byawa rning tone. Please
respond in accordance with the display
messages and follow the additional no tes in this
Opera tor's Manual.
Yo u can hide lo w-priority display messages by
pressing the% button or the left-hand Touch
Control. The display messages arethen stored in
th e message memor y.Re ctify the cause of a dis‐
play message as quickly as possible.
High-priority display messages cannot be hid‐
den. The multifunction display sho wsthese dis‐
play messages continuously until the cause for
th e display message has been rectified. Calling up
stored displ aymessages
On-boa rdcompute r:, 6 H U Y L F H. 0 H V V D J H
If th ere are no display messages, 1 R 0 H V V D J H V
appears in the multifunction displa y.
#Scrollthro ugh the display messages byswip‐
ing upwards or down wards on Touch Control
on the left-hand side of thesteering wheel.
#To exitth e message memor y:press the
% button.
380
Display messages and warning/indicator lamps
Page 383 of 482

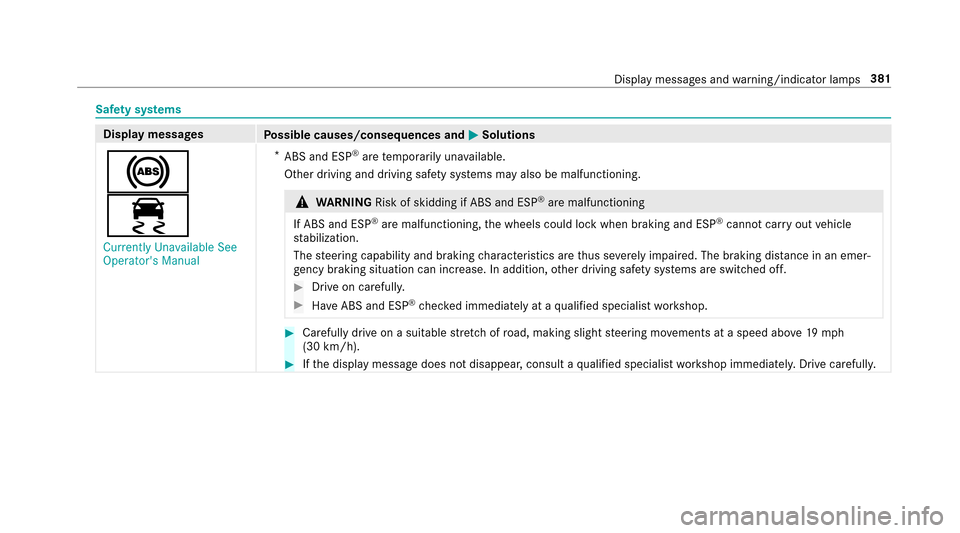

Safety sy stems
Display messages
Possible causes/consequences and MSolutions
!
÷
& X U U H Q W O \ 8 Q D Y D L O D E O H 6 H H
2 S H U D W R U
V 0 D Q X D O*
ABS and ESP
®are temp orarily una vailable.
Other driving and driving saf etysy stems may also be malfunctioning.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
Display messages and warning/indicator lamps 381
Page 384 of 482

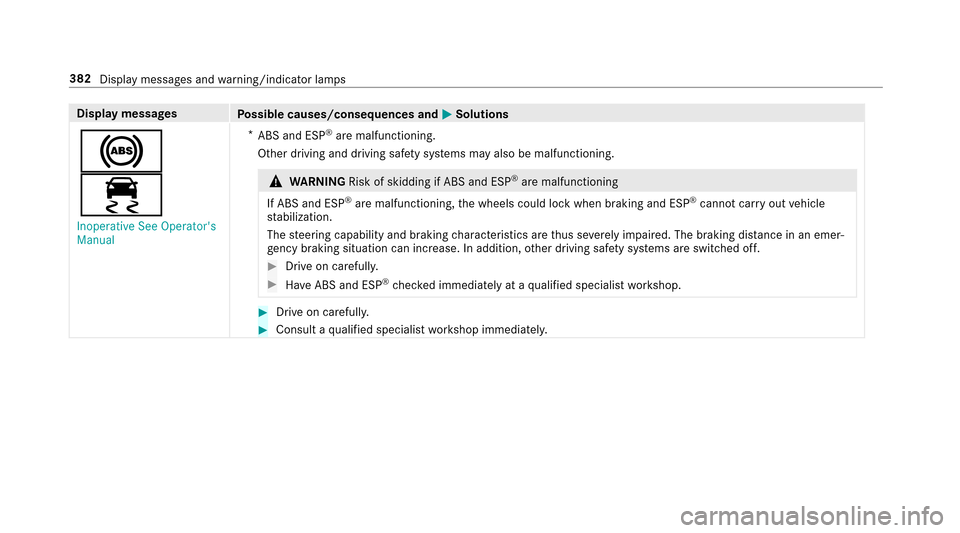

Displaymessages
Possible causes/consequences and MSolutions
!
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
ABS and ESP
®are malfunctioning.
Other driving and driving saf etysy stems may also be malfunctioning.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Consult a qualified specialist workshop immediatel y.
382
Display messages and warning/indicator lamps
Page 385 of 482

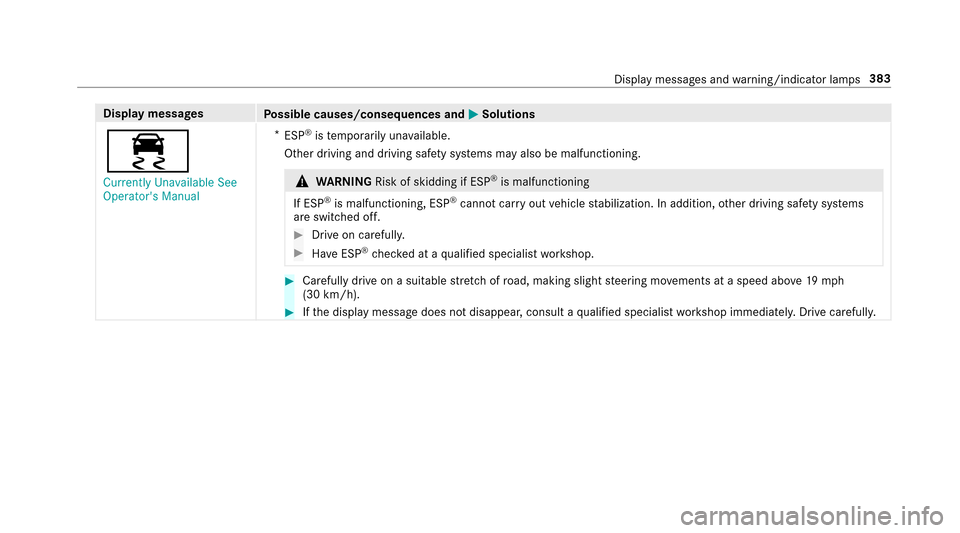

Displaymessages
Possible causes/consequences and MSolutions
÷
& X U U H Q W O \ 8 Q D Y D L O D E O H 6 H H
2 S H U D W R U
V 0 D Q X D O*
ESP
®is temp orarily una vailable.
Other driving and driving saf etysy stems may also be malfunctioning.
&
WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
Display messages and warning/indicator lamps 383
Page 386 of 482

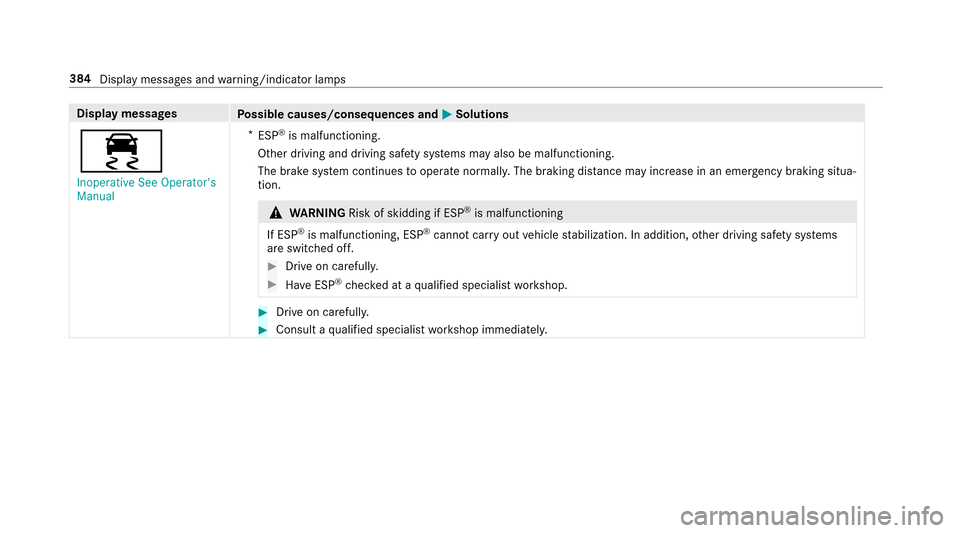

Displaymessages
Possible causes/consequences and MSolutions
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
ESP
®is malfunctioning.
Other driving and driving saf etysy stems may also be malfunctioning.
The brake sy stem continues tooperate normally. The braking dis tance may increase in an eme rgency braking situa‐
tion.
& WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Drive on carefully.
#Consult a qualified specialist workshop immediatel y.
384
Display messages and warning/indicator lamps
Page 387 of 482

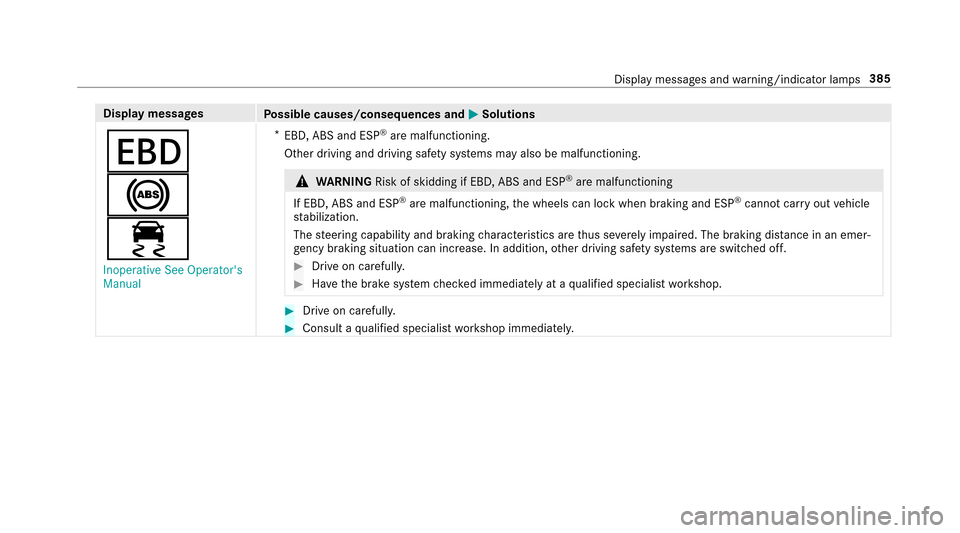

Displaymessages
Possible causes/consequences and MSolutions
T
!
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
EBD, ABS and ESP
®are malfunctioning.
Other driving and driving saf etysy stems may also be malfunctioning.
&
WARNING Risk of skidding if EBD, ABS and ESP®are malfunctioning
If EBD, ABS and ESP
®are malfunctioning, the wheels can lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have the brake sy stem checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Consult a qualified specialist workshop immediatel y.
Displaymessage s andwarning/indicator lamps 385
Page 388 of 482

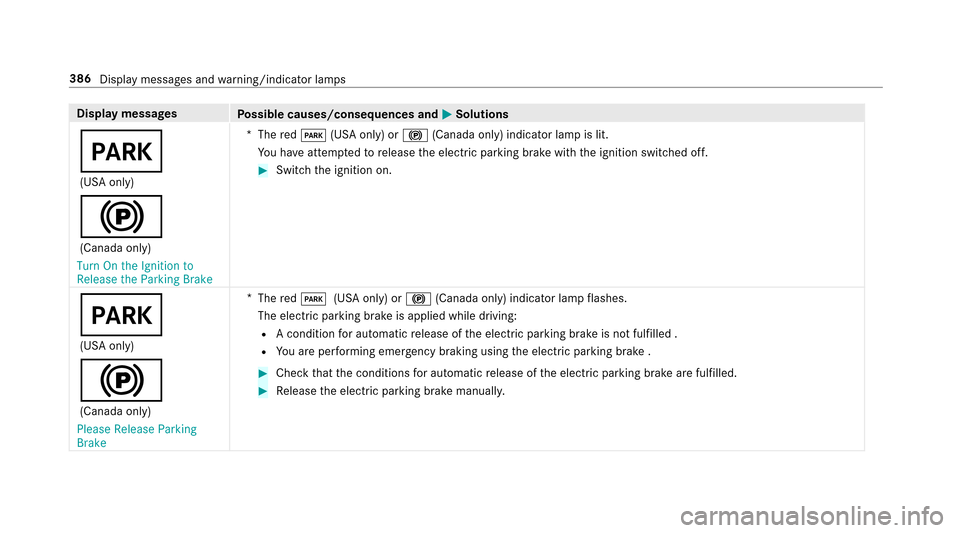

Displaymessages
Possible causes/consequences and MSolutions
F
(USA only)
!
(Canada only)
7 X U Q 2 Q W K H , J Q L W L R Q W R
5 H O H D V H W K H 3 D U N L Q J % U D N H *
The redF (USA only) or !(Canada only) indicator lamp is lit.
Yo u ha veattem ptedto release the electric parking brake with the ignition switched off.
#Switch the ignition on.
F
(USA only)
!
(Canada only)
3 O H D V H 5 H O H D V H 3 D U N L Q J
% U D N H *
The redF (USA only) or !(Canada only) indicator lamp flashes.
The electric parking brake is applied while driving:
RA condition for au tomatic release of the electric parking brake is not fulfilled .
RYo u are per form ing emer gency braking using the electric parking brake .
#Check that the conditions for au tomatic release of the electric parking brake are fulfilled.
#Re lease the electric parking brake manually.
386
Display messages and warning/indicator lamps
Page 389 of 482

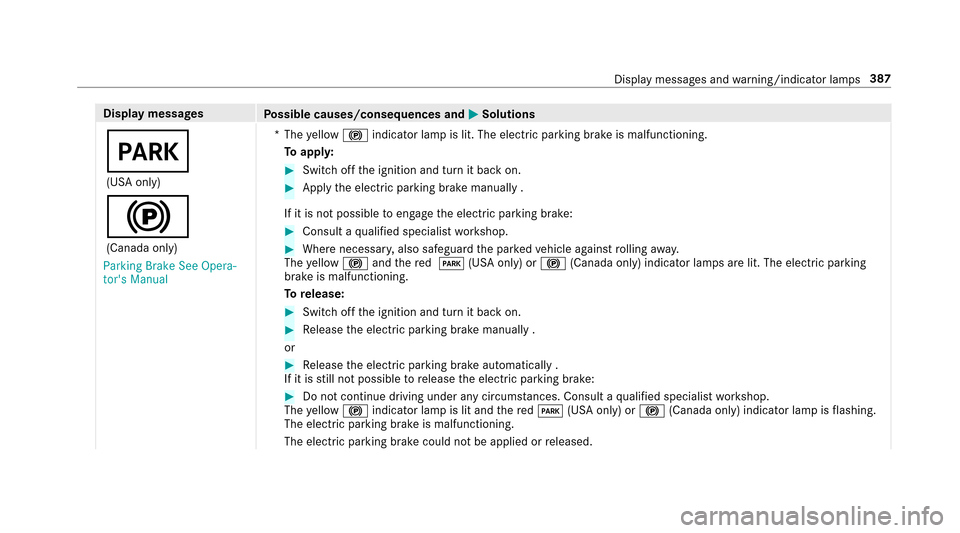

Displaymessages
Possible causes/consequences and MSolutions
F
(USA only)
!
(Canada only)
3 D U N L Q J % U D N H 6 H H 2 S H U D
W R U
V 0 D Q X D O *
The yellow ! indicator lamp is lit. The elect ric park ing brake is malfunctioning.
To appl y:
#Switch off the ignition and turn it back on.
#Apply the electric parking brake manually .
If it is not possible toengage the electric parking brake:
#Consult a qualified specialist workshop.
#Where necessar y,also safeguard the par kedve hicle against rolling away.
The yellow ! andthere d F (USA only) or !(Canada only) indicator lamps are lit. The electri c parking
brake is malfunctioning.
To release:
#Swit choff the ignition and turn it back on.
#Re lease the electric parking brake manually .
or
#Re lease the electric parking brake automatically .
If it is still not possible torelease the electric parking brake:
#Do not continue driving under any circums tances. Consult a qualified specialist workshop.
The yellow ! indicator lamp is lit and there dF (USA only) or !(Canada only) indicator lamp is flashing.
The electric parking brake is malfunctioning.
The electric parking brake could not be applied or released.
Display messages and warning/indicator lamps 387
Page 390 of 482

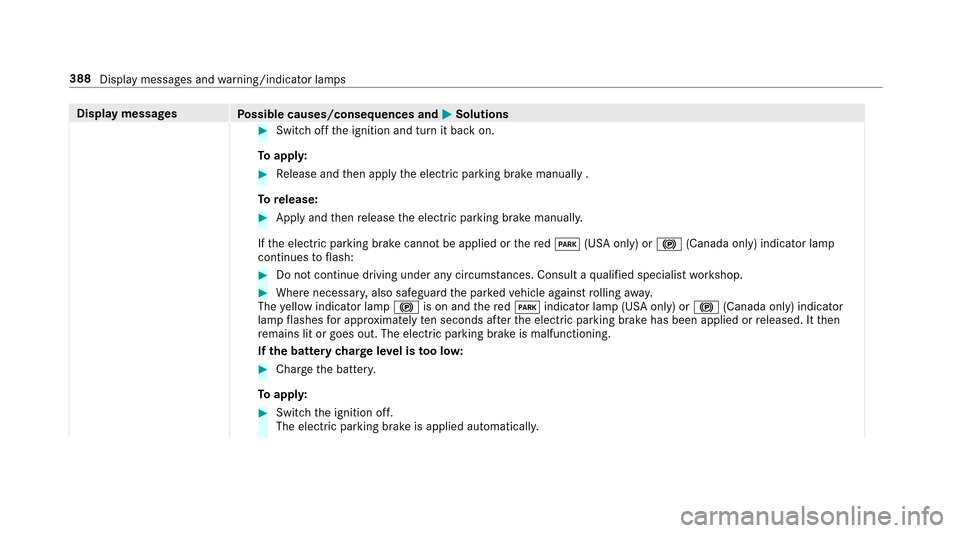

Displaymessages
Possible causes/consequences and MSolutions
#Switch offthe ignition and turn it back on.
To appl y:
#Release and then apply the electric parking brake manually .
To release:
#Apply and then release the electric parking brake manuall y.
If th e electric parking brake cannot be applied orthere dF (USA only) or !(Canada only) indicator lamp
continues toflash:
#Do not continue driving under any circum stances. Consult a qualified specialist workshop.
#Where necessar y,also safeguard the par kedve hicle against rolling away.
The yellow indicator lamp !is on and there dF indicator lamp (USA only) or !(Canada only) indicator
lamp flashes for app roxima tely ten seconds af terth e electric parking brake has been applied or released. It then
re mains lit or goes out. The electric parking brake is malfunctioning.
If th e batte rycharge leve l is too lo w:
#Char gethe batter y.
To appl y:
#Switch the ignition off.
The electric parking brake is applied automaticall y.
388
