MERCEDES-BENZ G-Class 2007 W463 Comand Manual

11 At a glance
Radio operating elements
FunctionPage
1Audio menu40
2Soft keys
(multifunction keys)
3Color display with Radio
main menu42
41 - 0, *
Station selection
Saving stations manually
Selecting a station from
the preset memory
43
47
49
5Push the joystick to
H,h,g,G
Function selection
g and G
e.g.
Automatic seek tuning
H and h
e.g. Manual tuning
Press E to confirm
44
44
FunctionPage
6J
Muting
41
7Volume control33
8e Switching on and off32
9d and D
Automatic seek tuning
Manual tuning
44
44

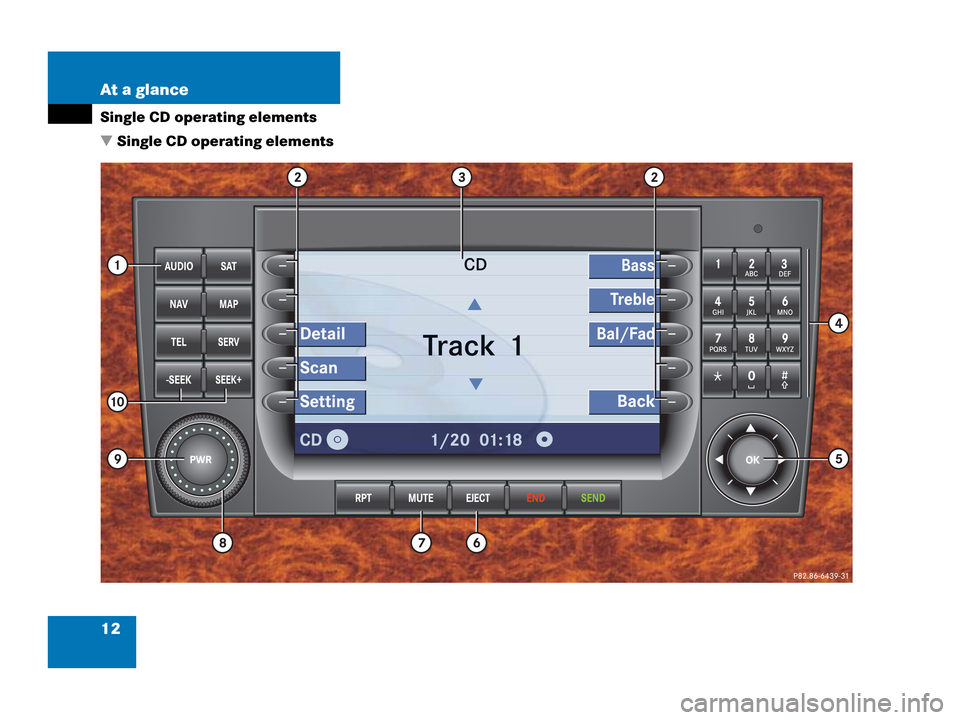

12 At a glance
Single CD operating elements

Single CD operating elements

13 At a glance
Single CD operating elements
FunctionPage
1Audio menu40
2Soft keys
(multifunction keys)
3Color screen with single
CD main menu
The status bar indicates
CD status information
56
56
41 - 0, *
Track select
59
5Push the joystick to
g and G
Track select
Press E to confirm
59
FunctionPage
6l
Ejecting/loading a CD into
the CD drive
i
There are two l
buttons. One is on the
display unit. The other is
located left of the CD
AUDIO slot behind the
display.
51
7J
Muting
62
8Volume control33
9e Switching on and off32
ad and D
Track select
Fast forward/reverse
59
62

14 At a glance
CD changer* operating elements

CD changer* operating elements

15 At a glance
CD changer* operating elements
The CD changer* is located in the rear
cargo compartment. Open the rear cargo
compartment to access the CD changer*.
Loading CDs into the CD changer*
(
page 54).
The CD changer* can accomodate up to 6
audio or MP3 CDs.
FunctionPage
1Audio menu40
2Soft keys
(multifunction keys)
3Color screen with CD
changer* main menu
The status bar indicates
CD status information
56
56
41 - 6
Selecting an audio CD or
MP3 CD
1 - 0, *
Track select
58, 59
59
5Push the joystick to
H and h
Selecting an audio CD or
MP3 CD
Push the joystick to
g and G
Track select
Selecting an audio CD or
MP3 CD
Press E to confirm
58
59
59
6J
Muting
62
7Volume control33
8e Switching on and off32
FunctionPageFunctionPage
9d and D
Track select
Fast forward/reverse
59
62

16 At a glance
MP3 CD operating elements

MP3 CD operating elements

17 At a glance
MP3 CD operating elements
FunctionPage
1Audio menu40
2Soft keys
(multifunction keys)
3Color screen with MP3
main menu
The status bar indicates
MP3 CD status
information
70
41 - 0, *
Track select
74
5Push the joystick to
H and h
Selecting a folder
Push the joystick to
g and G
Track select or
Activating playback mode
Selecting a folder
Press E to confirm
71
73
76
72
6l
Ejecting/loading a MP3
CD into the CD drive
i
There are two l
buttons. One is on the
display unit. The other is
located left of the CD
AUDIO slot behind the
display.
51
7J
Muting
75
8Volume control33
9e Switching on and off32
ad and D
Fast forward/reverse
75
FunctionPage

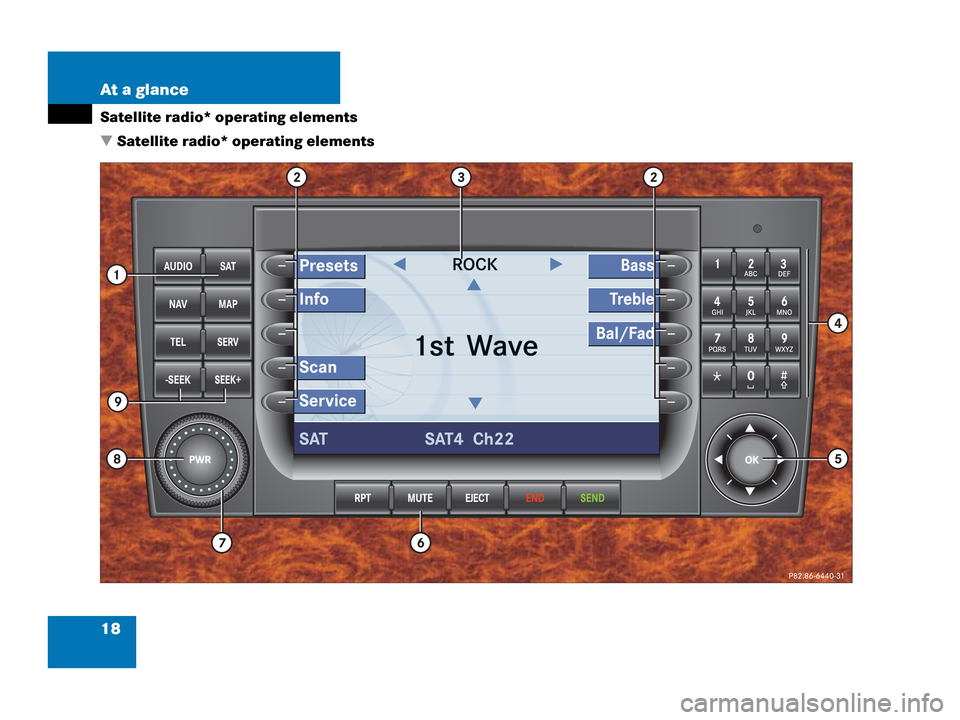

18 At a glance
Satellite radio* operating elements

Satellite radio* operating elements

19 At a glance
Satellite radio* operating elements
FunctionPage
1Satellite radio main menu
Switching satellite
operation on and off80
80
2Soft keys
(multifunction keys)
3Color screen with Satellite
radio main menu
80
41 - 0, *
Station selection via direct
channel entry
Saving stations manually
82
83
5Push the joystick to
H,h,g,G
Selecting a category,
selecting a station
Press E to confirm
6J
Muting
81
FunctionPage
7Volume control33
8e Switching on and off32
9d and D
Previous or next channel
81

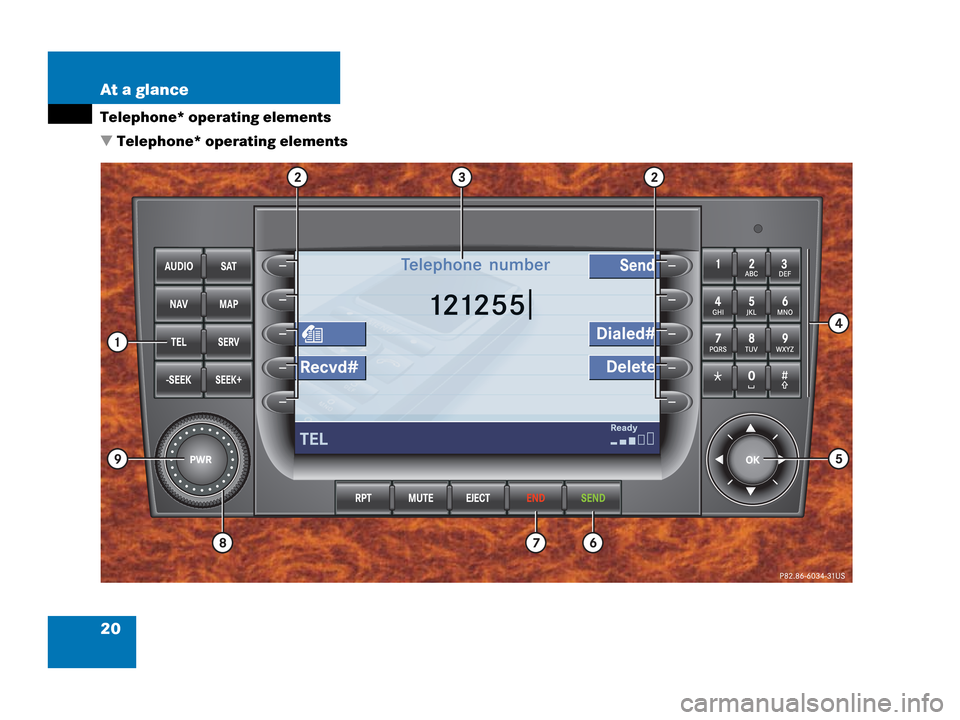

20 At a glance
Telephone* operating elements

Telephone* operating elements
