30 At a glance
Menu system
The main area 2 shows messages and
settings.
You can change the settings by operating
the system.
The status bar 3 is divided into three
areas.
Left side:
The current operating mode is indicated. In
this example: RadioCenter:
The status of the current operating mode
or other selectable functions are indicated.
In this example:FM = current waveband
1 = memory location of station,
e.g. “1”
Right side:
General status information is indicated
independent of the operating mode.
In this example:
Ready = Telephone* is ready for
operation
 = Reception strength of the
mobile phone*Menu functions and submenus
Using the soft keys, functions can be
switched ON or OFF, or submenus can be
called up.
E.g. the radio menu:The FM/AM soft key switches between
FM and AM band.
The Scan soft key starts/stops the
channel scan.
i
A maximum of five soft keys may be
displayed on each side of the main
area2.

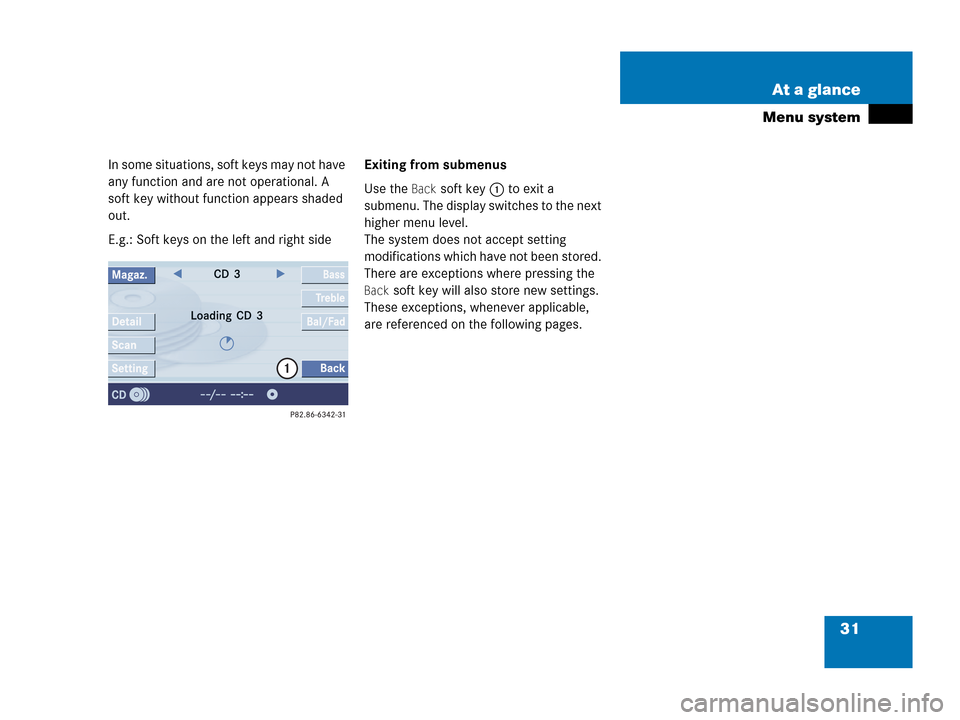

31 At a glance
Menu system
In some situations, soft keys may not have
any function and are not operational. A
soft key without function appears shaded
out.
E.g.: Soft keys on the left and right sideExiting from submenus
Use the
Back soft key 1 to exit a
submenu. The display switches to the next
higher menu level.
The system does not accept setting
modifications which have not been stored.
There are exceptions where pressing the
Back soft key will also store new settings.
These exceptions, whenever applicable,
are referenced on the following pages.

32 At a glance
Quick reference COMAND

Quick reference COMAND
Switching on
Turn the key in the starter switch to
position 1 or 2 if the COMAND was
switched off by turning the key in the
starter switch to position 0 and
removing it.
or
Press e.
In both cases, the system will activate
the operating mode which was active
when the system was switched off.Switching off
Turn the key in the starter switch to
position 0 and pull the key out.
or
Press e.
When the audio is playing, the volume
knob will adjust the audio volume, and also
the volume for telephone and navigation.
During a telephone call (talking or ringing),
the volume knob will adjust the telephone
voice and ringer volume.
The volume for the navigation announce-
ments can only be changed while an
announcement is being made.
When you adjust the volume, the system
will automatically store the setting for the
current operating mode.
i
You have the following options to
control the system:
at the COMAND
at the multifunction steering wheel
(refer to vehicle Operator’s Manual)
This Operator’s Manual describes the
control at the COMAND.
Unless otherwise indicated, the
descriptions and illustrations refer to
the COMAND.
Switching the COMAND control unit
on and off
i
For an explanation of starter switch
positions, refer to vehicle Operator’s
Manual.
i
If the key is not in the starter switch in
position 1 or 2, the system will automa-
tically stop after around 30 minutes.
Volume

33 At a glance
Quick reference COMAND
Adjusting the volume
At the COMAND, turn the rotary control
at the e key.
or
Press J or I on the
multifunction steering wheel.
The volume is turned up or down
depending on the direction of rotation
or the key pressed on the
multifunctional steering wheel.
The system remembers the volume
setting when it is switched off.Automatic volume control
The automatic volume control feature
adjusts the volume depending on:
vehicle speed (only in vehicles without
premium sound system*)
or
ambient noise inside the vehicle (only
in vehicles with premium sound
system*)
i
When the system is switched on again,
the volume may be lower or higher than
at the time when the system was
switched OFF.
This will be the case when the volume
was adjusted to a value outside a
certain range when the system was
switched off.
i
This function is active all the time and
cannot be turned on and off.

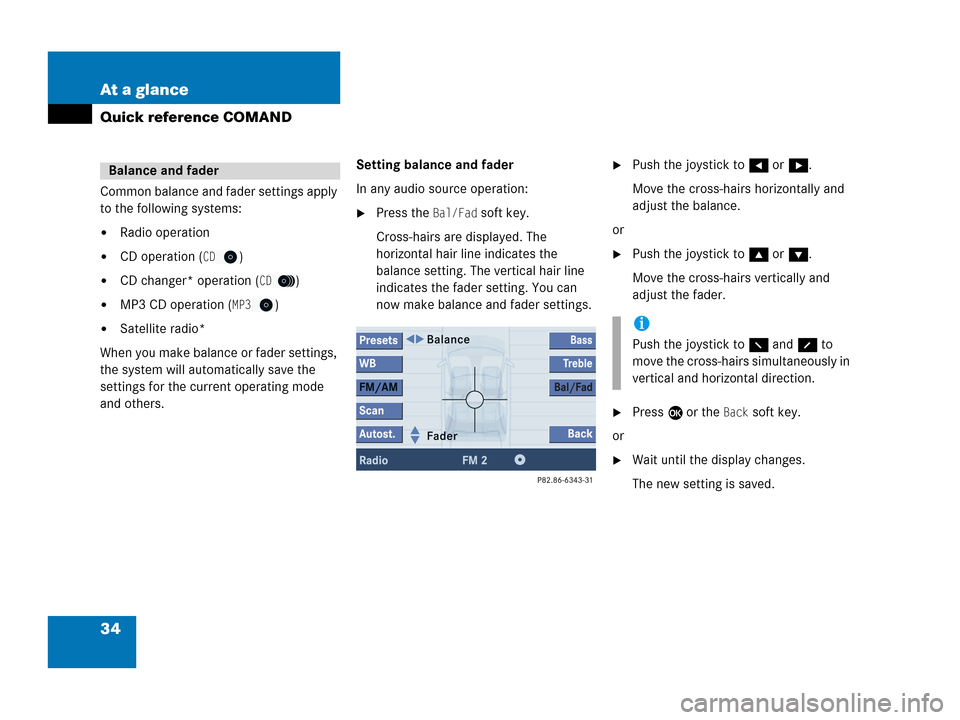

34 At a glance
Quick reference COMAND
Common balance and fader settings apply
to the following systems:
Radio operation
CD operation (CD)
CD changer* operation (CD)
MP3 CD operation (MP3)
Satellite radio*
When you make balance or fader settings,
the system will automatically save the
settings for the current operating mode
and others.Setting balance and fader
In any audio source operation:
Press the Bal/Fad soft key.
Cross-hairs are displayed. The
horizontal hair line indicates the
balance setting. The vertical hair line
indicates the fader setting. You can
now make balance and fader settings.
Push the joystick to H or h.
Move the cross-hairs horizontally and
adjust the balance.
or
Push the joystick to g or G.
Move the cross-hairs vertically and
adjust the fader.
Press E or the Back soft key.
or
Wait until the display changes.
The new setting is saved.
Balance and fader
i
Push the joystick to F and f to
move the cross-hairs simultaneously in
vertical and horizontal direction.

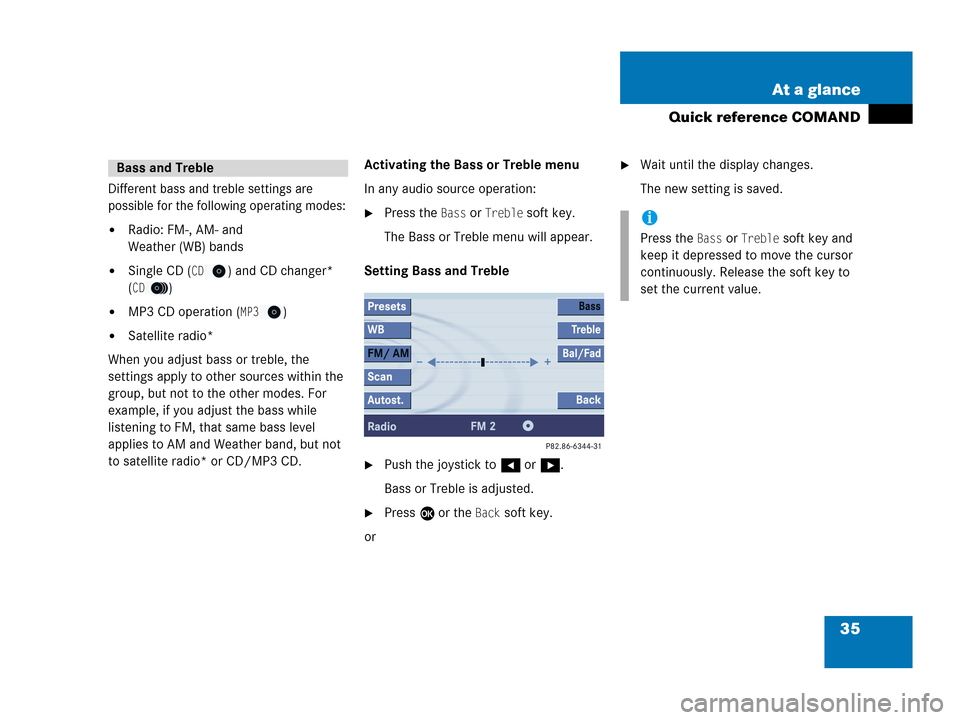

35 At a glance
Quick reference COMAND
Different bass and treble settings are
possible for the following operating modes:
Radio: FM-, AM- and
Weather (WB) bands
Single CD (CD) and CD changer*
(
CD)
MP3 CD operation (MP3)
Satellite radio*
When you adjust bass or treble, the
settings apply to other sources within the
group, but not to the other modes. For
example, if you adjust the bass while
listening to FM, that same bass level
applies to AM and Weather band, but not
to satellite radio* or CD/MP3 CD.Activating the Bass or Treble menu
In any audio source operation:
Press the Bass or Treble soft key.
The Bass or Treble menu will appear.
Setting Bass and Treble
Push the joystick to H or h.
Bass or Treble is adjusted.
Press E or the Back soft key.
or
Wait until the display changes.
The new setting is saved.

Bass and Treble
i
Press the Bass or Treble soft key and
keep it depressed to move the cursor
continuously. Release the soft key to
set the current value.

36 At a glance
Quick reference COMAND
If your vehicle is equipped with the
premium sound system*, the sound
functions* will be available for the
following operating modes:
Radio: FM-, AM- and
Weather (WB) bands
Single CD (CD) and CD changer*
(
CD)
MP3 CD operation (MP3)
Satellite radio*
The following sound functions* are
available:
Default Settings:
COMAND sets the default settings
(Bass, Treble, Bal/Fad) for the active
source mode.
Standard:
COMAND sets the sound linear for the
center of the vehicle.
Speech:
Playback optimized for language
comprehensibility.
LOGIC7 Surround:
Surround playback.
You can use different sound functions* for
the modes mentioned above.
E.g.:
For radio operation the function
Standard, for CD operation the function
LOGIC7 Surround.Activating the sound functions*
In any audio source operation:
Activate the main menu for the
respective operating mode
(
page 29).
Press the Sound soft key.
The Sound menu will appear.
Push the joystick to g or G to
select the desired function.
Press E.
The function is activated.
Sound functions*
i
LOGIC7 Surround sound offers a sound
quality superior to conventional stereo
sound.
If the radio reception is poor, the
system should be switched back to
standard stereo playback. Switching
back to standard stereo playback may
improve audio quality.

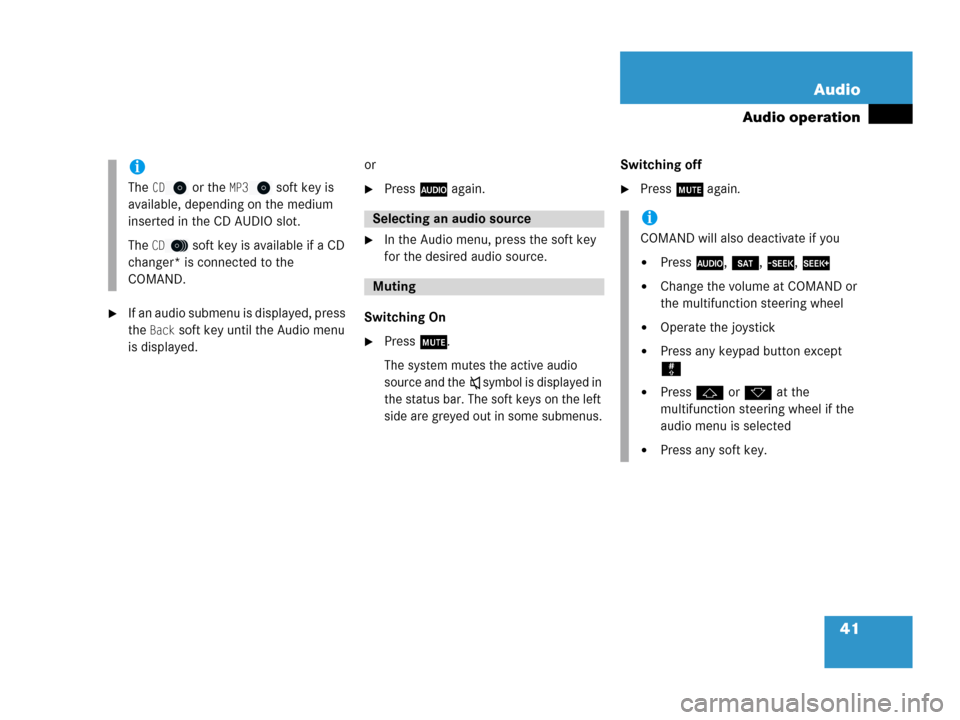

41 Audio
Audio operation
If an audio submenu is displayed, press
the
Back soft key until the Audio menu
is displayed.or
Press A again.
In the Audio menu, press the soft key
for the desired audio source.
Switching On
Press J.
The system mutes the active audio
source and the
ß symbol is displayed in
the status bar. The soft keys on the left
side are greyed out in some submenus.
Switching off
Press J again.
i
The CD or the MP3 soft key is
available, depending on the medium
inserted in the CD AUDIO slot.
The
CD soft key is available if a CD
changer* is connected to the
COMAND.
Selecting an audio source
Muting
i
COMAND will also deactivate if you
Press A, B, g, h
Change the volume at COMAND or
the multifunction steering wheel
Operate the joystick
Press any keypad button except
#
Press j or k at the
multifunction steering wheel if the
audio menu is selected
Press any soft key.

42 Audio

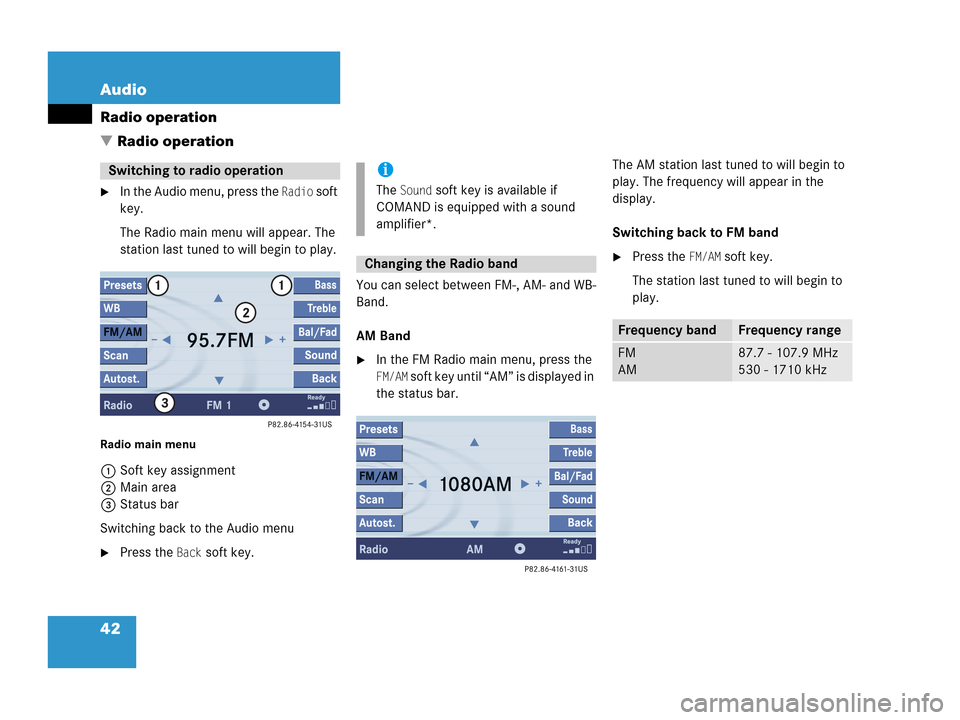

Radio operation

Radio operation
In the Audio menu, press the Radio soft
key.
The Radio main menu will appear. The
station last tuned to will begin to play.
Radio main menu
1Soft key assignment
2Main area
3Status bar
Switching back to the Audio menu
Press the Back soft key.You can select between FM-, AM- and WB-
Band.
AM Band
In the FM Radio main menu, press the
FM/AM soft key until “AM” is displayed in
the status bar.The AM station last tuned to will begin to
play. The frequency will appear in the
display.
Switching back to FM band
Press the FM/AM soft key.
The station last tuned to will begin to
play.
Switching to radio operationi
The Sound soft key is available if
COMAND is equipped with a sound
amplifier*.
Changing the Radio band
Frequency bandFrequency range
FM
AM87.7 - 107.9 MHz
530 - 1710 kHz

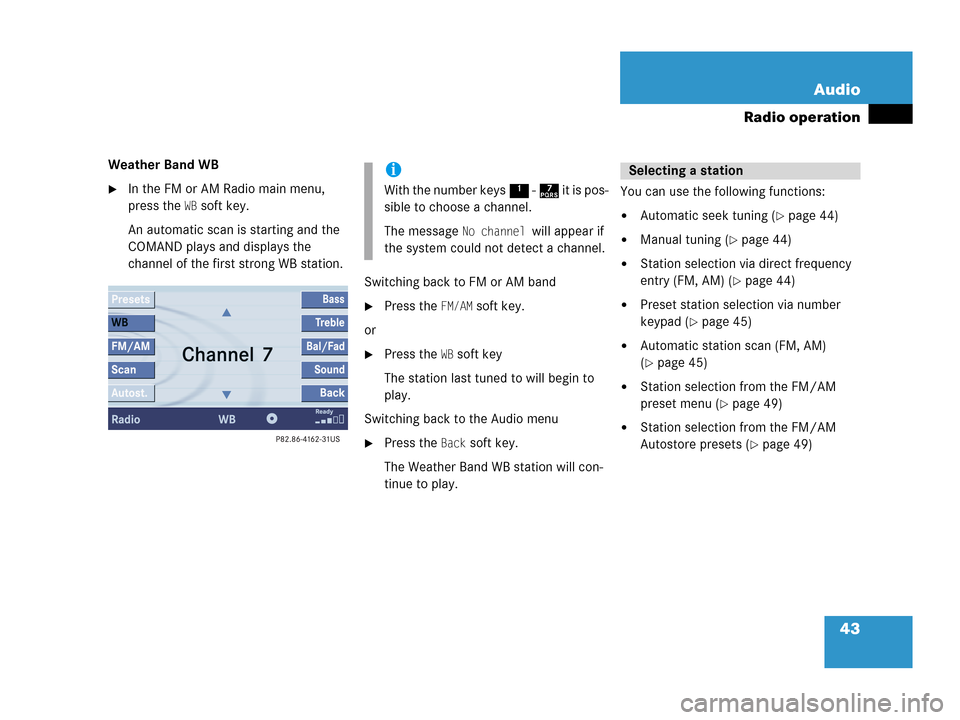

43 Audio
Radio operation
Weather Band WB
In the FM or AM Radio main menu,
press the
WB soft key.
An automatic scan is starting and the
COMAND plays and displays the
channel of the first strong WB station.
Switching back to FM or AM band
Press the FM/AM soft key.
or
Press the WB soft key
The station last tuned to will begin to
play.
Switching back to the Audio menu
Press the Back soft key.
The Weather Band WB station will con-
tinue to play.You can use the following functions:
Automatic seek tuning (page 44)
Manual tuning (page 44)
Station selection via direct frequency
entry (FM, AM) (
page 44)
Preset station selection via number
keypad (
page 45)
Automatic station scan (FM, AM)
(
page 45)
Station selection from the FM/AM
preset menu (
page 49)
Station selection from the FM/AM
Autostore presets (
page 49)
i
With the number keys 1 - 7 i t i s p o s -
sible to choose a channel.
The message
No channel will appear if
the system could not detect a channel.
Selecting a station
