MERCEDES-BENZ G-Class 2007 W463 Comand Manual

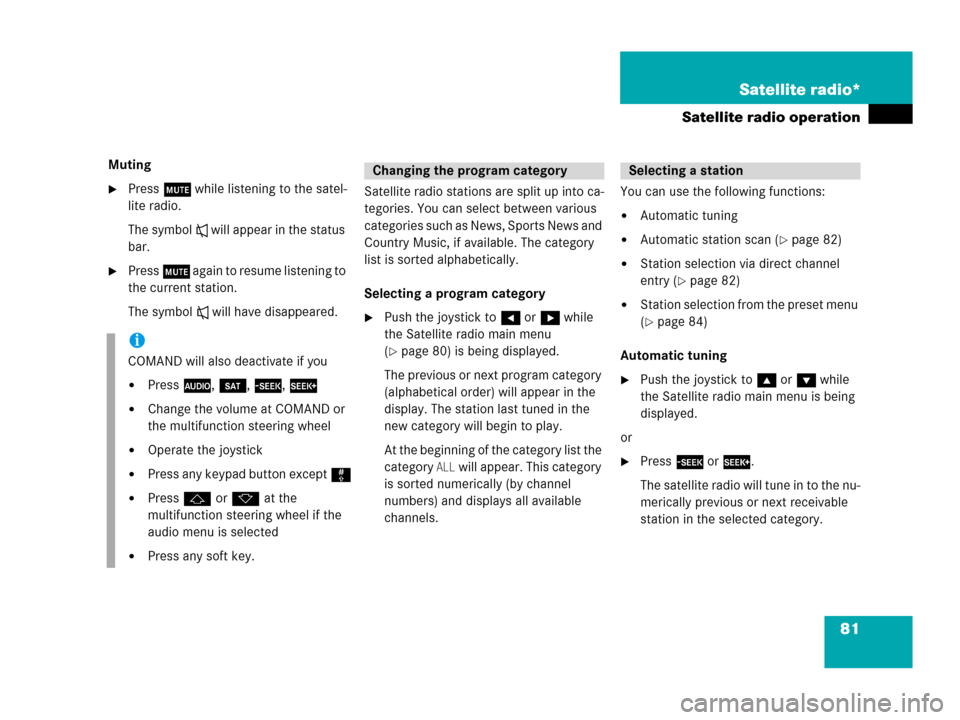

81 Satellite radio*
Satellite radio operation
Muting
Press J while listening to the satel-
lite radio.
The symbol R will appear in the status
bar.
Press J again to resume listening to
the current station.
The symbol R will have disappeared.Satellite radio stations are split up into ca-
tegories. You can select between various
categories such as News, Sports News and
Country Music, if available. The category
list is sorted alphabetically.
Selecting a program category
Push the joystick to H or h while
the Satellite radio main menu
(
page 80) is being displayed.
The previous or next program category
(alphabetical order) will appear in the
display. The station last tuned in the
new category will begin to play.
At the beginning of the category list the
category
ALL will appear. This category
is sorted numerically (by channel
numbers) and displays all available
channels.You can use the following functions:
Automatic tuning
Automatic station scan (page 82)
Station selection via direct channel
entry (
page 82)
Station selection from the preset menu
(
page 84)
Automatic tuning
Push the joystick to gor G while
the Satellite radio main menu is being
displayed.
or
Press d or D.
The satellite radio will tune in to the nu-
merically previous or next receivable
station in the selected category.
i
COMAND will also deactivate if you
Press A, B, g, h
Change the volume at COMAND or
the multifunction steering wheel
Operate the joystick
Press any keypad button except #
Press j or k at the
multifunction steering wheel if the
audio menu is selected
Press any soft key.
Changing the program categorySelecting a station

82 Satellite radio*
Satellite radio operation
Automatic station scan
The stations in the selected category can
be scanned in numerical order for 8 se-
conds each.
In the Satellite radio main menu, press
the
Scan soft key.
The scan function will begin.Ending scan function and playing a
station
Press the Scan soft key again.
The station selected will appear with
the station name.
Scan will appear in
white lettering again.Station selection via direct channel
entry
Press *.
Input line will appear.
Enter the desired channel number with
the number keys, e.g. 24 for chan-
nel 24.
The channel you have selected will be-
gin to play. The corresponding station
name will appear, if station is available.

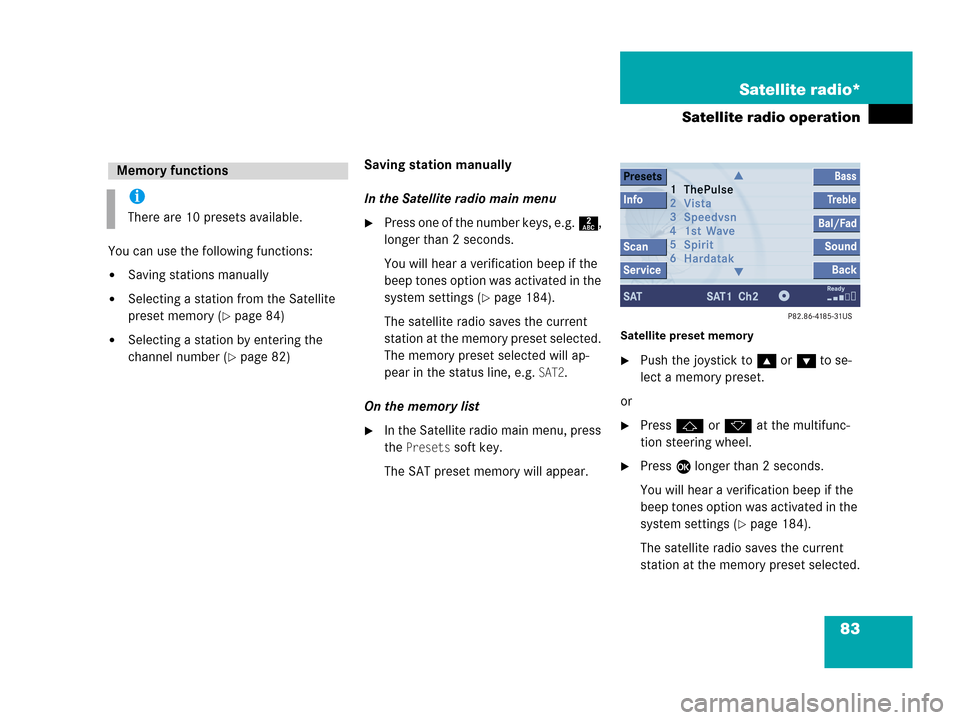

83 Satellite radio*
Satellite radio operation
You can use the following functions:
Saving stations manually
Selecting a station from the Satellite
preset memory (
page 84)
Selecting a station by entering the
channel number (
page 82)Saving station manually
In the Satellite radio main menu
Press one of the number keys, e.g. 2,
longer than 2 seconds.
You will hear a verification beep if the
beep tones option was activated in the
system settings (
page 184).
The satellite radio saves the current
station at the memory preset selected.
The memory preset selected will ap-
pear in the status line, e.g.
SAT2.
On the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The SAT preset memory will appear.
Satellite preset memory
Push the joystick to gor G to se-
lect a memory preset.
or
Press j or k at the multifunc-
tion steering wheel.
Press E longer than 2 seconds.
You will hear a verification beep if the
beep tones option was activated in the
system settings (
page 184).
The satellite radio saves the current
station at the memory preset selected.
Memory functions
i
There are 10 presets available.

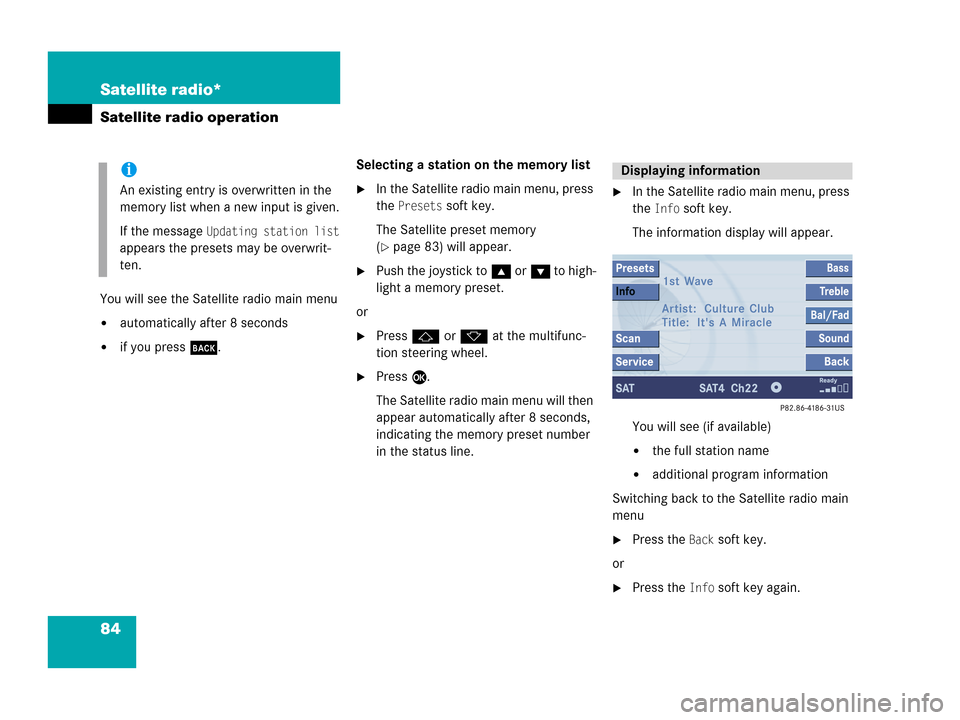

84 Satellite radio*
Satellite radio operation
You will see the Satellite radio main menu
automatically after 8 seconds
if you press s.Selecting a station on the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The Satellite preset memory
(
page 83) will appear.
Push the joystick to gor G to high-
light a memory preset.
or
Press j or k at the multifunc-
tion steering wheel.
Press E.
The Satellite radio main menu will then
appear automatically after 8 seconds,
indicating the memory preset number
in the status line.
In the Satellite radio main menu, press
the
Info soft key.
The information display will appear.
You will see (if available)
the full station name
additional program information
Switching back to the Satellite radio main
menu
Press the Back soft key.
or
Press the Info soft key again.
i
An existing entry is overwritten in the
memory list when a new input is given.
If the message
Updating station list
appears the presets may be overwrit-
ten.
Displaying information

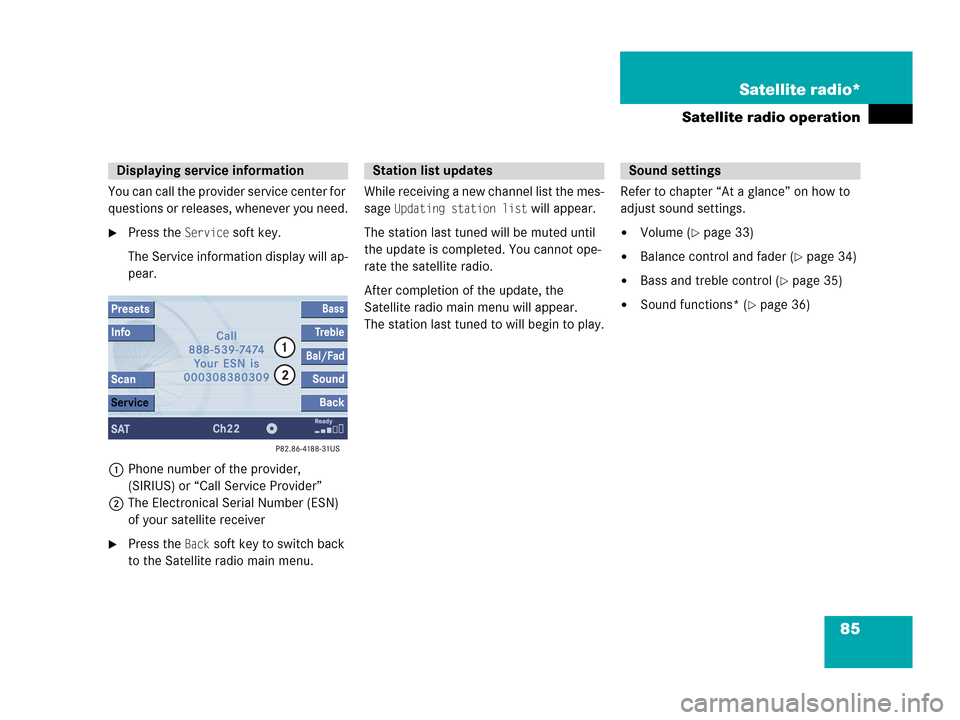

85 Satellite radio*
Satellite radio operation
You can call the provider service center for
questions or releases, whenever you need.
Press the Service soft key.
The Service information display will ap-
pear.
1Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2The Electronical Serial Number (ESN)
of your satellite receiver
Press the Back soft key to switch back
to the Satellite radio main menu.While receiving a new channel list the mes-
sage
Updating station list will appear.
The station last tuned will be muted until
the update is completed. You cannot ope-
rate the satellite radio.
After completion of the update, the
Satellite radio main menu will appear.
The station last tuned to will begin to play.Refer to chapter “At a glance” on how to
adjust sound settings.
Volume (page 33)
Balance control and fader (page 34)
Bass and treble control (page 35)
Sound functions* (page 36)
Displaying service informationStation list updatesSound settings

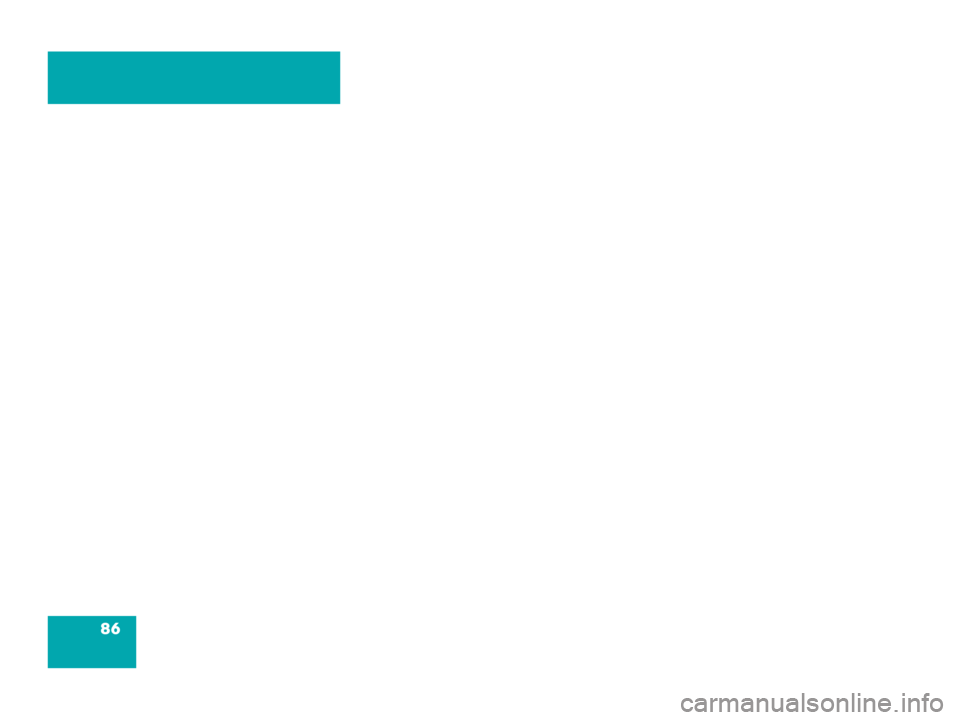

86

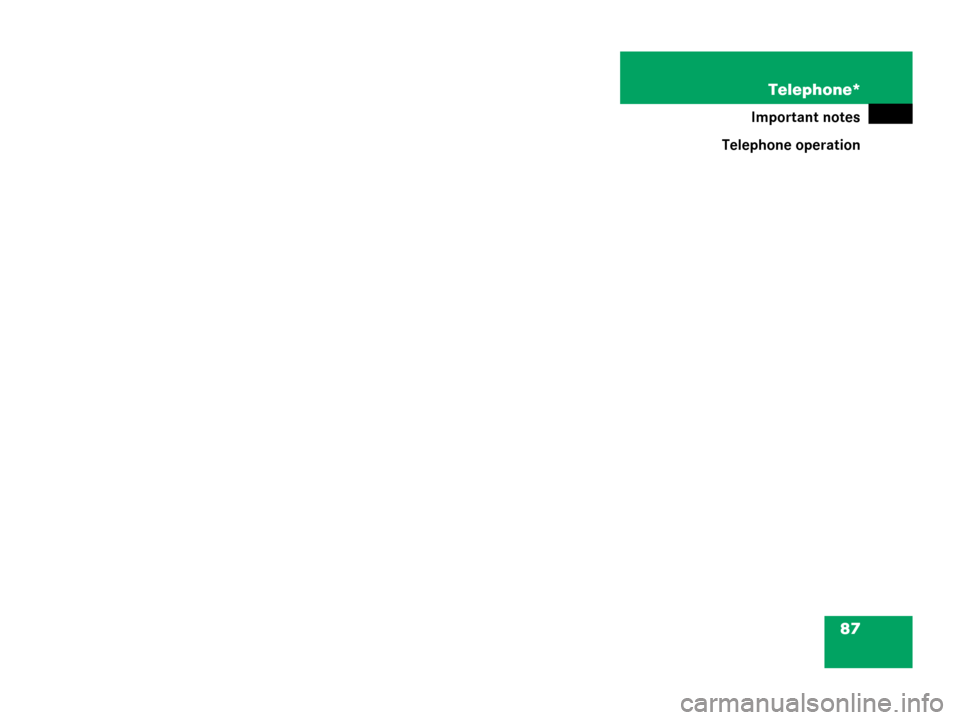

87 Telephone*
Important notes
Telephone operation

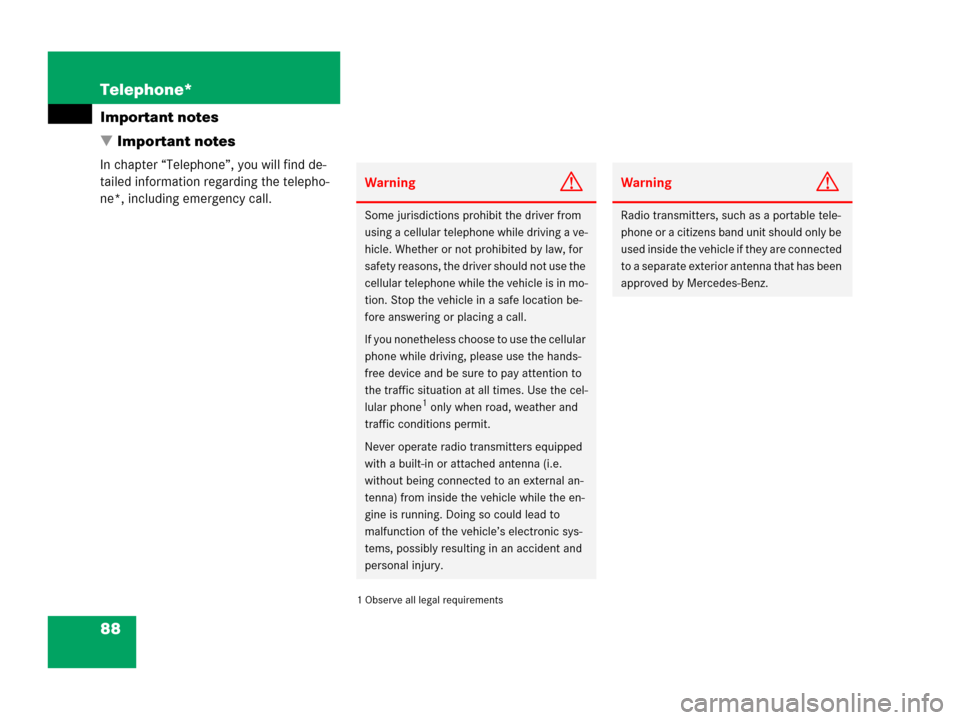

88 Telephone*
Important notes

Important notes
In chapter “Telephone”, you will find de-
tailed information regarding the telepho-
ne*, including emergency call.
1 Observe all legal requirements
WarningG
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle. Whether or not prohibited by law, for
safety reasons, the driver should not use the
cellular telephone while the vehicle is in mo-
tion. Stop the vehicle in a safe location be-
fore answering or placing a call.
If you nonetheless choose to use the cellular
phone while driving, please use the hands-
free device and be sure to pay attention to
the traffic situation at all times. Use the cel-
lular phone
1 only when road, weather and
traffic conditions permit.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e.
without being connected to an external an-
tenna) from inside the vehicle while the en-
gine is running. Doing so could lead to
malfunction of the vehicle’s electronic sys-
tems, possibly resulting in an accident and
personal injury.
WarningG
Radio transmitters, such as a portable tele-
phone or a citizens band unit should only be
used inside the vehicle if they are connected
to a separate exterior antenna that has been
approved by Mercedes-Benz.

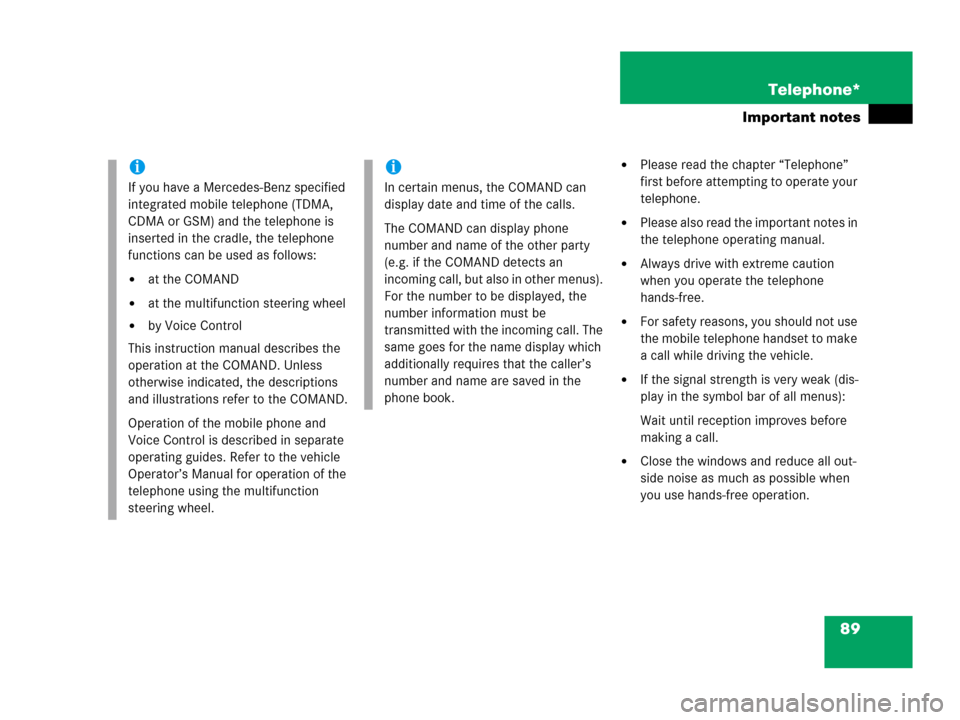

89 Telephone*
Important notes
Please read the chapter “Telephone”
first before attempting to operate your
telephone.
Please also read the important notes in
the telephone operating manual.
Always drive with extreme caution
when you operate the telephone
hands-free.
For safety reasons, you should not use
the mobile telephone handset to make
a call while driving the vehicle.
If the signal strength is very weak (dis-
play in the symbol bar of all menus):
Wait until reception improves before
making a call.
Close the windows and reduce all out-
side noise as much as possible when
you use hands-free operation.
i
If you have a Mercedes-Benz specified
integrated mobile telephone (TDMA,
CDMA or GSM) and the telephone is
inserted in the cradle, the telephone
functions can be used as follows:
at the COMAND
at the multifunction steering wheel
by Voice Control
This instruction manual describes the
operation at the COMAND. Unless
otherwise indicated, the descriptions
and illustrations refer to the COMAND.
Operation of the mobile phone and
Voice Control is described in separate
operating guides. Refer to the vehicle
Operator’s Manual for operation of the
telephone using the multifunction
steering wheel.
i
In certain menus, the COMAND can
display date and time of the calls.
The COMAND can display phone
number and name of the other party
(e.g. if the COMAND detects an
incoming call, but also in other menus).
For the number to be displayed, the
number information must be
transmitted with the incoming call. The
same goes for the name display which
additionally requires that the caller’s
number and name are saved in the
phone book.

90 Telephone*
Important notes
Also make sure that the air vents are
not pointed in the direction of the
microphones located in the overhead
control panel near the rear view mirror.
Adjust air vents and/or reduce blower
speed if necessary.
A brief disconnection from the cellular
network is not a malfunction, as this
can occur when the network switches
areas. The phone will automatically try
to sign on to a network again.
If the message Enter Unlock Code ap-
pears, enter the unlock code to enable
all telephone functions (
page 95). If
you do not do so, only the emergency
call (911) is available.GSM mobile phone
If the message Please enter PIN Code
on the mobile phone appears, enter the
PIN-code to enable the telephone func-
tions (
page 95). If you do not do so,
only the emergency (911) call is avai-
lable on the mobile phone.In the following situations, it is not possible
or not yet possible to use the telephone:
The telephone is already unlocked but
is not or not yet registered in the net-
work.
The message
No Serv. appears in the
status bar. The telephone will try to re-
gister into an existing network. If the
network is available, the telephone will
be ready for use.
The above message also appears
if the network is no longer available
due to weak signals
