MERCEDES-BENZ G-Class 2009 W463 Service Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2009, Model line: G-Class, Model: MERCEDES-BENZ G-Class 2009 W463Pages: 264, PDF Size: 6.98 MB

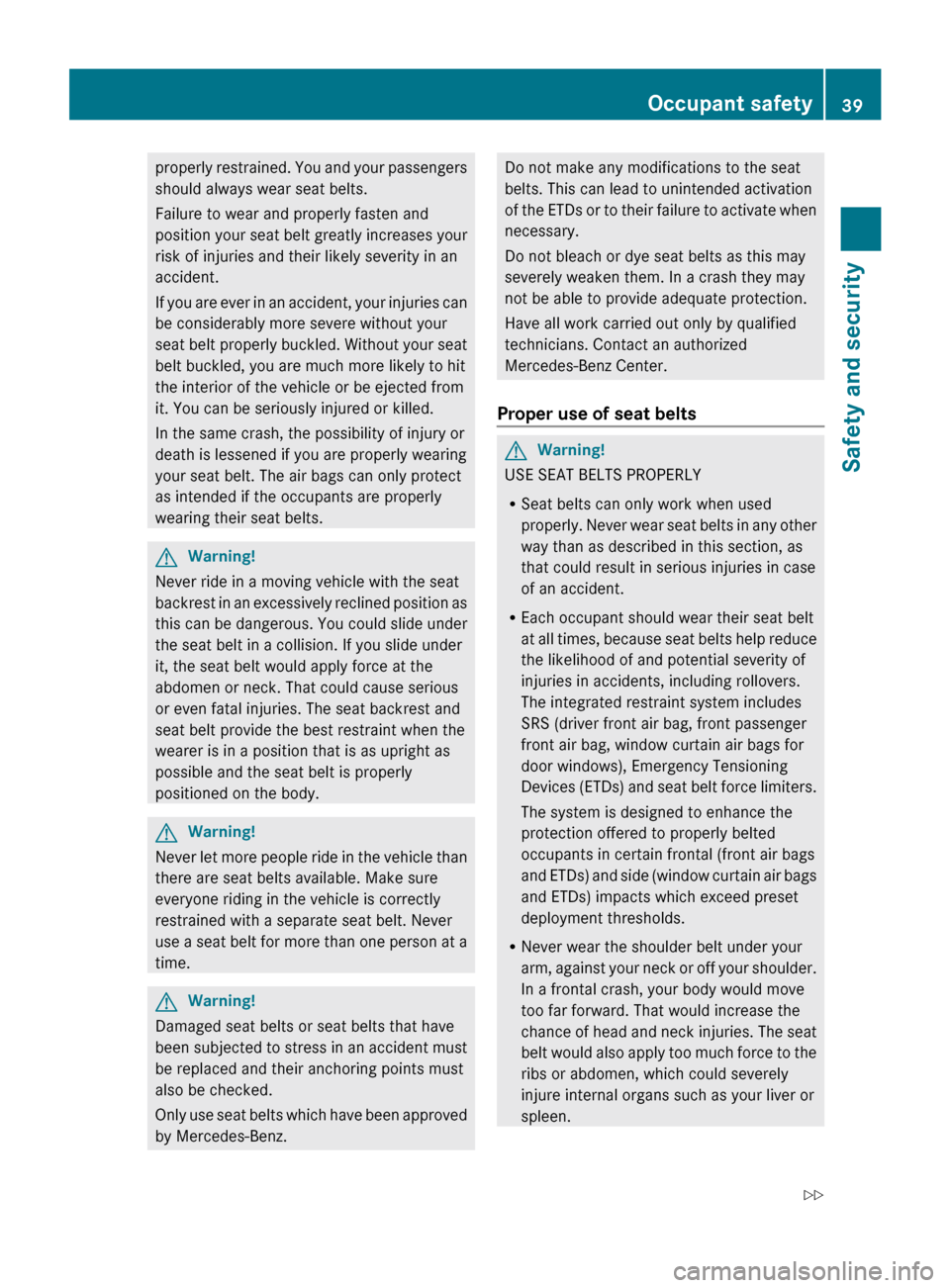

Page 41 of 264

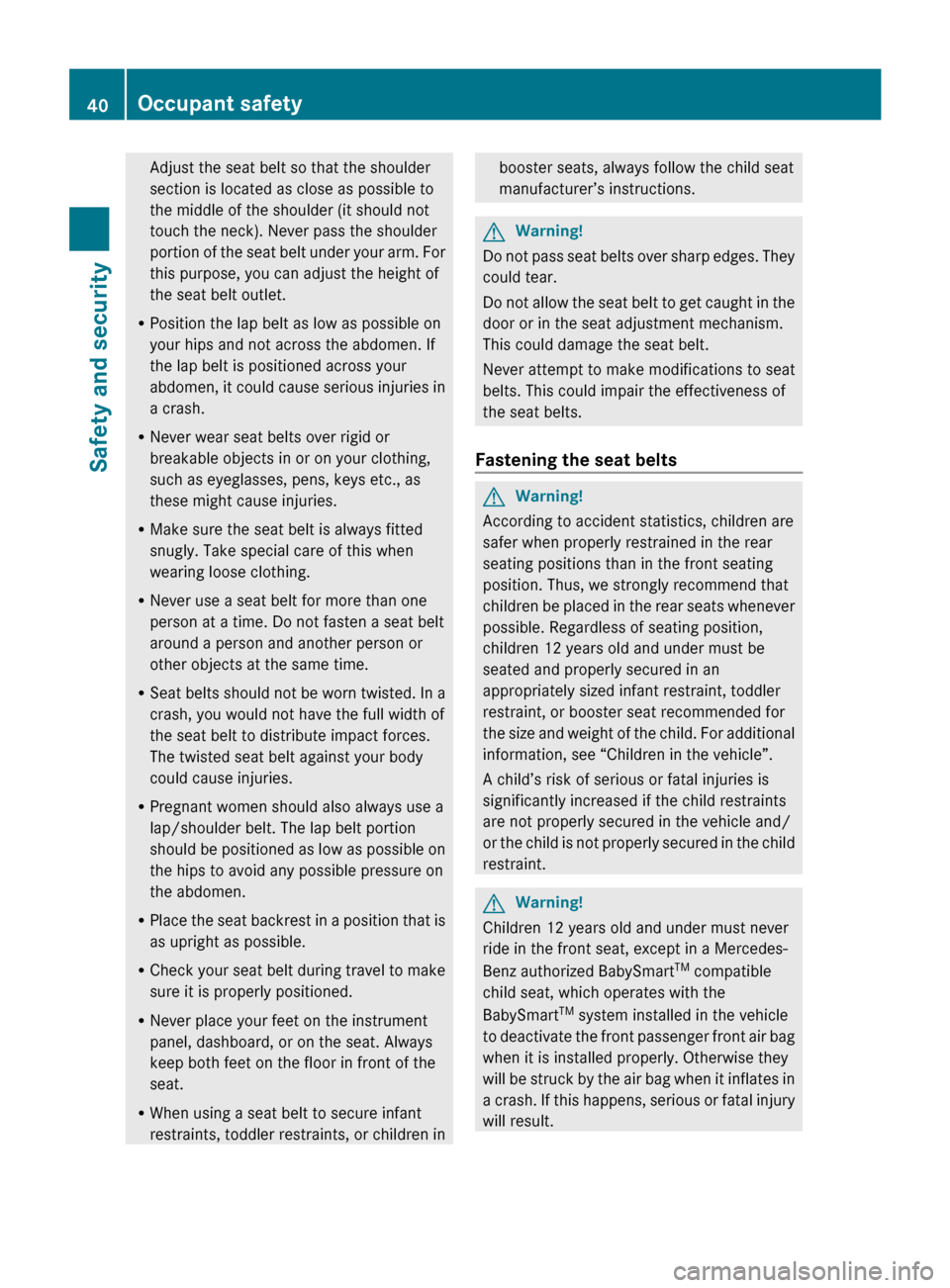

Page 42 of 264
Page 43 of 264

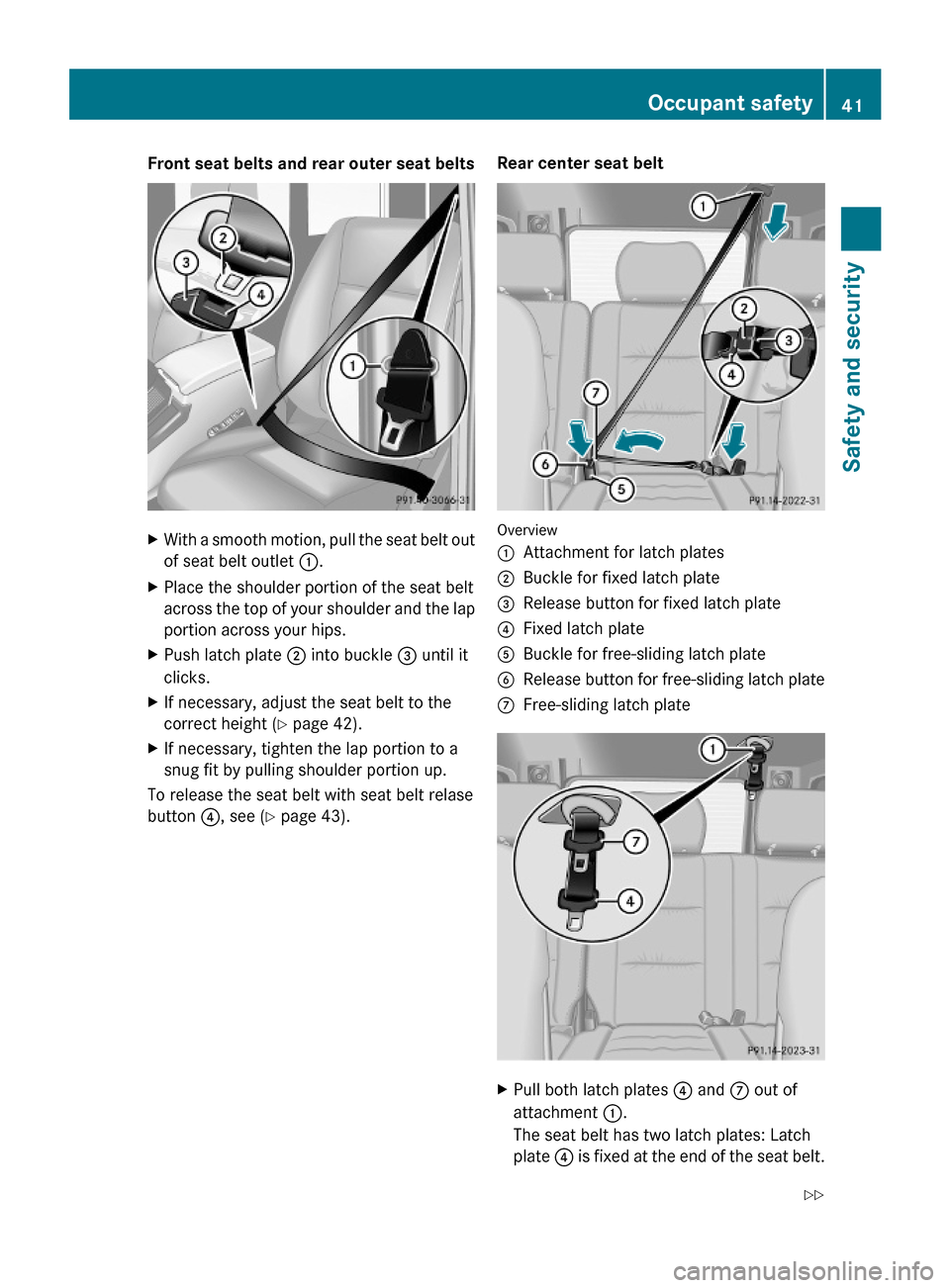

Front seat belts and rear outer seat beltsXWith a smooth motion, pull the seat belt out
of seat belt outlet :.
XPlace the shoulder portion of the seat belt
across the top of your shoulder and the lap
portion across your hips.
XPush latch plate ; into buckle = until it
clicks.
XIf necessary, adjust the seat belt to the
correct height (Y page 42).
XIf necessary, tighten the lap portion to a
snug fit by pulling shoulder portion up.
To release the seat belt with seat belt relase
button ?, see (Y page 43).
Rear center seat belt
Overview
:Attachment for latch plates;Buckle for fixed latch plate=Release button for fixed latch plate?Fixed latch plateABuckle for free-sliding latch plateBRelease button for free-sliding latch plateCFree-sliding latch plateXPull both latch plates ? and C out of
attachment :.
The seat belt has two latch plates: Latch
plate ? is fixed at the end of the seat belt.
Occupant safety41Safety and security463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 41Z
Page 44 of 264

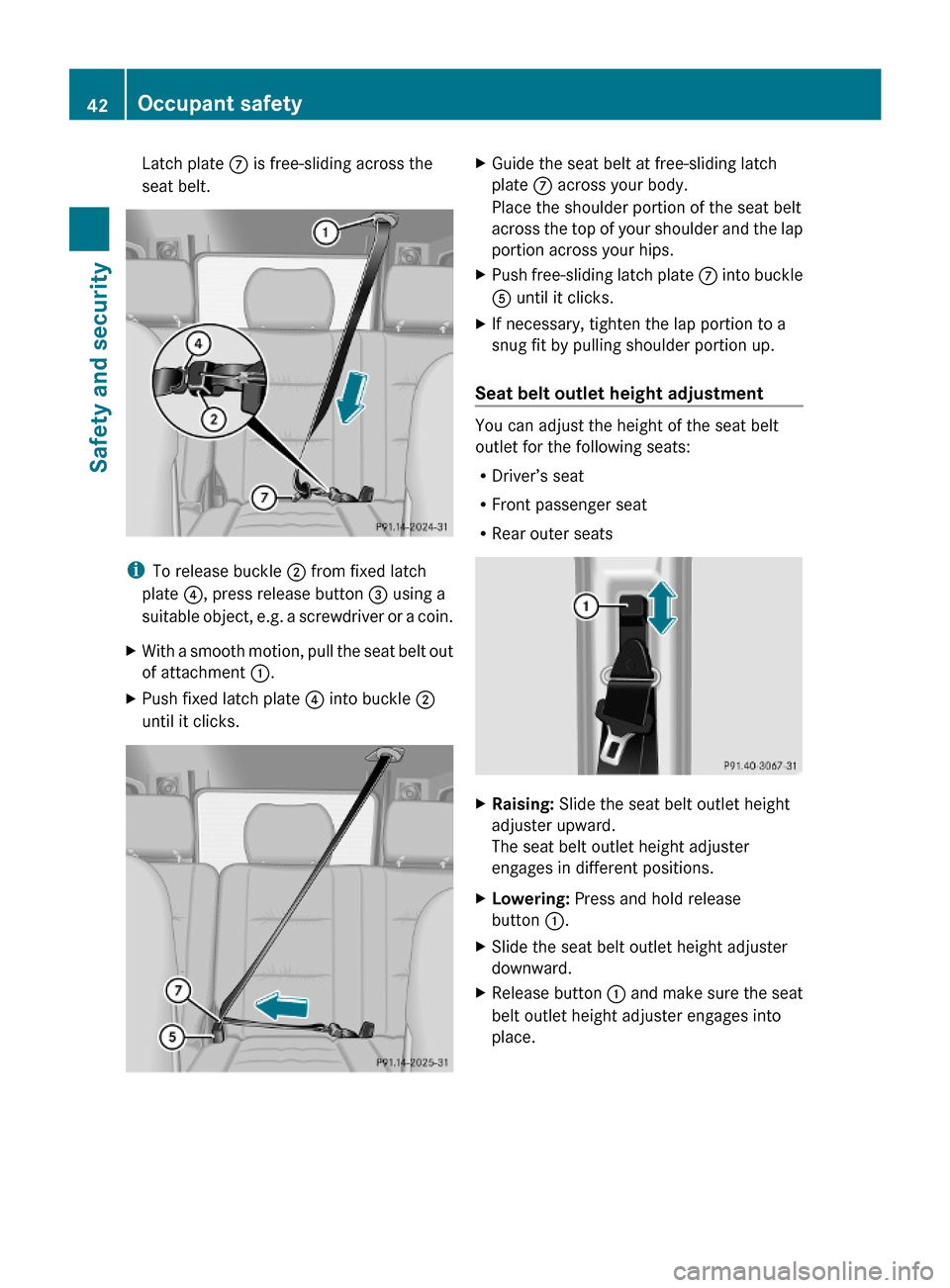

Latch plate C is free-sliding across the
seat belt.
iTo release buckle ; from fixed latch
plate ?, press release button = using a
suitable object, e.g. a screwdriver or a coin.
XWith a smooth motion, pull the seat belt out
of attachment :.
XPush fixed latch plate ? into buckle ;
until it clicks.
XGuide the seat belt at free-sliding latch
plate C across your body.
Place the shoulder portion of the seat belt
across the top of your shoulder and the lap
portion across your hips.
XPush free-sliding latch plate C into buckle
A until it clicks.
XIf necessary, tighten the lap portion to a
snug fit by pulling shoulder portion up.
Seat belt outlet height adjustment
You can adjust the height of the seat belt
outlet for the following seats:
RDriver’s seat
RFront passenger seat
RRear outer seats
XRaising: Slide the seat belt outlet height
adjuster upward.
The seat belt outlet height adjuster
engages in different positions.
XLowering: Press and hold release
button :.
XSlide the seat belt outlet height adjuster
downward.
XRelease button : and make sure the seat
belt outlet height adjuster engages into
place.
42Occupant safetySafety and security
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 42
Page 45 of 264

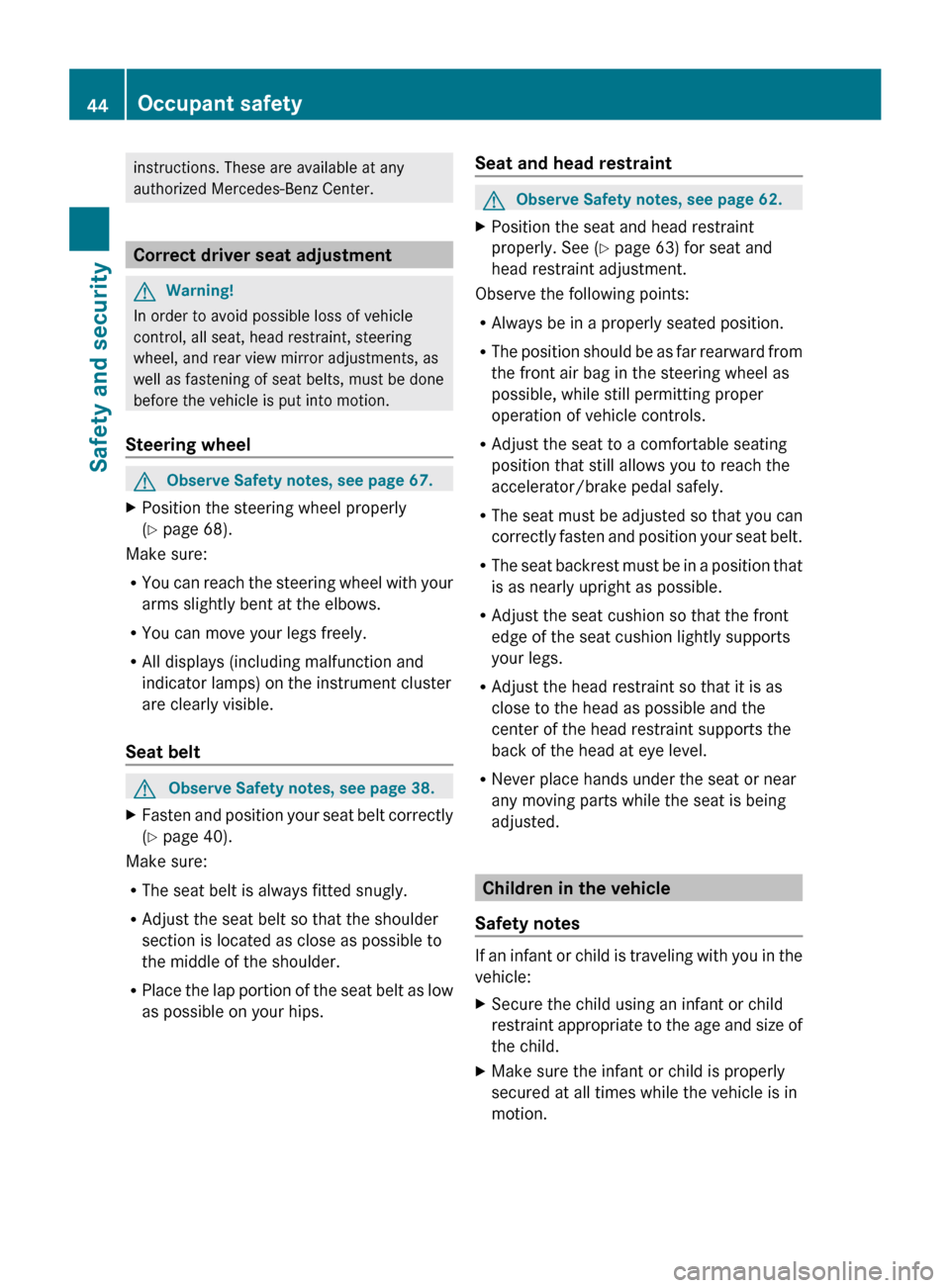

Page 46 of 264

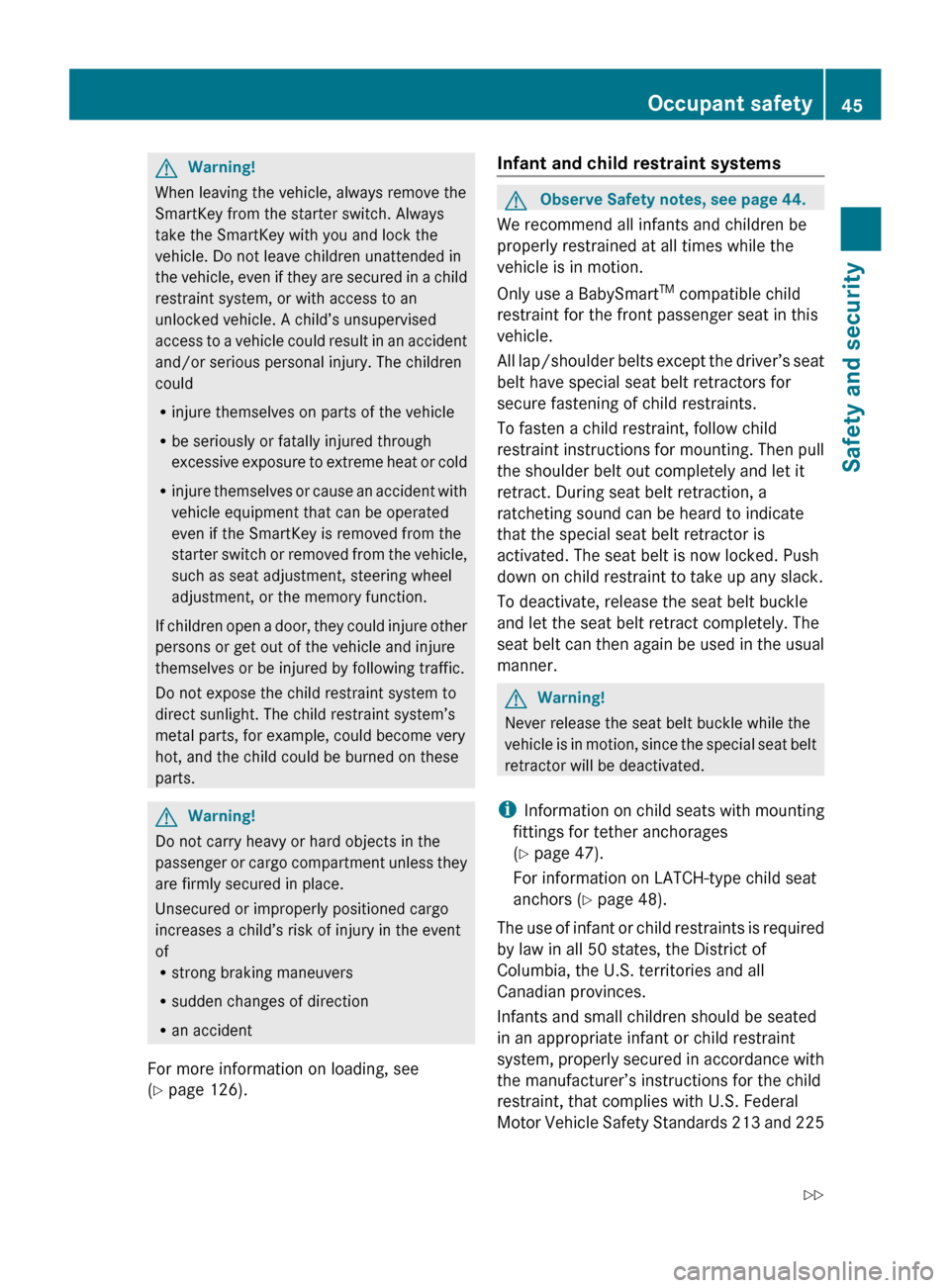

Page 47 of 264

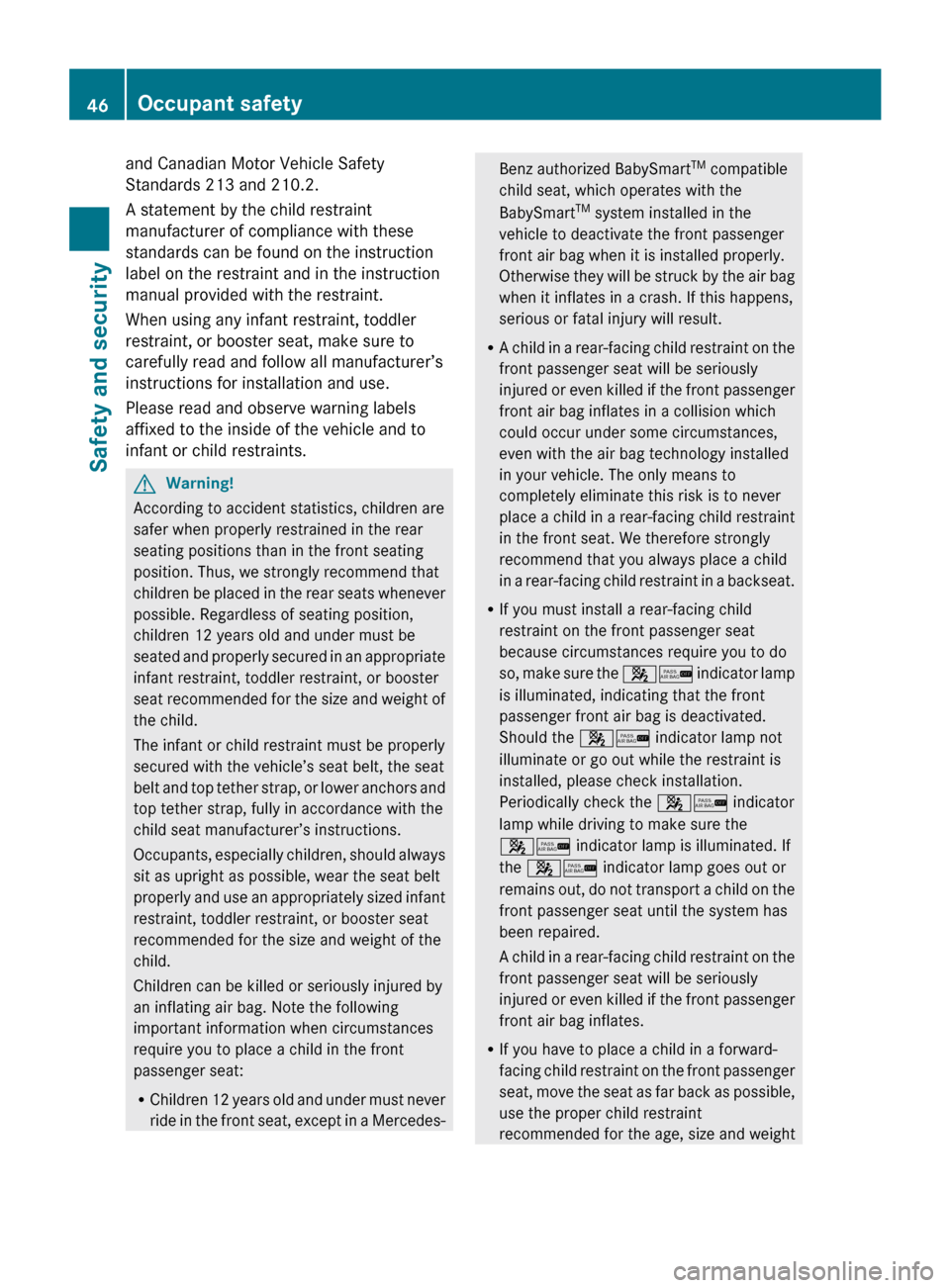

Page 48 of 264
Page 49 of 264
of the child, and secure child restraint with
the vehicle’s seat belt according to the child
seat manufacturer’s instructions.
GWarning!
Infants and small children should never share
a seat belt with another occupant. During an
accident, they could be crushed between the
occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Position
shoulder belt across chest and shoulder, not
face or neck. A booster seat may be
necessary to achieve proper seat belt
positioning for children over 41 lb (18 kg) until
they reach a height where a lap/shoulder belt
fits properly without a booster.
When the child restraint is not in use, remove
it from the vehicle or secure it with the seat
belt to prevent the child restraint from
becoming a projectile in the event of an
accident.
Installation of infant and child restraint
systems
GObserve Safety notes, see page 44.GWarning!
Always lock the seat backrests in their upright
position when the rear seats are occupied by
passengers, before installing top tether
straps, or the extended cargo compartment is
not in use. Make sure that seat backrests are
secured properly by pushing and pulling on
the seat backrests. If a seat backrest is not
locked properly, the seat backrest could fold.
The child seat would no longer be supported
properly or positioned to provide its intended
benefit. That could cause serious or even fatal
injuries.
This vehicle is equipped with tether
anchorages for a top tether strap at each of
the rear seating positions. The anchorage
rings are located on the floor behind each rear
seat.
Top tether straps enable an additional
connection to be made between child
restraint systems secured with LATCH-type
anchors and rear seats. This can further
reduce the risk of injury.
XRemove the cargo compartment cover
blind, if installed (Y page 129).
XGuide the top tether strap between head
restraint and top of the seat backrest.
The head restraint must be installed and
positioned such that the top tether strap
can pass freely between the head restraint
and top of the seat backrest.
XMake sure the top tether strap is not
twisted.
XFold up anchorage ring :.XSecurely fasten hook ;, which is part of
top tether strap, to anchorage ring :.
Occupant safety47Safety and security463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 47Z
Page 50 of 264

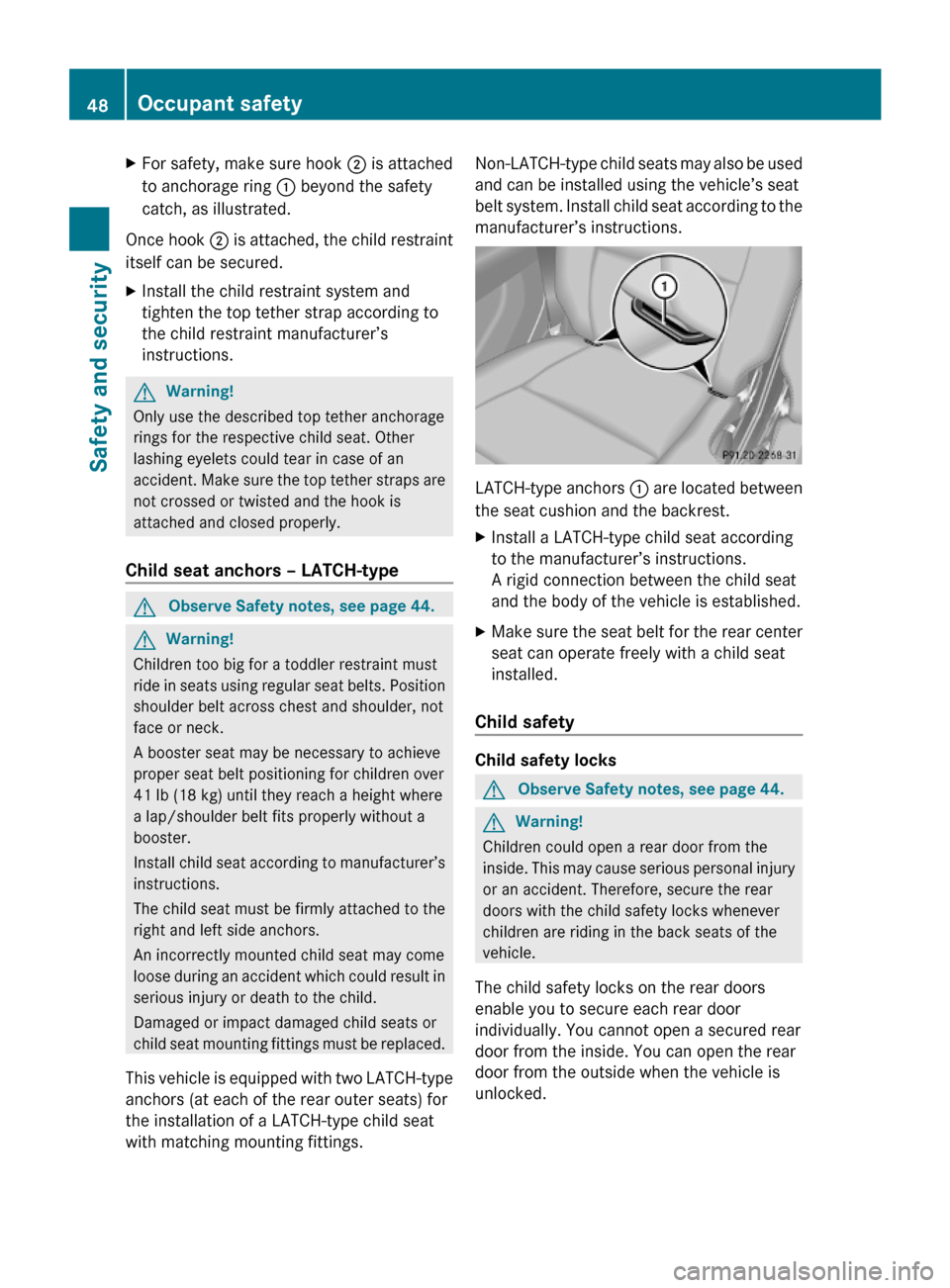

XFor safety, make sure hook ; is attached
to anchorage ring : beyond the safety
catch, as illustrated.
Once hook ; is attached, the child restraint
itself can be secured.
XInstall the child restraint system and
tighten the top tether strap according to
the child restraint manufacturer’s
instructions.
GWarning!
Only use the described top tether anchorage
rings for the respective child seat. Other
lashing eyelets could tear in case of an
accident. Make sure the top tether straps are
not crossed or twisted and the hook is
attached and closed properly.
Child seat anchors – LATCH-type
GObserve Safety notes, see page 44.GWarning!
Children too big for a toddler restraint must
ride in seats using regular seat belts. Position
shoulder belt across chest and shoulder, not
face or neck.
A booster seat may be necessary to achieve
proper seat belt positioning for children over
41 lb (18 kg) until they reach a height where
a lap/shoulder belt fits properly without a
booster.
Install child seat according to manufacturer’s
instructions.
The child seat must be firmly attached to the
right and left side anchors.
An incorrectly mounted child seat may come
loose during an accident which could result in
serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be replaced.
This vehicle is equipped with two LATCH-type
anchors (at each of the rear outer seats) for
the installation of a LATCH-type child seat
with matching mounting fittings.
Non-LATCH-type child seats may also be used
and can be installed using the vehicle’s seat
belt system. Install child seat according to the
manufacturer’s instructions.
LATCH-type anchors : are located between
the seat cushion and the backrest.
XInstall a LATCH-type child seat according
to the manufacturer’s instructions.
A rigid connection between the child seat
and the body of the vehicle is established.
XMake sure the seat belt for the rear center
seat can operate freely with a child seat
installed.
Child safety
Child safety locks
GObserve Safety notes, see page 44.GWarning!
Children could open a rear door from the
inside. This may cause serious personal injury
or an accident. Therefore, secure the rear
doors with the child safety locks whenever
children are riding in the back seats of the
vehicle.
The child safety locks on the rear doors
enable you to secure each rear door
individually. You cannot open a secured rear
door from the inside. You can open the rear
door from the outside when the vehicle is
unlocked.
48Occupant safetySafety and security
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 48
