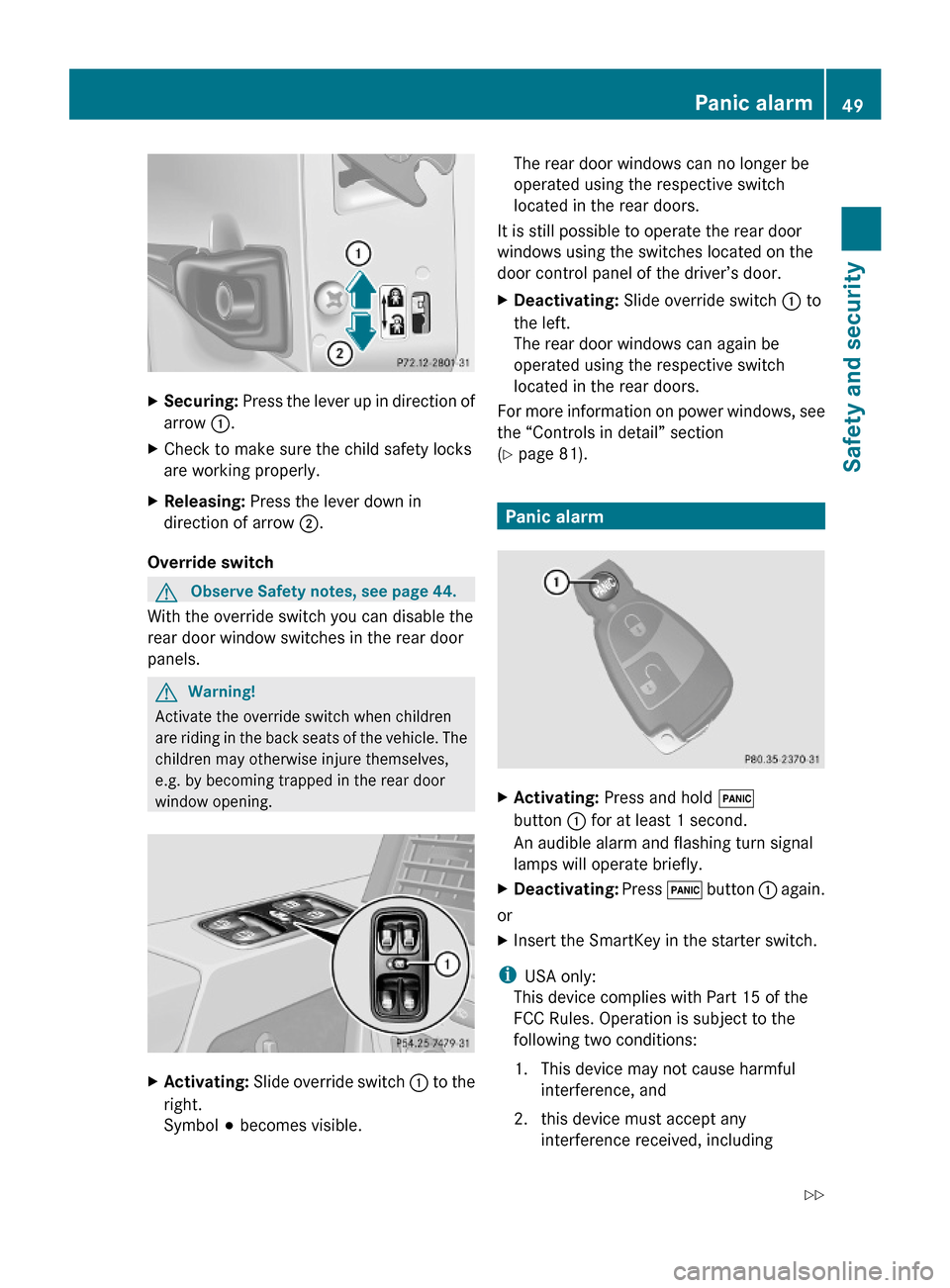

XSecuring: Press the lever up in direction of
arrow :.
XCheck to make sure the child safety locks
are working properly.
XReleasing: Press the lever down in
direction of arrow ;.
Override switch
GObserve Safety notes, see page 44.
With the override switch you can disable the
rear door window switches in the rear door
panels.
GWarning!
Activate the override switch when children
are riding in the back seats of the vehicle. The
children may otherwise injure themselves,
e.g. by becoming trapped in the rear door
window opening.
XActivating: Slide override switch : to the
right.
Symbol # becomes visible.
The rear door windows can no longer be
operated using the respective switch
located in the rear doors.
It is still possible to operate the rear door
windows using the switches located on the
door control panel of the driver’s door.
XDeactivating: Slide override switch : to
the left.
The rear door windows can again be
operated using the respective switch
located in the rear doors.
For more information on power windows, see
the “Controls in detail” section
(Y page 81).
Panic alarm
XActivating: Press and hold !
button : for at least 1 second.
An audible alarm and flashing turn signal
lamps will operate briefly.
XDeactivating: Press ! button : again.
or
XInsert the SmartKey in the starter switch.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference, and
2. this device must accept any
interference received, including

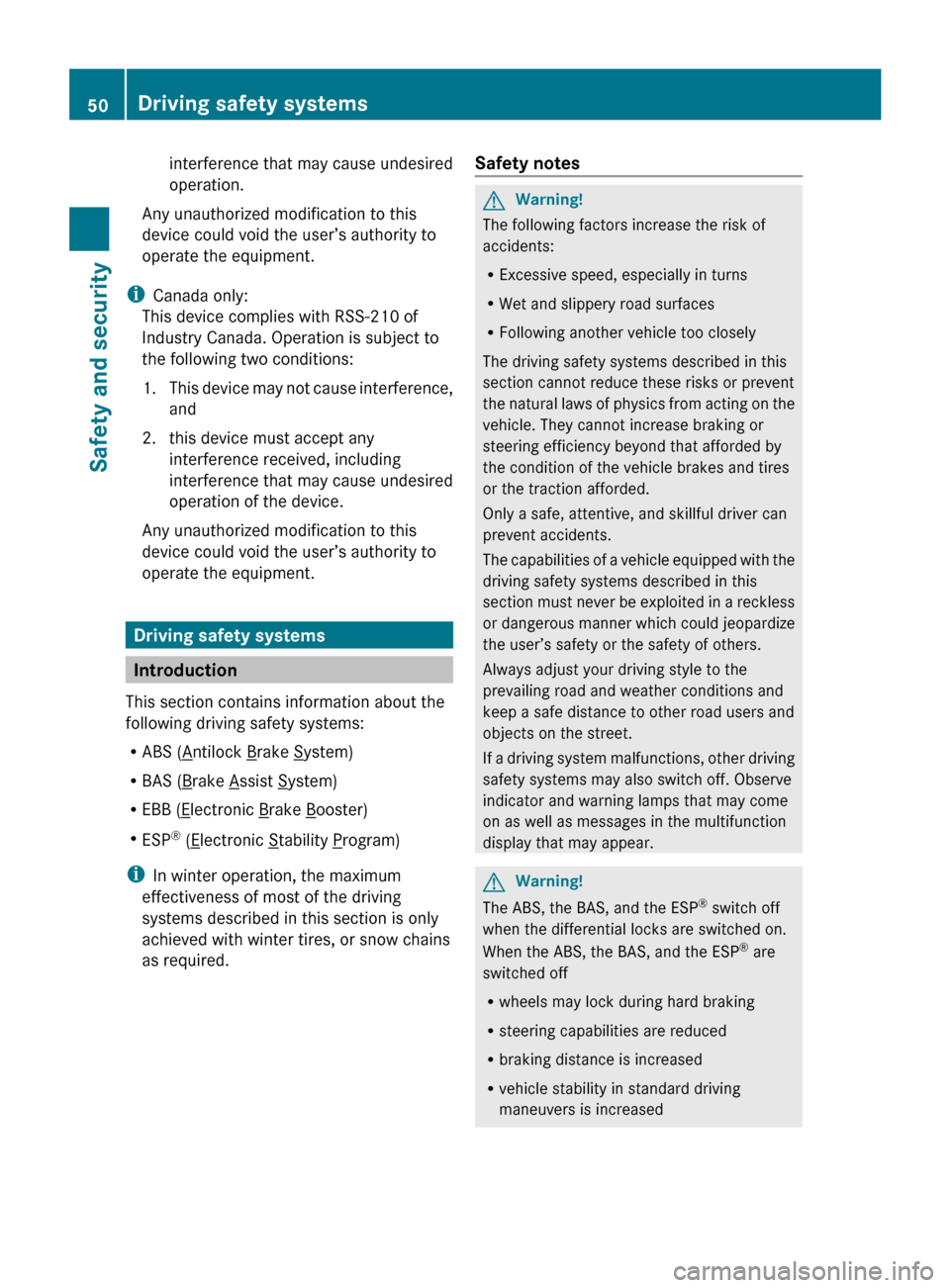

Panic alarm49Safety and security463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 49Z

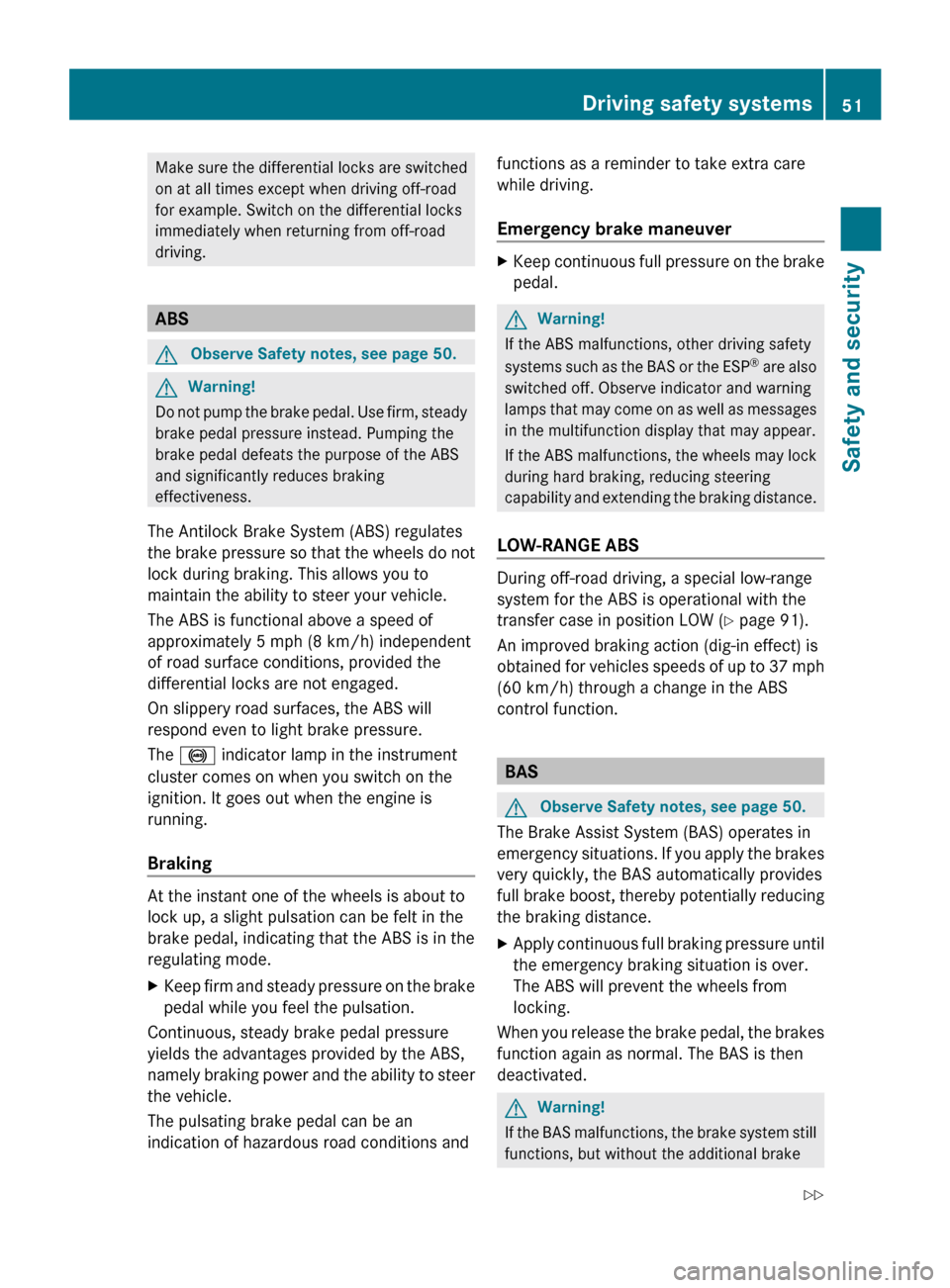

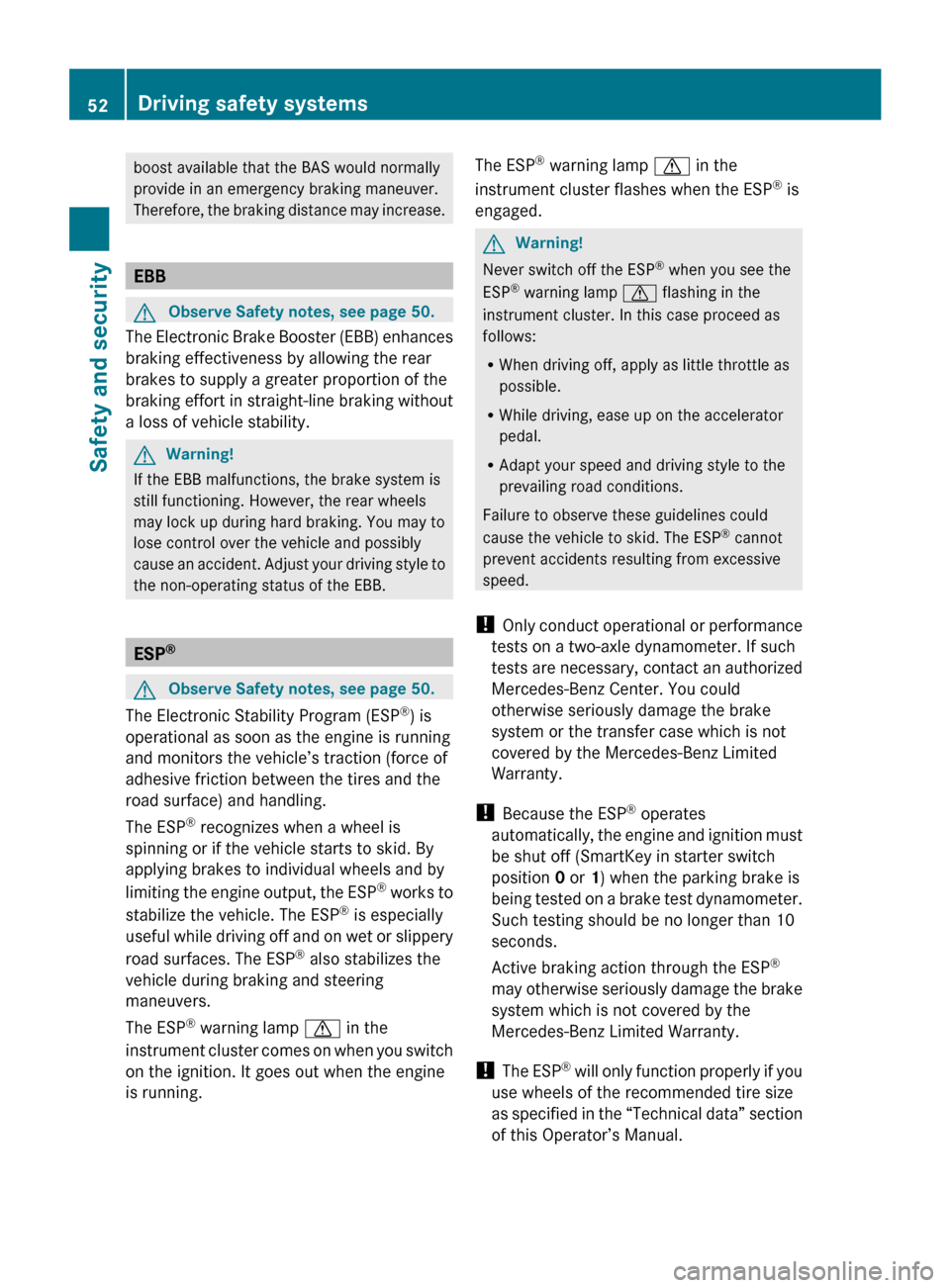

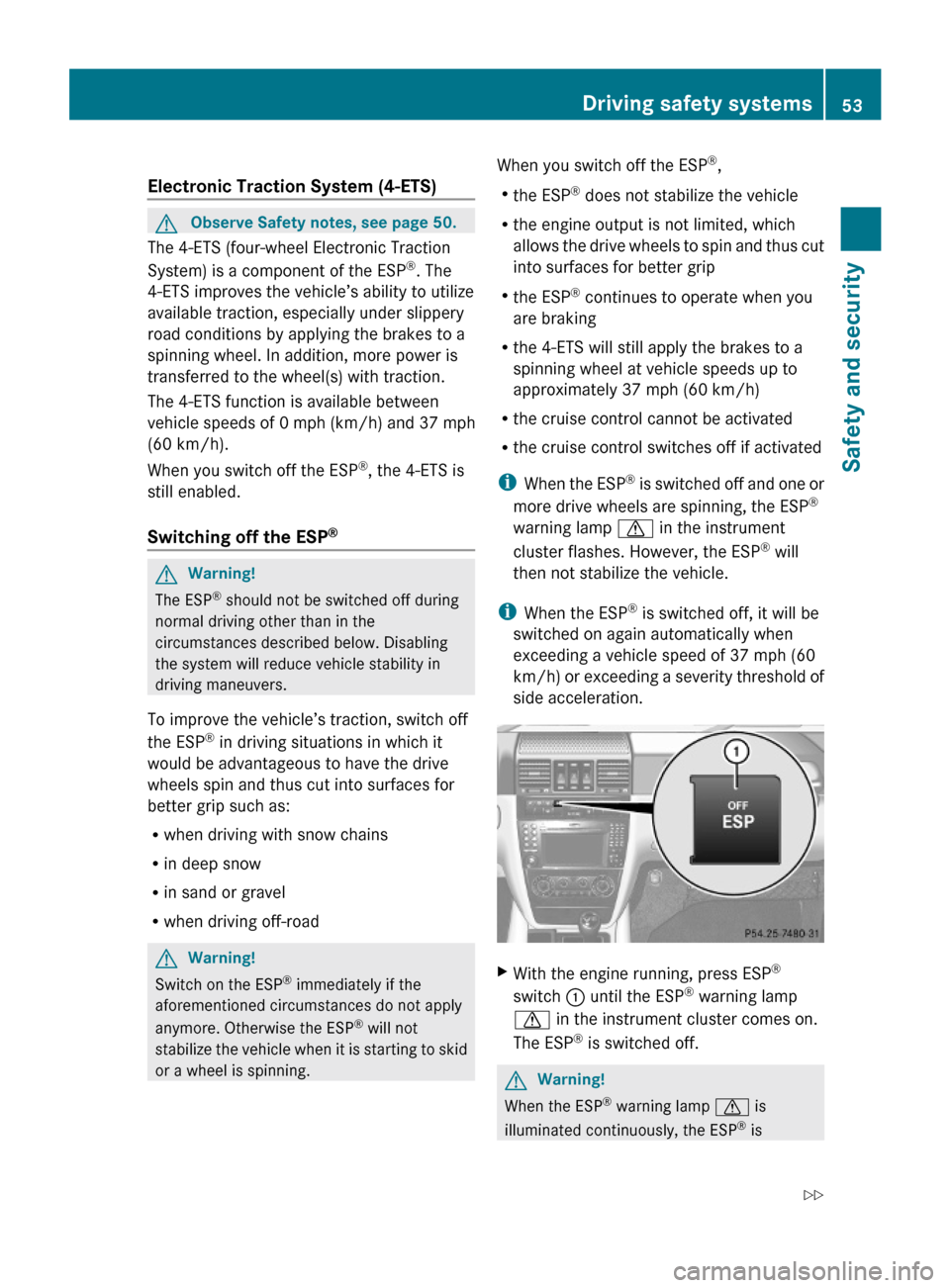

Electronic Traction System (4-ETS)
GObserve Safety notes, see page 50.
The 4-ETS (four-wheel Electronic Traction
System) is a component of the ESP®. The
4-ETS improves the vehicle’s ability to utilize
available traction, especially under slippery
road conditions by applying the brakes to a
spinning wheel. In addition, more power is
transferred to the wheel(s) with traction.
The 4-ETS function is available between
vehicle speeds of 0 mph (km/h) and 37 mph
(60 km/h).
When you switch off the ESP®, the 4-ETS is
still enabled.
Switching off the ESP®
GWarning!
The ESP® should not be switched off during
normal driving other than in the
circumstances described below. Disabling
the system will reduce vehicle stability in
driving maneuvers.
To improve the vehicle’s traction, switch off
the ESP® in driving situations in which it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:
Rwhen driving with snow chains
Rin deep snow
Rin sand or gravel
Rwhen driving off-road
GWarning!
Switch on the ESP® immediately if the
aforementioned circumstances do not apply
anymore. Otherwise the ESP® will not
stabilize the vehicle when it is starting to skid
or a wheel is spinning.
When you switch off the ESP®,
Rthe ESP® does not stabilize the vehicle
Rthe engine output is not limited, which
allows the drive wheels to spin and thus cut
into surfaces for better grip
Rthe ESP® continues to operate when you
are braking
Rthe 4-ETS will still apply the brakes to a
spinning wheel at vehicle speeds up to
approximately 37 mph (60 km/h)
Rthe cruise control cannot be activated
Rthe cruise control switches off if activated
iWhen the ESP® is switched off and one or
more drive wheels are spinning, the ESP®
warning lamp d in the instrument
cluster flashes. However, the ESP® will
then not stabilize the vehicle.
iWhen the ESP® is switched off, it will be
switched on again automatically when
exceeding a vehicle speed of 37 mph (60
km/h) or exceeding a severity threshold of
side acceleration.
XWith the engine running, press ESP®
switch : until the ESP® warning lamp
d in the instrument cluster comes on.
The ESP® is switched off.
GWarning!
When the ESP® warning lamp d is
illuminated continuously, the ESP® is
Driving safety systems53Safety and security463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 53Z

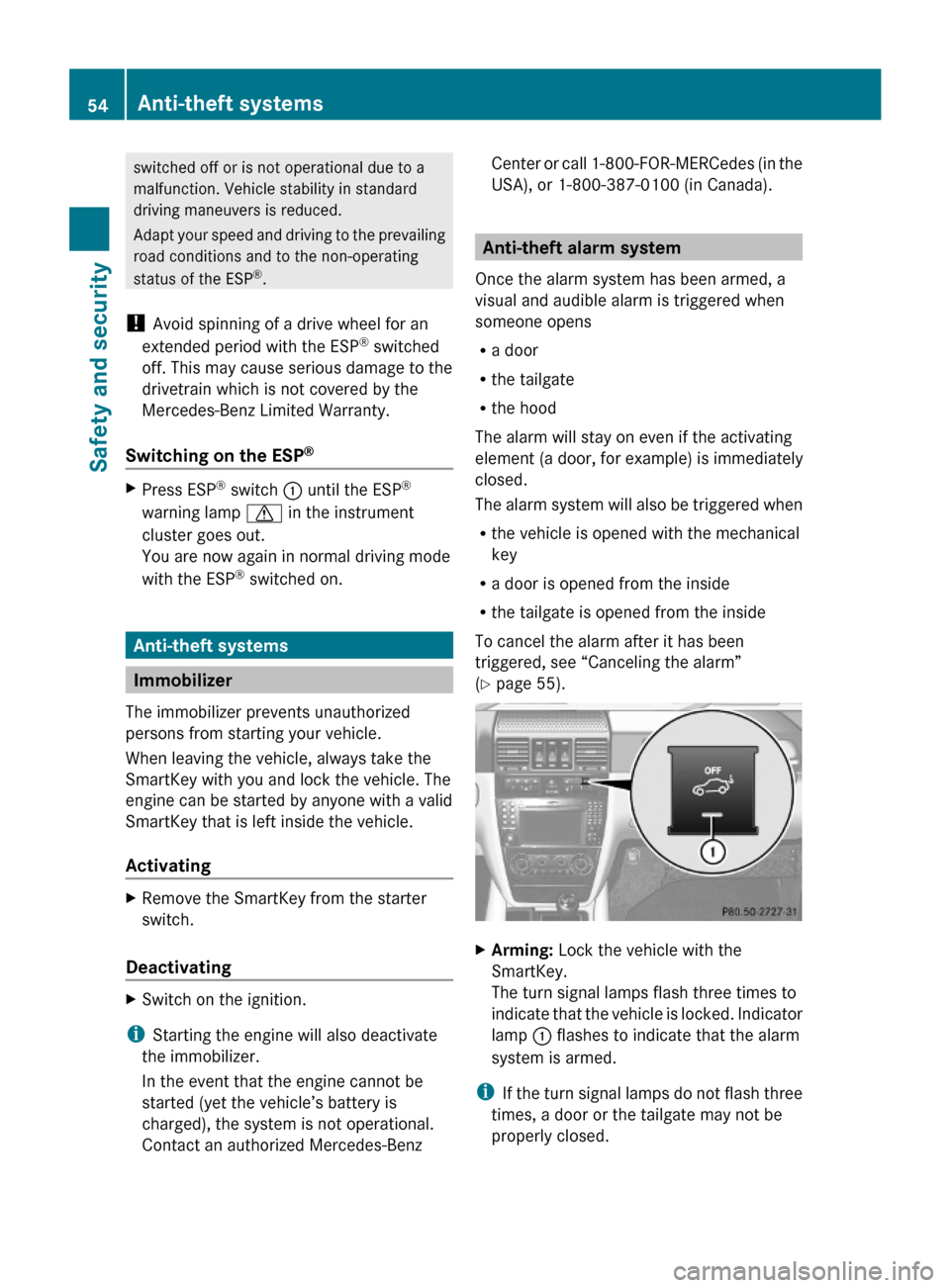

switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers is reduced.
Adapt your speed and driving to the prevailing
road conditions and to the non-operating
status of the ESP®.
! Avoid spinning of a drive wheel for an
extended period with the ESP® switched
off. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Switching on the ESP®
XPress ESP® switch : until the ESP®
warning lamp d in the instrument
cluster goes out.
You are now again in normal driving mode
with the ESP® switched on.
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. The
engine can be started by anyone with a valid
SmartKey that is left inside the vehicle.
Activating
XRemove the SmartKey from the starter
switch.
Deactivating
XSwitch on the ignition.
iStarting the engine will also deactivate
the immobilizer.
In the event that the engine cannot be
started (yet the vehicle’s battery is
charged), the system is not operational.
Contact an authorized Mercedes-Benz
Center or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens
Ra door
Rthe tailgate
Rthe hood
The alarm will stay on even if the activating
element (a door, for example) is immediately
closed.
The alarm system will also be triggered when
Rthe vehicle is opened with the mechanical
key
Ra door is opened from the inside
Rthe tailgate is opened from the inside
To cancel the alarm after it has been
triggered, see “Canceling the alarm”
(Y page 55).
XArming: Lock the vehicle with the
SmartKey.
The turn signal lamps flash three times to
indicate that the vehicle is locked. Indicator
lamp : flashes to indicate that the alarm
system is armed.
iIf the turn signal lamps do not flash three
times, a door or the tailgate may not be
properly closed.
54Anti-theft systemsSafety and security
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 54

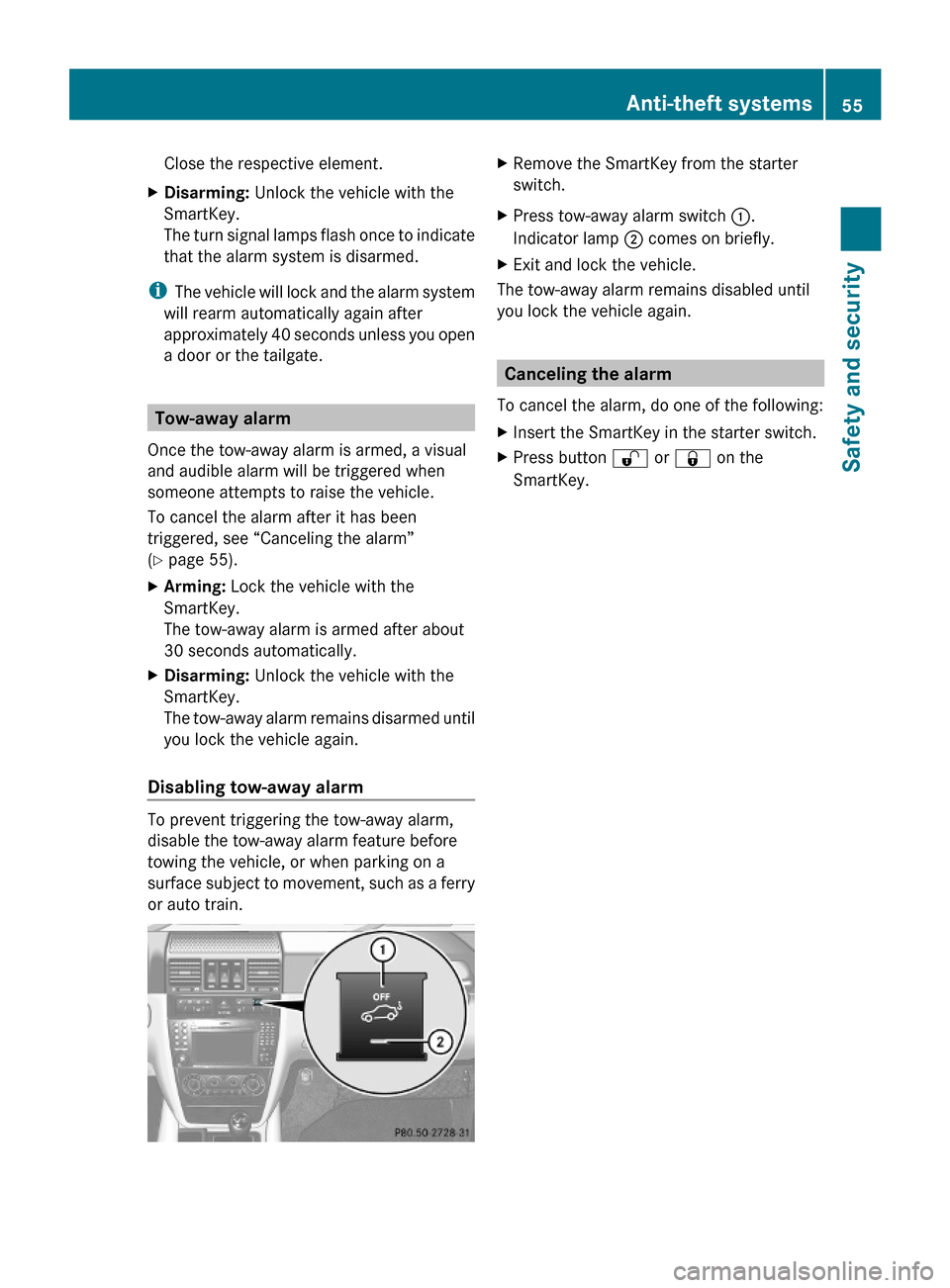

Close the respective element.XDisarming: Unlock the vehicle with the
SmartKey.
The turn signal lamps flash once to indicate
that the alarm system is disarmed.
iThe vehicle will lock and the alarm system
will rearm automatically again after
approximately 40 seconds unless you open
a door or the tailgate.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
To cancel the alarm after it has been
triggered, see “Canceling the alarm”
(Y page 55).
XArming: Lock the vehicle with the
SmartKey.
The tow-away alarm is armed after about
30 seconds automatically.
XDisarming: Unlock the vehicle with the
SmartKey.
The tow-away alarm remains disarmed until
you lock the vehicle again.
Disabling tow-away alarm
To prevent triggering the tow-away alarm,
disable the tow-away alarm feature before
towing the vehicle, or when parking on a
surface subject to movement, such as a ferry
or auto train.
XRemove the SmartKey from the starter
switch.
XPress tow-away alarm switch :.
Indicator lamp ; comes on briefly.
XExit and lock the vehicle.
The tow-away alarm remains disabled until
you lock the vehicle again.
Canceling the alarm
To cancel the alarm, do one of the following:
XInsert the SmartKey in the starter switch.XPress button % or & on the
SmartKey.
Anti-theft systems55Safety and security463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 55Z

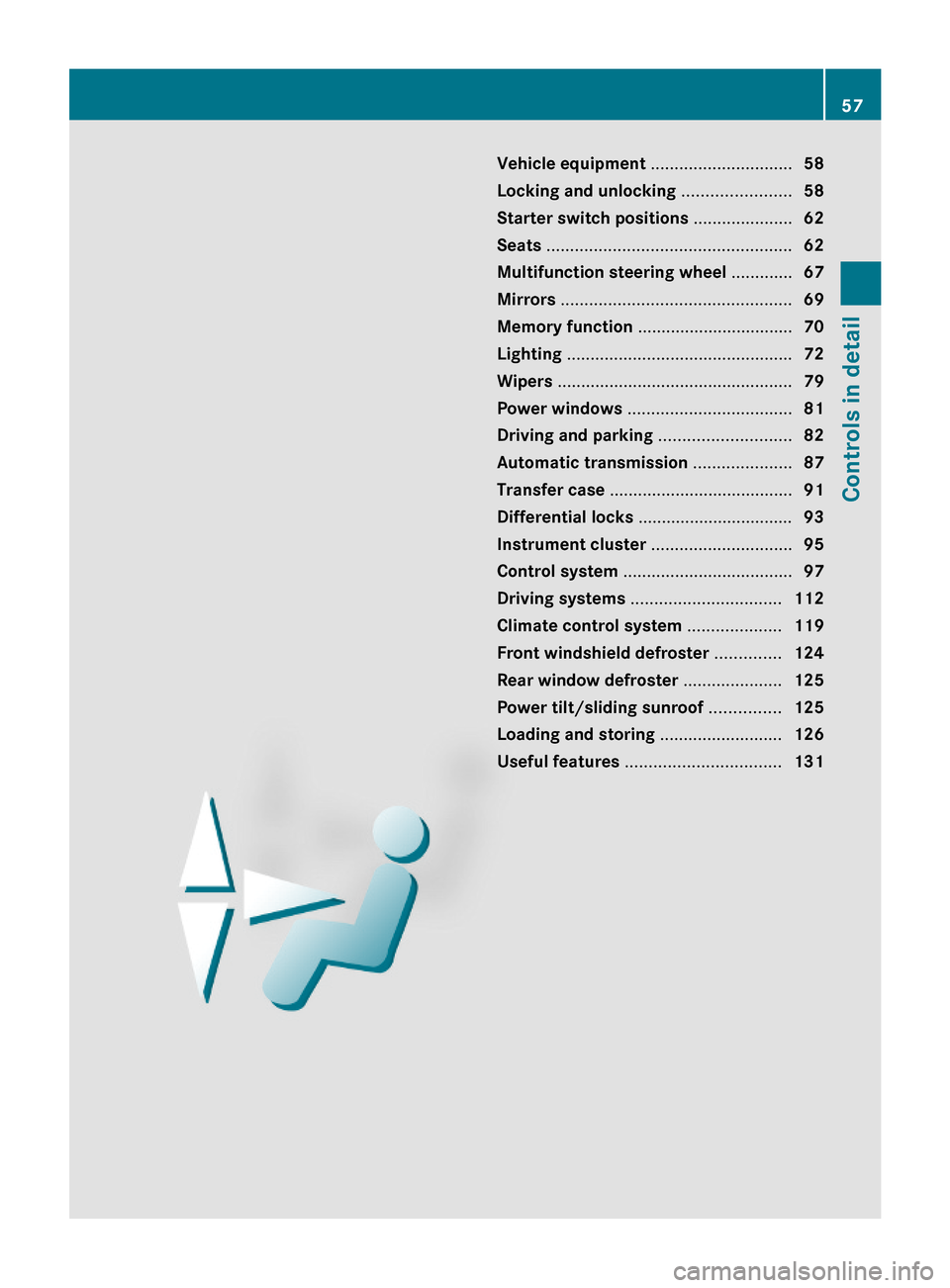

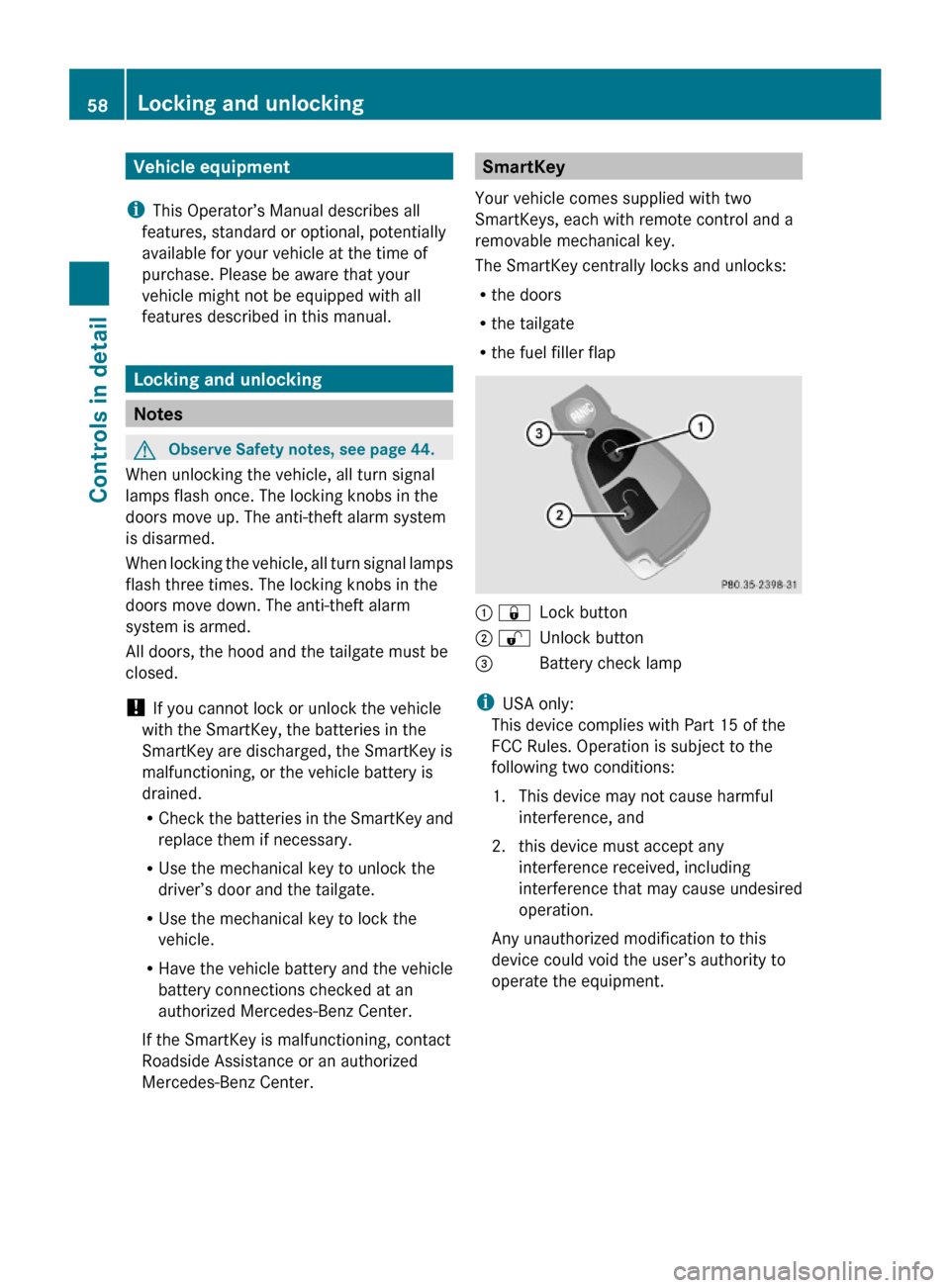

Vehicle equipment ..............................58
