still adjusting could cause the driver to lose
control of the vehicle.
Heated steering wheel
The steering wheel heating warms up the
leather area of the steering wheel.
XSwitch on the ignition.XSwitching on: Turn switch at the tip of the
stalk in direction of arrow :.
Indicator lamp = comes on.
iThe steering wheel heating may be
suspended temporarily. However, indicator
lamp = remains on. The steering wheel
heating is suspended when the
temperature of the vehicle interior is above
86‡ (30†). It is also suspended when the
temperature of the steering wheel is above
95‡ (35†).
When these conditions do not apply
anymore, steering wheel heating
continues.
XSwitching off: Turn switch at the tip of
stalk in direction of arrow ;.
Indicator lamp = goes out.
iIndicator lamp = flashes or goes out in
case of power surge or undervoltage or if
the steering wheel heating malfunctions.
iThe steering wheel heating switches off
automatically when you remove the
SmartKey from the starter switch.
For more information on the steering wheel,
see “Multifunction steering wheel”
(Y page 97).
Mirrors
Notes
Adjust the interior and exterior rear view
mirrors before driving so that you have a good
view of the road and traffic conditions.
Interior rear view mirror
XAdjust the interior rear view mirror
manually.
Exterior rear view mirrors
GWarning!
Exercise care when using the passenger-side
exterior rear view mirror. The mirror surface
is convex (outwardly curved surface for a
wider field of view). Objects in mirror are
closer than they appear. Check your interior
rear view mirror and glance over your
shoulder before changing lanes.
XSwitch on the ignition.XPress button = for the driver’s side
exterior rear view mirror or button ; for
the passenger-side exterior rear view
mirror.
Mirrors69Controls in detail463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 69Z

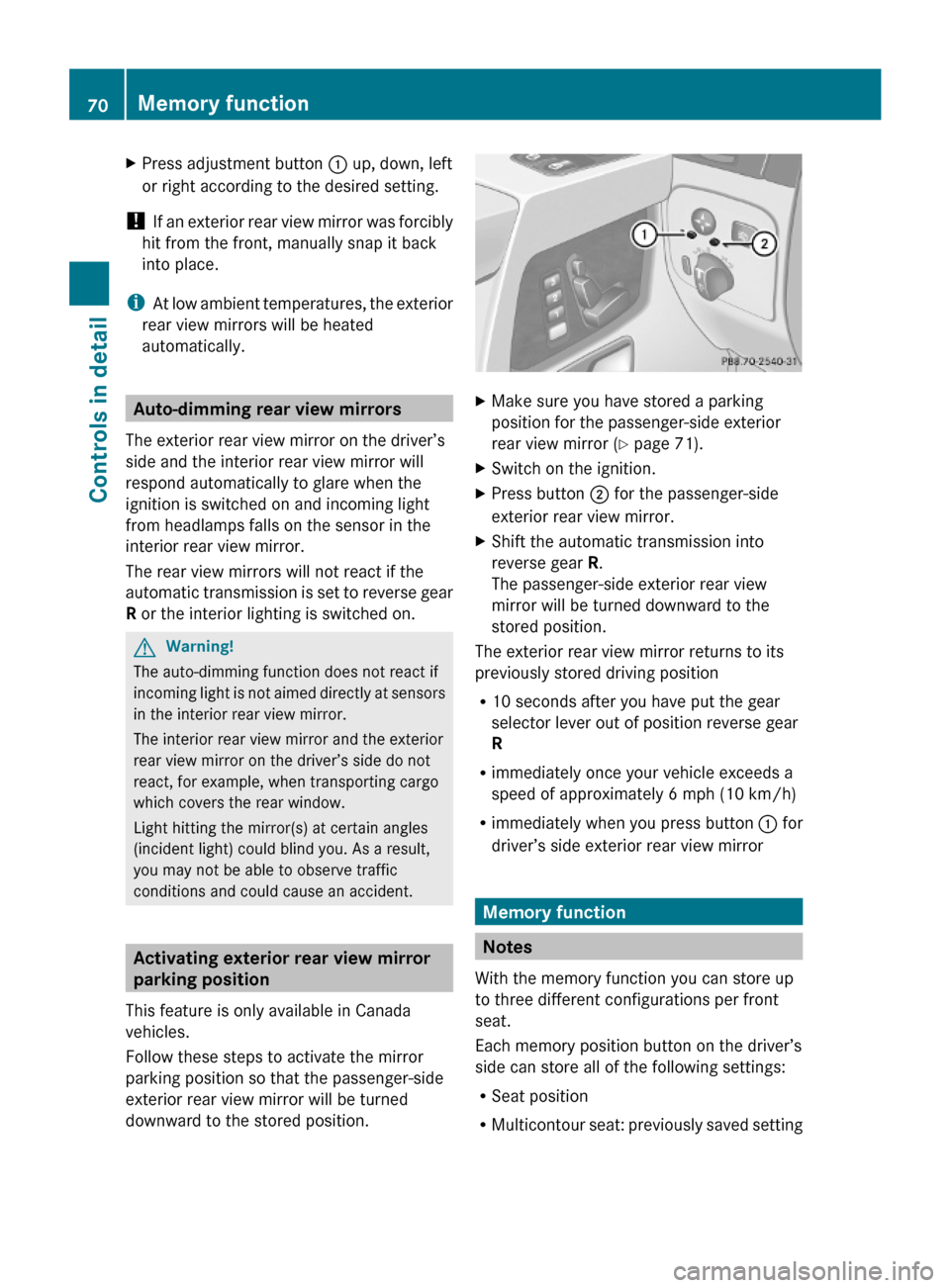

XPress adjustment button : up, down, left
or right according to the desired setting.
! If an exterior rear view mirror was forcibly
hit from the front, manually snap it back
into place.
iAt low ambient temperatures, the exterior
rear view mirrors will be heated
automatically.
Auto-dimming rear view mirrors
The exterior rear view mirror on the driver’s
side and the interior rear view mirror will
respond automatically to glare when the
ignition is switched on and incoming light
from headlamps falls on the sensor in the
interior rear view mirror.
The rear view mirrors will not react if the
automatic transmission is set to reverse gear
R or the interior lighting is switched on.
GWarning!
The auto-dimming function does not react if
incoming light is not aimed directly at sensors
in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, when transporting cargo
which covers the rear window.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic
conditions and could cause an accident.
Activating exterior rear view mirror
parking position
This feature is only available in Canada
vehicles.
Follow these steps to activate the mirror
parking position so that the passenger-side
exterior rear view mirror will be turned
downward to the stored position.
XMake sure you have stored a parking
position for the passenger-side exterior
rear view mirror (Y page 71).
XSwitch on the ignition.XPress button ; for the passenger-side
exterior rear view mirror.
XShift the automatic transmission into
reverse gear R.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
The exterior rear view mirror returns to its
previously stored driving position
R10 seconds after you have put the gear
selector lever out of position reverse gear
R
Rimmediately once your vehicle exceeds a
speed of approximately 6 mph (10 km/h)
Rimmediately when you press button : for
driver’s side exterior rear view mirror
Memory function
Notes
With the memory function you can store up
to three different configurations per front
seat.
Each memory position button on the driver’s
side can store all of the following settings:
RSeat position
RMulticontour seat: previously saved setting
70Memory functionControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 70

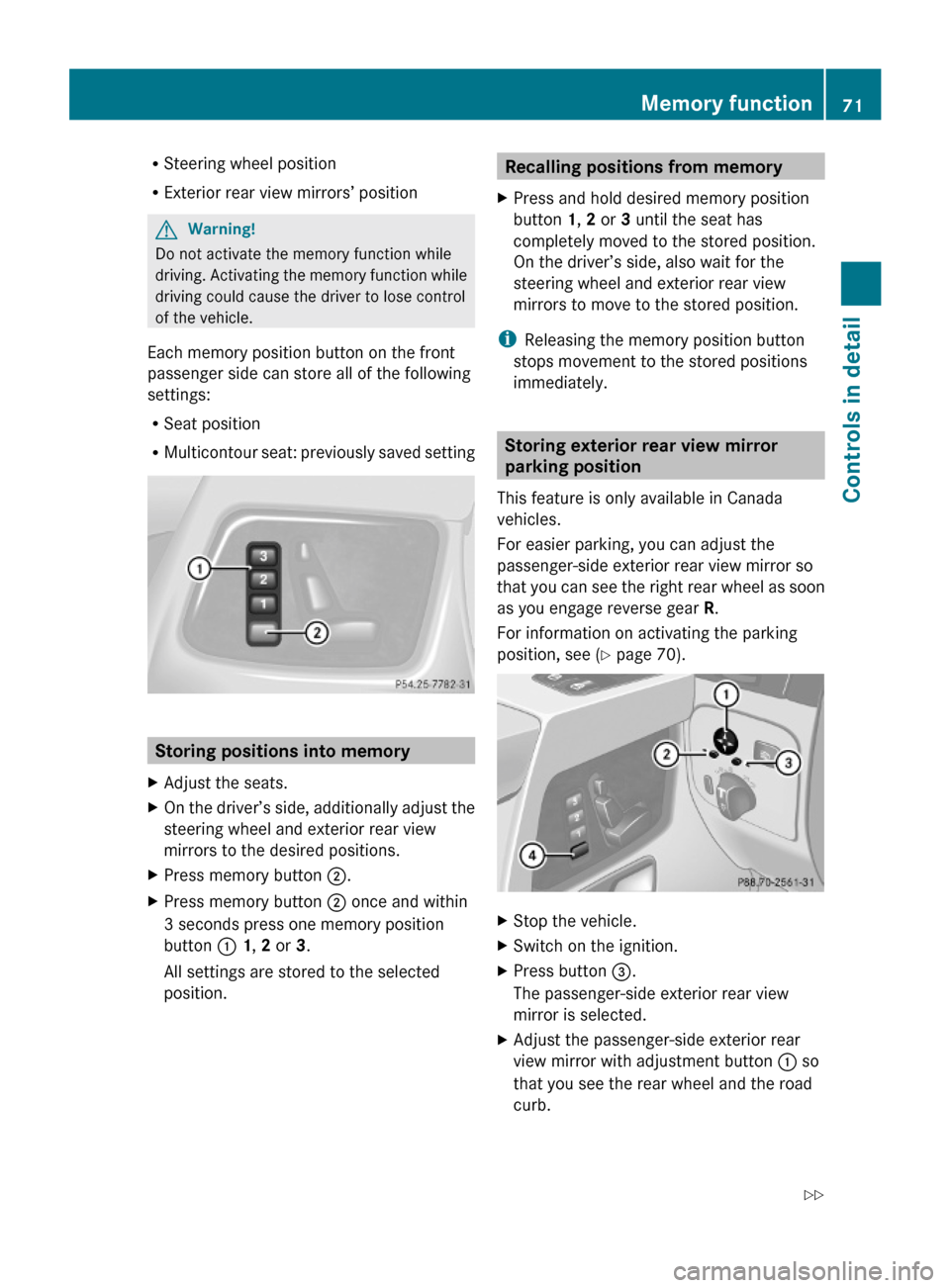

RSteering wheel position
RExterior rear view mirrors’ position
GWarning!
Do not activate the memory function while
driving. Activating the memory function while
driving could cause the driver to lose control
of the vehicle.
Each memory position button on the front
passenger side can store all of the following
settings:
RSeat position
RMulticontour seat: previously saved setting
Storing positions into memory
XAdjust the seats.XOn the driver’s side, additionally adjust the
steering wheel and exterior rear view
mirrors to the desired positions.
XPress memory button ;.XPress memory button ; once and within
3 seconds press one memory position
button : 1, 2 or 3.
All settings are stored to the selected
position.
Recalling positions from memoryXPress and hold desired memory position
button 1, 2 or 3 until the seat has
completely moved to the stored position.
On the driver’s side, also wait for the
steering wheel and exterior rear view
mirrors to move to the stored position.
iReleasing the memory position button
stops movement to the stored positions
immediately.
Storing exterior rear view mirror
parking position
This feature is only available in Canada
vehicles.
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as soon
as you engage reverse gear R.
For information on activating the parking
position, see (Y page 70).
XStop the vehicle.XSwitch on the ignition.XPress button =.
The passenger-side exterior rear view
mirror is selected.
XAdjust the passenger-side exterior rear
view mirror with adjustment button : so
that you see the rear wheel and the road
curb.
Memory function71Controls in detail463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 71Z

XPress memory button ?.XWithin 3 seconds, press bottom of
adjustment button :.
The parking position is stored if the mirror
does not move.
iIf the mirror does move, repeat the above
steps. After the setting is stored, you can
move the mirror again.

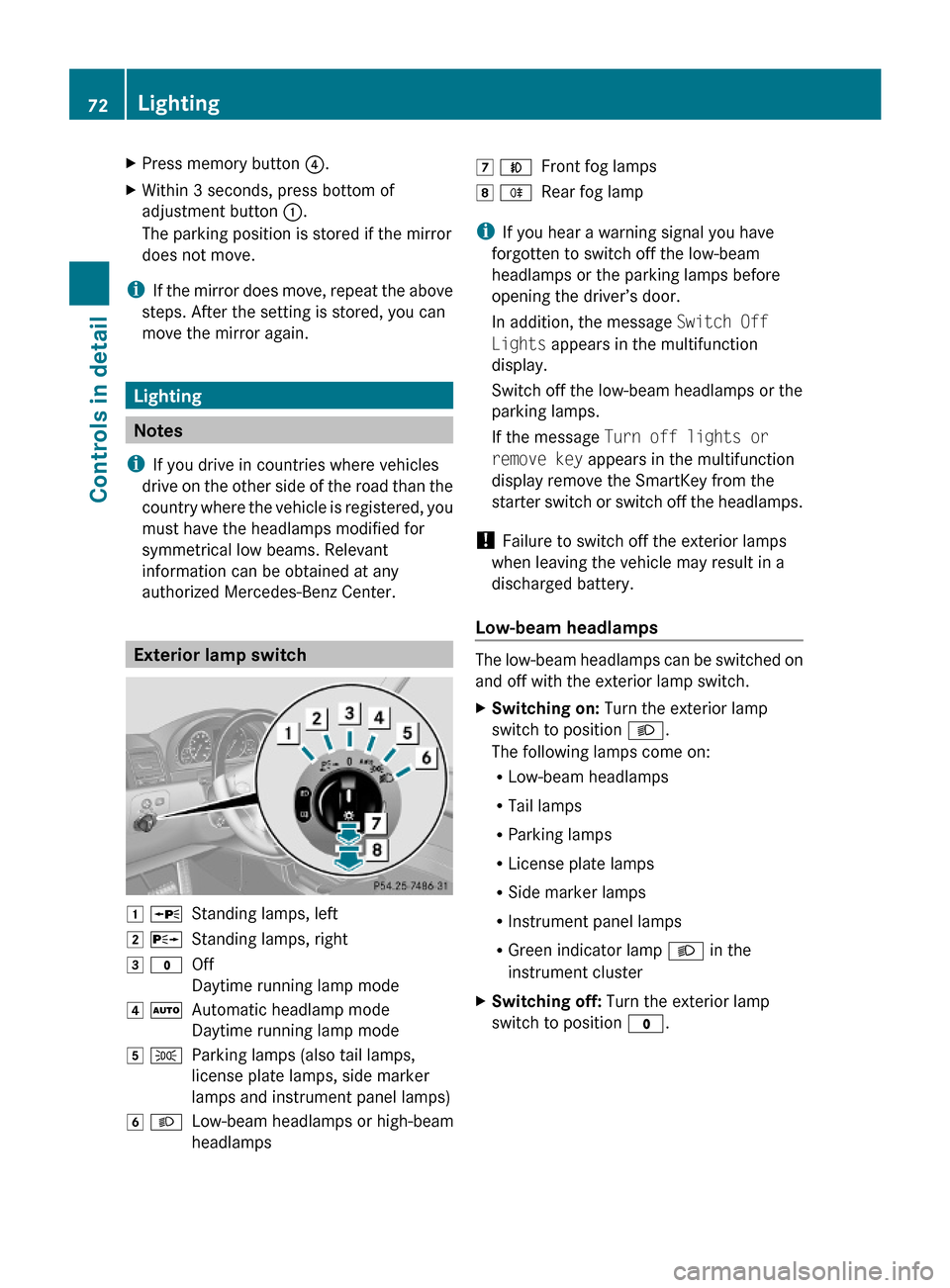

Lighting
Notes
iIf you drive in countries where vehicles
drive on the other side of the road than the
country where the vehicle is registered, you
must have the headlamps modified for
symmetrical low beams. Relevant
information can be obtained at any
authorized Mercedes-Benz Center.
Exterior lamp switch
1 WStanding lamps, left2 XStanding lamps, right3 $Off
Daytime running lamp mode
4 ÃAutomatic headlamp mode
Daytime running lamp mode
5 TParking lamps (also tail lamps,
license plate lamps, side marker
lamps and instrument panel lamps)
6 LLow-beam headlamps or high-beam
headlamps
7 NFront fog lamps8 RRear fog lamp
iIf you hear a warning signal you have
forgotten to switch off the low-beam
headlamps or the parking lamps before
opening the driver’s door.
In addition, the message Switch Off
Lights appears in the multifunction
display.
Switch off the low-beam headlamps or the
parking lamps.
If the message Turn off lights or
remove key appears in the multifunction
display remove the SmartKey from the
starter switch or switch off the headlamps.
! Failure to switch off the exterior lamps
when leaving the vehicle may result in a
discharged battery.
Low-beam headlamps
The low-beam headlamps can be switched on
and off with the exterior lamp switch.
XSwitching on: Turn the exterior lamp
switch to position L.
The following lamps come on:
RLow-beam headlamps
RTail lamps
RParking lamps
RLicense plate lamps
RSide marker lamps
RInstrument panel lamps
RGreen indicator lamp L in the
instrument cluster
XSwitching off: Turn the exterior lamp
switch to position $.
72LightingControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 72

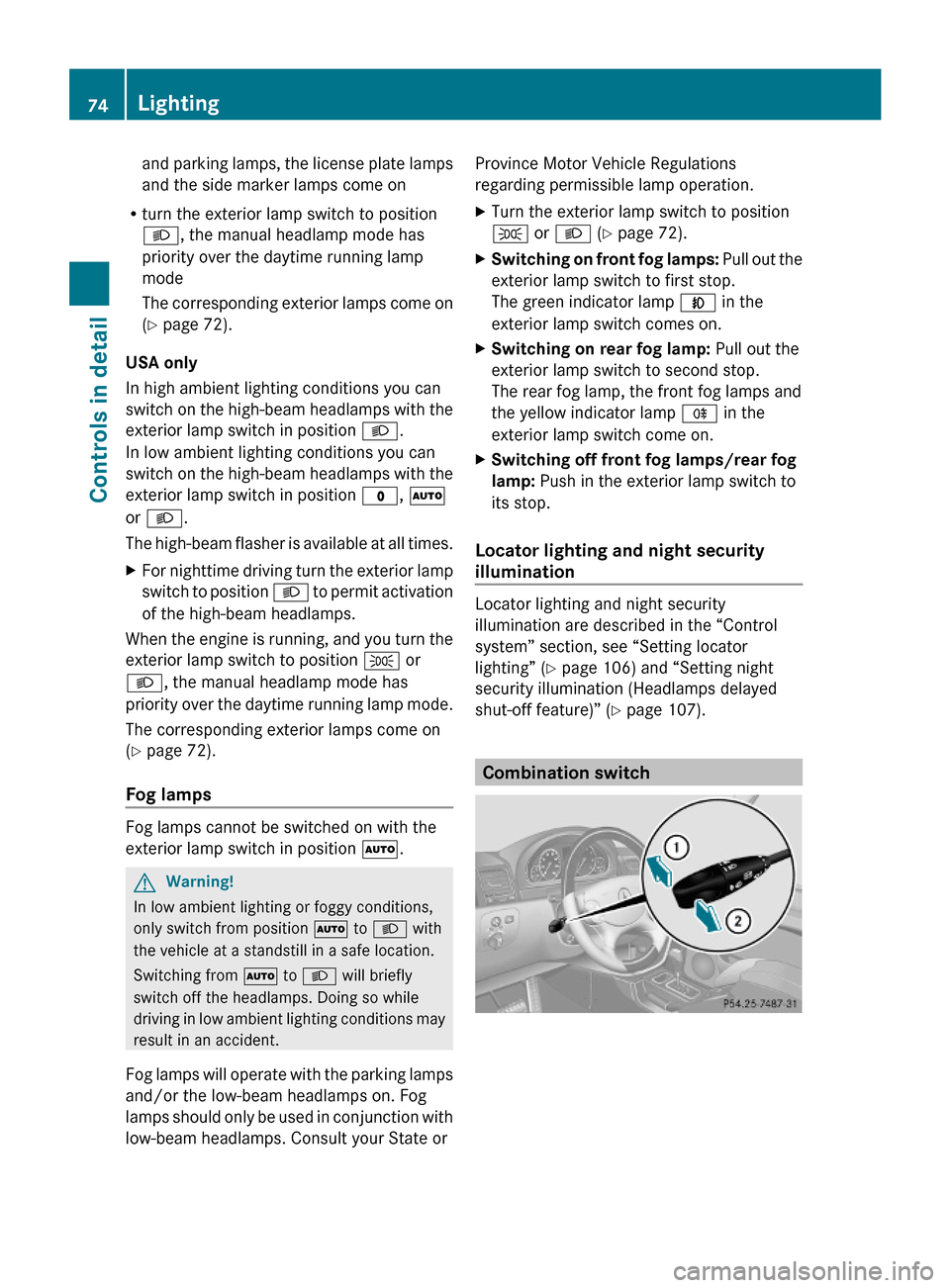

and parking lamps, the license plate lamps
and the side marker lamps come on
Rturn the exterior lamp switch to position
L, the manual headlamp mode has
priority over the daytime running lamp
mode
The corresponding exterior lamps come on
(Y page 72).
USA only
In high ambient lighting conditions you can
switch on the high-beam headlamps with the
exterior lamp switch in position L.
In low ambient lighting conditions you can
switch on the high-beam headlamps with the
exterior lamp switch in position $, Ã
or L.
The high-beam flasher is available at all times.
XFor nighttime driving turn the exterior lamp
switch to position L to permit activation
of the high-beam headlamps.
When the engine is running, and you turn the
exterior lamp switch to position T or
L, the manual headlamp mode has
priority over the daytime running lamp mode.
The corresponding exterior lamps come on
(Y page 72).
Fog lamps
Fog lamps cannot be switched on with the
exterior lamp switch in position Ã.
GWarning!
In low ambient lighting or foggy conditions,
only switch from position à to L with
the vehicle at a standstill in a safe location.
Switching from à to L will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions may
result in an accident.
Fog lamps will operate with the parking lamps
and/or the low-beam headlamps on. Fog
lamps should only be used in conjunction with
low-beam headlamps. Consult your State or
Province Motor Vehicle Regulations
regarding permissible lamp operation.
XTurn the exterior lamp switch to position
T or L (Y page 72).
XSwitching on front fog lamps: Pull out the
exterior lamp switch to first stop.
The green indicator lamp N in the
exterior lamp switch comes on.
XSwitching on rear fog lamp: Pull out the
exterior lamp switch to second stop.
The rear fog lamp, the front fog lamps and
the yellow indicator lamp R in the
exterior lamp switch come on.
XSwitching off front fog lamps/rear fog
lamp: Push in the exterior lamp switch to
its stop.
Locator lighting and night security
illumination
Locator lighting and night security
illumination are described in the “Control
system” section, see “Setting locator
lighting” (Y page 106) and “Setting night
security illumination (Headlamps delayed
shut-off feature)” (Y page 107).
Combination switch
74LightingControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 74

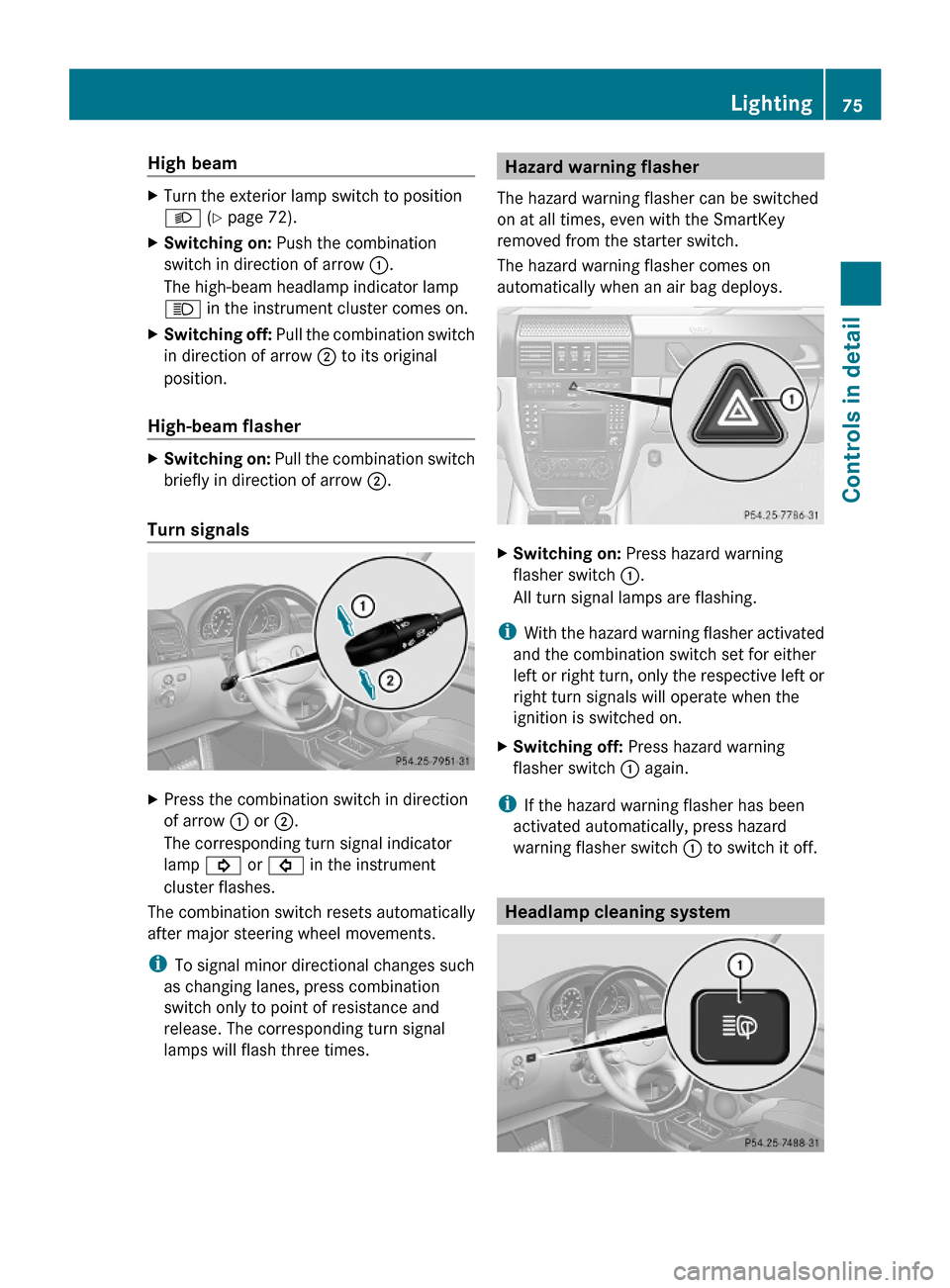

High beam XTurn the exterior lamp switch to position
L (Y page 72).
XSwitching on: Push the combination
switch in direction of arrow :.
The high-beam headlamp indicator lamp
K in the instrument cluster comes on.
XSwitching off: Pull the combination switch
in direction of arrow ; to its original
position.
High-beam flasher
XSwitching on: Pull the combination switch
briefly in direction of arrow ;.
Turn signals
XPress the combination switch in direction
of arrow : or ;.
The corresponding turn signal indicator
lamp ! or # in the instrument
cluster flashes.
The combination switch resets automatically
after major steering wheel movements.
iTo signal minor directional changes such
as changing lanes, press combination
switch only to point of resistance and
release. The corresponding turn signal
lamps will flash three times.
Hazard warning flasher
The hazard warning flasher can be switched
on at all times, even with the SmartKey
removed from the starter switch.
The hazard warning flasher comes on
automatically when an air bag deploys.
XSwitching on: Press hazard warning
flasher switch :.
All turn signal lamps are flashing.
iWith the hazard warning flasher activated
and the combination switch set for either
left or right turn, only the respective left or
right turn signals will operate when the
ignition is switched on.
XSwitching off: Press hazard warning
flasher switch : again.
iIf the hazard warning flasher has been
activated automatically, press hazard
warning flasher switch : to switch it off.
Headlamp cleaning system
Lighting75Controls in detail463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 75Z

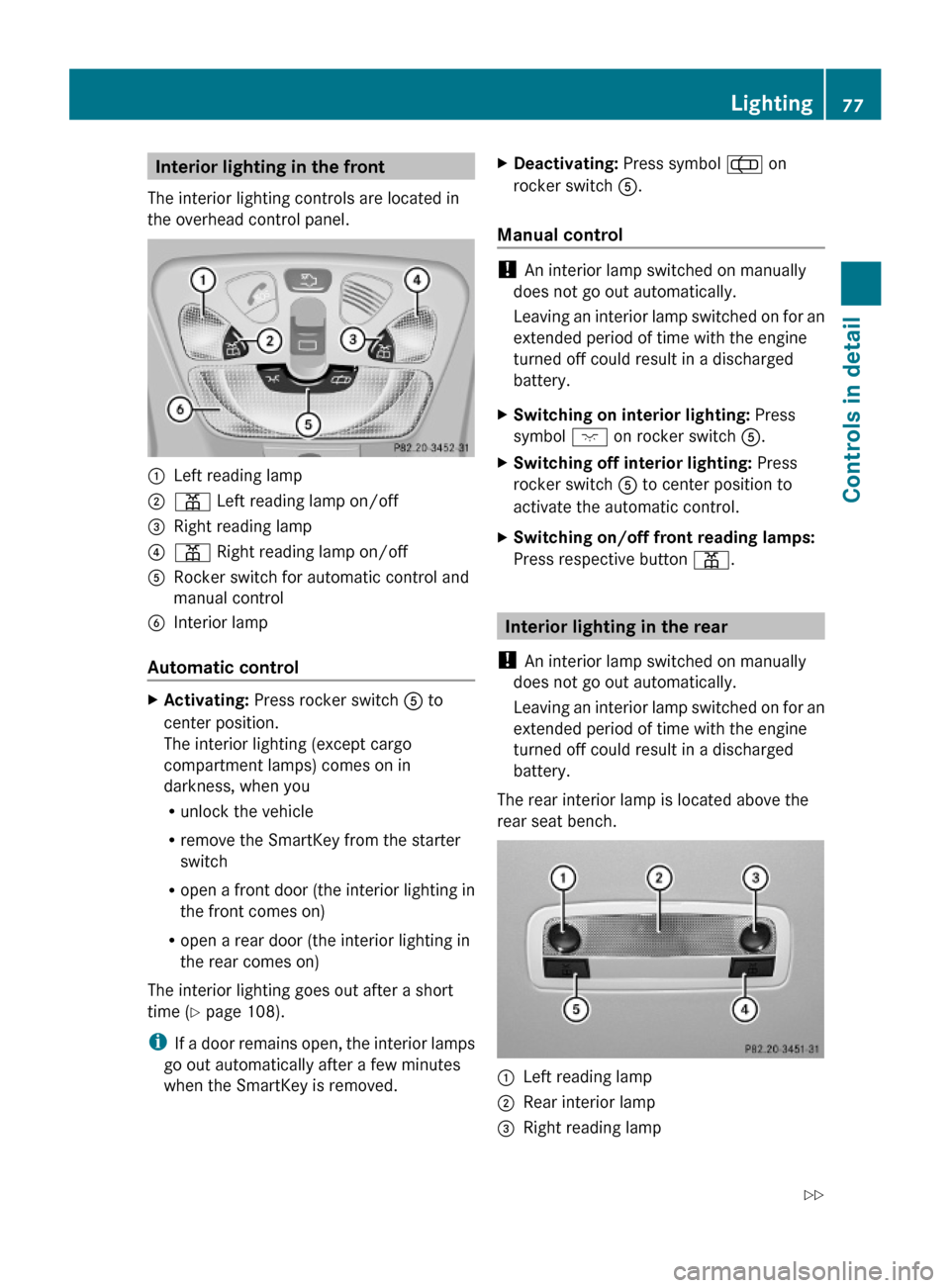

Interior lighting in the front
The interior lighting controls are located in
the overhead control panel.
:Left reading lamp;p Left reading lamp on/off=Right reading lamp?p Right reading lamp on/offARocker switch for automatic control and
manual control
BInterior lamp
Automatic control
XActivating: Press rocker switch A to
center position.
The interior lighting (except cargo
compartment lamps) comes on in
darkness, when you
Runlock the vehicle
Rremove the SmartKey from the starter
switch
Ropen a front door (the interior lighting in
the front comes on)
Ropen a rear door (the interior lighting in
the rear comes on)
The interior lighting goes out after a short
time (Y page 108).
iIf a door remains open, the interior lamps
go out automatically after a few minutes
when the SmartKey is removed.
XDeactivating: Press symbol y on
rocker switch A.
Manual control
! An interior lamp switched on manually
does not go out automatically.
Leaving an interior lamp switched on for an
extended period of time with the engine
turned off could result in a discharged
battery.
XSwitching on interior lighting: Press
symbol c on rocker switch A.
XSwitching off interior lighting: Press
rocker switch A to center position to
activate the automatic control.
XSwitching on/off front reading lamps:
Press respective button p.
Interior lighting in the rear
! An interior lamp switched on manually
does not go out automatically.
Leaving an interior lamp switched on for an
extended period of time with the engine
turned off could result in a discharged
battery.
The rear interior lamp is located above the
rear seat bench.
:Left reading lamp;Rear interior lamp=Right reading lampLighting77Controls in detail463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 77Z

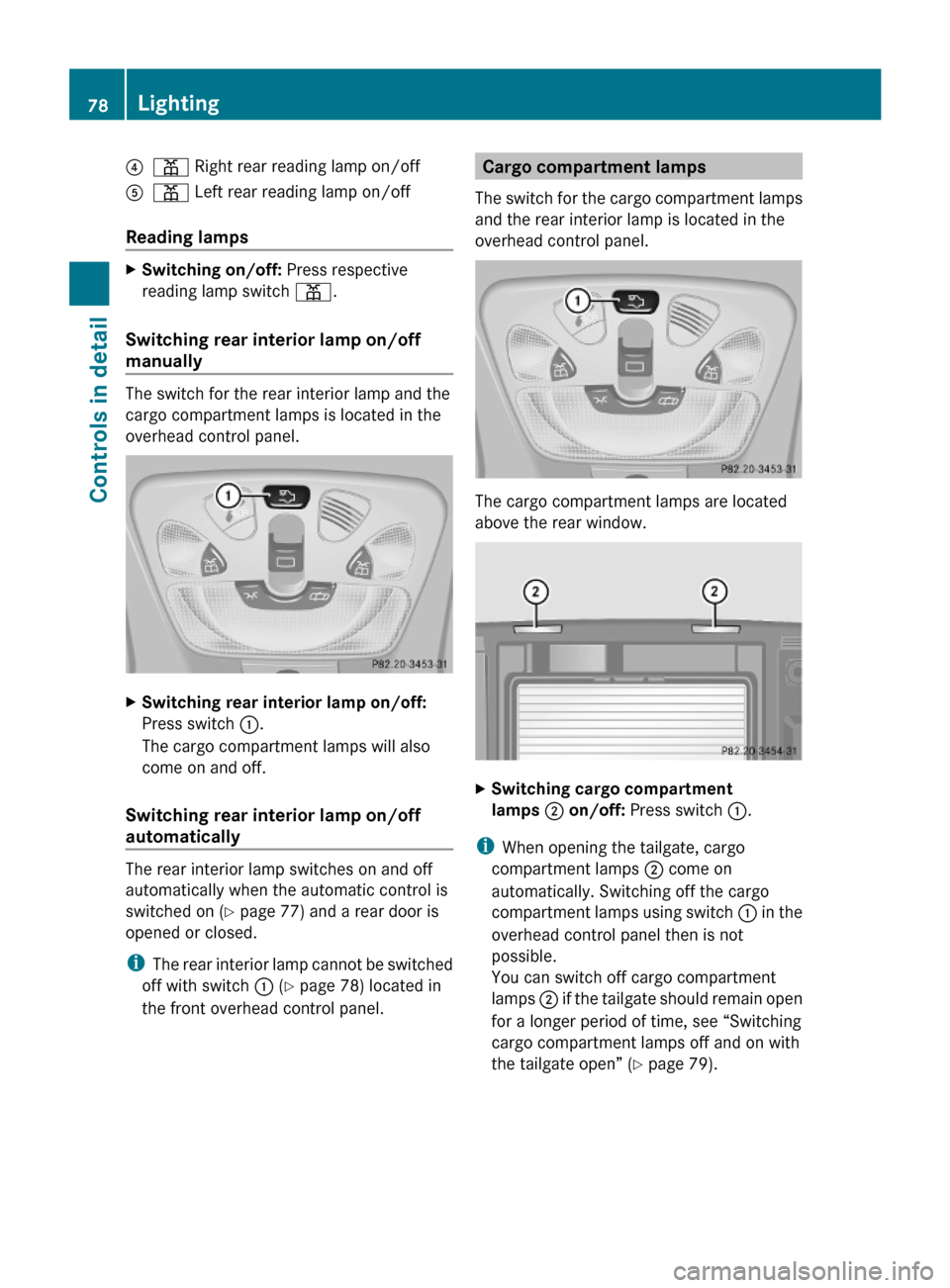

?p Right rear reading lamp on/offAp Left rear reading lamp on/off
Reading lamps
XSwitching on/off: Press respective
reading lamp switch p.
Switching rear interior lamp on/off
manually
The switch for the rear interior lamp and the
cargo compartment lamps is located in the
overhead control panel.
XSwitching rear interior lamp on/off:
Press switch :.
The cargo compartment lamps will also
come on and off.
Switching rear interior lamp on/off
automatically
The rear interior lamp switches on and off
automatically when the automatic control is
switched on (Y page 77) and a rear door is
opened or closed.
iThe rear interior lamp cannot be switched
off with switch : (Y page 78) located in
the front overhead control panel.
Cargo compartment lamps
The switch for the cargo compartment lamps
and the rear interior lamp is located in the
overhead control panel.
The cargo compartment lamps are located
above the rear window.
XSwitching cargo compartment
lamps ; on/off: Press switch :.
iWhen opening the tailgate, cargo
compartment lamps ; come on
automatically. Switching off the cargo
compartment lamps using switch : in the
overhead control panel then is not
possible.
You can switch off cargo compartment
lamps ; if the tailgate should remain open
for a longer period of time, see “Switching
cargo compartment lamps off and on with
the tailgate open” (Y page 79).
78LightingControls in detail
463_AKB; 2; 52, en-USd2ureepe,Version: 2.11.7.12008-12-02T10:52:11+01:00 - Seite 78
