MERCEDES-BENZ G-Class 2013 W463 Owner's Guide

Instrument cluster
Displays and controls
Function Page
:
Speedometer with segments 210
;
Multifunction display 212
=
Tachometer 210
?
Coolant temperature display 209
A
Fuel gauge
B
Instrument cluster lighting control 209Instrument cluster
29At a glance

Warning and indicator lamps
Function Page
:
L Low-beam
headlamps
99
;
÷ ESP
® 252
=
K High-beam
headlamps
103
?
J Brakes (yellow)
249
A
· Distance warning
258
B
#! Turn signals
103
C
h Tire pressure monitor
259
D
6 SRS
255
E
ü Seat belt
248 Function Page
F
? Coolant
256
G
R Rear fog lamp
101
H
O Front fog lamps
101
I
; Check Engine
256
J
8 Reserve fuel
256
K
å ESP
®
OFF 252
L
! ABS
250
M
Brakes (red)
$ (USA only)
J (Canada only)
24930
Instrument cluster
At a glance

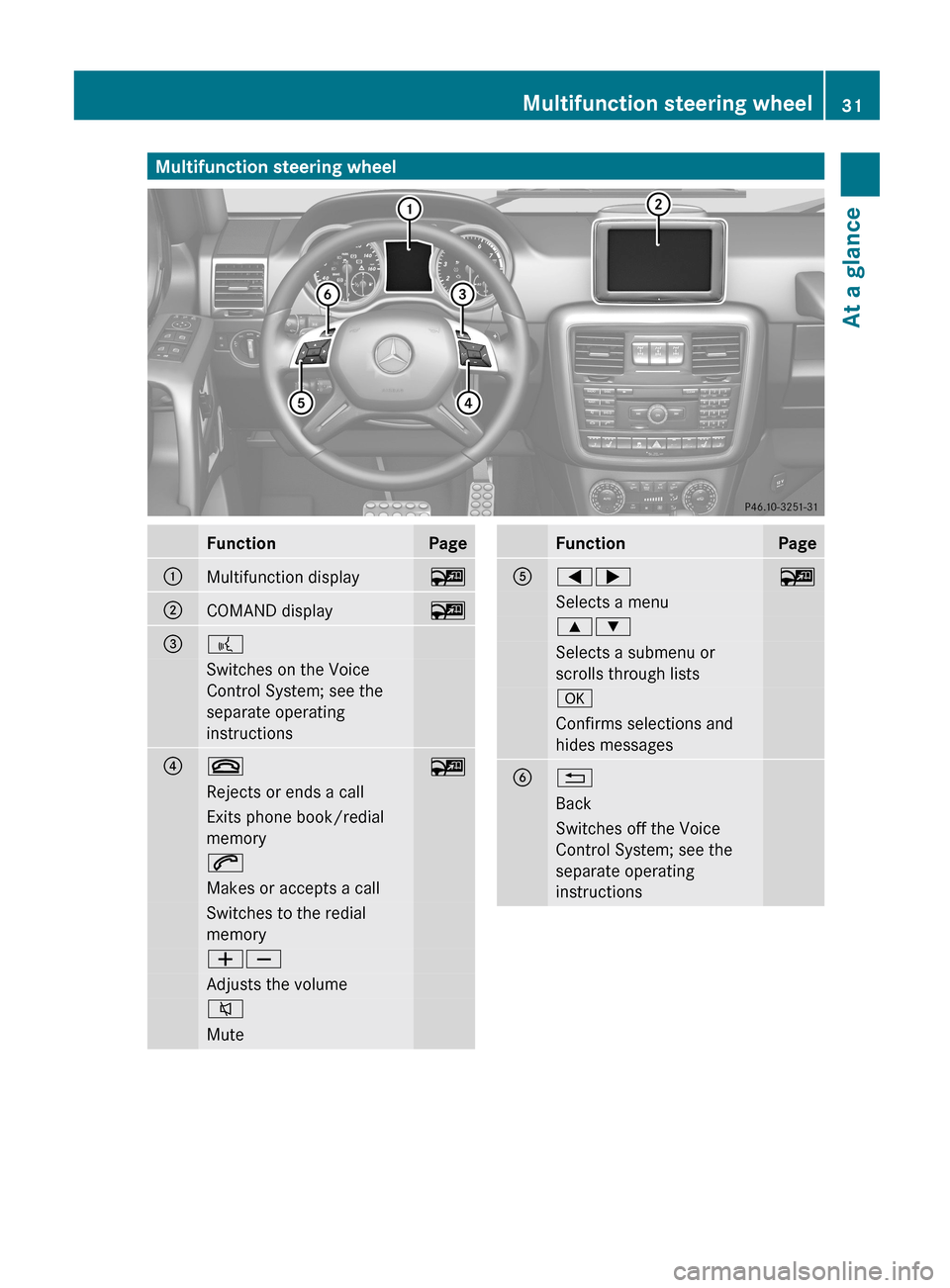

Multifunction steering wheel
Function Page
:
Multifunction display ~
;
COMAND display ~
=
?
Switches on the Voice
Control System; see the
separate operating
instructions
?
~
~
Rejects or ends a call
Exits phone book/redial
memory
6
Makes or accepts a call
Switches to the redial
memory
WX
Adjusts the volume
8
Mute Function Page
A
=;
~
Selects a menu
9:
Selects a submenu or
scrolls through lists
a
Confirms selections and
hides messages
B
%
Back
Switches off the Voice
Control System; see the
separate operating
instructionsMultifunction steering wheel
31At a glance

Center console
Center console, upper section
Function Page
:
Audio system; see the
separate operating
instructions
COMAND ~
;
Seat heating 89
=
s Seat ventilation
90
?
c PARKTRONIC
194 Function Page
A
¤ ECO start/stop
function
141
B
£ Hazard warning
lamps
104
C
45 Indicator lamp
D
å ESP
® 6232
Center consoleAt a glance

Center console, lower section
Function Page
F
Stowage compartment/
ashtray
269
G
Automatic transmission
selector lever
145
H
Selects park position 146
I
+ Selects/deselects
LOW RANGE off-road gear
199
J
Stowage compartment ~
K
Opens/closes the stowage
compartment
263 Function Page
L
Cigarette lighter 270
M
Audio controller, see the
separate operating
instructions
COMAND controller ~
N
Switches the windshield
heating on/off
133
O
Ú Selects the drive
program
149
P
Parking brake 157Center console
33At a glance

Overhead control panel
Function Page
:
p Switches the left-
hand reading lamp on/off
105
;
c Switches the front
interior lighting on
106
=
u Switches the rear
interior lighting on/off
106
?
| Switches the front
interior lighting/automatic
interior lighting control off
106
A
p Switches the right-
hand reading lamp on/off
105
B
¡ Opens/closes the
sliding sunroof
80
C
F Roadside Assistance
call button (mbrace
system)
275 Function Page
D
G SOS button (mbrace
system)
274
E
ï MB Info call button
(mbrace system)
276
F
Rear-view mirror 93
G
Buttons for the garage door
opener
284
H
Microphone for mbrace
(emergency call system),
telephone and the Voice
Control System34
Overhead control panelAt a glance

Door control panel
Function Page
:
n Activates/
deactivates the override
feature for the side
windows in the rear
compartment
59
;
W Opens/closes the
side windows
78
=
7Zö\
Adjusts and folds the
exterior mirrors in/out
electrically
93 Function Page
?
r45=
Stores
settings for the seat,
exterior mirrors and
steering wheel (memory
function) 95
A
Adjusts the seats 86
B
%& Unlocks/locks
the vehicle
74
C
Opens the door 74Door control panel
35
At a glance

36

Useful information ..............................
38
Panic alarm .......................................... 38
Occupant safety .................................. 38
Children in the vehicle ........................54
Driving safety systems ....................... 60
Theft deterrent locking system ......... 64 37Safety

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible.
Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 23).Panic alarm
X
To activate: press ! button : for at
least one second.
An alarm sounds and the indicator lamp
flashes.
X To deactivate: press ! button :
again.
or
X Insert the SmartKey into the ignition lock.
i USA only:
This device complies with part

15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference,
and
2. this device must accept any interference
received, including interference that may
cause undesired operation of the device. Any unauthorized modification to this
device could void the user's authority to
operate the equipment.
The Product label with FCC ID and IC
certification number can be found in the
battery case of the SmartKey.
i Canada only:
This device complies with the RSS-210
Rules of Industry Canada. Operation is
subject to the following two conditions:
1. This device may not cause interference,
and
2.

this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this
device could void the user's authority to
operate the equipment.
The Product label with FCC ID and IC
certification number can be found in the
battery case of the SmartKey. Occupant safety
Important safety notes
G
WARNING
Modifications to or work improperly
conducted on restraint system components
or their wiring, as well as tampering with
interconnected electronic systems, can lead
to

the restraint systems no longer functioning
as intended.
Air bags or Emergency Tensioning Devices
(ETDs), for example, could deploy
inadvertently or fail to deploy in accidents
although the deceleration threshold for air
bag deployment is exceeded. Therefore,
never modify the restraint systems. Do not
tamper with electronic components or their
software.
In this section, you will learn the most
important facts about the restraint system
components of the vehicle. 38
Occupant safety
Safety
