MERCEDES-BENZ G-Class 2015 W463 Owner's Manual

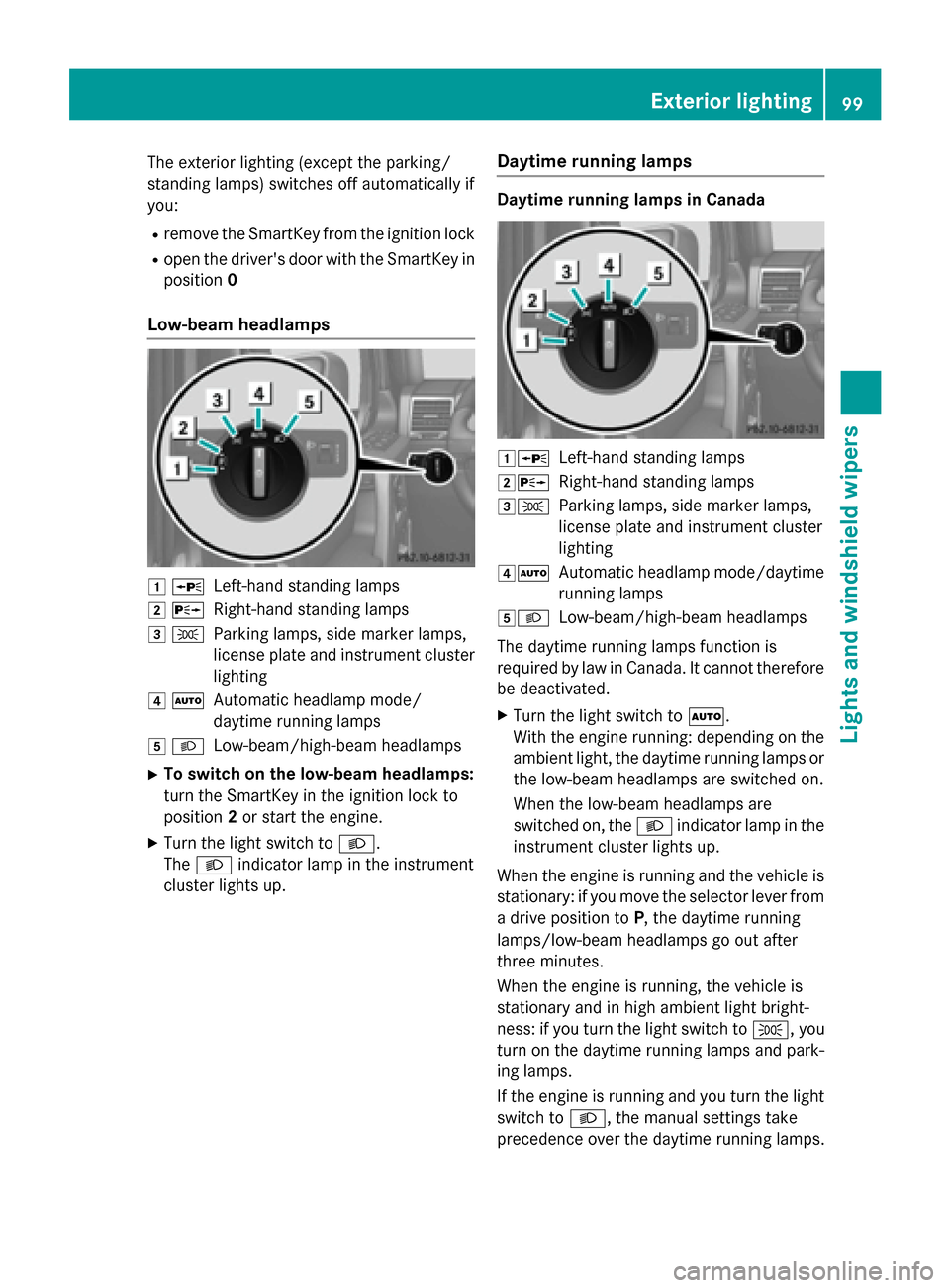

The exterior lighting (except the parking/
standing lamps) switches off automatically if
you:
R remove the SmartKey from the ignition lock
R open the driver's door with the SmartKey in
position 0
Low-beam headlamps 1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting
4 Ã
Automatic headlamp mode/
daytime running lamps
5 L
Low-beam/high-beam headlamps
X To switch on the low-beam headlamps:
turn the SmartKey in the ignition lock to
position 2or start the engine.
X Turn the light switch to L.
The L indicator lamp in the instrument
cluster lights up. Daytime running lamps Daytime running lamps in Canada
1W
Left-hand standing lamps
2X Right-hand standing lamps
3T Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
4Ã Automatic headlamp mode/daytime
running lamps
5L Low-beam/high-beam headlamps
The daytime running lamps function is
required by law in Canada. It cannot therefore be deactivated.
X Turn the light switch to Ã.
With the engine running: depending on the ambient light, the daytime running lamps orthe low-beam headlamps are switched on.
When the low-beam headlamps are
switched on, the Lindicator lamp in the
instrument cluster lights up.
When the engine is running and the vehicle is
stationary: if you move the selector lever from
a drive position to P, the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in high ambient light bright-
ness: if you turn the light switch to T, you
turn on the daytime running lamps and park-
ing lamps.
If the engine is running and you turn the light switch to L, the manual settings take
precedence over the daytime running lamps. Exterior lighting
99Lights and windshield wipers

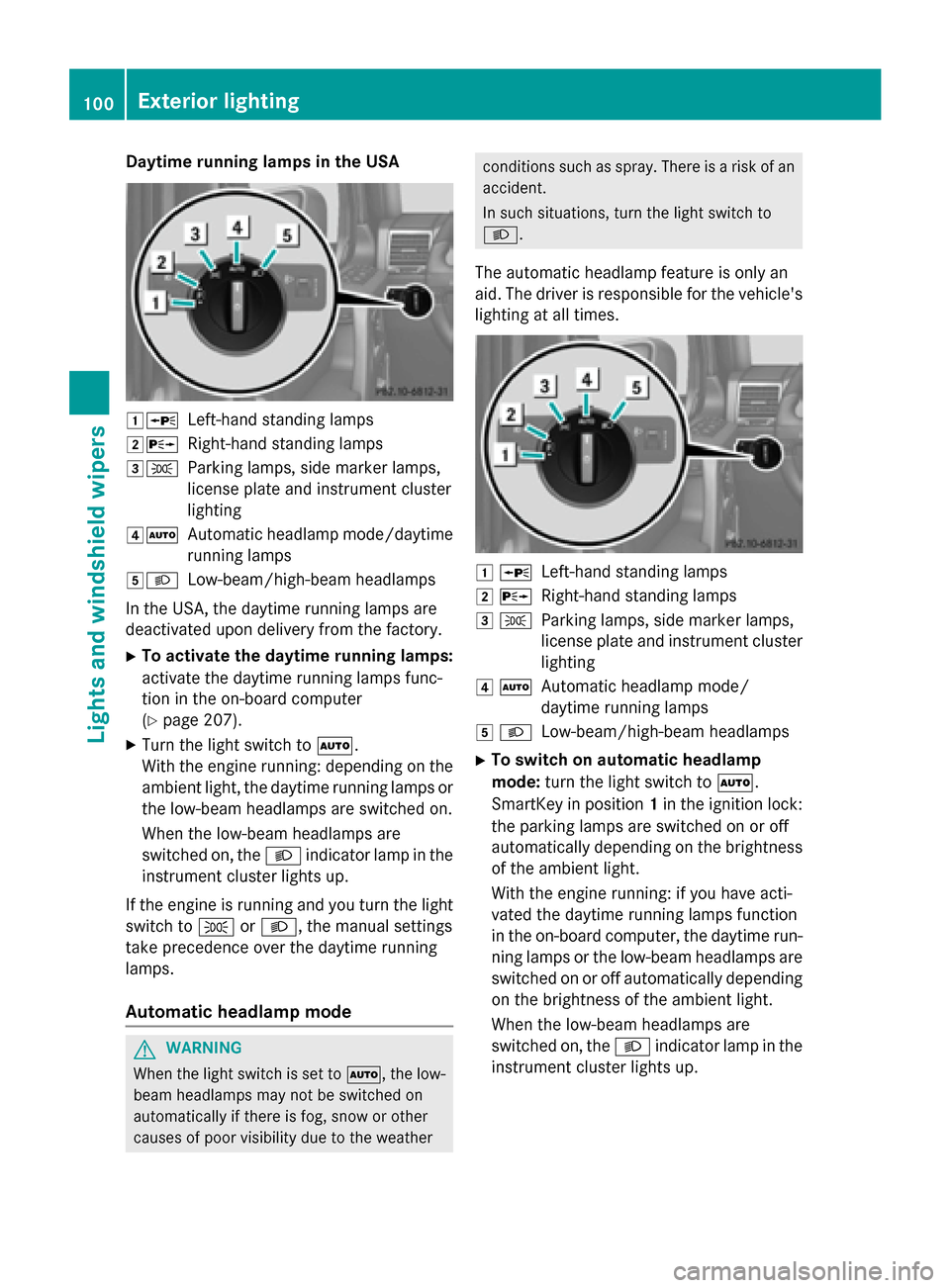

Daytime running lamps in the USA
1W
Left-hand standing lamps
2X Right-hand standing lamps
3T Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
4Ã Automatic headlamp mode/daytime
running lamps
5L Low-beam/high-beam headlamps
In the USA, the daytime running lamps are
deactivated upon delivery from the factory. X To activate the daytime running lamps:
activate the daytime running lamps func-
tion in the on-board computer
(Y page 207).
X Turn the light switch to Ã.
With the engine running: depending on the ambient light, the daytime running lamps orthe low-beam headlamps are switched on.
When the low-beam headlamps are
switched on, the Lindicator lamp in the
instrument cluster lights up.
If the engine is running and you turn the light
switch to TorL, the manual settings
take precedence over the daytime running
lamps.
Automatic headlamp mode G
WARNING
When the light switch is set to Ã, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather conditions such as spray. There is a risk of an
accident.
In such situations, turn the light switch to
L.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's lighting at all times. 1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting
4 Ã
Automatic headlamp mode/
daytime running lamps
5 L
Low-beam/high-beam headlamps
X To switch on automatic headlamp
mode: turn the light switch to Ã.
SmartKey in position 1in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness of the ambient light.
With the engine running: if you have acti-
vated the daytime running lamps function
in the on-board computer, the daytime run-
ning lamps or the low-beam headlamps are
switched on or off automatically depending on the brightness of the ambient light.
When the low-beam headlamps are
switched on, the Lindicator lamp in the
instrument cluster lights up. 100
Exterior lightingLigh
ts and windshield wipers

Fog lamps (except AMG vehicles)
G
WARNING
When the light switch is set to Ã, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, turn the light switch to
L.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's lighting at all times. 1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting
4 Ã
Automatic headlamp mode/
daytime running lamps
5 L
Low-beam/high-beam headlamps
B N
Fog lamps (except AMG vehicles)
C R
Rear Fog Lamp X
To switch on the fog lamps: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to T,Lor
Ã.
X Press the Nbutton.
The green Nindicator lamp in the instru-
ment cluster lights up.
X To switch off the front fog lamps: press
the N button.
The green Nindicator lamp in the instru-
ment cluster goes out.
Only vehicles with front fog lamps have the
fog lamps function. Rear fog lamp
1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting
4 Ã
Automatic headlamp mode/
daytime running lamps Exterior lighting
101Lights and windshield wipers Z

5
L
Low-beam/high-beam headlamps
B N
Fog lamps (except AMG vehicles)
C R
Rear Fog Lamp

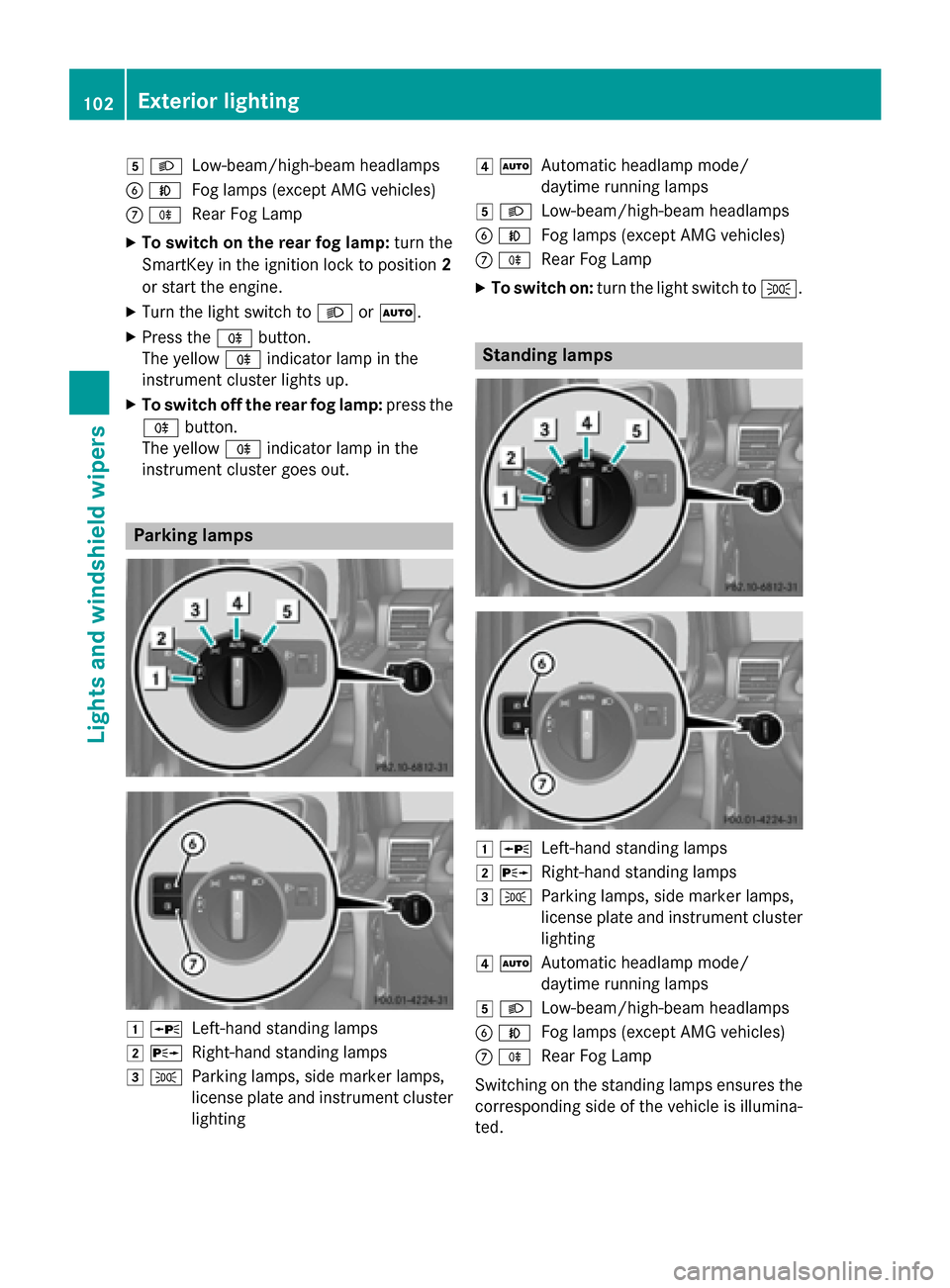

X To switch on the rear fog lamp: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to LorÃ.
X Press the Rbutton.
The yellow Rindicator lamp in the
instrument cluster lights up.
X To switch off the rear fog lamp: press the
R button.
The yellow Rindicator lamp in the
instrument cluster goes out. Parking lamps
1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting 4
Ã
Automatic headlamp mode/
daytime running lamps
5 L
Low-beam/high-beam headlamps
B N
Fog lamps (except AMG vehicles)
C R
Rear Fog Lamp
X To switch on: turn the light switch to T. Standing lamps
1
W
Left-hand standing lamps
2 X
Right-hand standing lamps
3 T
Parking lamps, side marker lamps,
license plate and instrument cluster lighting
4 Ã
Automatic headlamp mode/
daytime running lamps
5 L
Low-beam/high-beam headlamps
B N
Fog lamps (except AMG vehicles)
C R
Rear Fog Lamp
Switching on the standing lamps ensures the
corresponding side of the vehicle is illumina-
ted. 102
Exterior lightingLights and windshield wipers

X

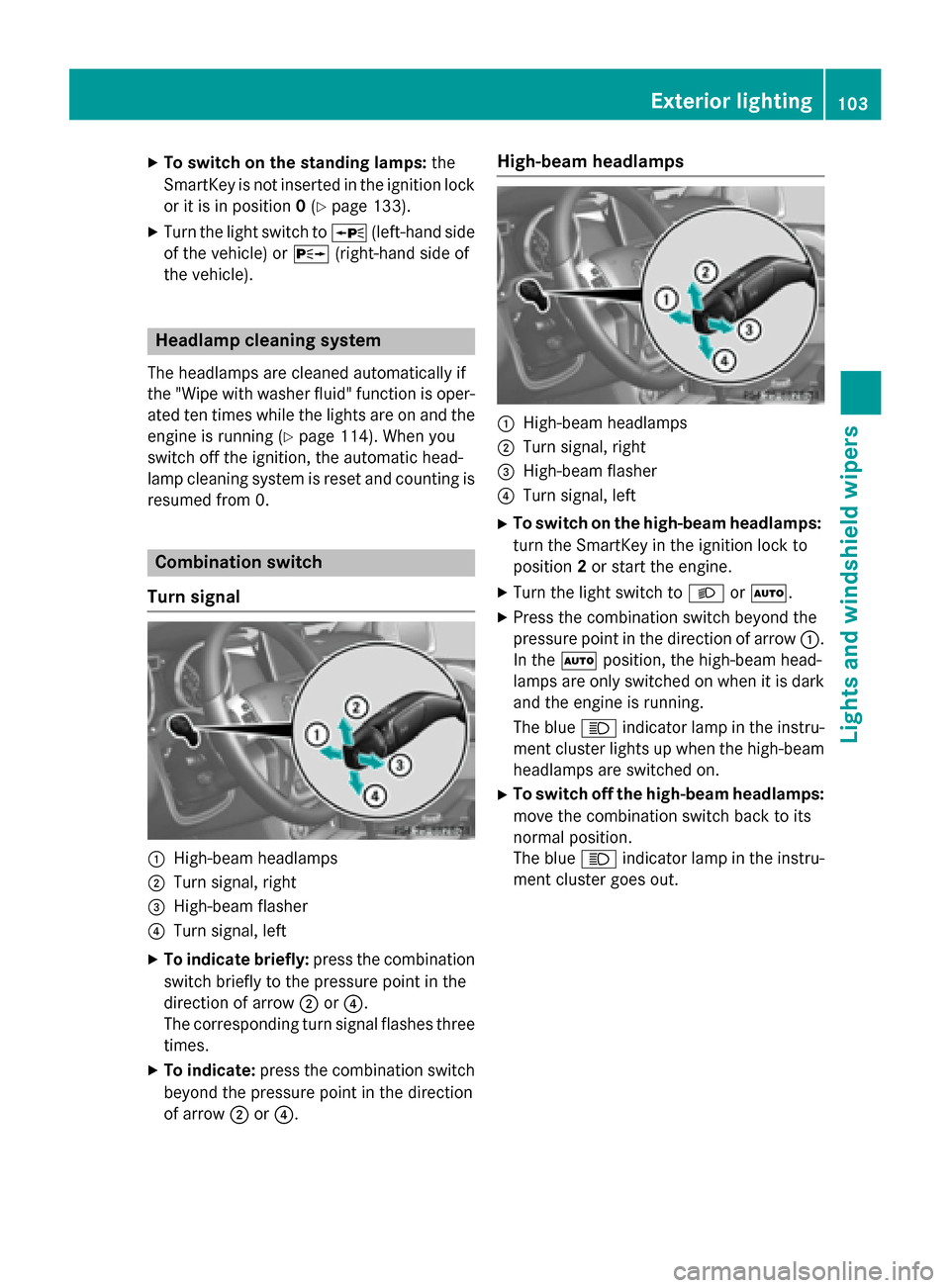

To switch on the standing lamps: the
SmartKey is not inserted in the ignition lock
or it is in position 0(Y page 133).
X Turn the light switch to W(left-hand side
of the vehicle) or X(right-hand side of
the vehicle). Headlamp cleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is oper-
ated ten times while the lights are on and the engine is running (Y page 114). When you
switch off the ignition, the automatic head-
lamp cleaning system is reset and counting is resumed from 0. Combination switch
Turn signal :
High-beam headlamps
; Turn signal, right
= High-beam flasher
? Turn signal, left
X To indicate briefly: press the combination
switch briefly to the pressure point in the
direction of arrow ;or?.
The corresponding turn signal flashes three
times.
X To indicate: press the combination switch
beyond the pressure point in the direction
of arrow ;or?. High-beam headlamps
:
High-beam headlamps
; Turn signal, right
= High-beam flasher
? Turn signal, left
X To switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position 2or start the engine.
X Turn the light switch to LorÃ.
X Press the combination switch beyond the
pressure point in the direction of arrow :.
In the Ãposition, the high-beam head-
lamps are only switched on when it is dark
and the engine is running.
The blue Kindicator lamp in the instru-
ment cluster lights up when the high-beam headlamps are switched on.
X To switch off the high-beam headlamps:
move the combination switch back to its
normal position.
The blue Kindicator lamp in the instru-
ment cluster goes out. Exterior lighting
103Lights andwindshield wipers Z

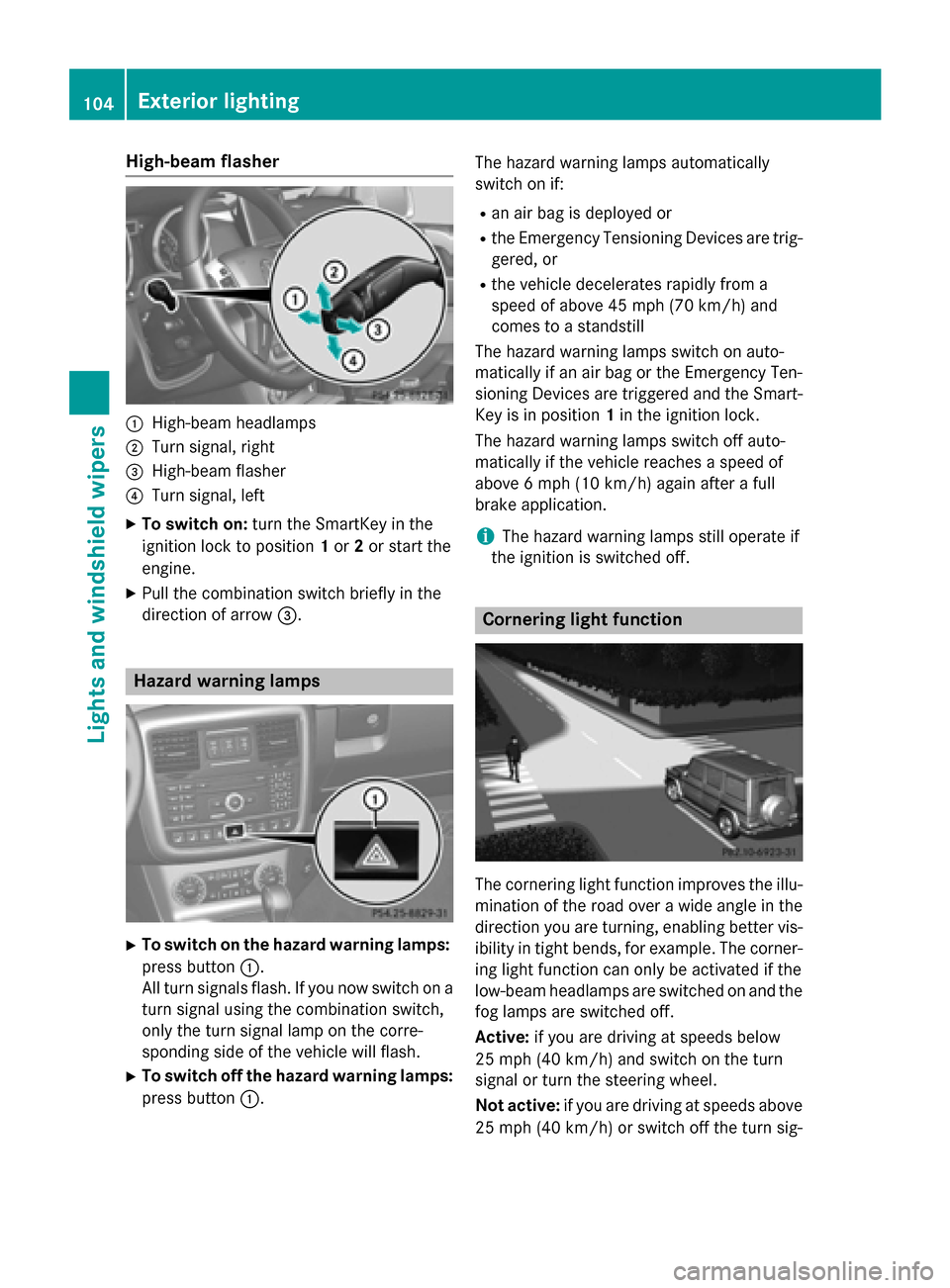

High-beam flasher
:
High-beam headlamps
; Turn signal, right
= High-beam flasher
? Turn signal, left
X To switch on: turn the SmartKey in the
ignition lock to position 1or 2or start the
engine.
X Pull the combination switch briefly in the
direction of arrow =.Hazard warning lamps
X
To switch on the hazard warning lamps:
press button :.
All turn signals flash. If you now switch on a turn signal using the combination switch,
only the turn signal lamp on the corre-
sponding side of the vehicle will flash.
X To switch off the hazard warning lamps:
press button :. The hazard warning lamps automatically
switch on if:
R an air bag is deployed or
R the Emergency Tensioning Devices are trig-
gered, or
R the vehicle decelerates rapidly from a
speed of above 45 mph (70 km/h) and
comes to a standstill
The hazard warning lamps switch on auto-
matically if an air bag or the Emergency Ten-
sioning Devices are triggered and the Smart- Key is in position 1in the ignition lock.
The hazard warning lamps switch off auto-
matically if the vehicle reaches a speed of
above 6 mph (10 km/h) again after a full
brake application.
i The hazard warning lamps still operate if
the ignition is switched off. Cornering light function
The cornering light function improves the illu-
mination of the road over a wide angle in the direction you are turning, enabling better vis-
ibility in tight bends, for example. The corner- ing light function can only be activated if the
low-beam headlamps are switched on and the
fog lamps are switched off.
Active: if you are driving at speeds below
25 mph (40 km/h) and switch on the turn
signal or turn the steering wheel.
Not active: if you are driving at speeds above
25 mph (40 km/h) or switch off the turn sig- 104
Exterior lightingLights and windshield wipers

nal or turn the steering wheel to the straight-
ahead position.
The cornering lamp may remain lit for a short
time, but is automatically switched off after

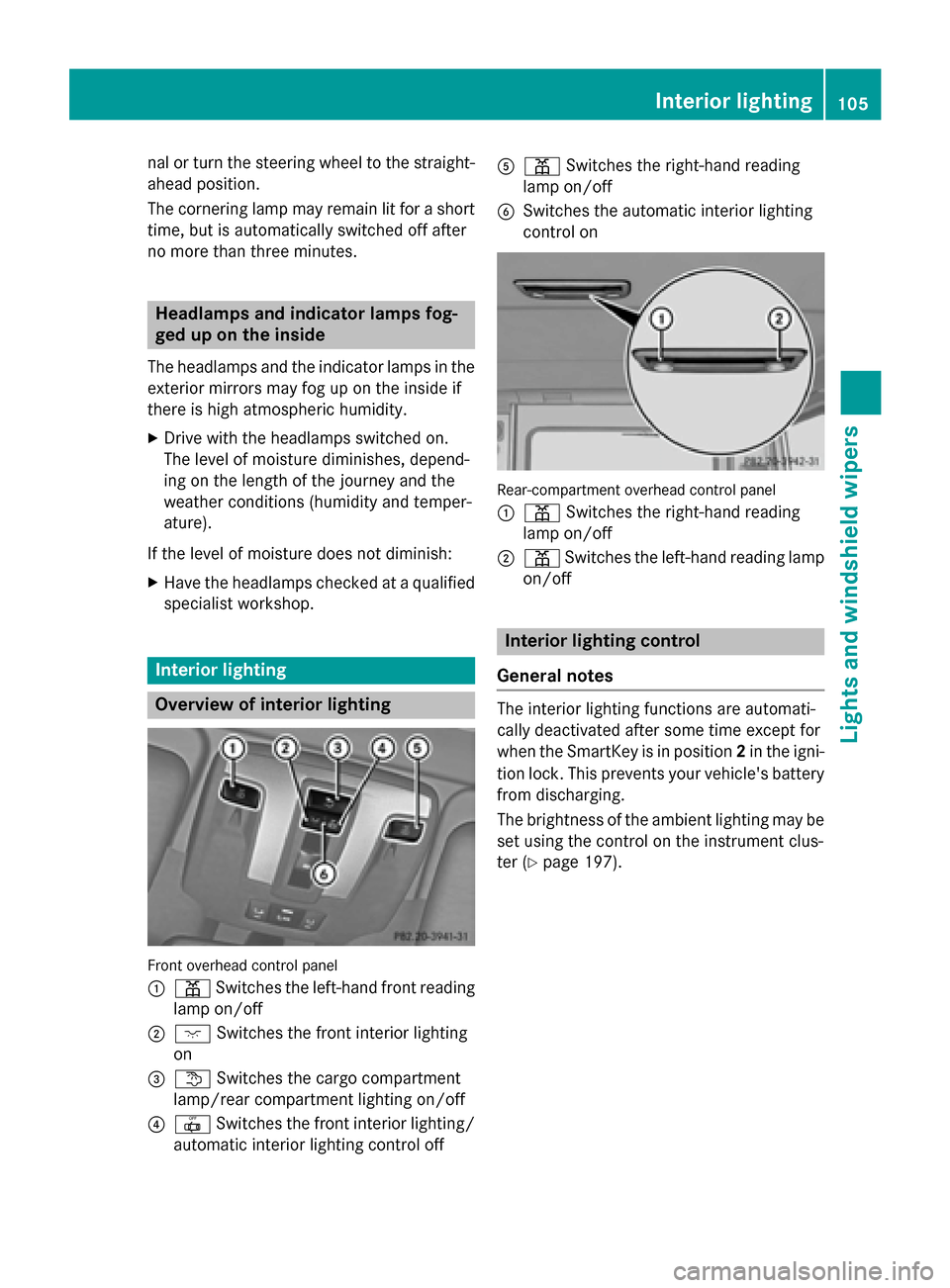

no more than three minutes. Headlamps and indicator lamps fog-
ged up on the inside
The headlamps and the indicator lamps in the exterior mirrors may fog up on the inside if
there is high atmospheric humidity.
X Drive with the headlamps switched on.
The level of moisture diminishes, depend-
ing on the length of the journey and the
weather conditions (humidity and temper-
ature).
If the level of moisture does not diminish:
X Have the headlamps checked at a qualified
specialist workshop. Interior lighting
Overview of interior lighting
Front overhead control panel
:
p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on

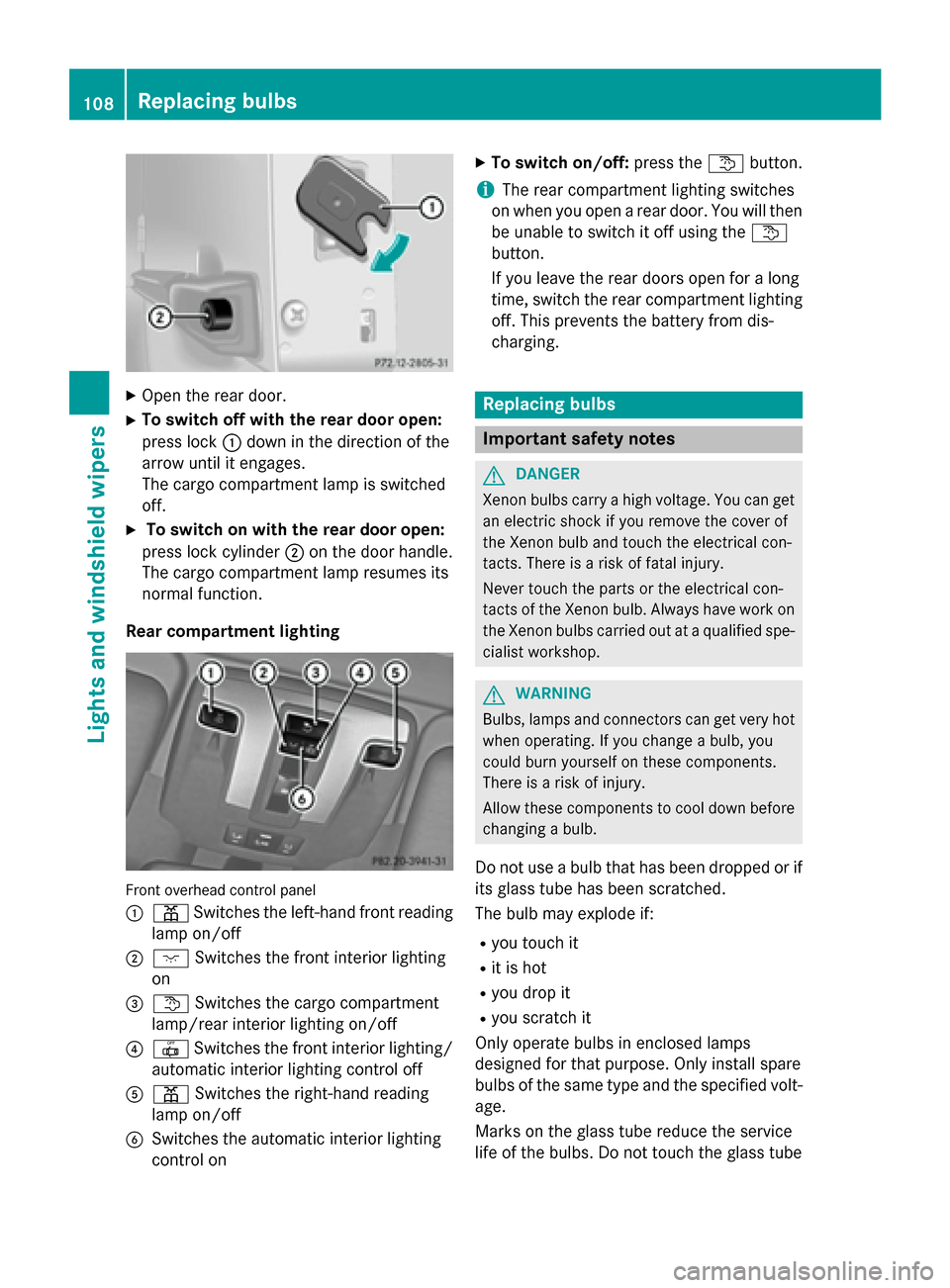

= t Switches the cargo compartment
lamp/rear compartment lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off A
p Switches the right-hand reading
lamp on/off
B Switches the automatic interior lighting
control on Rear-compartment overhead control panel
: p Switches the right-hand reading
lamp on/off
; p Switches the left-hand reading lamp
on/off Interior lighting control
General notes The interior lighting functions are automati-
cally deactivated after some time except for
when the SmartKey is in position 2in the igni-
tion lock. This prevents your vehicle's battery from discharging.
The brightness of the ambient lighting may beset using the control on the instrument clus-
ter (Y page 197). Interior lighting
105Lights andwindshield wipers Z

Automatic interior lighting control
Front overhead control panel
: p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on
= t Switches the cargo compartment
lamp/rear interior lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off
A p Switches the right-hand front read-
ing lamp on/off
B Switches the automatic interior lighting
control on
X To switch on: move switchBto the cen-
ter position.
The interior lighting switches on automati-
cally when it is dark if you:
R unlock the vehicle
R open a door
R remove the SmartKey from the ignition lock
X To switch off: press the|symbol on
switch B.
The interior lighting remains switched off
even when it is dark if you:
R unlock the vehicle
R open a door.
R remove the SmartKey from the ignition lock
The interior light is activated for a short while when the SmartKey is removed from the igni-
tion lock. You can activate this delayed
switch-off using the on-board computer
(Y page 208). When a front door is opened, the front interior
lighting comes on. When a rear door is
opened, the rear interior lighting comes on. In addition, the courtesy lights come on.
i If a door remains open and the SmartKey
is not in the ignition lock, the interior light- ing switches off after a short while.
Manual interior lighting control Front interior lighting
! If the interior lighting has been switched
on manually, it will not be switched off
automatically.
This can cause the starter battery to dis-
charge.
Make sure that the interior lighting does
not remain switched on too long after the
engine has been switched off. Front overhead control panel
:
p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on
= t Switches the cargo compartment
lamp/rear interior lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off
A p Switches the right-hand front read-
ing lamp on/off
B Switches the automatic interior lighting
control on 106
Interior lightingLights and windshield wipers

X
To switch on: press thecsymbol on
switch B.
X To switch off: set switchBto the center
position.
Reading lamps Front overhead control panel
:
p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on
= t Switches the cargo compartment
lamp/rear interior lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off
A p Switches the right-hand front read-
ing lamp on/off
B Switches the automatic interior lighting
control on
X To switch on/off: press thepbutton.
Cargo compartment lamp G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tail-
gate/rear door is open when the engine is
running, particularly if the vehicle is moving,
exhaust fumes could enter the passenger
compartment. There is a risk of poisoning.
Turn off the engine before opening the tail-
gate/rear door. Never drive off with the tail-
gate/rear door open.
! Switch off the cargo compartment lamp if
you wish to leave the rear door open for a longer period. The battery may otherwise
discharge.
! Do not close the rear door while lock
:is
engaged at the bottom. Otherwise, you
could damage lock :. Front overhead control panel
:
p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on
= t Switches the cargo compartment
lamp/rear compartment lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off
A p Switches the right-hand front read-
ing lamp on/off
B Switches the automatic interior lighting
control on
X To switch on/off: press thetbutton.
i If you open the rear door, the cargo com-
partment lamp comes on. You will then be
unable to switch it off using the tbut-
ton.
Switch off the cargo compartment lamp if
you wish to leave the rear door open for a
longer period. This prevents the battery
from discharging. Interior lighting
107Lights andwindshield wipers Z

X
Open the rear door.
X To switch off with the rear door open:
press lock :down in the direction of the
arrow until it engages.
The cargo compartment lamp is switched
off.
X To switch on with the rear door open:
press lock cylinder ;on the door handle.
The cargo compartment lamp resumes its
normal function.
Rear compartment lighting Front overhead control panel
:
p Switches the left-hand front reading
lamp on/off
; c Switches the front interior lighting
on
= t Switches the cargo compartment
lamp/rear interior lighting on/off
? | Switches the front interior lighting/
automatic interior lighting control off
A p Switches the right-hand reading
lamp on/off
B Switches the automatic interior lighting
control on X
To switch on/off: press thetbutton.
i The rear compartment lighting switches
on when you open a rear door. You will then be unable to switch it off using the t
button.
If you leave the rear doors open for a long
time, switch the rear compartment lighting
off. This prevents the battery from dis-
charging. Replacing bulbs
Important safety notes
G
DANGER
Xenon bulbs carry a high voltage. You can get an electric shock if you remove the cover of
the Xenon bulb and touch the electrical con-
tacts. There is a risk of fatal injury.
Never touch the parts or the electrical con-
tacts of the Xenon bulb. Always have work on
the Xenon bulbs carried out at a qualified spe-
cialist workshop. G
WARNING
Bulbs, lamps and connectors can get very hot when operating. If you change a bulb, you
could burn yourself on these components.
There is a risk of injury.
Allow these components to cool down before changing a bulb.
Do not use a bulb that has been dropped or if
its glass tube has been scratched.
The bulb may explode if:
R you touch it
R it is hot
R you drop it
R you scratch it
Only operate bulbs in enclosed lamps
designed for that purpose. Only install spare
bulbs of the same type and the specified volt- age.
Marks on the glass tube reduce the service
life of the bulbs. Do not touch the glass tube 108
Replacing bulbsLights and windshield wipers
