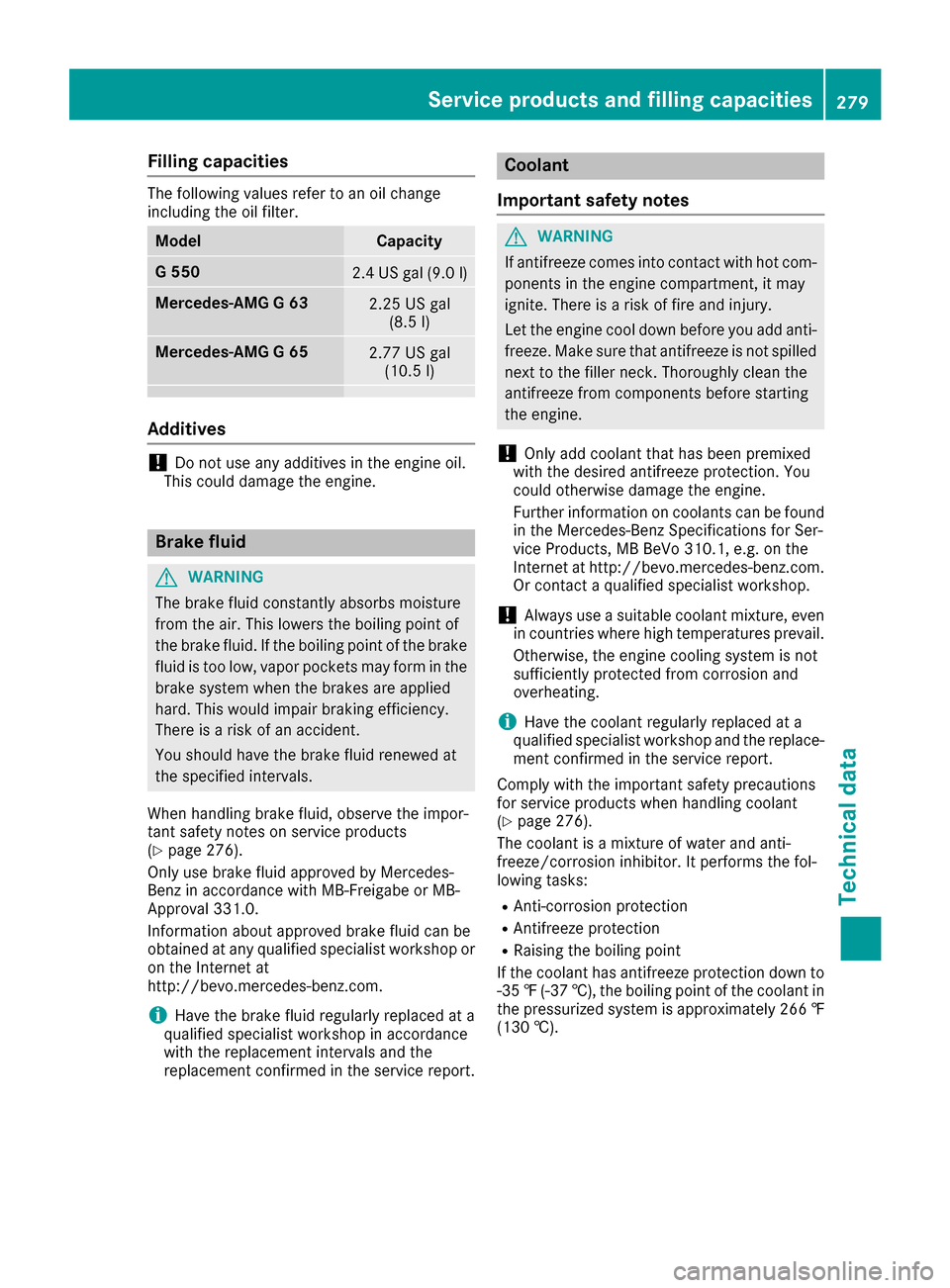

Filling capacities
The followingvalue srefer to an oil chang e
includin gthe oil filter.
ModelCapacit y
G5502.4USg al(9.0 l)
Mercedes-AMG G632.25 US gal
(8.5 l)
Mercedes-AMG G652.77 US gal
(10.5 l)
Additives
!Do not us eany additive sinthe engine oil.
Thisc ould damag ethe engine.
Brake fluid
GWARNING
The brake fluid constantly absorbsm oisture
from the air. Thisl owersthe boiling point of
the brake fluid .Ifthe boiling point of the brake
fluid is too low, vapor pockets may form in the
brake system when the brakes are applied
hard. Thisw ouldimpai rbraking efficiency.
There is ariskofana ccident.
Yo us houl dhavet he brake fluid renewe dat
the specified intervals.
Whe nhandling brake fluid ,observe the impor-
tant safety notes on service products
(
Ypage 276).
Only us ebrake fluid approved by Mercedes-
Benz in accordance with MB-Freigab eorMB-
Approval3 31.0.
Information abouta pproved brake fluid can be
obtaine datany qualified specialist workshopo r
on the Interneta t
http://bevo.mercedes-benz.co m.
iHave the brake fluid regularly replaced at a
qualified specialist workshop in accordance
with the replacement intervals and the
replacement confirmed in the service report.
Coolant
Importan tsafety notes
GWARNING
If antifreeze comes into contact with hot com- ponents in the engine compartment, it may
ignite. There is arisk of fire and injury.
Let the engine cool downb efore youadd anti-
freeze.M ake surethat antifreeze is not spilled
next to the filler neck. Thoroughly clea nthe
antifreeze from components before starting
the engine.
!Only ad dcoolant that has beenp remixed
with the desire dantifreeze protection. You
coul dotherwise damag ethe engine.
Furthe rinformatio noncoolants can be found
in the Mercedes-Benz Specifications for Ser-
vice Products, MB BeVo 310.1, e.g. on the
Internet at http://bevo.mercedes-benz.com.
Or contact aqualifie dspecialist workshop.
!Always use asuitabl ecoolant mixture, even
in countries where hig htemperatures prevail.
Otherwise ,the engine cooling system is not
sufficiently protected from corrosion and
overheating.
iHave the coolant regularly replaced at a
qualified specialist workshop and the replace-
ment confirmed in the service report.
Comply with the important safety precautions
for service products whe nhandling coolant
(
Ypage 276).
The coolant is amixture of water and anti-
freeze/corrosion inhibitor. It performs the fol-
lowing tasks:
RAnti-corrosion protection
RAntifreeze protection
RRaising the boiling point
If the coolant has antifreeze protection downt o
-35 ‡(-37 †), th eboilin gpoint of th ecoolan tin
th ep ressurize dsyste misa pproximately 26 6‡
(130 †).
Service pr oduct sand filling capacities279
Technical data
Z
Page 282 of 286

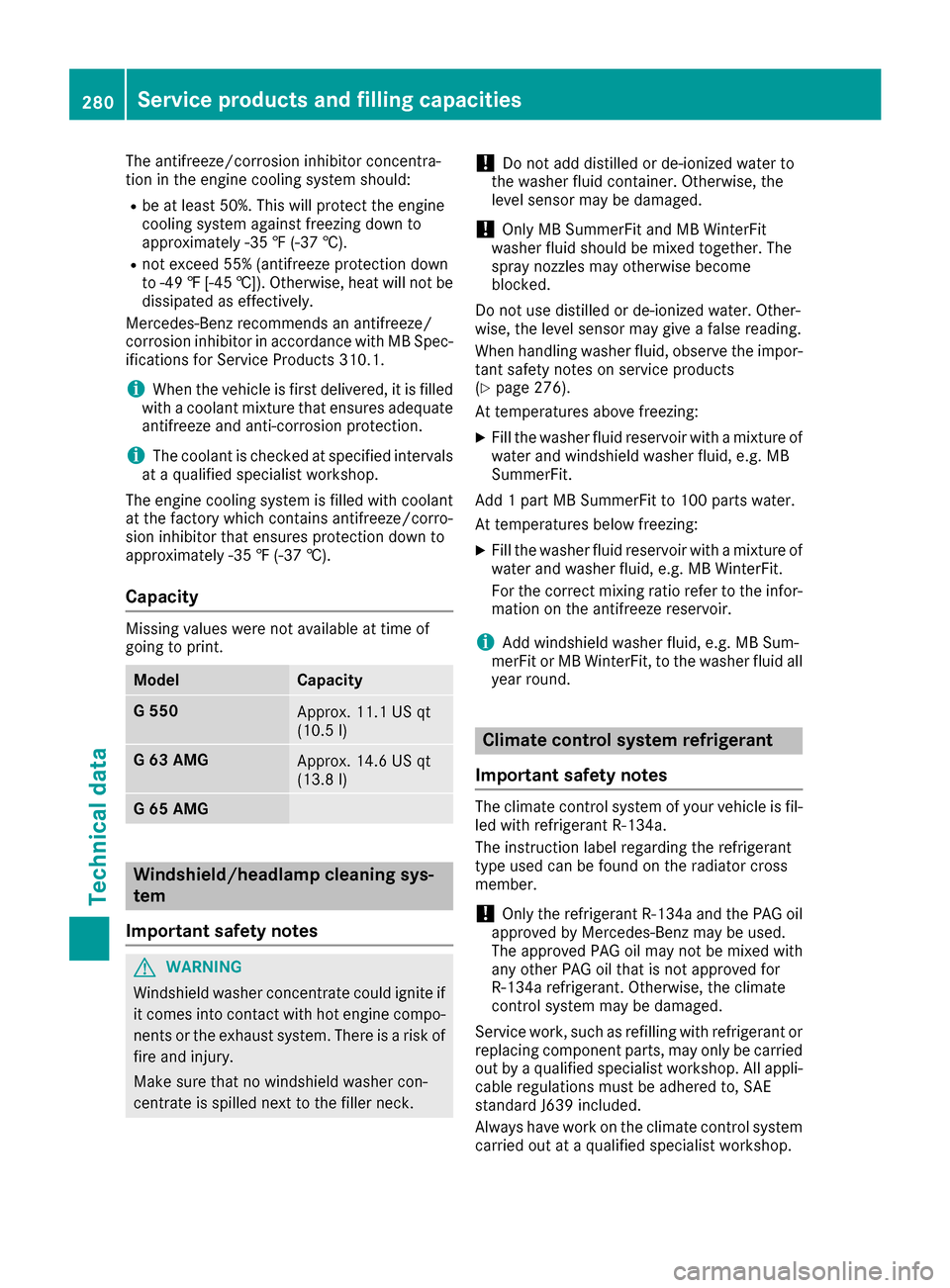

The antifreeze/corrosion inhibitor concentra-
tion in the engine cooling system should:
Rbe at least 50%. This will protectthe engine
cooling system against freezin gdown to
approximately -35 ‡(-37 †).
Rnot exceed 55% (antifreez eprotection down
to -49 ‡[-45 †]). Otherwise, heat will not be
dissipated as effectively.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor in accordanc ewith MB Spec-
ifications for ServiceP roducts 310.1.
iWhen the vehicle is first delivered, it is filled
with acoolant mixture that ensures adequate
antifreeze and anti-corrosion protection.
iThe coolant is checked at specified intervals
at aq ualified specialist workshop.
The engine cooling system is filled with coolant
at the factor ywhich contains antifreeze/corro-
sion inhibitor that ensures protection down to
approximately -35 ‡(-37 †).
Capacity
Missing values were not availableatt ime of
going to print.
ModelCapacity
G5 50Approx.1 1.1 US qt
(10.5 l)
G63A MGApprox.1 4.6 US qt
(13.8 l)
G65A MG
Windshield/headlamp cleaning sys-
tem
Important safety notes
GWARNING
Windshield washer concentrate could ignite if it comes into contact with hot engine compo-
nentsort he exhaust system. There is arisk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
!Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
Do not use distilled or de-ionized water. Other-
wise, the level sensor may give afalse reading.
When handling washer fluid, observe the impor-
tant safety notes on service products
(
Ypage 276).
At temperatures above freezing:
XFill the washer fluid reservoir with amixture of
water and windshield washer fluid, e.g. MB
SummerFit.
Add 1part MB SummerFit to 100 parts water.
At temperatures below freezing:
XFill the washer fluid reservoir with amixture of
water and washer fluid, e.g. MB WinterFit.
For the correctm ixing ratio refer to the infor-
mation on the antifreeze reservoir.
iAdd windshield washer fluid, e.g. MB Sum-
merFit or MB WinterFit, to the washer fluid all
year round.
Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is fil-
led with refrigerant R‑ 134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
!Only the refrigerant R‑134a and the PAG oil
approved by Mercedes-Benz may be used.
The approved PAG oil may not be mixed with
any other PAG oil that is not approved for
R-134a refrigerant.O therwise, the climate
control system may be damaged.
Servicew ork, such as refilling with refrigerant or
replacing component parts, may only be carried
out by aqualified specialist workshop. All appli-
cable regulations must be adhered to, SAE
standard J639 included.
Always have work on the climate control system carried out at aqualified specialist workshop.
280Service products and filling capacities
Technical data
Page 283 of 286

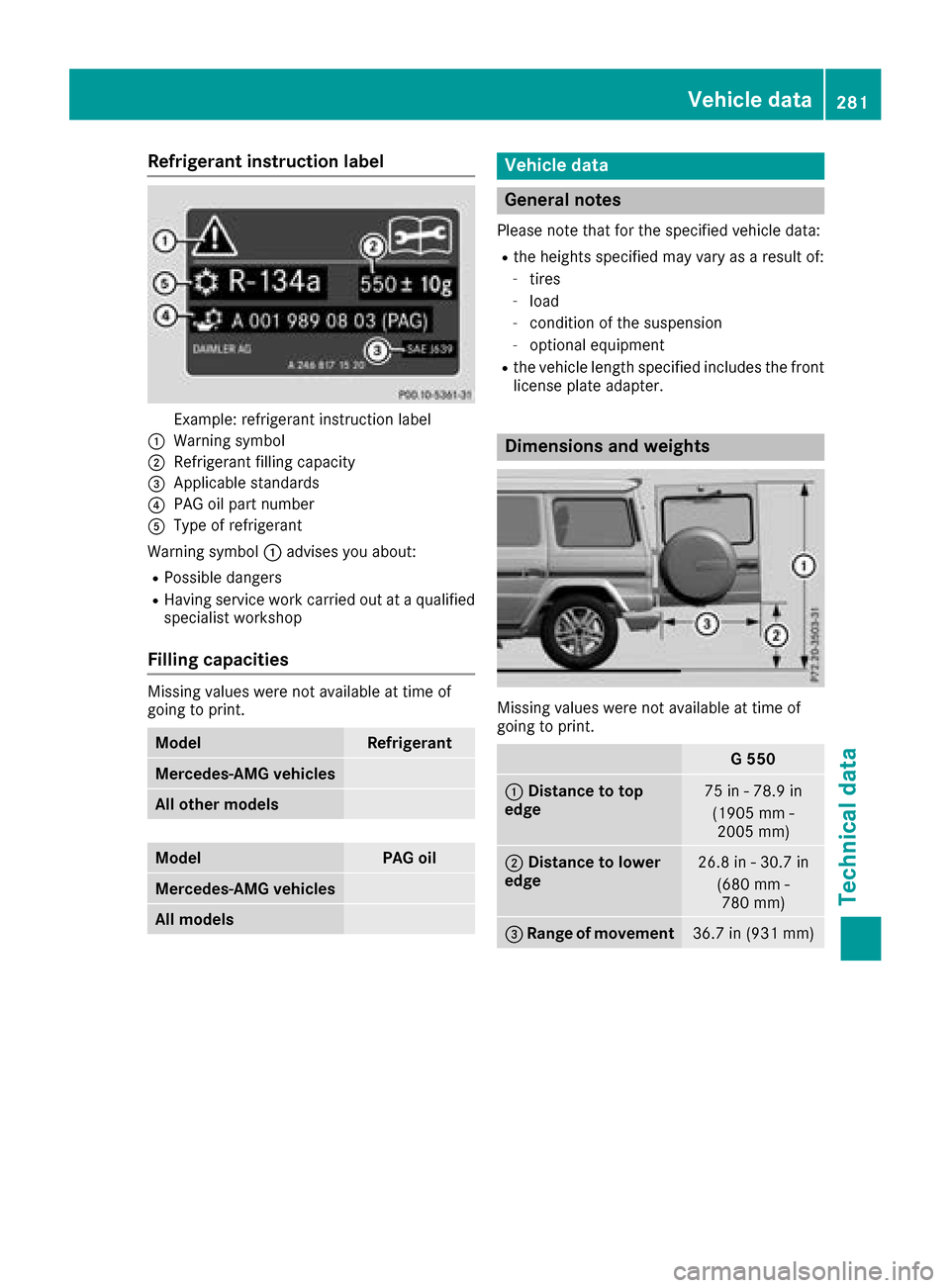

Refrigerant instructionlabel
Example:refrigerant instruction label
:Warning symbol
;Refrigerant filling capacity
=Applicabl estandards
?PAG oilp artn umber
AType of refrigerant
Warning symbol :advises yo uabout :
RPossible dangers
RHaving service work carrie doutataq uali fied
specialist workshop
Fillin gcapacities
Missing value sweren ot available at time of
going to print.
ModelRefrigerant
Mercedes-AMG vehicles
Al lo the rm odels
ModelPAGo il
Mercedes-AMG vehicles
Allm odels
Vehicl edata
General notes
Please note that for the specified vehicl edata:
Rthe heights specified may var yasaresultof:
-tires
-load
-condition of the suspension
-optionale quipment
Rthe vehiclelen gth specified includes the front
license plate adapter.
Dimension sand weights
Missing value sweren ot available at time of
going to print.
G5 50
:Distance to top
edge75 in -78.9 in
(1905 mm - 2005 mm)
; Distance to lower
edge26.8 in -30.7 in
(680 mm - 780 mm)
= Rangeofm ovement36.7 in (931 mm)
Vehicledata281
Technical data
Z
Page 284 of 286

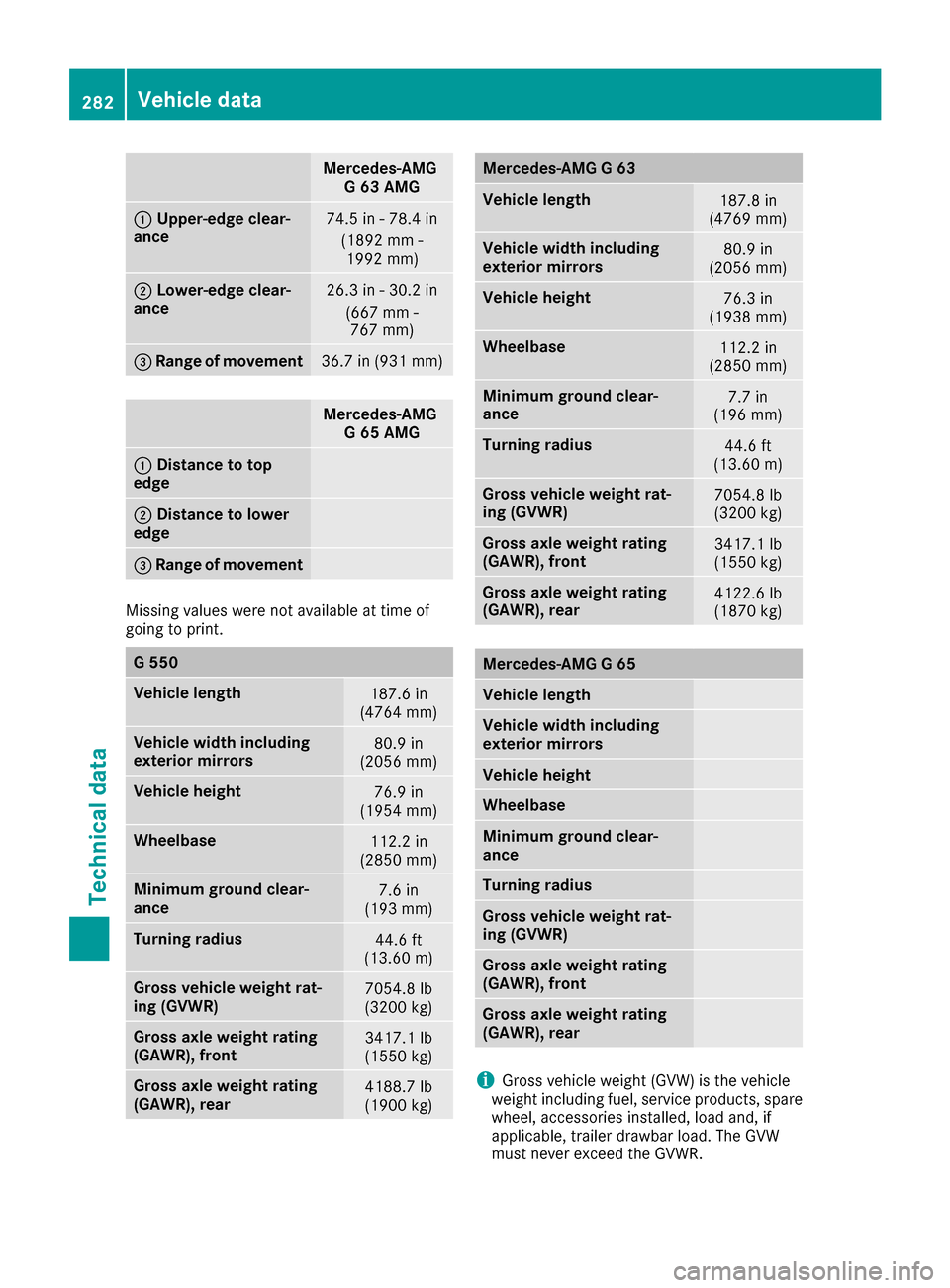

Mercedes-AMGG63A MG
:Upper-edge clear-
ance74.5 in -78.4 in
(1892 mm - 1992 mm)
; Lower-edge clear-
ance26.3 in -30.2 in
(667 mm - 767 mm)
= Range of movement36.7 in (931 mm)
Mercedes-AMG
G65A MG
:Distance to top
edge
; Distance to lower
edge
= Range of movement
Missing values were not available at time of
going to print.
G5 50
Vehicle length187.6 in
(4764 mm)
Vehicle width including
exterio rmirrors80.9 in
(2056 mm)
Vehicle height76.9 in
(1954 mm)
Wheelbase112.2 in
(2850 mm)
Minimum ground clear-
ance7.6 in
(193 mm)
Turning radius44.6 ft
(13.60 m)
Gross vehicle weight rat-
ing (GVWR)7054.8 lb
(3200 kg)
Gross axle weight rating
(GAWR), front3417.1 lb
(1550 kg)
Gross axle weight rating
(GAWR), rear4188.7 lb
(1900 kg)
Mercedes-AMG G63
Vehicle length187.8 in
(4769 mm)
Vehicle width including
exterio rmirrors80.9 in
(2056 mm)
Vehicle height76.3 in
(1938 mm)
Wheelbase112.2 in
(2850 mm)
Minimum ground clear-
ance7.7 in
(196 mm)
Turning radius44.6 ft
(13.60 m)
Gross vehicle weight rat-
ing (GVWR)7054.8 lb
(3200 kg)
Gross axle weight rating
(GAWR), front3417.1 lb
(1550 kg)
Gross axle weight rating
(GAWR), rear4122.6 lb
(1870 kg)
Mercedes-AMG G65
Vehicle length
Vehicle width including
exterio rmirrors
Vehicle height
Wheelbase
Minimum ground clear-
ance
Turning radius
Gross vehicle weight rat-
ing (GVWR)
Gross axle weight rating
(GAWR), front
Gross axle weight rating
(GAWR), rear
iGross vehiclew eight (GVW)isthe vehicle
weight including fuel ,service products, spare
wheel, accessories installed, loada nd, if
applicable, trailer drawbar load. The GVW
must never exceed the GVWR.
282Vehicle data
Technical data
Page 285 of 286

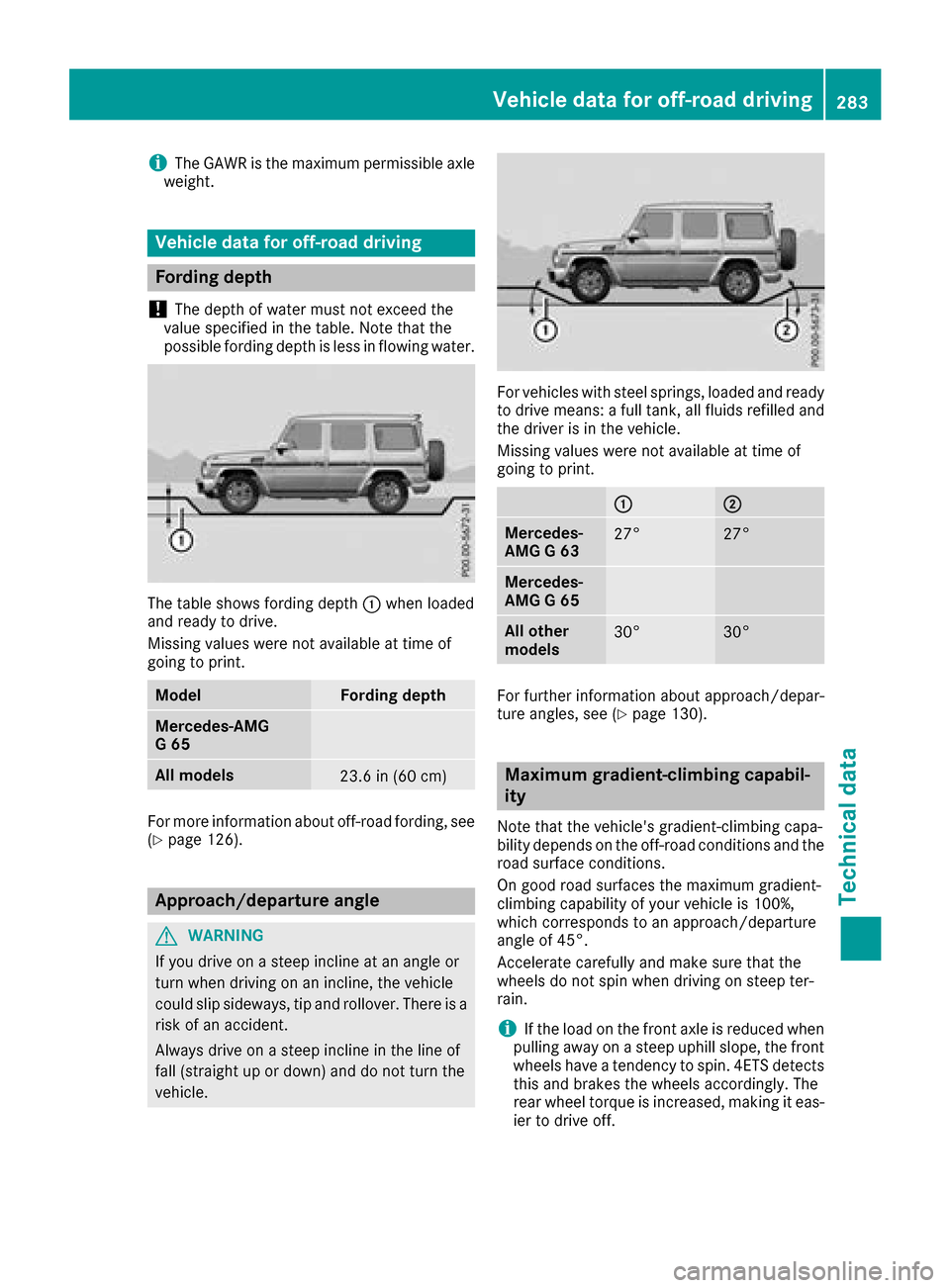

iThe GAWR is the maximum permissible axle
weight.
Vehicle dataf or off-road driving
Fording depth
!
The depth of water must not exceed the
value specified in the table. Note that the
possible fording depth is less in flowing water.
The table shows fording depth :when loaded
and ready to drive.
Missing values were not availableatt ime of
going to print.
ModelFording depth
Mercedes-AMG
G6 5
All models23.6 in (60 cm)
For more information about off-road fording, see
(Ypage 126).
Approach/departurea ngle
GWARNING
If you drive on asteep incline at an angle or
turn when driving on an incline, the vehicle
could slip sideways, tip and rollover. There is a risk of an accident.
Always drive on asteep incline in the line of
fall (straight up or down) and do not turn the
vehicle.
For vehicles with steel springs, loaded and ready
to drive means: afull tank ,all fluids refilled and
the driver is in the vehicle.
Missing values were not availableatt ime of
going to print.
:;
Mercedes-
AMG G6327°27°
Mercedes-
AMG G65
All other
models30°30°
For further information about approach/depar-
ture angles, see (Ypage 130).
Maximum gradient-climbing capabil-
ity
Note that the vehicle's gradient-climbing capa-
bility depends on the off-road conditions and the
road surface conditions.
On good road surfaces the maximum gradient-
climbing capability of your vehicle is 100%,
which corresponds to an approach/departure
angle of 45°.
Accelerate carefully and make sure that the
wheels do not spin when driving on steep ter-
rain.
iIf the load on the front axle is reduced when
pulling away on asteep uphill slope, the front
wheels have atendency to spin. 4ETS detects
this and brakes the wheels accordingly. The
rear wheel torque is increased, making it eas-
ier to drive off.
Vehicle dataf or off-road driving283
Technical data
Z
Page 286 of 286

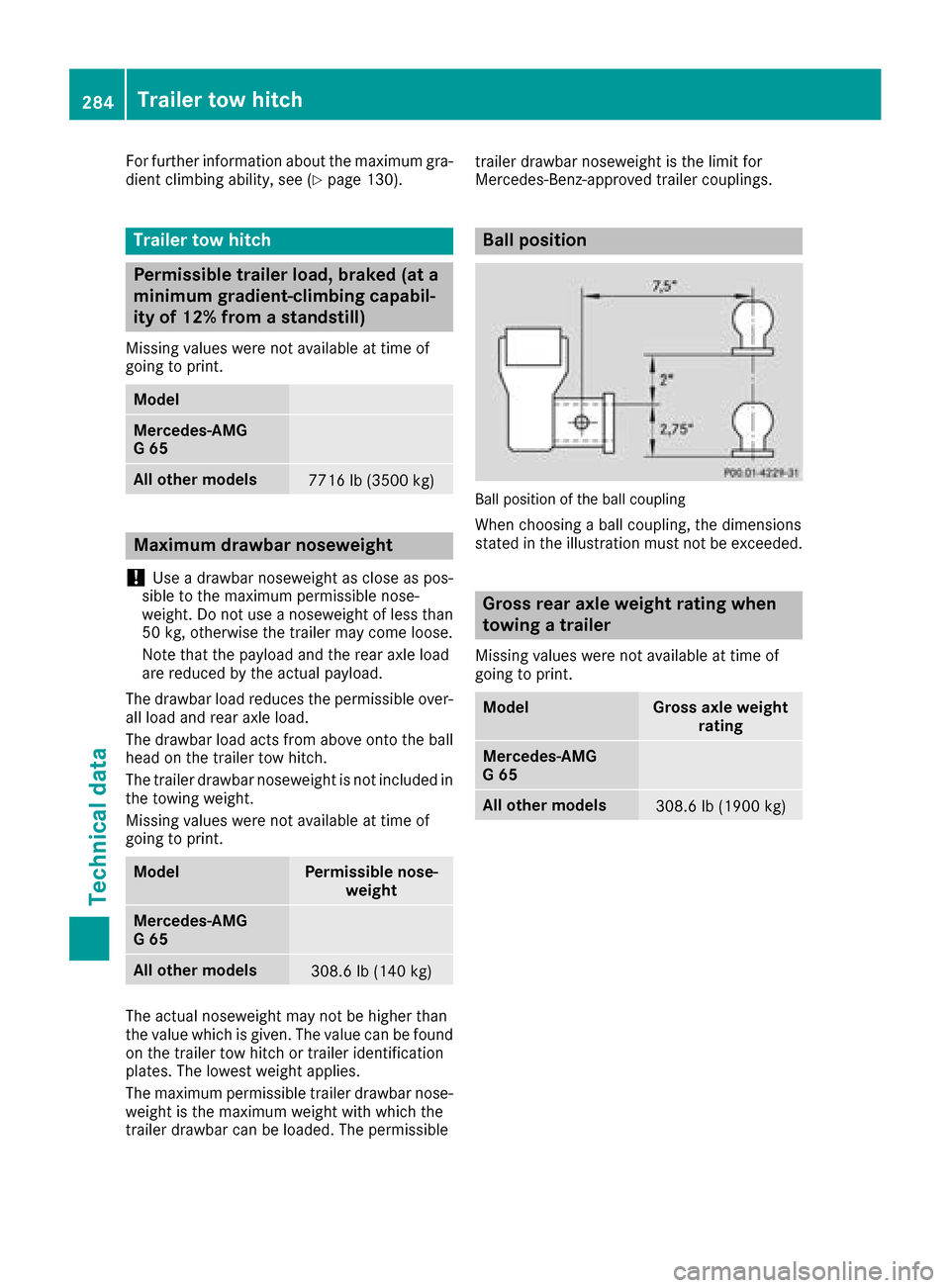

For further information aboutthe maximum gra-
dient climbing ability,s ee (Ypage 130).
Trailertow hitch
Permissible traile rloa d, braked( at a
minimum gradient-climbin gcapabil-
ity of 12% from astandstill)
Missing value sweren ot available at time of
going to print.
Model
Mercedes-AMG
G6 5
Allo the rm odels7716 lb (3500 kg)
Maximum drawbar noseweight
!
Use adrawbar noseweight as clos easpos-
sible to the maximum permissibl enose-
weight. Do not use anoseweight of les sthan
50 kg ,otherwise the trailer may come loose.
Note that the payloada nd the rearaxlel oad
are reduce dbythe actual payload.
The drawbar loa dreduce sthe permissibl eover-
al lloa da nd reara xlel oad.
The drawbar loa dacts from above onto the ball
headont he trailer tow hitch.
The trailer drawbar noseweight is not included in
the towing weight.
Missing value sweren ot available at time of
going to print.
ModelPermissible nose- weight
Mercedes-AMG
G65
Allo the rm odels308.6 lb (140 kg)
The actual noseweight may not be higher than
the value which is given. The value can be found
on the trailer tow hitch or trailer identification
plates. The lowest weigh tapplies.
The maximum permissibl etrailer drawbar nose-
weigh tisthe maximum weigh twithw hich the
trailer drawbar can be loaded .The permissible trailer drawbar noseweight is the limit for
Mercedes-Benz-approved trailer couplings.
Ball position
Bal
lpositio nofthe ball coupling
Whenc hoosing aballc oupling, the dimensions
state dinthe illustration mus tnot be exceeded.
Gros srear axle weight rating when
towing atrailer
Missing value sweren ot available at time of
going to print.
ModelGros saxle weight
rating
Mercedes-AMG
G6 5
Allo the rm odels308.6 lb (1900 kg)
284Traile rtow hitch
Technical data
