MERCEDES-BENZ G-CLASS SUV 2008 Owners Manual

Fuses

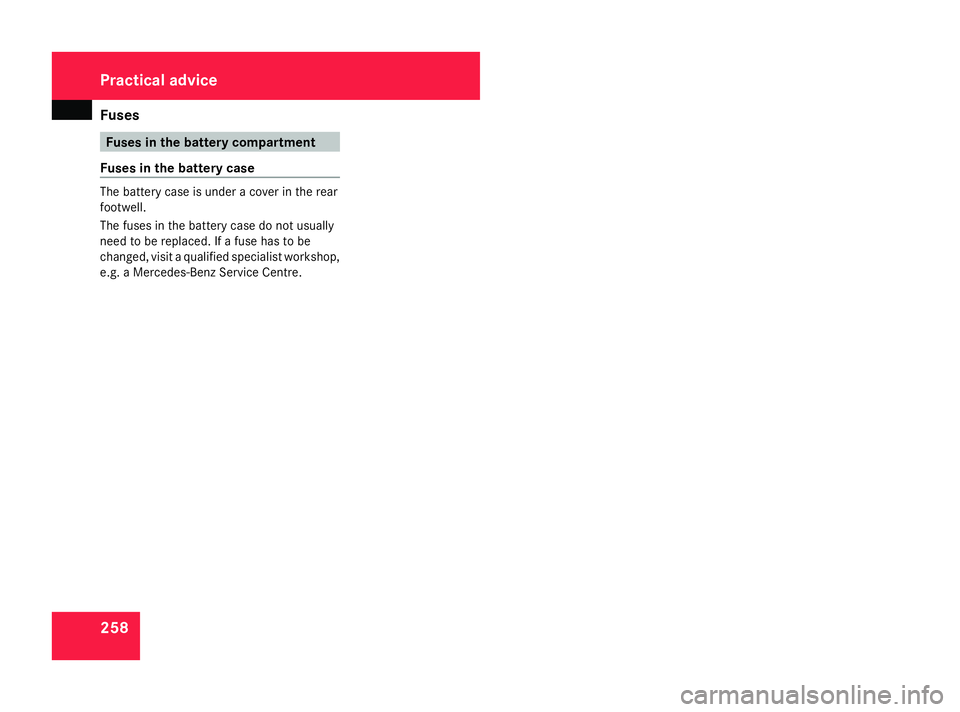

258 Fuses in the battery compartment
Fuses in the battery case The battery case is under a cover in the rear
footwell.
The fuses in the battery case do not usually
need to be replaced. If a fuse has to be
changed, visit a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. Practical advice
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 258Dateiname: 6515_4091_02_buchblock.pdf; preflight

Mercedes-Benz genuine parts

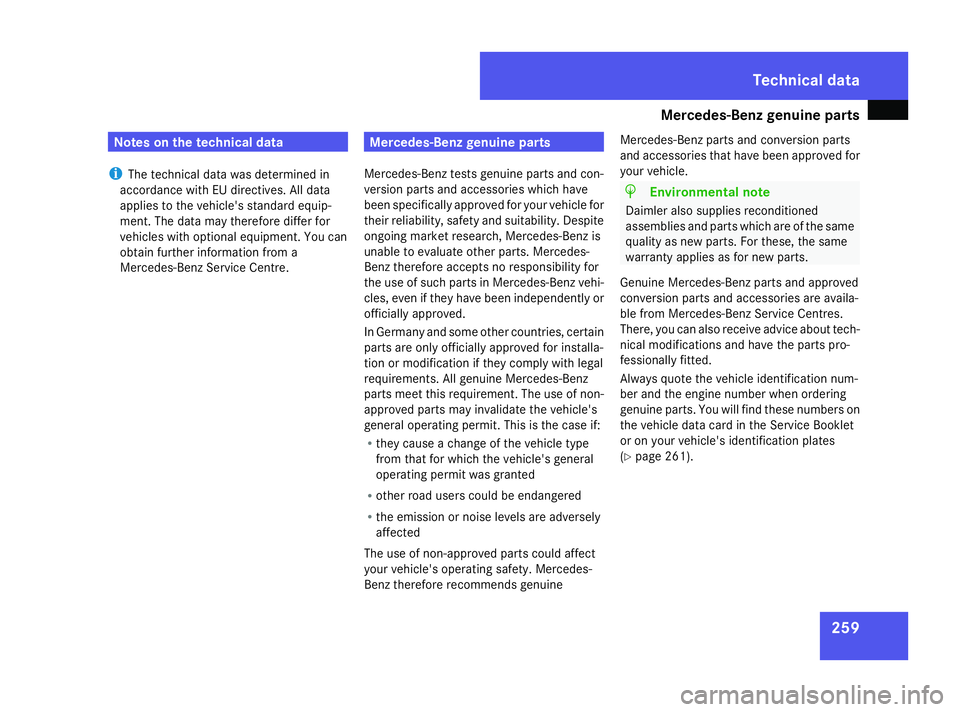

259Notes on the technical data
i The technical data was determined in
accordance with EU directives. All data
applies to the vehicle's standard equip-
ment. The data may therefore differ for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Benz Service Centre. Mercedes-Benz genuine parts
Mercedes-Benz tests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benz is
unable to evaluate other parts. Mercedes-
Benz therefore accepts no responsibility for
the use of such parts in Mercedes-Benz vehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement. The use of non-
approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R they cause a change of the vehicle type
from that for which the vehicle's general
operating permit was granted
R other road users could be endangered
R the emission or noise levels are adversely
affected
The use of non-approved parts could affect
your vehicle's operating safety. Mercedes-
Benz therefore recommends genuine Mercedes-Benz parts and conversion parts
and accessories that have been approved for
your vehicle. H
Environmental note
Daimler also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. For these, the same
warranty applies as for new parts.
Genuine Mercedes-Benz parts and approved
conversion parts and accessories are availa-
ble from Mercedes-Benz Service Centres.
There, you can also receive advice about tech-
nical modifications and have the parts pro-
fessionally fitted.
Always quote the vehicle identification num-
ber and the engine number when ordering
genuine parts. You will find these numbers on
the vehicle data card in the Service Booklet
or on your vehicle's identification plates
(Y page 261). Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 259 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

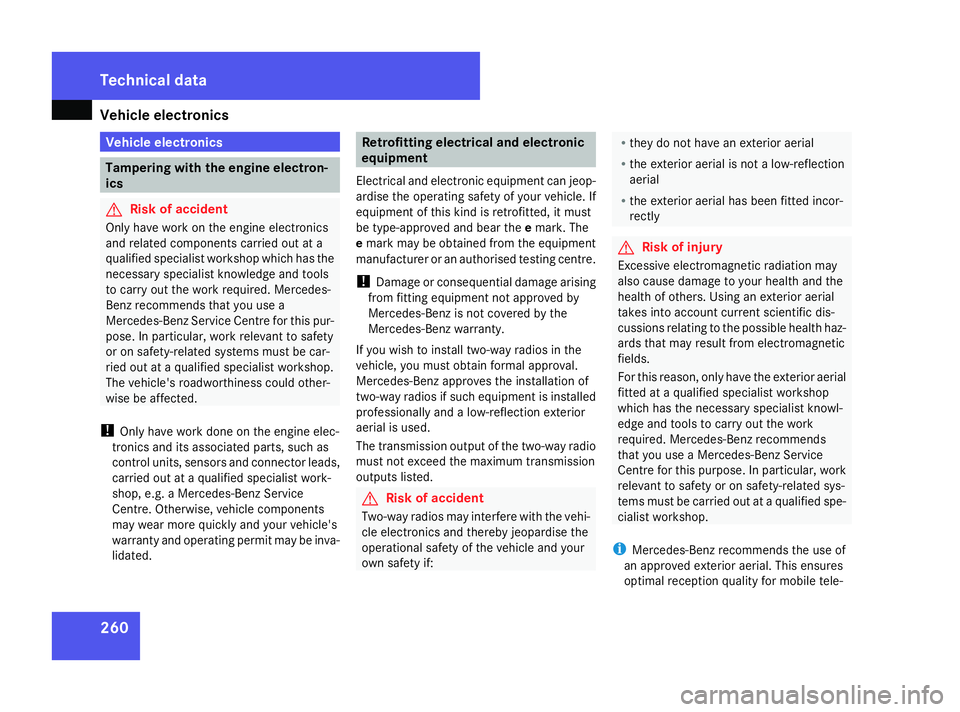

Vehicle electronics
260 Vehicle electronics
Tampering
with the engine electron-
ics G
Risk of accident
Only have work on the engine electronics
and related components carried out at a
qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
The vehicle's roadworthiness could other-
wise be affected.
! Only have work done on the engine elec-
tronics and its associated parts, such as
control units, sensors and connector leads,
carried out at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service
Centre. Otherwise, vehicle components
may wear more quickly and your vehicle's
warranty and operating permit may be inva-
lidated. Retrofitting electrical and electronic
equipment
Electrical and electronic equipment can jeop-
ardise the operating safety of your vehicle. If
equipment of this kind is retrofitted, it must
be type-approved and bear the emark. The
e mark may be obtained from the equipment
manufacturer or an authorised testing centre.
! Damage or consequential damage arising
from fitting equipment not approved by
Mercedes-Benz is not covered by the
Mercedes-Benz warranty.
If you wish to install two-way radios in the
vehicle, you must obtain formal approval.
Mercedes-Benz approves the installation of
two-way radios if such equipment is installed
professionally and a low-reflection exterior
aerial is used.
The transmission output of the two-way radio
must not exceed the maximum transmission
outputs listed. G
Risk of accident
Two-way radios may interfere with the vehi-
cle electronics and thereby jeopardise the
operational safety of the vehicle and your
own safety if: R
they do not have an exterior aerial
R the exterior aerial is not a low-reflection
aerial
R the exterior aerial has been fitted incor-
rectly G
Risk of injury
Excessive electromagnetic radiation may
also cause damage to your health and the
health of others. Using an exterior aerial
takes into account current scientific dis-
cussions relating to the possible health haz-
ards that may result from electromagnetic
fields.
For this reason, only have the exterior aerial
fitted at a qualified specialist workshop
which has the necessary specialist knowl-
edge and tools to carry out the work
required. Mercedes-Benz recommends
that you use a Mercedes-Benz Service
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualified spe-
cialist workshop.
i Mercedes-Benz recommends the use of
an approved exterior aerial. This ensures
optimal reception quality for mobile tele- Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 260Dateiname: 6515_4091_02_buchblock.pdf; preflight

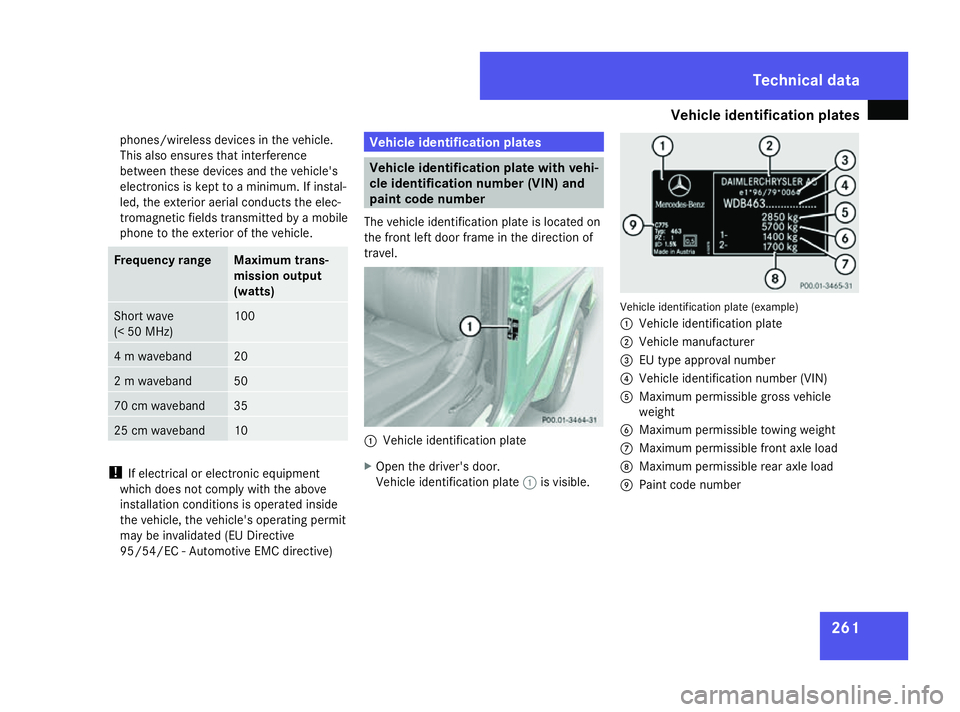

Vehicle identification plates
261
phones/wireless devices in the vehicle.
This also ensures that interference
between these devices and the vehicle's
electronics is kept to a minimum. If instal-
led, the exterior aerial conducts the elec-
tromagnetic fields transmitted by a mobile
phone to the exterior of the vehicle.
Frequency range Maximum trans-
mission output
(watts)
Short wave
(< 50 MHz) 100
4 m waveband 20
2 m waveband 50
70 cm waveband 35
25 cm waveband 10
!
If electrical or electronic equipment
which does not comply with the above
installation conditions is operated inside
the vehicle, the vehicle's operating permit
may be invalidated (EU Directive
95/54/EC - Automotive EMC directive) Vehicle identification plates
Vehicle identification plate with vehi-
cle identification number (VIN) and
paint code number
The vehicle identification plate is located on
the front left door frame in the direction of
travel. 1
Vehicle identification plate
X Open the driver's door.
Vehicle identification plate 1is visible. Vehicle identification plate (example)
1
Vehicle identification plate
2 Vehicle manufacturer
3 EU type approval number
4 Vehicle identification number (VIN)
5 Maximum permissible gross vehicle
weight
6 Maximum permissible towing weight
7 Maximum permissible front axle load
8 Maximum permissible rear axle load
9 Paint code number Technical data
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 261 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

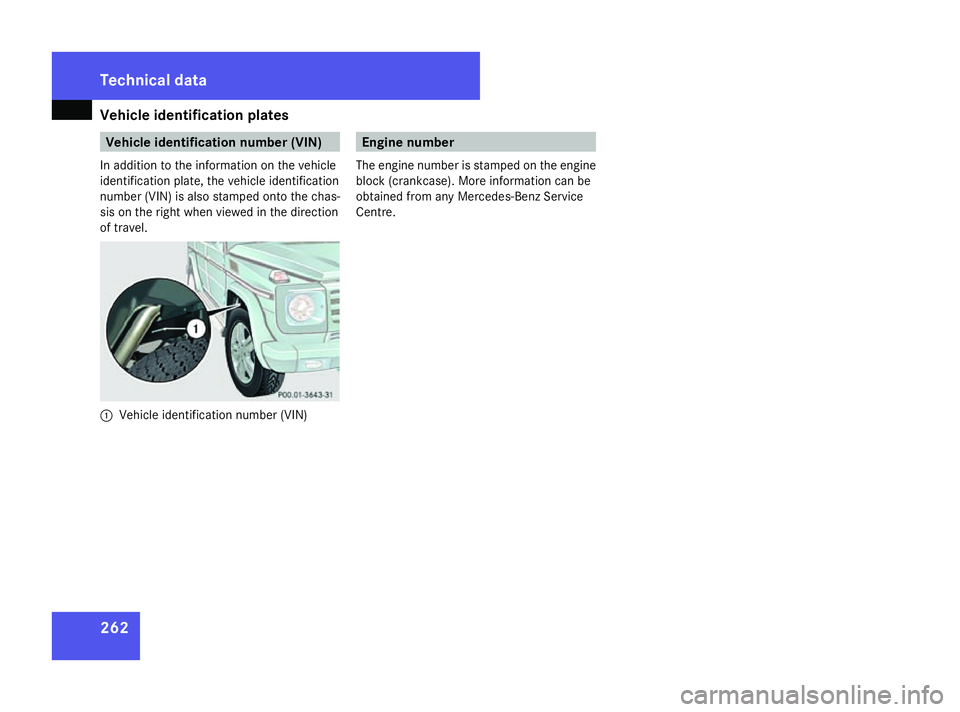

Vehicle identification plates
262 Vehicle identification number (VIN)
In addition to the information on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the chas-
sis on the right when viewed in the direction
of travel. 1
Vehicle identification number (VIN) Engine number
The engine number is stamped on the engine
block (crankcase). More information can be
obtained from any Mercedes-Benz Service
Centre. Technical data
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 262 Dateiname: 6515_4091_02_buchblock.pdf; preflight

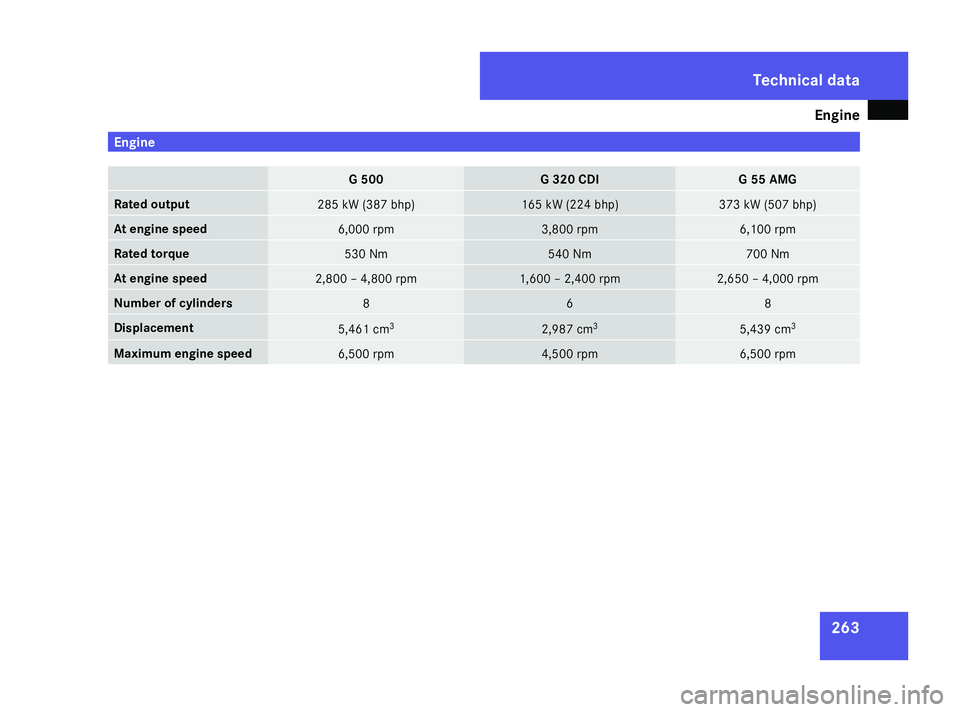

Engine
263Engine
G 500 G 320 CDI G 55 AMG
Rated output
285 kW (387 bhp) 165 kW (224 bhp) 373 kW (507 bhp)
At engine speed
6,000 rpm 3,800 rpm 6,100 rpm
Rated torque
530 Nm 540 Nm 700 Nm
At engine speed
2,800 – 4,800 rpm 1,600 – 2,400 rpm 2,650 – 4,000 rpm
Number of cylinders
8 6 8
Displacement
5,461 cm
3 2,987 cm
3 5,439 cm
3 Maximum engine speed
6,500 rpm 4,500 rpm 6,500 rpm Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 263 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

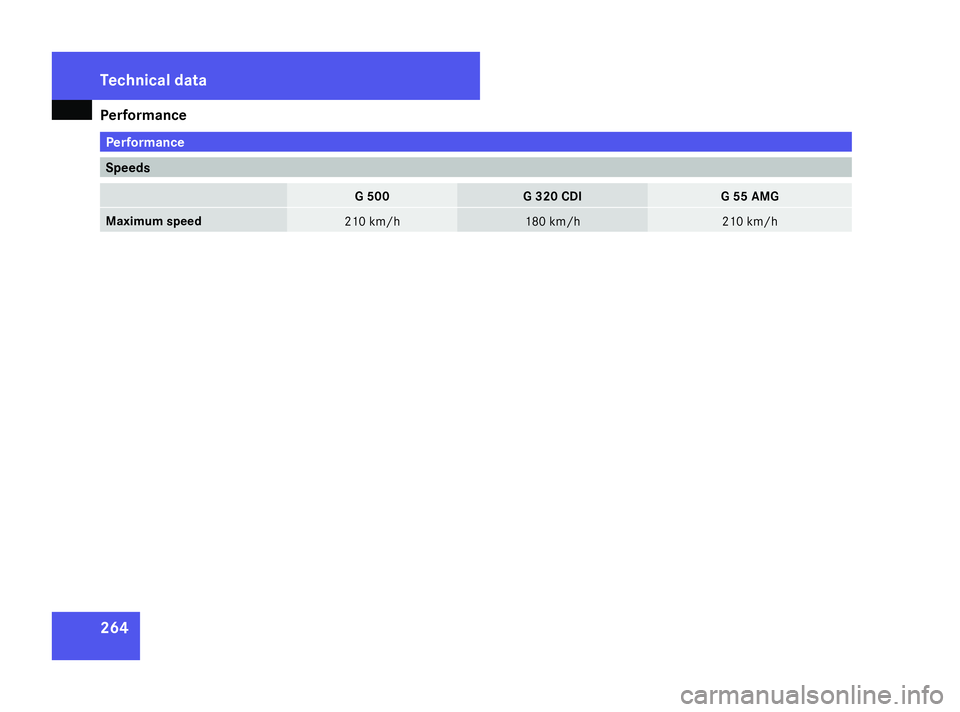

Performance
264 Performance
Speeds
G 500 G 320 CDI G 55 AMG
Maximum speed
210 km/h 180 km/h 210 km/hTechnical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 264Dateiname: 6515_4091_02_buchblock.pdf; preflight

Performance

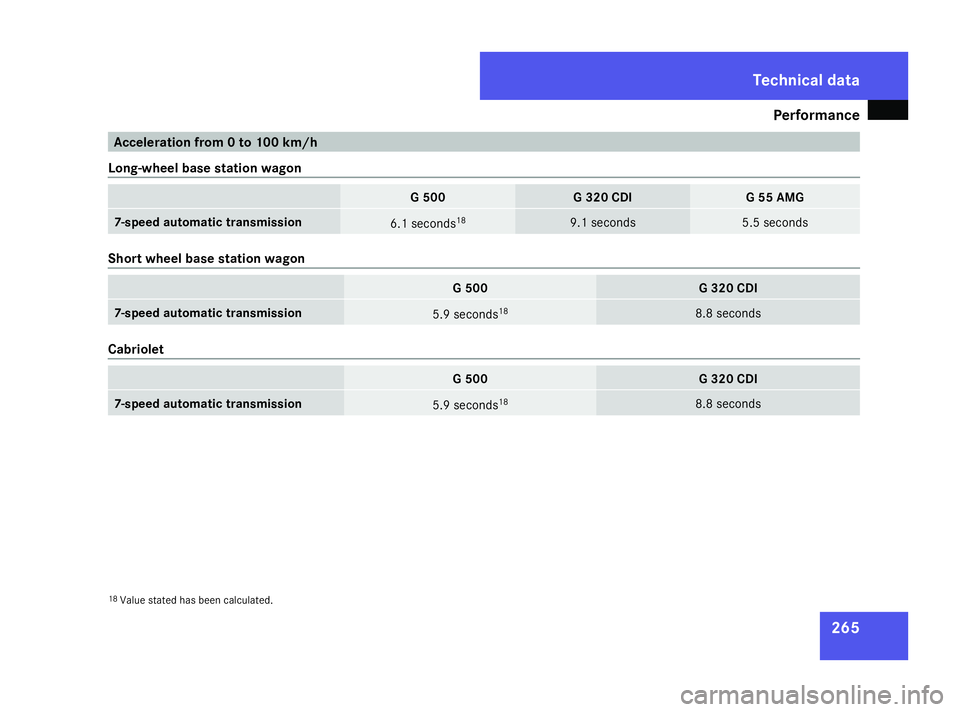

265Acceleration from 0 to 100 km/h
Long-wheel base station wagon G 500 G 320 CDI G 55 AMG
7-speed automatic transmission
6.1 seconds
18 9.1 seconds 5.5 seconds
Short wheel base station wagon
G 500 G 320 CDI
7-speed automatic transmission
5.9 seconds
18 8.8 seconds
Cabriolet
G 500 G 320 CDI
7-speed automatic transmission
5.9 seconds
18 8.8 seconds
18
Value stated has been calculated. Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 265 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

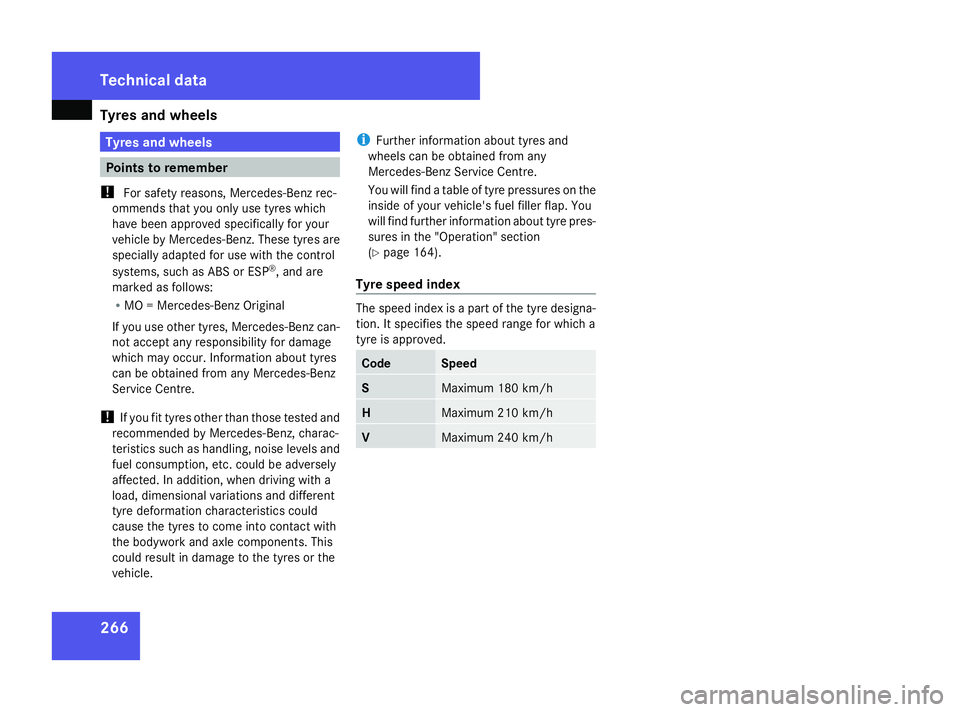

Tyres and wheels
266 Tyres and wheels
Points to remember
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved specifically for your
vehicle by Mercedes-Benz. These tyres are
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Benz
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. could be adversely
affected. In addition, when driving with a
load, dimensional variations and different
tyre deformation characteristics could
cause the tyres to come into contact with
the bodywork and axle components. This
could result in damage to the tyres or the
vehicle. i
Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
You will find a table of tyre pressures on the
inside of your vehicle's fuel filler flap. You
will find further information about tyre pres-
sures in the "Operation" section
(Y page 164).
Tyre speed index The speed index is a part of the tyre designa-
tion. It specifies the speed range for which a
tyre is approved.
Code Speed
S
Maximum 180 km/h
H
Maximum 210 km/h
V
Maximum 240 km/hTechni
cal data
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 266 Dateiname: 6515_4091_02_buchblock.pdf; preflight

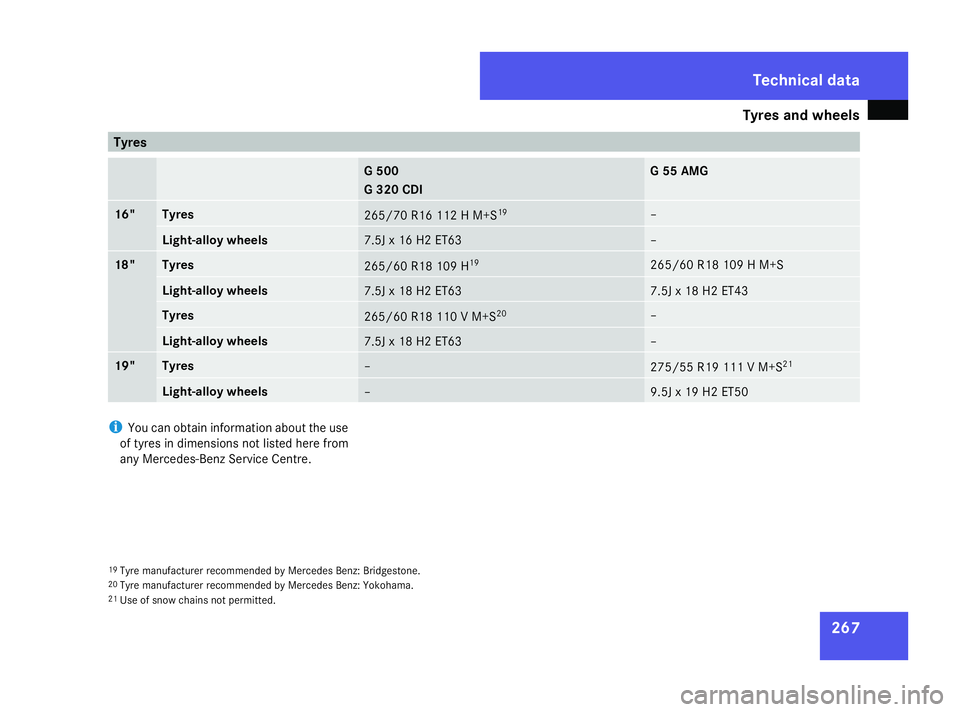

Tyres and wheels
267Tyres
G 500
G 320 CDI G 55 AMG
16" Tyres
265/70 R16 112 H M+S
19 –
Light-alloy wheels
7.5J x 16 H2 ET63 –
18" Tyres
265/60 R18 109 H
19 265/60 R18 109 H M+S
Light-alloy wheels
7.5J x 18 H2 ET63 7.5J x 18 H2 ET43
Tyres
265/60 R18 110 V M+S
20 –
Light-alloy wheels
7.5J x 18 H2 ET63 –
19" Tyres
–
275/55 R19 111 V M+S
21 Light-alloy wheels
– 9.5J x 19 H2 ET50
i
You can obtain information about the use
of tyres in dimensions not listed here from
any Mercedes-Benz Service Centre.
19 Tyre manufacturer recommended by Mercedes Benz: Bridgestone.
20 Tyre manufacturer recommended by Mercedes Benz: Yokohama.
21 Use of snow chains not permitted. Techni
cal data
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 267 ZDateiname: 6515_4091_02_buchblock.pdf; preflight
