MERCEDES-BENZ G-CLASS SUV 2008 Owners Manual

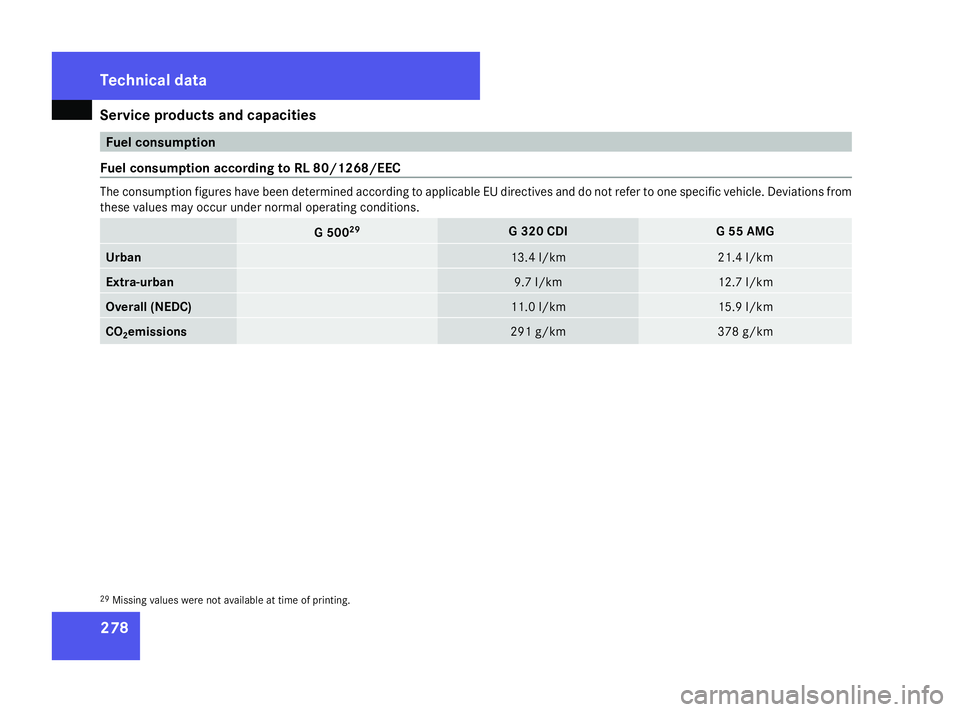

Service products and capacities
278 Fuel consumption
Fuel consumption according to RL 80/1268/EEC The consumption figures have been determined according to applicable EU directives and do not refer to one specific vehicle. Deviations from
these values may occur under normal operating conditions. G 500
29 G 320 CDI G 55 AMG
Urban
13.4 l/km 21.4 l/km
Extra-urban
9.7 l/km 12.7 l/km
Overall (NEDC)
11.0 l/km 15.9 l/km
CO
2emissions 291 g/km 378 g/km
29
Missing values were not available at time of printing. Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 278Dateiname: 6515_4091_02_buchblock.pdf; preflight

Service products and capacities

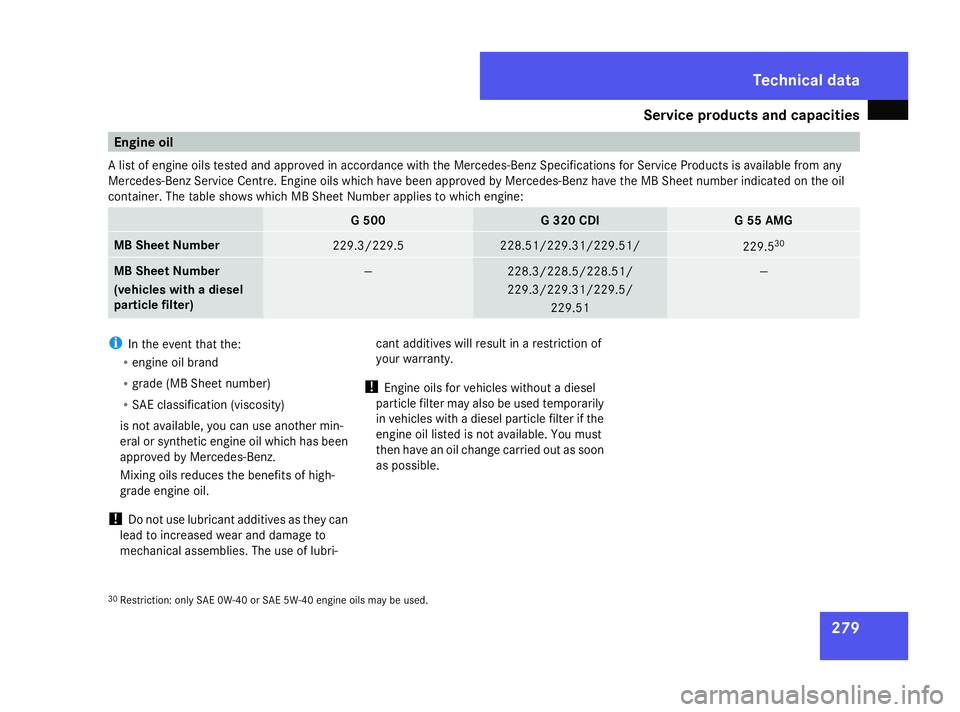

279Engine oil
A list of engine oils tested and approved in accordance with the Mercedes-Benz Specifications for Service Products is available from any
Mercedes-Benz Service Centre. Engine oils which have been approved by Mercedes-Benz have the MB Sheet number indicated on the oil
container. The table shows which MB Sheet Number applies to which engine: G 500 G 320 CDI G 55 AMG
MB Sheet Number
229.3/229.5 228.51/229.31/229.51/
229.5
30 MB Sheet Number
(vehicles with a diesel
particle filter) — 228.3/228.5/228.51/
229.3/229.31/229.5/
229.51 —
i
In the event that the:
R engine oil brand
R grade (MB Sheet number)
R SAE classification (viscosity)
is not available, you can use another min-
eral or synthetic engine oil which has been
approved by Mercedes-Benz.
Mixing oils reduces the benefits of high-
grade engine oil.
! Do not use lubricant additives as they can
lead to increased wear and damage to
mechanical assemblies. The use of lubri- cant additives will result in a restriction of
your warranty.
! Engine oils for vehicles without a diesel
particle filter may also be used temporarily
in vehicles with a diesel particle filter if the
engine oil listed is not available. You must
then have an oil change carried out as soon
as possible.
30 Restriction: only SAE 0W-40 or SAE 5W-40 engine oils may be used. Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 279 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

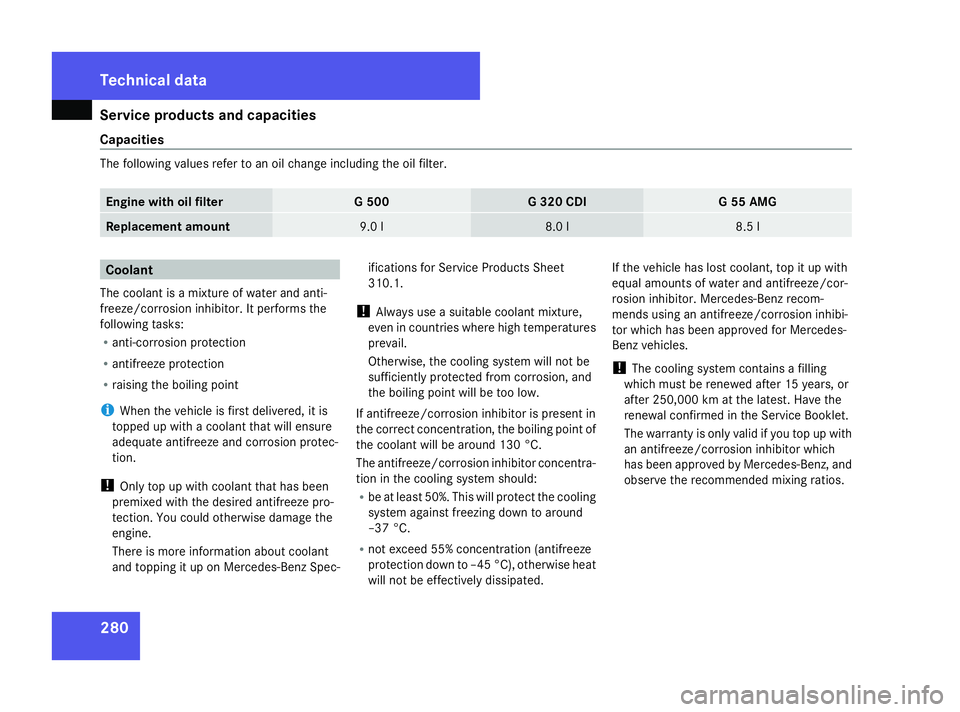

Service products and capacities
280
Capacities The following values refer to an oil change including the oil filter.
Engine with oil filter G 500 G 320 CDI G 55 AMG
Replacement amount
9.0 l 8.0 l 8.5 l
Coolant
The coolant is a mixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
i When the vehicle is first delivered, it is
topped up with a coolant that will ensure
adequate antifreeze and corrosion protec-
tion.
! Only top up with coolant that has been
premixed with the desired antifreeze pro-
tection. You could otherwise damage the
engine.
There is more information about coolant
and topping it up on Mercedes-Benz Spec- ifications for Service Products Sheet
310.1.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion, and
the boiling point will be too low.
If antifreeze/corrosion inhibitor is present in
the correct concentration, the boiling point of
the coolant will be around 130 °C.
The antifreeze/corrosion inhibitor concentra-
tion in the cooling system should:
R be at least 50%. This will protect the cooling
system against freezing down to around
–37 °C.
R not exceed 55% concentration (antifreeze
protection down to –45 °C), otherwise heat
will not be effectively dissipated. If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor-
rosion inhibitor. Mercedes-Benz recom-
mends using an antifreeze/corrosion inhibi-
tor which has been approved for Mercedes-
Benz vehicles.
! The cooling system contains a filling
which must be renewed after 15 years, or
after 250,000 km at the latest. Have the
renewal confirmed in the Service Booklet.
The warranty is only valid if you top up with
an antifreeze/corrosion inhibitor which
has been approved by Mercedes-Benz, and
observe the recommended mixing ratios. Technical data
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 280Dateiname: 6515_4091_02_buchblock.pdf; preflight

Service products and capacities
281

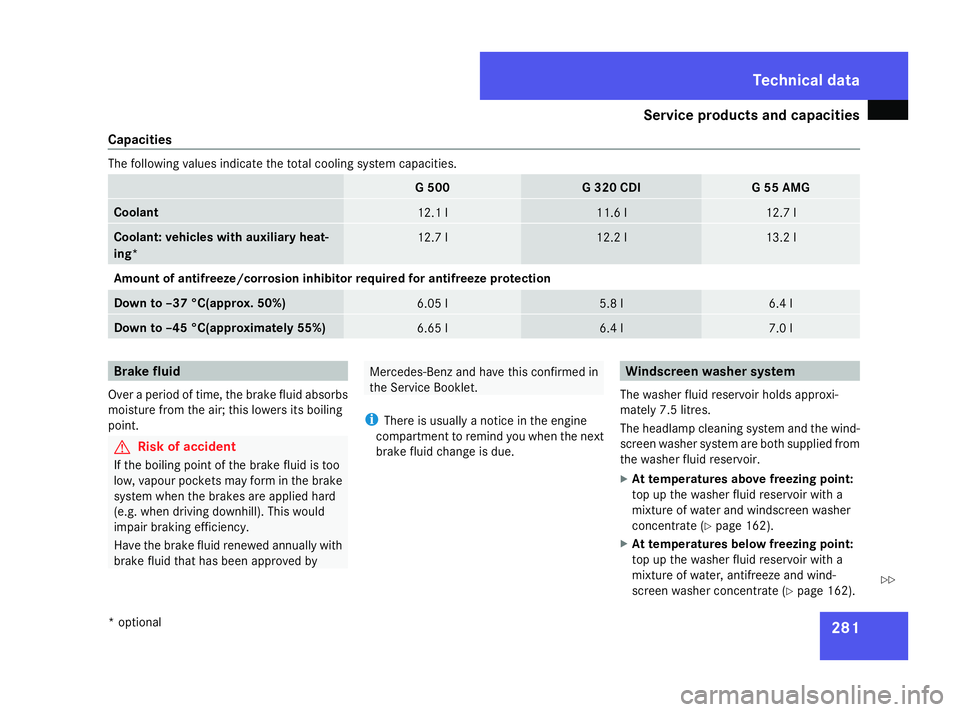

Capacities The following values indicate the total cooling system capacities.
G 500 G 320 CDI G 55 AMG
Coolant
12.1 l 11.6 l 12.7 l
Coolant: vehicles with auxiliary heat-
ing*
12.7 l 12.2 l 13.2 l
Amount of antifreeze/corrosion inhibitor required for antifreeze protection
Down to –37 °C(approx. 50%)
6.05 l 5.8 l 6.4 l
Down to –45 °C(approximately 55%)
6.65 l 6.4 l 7.0 l
Brake fluid
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point. G
Risk of accident
If the boiling point of the brake fluid is too
low, vapour pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving downhill). This would
impair braking efficiency.
Have the brake fluid renewed annually with
brake fluid that has been approved by Mercedes-Benz and have this confirmed in
the Service Booklet.
i There is usually a notice in the engine
compartment to remind you when the next
brake fluid change is due. Windscreen washer system
The washer fluid reservoir holds approxi-
mately 7.5 litres.
The headlamp cleaning system and the wind-
screen washer system are both supplied from
the washer fluid reservoir.
X At temperatures above freezing point:
top up the washer fluid reservoir with a
mixture of water and windscreen washer
concentrate (Y page 162).
X At temperatures below freezing point:
top up the washer fluid reservoir with a
mixture of water, antifreeze and wind-
screen washer concentrate (Y page 162). Technical data
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 281 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

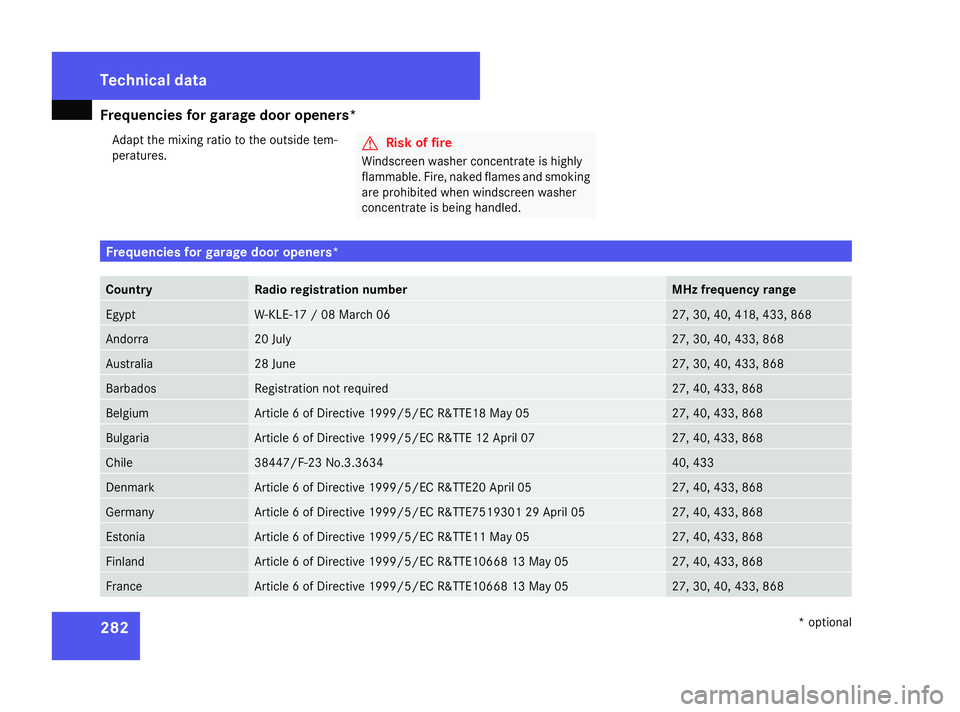

Frequencies for garage door openers*
282Adapt the mixing ratio to the outside tem-
peratures. G
Risk of fire
Windscreen washer concentrate is highly
flammable. Fire, naked flames and smoking
are prohibited when windscreen washer
concentrate is being handled. Frequencies for garage door openers*
Country Radio registration number MHz frequency range
Egypt W-KLE-17 / 08 March 06 27, 30, 40, 418, 433, 868
Andorra 20 July 27, 30, 40, 433, 868
Australia 28 June 27, 30, 40, 433, 868
Barbados Registration not required 27, 40, 433, 868
Belgium Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Bulgaria Article 6 of Directive 1999/5/EC R&TTE 12 April 07 27, 40, 433, 868
Chile 38447/F-23 No.3.3634 40, 433
Denmark Article 6 of Directive 1999/5/EC R&TTE20 April 05 27, 40, 433, 868
Germany Article 6 of Directive 1999/5/EC R&TTE7519301 29 April 05 27, 40, 433, 868
Estonia Article 6 of Directive 1999/5/EC R&TTE11 May 05 27, 40, 433, 868
Finland Article 6 of Directive 1999/5/EC R&TTE10668 13 May 05 27, 40, 433, 868
France Article 6 of Directive 1999/5/EC R&TTE10668 13 May 05 27, 30, 40, 433, 868Technical data
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 282Dateiname: 6515_4091_02_buchblock.pdf; preflight

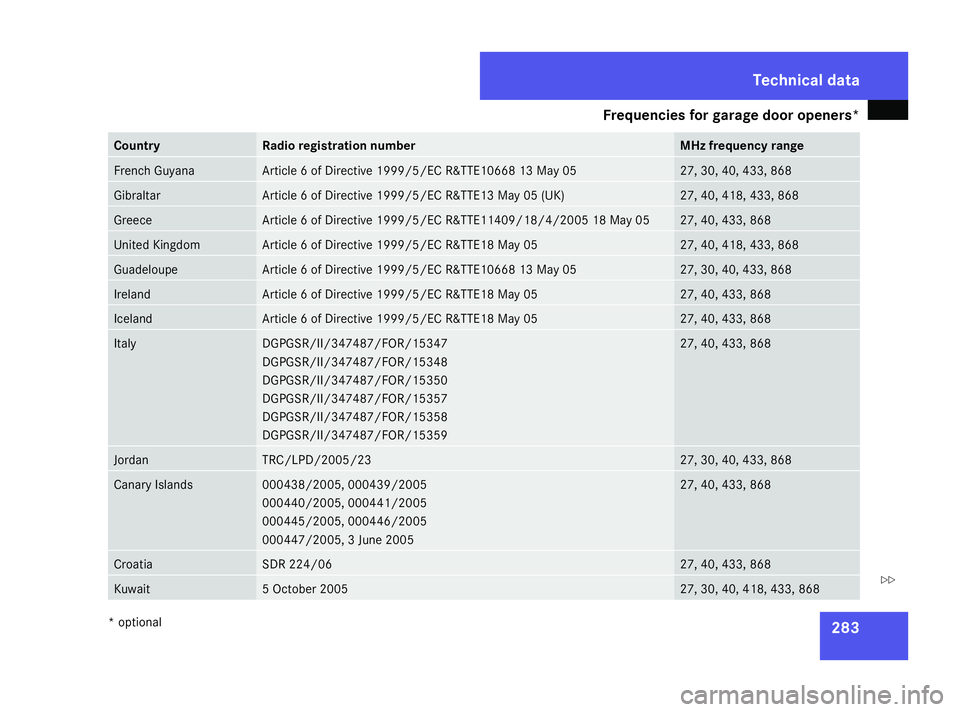

Frequencies for garage door openers*
283Country Radio registration number MHz frequency range
French Guyana Article 6 of Directive 1999/5/EC R&TTE10668 13 May 05 27, 30, 40, 433, 868
Gibraltar Article 6 of Directive 1999/5/EC R&TTE13 May 05 (UK) 27, 40, 418, 433, 868
Greece Article 6 of Directive 1999/5/EC R&TTE11409/18/4/2005 18 May 05 27, 40, 433, 868
United Kingdom Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 418, 433, 868
Guadeloupe Article 6 of Directive 1999/5/EC R&TTE10668 13 May 05 27, 30, 40, 433, 868
Ireland Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Iceland Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Italy DGPGSR/II/347487/FOR/15347
DGPGSR/II/347487/FOR/15348
DGPGSR/II/347487/FOR/15350
DGPGSR/II/347487/FOR/15357
DGPGSR/II/347487/FOR/15358
DGPGSR/II/347487/FOR/15359 27, 40, 433, 868
Jordan TRC/LPD/2005/23 27, 30, 40, 433, 868
Canary Islands 000438/2005, 000439/2005
000440/2005, 000441/2005
000445/2005, 000446/2005
000447/2005, 3 June 2005 27, 40, 433, 868
Croatia SDR 224/06 27, 40, 433, 868
Kuwait 5 October 2005 27, 30, 40, 418, 433, 868 Technical data
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 283 ZDateiname: 6515_4091_02_buchblock.pdf; preflight

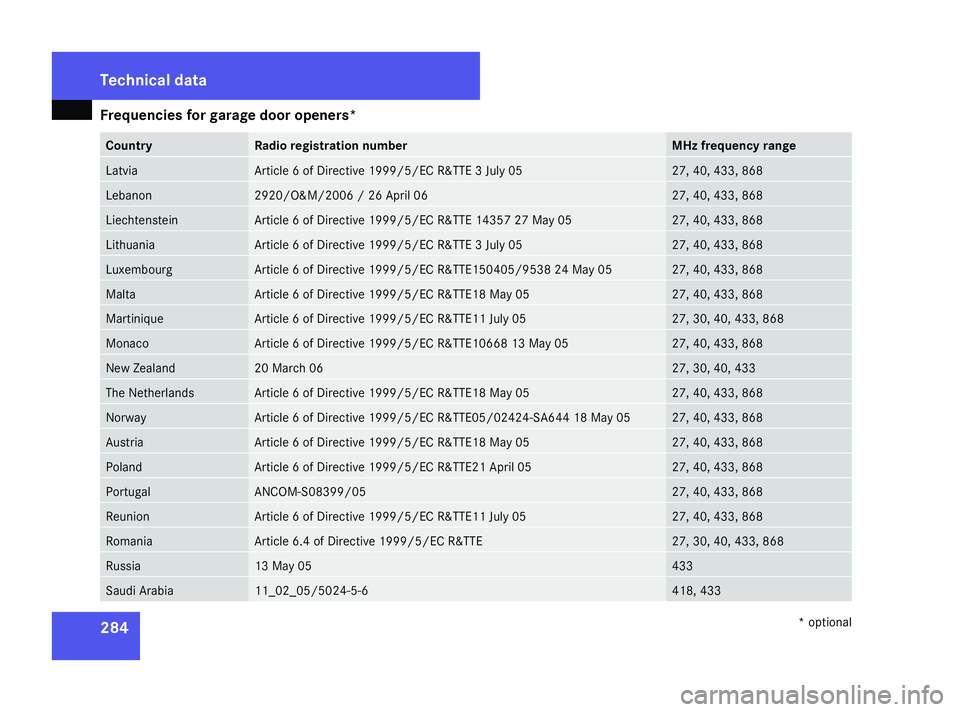

Frequencies for garage door openers*
284 Country Radio registration number MHz frequency range
Latvia Article 6 of Directive 1999/5/EC R&TTE 3 July 05 27, 40, 433, 868
Lebanon 2920/O&M/2006 / 26 April 06 27, 40, 433, 868
Liechtenstein Article 6 of Directive 1999/5/EC R&TTE 14357 27 May 05 27, 40, 433, 868
Lithuania Article 6 of Directive 1999/5/EC R&TTE 3 July 05 27, 40, 433, 868
Luxembourg Article 6 of Directive 1999/5/EC R&TTE150405/9538 24 May 05 27, 40, 433, 868
Malta Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Martinique Article 6 of Directive 1999/5/EC R&TTE11 July 05 27, 30, 40, 433, 868
Monaco Article 6 of Directive 1999/5/EC R&TTE10668 13 May 05 27, 40, 433, 868
New Zealand 20 March 06 27, 30, 40, 433
The Netherlands Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Norway Article 6 of Directive 1999/5/EC R&TTE05/02424-SA644 18 May 05 27, 40, 433, 868
Austria Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Poland Article 6 of Directive 1999/5/EC R&TTE21 April 05 27, 40, 433, 868
Portugal ANCOM-S08399/05 27, 40, 433, 868
Reunion Article 6 of Directive 1999/5/EC R&TTE11 July 05 27, 40, 433, 868
Romania Article 6.4 of Directive 1999/5/EC R&TTE 27, 30, 40, 433, 868
Russia 13 May 05 433
Saudi Arabia 11_02_05/5024-5-6 418, 433Technical data
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 284Dateiname: 6515_4091_02_buchblock.pdf; preflight

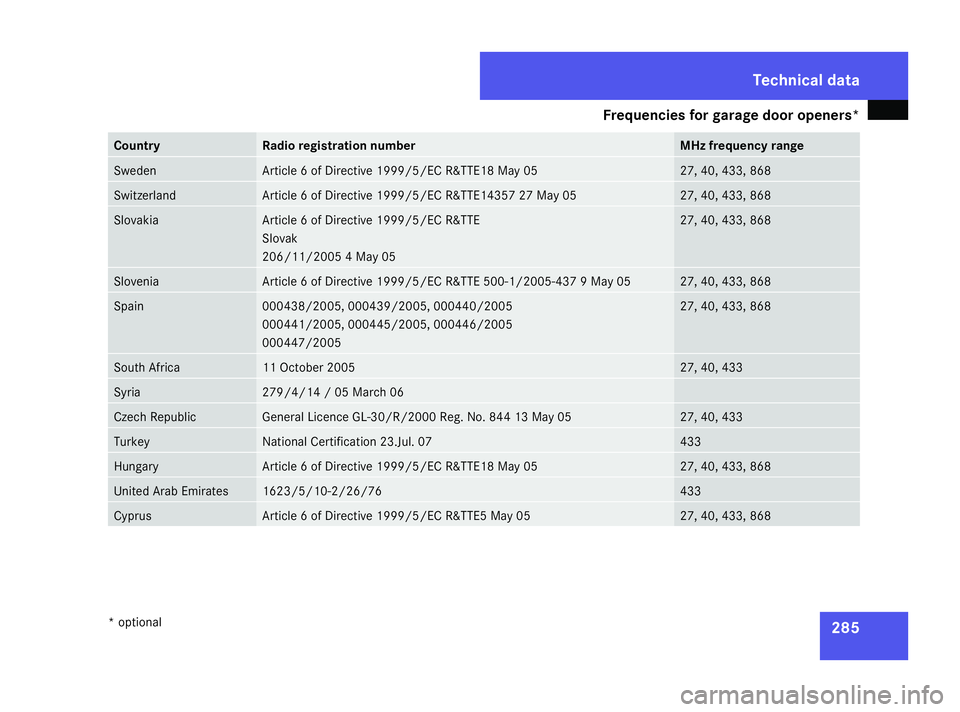

Frequencies for garage door openers*
285Country Radio registration number MHz frequency range
Sweden Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
Switzerland Article 6 of Directive 1999/5/EC R&TTE14357 27 May 05 27, 40, 433, 868
Slovakia Article 6 of Directive 1999/5/EC R&TTE
Slovak
206/11/2005 4 May 05 27, 40, 433, 868
Slovenia Article 6 of Directive 1999/5/EC R&TTE 500-1/2005-437 9 May 05 27, 40, 433, 868
Spain 000438/2005, 000439/2005, 000440/2005
000441/2005, 000445/2005, 000446/2005
000447/2005 27, 40, 433, 868
South Africa 11 October 2005 27, 40, 433
Syria 279/4/14 / 05 March 06
Czech Republic General Licence GL-30/R/2000 Reg. No. 844 13 May 05 27, 40, 433
Turkey National Certification 23.Jul. 07 433
Hungary Article 6 of Directive 1999/5/EC R&TTE18 May 05 27, 40, 433, 868
United Arab Emirates 1623/5/10-2/26/76 433
Cyprus Article 6 of Directive 1999/5/EC R&TTE5 May 05 27, 40, 433, 868 Technical data
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 285 ZDateiname: 6515_4091_02_buchblock.pdf; preflight
