MERCEDES-BENZ G-CLASS SUV 2008 Owner's Manual

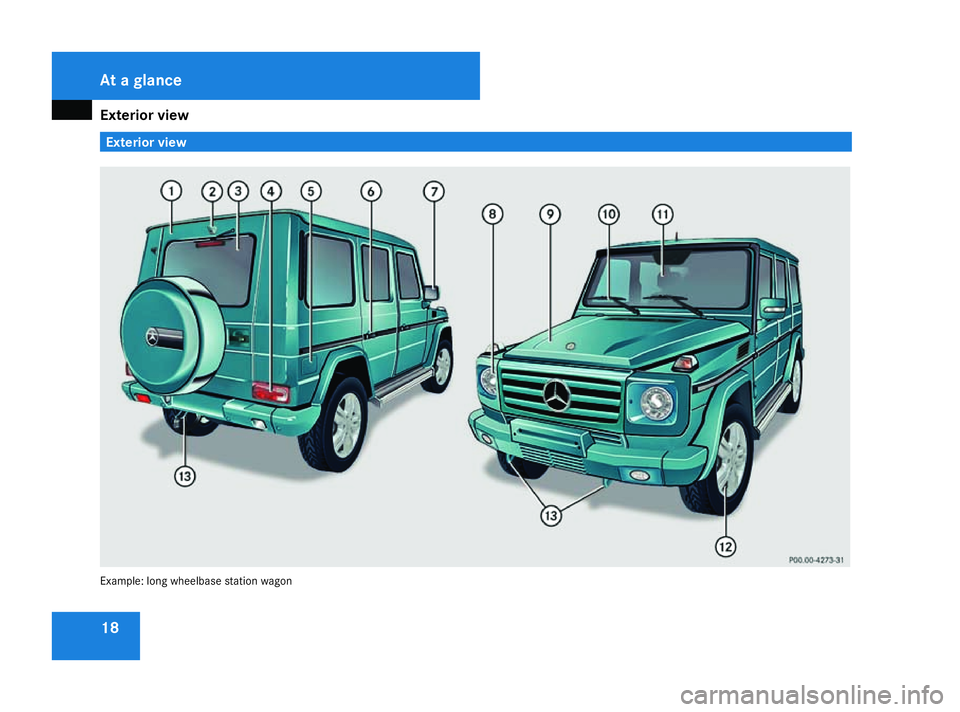

Exterior view
18 Exterior view
Example: long wheelbase station wagonAt a glance
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 18Dateiname: 6515_4091_02_buchblock.pdf; preflight

Exterior view

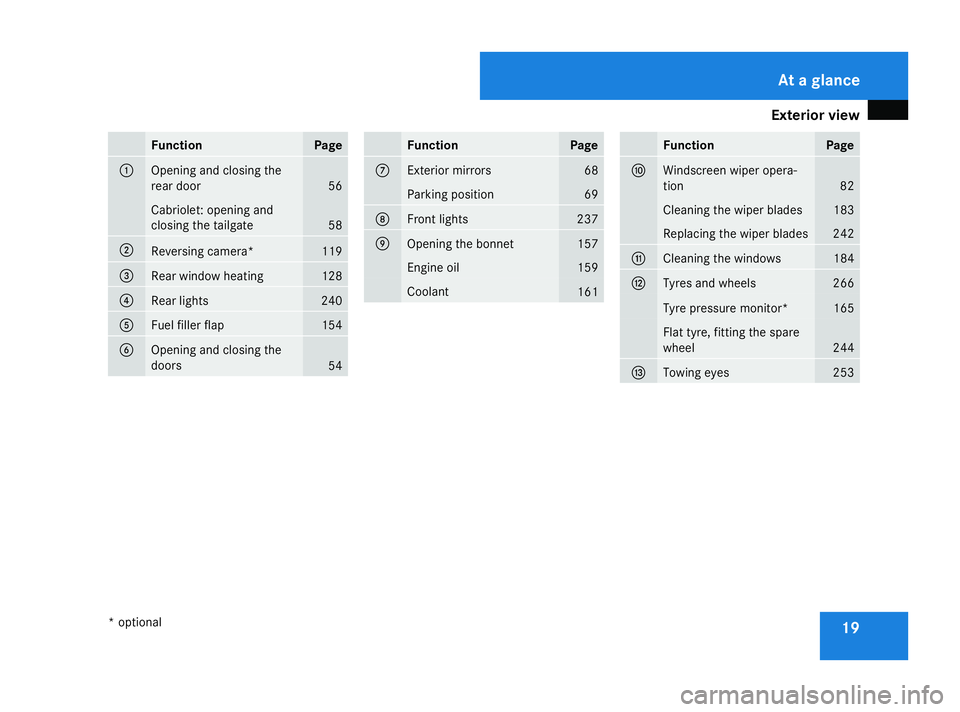

19Function Page
1
Opening and closing the
rear door 56
Cabriolet: opening and
closing the tailgate
58
2
Reversing camera* 119
3
Rear window heating 128
4
Rear lights 240
5
Fuel filler flap 154
6
Opening and closing the
doors 54 Function Page
7
Exterior mirrors 68
Parking position 69
8
Front lights 237
9
Opening the bonnet 157
Engine oil 159
Coolant
161 Function Page
a
Windscreen wiper opera-
tion
82
Cleaning the wiper blades 183
Replacing the wiper blades 242
b
Cleaning the windows 184
c
Tyres and wheels 266
Tyre pressure monitor* 165
Flat tyre, fitting the spare
wheel
244
d
Towing eyes 253At a glance
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 19Dateiname: 6515_4091_02_buchblock.pdf; preflight

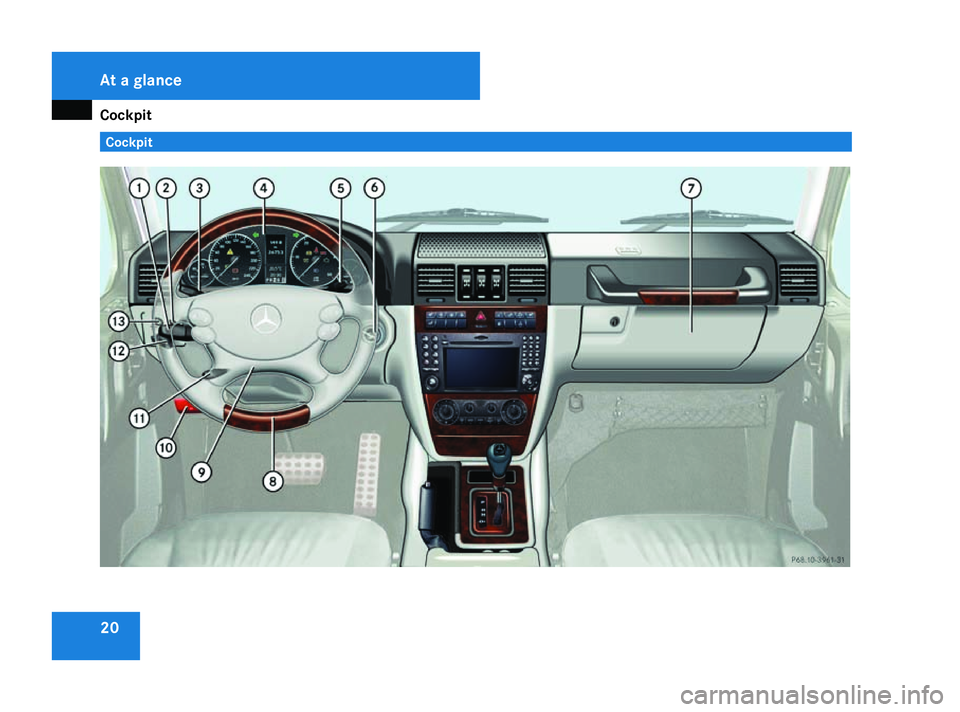

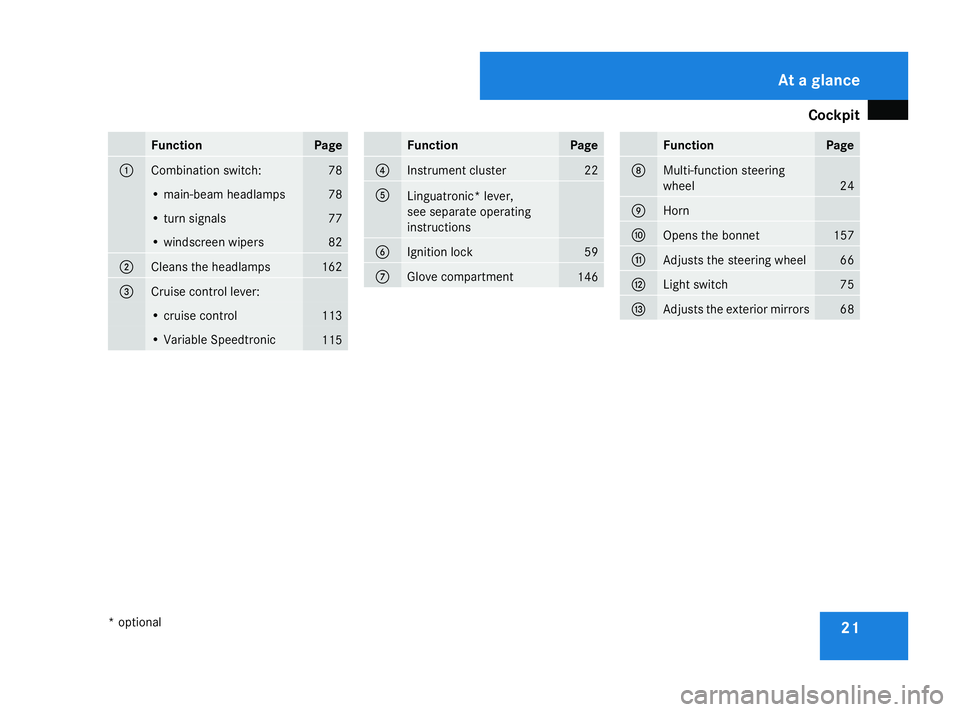

Cockpit
20 CockpitAt a glance
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 20Dateiname: 6515_4091_02_buchblock.pdf; preflight

Cockpit
21Function Page
1
Combination switch: 78
• main-beam headlamps 78
• turn signals 77
• windscreen wipers 82
2
Cleans the headlamps 162
3
Cruise control lever:
• cruise control 113
• Variable Speedtronic
115 Function Page
4
Instrument cluster 22
5
Linguatronic* lever,
see separate operating
instructions
6
Ignition lock 59
7
Glove compartment
146 Function Page
8
Multi-function steering
wheel
24
9
Horn
a
Opens the bonnet 157
b
Adjusts the steering wheel 66
c
Light switch 75
d
Adjusts the exterior mirrors 68At a glance
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 21Dateiname: 6515_4091_02_buchblock.pdf; preflight

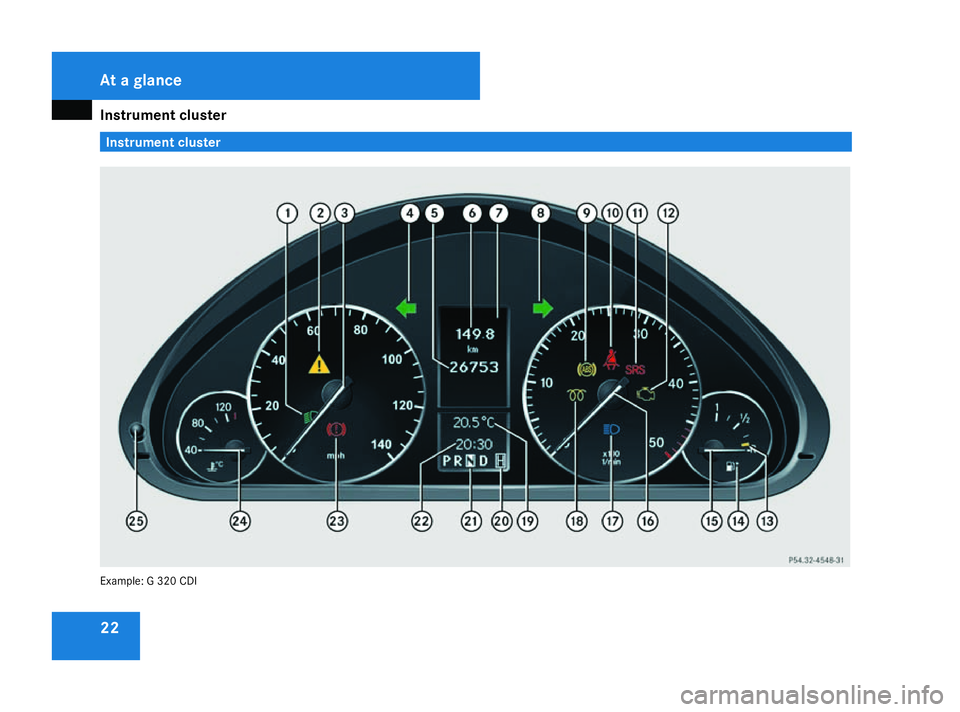

Instrument cluster
22 Instrument cluster
Example: G 320 CDIAt a glance
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 22Dateiname: 6515_4091_02_buchblock.pdf; preflight

Instrument cluster

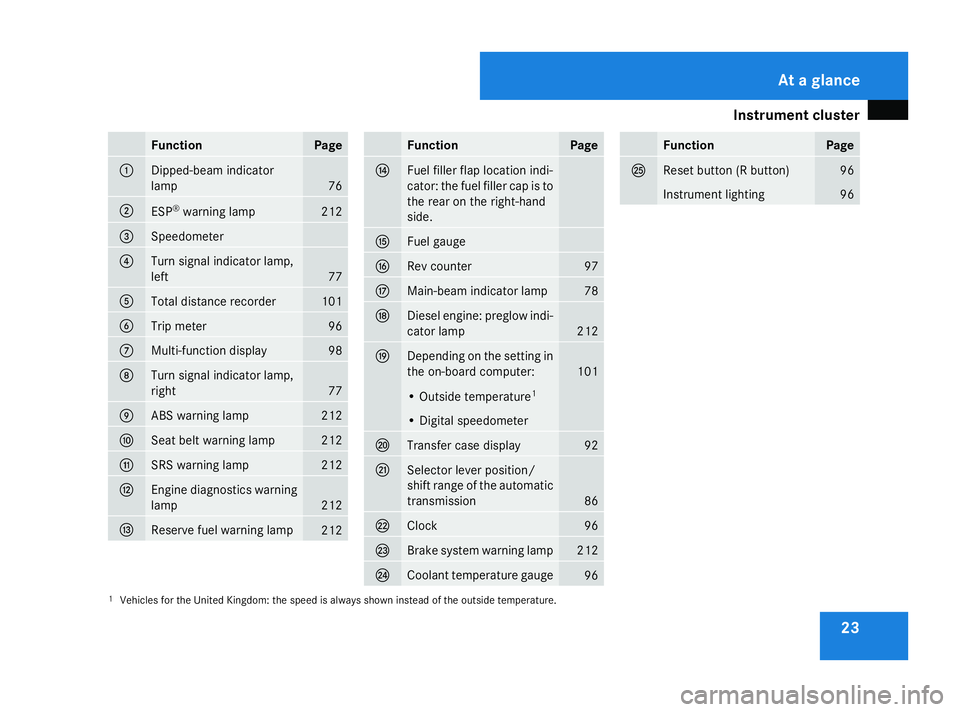

23Function Page
1
Dipped-beam indicator
lamp
76
2
ESP
®
warning lamp 212
3
Speedometer
4
Turn signal indicator lamp,
left 77
5
Total distance recorder 101
6
Trip meter 96
7
Multi-function display 98
8
Turn signal indicator lamp,
right 77
9
ABS warning lamp 212
a
Seat belt warning lamp 212
b
SRS warning lamp 212
c
Engine diagnostics warning
lamp
212
d
Reserve fuel warning lamp
212 Function Page
e
Fuel filler flap location indi-
cator: the fuel filler cap is to
the rear on the right-hand
side. f
Fuel gauge
g
Rev counter 97
h
Main-beam indicator lamp 78
j
Diesel engine: preglow indi-
cator lamp
212
k
Depending on the setting in
the on-board computer:
101
• Outside temperature
1 • Digital speedometer
l
Transfer case display 92
m
Selector lever position/
shift range of the automatic
transmission
86
n
Clock 96
o
Brake system warning lamp 212
p
Coolant temperature gauge
96 Function Page
q
Reset button (R button) 96
Instrument lighting 96
1 Vehicles for the United Kingdom: the speed is always shown instead of the outside temperature. At a glance
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 23Dateiname: 6515_4091_02_buchblock.pdf; preflight

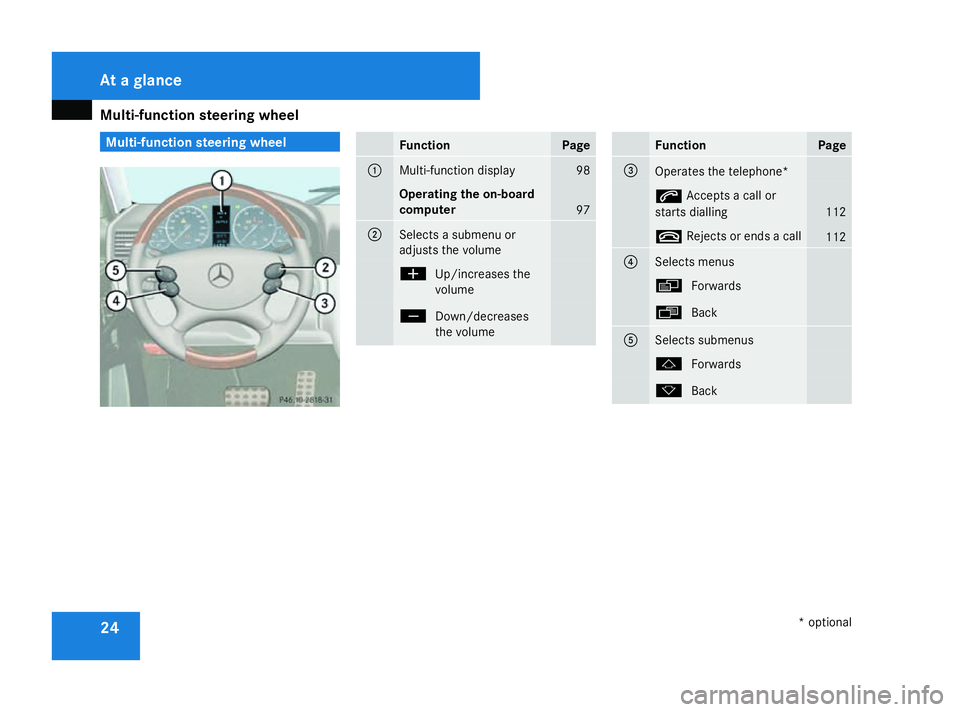

Multi-function steering wheel
24 Multi-function steering wheel
Function Page
1
Multi-function display 98
Operating the on-board
computer
97
2
Selects a submenu or
adjusts the volume
æ
Up/increases the
volume ç
Down/decreases
the volume Function Page
3
Operates the telephone*
s
Accepts a call or
starts dialling 112
t
Rejects or ends a call 112
4
Selects menus
è
Forwards ·
Back 5
Selects submenus
j
Forwards k
Back At a glance
* optional
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 24 Dateiname: 6515_4091_02_buchblock.pdf; preflight

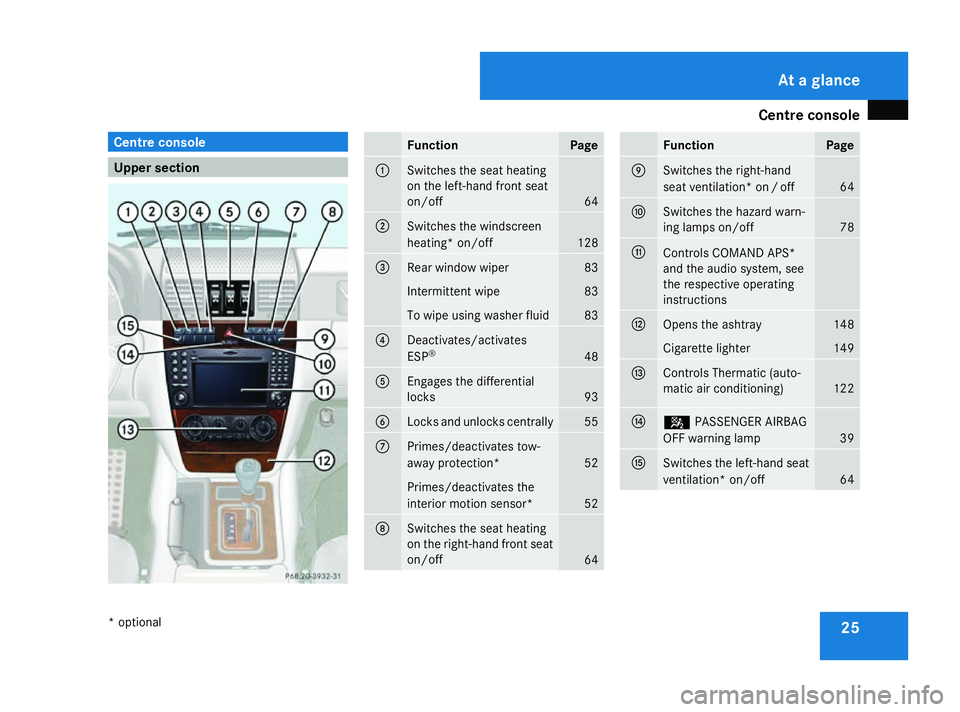

Centre console
25Centre console
Upper section Function Page
1
Switches the seat heating
on the left-hand front seat
on/off 64
2
Switches the windscreen
heating* on/off
128
3
Rear window wiper 83
Intermittent wipe 83
To wipe using washer fluid 83
4
Deactivates/activates
ESP
® 48
5
Engages the differential
locks
93
6
Locks and unlocks centrally 55
7
Primes/deactivates tow-
away protection*
52
Primes/deactivates the
interior motion sensor*
52
8
Switches the seat heating
on the right-hand front seat
on/off
64 Function Page
9
Switches the right-hand
seat ventilation* on
/off 64
a
Switches the hazard warn-
ing lamps on/off
78
b
Controls COMAND APS*
and the audio system, see
the respective operating
instructions
c
Opens the ashtray 148
Cigarette lighter 149
d
Controls Thermatic (auto-
matic air conditioning)
122
J
5
PASSENGER AIRBAG
OFF warning lamp 39
K
Switches the left-hand seat
ventilation* on/off
64At a glance
* optional
463_AKB; 1; 8, en-GB
wobuchh,
Version: 2.10.6 2008-07-17T15:19:41+02:00 - Seite 25Dateiname: 6515_4091_02_buchblock.pdf; preflight

Centre console

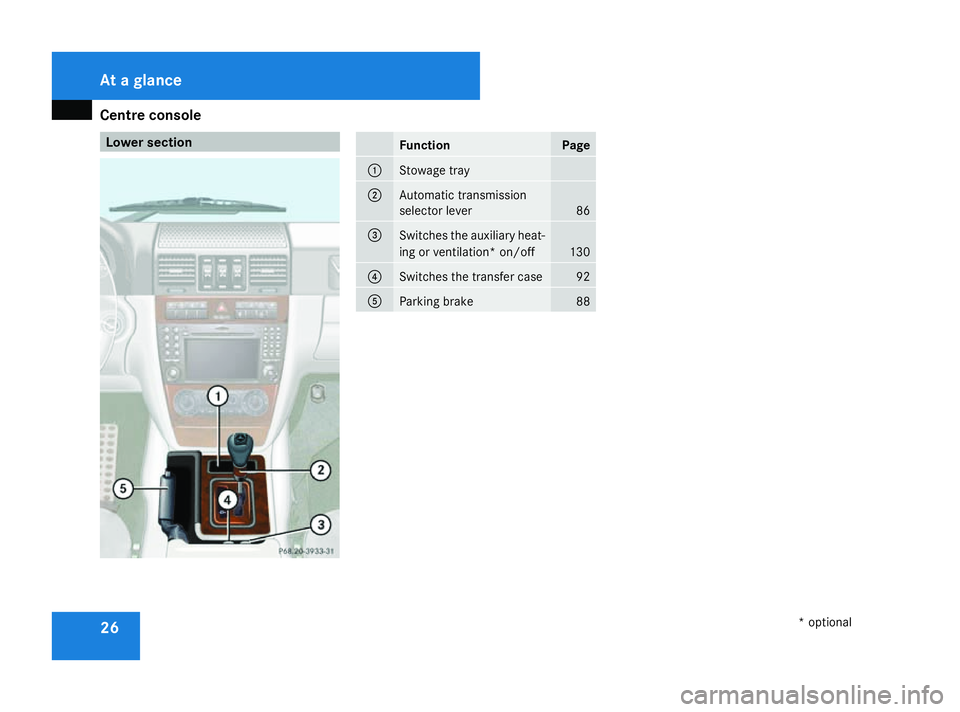

26 Lower section
Function Page
1
Stowage tray
2
Automatic transmission
selector lever
86
3
Switches the auxiliary heat-
ing or ventilation* on/off
130
4
Switches the transfer case 92
5
Parking brake 88At a glance
* optional
463_AKB; 1; 8, en-GB
wobuchh
,V ersion: 2.10.6
2008-07-17T15:19:41+02:00 - Seite 26 Dateiname: 6515_4091_02_buchblock.pdf; preflight

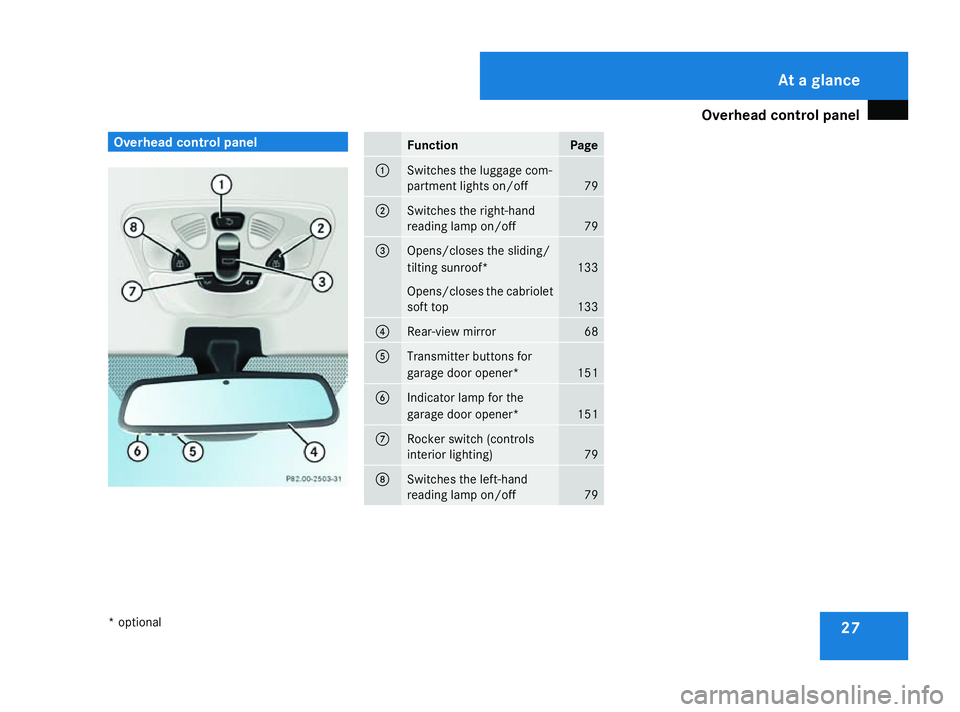

Overhead control panel
27Overhead control panel
Function Page
1
Switches the luggage com-
partment lights on/off
79
2
Switches the right-hand
reading lamp on/off
79
3
Opens/closes the sliding/
tilting sunroof*
133
Opens/closes the cabriolet
soft top
133
4
Rear-view mirror 68
5
Transmitter buttons for
garage door opener*
151
6
Indicator lamp for the
garage door opener*
151
7
Rocker switch (controls
interior lighting)
79
8
Switches the left-hand
reading lamp on/off
79 At a glance
