MERCEDES-BENZ G500 2002 W463 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2002, Model line: G500, Model: MERCEDES-BENZ G500 2002 W463Pages: 385, PDF Size: 30.37 MB
Page 141 of 385

138 Rear window wiper/washer
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

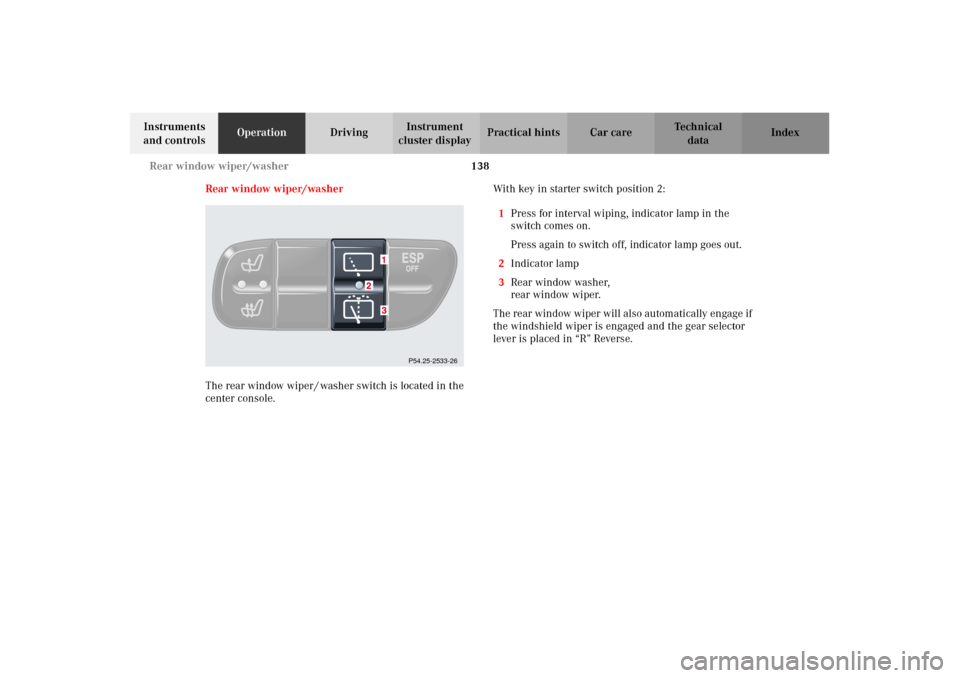

Rear window wiper/washer
The rear window wiper / washer switch is located in the
center console.With key in starter switch position 2:
1Press for interval wiping, indicator lamp in the
switch comes on.
Press again to switch off, indicator lamp goes out.
2Indicator lamp
3Rear window washer,
rear window wiper.
The rear window wiper will also automatically engage if
the windshield wiper is engaged and the gear selector
lever is placed in “R” Reverse.
P54.25-2533-26
J_G463.book Seite 138 Mittwoch, 19. September 2001 8:06 08
Page 142 of 385

139 Hazard warning flasher
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

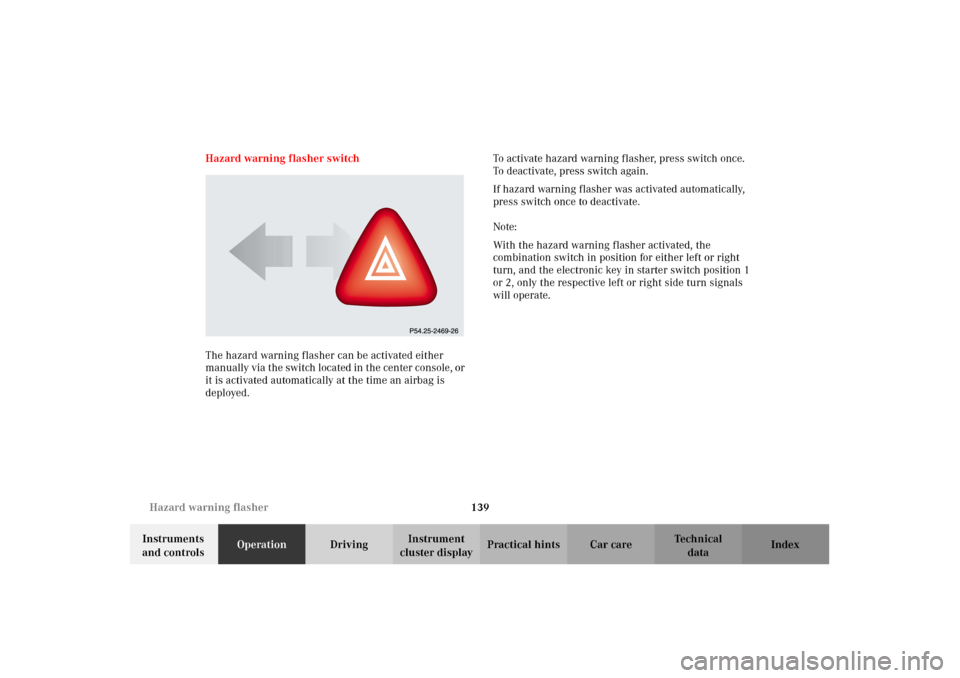

cluster displayPractical hints Car care Index Hazard warning flasher switch
The hazard warning flasher can be activated either
manually via the switch located in the center console, or
it is activated automatically at the time an airbag is
deployed.To activate hazard warning flasher, press switch once.
To deactivate, press switch again.
If hazard warning flasher was activated automatically,
press switch once to deactivate.
Note:
With the hazard warning flasher activated, the
combination switch in position for either left or right
turn, and the electronic key in starter switch position 1
or 2, only the respective left or right side turn signals
will operate.
J_G463.book Seite 139 Mittwoch, 19. September 2001 8:06 08
Page 143 of 385

140 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Climate control
ESPOFF
TELPA R
Z+
Z-
MAP
DETRINFO
MOT
DISP
DELGPSBLACK
FM
AMNAV
CD
SVCVOL-RST
J_G463.book Seite 140 Mittwoch, 19. September 2001 8:06 08
Page 144 of 385

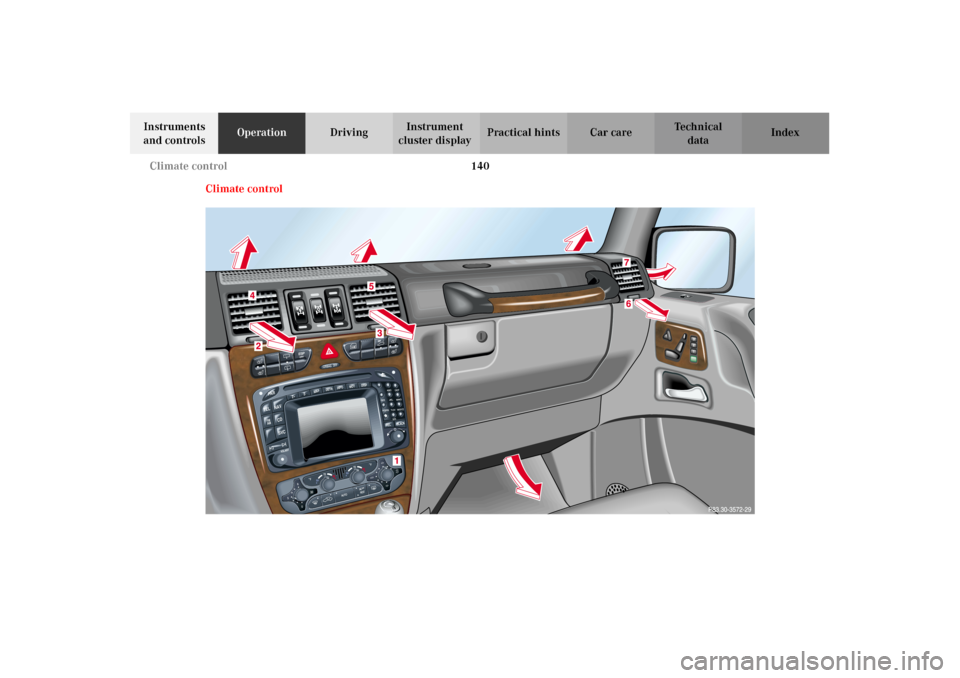

141 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 1Display and controls
2Air volume control for left center air outlet
To open: Turn thumbwheel to the right
3Air volume control for right center air outlet
To open: Turn thumbwheel to the right4Center air outlet, left, adjustable
5Center air outlet, right, adjustable
6Air volume control for side air outlet
To open: Turn thumbwheel to the right
7Side air outlet, adjustable
J_G463.book Seite 141 Mittwoch, 19. September 2001 8:06 08
Page 145 of 385

142 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

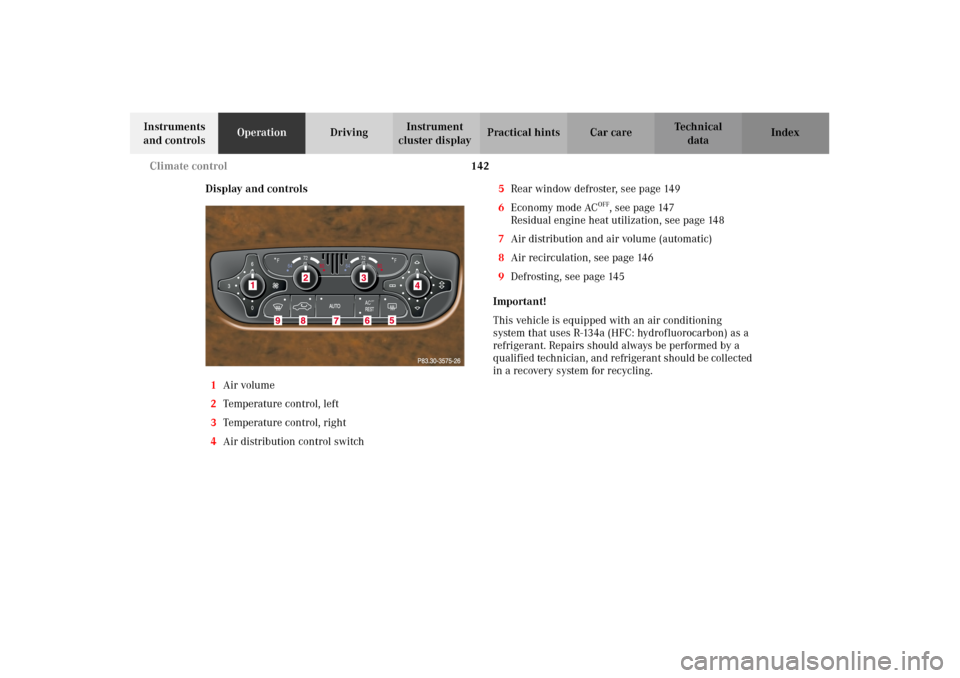

Display and controls
1Air volume
2Temperature control, left
3Temperature control, right
4Air distribution control switch5Rear window defroster, see page 149
6Economy mode AC
OFF, see page 147
Residual engine heat utilization, see page 148
7Air distribution and air volume (automatic)
8Air recirculation, see page 146
9Defrosting, see page 145
Important!
This vehicle is equipped with an air conditioning
system that uses R-134a (HFC: hydrofluorocarbon) as a
refrigerant. Repairs should always be performed by a
qualif ied technician, and refrigerant should be collected
in a recovery system for recycling.
72
F
6480
72
F
6480ACOFF
J_G463.book Seite 142 Mittwoch, 19. September 2001 8:06 08
Page 146 of 385

143 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Climate control
The system is always at operational readiness, except
when manually switched off, see page 147.
The climate control only operates with the engine
running.
The air conditioning will not engage (no cooling) if the
economy mode AC
OFF
is selected, see page 147.
The temperature selector should be left at the desired
temperature setting. The temperature selected is
reached as quickly as possible.
The system will not heat or cool any quicker by setting a
higher or lower temperature.
The desired interior temperature can be selected
separately for the left and right side of the passenger
compartment. Adjust the temperature settings in small
increments.
The climate control removes considerable moisture from
the air during operation in the cooling mode. It is
normal for water to drip on the ground through ducts in
the underbody.Notes:
Do not obstruct the air f low by placing objects on the air
flow-through exhaust slots on the back left and right
trim panel in the rear cargo compartment.
Also keep the air intake grill in front of the windshield
free of snow and debris.
The air conditioner switches itself off for its own
protection if refrigerant is lost. No cooling will then take
place. Economy mode AC
OFF
cannot be switched off.
Have the air conditioner checked by a Mercedes-Benz
Light Truck Center should this happen.
If the vehicle interior has been heated by direct sunlight
and is very hot, ventilate the interior (open door or
windows for a short period) before driving off.
Dust filter
Nearly all dust particles and pollen are filtered out
before outside air enters the passenger compartment
through the air distribution system.
J_G463.book Seite 143 Mittwoch, 19. September 2001 8:06 08
Page 147 of 385

144 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Basic setting – automatic mode
In the automatic mode the climate control cools or heats
the interior depending on outside temperature and the
selected interior temperature. With the automatic mode
switched off, the air volume and distribution can still be
set manually.
Press U button. Air volume and distribution are
controlled automatically.
We recommend to set the left and right temperature
to 72
°F (22
°C). Pleas e make chan ges f rom t his s etting to
suit your personal requirements.
Special settings (use only for short duration)
Air distribution and air volume, manual
Press U button. The indicator lamp in the button will
go out.
Select any of the six air volume speeds and the air
distribution.
The air distribution for the right and left side operate
together.Air distribution, manual:
hAir from the center, side and rear passenger
compartment air outlets.
jAir from the windshield and side defroster air
outlets.
kAir from the footwell and rear passenger footwell
air outlets.
VAir from the windshield, center, side defroster,
footwell, rear passenger footwell and rear
passenger compartment air outlets.
To return to automatic mode:
Press the U button. The indicator lamp in the button
illuminates.
J_G463.book Seite 144 Mittwoch, 19. September 2001 8:06 08
Page 148 of 385

145 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Defrosting
Press the P button. The indicator lamp in the button
illuminates and the fan is set to a higher speed. The
warm air is directed to the defroster and windshield air
outlets.
Switch off air recirculation, if selected. Press
buttonO, the indicator lamp in the button will go
out.
Close center air outlets.
Turn thumbwheels (6, page 140) to the right to open lef t
and right side air outlets. Adjust side air outlets upward.
Pressing the P button again returns the system to
the previous setting.
Notes:
Heavy accumulation of snow and ice should be removed
before activating the defroster.
The defroster uses a large amount of power. To keep the
battery drain to a minimum, turn off the defroster as
soon as the windshield is clear.Windows fogged up on the inside
Switch off the economy mode, if selected. Press
button AC
OFF
. The indicator lamp in the button will go
out.
Switch off air recirculation, if selected. Press
buttonO. The indicator lamp in the button will go
out.
Press the P button. The indicator lamp in the button
illuminates.
Increase temperature setting.
Open the side air outlets and direct them onto the side
windows.
J_G463.book Seite 145 Mittwoch, 19. September 2001 8:06 08
Page 149 of 385

146 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Windshield fogged up on the outside
Switch on the windshield wiper.
Switch to manual mode.
Turn air distribution switch to positionh ork.
Air recirculation
Select air recirculation:
Press button O briefly. The indicator lamp in the
button illuminates.
To switch off the air recirculation:
Press button O briefly. The indicator lamp in the
button will go out. The system automatically switches from air
recirculation to fresh air:
•after 30 minutes if the outside temperature is above
about 40
°F(5
°C),
•after 5 minutes if the outside temperature is below
about 40
°F(5
°C),
•after 5 minutes if economy mode AC
OFF is selected.
The system switches automatically to air recirculation at
high outside temperatures. A quantity of outside air is
added after about 30 minutes.
If the windows should fog up from the inside, switch
from recirculated air back to fresh air.
J_G463.book Seite 146 Mittwoch, 19. September 2001 8:06 08
Page 150 of 385

147 Climate control
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Climate control - OFF/ON
To switch the climate control off, set the air volume
control switch to position 0.
The fresh air supply to the vehicle interior is shut off.
While driving, use this setting only temporarily,
otherwise the windshield could fog up.
To switch the climate control on again, set air volume
control switch to any speed.Economy mode
The function of this setting corresponds to the
automatic mode. However, because the air conditioning
compressor will not engage (fuel savings), it is not
possible to air condition in this setting.
Press AC
OFF
button to activate. The indicator lamp in the
button illuminates.
Press AC
OFF
button once again to return to the previous
setting. The indicator lamp in the button goes out.
Important!
In the AC
OFF
mode the windows could fog up on the
inside. Switch off AC
OFF
mode.
J_G463.book Seite 147 Mittwoch, 19. September 2001 8:06 08
