MERCEDES-BENZ G500 2002 W463 Owner's Guide

18 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Instruments and controls
J_G463.book Seite 18 Mittwoch, 19. September 2001 8:06 08

19 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index For adjustment of air outlets, refer to climate control,
see page 140.

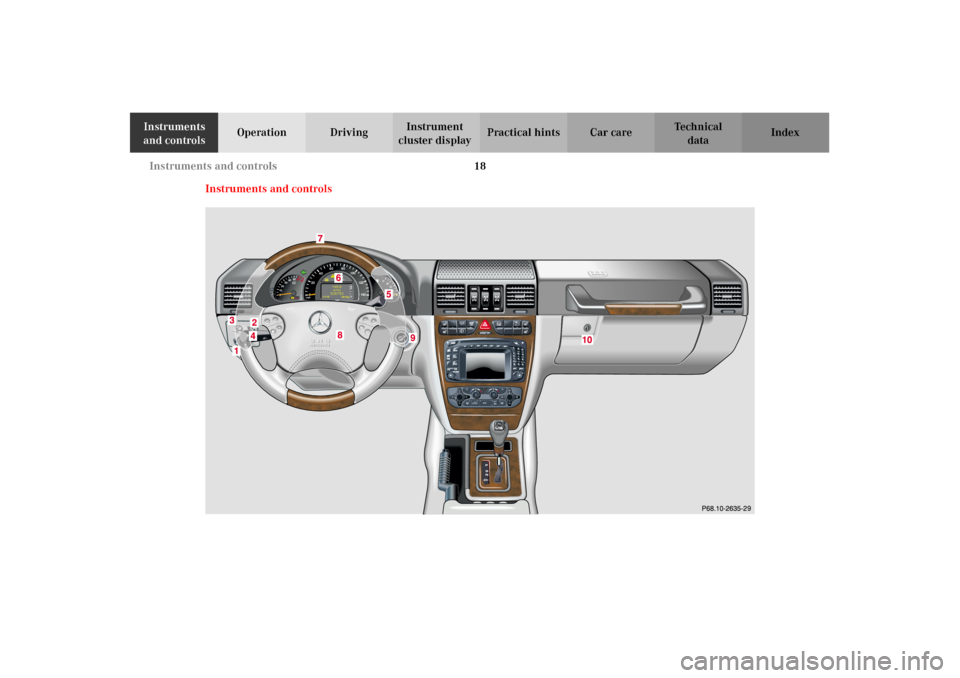

1Exterior lamp switch, see page 129
2Headlamp cleaning system, see page 133
3Exterior rear view mirror adjustment switch, see
page 80
4Combination switch, see page 1345Control lever for Linguatronic voice control system
(optional), see seperate Operating Instructions
6Instrument cluster, see page 84
7Multifunction steering wheel, see page 90
8Horn (with key in steering lock position 1 or 2),
Driver airbag, see page 68
9Starter switch, see page 204
10Glove box, see page 163
J_G463.book Seite 19 Mittwoch, 19. September 2001 8:06 08

20 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Center console
J_G463.book Seite 20 Mittwoch, 19. September 2001 8:06 08

21 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

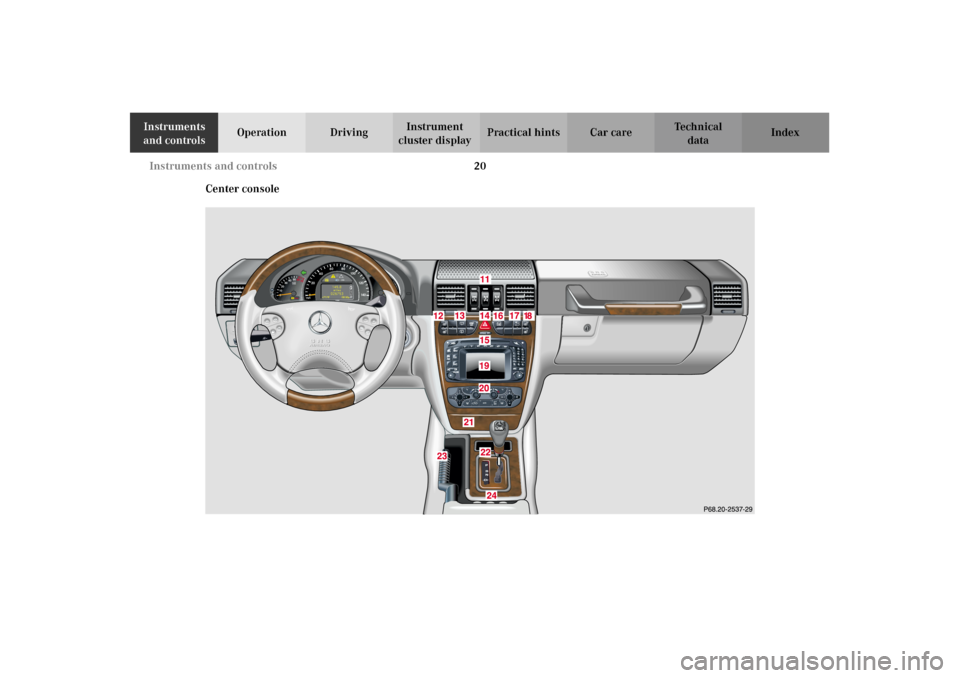

cluster displayPractical hints Car care Index 11Differential-lock switch, see page 253
12Left front seat heater switch, see page 52
13Switch for rear window washer /wiper, see page 138
14Hazard warning flasher switch, see page 139
15AIRBAG OFF indicator lamp, see page 271
16Central locking switch, see page 40
17Antitheft alarm system, see page 42
Switch for Tow-away alarm, see page 4318Right front seat heater switch, see page 52
19COMAND system (Cockpit Management and Data
System), see seperate operating instructions
20Automatic climate control, see page 140
21Ashtray with lighter, see page 168
22Automatic transmission, see page 207
23Parking brake, see page 215
24Transfer case, see page 247
J_G463.book Seite 21 Mittwoch, 19. September 2001 8:06 08

22 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

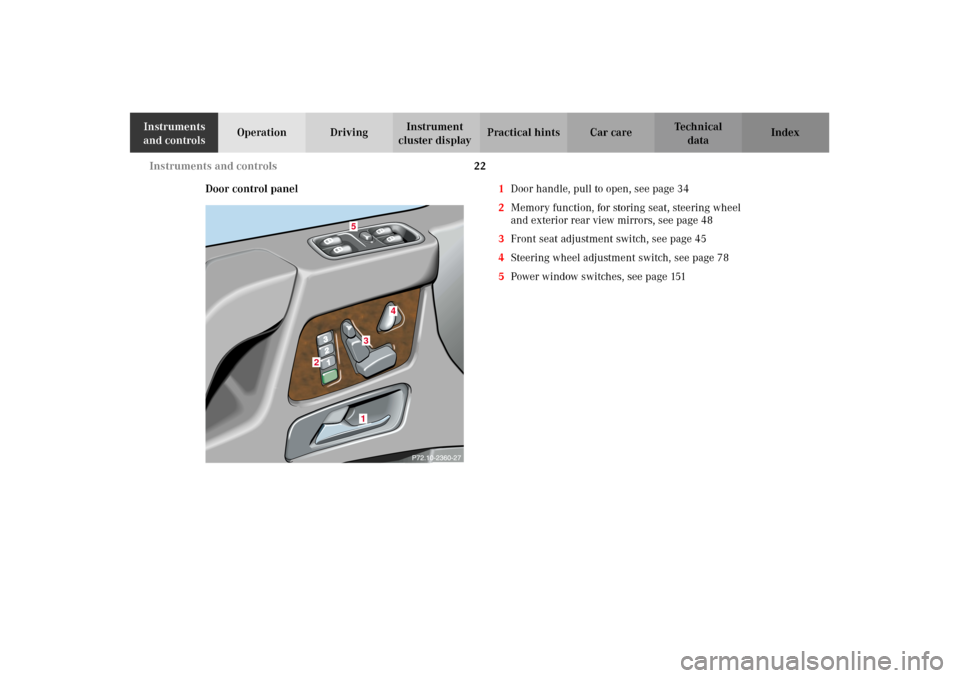

Door control panel1Door handle, pull to open, see page 34
2Memory function, for storing seat, steering wheel
and exterior rear view mirrors, see page 48
3Front seat adjustment switch, see page 45
4Steering wheel adjustment switch, see page 78
5Power window switches, see page 151
1
2
3
4
5
J_G463.book Seite 22 Mittwoch, 19. September 2001 8:06 08

23 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

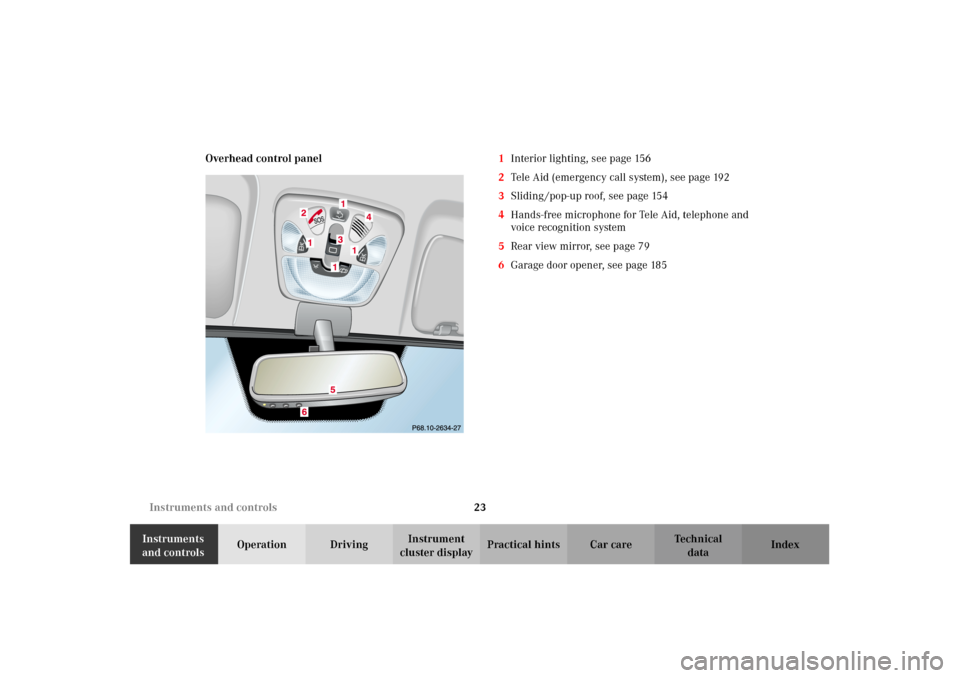

cluster displayPractical hints Car care Index Overhead control panel1Interior lighting, see page 156
2Tele Aid (emergency call system), see page 192
3Sliding /pop-up roof, see page 154
4Hands-free microphone for Tele Aid, telephone and
voice recognition system
5Rear view mirror, see page 79
6Garage door opener, see page 185
J_G463.book Seite 23 Mittwoch, 19. September 2001 8:06 08

24 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 26
Start lock-out .................................... 28
General notes on the
central locking system ............... 28
Central locking system ................... 29
Radio frequency and
infrared remote control ............... 29
Locking and unlocking ................ 31
Choosing global or
selective mode on
remote control .............................. 31
Opening and closing windows
and sliding / pop-up roof from
outside ........................................... 32
Panic button .................................. 33
Mechanical keys ........................... 33
Doors .................................................. 34
Locking and unlocking
driver’s door manually ................ 36
Tailgate .............................................. 37
Locking and unlocking
the tailgate manually ................... 38Locking the tailgate
separately ...................................... 39
Central locking switch .................... 40
Automatic central locking ............... 41
Emergency unlocking in
case of accident ........................... 41
Antitheft alarm system ................... 42
Tow-away alarm ............................... 43
Easy-entry/exit feature .................. 44
Front seat adjustment ..................... 45
Synchronizing head restraints
and seat adjustment fore, aft ..... 47
Removal and installation
of front seat head restraints ......51
Seat heater, front ............................. 52
Seat heater, rear .............................. 54
Seat belts and
integrated restraint system ....... 56
Seat belts .......................................... 56
Seat belt nonusage
warning system ............................ 57
BabySmart
TM airbag
deactivation system ................... 63Self-test BabySmart
TM
without special child seat
installed ........................................ 63
Supplemental restraint system
(SRS) ............................................. 64
Emergency tensioning retractor
(ETR) ............................................. 65
Airbags .............................................. 66
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag .................................... 71
Infant and child
restraint systems .......................... 73
Steering wheel adjustment
(electrical) .................................... 78
Inside rear view mirror .................. 79
Antiglare night position .............. 79
Exterior rear view mirrors ............. 80
Instrument cluster ........................... 84
Multifunction steering wheel,
multifunction display ................. 90
Trip and main odometer
and sub menu .............................. 94
J_G463.book Seite 24 Mittwoch, 19. September 2001 8:06 08

25 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Audio systems .................................. 96
Radio .............................................. 96
CD player ....................................... 97
Telephone .......................................... 98
Navigation system .......................... 103
Trip computer ................................. 104
Malfunction/warning
message memory ...................... 106
Individual settings ......................... 108
Setting the audio volume .............. 122
Coolant temperature gauge .......... 123
Flexible service system
(FSS) ............................................ 124
Engine oil level indicator .............. 127
Exterior lamp switch ..................... 129
Headlamp mode ............................. 130
Night security illumination ......... 132
Locator lighting .......................... 133Headlamp cleaning system ...........133
Combination switch .......................134
Rear window wiper/washer ..........138
Hazard warning flasher switch ....139
Climate control .............................. 140
Rear passenger compartment
adjustable air outlets ................150
Power windows ............................... 151
Sliding/pop-up roof ........................154
Interior lighting ..............................156
Door entry lamps ........................157
Rear interior lamps ....................158
Cargo compartment lamps ........159
Sun visors ........................................ 161
Illuminated vanity mirrors ........... 161
Interior .............................................162
Storage compartments,
armrest and cup holder ............162
Glove box ......................................163Ashtrays .......................................... 168
Lighter ............................................. 170
Floor mat ......................................... 170
Split rear seat bench ..................... 171
Rear seat head restraints .......... 173
Enlarged cargo area ....................... 174
Cargo tie-down rings ..................... 174
Partition net .................................... 175
Loading instructions ..................... 178
Parcel net in
front passenger footwell .......... 180
Cargo area cover blind .................. 180
Roof racks ........................................ 181
Brush guard .................................... 182
Telephone, general ........................ 184
Cellular telephone ......................... 184
Garage door opener ....................... 185
J_G463.book Seite 25 Mittwoch, 19. September 2001 8:06 08

26 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Vehicle keys
Included with your vehicle are 2 electronic keys with
integrated radio frequency and infrared remote controls
plus removable mechanical key.
The locking tabs for the mechanical key portion of the
two electronic keys are a dif ferent color (black and grey)
to help distinguish each individual key.
Wa r n i n g !
When leaving the vehicle always remove the key
from the starter switch, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause serious
personal injury.
J_G463.book Seite 26 Mittwoch, 19. September 2001 8:06 08

27 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Electronic key
The electronic key has an integrated radio frequency
and infrared remote control, plus removable mechanical
key.

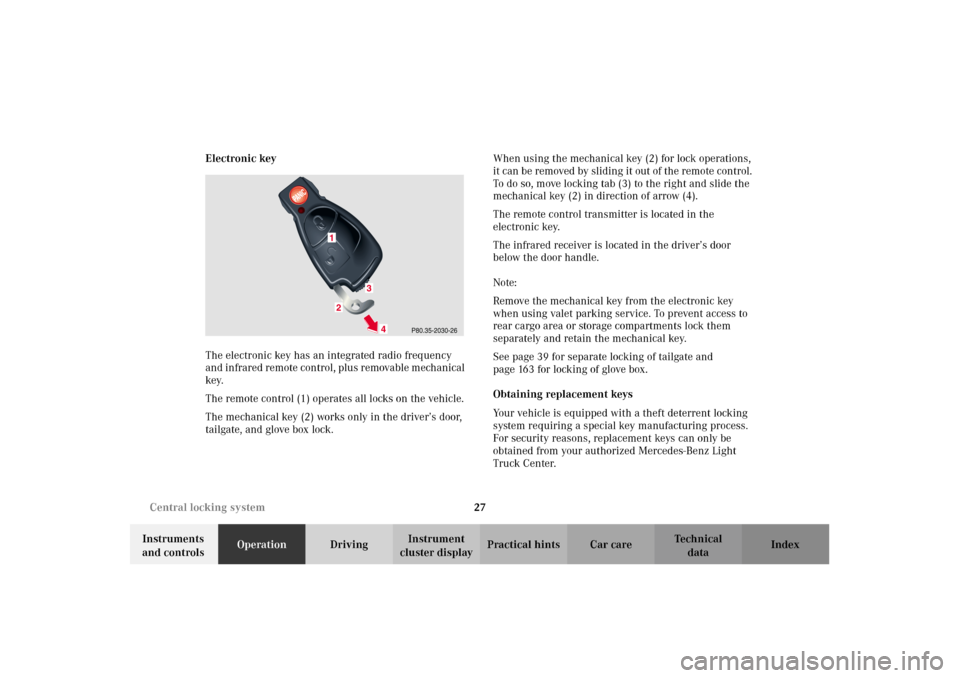

The remote control (1) operates all locks on the vehicle.
The mechanical key (2) works only in the driver’s door,
tailgate, and glove box lock.When using the mechanical key (2) for lock operations,
it can be removed by sliding it out of the remote control.
To do so, move locking tab (3) to the right and slide the
mechanical key (2) in direction of arrow (4).
The remote control transmitter is located in the
electronic key.
The infrared receiver is located in the driver’s door
below the door handle.
Note:
Remove the mechanical key from the electronic key
when using valet parking service. To prevent access to
rear cargo area or storage compartments lock them
separately and retain the mechanical key.
See page 39 for separate locking of tailgate and
page 163 for locking of glove box.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Light
Truck Center.
J_G463.book Seite 27 Mittwoch, 19. September 2001 8:06 08
