191 Controls in detail
Useful features
System self-check
Initially, after turning the SmartKey in
starter switch to position2, malfunctions
are detected and indicated (the indicator
lamps in the SOS button, the Roadside As-
sistance button• and the Information
button¡ stay on longer than
10 seconds or do not come on). The mes-
sage
TELE AID – DRIVE TO WORKSHOP!
ap-
pears for approx. 10 seconds in the
multifunction display.Emergency calls
An emergency call is initiated automatical-
ly:


following an accident in which the
emergency tensioning devices (ETDs)
or airbags deploy


if the anti-theft alarm or the tow-away
alarm stays on for more than
20 seconds. See anti-theft alarm sys-
tem (
page 82) and tow-away alarm
(
page 83)
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See below for instructions on
initiating an emergency call manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
EMERGENCY CALL –
CONNECTING CALL
appears in the multifunc-
tion display. When the connection is estab-
lished, the message
EMERGENCY CALL –
CALL CONNECTED
appears in the

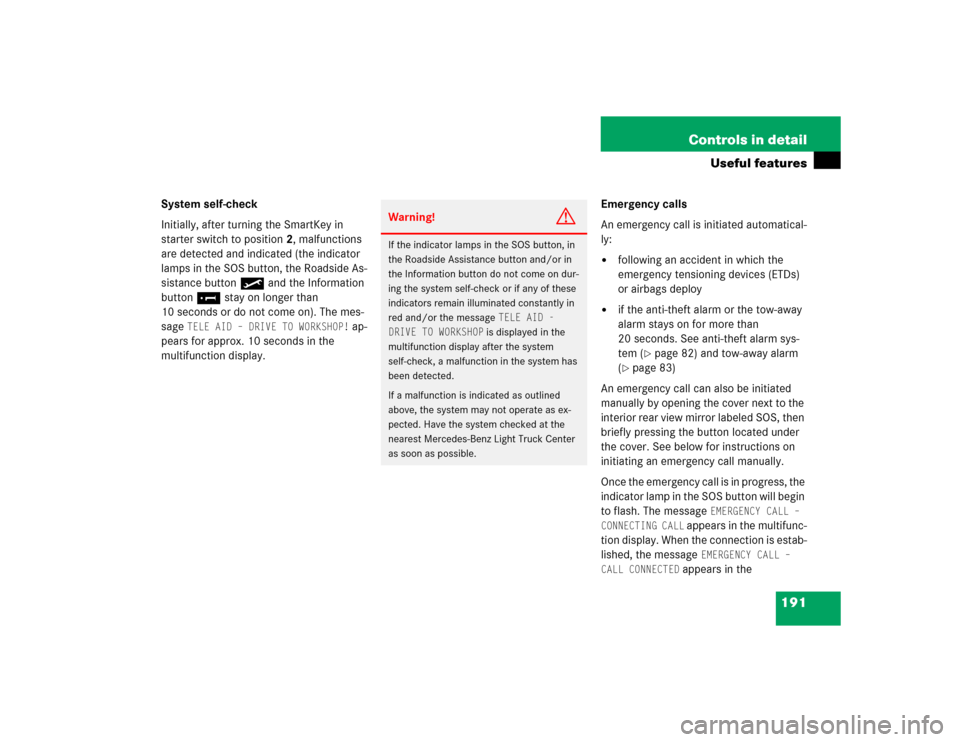

Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button do not come on dur-
ing the system self-check or if any of these
indicators remain illuminated constantly in
red and/or the message
TELE AID -
DRIVE TO WORKSHOP
is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.

192 Controls in detailUseful featuresmultifunction display. All information rele-
vant to the emergency, such as the loca-
tion of the vehicle (determined by the GPS
satellite location system), vehicle model,
identification number and color are gener-
ated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
When a voice connection is established the
audio system mutes and the message TELE AID – EMERGENCY CALL ACTIVE
ap-
pears in the multifunction display. The Re-
sponse Center will attempt to determine
more precisely the nature of the accident
provided they can speak to an occupant of
the vehicle.The Tele Aid system is available if:


it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the response cen-
teriLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the re-
sponse center.
Warning!
G
If the indicator lamp in the SOS button is il-
luminated continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
EMERGENCY CALL –
CALL FAILED appears in the multifunction
display for approx. 10 seconds.
Should this occur, assistance must be sum-
moned by other means.

193 Controls in detail
Useful features
Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover opens.

Press SOS button2 briefly.
The indicator lamp in SOS button2
flashes until the emergency call is con-
cluded.

Wait for a voice connection to the Re-
sponse Center.

Close the cover1 after the emergen-
cy call is concluded.Roadside Assistance button•
Located below the center armrest cover is
the Roadside Assistance button•.

Press and hold the button (for longer
than two seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
TELE-DIAGNO-
SIS – CONNECTING CALL will appear in
the multifunction display.
When the connection is established, the
message
TELE-DIAGNOSIS –
CALL CONNECTED
appears in the multifunc-
tion display. The Tele Aid system will trans-
mit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established. When a
voice connection is established the audio
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

194 Controls in detailUseful featuressystem mutes and the message
TELE AID
– ROADSIDE ASSISTANCE CALL ACTIVE
ap-
pears in the multifunction display.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Light Truck Center. For
services such as labor and/or towing,
charges may apply. Refer to the Roadside
Assistance manual for more information.
These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and actu-
al vehicle data.Information button¡
Located below the center armrest cover is
the Information button¡.

Press and hold the button (for longer
than 2 seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress. The
message
INFO – CONNECTING CALL
will
appear in the multifunction display.
When the connection is established, the
message
INFO – CALL CONNECTED
appears
in the multifunction display. The Tele Aid
system will transmit data generating the
vehicle identification number, model, color
and location (subject to availability of cel-
lular and GPS signals).
iThe indicator lamp in the Roadside As-
sistance button• remains illumi-
nated in red for approx. 10 seconds
during the system self-check after turn-
ing the SmartKey in the starter switch
to position2 (together with the SOS
button and the Information
button¡).
See system self-check (
page 191)
when the indicator lamp does not come
on in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp in the Roadside
Assistance button• is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network was not available). The
message
TELE-DIAGNOSIS –
CALL FAILED
appears in the multifunc-
tion display.
Roadside Assistance calls can be ter-
minated using the ìbutton on the
multifunction steering wheel.


195 Controls in detail
Useful features
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. When a voice connection is estab-
lished the audio system mutes and the
message
TELE AID – INFO CALL ACTIVE

appears in the multifunction display. Infor-
mation regarding the operation of your ve-
hicle, the nearest Mercedes-Benz Light
Truck Center or Mercedes-Benz USA prod-
ucts and services is available to you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Information
button¡ remains illuminated in red
for approx. ten seconds during the sys-
tem self-check after turning SmartKey
in the starter switch to position2 (to-
gether with the SOS button and the
Roadside Assistance button•).
See system self-check (
page 191)
when the indicator lamp does not come
on in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp in the Information
button¡ is illuminated continuous-
ly and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
INFO –
CALL FAILED
appears in the multifunc-
tion display.
Information calls can be terminated us-
ing the ìbutton on the multifunc-
tion steering wheel.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remains illuminated (in red) at any
time, the Tele Aid system has detected
a fault or the service is not currently ac-
tive, and may not initiate a call. Visit
your Mercedes-Benz Light Truck Cen-
ter and have the system checked or
contact the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada) as soon
as possible.

196 Controls in detailUseful featuresUpgrade Signals
The Tele Aid system processes calls using
the following priority.

Automatic emergency – First priority


Manual emergency – Second priority


Roadside assistance – Third priority


Information – Fourth priority
Should a higher priority call be initiated
while you are connected, an upgrade (al-
ternating) tone will be heard and the ap-
propriate indicator lamp will flash. If
certain information such as vehicle identi-
fication number or customer information is
not available, the operator may need to re-
transmit.
During this time you will hear a beep and
voice contact will be interrupted. Voice
contact will resume once the retransmis-
sion is completed. Once a call is conclud-
ed, a beep will be heard and the
appropriate indicator lamp will stop flash-
ing. The COMAND system operation will
resume.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Cus-
tomer Service at 1-800-387-0100 in
Canada.iThe indicator lamp in the respective
button flashes until the call is conclud-
ed. Calls can only be terminated by a
Response Center or Customer Assis-
tance Center representative, except
Roadside Assistance and Information
calls, which can also be terminated by
pressing buttonì on the multifunc-
tion steering wheel.
iWhen a Tele Aid call has been initiated,
the COMAND system audio is muted
and the selected mode (radio or CD)
pauses. The optional cellular phone (if
installed) switches off. If you must use
this phone, the vehicle must be parked.
Disconnect the coiled cord and place
the call. The navigation system (if en-
gaged) will continue to run. The display
in the instrument cluster is available for
use and spoken commands are only
available by pressing the RPT button on
the COMAND unit. A pop-up window
will appear in the COMAND display to
indicate that a Tele Aid call is in
progress.

197 Controls in detail
Useful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve key is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and press
the tailgate lock for minimum of
20 seconds until the SOS button is
flashing.
The message
EMERGENCY CALL –
CALL CONNECTED appears in the multi-
function display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen vehicle tracking services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is lo-
cated, the Response Center will con-
tact the local law enforcement and you.
The vehicle’s location will only be pro-
vided to law enforcement.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
EMERGENCY CALL –
CALL CONNECTED
will appear in the mul-
tifunction display to indicate receipt of
the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the tailgate lock was pressed for
more than 20 seconds before door un-
lock authorization was received by the
Response Center, you must wait
15 minutes before pressing the tailgate
lock again.

198 Controls in detailUseful featuresGarage door opener
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink® or some other systems.
You can program the signal transmitter
buttons.
Remote control integrated into the interior
rear view mirror1Indicator lamp
2 3 4Signal transmitter button
5Hand-held transmitter button
6Hand-held remote control trans-
mitter (not part of the vehicle
equipment)
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate op-
erator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage.
When programming a garage door opener,
the door moves up or down. When program-
ming a gate operator, the gate opens or
closes.
Do not use the integrated remote control
with any garage door opener that lacks safe-
ty stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards.

199 Controls in detail
Useful features
Programming or reprogramming the in-
tegrated remote control
Step 1:
Switch on ignition.
Step 2:

If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when the indicator light be-
gins to flash after approximately 20
seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and/or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3.
iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact your authorized
Mercedes-Benz Light Truck Center, or
call Mercedes-Benz Customer Assis-
tance Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.


200 Controls in detailUseful featuresStep 3:
Hold the end of the hand-held remote
control transmitter6 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control locat-
ed on the interior rear view mirror,
keeping the indicator lamp1 in view.
Step 4:

Using both hands, simultaneously
press the hand-held transmitter
button5 and the desired integrated
signal transmitter button (2, 3
or4). Do not release the buttons until
completing step 5.
The indicator lamp1 on the integrat-
ed remote control will flash, first slowly
and then rapidly.Step 5:

When the indicator lamp1 flashes
rapidly, release both buttons.
Step 6:

Press and hold the just-trained inte-
grated signal transmitter button and
observe the indicator lamp1.
If the indicator lamp1 stays on con-
stantly, programming is complete and
your device should activate when the
integrated signal transmitter button is
pressed and released.Step 7:

To program the remaining two buttons,
repeat the steps above starting with
step 3.
Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:

Locate “training” button on the garage
door opener motor head unit.
iThe indicator lamp1 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after 20 sec-
onds.
iIf the indicator lamp1 blinks rapidly
for about two seconds and then turns
to a constant light, continue with pro-
gramming steps 8 through 12 as your
garage door opener may be equipped
with the “rolling code” feature.
