21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 22 of 376
22 At a glanceCockpit

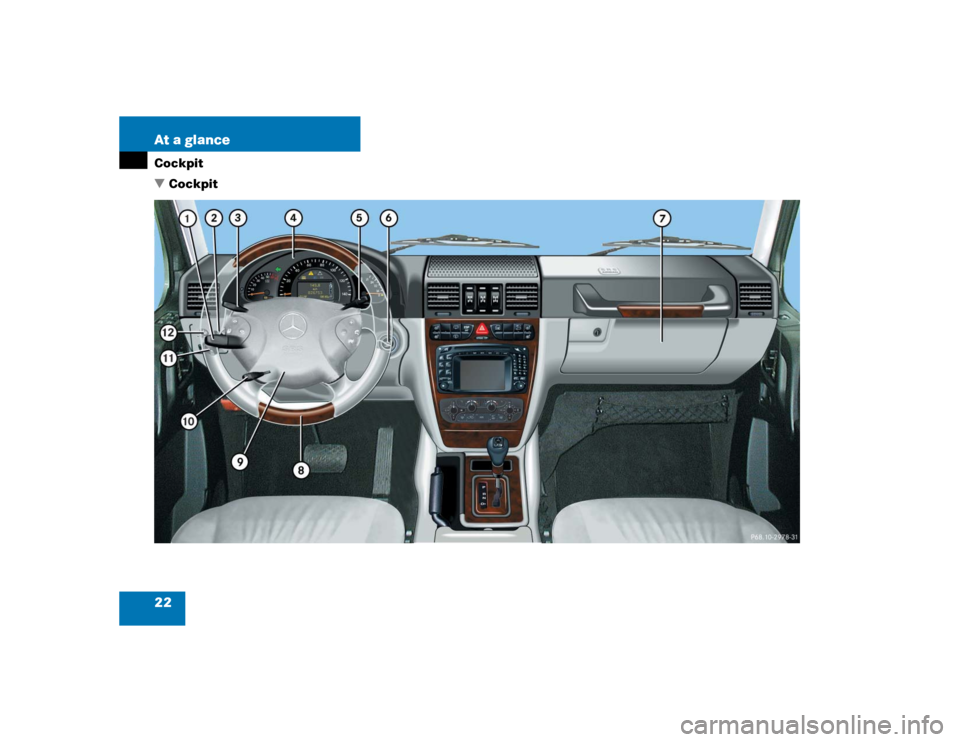

Cockpit
Page 23 of 376
23 At a glance
Cockpit
Item
Page
1
Combination switch
Turn signals
46
Windshield wipers
47
High beam
46
2
Headlamp cleaning system
153
3
Cruise control lever
169
4
Instrument cluster
24
5
Lever for voice control sys-
tem*, see separate operat-
ing instructions
Item
Page
6
Starter switch
33
7
Glove box
183
8
Multifunction steering
wheel
26,
116,
203
9
Horn
a
Steering wheel adjustment
stalk
37,
203
b
Exterior lamp switch
46,
104
c
Exterior rear view mirror
adjustment
38
Page 24 of 376
24 At a glanceInstrument cluster

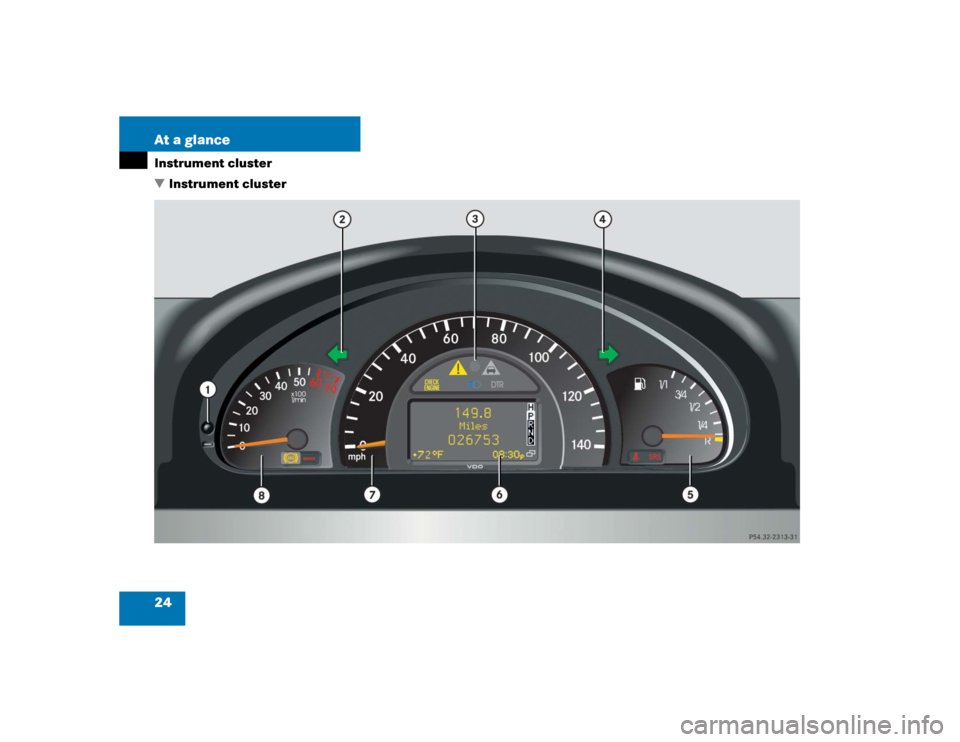

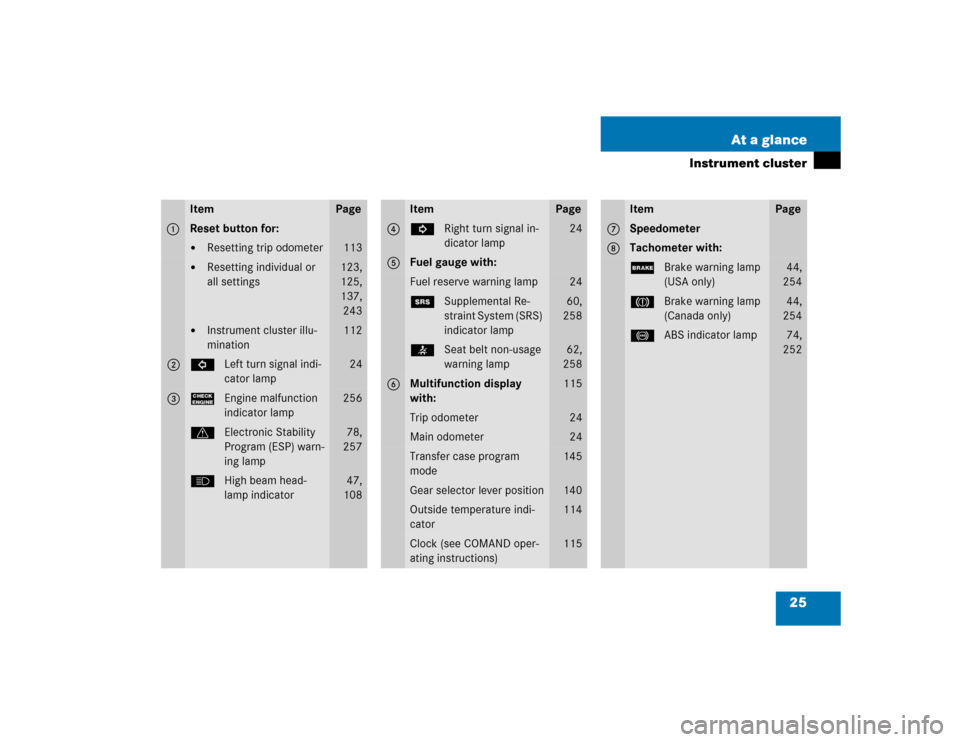

Instrument cluster
Page 25 of 376
25 At a glance
Instrument cluster
Item
Page
1
Reset button for:
Resetting trip odometer
113
Resetting individual or
all settings
123,
125,
137,
243
Instrument cluster illu-
mination
112
2
LLeft turn signal indi-
cator lamp
24
3
?Engine malfunction
indicator lamp
256
vElectronic Stability
Program (ESP) warn-
ing lamp
78,
257
AHigh beam head-
lamp indicator
47,
108
Item
Page
4
KRight turn signal in-
dicator lamp
24
5
Fuel gauge with:Fuel reserve warning lamp
24
1Supplemental Re-
straint System (SRS)
indicator lamp
60,
258
62,
258
6
Multifunction display
with:
115
Trip odometer
24
Main odometer
24
Transfer case program
mode
145
Gear selector lever position
140
Outside temperature indi-
cator
114
Clock (see COMAND oper-
ating instructions)
115
Item
Page
7
Speedometer
8
Tachometer with:;Brake warning lamp
(USA only)
44,
254
3Brake warning lamp
(Canada only)
44,
254
-ABS indicator lamp
74,
252
Page 26 of 376
26 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
115
Operating control sys-
tem:
116
2
Selecting the submenu or
setting the volumeçdown/ to decreaseæup / to increase
3
Telephone*: Press buttoníto take a callìto end a call
Item
Page
4
Menu systems: Press but-
tonèfor next systemÿfor previous system
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
Page 27 of 376
27 At a glance

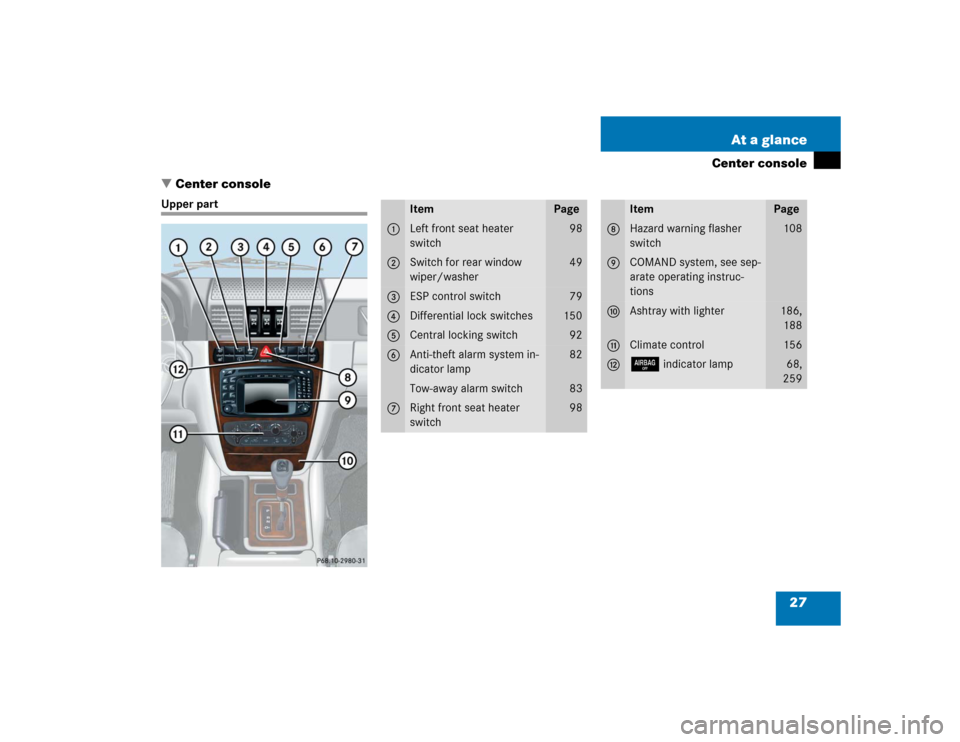

Center console
Center console
Upper part
Item
Page
1
Left front seat heater
switch
98
2
Switch for rear window
wiper/washer
49
3
ESP control switch
79
4
Differential lock switches
150
5
Central locking switch
92
6
Anti-theft alarm system in-
dicator lamp
82
Tow-away alarm switch
83
7
Right front seat heater
switch
98
Item
Page
8
Hazard warning flasher
switch
108
9
COMAND system, see sep-
arate operating instruc-
tions
a
Ashtray with lighter
186,
188
b
Climate control
156
c
7
indicator lamp
68,
259
Page 28 of 376

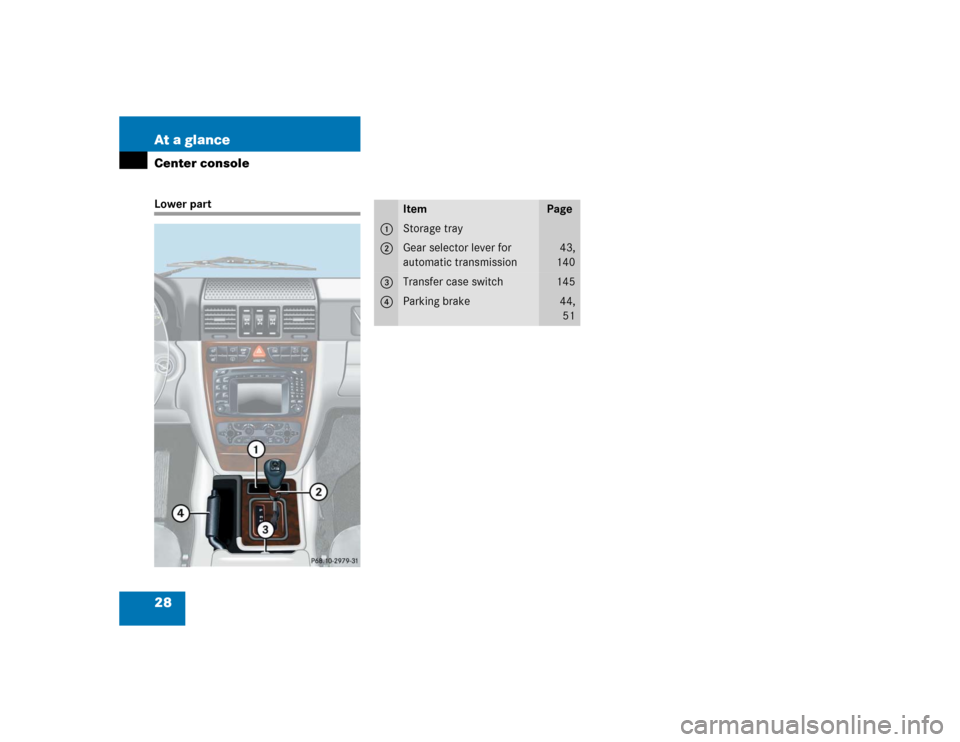

28 At a glanceCenter consoleLower part
Item
Page
1
Storage tray
2
Gear selector lever for
automatic transmission
43,
140
3
Transfer case switch
145
4
Parking brake
44,
51
Page 29 of 376
29 At a glance

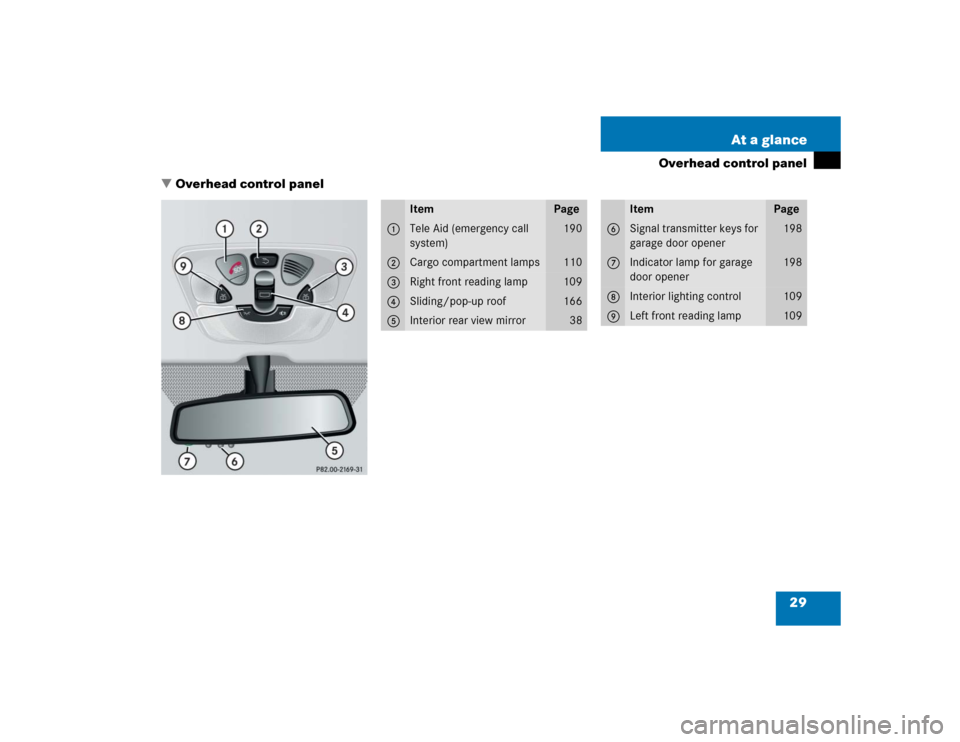

Overhead control panel
Overhead control panel
Item
Page
1
Tele Aid (emergency call
system)
190
2
Cargo compartment lamps
110
3
Right front reading lamp
109
4
Sliding/pop-up roof
166
5
Interior rear view mirror
38
Item
Page
6
Signal transmitter keys for
garage door opener
198
7
Indicator lamp for garage
door opener
198
8
Interior lighting control
109
9
Left front reading lamp
109
Page 30 of 376

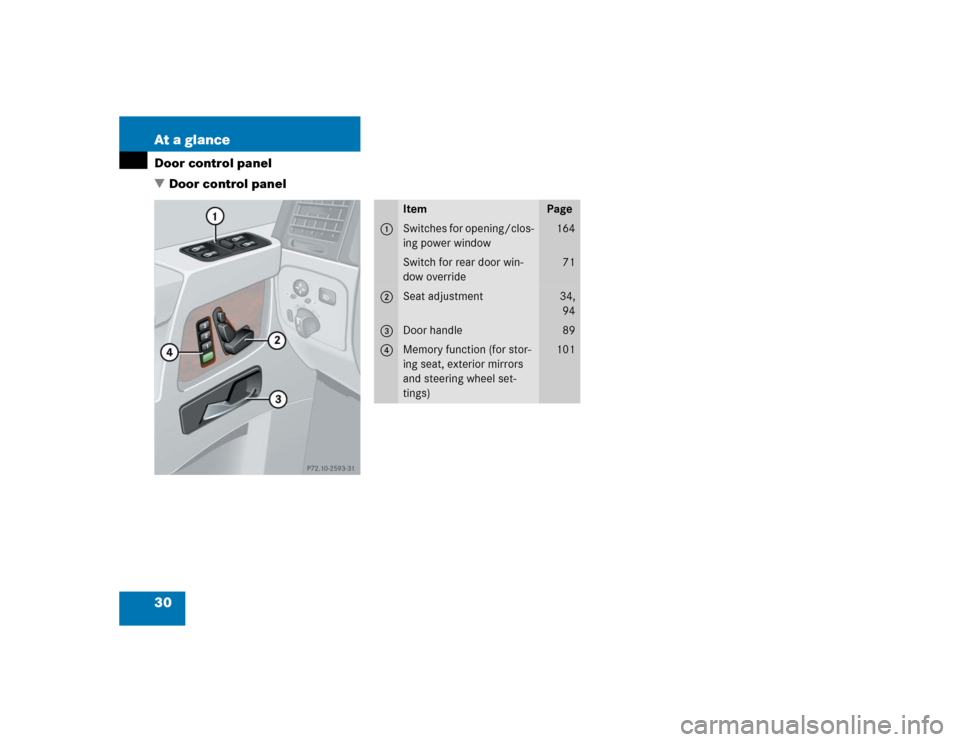

30 At a glanceDoor control panel
Door control panel
Item
Page
1
Switches for opening/clos-
ing power window
164
Switch for rear door win-
dow override
71
2
Seat adjustment
34,
94
3
Door handle
89
4
Memory function (for stor-
ing seat, exterior mirrors
and steering wheel set-
tings)
101
