41 Getting started
Driving

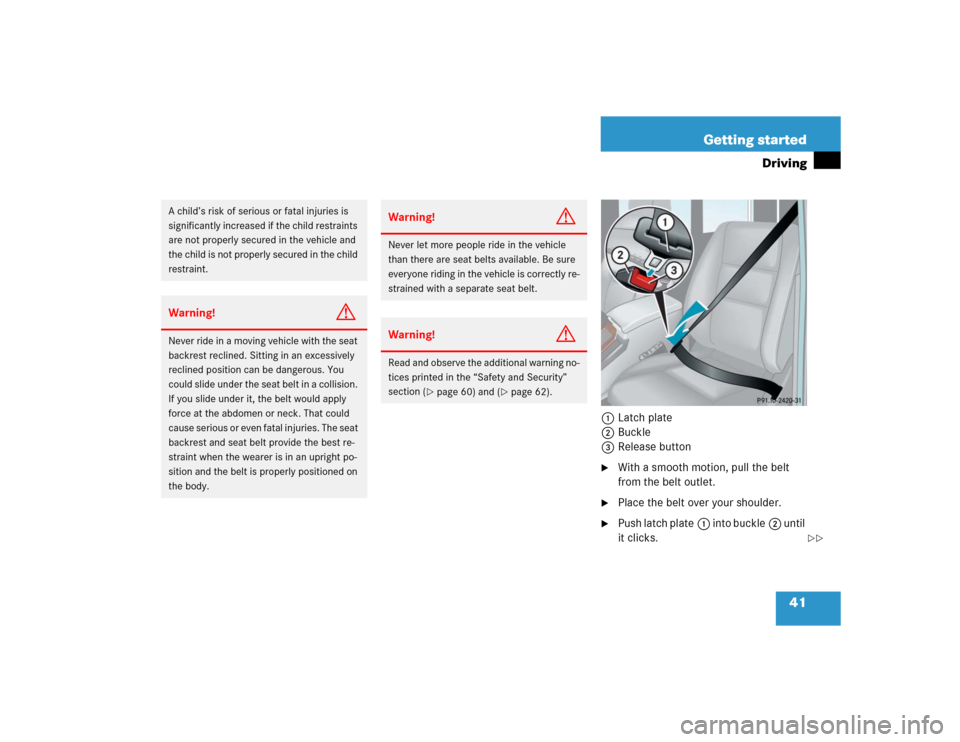

1Latch plate
2Buckle
3Release button
With a smooth motion, pull the belt
from the belt outlet.
Place the belt over your shoulder.
Push latch plate1 into buckle2 until
it clicks.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint. Warning!
G
Never ride in a moving vehicle with the seat
backrest reclined. Sitting in an excessively
reclined position can be dangerous. You
could slide under the seat belt in a collision.
If you slide under it, the belt would apply
force at the abdomen or neck. That could
cause serious or even fatal injuries. The seat
backrest and seat belt provide the best re-
straint when the wearer is in an upright po-
sition and the belt is properly positioned on
the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 60) and (
page 62).
Page 42 of 376
42 Getting startedDriving
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck or pass under the
arm). For this purpose, you can adjust
the height of the belt outlet, see below.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly up-
right position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a per-
son and another object at the same
time.
Check your seat belt during travel to
ensure it is properly positioned.
Make sure the seat belt is always fitted
snugly. You should avoid wearing bulky
clothing, such as winter coats, when
traveling in the vehicle.Seat belt height adjustment
Adjust the height so that the upper part of
the belt runs over the middle of the shoul-
der.

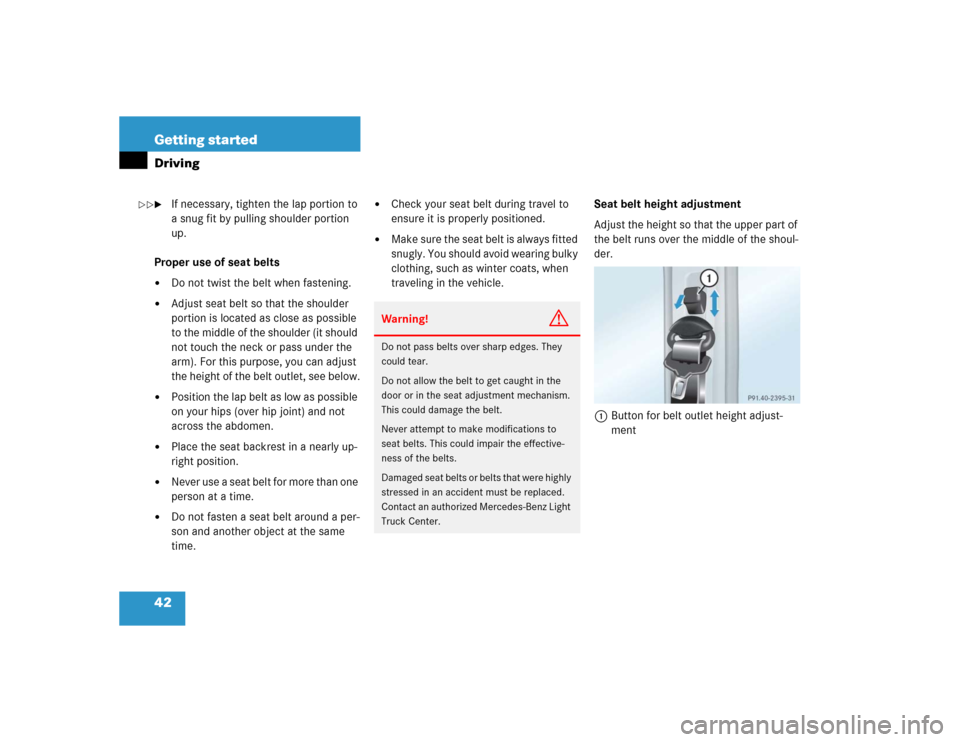

1Button for belt outlet height adjust-
mentWarning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Light
Truck Center.
Page 43 of 376
43 Getting started
Driving
Adjusting belt outlet higher
Slide belt outlet upward.
The belt outlet engages in five various
positions.
Adjusting belt outlet lower
Press and hold release button1.
Slide belt outlet in desired position.
Let go of release button1.
Please comply with the instructions for
“Proper use of seat belts” (
page 42).
Starting the engine Automatic transmission

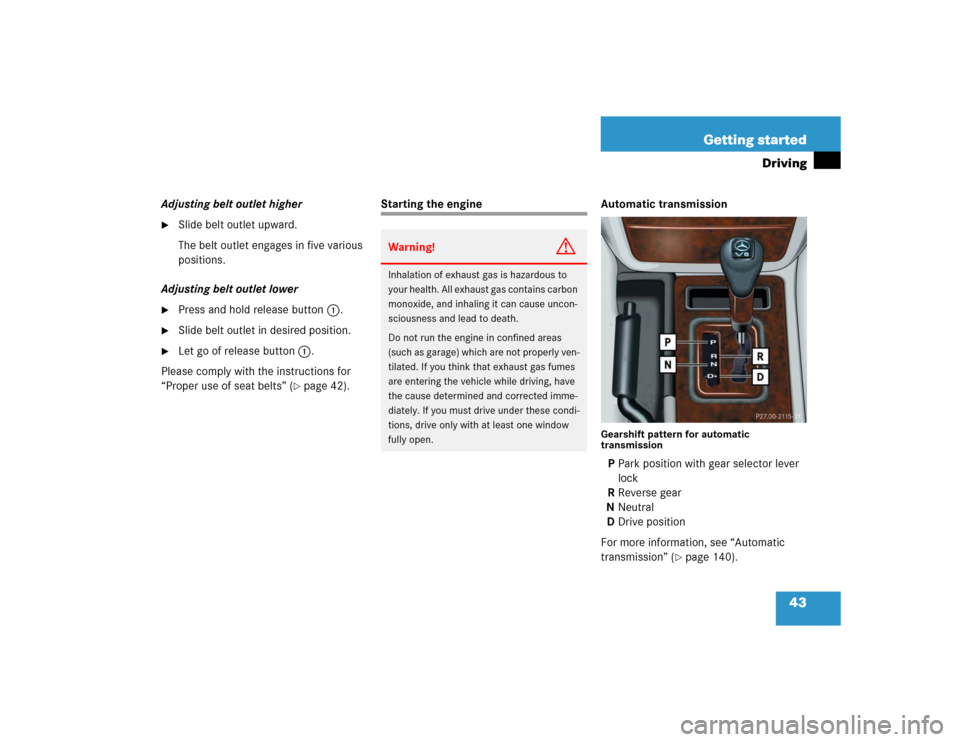

Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission” (
page 140).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.
Page 44 of 376
44 Getting startedDrivingStarting
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Turn SmartKey in the starter switch to
position3 and hold until the engine
starts (
page 33).
Depress the brake pedal.
The gear selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 52).Starting difficulties
If the engine does not start as described,
carry out the following steps:
Turn SmartKey in starter switch to
position0 and repeat starting proce-
dure.
Remember that extended starting at-
tempts can drain the battery.
Get a jump start (
page 313).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Light Truck Center.Parking brake

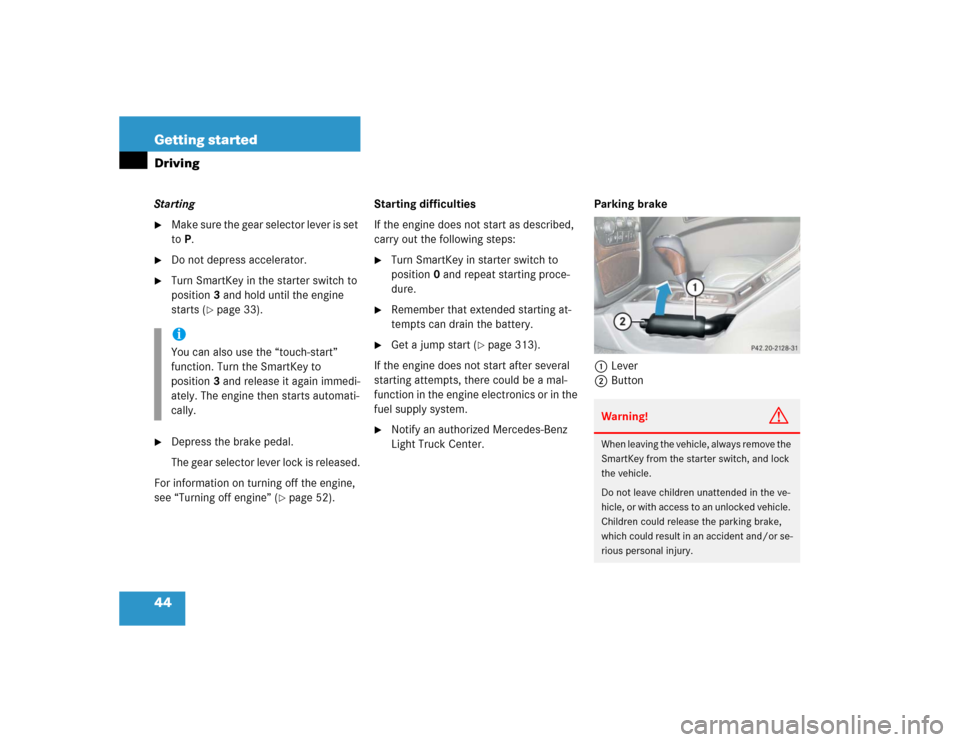

1Lever
2Button
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again immedi-
ately. The engine then starts automati-
cally.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could release the parking brake,
which could result in an accident and/or se-
rious personal injury.
Page 45 of 376
45 Getting started
Driving
Release the parking brake by lifting
lever1 up slightly, pressing button2
on the lever and moving lever1 down
to the stop.
The warning lamp; (USA only) or
3 (Canada only) in the instrument
cluster goes out.
Driving
Depress the brake pedal.
Move gear selector lever to positionD
orR.
Release the brake pedal.
Carefully depress the accelerator.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.After a cold start, the automatic transmis-
sion shifts at a higher revolution. This al-
lows the catalytic converter to reach its
operating temperature earlier.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP or N if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!In order to avoid damaging the trans-
mission,
wait for the gear selection process
to complete before setting the vehi-
cle in motion.
place the gear selector lever in
positionR only when the vehicle is
stopped.
!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
!Do not run cold engine at high engine
speeds. Running a a cold engine at high
engine speeds may shorten the service
life of the engine.iYou can open the doors from inside at
any time. Open doors only when the
conditions are safe to do so.
You can deactivate the automatic
locking using the control system
(page 133).
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.
Page 46 of 376
46 Getting startedDrivingFor more information, see “Driving instruc-
tions” (
page 207).
For information on off-road driving, see
“Off-road driving” (
page 213).

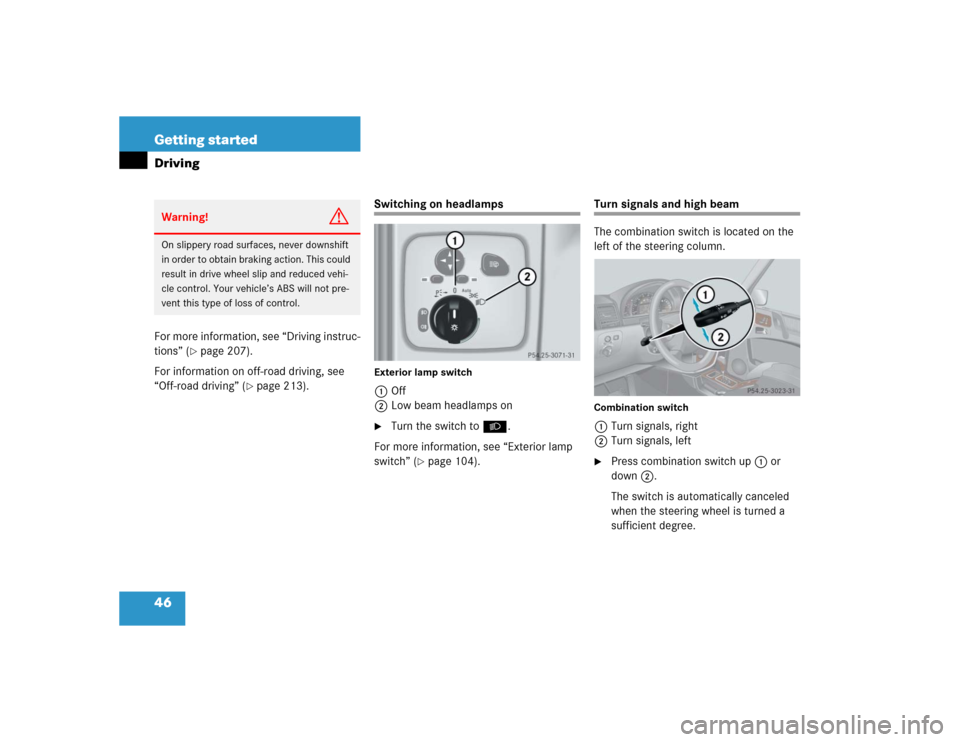

Switching on headlampsExterior lamp switch1Off
2Low beam headlamps on
Turn the switch to B.
For more information, see “Exterior lamp
switch” (
page 104).
Turn signals and high beam

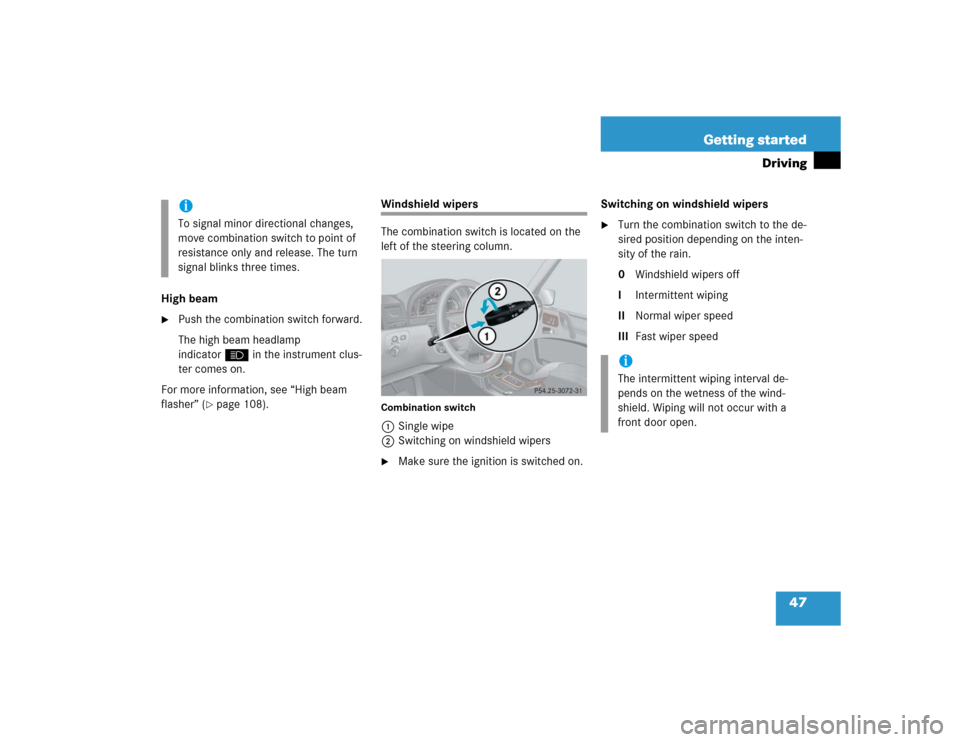

The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press combination switch up1 or
down2.
The switch is automatically canceled
when the steering wheel is turned a
sufficient degree.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Page 47 of 376
47 Getting started
Driving
High beam
Push the combination switch forward.
The high beam headlamp
indicatorA in the instrument clus-
ter comes on.
For more information, see “High beam
flasher” (
page 108).
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure the ignition is switched on.Switching on windshield wipers
Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes,
move combination switch to point of
resistance only and release. The turn
signal blinks three times.
iThe intermittent wiping interval de-
pends on the wetness of the wind-
shield. Wiping will not occur with a
front door open.
Page 48 of 376
48 Getting startedDriving
Single wipe
Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Push switch in the direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid until the switch is re-
leased.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system” (
page 234).
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons, withdraw
SmartKey from starter switch be-
fore attempting to remove any
blockage.
Remove blockage.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,
set the combination switch to the
next highest wiper speed
have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center
Page 49 of 376
49 Getting started
Driving
Rear window wiper/washer

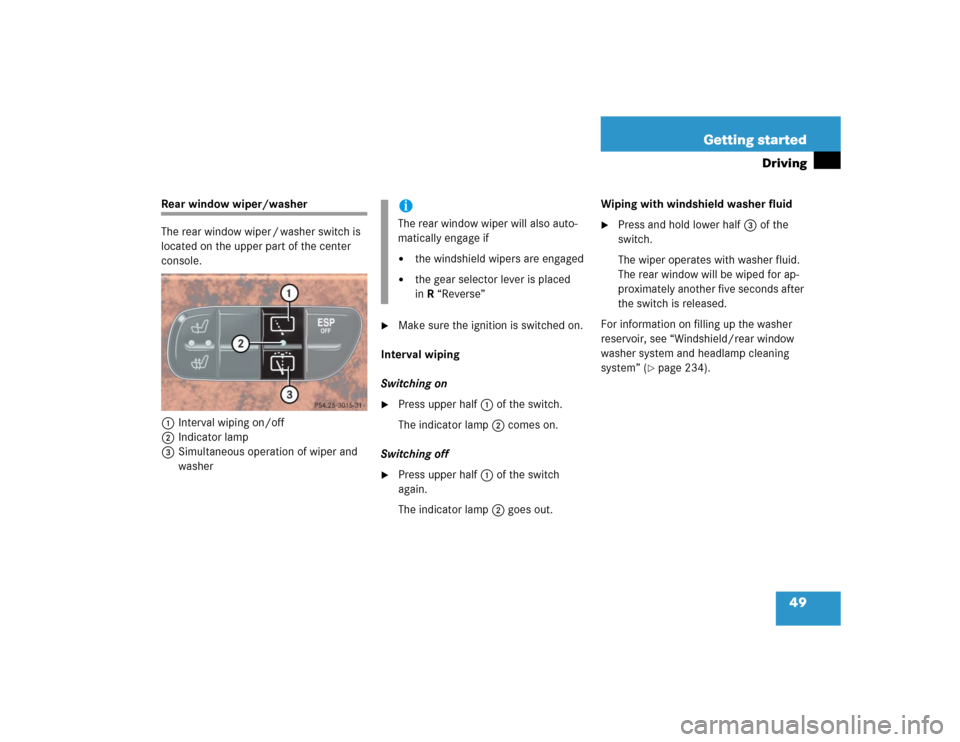

The rear window wiper / washer switch is
located on the upper part of the center
console.
1Interval wiping on/off
2Indicator lamp
3Simultaneous operation of wiper and
washer
Make sure the ignition is switched on.
Interval wiping
Switching on
Press upper half1 of the switch.
The indicator lamp2 comes on.
Switching off
Press upper half1 of the switch
again.
The indicator lamp2 goes out.Wiping with windshield washer fluid
Press and hold lower half3 of the
switch.
The wiper operates with washer fluid.
The rear window will be wiped for ap-
proximately another five seconds after
the switch is released.
For information on filling up the washer
reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system” (
page 234).
iThe rear window wiper will also auto-
matically engage if
the windshield wipers are engaged
the gear selector lever is placed
inR “Reverse”
Page 50 of 376
50 Getting startedDrivingProblems while driving
The engine runs erratically and misfires
An ignition cable may be damaged.
The engine electronics may not be op-
erating properly.
Unburned gasoline may have entered
the catalytic converter and damaged it.
Give very little gas.
Have the problem repaired by an au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool down.
Check the coolant level and add cool-
ant if necessary (
page 232).In case of accident
If the vehicle is leaking gasoline:
Do not start the engine under any cir-
cumstances.
Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:
Notify an authorized Mercedes-Benz
Light Truck Center.
If no damage can be determined on the
major assemblies
fuel system
engine mount
Start the engine in the usual manner.
iExcessive coolant temperatures trigger
a warning message in the multifunction
display (
page 269).
