MERCEDES-BENZ G55AMG 2007 W463 Owner's Manual

370 Practical hints
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, open the driver’s door and the
tailgate using the mechanical key.Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.
Slide the mechanical key2 out of the
housing.Unlocking the driver’s door
Insert the mechanical key into the
driver’s door lock cylinder until it stops.
Turn the mechanical key counterclock-
wise until the locking knob moves up.
The driver’s door is unlocked.
Remove the mechanical key.
Press lock cylinder and pull on door
handle to open the driver’s door.
iUnlocking the driver’s door and the tailgate
with the mechanical key will trigger the anti-theft
alarm system.
To cancel the alarm:

Press buttonŒ or‹ on the
SmartKey.

Insert the SmartKey in the starter switch.

371 Practical hints
Unlocking/locking in an emergency
Unlocking the tailgateInsert the mechanical key into lock
cylinder2.
Turn the mechanical key counterclock-
wise to position1 and release it.
Remove the mechanical key.
Press lock cylinder2 and pull on door
handle3 to open the tailgate.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, lock the vehicle with the
mechanical key carrying out the following
steps:
Close the front passenger door, the
rear doors and the tailgate.
Open the driver’s door.
Press the central locking switch in the
center console (
page 107).
The locking knobs on the front
passenger door, the rear doors and the
tailgate move down.
If the vehicle battery is disconnected or
drained:
Press down the locking knobs on
the front passenger door, the rear
doors and the tailgate manually.
Exit the vehicle.
1Unlocking in an emergency
2Lock cylinder
3Door handle
Warning!G
The tailgate swings open to one side. Always
make sure there is sufficient clearance for
tailgate.


372 Practical hints
Unlocking/locking in an emergency
Close the driver’s door.
Slide the mechanical key out of the
SmartKey (
page 370).
Insert the mechanical key into the
driver’s door lock cylinder until it stops.
Turn the mechanical key clockwise.
The vehicle is locked.
Check if the tailgate is locked. If
necessary lock the tailgate with the
mechanical key.
Fuel filler flap
The emergency release is located on the
passenger side of the cargo compartment
behind the rear trim panel.
1Edge protection
2Rear trim panel
Open the tailgate.
Remove edge protection1 from the
door pillar.
Remove rear trim panel2.3Release strap
Pull release strap3 upwards.
The fuel filler flap is unlocked.
Open the fuel filler flap (page 264).
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.


373 Practical hints
Unlocking/locking in an emergency
Manually unlocking the gear selector
lever
In case of power failure the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1Tool
Insert a suitable tool1 (e.g. a ball
point pen) into the covered opening.
Perform the following two steps
simultaneously:
Push tool1 down in direction of
the arrow.
Move the gear selector lever from
park positionP.
Remove tool1 from the opening.
The cover returns to its closed position
after moving the gear selector lever to
positionsD+ andD-.
iThe gear selector lever is locked again when
moving it to park positionP.

374 Practical hints
Opening/closing in an emergency
Tilt/sliding sunroof
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located on
the driver’s side of the cargo compartment
behind the rear trim panel.
1Edge protection
2Rear trim panelOpen the tailgate.
Remove edge protection1 from the
door pillar.
Remove rear trim panel2.
3Key
4Screwdriver
Take the vehicle tool kit out of its
storage compartment (
page 366).
Take key3 and screwdriver4 out of
the vehicle tool kit.
Fit key3 into hexagon nut of drive.
Insert screwdriver4 (as a lever) into
hole of key3.
Turn screwdriver4 clockwise to

slide sunroof closed

raise sunroof at the rear
Turn screwdriver4 counterclockwise
to

slide sunroof open

lower sunroof at the reariDo not disconnect electrical connectors.

375 Practical hints
Brush guard
Brush guard
The brush guard is available on G 55 AMG
(U.S vehicles only).
Lowering and raising brush guard
1Locking and unlocking handle
2Quick lock
3Lock
4End stop jointLowering
While holding brush guard firmly, open
quick lock2 using locking and unlock-
ing handle1.
Gently lower brush guard until it
reaches its fully lowered position.
Raising and securing
Flip up brush guard until it contacts end
stop joint4.
Quick lock stop pin2 must engage
the cross slot recess in lock3.
Now turn quick lock2 so that quick
lock makes contact with end stop
joint4.
Lock quick lock2 on both sides of
brush guard using locking and unlock-
ing handle1.
Warning!G
The brush guard is designed solely to
enhance the appearance of the vehicle and
help protect grille and headlights from minor
mishaps, either on- or off-road. Since the
safety characteristics are limited in the
event of an accident, brush guards are not
intended to prevent injury or damage in the
event of an accident. Also check state and
local regulations on installation and use.
Raise and lower brush guard in an open
space with plenty of room.
To help prevent personal injury when open-
ing or closing the brush guard, use extreme
caution not to trap hands or feet.
The brush guard must be in raised and
locked position while driving.
iOnly lower brush guard to clean headlamps
or to replace bulbs.
!Make sure both quick stop pins2 are
seated fully in lock3.

376 Practical hints
Replacing SmartKey batteries
If the batteries in the SmartKey are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key from the
SmartKey (
page 370).
1Mechanical key
2Slide
3Battery compartment
Insert mechanical key1 in direction
of the arrow in side opening.
Using mechanical key1, push gray
slide2 to unlatch battery
compartment3.
Pull battery compartment3 out of the
housing in direction of the arrow.4Battery
5Contact spring
Remove discharged batteries4 in
direction of the arrow.
Using a lint-free cloth, insert new
batteries under contact spring5 with
the positive terminal (+) facing up.
Return battery compartment3 into
the housing until it locks into place.
Slide mechanical key1 back into the
SmartKey.
Check the operation of the SmartKey.
Warning!G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make sure
they are clean and free of lint.
iWhen replacing batteries, always replace
both batteries.
The required replacement batteries are available
at any Mercedes-Benz Light Truck Center.

377 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.iIf the headlamps or front fog lamps are
fogged up on the inside as a result of high
humidity, driving the vehicle a distance with the
lights on should clear up the fogging.iSubstitute bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps

Tail lamps

Parking lamps

Rear fog lamp
Read and observe the messages in the
multifunction display (
page 354).

378 Practical hints
Replacing bulbs

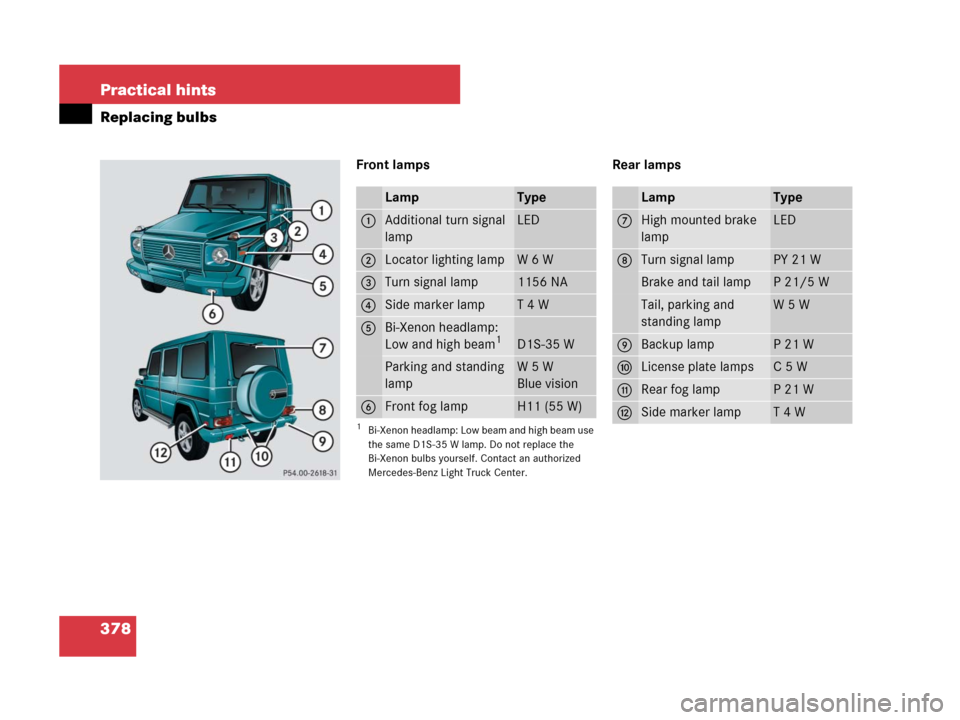

Front lamps Rear lamps
LampType
1Additional turn signal
lampLED
2Locator lighting lampW6W
3Turn signal lamp1156 NA
4Side marker lampT4W
5Bi-Xenon headlamp:
Low and high beam1
1Bi-Xenon headlamp: Low beam and high beam use
the same D1S-35 W lamp. Do not replace the
Bi-Xenon bulbs yourself. Contact an authorized
Mercedes-Benz Light Truck Center.
D1S-35 W
Parking and standing
lampW5W
Blue vision
6Front fog lampH11 (55 W)
LampType
7High mounted brake
lampLED
8Turn signal lampPY 21 W
Brake and tail lampP21/5W
Tail, parking and
standing lampW5W
9Backup lampP21W
aLicense plate lampsC5W
bRear fog lampP21W
cSide marker lampT4W

379 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, contact an authorized
Mercedes-Benz Light Truck Center.Have the LEDs and bulbs for the following
lamps replaced at an authorized
Mercedes-Benz Light Truck Center:

the additional turn signal lamps in the
exterior rear view mirrors

the high mounted brake lamp

the Bi-Xenon lamps

the locator lighting lamps in the
exterior rear view mirrors
Warning!G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before
changing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced at an autho-
rized Mercedes-Benz Light Truck Center.
