Page 101 of 462

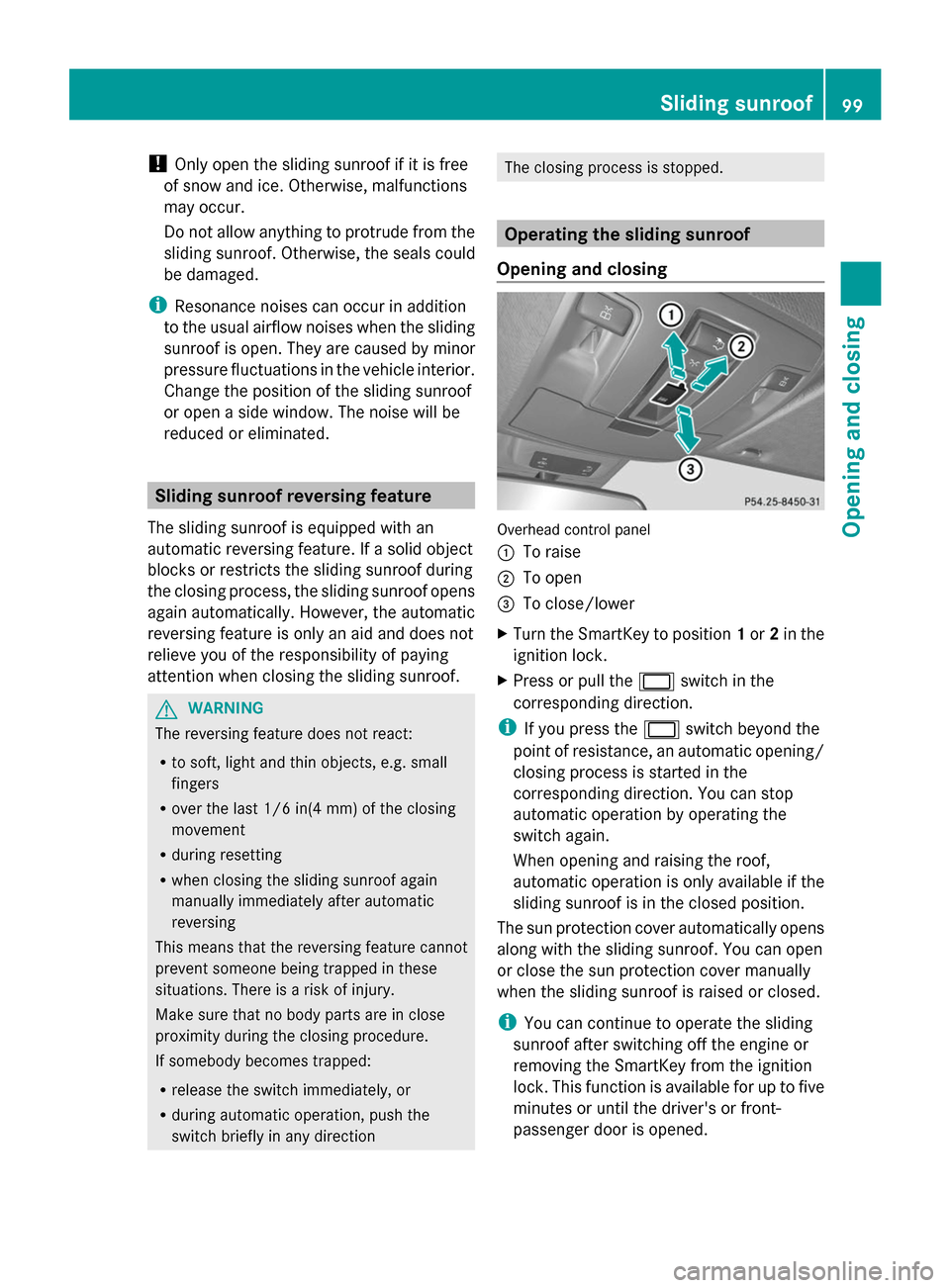

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual !
Only open the sliding sunroof if it is free
of snow and ice. Otherwise, malfunctions
may occur.
Do not allow anything to protrude from the
sliding sunroof. Otherwise, the seals could
be damaged.
i R

Page 102 of 462

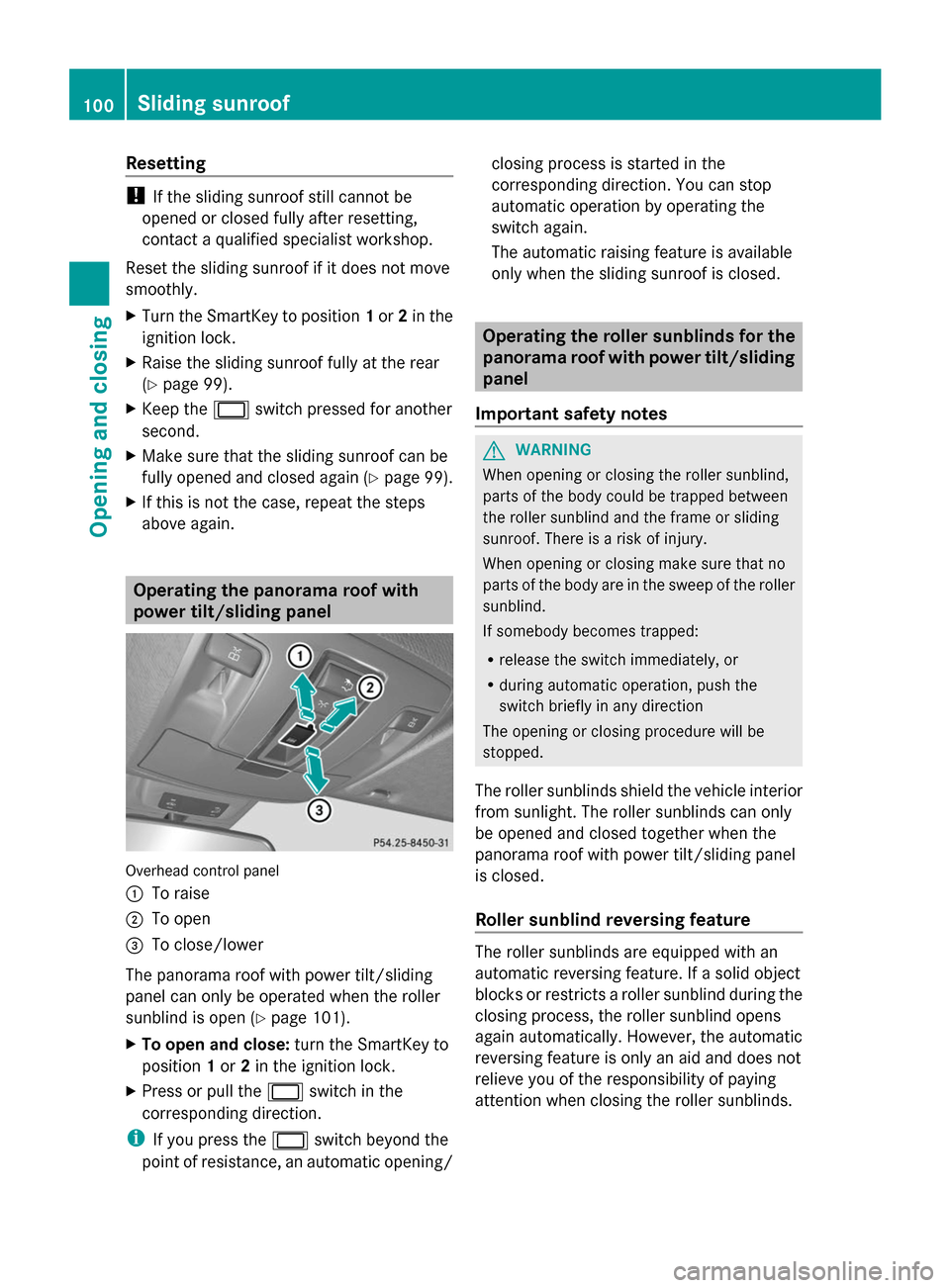

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual Resetting
!
If the sliding sunroof still cannot be
opened or closed fully after resetting,
contact a qualified specialist workshop.
Reset the sliding sunroof if it does not move
smoothly.
X Turn the S

Page 103 of 462

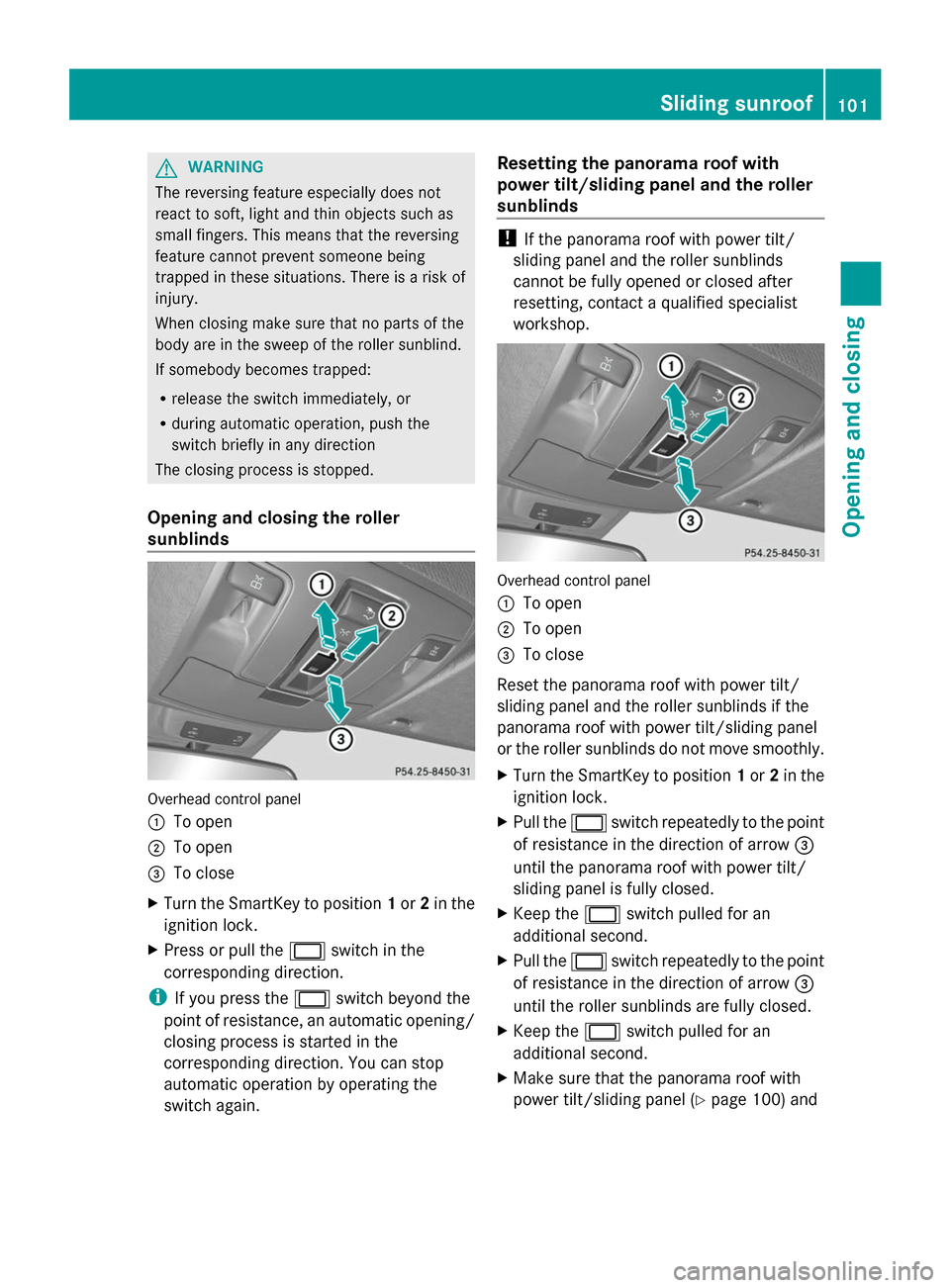

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual G
WARNING
The reversing feature especially does not
react to soft, light and thin objects such as
small fingers. This means that the reversing
feature cannot prevent someone being
trapped in these sit

Page 104 of 462

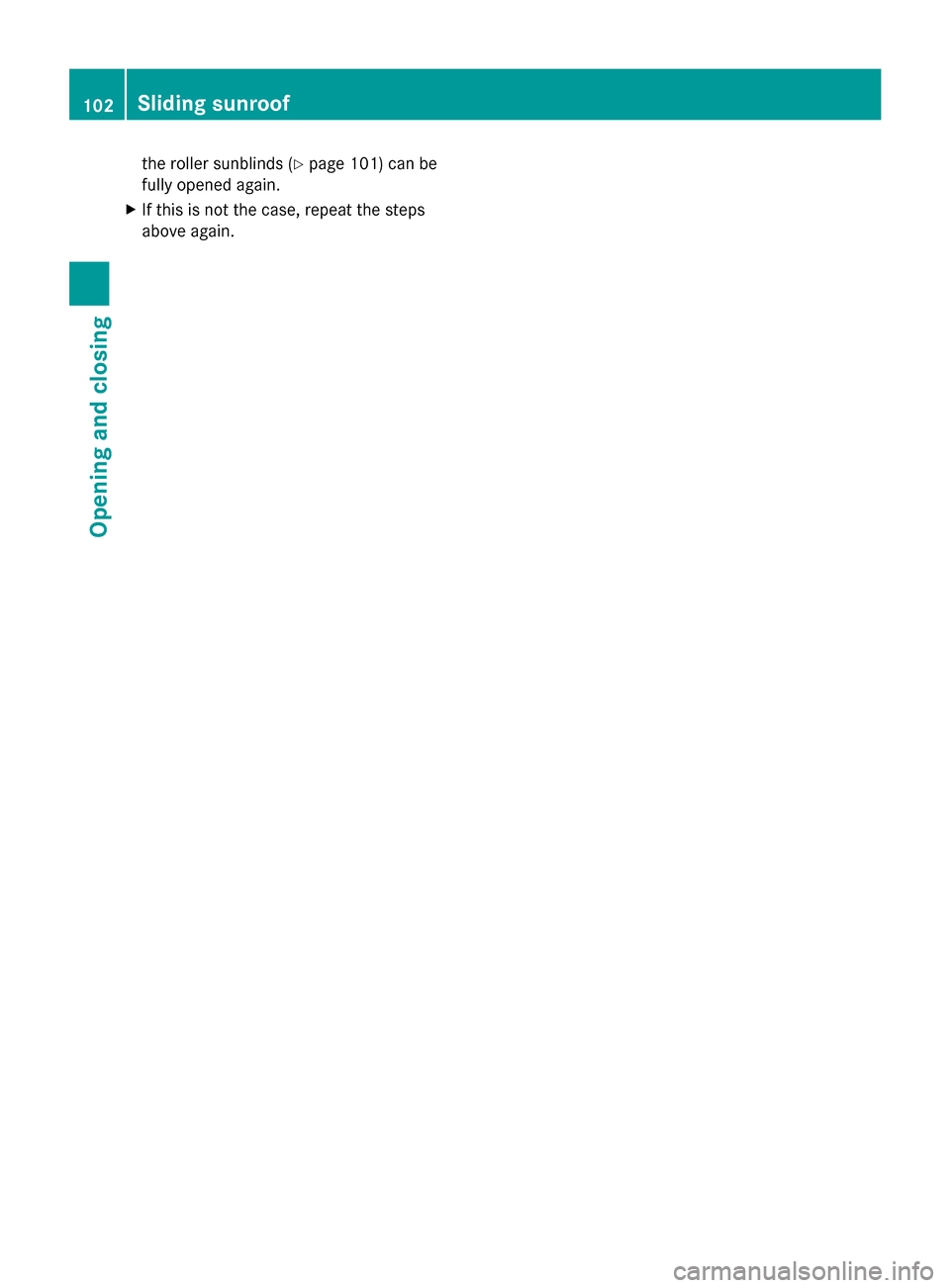

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual the roller sunblinds (Y
page 101) can be
fully opened again.
X If this is not the case, repeat the steps
above again. 102
Sliding sunroofOpening and closing

Page 105 of 462

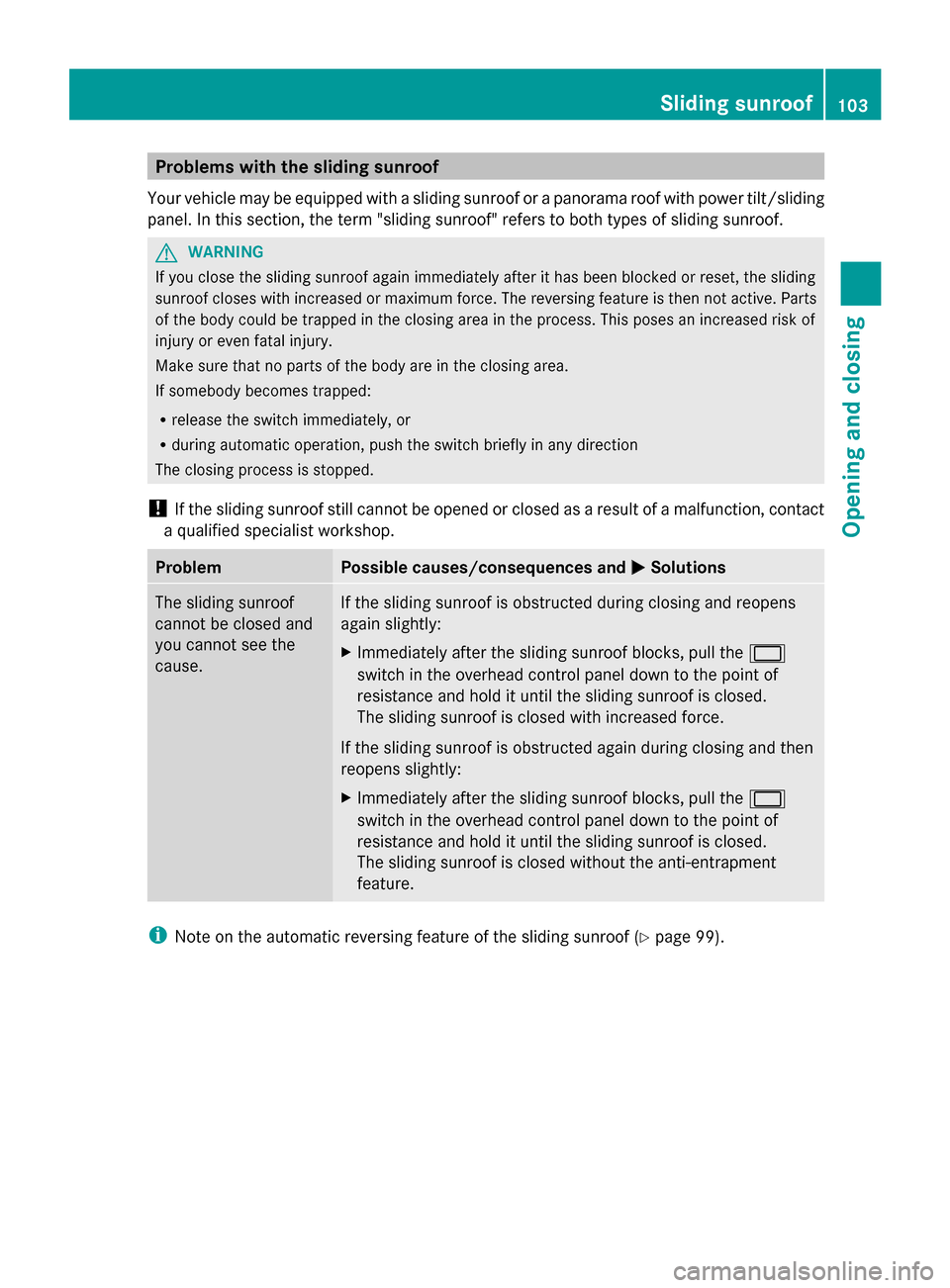

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual Problems with the sliding sunroof
Your vehicle may be equipped with a sliding sunroof or a panorama roof with power tilt/sliding
panel. In this section, the term "sliding sunroof" refers to both types

Page 106 of 462

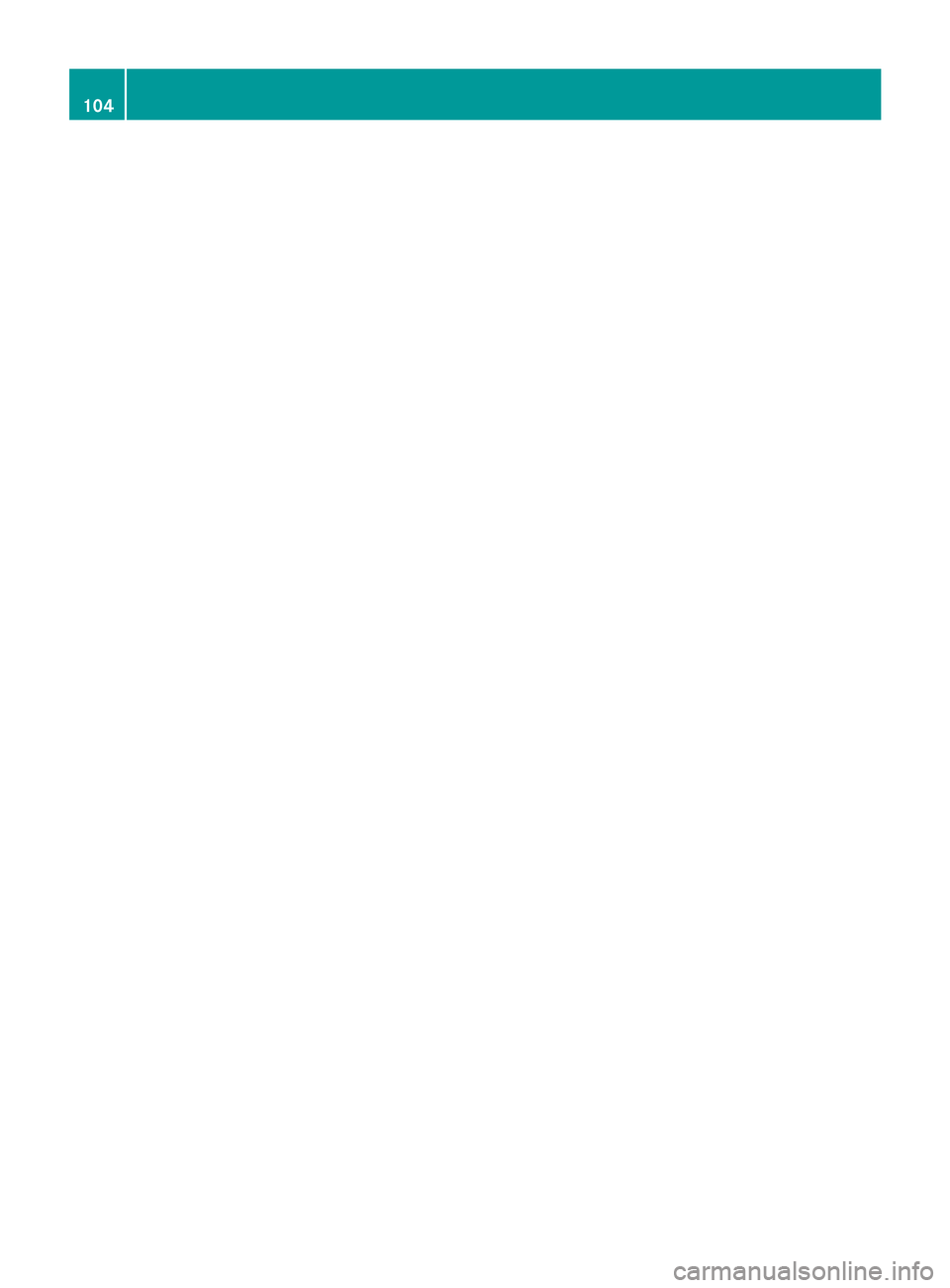

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual 104

Page 107 of 462

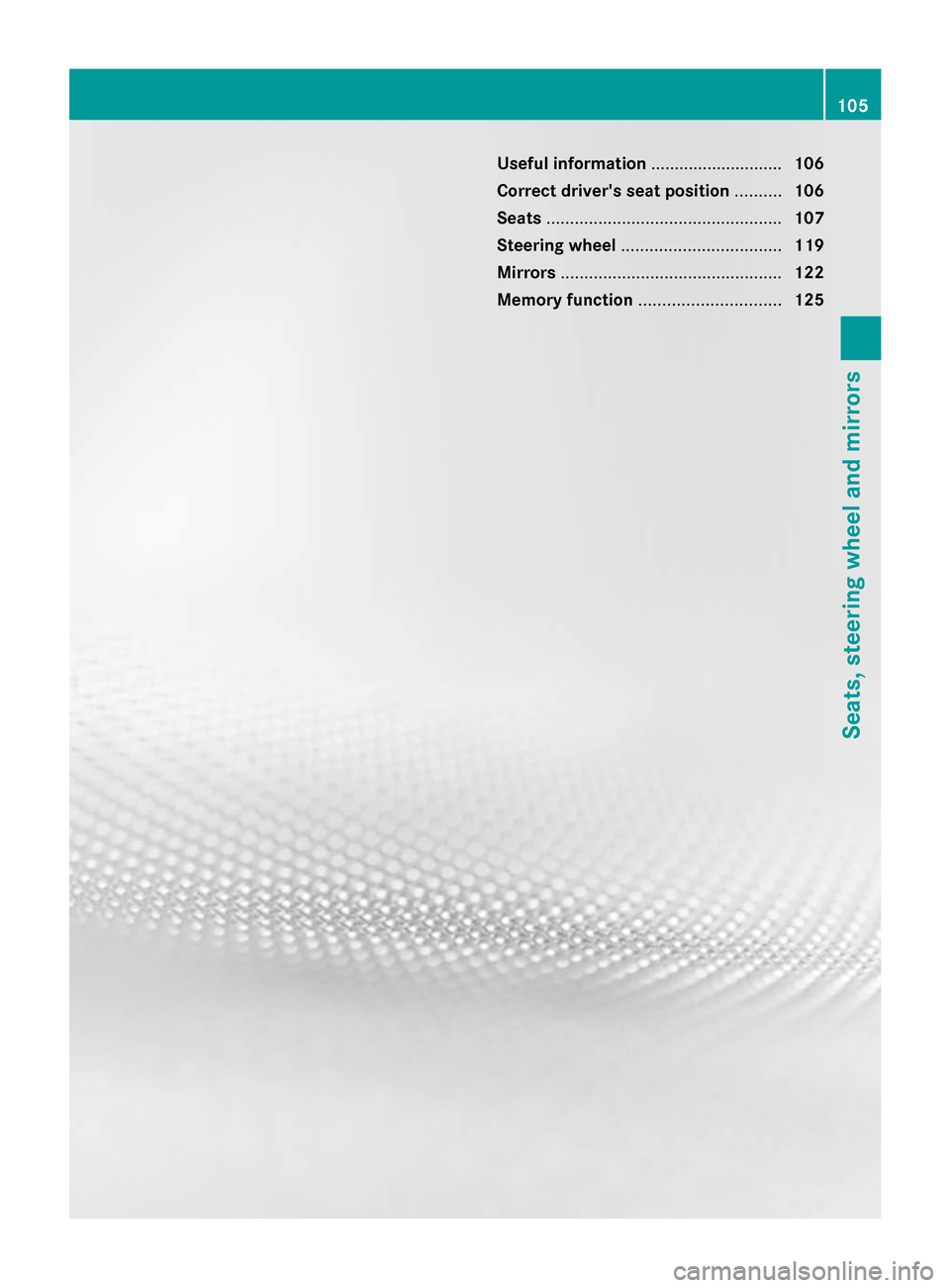

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual Useful information
............................106
Correct drivers seat position ..........106
Seats .................................................. 107
Steering wheel ............................

Page 108 of 462

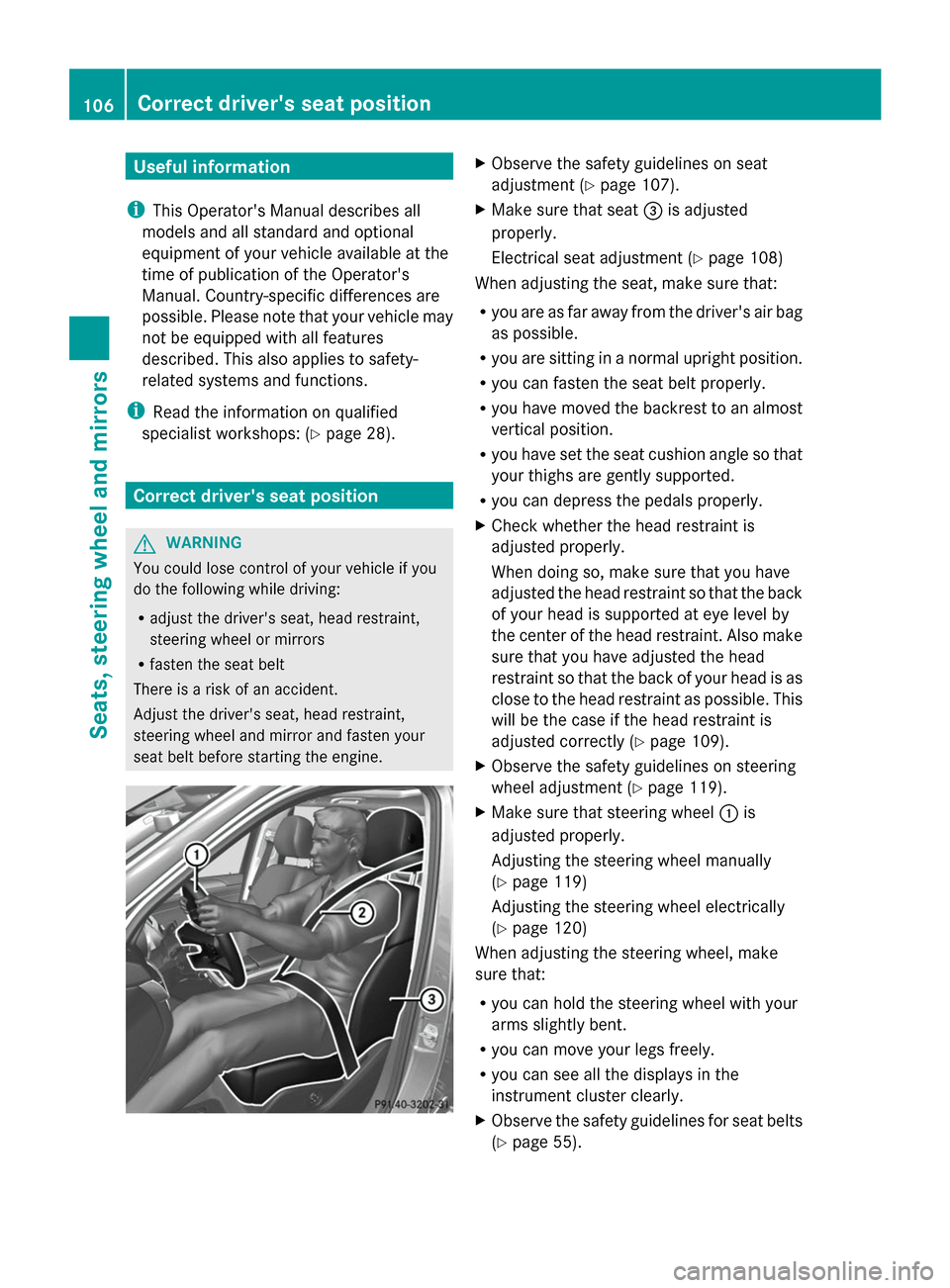

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual Useful information
i This Operators Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operators
Manual. Country-specific

Page 109 of 462

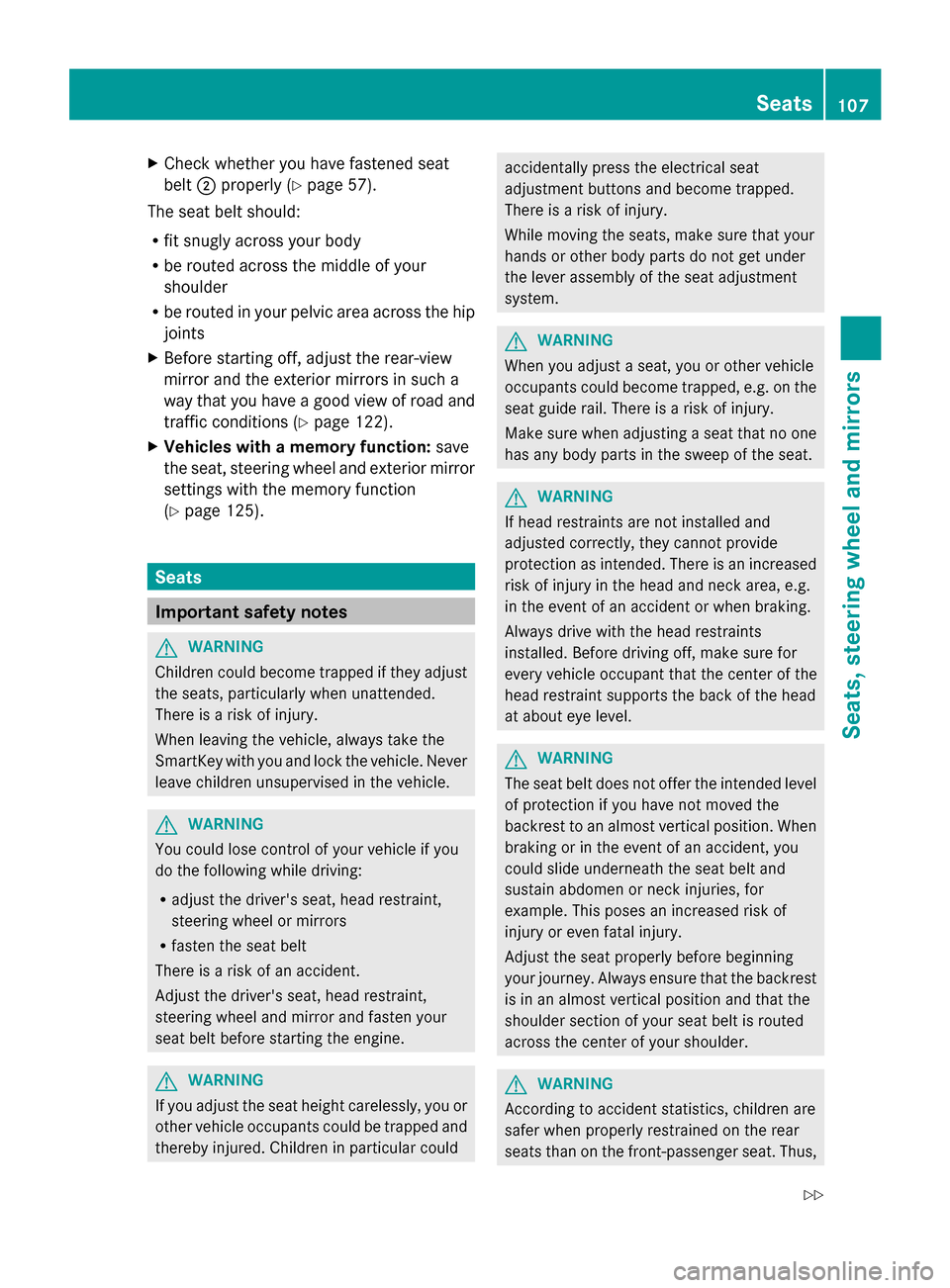

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual X
Check whether you have fastened seat
belt ;properly (Y page 57).
The seat belt should:
R fit snugly across your body
R be routed across the middle of your
shoulder
R be routed in your pelvic area ac

Page 110 of 462

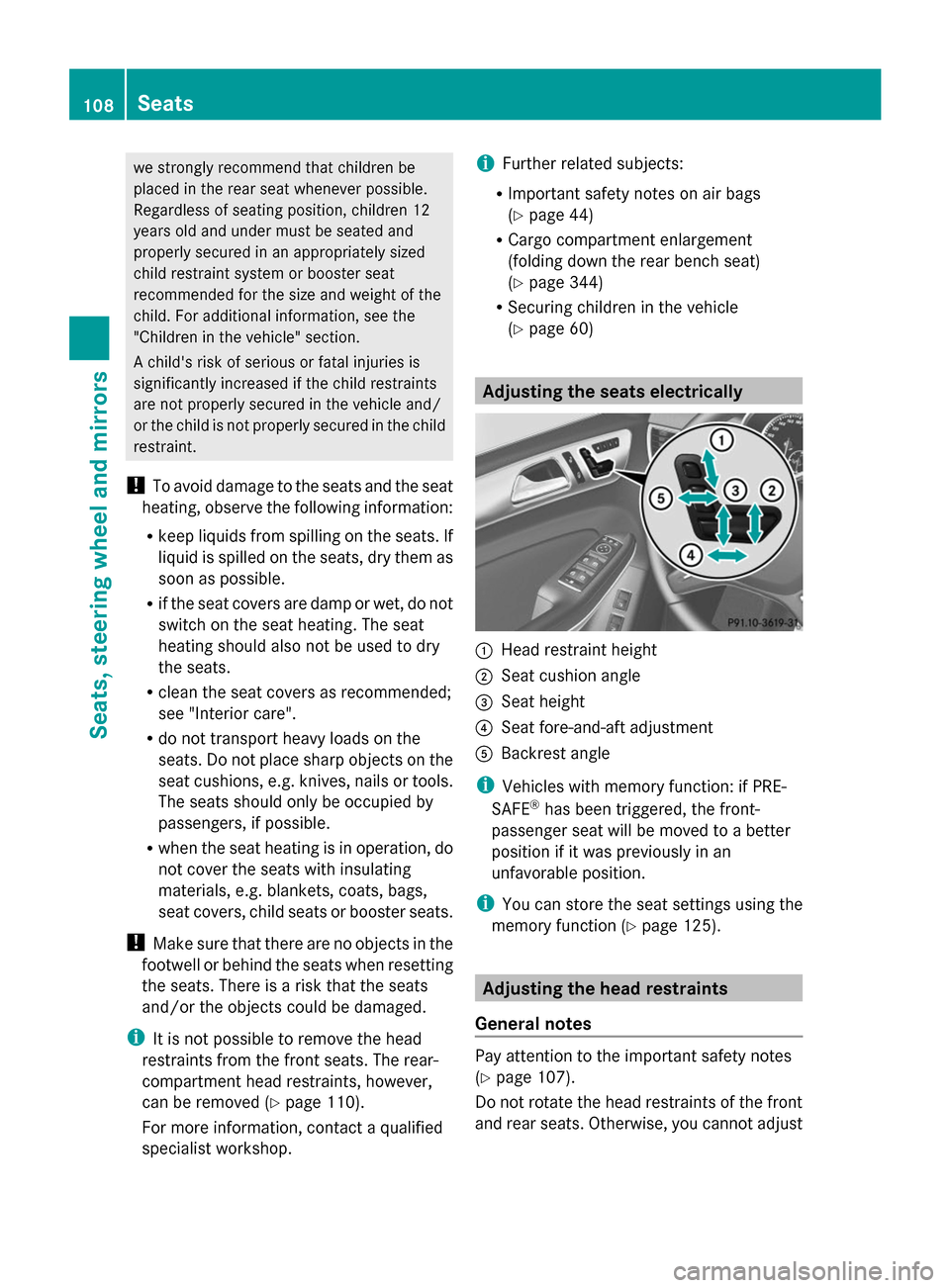

MERCEDES-BENZ GL-Class 2014 X166 Owners Manual we strongly recommend that children be
placed in the rear seat whenever possible.
Regardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriatel
