MERCEDES-BENZ GL-Class 2016 X166 Owner's Manual

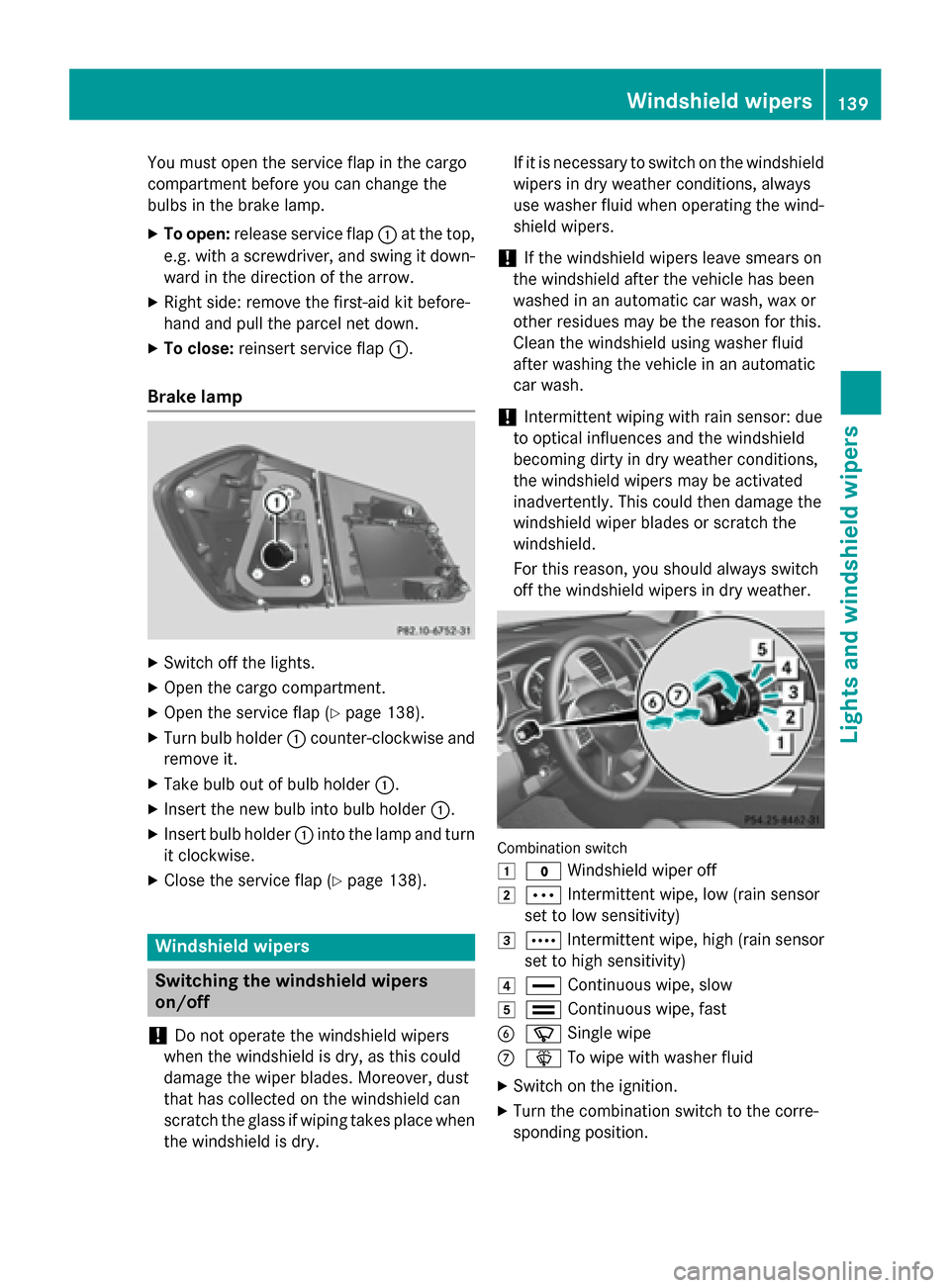

You must open the service flap in the cargo
compartment before you can change the
bulbs in the brake lamp.
XTo open:release service flap :at the top,
e.g. with a screwdriver, and swing it down- ward in the direction of the arrow.
XRight side: remove the first-aid kit before-
hand and pull the parcel net down.
XTo close: reinsert service flap :.
Brake lamp
XSwitch off the lights.
XOpen the cargo compartment.
XOpen the service flap (Ypage 138).
XTurn bulb holder:counter-clockwise and
remove it.
XTake bulb out of bulb holder :.
XInsert the new bulb into bulb holder :.
XInsert bulb holder:into the lamp and turn
it clockwise.
XClose the service flap (Ypage 138).
Windshield wipers
Switching the windshield wipers
on/off
!
Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when
the windshield is dry. If it is necessary to switch on the windshield
wipers in dry weather conditions, always
use washer fluid when operating the wind-
shield wipers.
!If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash.
!Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Combination switch
1
$ Windshield wiper off
2ÄIntermittent wipe, low (rain sensor
set to low sensitivity)
3Å Intermittent wipe, high (rain sensor
set to high sensitivity)
4° Continuous wipe, slow
5¯Continuous wipe, fast
BíSingle wipe
CîTo wipe with washer fluid
XSwitch on the ignition.
XTurn the combination switch to the corre-
sponding position.
Windshield wipers139
Lights and windshield wipers
Z

In theÄorÅ position, the appropriate
wiping frequency is set automatically accord-
ing to the intensity of the rain. In the Å
position, the rain sensor is more sensitive
than in the Äposition, causing the wind-
shield wiper to wipe more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions.
Switching the rear window wiper on/
off
Combination switch
:
è Rear window wiper switch
2bWipes with washer fluid
3ISwitches on intermittent wiping
40 Switches off intermittent wiping
5ô Wipes with washer fluid
XTurn the SmartKey to position 1or 2in the
ignition lock (
Ypage 165).
XTurn switch :on the combination switch
to the corresponding position.
When the rear window wiper is switched on,
the icon appears in the instrument cluster.
Replacing the wiper blades
Important safety notes
GWARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could
be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
!To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
!Never open the hood/tailgate if a wiper
arm has been folded away from the wind-
shield/rear window.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield/rear
window.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the wiper arm without a wiper blade and it
falls onto the windshield/rear window, the
windshield/rear window may be damaged
by the force of the impact.
Mercedes-Benz recommends that you have
the wiper blades changed at a qualified
specialist workshop.
Changing the windshield wiper blades
Removing the wiper blades
XRemove the SmartKey from the ignition
lock.
XFold the wiper arm away from the wind-
shield.
XFirmly press release knob :and pull wiper
blade ;upwards from the wiper arm in the
direction of the arrow.
140Windshield wipers
Lights and windshield wipers

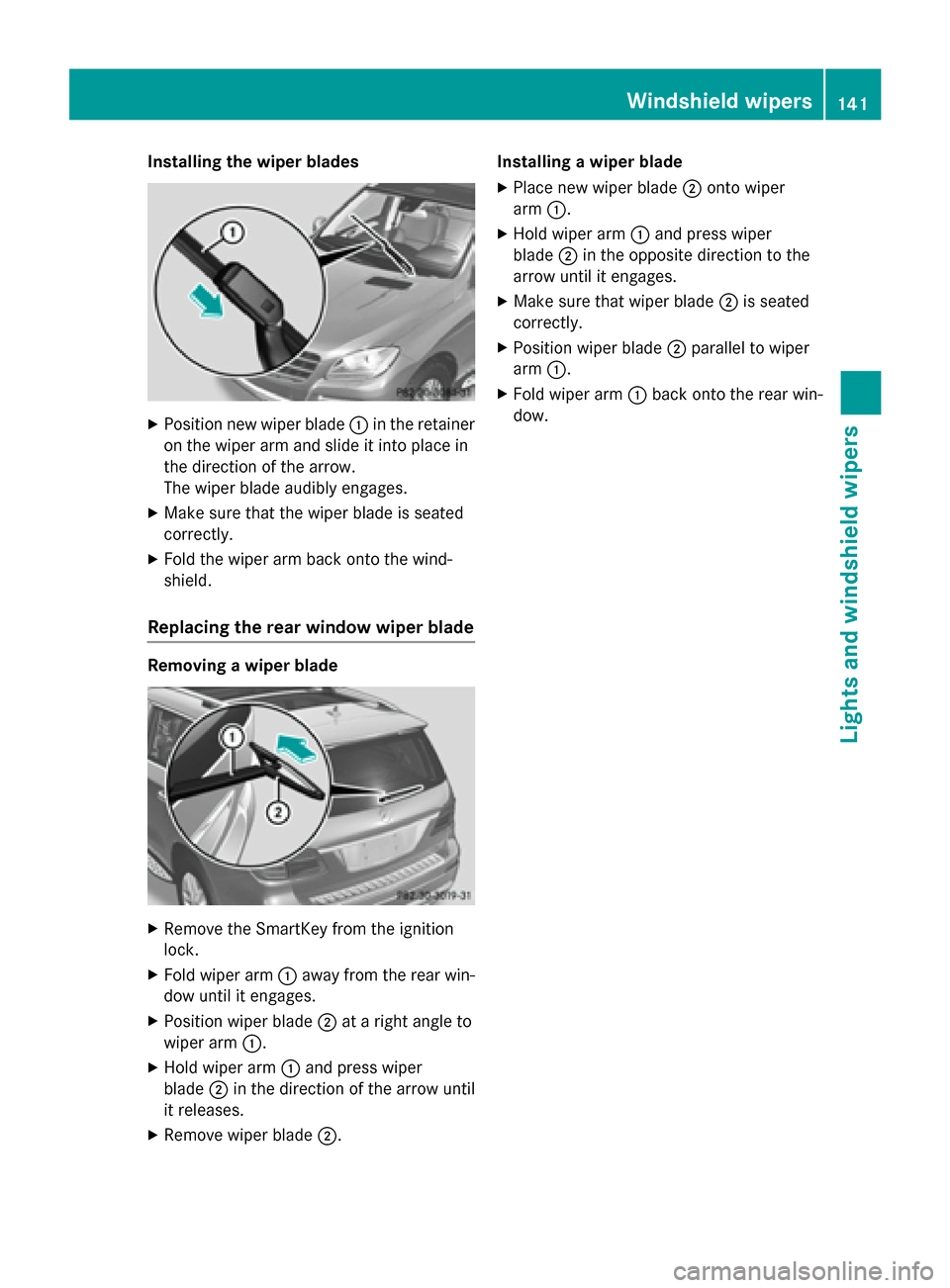

Installing the wiper blades
XPosition new wiper blade:in the retainer
on the wiper arm and slide it into place in
the direction of the arrow.
The wiper blade audibly engages.
XMake sure that the wiper blade is seated
correctly.
XFold the wiper arm back onto the wind-
shield.
Replacing the rear window wiper blade
Removing a wiper blade
XRemove the SmartKey from the ignition
lock.
XFold wiper arm :away from the rear win-
dow until it engages.
XPosition wiper blade ;at a right angle to
wiper arm :.
XHold wiper arm :and press wiper
blade ;in the direction of the arrow until
it releases.
XRemove wiper blade ;. Installing a wiper blade
XPlace new wiper blade
;onto wiper
arm :.
XHold wiper arm :and press wiper
blade ;in the opposite direction to the
arrow until it engages.
XMake sure that wiper blade ;is seated
correctly.
XPosition wiper blade ;parallel to wiper
arm :.
XFold wiper arm :back onto the rear win-
dow.
Windshield wipers141
Lights and windshield wipers
Z

Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the
ignition lock.
or
XSwitch off the engine using the Start/Stop button and open the driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist
workshop.
142Windshield wipers
Lights and windshield wipers

Useful information............................144
Overview of climate control sys-
tems ................................................... 144
Operating the climate control sys-
tems ................................................... 152
Setting the air vents .........................160
143
Climate control

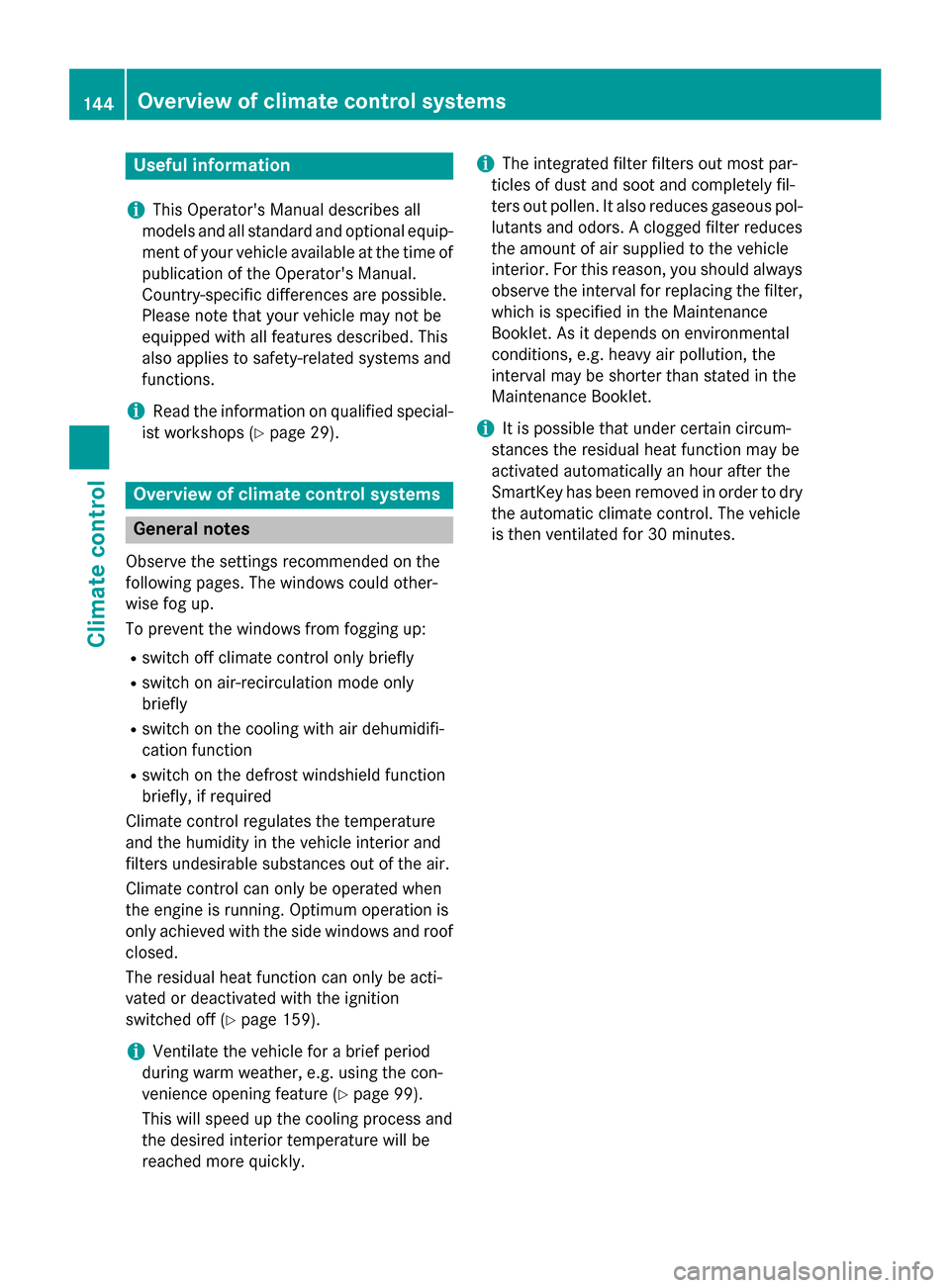

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 29).
Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air dehumidifi-
cation function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (
Ypage 159).
iVentilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (
Ypage 99).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly.
iThe integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
iIt is possible that under certain circum-
stances the residual heat function may be
activated automatically an hour after the
SmartKey has been removed in order to dry the automatic climate control. The vehicle
is then ventilated for 30 minutes.
144Overview of climate control systems
Climate control

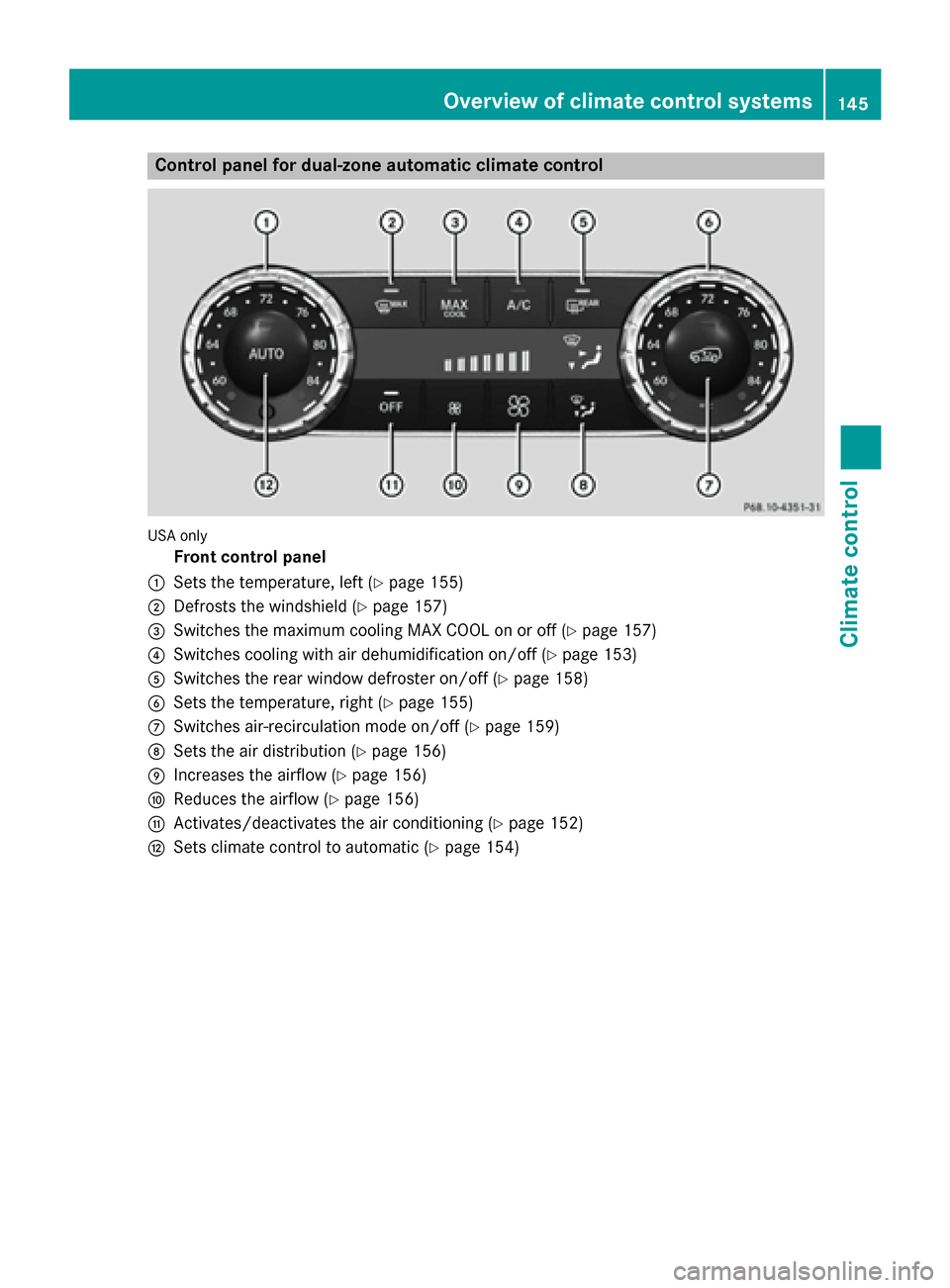

Control panel for dual-zone automatic climate control
USAonly
Front control panel
:Sets the temperature, left (Ypage 155)
;Defrosts the windshield (Ypage 157)
=Switches the maximum cooling MAX COOL on or off (Ypage 157)
?Switches cooling with air dehumidification on/off (Ypage 153)
ASwitches the rear window defroster on/off (Ypage 158)
BSets the temperature, right (Ypage 155)
CSwitches air-recirculation mode on/off (Ypage 159)
DSets the air distribution (Ypage 156)
EIncreases the airflow (Ypage 156)
FReduces the airflow (Ypage 156)
GActivates/deactivates the air conditioning (Ypage 152)
HSets climate control to automatic (Ypage 154)
Overview of climate control systems145
Climate control

Canada only
Front control panel
:Sets the temperature, left (Ypage 155)
;Defrosts the windshield (Ypage 157)
=Switches the ZONE function on/off (Ypage 157)
?Switches cooling with air dehumidification on/off (Ypage 153)
Switches the residual heat on or off (
Ypage 159)
ASwitches the rear window defroster on/off (Ypage 158)
BSets the temperature, right (Ypage 155)
CSwitches air-recirculation mode on/off (Ypage 159)
DSets the air distribution (Ypage 156)
EIncreases the airflow (Ypage 156)
FReduces the airflow (Ypage 156)
GActivates/deactivates the air conditioning (Ypage 152)
HSets climate control to automatic (Ypage 154)
Rear control panel
:Sets rear-compartment climate control to automatic
;Switches the rear climate control on/off
146Overview of climate control systems
Climate control

=Directs the airflow through the rear air vents
?Directs the airflow through the footwell vents
Optimum use of dual-zone climate
control
The following contains notes and recommen-
dations on optimum use of dual-zone climate
control.
RYou can switch on climate control by using
theà and¿ orà andÁ but-
tons. The indicator lamps in the Ãand
¿ buttons or the ÃandÁ but-
tons light up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RUse the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp above the ábutton goes
out.
RVehicles with COMAND: if you change the
settings of the climate control system, the
climate status display appears for approx-
imately three seconds at the bottom of the
screen in the COMAND display (see sepa-
rate operating instructions). You will see
the current settings of the various climate
control functions.
During automa tic e
ngine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (
Ypage 170).
Overview of climatecont rol systems147
Climate control

Control panel for 3-zone automatic climate control
USAonly
Front control panel
:Sets the temperature, left (Ypage 155)
;Defrosts the windshield (Ypage 157)
=Switches the maximum cooling MAX COOL on or off (Ypage 157)
?Switches cooling with air dehumidification on/off (Ypage 153)
ASwitches the rear window defroster on/off (Ypage 158)
BSets the temperature, right (Ypage 155)
CSwitches the ZONE function on/off (Ypage 157)
DActivates/deactivates the air conditioning (Ypage 152)
ESets the air distribution (Ypage 156)
FIncreases the airflow (Ypage 156)
GReduces the airflow (Ypage 156)
HDisplay
IAdjusts the climate mode settings (Ypage 155)
JSwitches air-recirculation mode on/off (Ypage 159)
KSets climate control to automatic (Ypage 154)
Rear control panel
LIncreases the airflow (Ypage 156)
MSets the temperature (Ypage 155)
NSets rear-compartment climate control to automatic (Ypage 154)
ODirects the airflow through the rear air vents (Ypage 156)
PDirects the airflow through the footwell vents (Ypage 156)
QSwitches the rear climate control on/off (Ypage 152)
RReduces the airflow (Ypage 156)
148Overview of climate control systems
Climate control
