MERCEDES-BENZ GL550 2008 X164 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2008, Model line: GL550, Model: MERCEDES-BENZ GL550 2008 X164Pages: 601
Page 331 of 601
330 Controls in detail
Useful features
The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 186), the Voice Control System*
(see separate operating instructions), or
the COMAND system (see separate oper-
ating instructions).Removing mobile phone from mobile
phone cradleExample illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone
cradle
Example illustration
1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle
Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.
iWhen you take the SmartKey or SmartKey
with KEYLESS-GO* out of the starter switch, the
mobile phone remains switched on for approxi-
mately 10 minutes. If you place or receive a call
during this time, the mobile phone switches off
10 minutes after the call has been completed.iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.
164.boo Seite 330 Freitag, 30. März 2007 12:54 12
Page 332 of 601
331 Controls in detail
Useful features
Installing a different mobile phone cra-
dle
Example illustration
1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.
Push mobile phone cradle3 forward
until it engages.
Tele Aid
Shortly after the completion of your
Tele Aid acquaintance call, you will receive
a user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:
automatic and manual emergency
roadside assistance
information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted by using the volume control on
the COMAND system or on the multifunc-
tion steering wheel. To raise, turn the rota-
ry volume control on COMAND system
clockwise or press buttonæ on the
multifunction steering wheel. To lower,
turn the rotary volume control on
COMAND system control counterclock-
wise or press buttonç on the multi-
function steering wheel.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the ¡button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
164.boo Seite 331 Freitag, 30. März 2007 12:54 12
Page 333 of 601
332 Controls in detail
Useful features
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on).
The message
Tele Aid – Inoperative
appears in the multifunction display.
iThe SOS button is located in the overhead
control panel (
page 34).
The Roadside Assistance button•
(
page 335) and the Information button¡
(
page 336) are located below the center arm-
rest cover.
!The Tele Aid system utilizes the cellular
network for communication and the GPS (G
lobal
P
ositioning System) satellites for vehicle loca-
tion. If either of these signals are unavailable, the
Tele Aid system may not function and if this
occurs, assistance must be summoned by other
means.
iWhen a Tele Aid call has been initiated, the
COMAND system audio is muted and the select-
ed mode (radio, CD etc.) pauses. The optional
cellular phone (if installed) inserted in cradle
switches off. If you must use this phone, we rec-
ommend that you use it only with the vehicle at a
standstill in a safe location. Remove the phone
from the cradle and place the call. The naviga-
tion* system (if engaged) will continue to run.
The display in the instrument cluster is available
for use, and spoken commands are only avail-
able by pressing the RPT button on the COMAND
system. A pop-up window will appear in the
COMAND system display to indicate that a Tele
Aid call is in progress. After the Tele Aid call has
ended, the optional cellular phone inserted in the
cradle switches on again. A PIN entry might be
necessary.
Warning!G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message
Tele Aid – Inoperative is displayed in
the multifunction display after the system
self-check, a malfunction in the system has
been detected.
164.boo Seite 332 Freitag, 30. März 2007 12:54 12
Page 334 of 601
333 Controls in detail
Useful features
Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 334) for
instructions on initiating an emergency call
manually.Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting Call appears in the multifunc-
tion display. When the connection is estab-
lished, the message
Call Connected
appears in the multifunction display. All in-
formation relevant to the emergency, such
as the location of the vehicle (determined
by the GPS satellite location system), vehi-
cle model, identification number and color
are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
accident provided they can speak to an
occupant of the vehicle.The Tele Aid system is available if
it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time
vehicle battery power is available
the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.
164.boo Seite 333 Freitag, 30. März 2007 12:54 12
Page 335 of 601
334 Controls in detail
Useful features

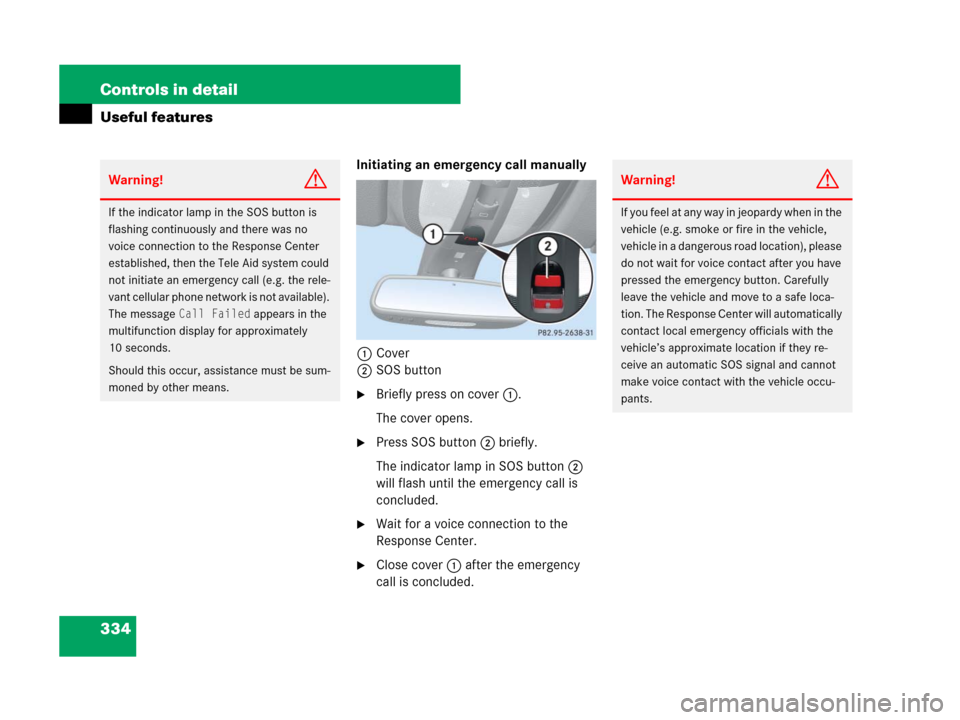

Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover opens.
Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
Wait for a voice connection to the
Response Center.
Close cover1 after the emergency
call is concluded.
Warning!G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call Failed appears in the
multifunction display for approximately
10 seconds.
Should this occur, assistance must be sum-
moned by other means.
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.
164.boo Seite 334 Freitag, 30. März 2007 12:54 12
Page 336 of 601
335 Controls in detail
Useful features

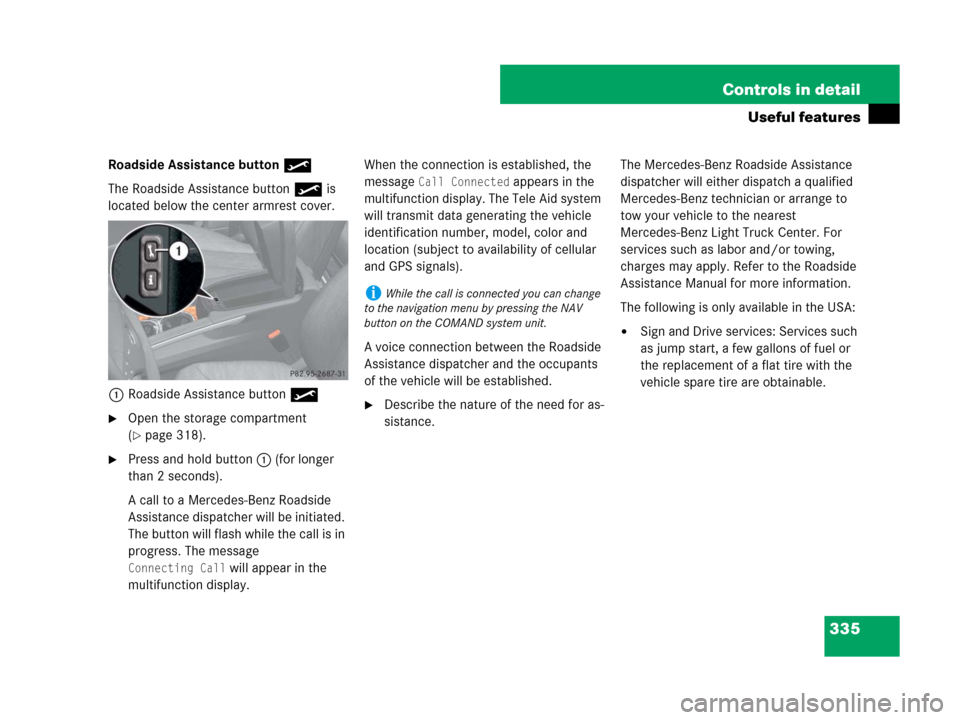

Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
1Roadside Assistance button•
Open the storage compartment
(
page 318).
Press and hold button1 (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting Call will appear in the
multifunction display.When the connection is established, the
message
Call Connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Light Truck Center. For
services such as labor and/or towing,
charges may apply. Refer to the Roadside
Assistance Manual for more information.
The following is only available in the USA:
Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iWhile the call is connected you can change
to the navigation menu by pressing the NAV
button on the COMAND system unit.
164.boo Seite 335 Freitag, 30. März 2007 12:54 12
Page 337 of 601
336 Controls in detail
Useful features

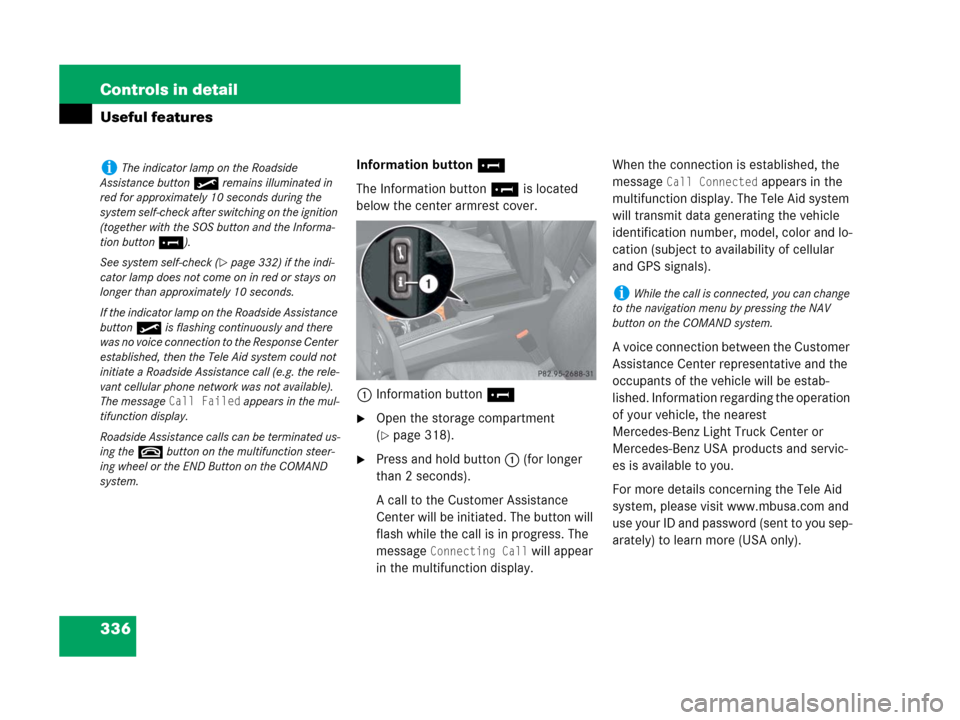

Information button¡
The Information button¡ is located
below the center armrest cover.
1Information button¡
Open the storage compartment
(
page 318).
Press and hold button1 (for longer
than 2 seconds).
A call to the Customer Assistance
Center will be initiated. The button will
flash while the call is in progress. The
message
Connecting Call will appear
in the multifunction display.When the connection is established, the
message
Call Connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Light Truck Center or
Mercedes-Benz USA products and servic-
es is available to you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).iThe indicator lamp on the Roadside
Assistance button• remains illuminated in
red for approximately 10 seconds during the
system self-check after switching on the ignition
(together with the SOS button and the Informa-
tion button¡).
See system self-check (
page 332) if the indi-
cator lamp does not come on in red or stays on
longer than approximately 10 seconds.
If the indicator lamp on the Roadside Assistance
button• is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate a Roadside Assistance call (e.g. the rele-
vant cellular phone network was not available).
The message
Call Failed appears in the mul-
tifunction display.
Roadside Assistance calls can be terminated us-
ing thet button on the multifunction steer-
ing wheel or the END Button on the COMAND
system.
iWhile the call is connected, you can change
to the navigation menu by pressing the NAV
button on the COMAND system.
164.boo Seite 336 Freitag, 30. März 2007 12:54 12
Page 338 of 601
337 Controls in detail
Useful features
Call priority
If other service calls such as a Roadside
Assistance call or Information call are
active, an Emergency call is still possible.
In this case, the Emergency call will take
priority and override all other active calls.Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.
Then return to your vehicle and pull the
tailgate recessed handle for minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting Call ap-
pears in the multifunction display.
iThe indicator lamp in the Information
button¡ remains illuminated in red for
approximately 10 seconds during the system
self-check after switching on the ignition (togeth-
er with the SOS button and the Roadside
Assistance button•).
See system self-check (
page 332) if the indi-
cator lamp does not come on in red or stays on
longer than approximately 10 seconds.
If the indicator lamp in the Information
button¡ is flashing continuously and there
was no voice connection to the Response Center
established, then the Tele Aid system could not
initiate an Information call (e.g. the relevant cel-
lular phone network is not available). The mes-
sage
Call Failed appears in the multifunction
display.
Information calls can be terminated using
thet button on the multifunction steering
wheel or the END button on the COMAND sys-
tem.
!If the indicator lamps do not start flashing
after pressing one of the buttons or remain illu-
minated (in red) at any time, the Tele Aid system
has detected a malfunction or the service is not
currently active, and may not initiate a call. Visit
your authorized Mercedes-Benz Light Truck
Center and have the system checked or contact
the Response Center at 1-800-756-9018 (in the
USA) or 1-888-923-8367 (in Canada) as soon as
possible.
iThe indicator lamp in the respective button
flashes until the call is concluded. Emergency
calls can only be terminated by a Response
Center or Customer Assistance Center repre-
sentative, whereas Roadside Assistance and
Information calls can also be terminated by
pressing buttont on the multifunction
steering wheel or using the END button on the
COMAND system.
!If the indicator lamp continues to flash or
the system does not reset, contact the Response
Center at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or Mercedes-Benz
Customer Assistance at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Customer
Service at 1-800-387-0100 in Canada.
164.boo Seite 337 Freitag, 30. März 2007 12:54 12
Page 339 of 601
338 Controls in detail
Useful features
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered
incident report.
Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is
located, the Response Center will
contact the local law enforcement and
you. The vehicle’s location will only be
provided to law enforcement.
If you have any questions, please call the
Response Center at 1-800-756-9018 (in
the USA) or 1-888-923-8367 (in Canada).
Garage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or oth-
er devices compatible with HomeLink
® or
some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.iThe remote door unlock feature is available
if the relevant cellular phone network is avail-
able.
The SOS button will flash and the message
Connecting Call will appear in the multifunc-
tion display to indicate receipt of the door unlock
command.
Once the vehicle is unlocked, a Response Center
specialist may attempt to establish voice contact
with the vehicle occupants.
If the tailgate recessed handle was pulled for
m o r e t h a n 2 0 s e c o n d s b e f o r e d o o r u n l o c k a u t h o -
rization was received by the Response Center,
you must wait 15 minutes before pulling the tail-
gate recessed handle again.
iWhen the anti-theft alarm stays on for more
than 30 seconds, a call is initiated automatically
to the Response Center. See anti-theft alarm
system (
page 109).
164.boo Seite 338 Freitag, 30. März 2007 12:54 12
Page 340 of 601
339 Controls in detail
Useful features

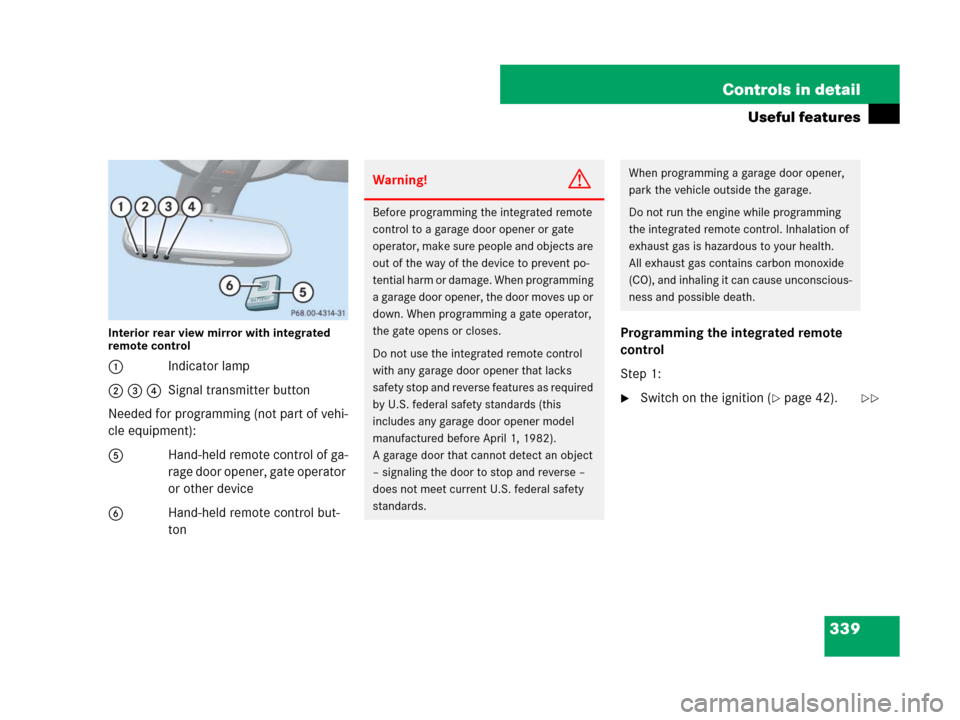

Interior rear view mirror with integrated
remote control
1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of vehi-
cle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control but-
tonProgramming the integrated remote
control
Step 1:
Switch on the ignition (page 42).
Warning!G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
– signaling the door to stop and reverse –
does not meet current U.S. federal safety
standards.
When programming a garage door opener,
park the vehicle outside the garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health.
All exhaust gas contains carbon monoxide
(CO), and inhaling it can cause unconscious-
ness and possible death.
164.boo Seite 339 Freitag, 30. März 2007 12:54 12
