Page 291 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 290 Controls in detail
Driving systems
Front sensors
Rear sensors
Minimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warnin

Page 292 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 291 Controls in detail
Driving systems
As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
seventh red distance segment illumina

Page 293 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 292 Controls in detail
Driving systems
Switching off
Press Parktronic switch1.
Indicator lamp2 comes on.
Switching on
Press Parktronic switch1 once more.
Indicator lamp2 goes out.Parktronic system*

Page 294 of 601

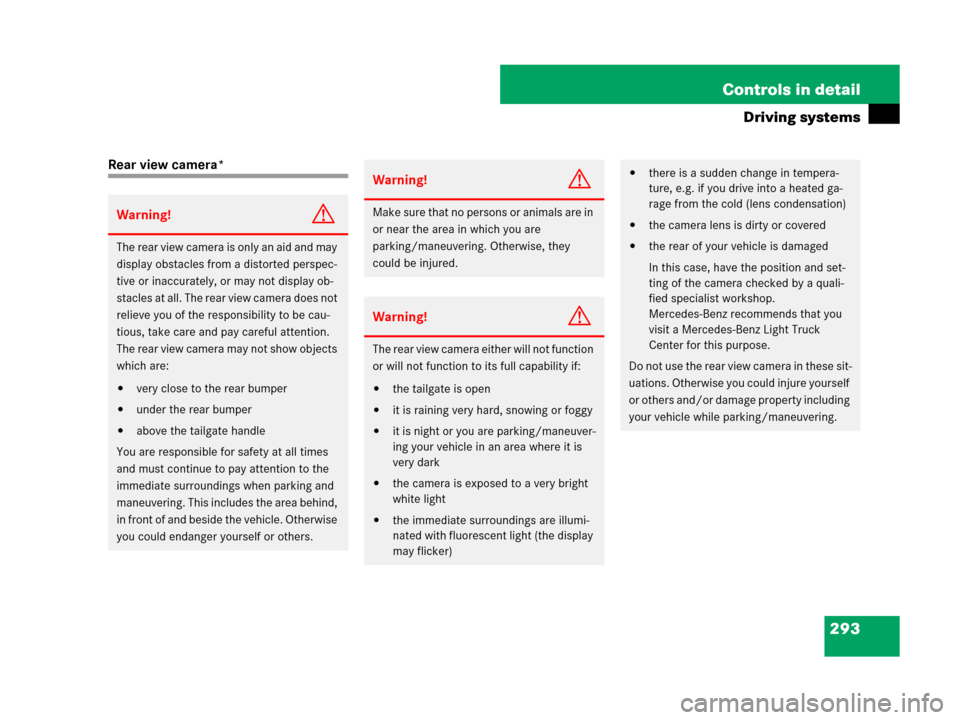

MERCEDES-BENZ GL550 2008 X164 Owners Manual 293 Controls in detail
Driving systems
Rear view camera*
Warning!G
The rear view camera is only an aid and may
display obstacles from a distorted perspec-
tive or inaccurately, or may not display ob-

Page 295 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 294 Controls in detail
Driving systems
The rear view camera is an optical parking
aid. It shows you the area behind the vehi-
cle in the COMAND system display when
reverse gearR is engaged, for exam

Page 296 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 295 Controls in detail
Loading
Loading
Carriers*
Roof rails
Crossbars*
The maximum roof load (
page 561) of
any add-on roof equipment is reduced by
the unladen weight of the crossbars
(13.7 Ibs/6

Page 297 of 601

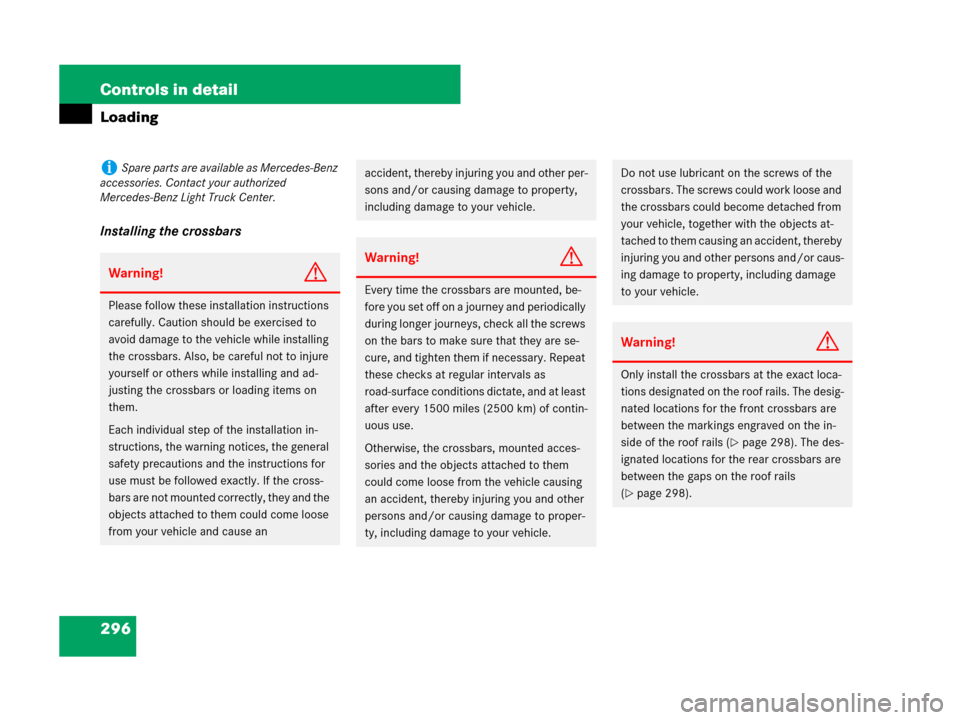

MERCEDES-BENZ GL550 2008 X164 Owners Manual 296 Controls in detail
Loading
Installing the crossbars
iSpare parts are available as Mercedes-Benz
accessories. Contact your authorized
Mercedes-Benz Light Truck Center.
Warning!G
Please follow the

Page 298 of 601

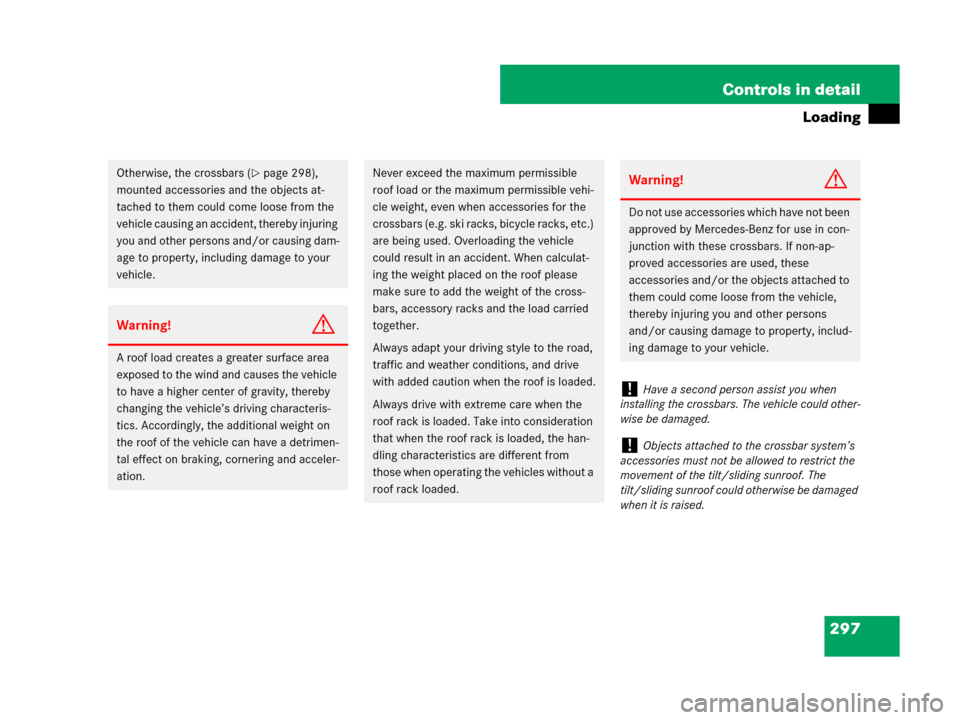

MERCEDES-BENZ GL550 2008 X164 Owners Manual 297 Controls in detail
Loading
Otherwise, the crossbars (page 298),
mounted accessories and the objects at-
tached to them could come loose from the
vehicle causing an accident, thereby injuring
y

Page 299 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 298 Controls in detail
Loading
1Key
2Cover cap
3Sticker FRONT (or REAR)
4Screw for clamping claw
5Clamping claw
The front and rear crossbars are of differ-
ent lengths. Please pay close attention to

Page 300 of 601

MERCEDES-BENZ GL550 2008 X164 Owners Manual 299 Controls in detail
Loading
Place rear crossbar7 on roof railsa
in such a way that the clamping claws
reach into gaps8 (
page 298) on the
roof rails.
Make sure clamping claw5 lies flush
agai
