70 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(
page 54).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Locking
Exit the vehicle and close all doors and
the tailgate.
!Make sure the seat belt retracts fully so that
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim
panel. Such damage is not covered by the
Mercedes-Benz Limited Warranty.
Damaged seat belts must be replaced. Contact
an authorized Mercedes-Benz Light Truck
Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
iThe exterior lamps switch off automatically
when you remove the SmartKey from the starter
switch or open the driver’s door.
When the parking lamps or the rear fog lamp are
switched on and you remove the SmartKey from
the starter switch and open the driver’s door, an
acoustic signal sounds.
In addition the message
Switch Off Lights
appears in the multifunction display.
Switch off the parking lamps or the rear fog
lamp.
!Failure to switch off the parking lamps or the
rear fog lamp when leaving the vehicle may
result in a discharged battery.
164.boo Seite 70 Freitag, 30. März 2007 12:54 12

71 Getting started
Parking and locking
Locking with the SmartKey
Press lock button‹ on the
SmartKey (
page 40).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 112).Locking with KEYLESS-GO*
1Lock button on the outside door handle
Press lock button1 on an outside
door handle.
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 112).
164.boo Seite 71 Freitag, 30. März 2007 12:54 12

72
164.boo Seite 72 Freitag, 30. März 2007 12:54 12

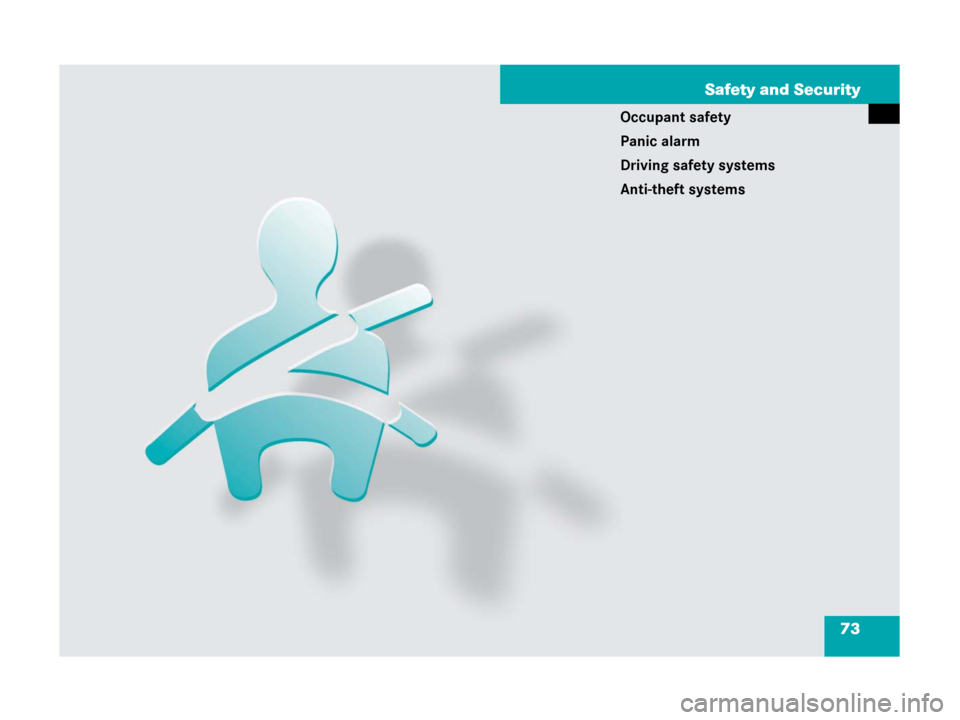

73 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems
164.boo Seite 73 Freitag, 30. März 2007 12:54 12

74 Safety and Security
Occupant safety
In this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (page 86)

Child restraints (page 96)

Lower Anchors and Tethers for
CH
ildren (LATCH) (page 95)
Additional protection potential provide

Supplemental Restraint System (SRS)
with

Air bags (page 76)

Air bag control unit (with crash
sensors)

Emergency Tensioning Device
(ETD) for seat belts (
page 89)

Seat belt force limiter (page 89)

Active head restraints (page 90)Air bag system components with

Front passenger front air bag off
indicator lamp (
page 85)

Front passenger seat with Occupant
C
lassification System (OCS)
(
page 81)
Although independent systems, their
protective functions work in conjunction
with each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1indicator lamp in the instrument
cluster (
page 28) comes on when the
ignition is switched on and goes out no
later than a few seconds after the engine
was started.
The SRS components are in operational
readiness if the
1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1indicator lamp:

fails to go out not later than approxi-
mately 4 seconds after the engine was
started

does not come on at all

comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 91).
164.boo Seite 74 Freitag, 30. März 2007 12:54 12

75 Safety and Security
Occupant safety
Warning!G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.
Air bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the de-
celeration threshold for air bag deployment
is exceeded. Therefore, never modify the re-
straint systems. Do not tamper with elec-
tronic components or their software.
Warning!G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not deploy when needed in an
accident, which could result in serious or fa-
tal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact a local authorized Mercedes-Benz
Light Truck Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
164.boo Seite 75 Freitag, 30. März 2007 12:54 12

76 Safety and Security
Occupant safety
Air bags
Warning!G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal
impacts (front air bags), side impacts (side
impact air bags and window curtain air bags)
or rollovers (window curtain air bags).
However, no system available today can
completely eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the seat backrest.
Fasten your seat belt and make sure it is
properly positioned on your body
(
page 53).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a position that is as
upright as possible with your back
against the seat backrest.

Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any
problems, please see an authorized
Mercedes-Benz Light Truck Center.

Do not lean your head or chest close to
the steering wheel or dashboard.

Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.

Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
164.boo Seite 76 Freitag, 30. März 2007 12:54 12

77 Safety and Security
Occupant safety

Always sit as upright as possible, prop-
erly use the seat belts and use an appro-
priately sized infant restraint, toddler
restraint, or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.Warning!G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both,
front side impact air bags or the rear side
impact air bags*, there is a possibility for a
side impact air bag related injury if occu-
pants, especially children, are not properly
seated or restrained when next to a side
impact air bag which needs to deploy rapidly
in a side impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Always sit as upright as possible,
properly use the seat belts, and for all
children 12 years old and under, use an
appropriately sized infant restraint,
toddler restraint, or booster seat recom-
mended for the size and weight of the
child.
(2) Always wear seat belts properly.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags), and in
side impacts (side impact and window curtain air
bags) which exceed preset thresholds, and in
certain rollovers (window curtain air bags). Only
during these events will they provide their sup-
plemental protection.
The driver and passengers should always wear
their seat belts. Otherwise it is not possible for
air bags to provide their supplemental protec-
tion.
In case of other types of impacts and impacts be-
low air bag deployment thresholds, air bags will
not deploy. The driver and passenger will then be
protected to the extent possible by a properly
fastened seat belt. A properly fastened seat belt
is also needed to provide the best possible pro-
tection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
sengers that you replace deployed air bags and
repair any malfunctioning air bags to make sure
the vehicle will continue to provide supplemental
crash protection for occupants.
164.boo Seite 77 Freitag, 30. März 2007 12:54 12

78 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag
Warning!G

Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Light Truck Center.

Air bags and pyrotechnic Emergency
Tensioning Devices (ETDs) are designed
to function on a one-time-only basis. An
air bag or ETD that is deployed must be
replaced.

Do not pass belts over sharp edges.
They could tear.

Do not make any modification that could
change the effectiveness of the belts.

Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.

No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the seat back-
rests, door trim panels, or door frame
trims, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).

Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when the window curtain air bag is
deployed.

Air bag system components will be hot
after an air bag has inflated. Do not
touch.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Light Truck Center.

For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from any authorized Mercedes-Benz
Light Truck Center.

Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other potentially more serious injuries
resulting from air bag deployment.
164.boo Seite 78 Freitag, 30. März 2007 12:54 12

79 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
Driver and front passenger front air bags
are deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact air
bags
Warning!G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the
deployment of the front side impact air bags
or the rear side impact air bags*. Contact an
authorized Mercedes-Benz Light Truck
Center for availability.
iThe front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of relevant vehicle decelera-
tion as assessed by the air bag control unit.
On the front passenger-side, the front air bag
deployment is additionally influenced by the
passenger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 81).
The lighter the front passenger side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.
164.boo Seite 79 Freitag, 30. März 2007 12:54 12
