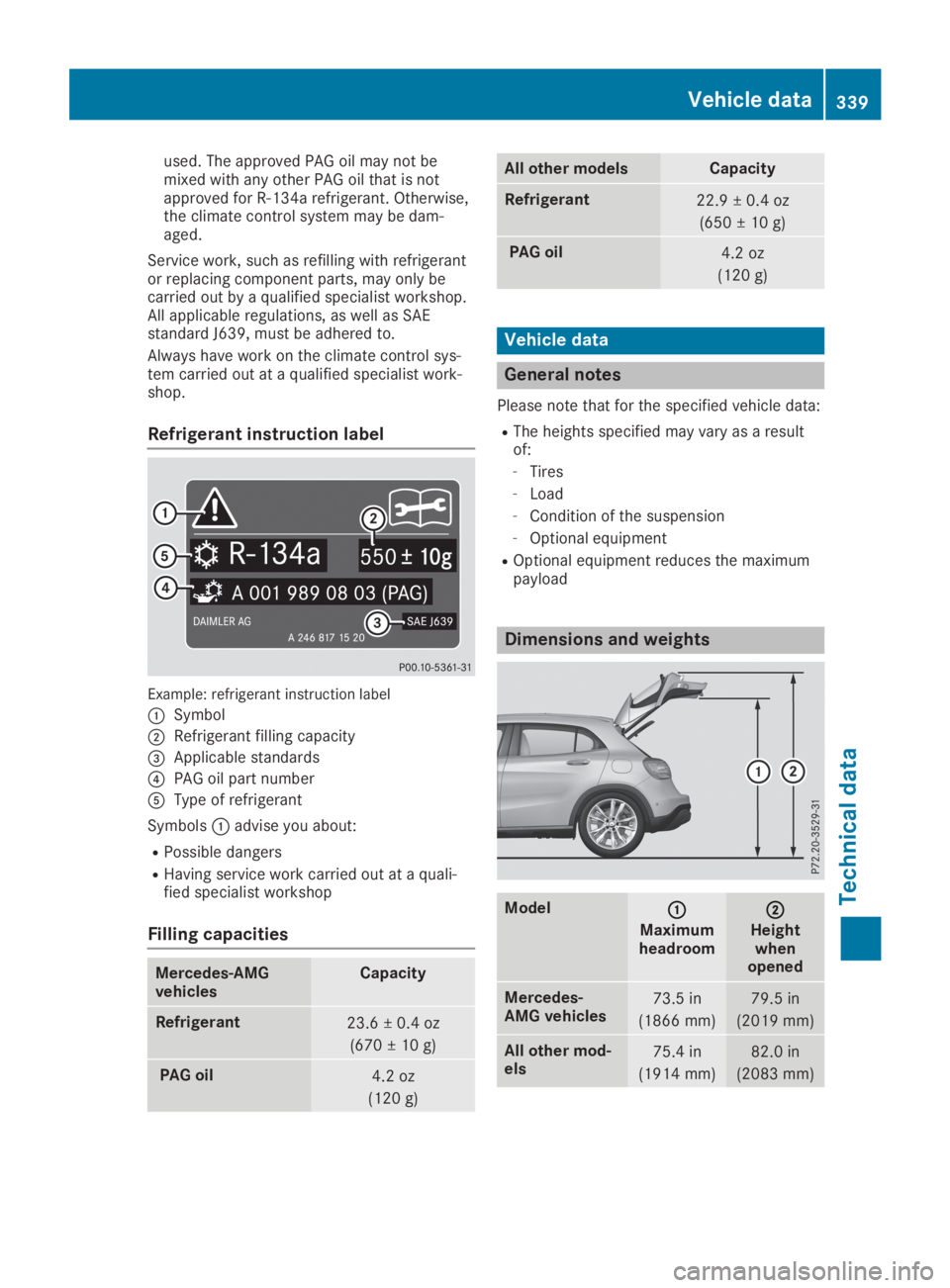

used. The approved PAG oil may not bemixed with any other PAG oil that is notapproved for R-134a refrigerant. Otherwise,the climate control system may be dam-aged.
Service work, such as refilling with refrigerantor replacing component parts, may only becarried out by a qualified specialist workshop.All applicable regulations, as well as SAEstandard J639, must be adhered to.
Always have work on the climate control sys-tem carried out at a qualified specialist work-shop.
Refrigerant instruction label
Example: refrigerant instruction label
CSymbol
DRefrigerant filling capacity

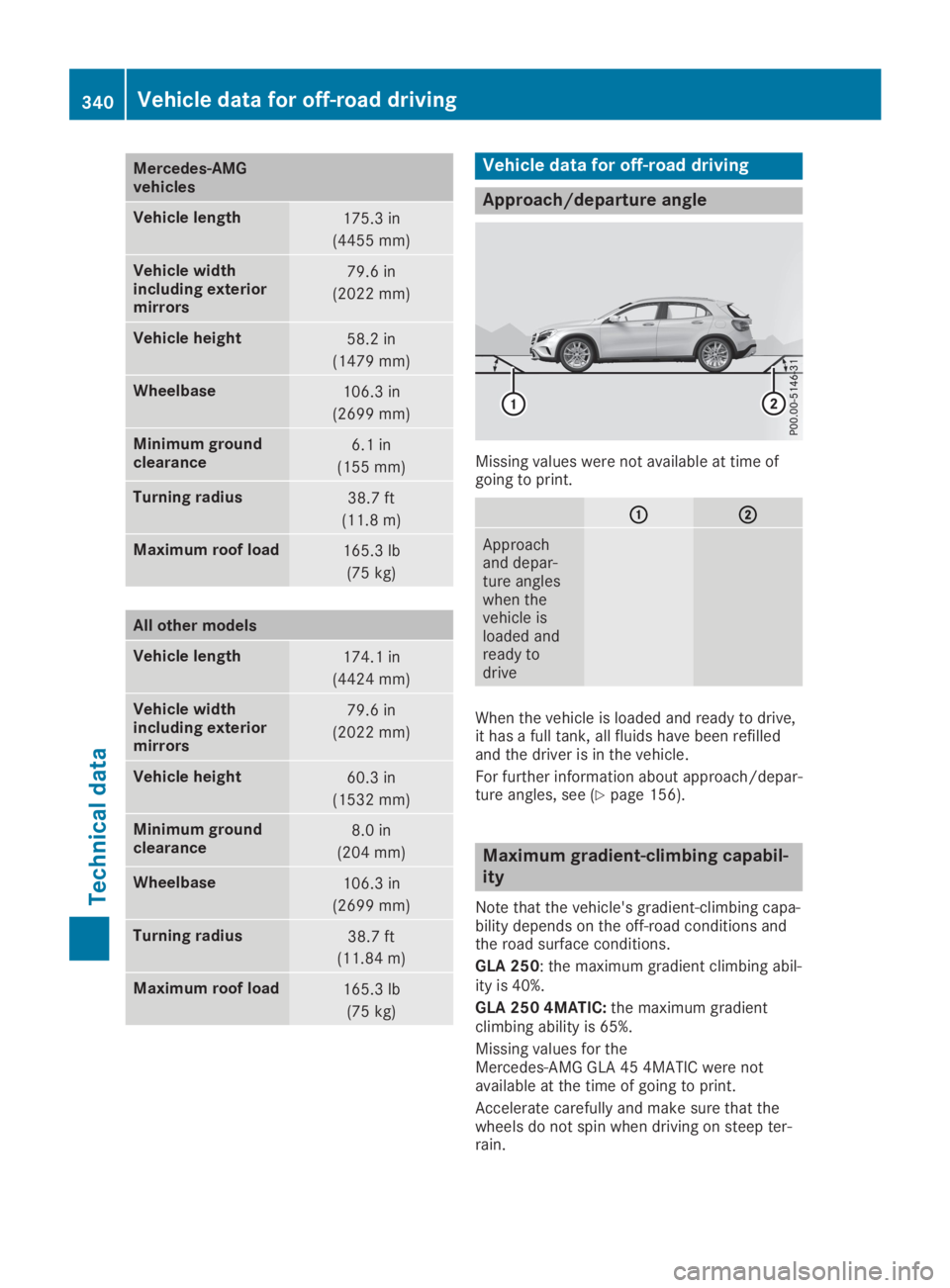

Mercedes‑AMGvehicles
Vehicle length175.3 in
(4455 mm)
Vehicle widthincluding exteriormirrors
79.6 in
(2022 mm)
Vehicle height58.2 in
(1479 mm)
Wheelbase106.3 in
(2699 mm)
Minimum groundclearance6.1 in
(155 mm)
Turning radius38.7 ft
(11.8 m)
Maximum roof load165.3 lb
(75 kg)
All other models
Vehicle length174.1 in
(4424 mm)
Vehicle widthincluding exteriormirrors
79.6 in
(2022 mm)
Vehicle height60.3 in
(1532 mm)
Minimum groundclearance8.0 in
(204 mm)
Wheelbase106.3 in
(2699 mm)
Turning radius38.7 ft
(11.84m)
Maximum roof load165.3 lb
(75 kg)
Vehicle data for off-road driving
Approach/departure angle
Missing values were not available at time ofgoing to print.
CCDD
Approachand depar-ture angleswhen thevehicle isloaded andready todrive
When the vehicle is loaded and ready to drive,it has a full tank, all fluids have been refilledand the driver is in the vehicle.
For further information about approach/depar-ture angles, see (Ypage 156).
Maximum gradient-climbing capabil-
ity
Note that the vehicle's gradient-climbing capa-bility depends on the off-road conditions andthe road surface conditions.
GLA 250: the maximum gradient climbing abil-ity is 40%.
GLA 250 4MATIC:the maximum gradientclimbing ability is 65%.
Missing values for theMercedes‑AMG GLA 45 4MATIC were notavailable at the time of going to print.
Accelerate carefully and make sure that thewheels do not spin when driving on steep ter-rain.
340Vehicle data for off-road driving
Technical data

If the load on the front axle is reduced whenpulling away on a steep uphill slope, the frontwheels have a tendency to spin. 4ETS recogni-zes this and brakes the wheels accordingly.The rear wheel torque is increased, making iteasier to drive off.
For further information about the maximumgradient climbing ability, see (Ypage 156).
Vehicle data for off-road driving341
Technical data
