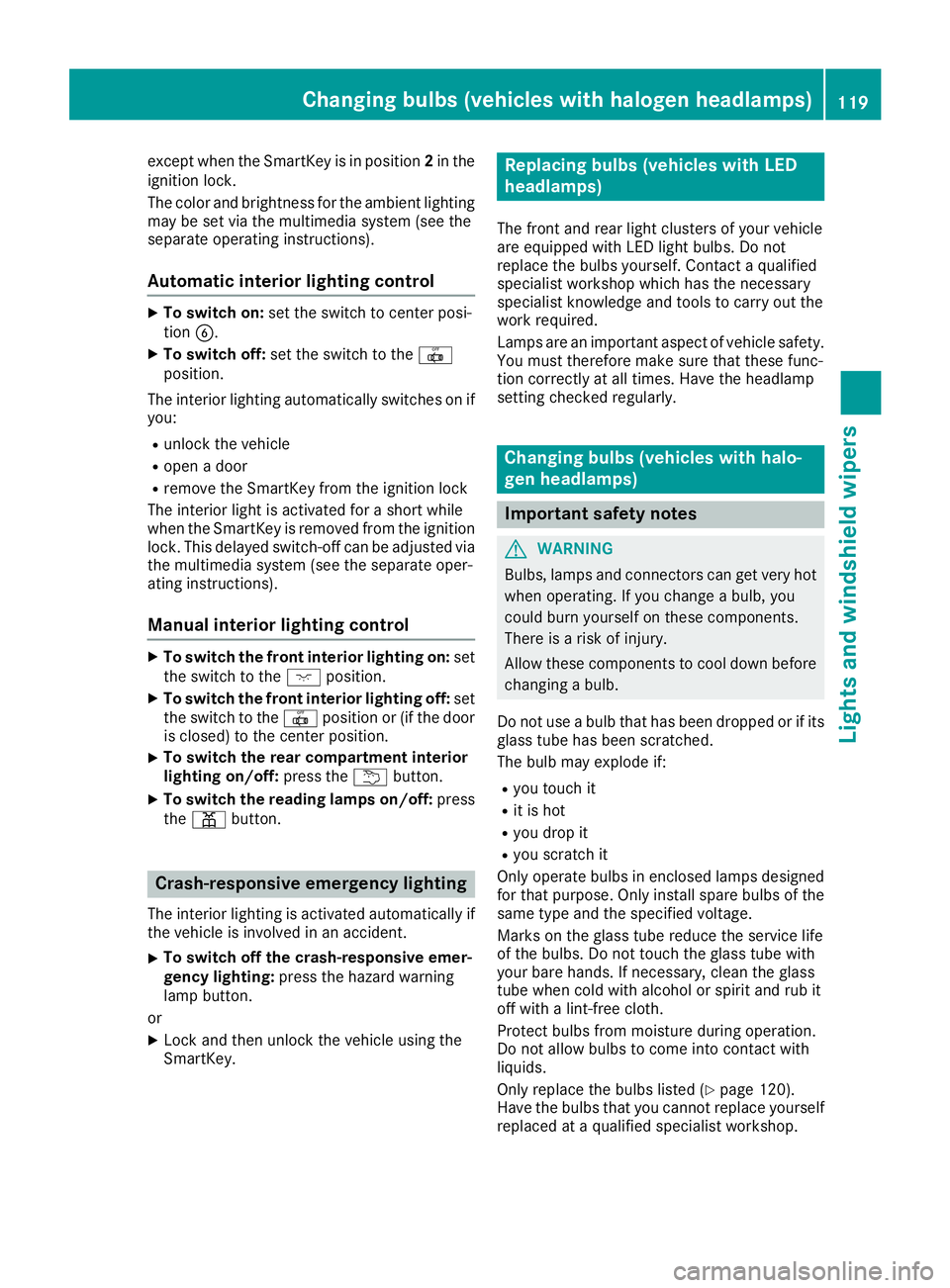

except when the SmartKey is in position 2 in the
ignition lock.
The color and brightness for the ambient lighting
may be set via the multimedia system (see the
separate operating instructions).
Automatic interior lighting control X
To switch on: set the switch to center posi-
tion

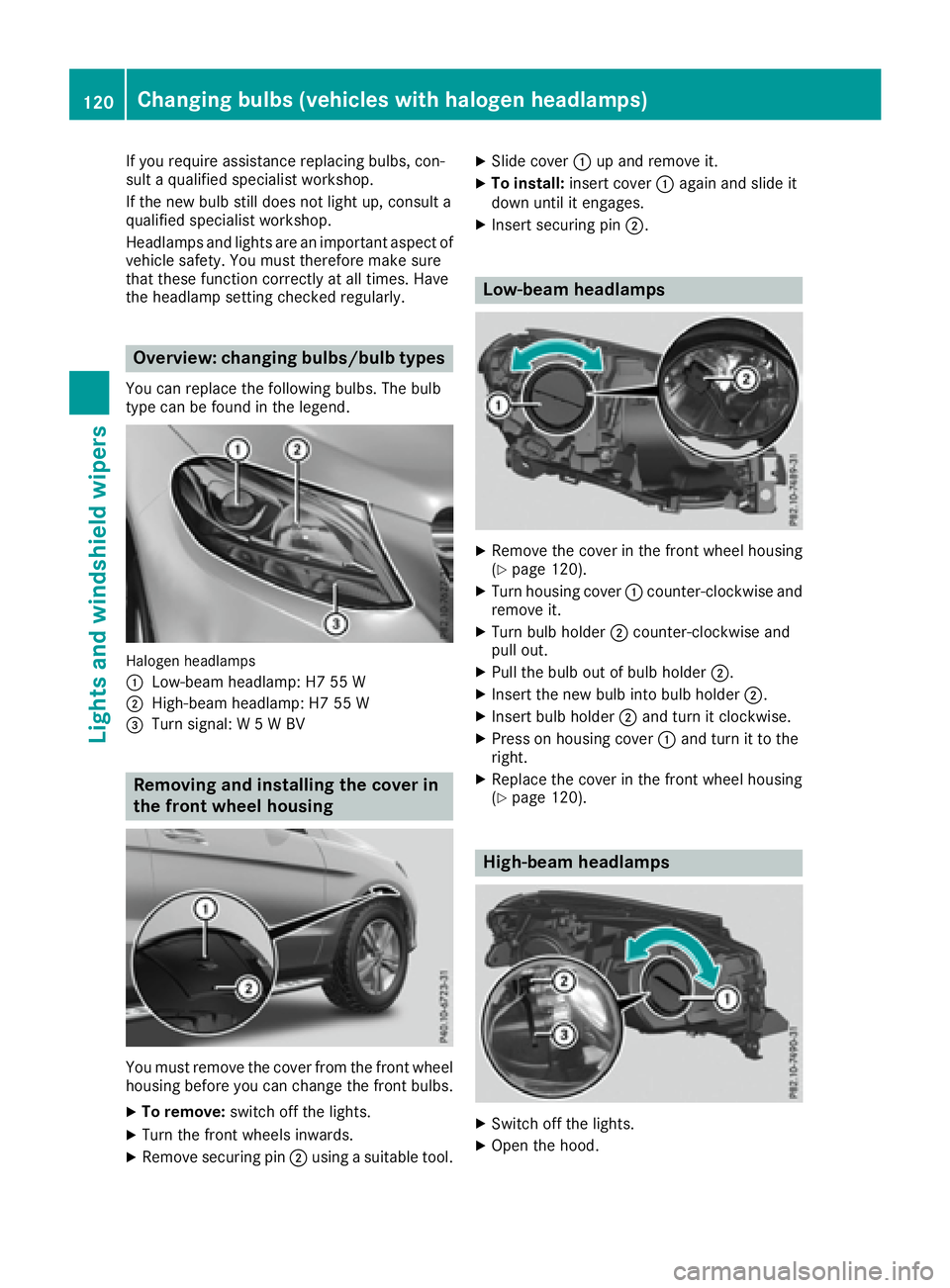

If you require assistance replacing bulbs, con-
sult a qualified specialist workshop.
If the new bulb still does not light up, consult a
qualified specialist workshop.
Headlamps and lights are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times. Have
the headlamp setting checked regularly.
Overview: changing bulbs/bulb types You can replace the following bulbs. The bulb
type can be found in the legend.
Halogen headlamps
C
Low-beam headlamp: H7 55 WD
High-beam headlamp: H7 55 W

X

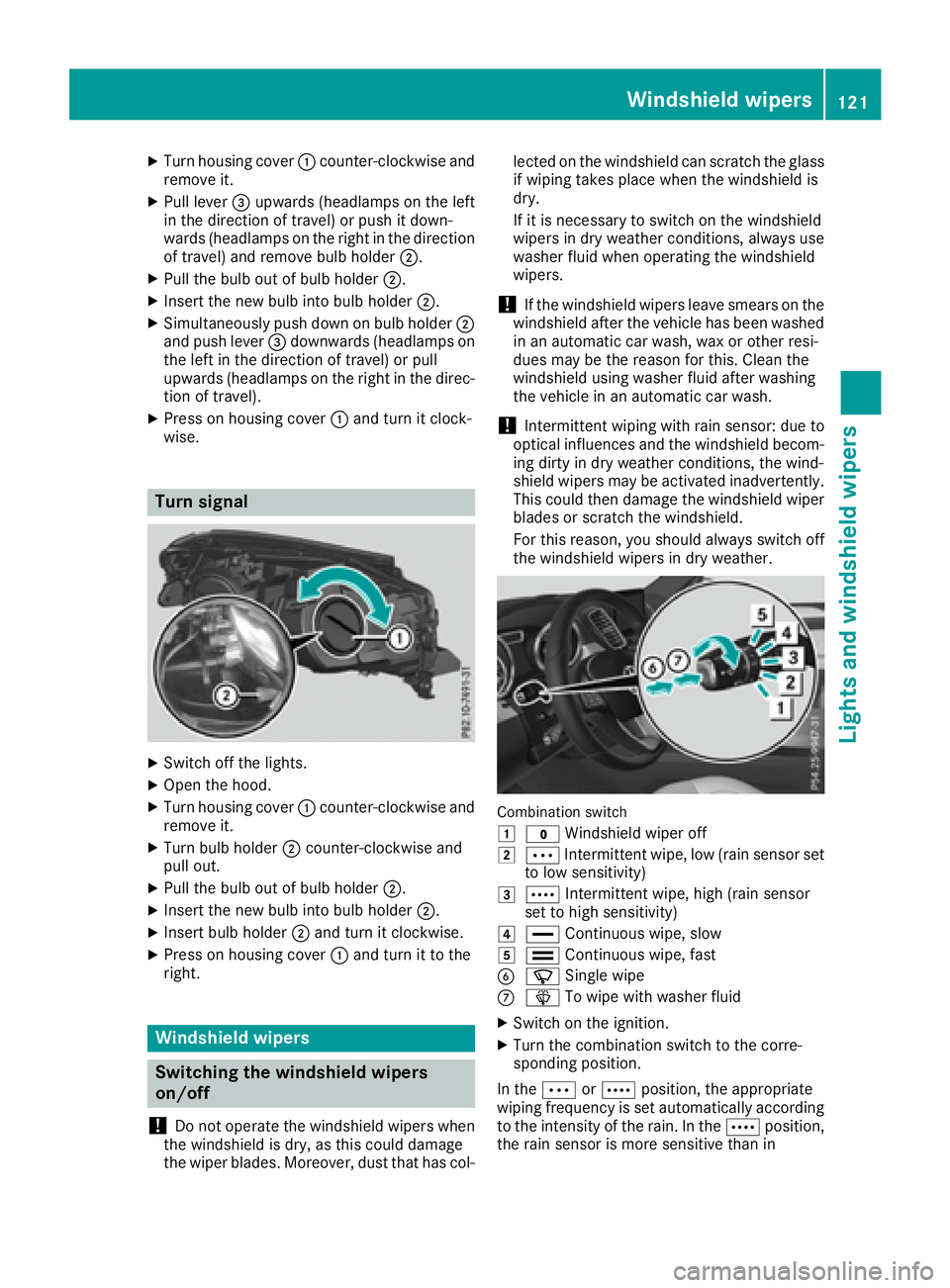

Turn housing cover C counter-clockwise and
remove it. X

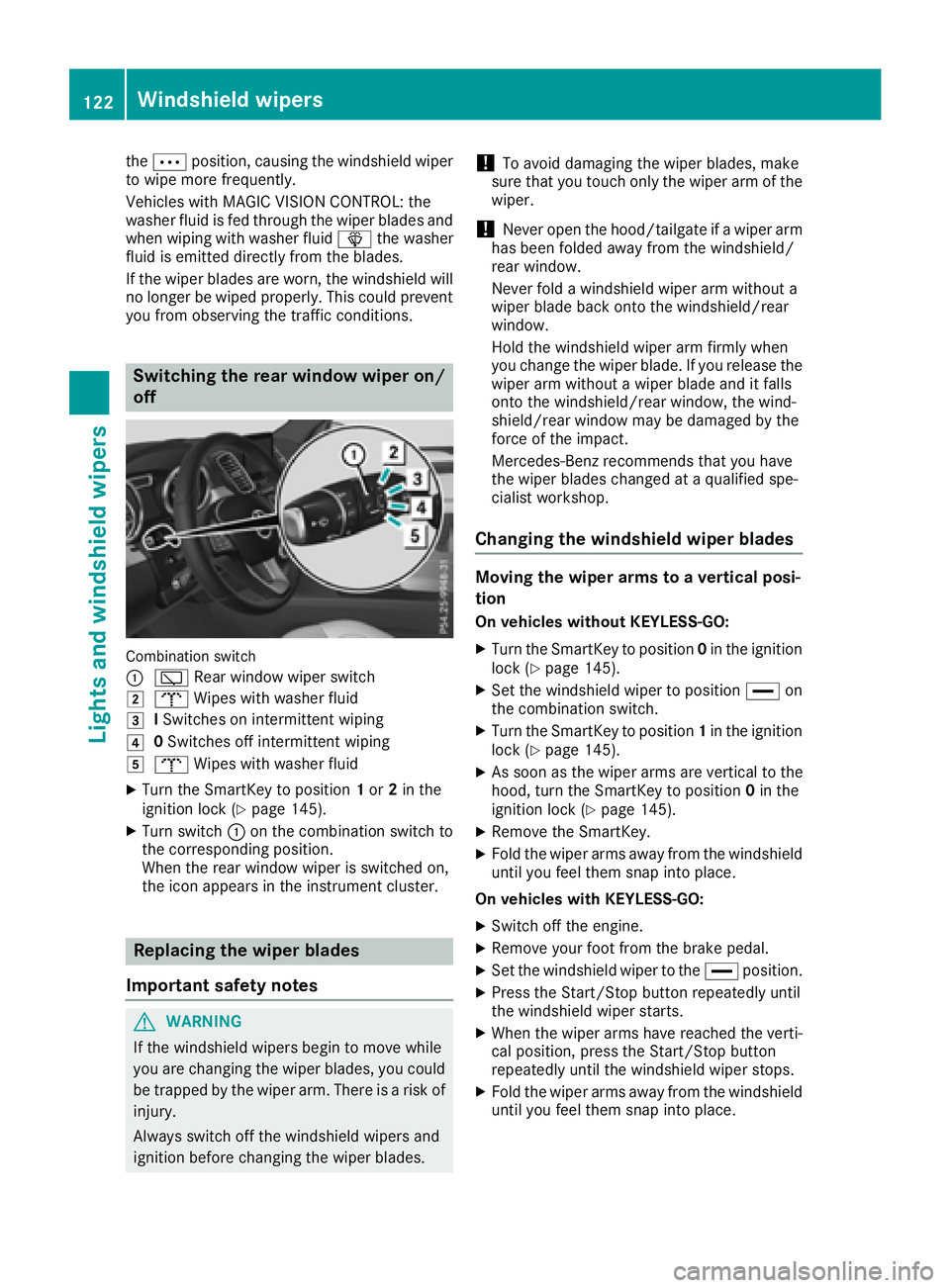

Pull lever

the b position, causing the windshield wiper
to wipe more frequently.
Vehicles with MAGIC VISION CONTROL: the
washer fluid is fed through the wiper blades and
when wiping with washer fluid

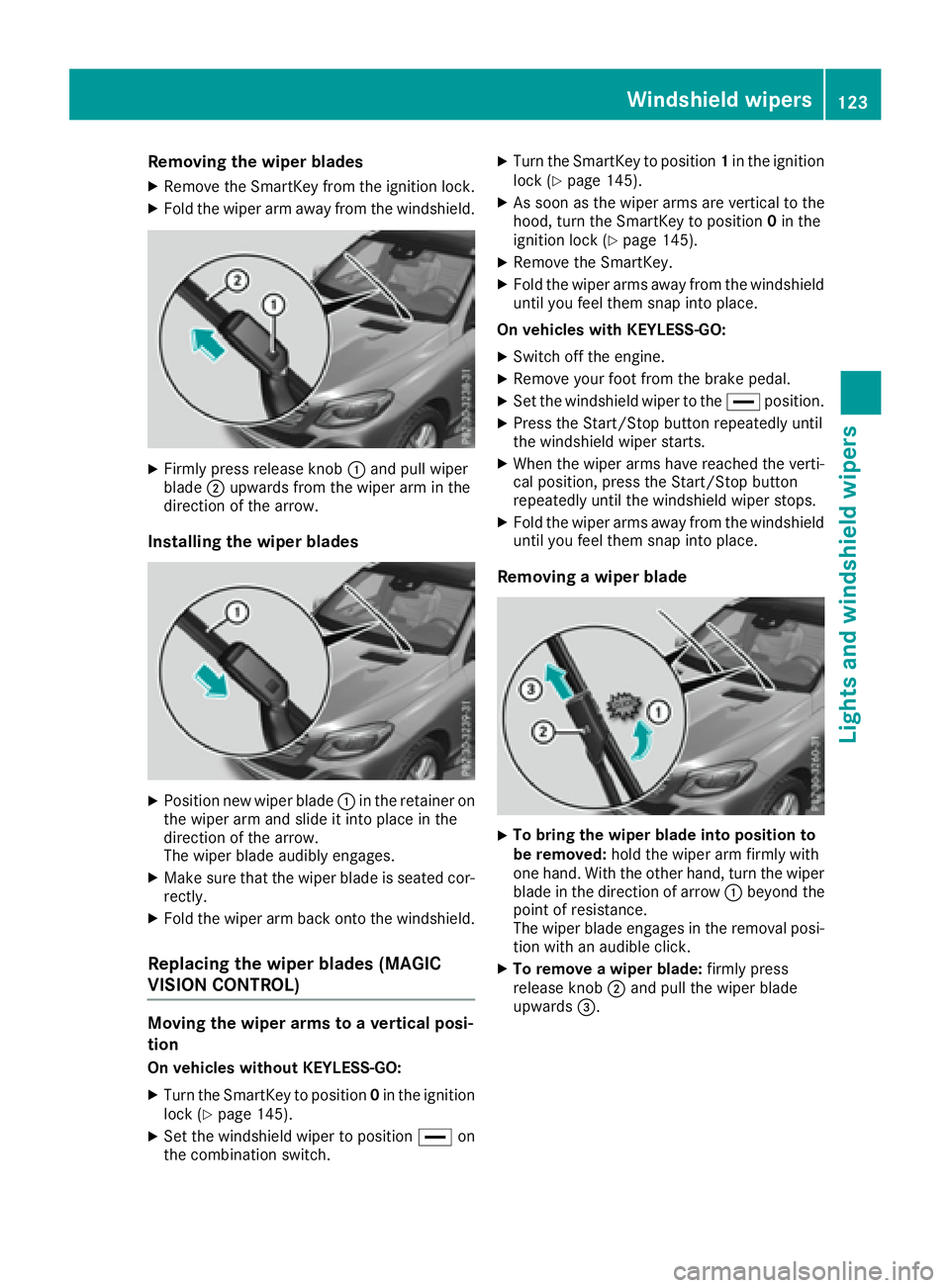

Removing the wiper blades X
Remove the SmartKey from the ignition lock. X
Fold the wiper arm away from the windshield.
X
Firmly press release knob C and pull wiper
blade D upwards from the wiper arm in the
direction of the arrow.
Installing the wiper blades
X
Position new wiper blade C in the retainer on
the wiper arm and slide it into place in the
direction of the arrow.
The wiper blade audibly engages. X
Make sure that the wiper blade is seated cor-
rectly. X
Fold the wiper arm back onto the windshield.
Replacing the wiper blades (MAGIC
VISION CONTROL)
Moving the wiper arms to a vertical posi-
tion
On vehicles without KEYLESS-GO: X
Turn the SmartKey to position 0 in the ignition
lock ( Y
page 145).X
Set the windshield wiper to position

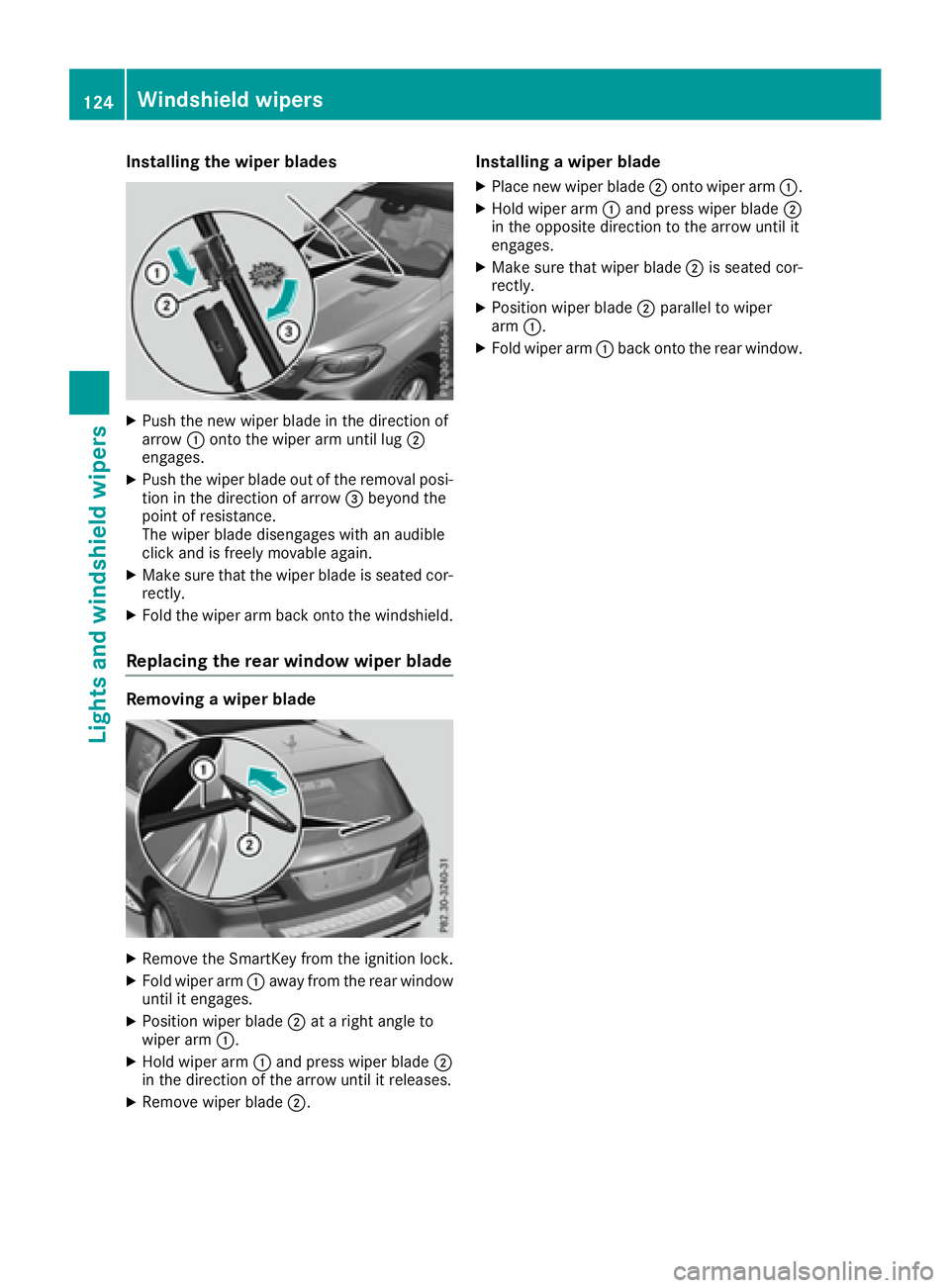

Installing the wiper blades X
Push the new wiper blade in the dire ction of
arrow C onto the wiper arm unt il lug D
engages. X
Push the wiper blade out of the removal posi-
tion in the dire ction of arrow

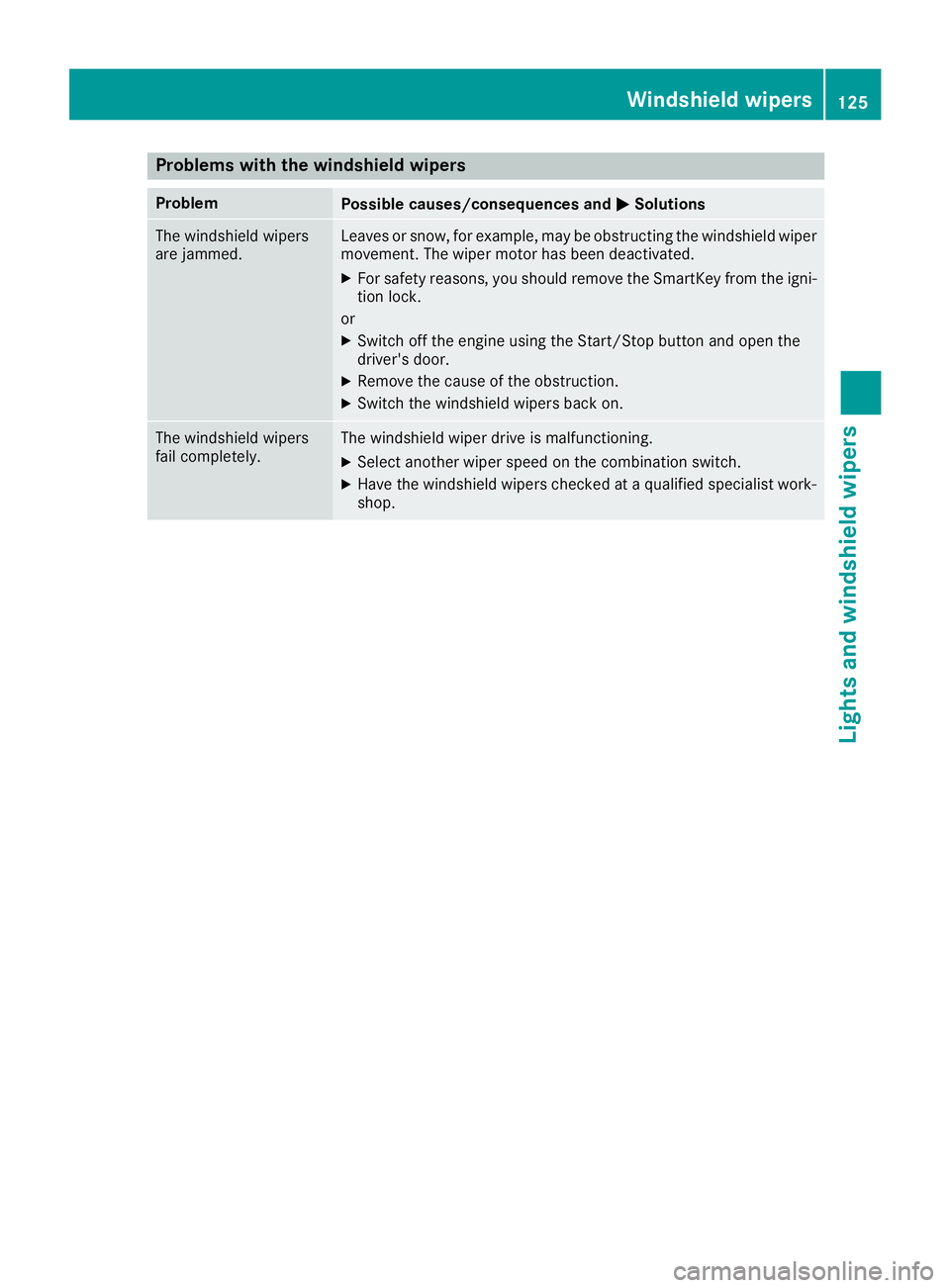

Problems with the windshield wipers Problem
Possible causes/consequences and P Solutions
The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield wiper
movement. The wiper motor has been deactivated. X
For safety reasons, you should remove the SmartKey from the igni-
tion lock.
or X
Switch off the engine using the Start/Stop button and open the
driver's door. X
Remove the cause of the obstruction. X
Switch the windshield wipers back on.
The windshield wipers
fail completely. The windshield wiper drive is malfunctioning. X
Select another wiper speed on the combination switch. X
Have the windshield wipers checked at a qualified specialist work-
shop. Windshield wipers 125
Lights and windshield wipers Z

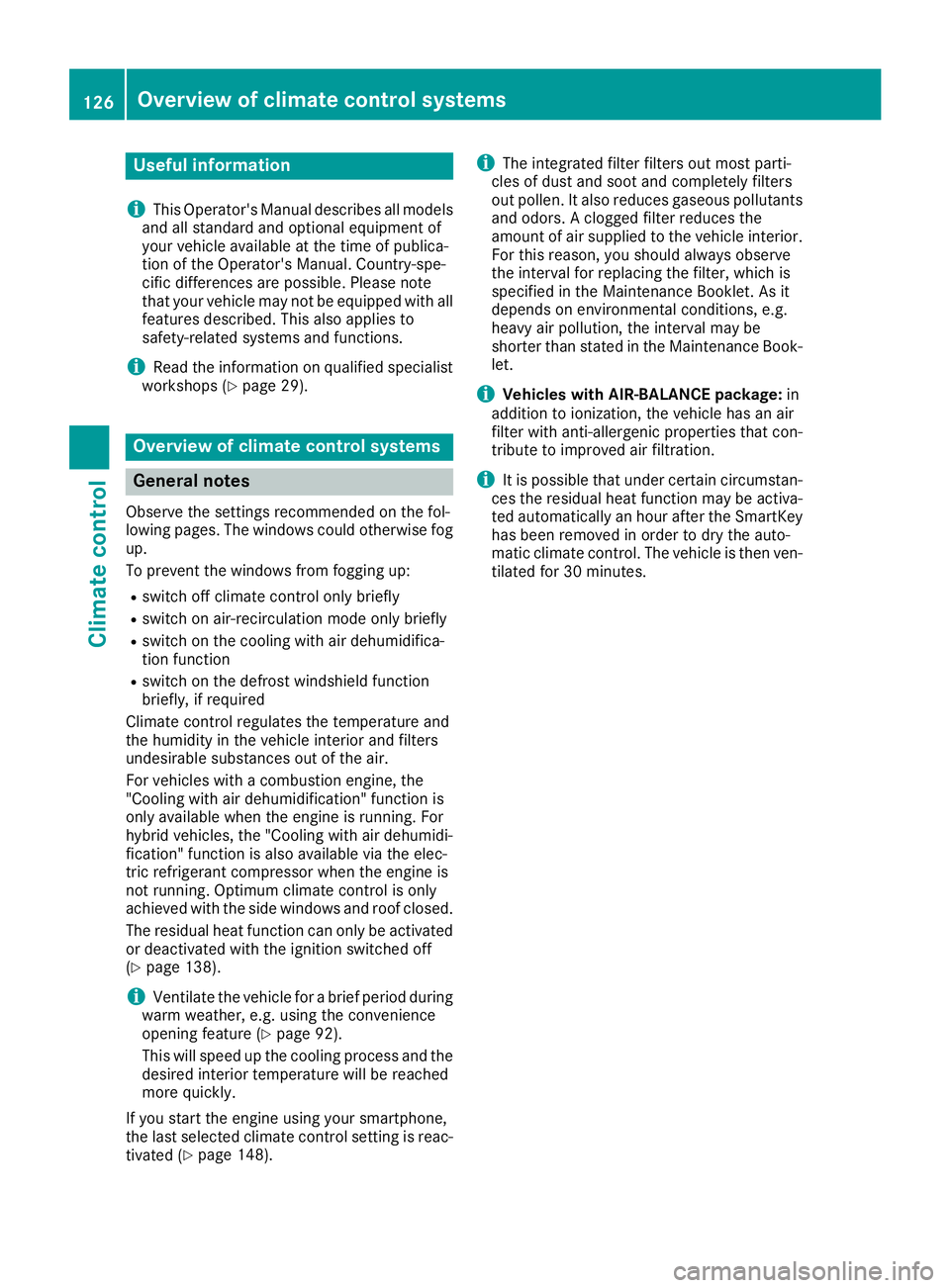

Useful information
i This Operator's Manual describes all models
and all standard and optional equipment of
your vehicle available at the time of publica-
tion of the Operator's Manual. Country-spe-
cific differences are possible. Please note
that your vehicle may not be equipped with all
features described. This also applies to
safety-related systems and functions.
i Read the information on qualified specialist
workshops ( Y
page 29).
Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
For vehicles with a combustion engine, the
"Cooling with air dehumidification" function is
only available when the engine is running. For
hybrid vehicles, the "Cooling with air dehumidi-
fication" function is also available via the elec-
tric refrigerant compressor when the engine is
not running. Optimum climate control is only
achieved with the side windows and roof closed.
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 138).
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 92).
This will speed up the cooling process and the
desired interior temperature will be reached
more quickly.
If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated ( Y
page 148). i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.
i Vehicles with AIR-BALANCE package: in
addition to ionization, t he vehicle has an air
filt
er with anti-allergenic properties that con-
tribute to improved air filtration.
i It is possible that under certain circumstan-
ces the residual heat function may be activa-
ted automatically an hour after the SmartKey
has been removed in order to dry the auto-
matic climate control. The vehicle is then ven-
tilated for 30 minutes.126
Overview of climate control systems
Climate control

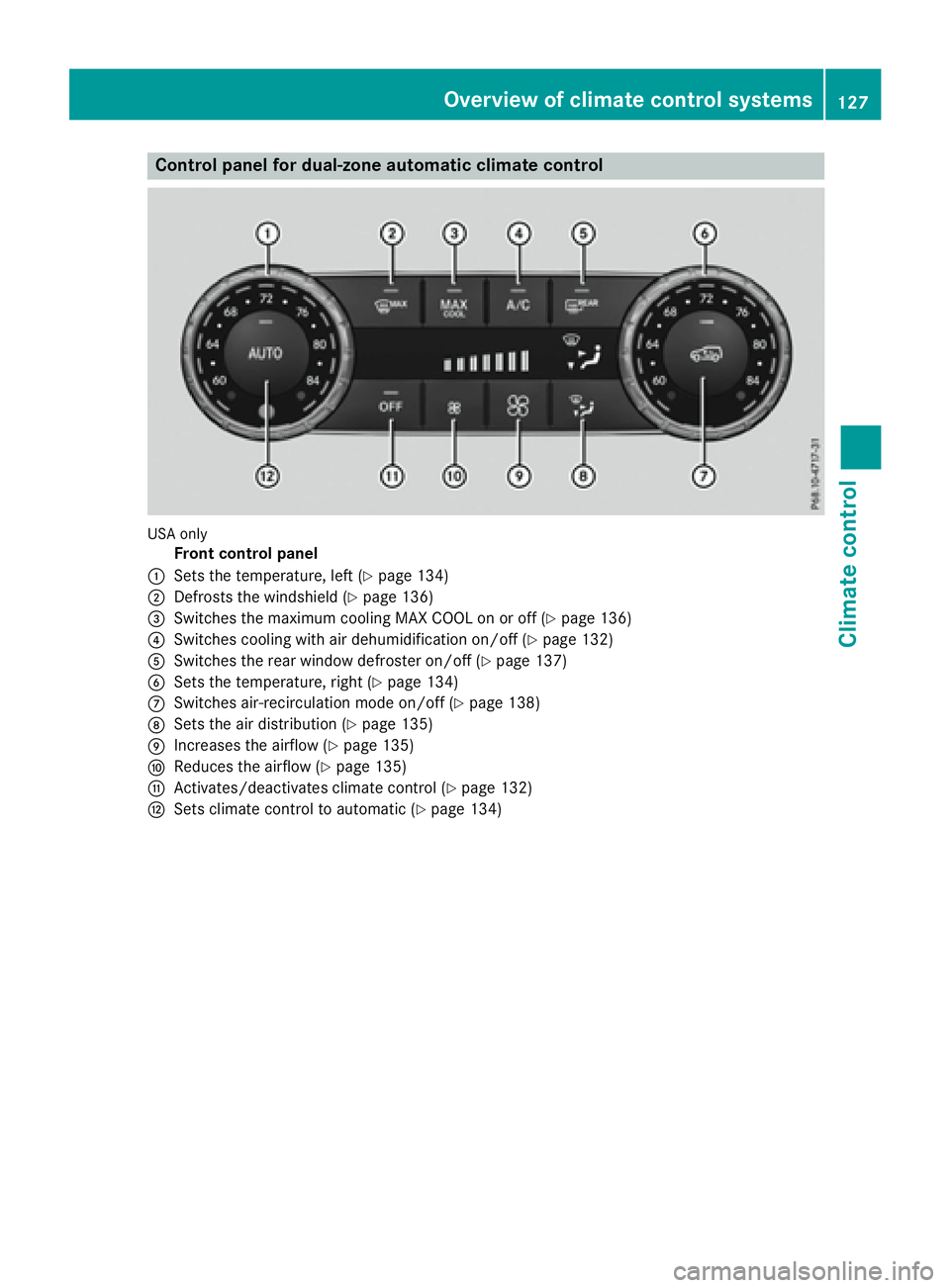

Control panel for dual-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 134)D
Defrosts the windshield ( Y
page 136)

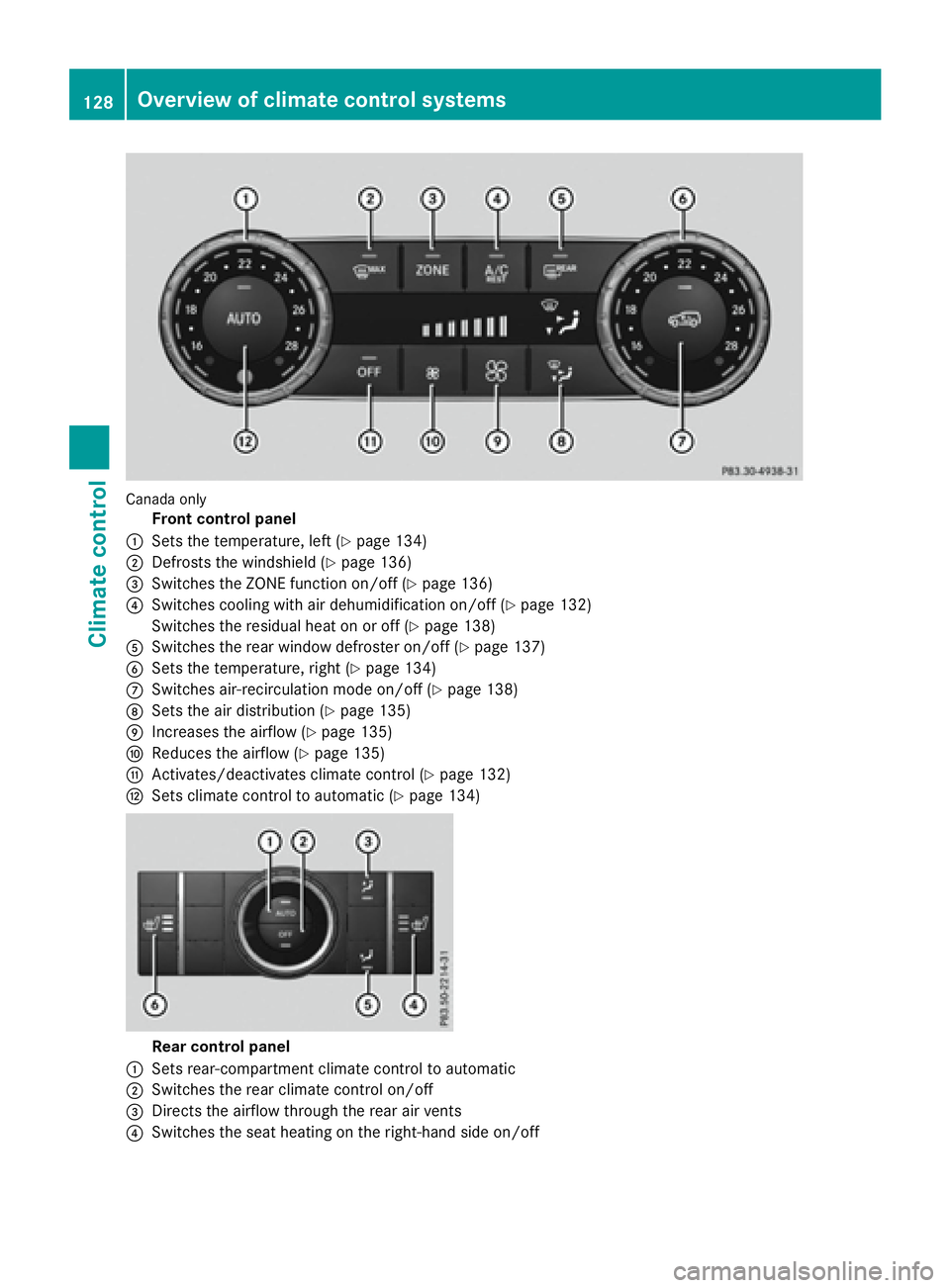

Canada on ly
Front control panelC
Sets the temperature, left ( Y
page 134)D
Defrosts the windshield ( Y
page 136)
