Page 341 of 398

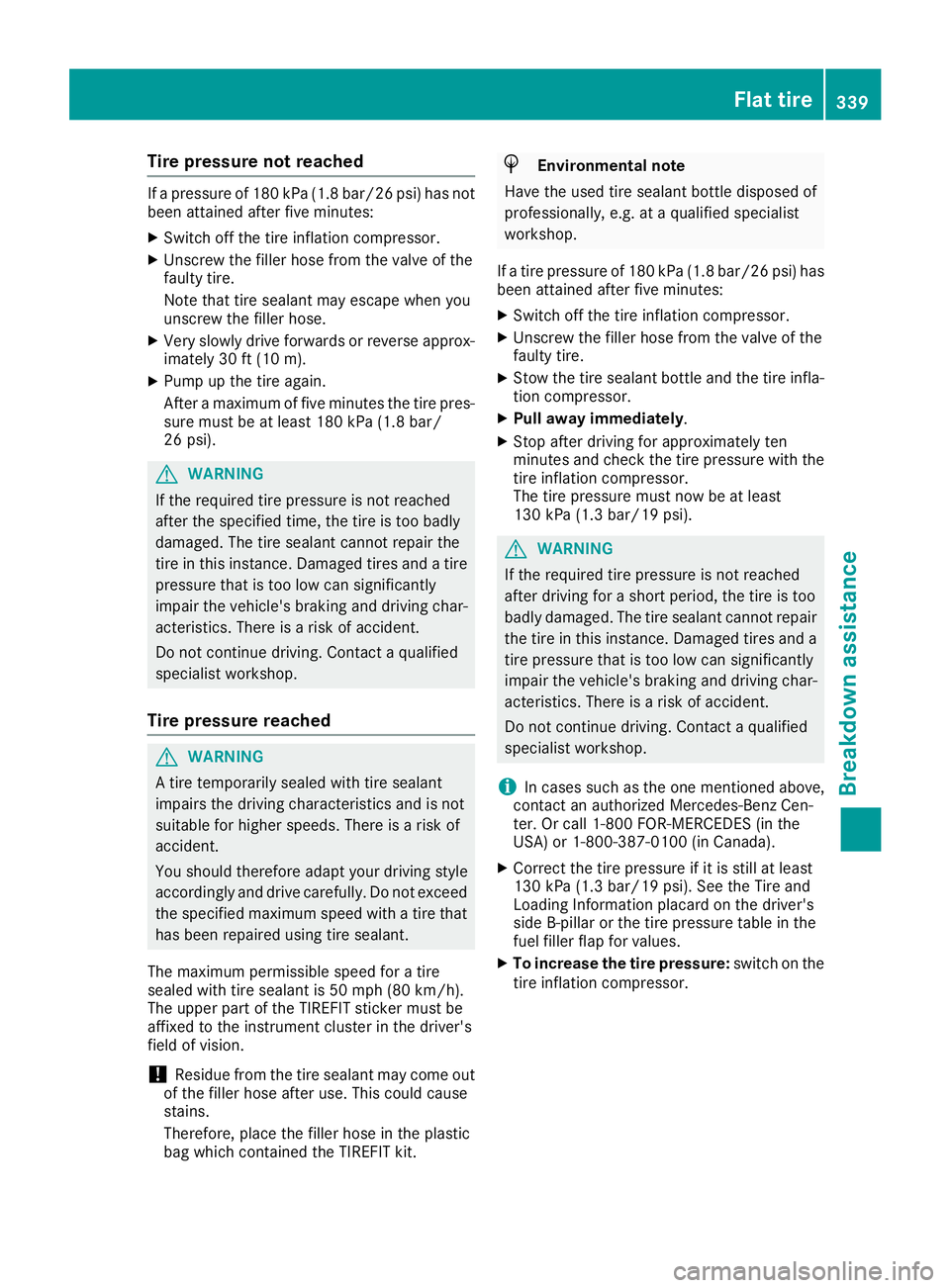

MERCEDES-BENZ GLE SUV 2019  Owners Manual Tire pressure not reached
If a pressure of 180 kPa (1.8 bar/26 psi) has not
been attained after five minutes:
X Switch off the tire inflation compressor.
X Unscrew the filler hose from the valve of th

Page 342 of 398

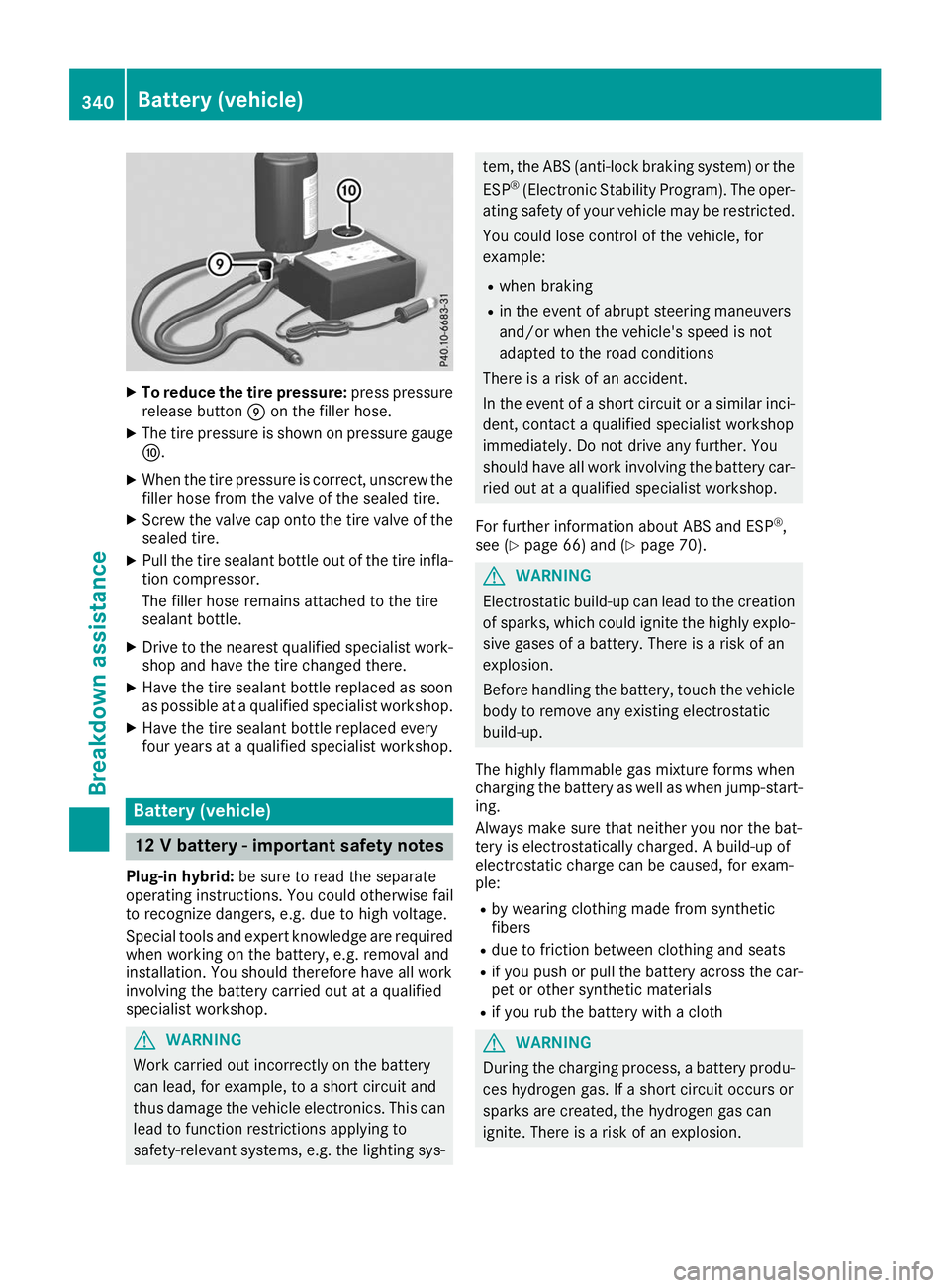

MERCEDES-BENZ GLE SUV 2019  Owners Manual X
To reduce the tire pressure: press pressure
release button 006Don the filler hose.
X The tire pressure is shown on pressure gauge
006E.
X When the tire pressure is correct, unscrew the
filler hose f

Page 343 of 398

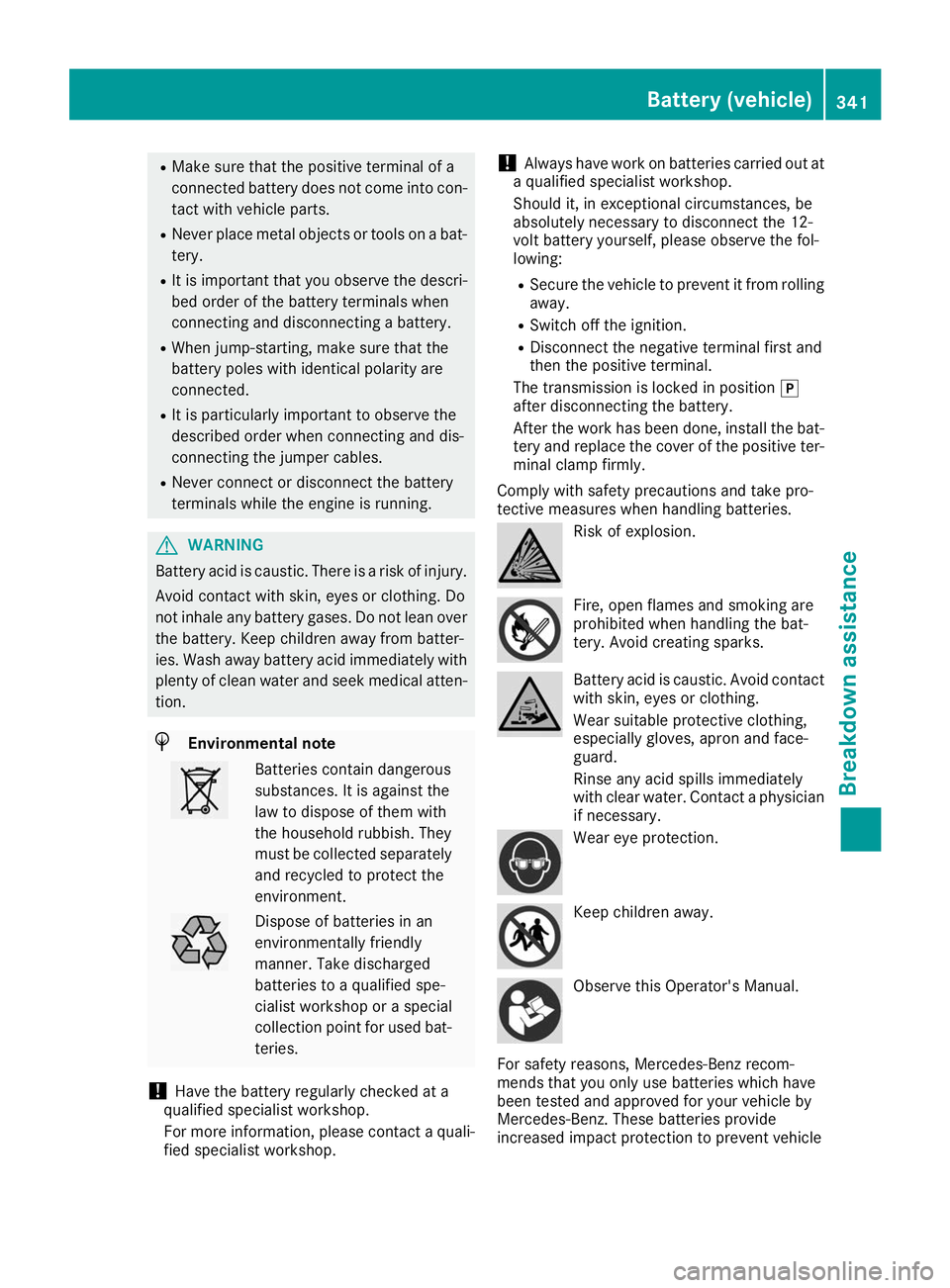

MERCEDES-BENZ GLE SUV 2019  Owners Manual R
Make sure that the positive terminal of a
connected battery does not come into con-
tact with vehicle parts.
R Never place metal objects or tools on a bat-
tery.
R It is important that you observe t

Page 344 of 398

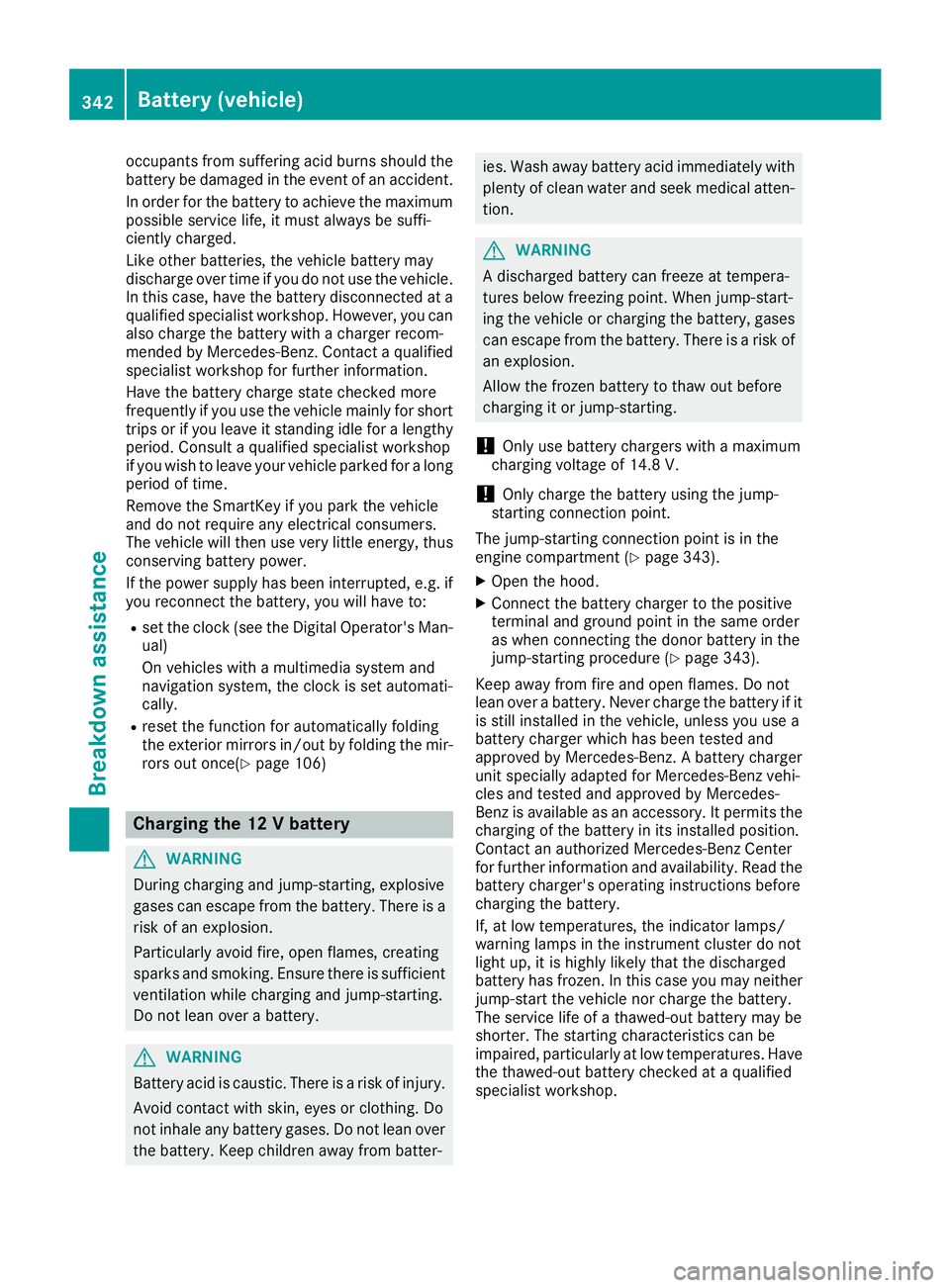

MERCEDES-BENZ GLE SUV 2019  Owners Manual occupants from suffering acid burns should the
battery be damaged in the event of an accident.
In order for the battery to achieve the maximum possible service life, it must always be suffi-
ciently c

Page 345 of 398

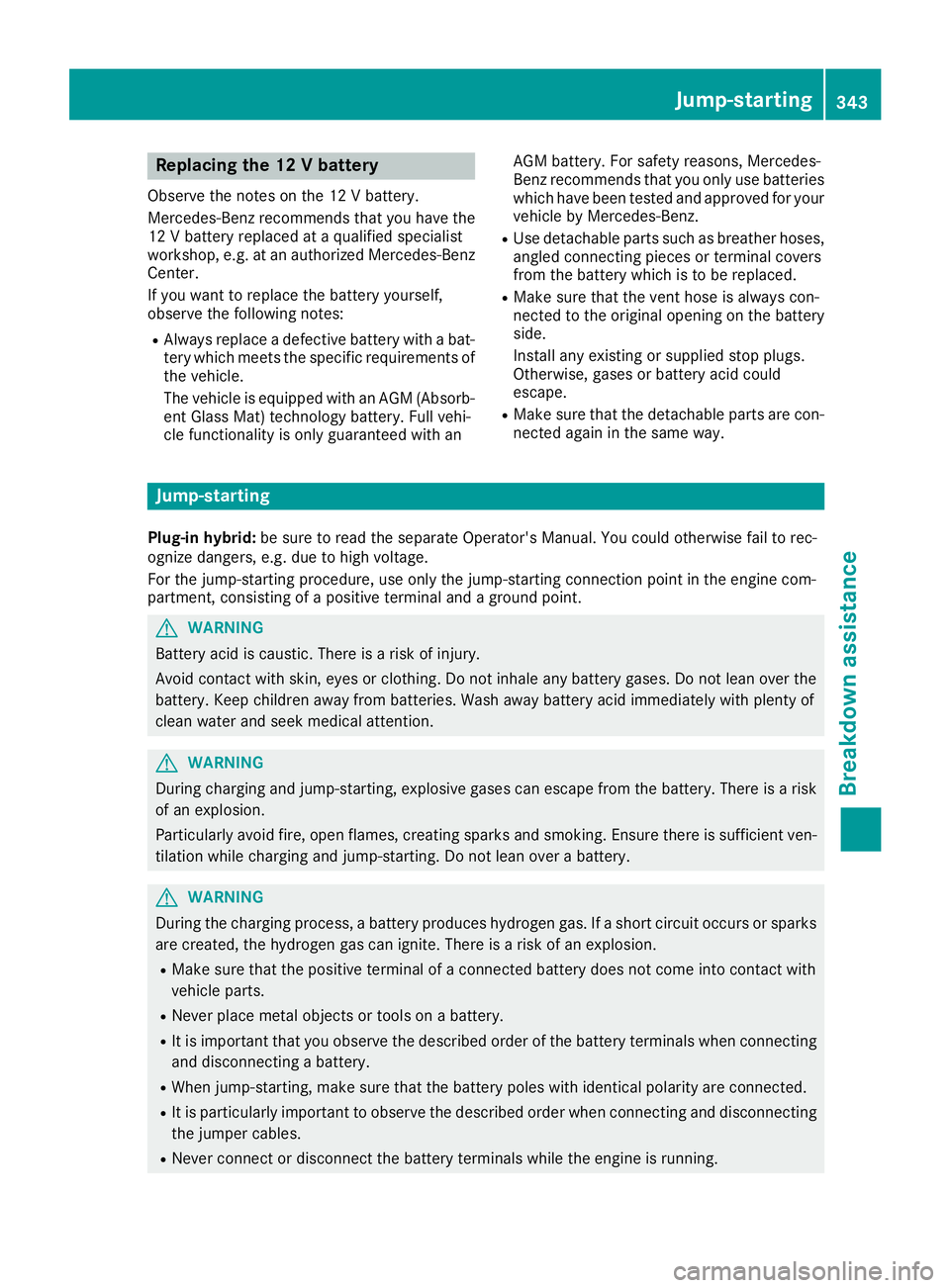

MERCEDES-BENZ GLE SUV 2019  Owners Manual Replacing the 12 V battery
Observe the notes on the 12 V battery.
Mercedes-Benz recommends that you have the
12 V battery replaced at a qualified specialist
workshop, e.g. at an authorized Mercedes-Be

Page 346 of 398

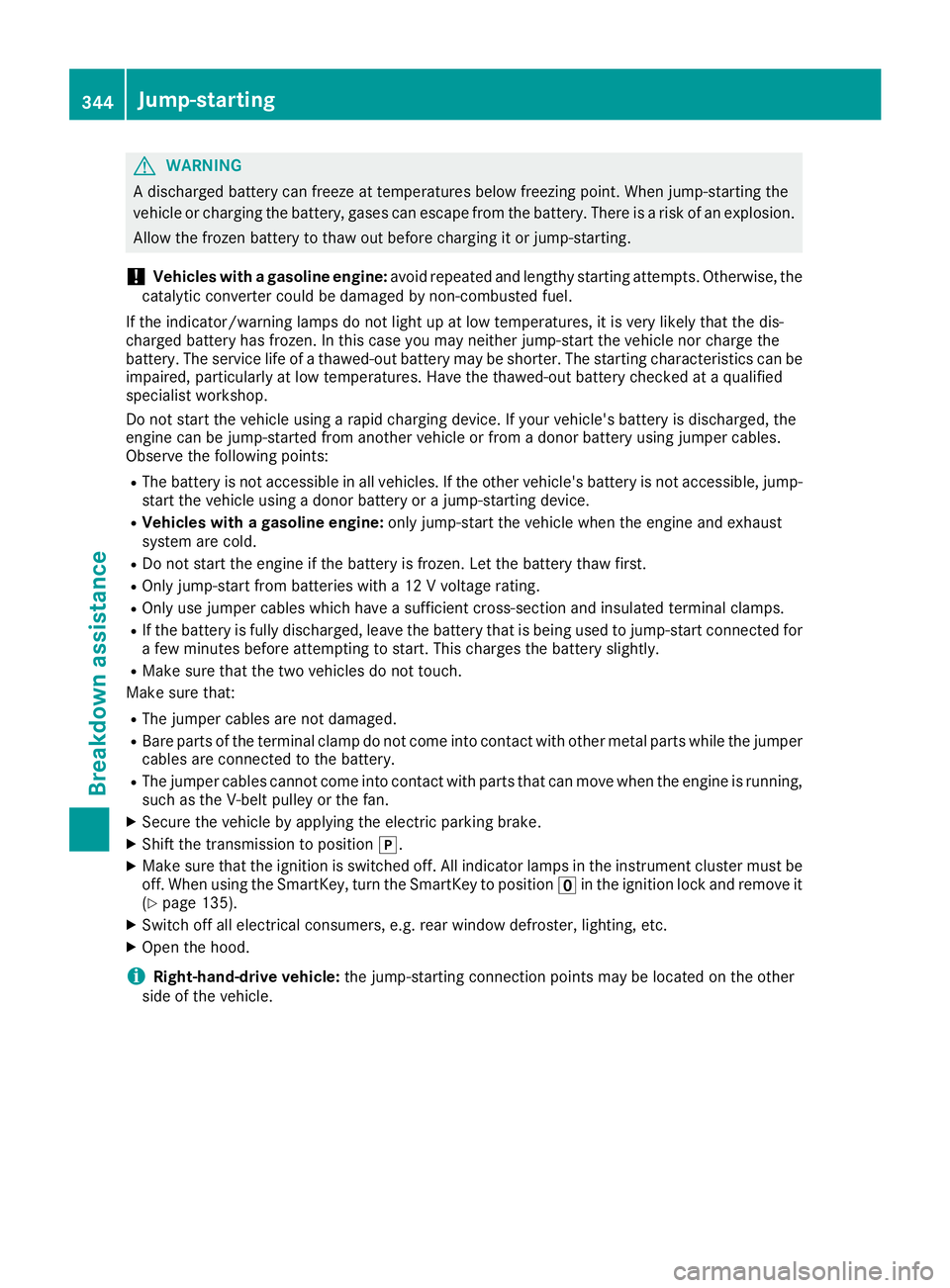

MERCEDES-BENZ GLE SUV 2019  Owners Manual G
WARNING
A discharged battery can freeze at temperatures below freezing point. When jump-starting the
vehicle or charging the battery, gases can escape from the battery. There is a risk of an explosi

Page 347 of 398

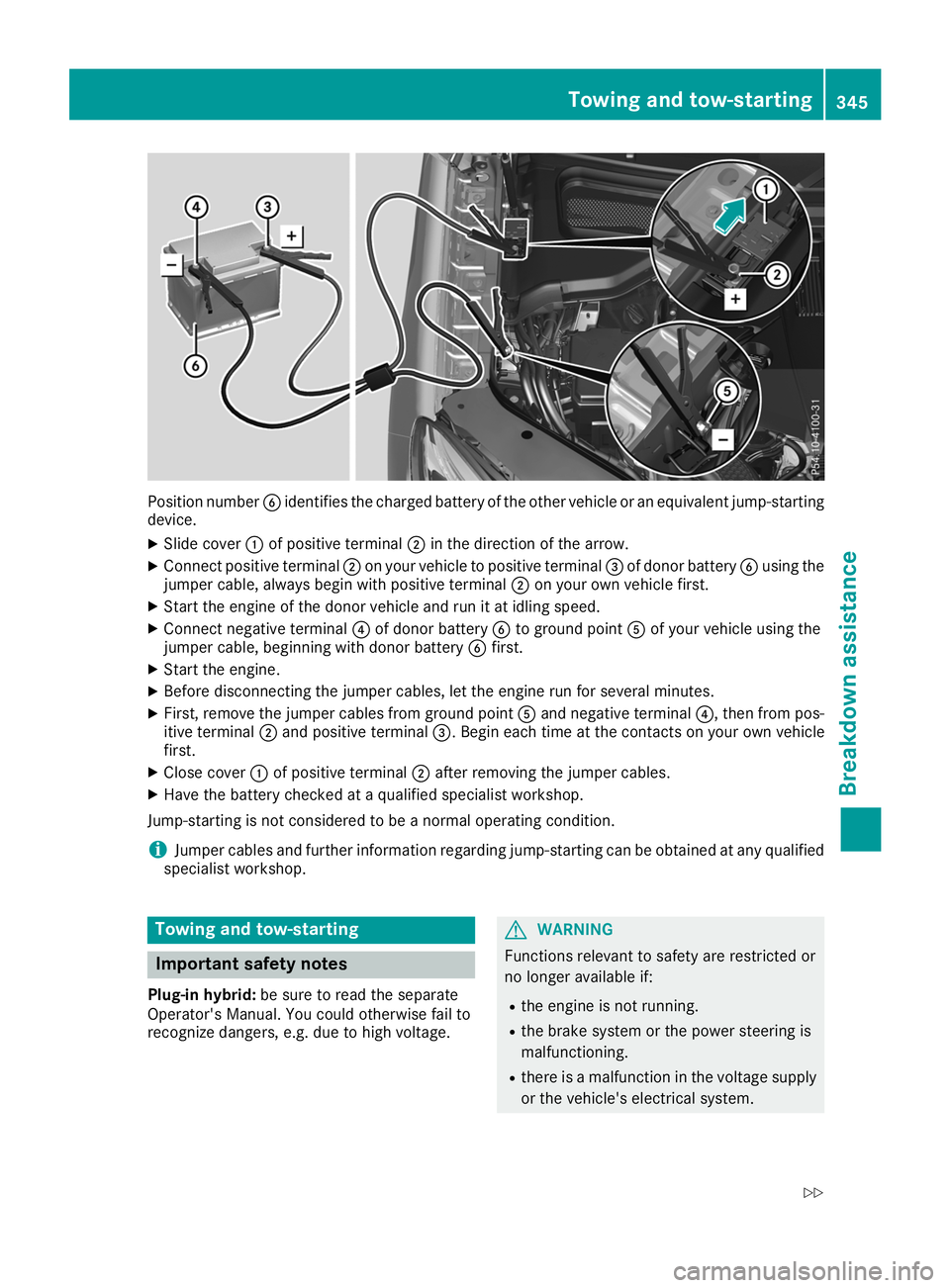

MERCEDES-BENZ GLE SUV 2019  Owners Manual Position number
0084identifies the charged battery of the other vehicle or an equivalent jump-starting
device.
X Slide cover 0043of positive terminal 0044in the direction of the arrow.
X Connect posit

Page 348 of 398

MERCEDES-BENZ GLE SUV 2019  Owners Manual If your vehicle is being towed, much more
force may be necessary to steer or brake.
There is a risk of an accident.
In such cases, use a tow bar. Before towing,
make sure that the steering moves freel

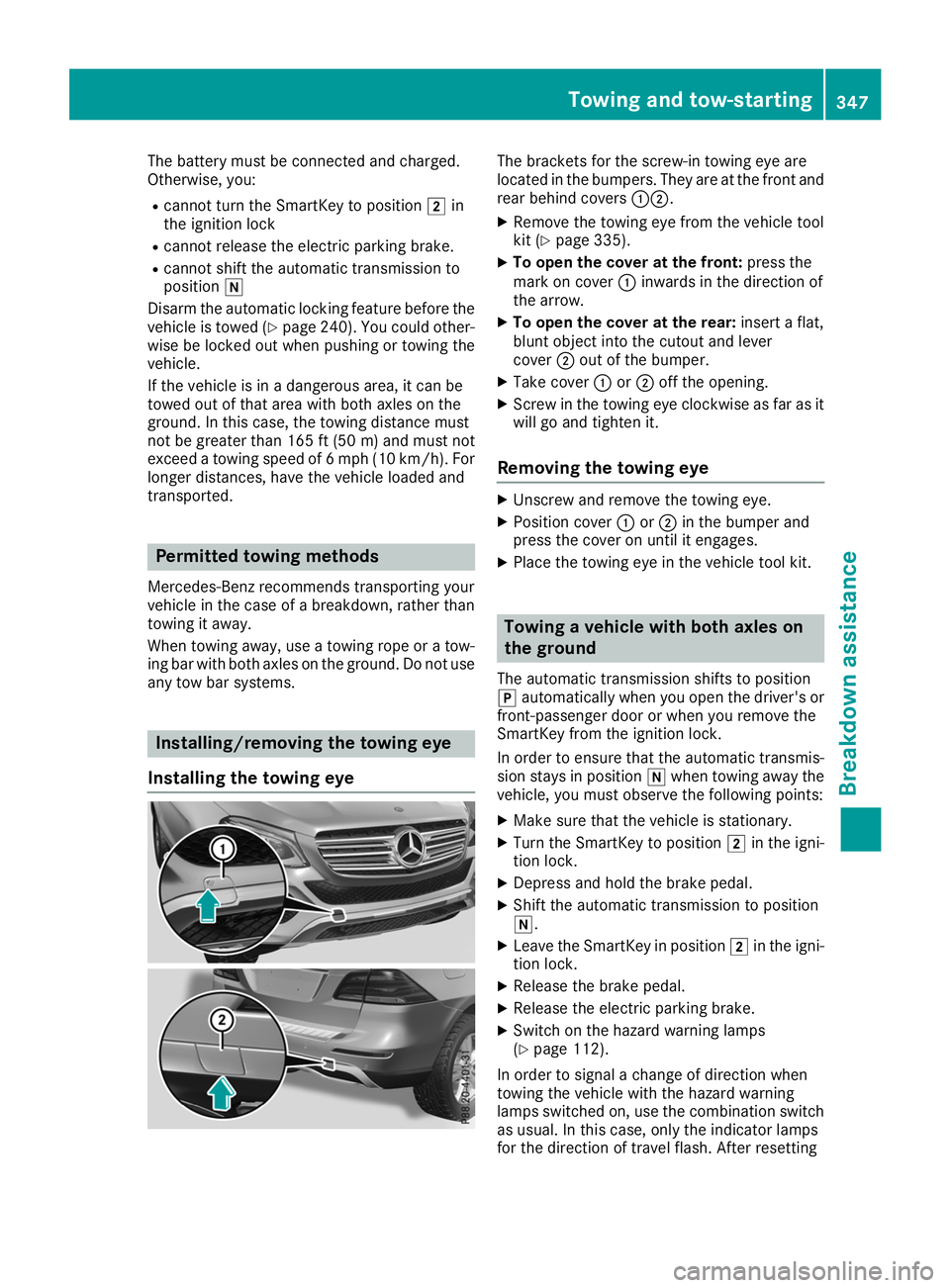

Page 349 of 398

MERCEDES-BENZ GLE SUV 2019  Owners Manual The battery must be connected and charged.
Otherwise, you:
R cannot turn the SmartKey to position 0048in
the ignition lock
R cannot release the electric parking brake.
R cannot shift the automatic tra

Page 350 of 398

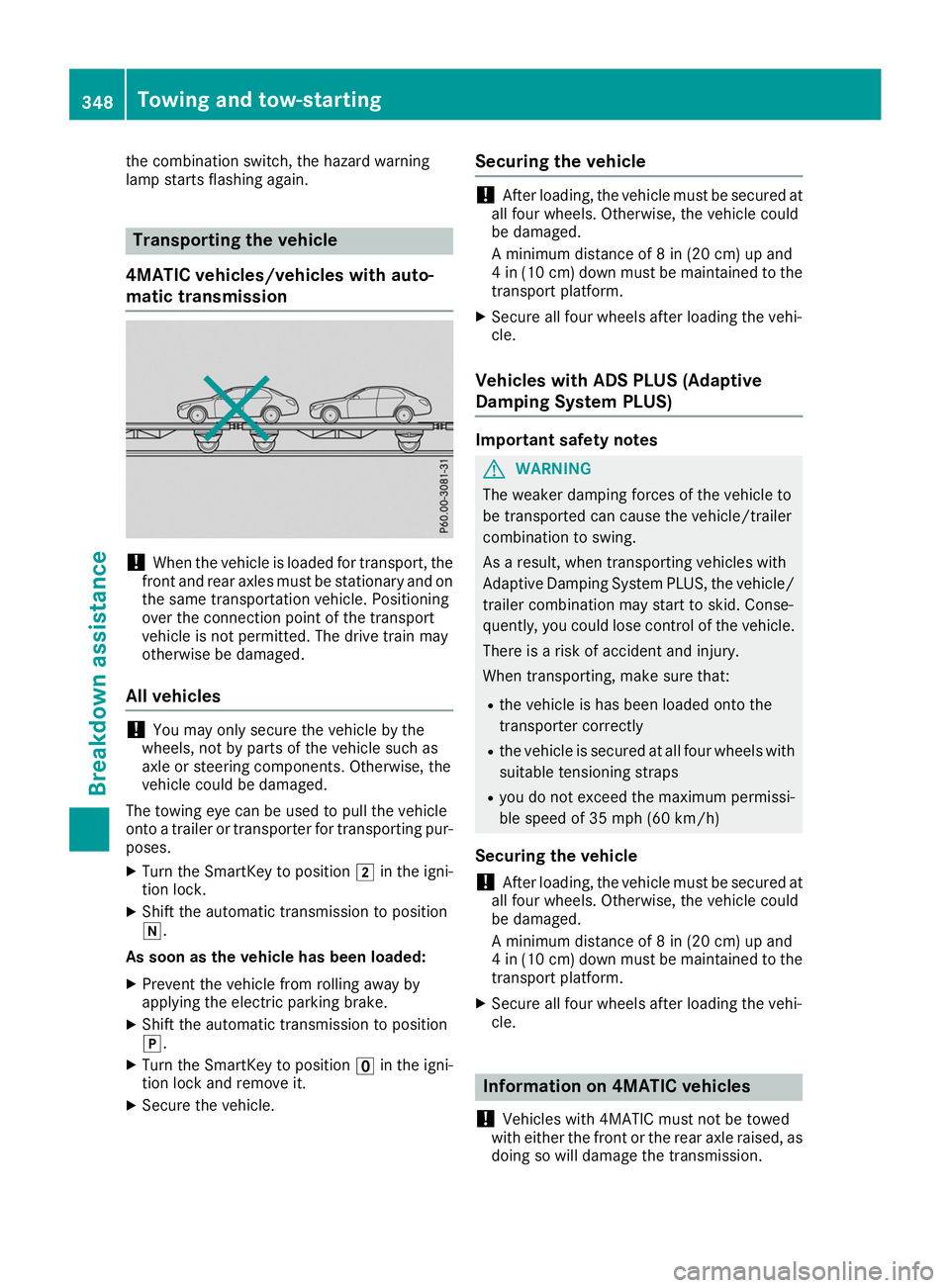

MERCEDES-BENZ GLE SUV 2019  Owners Manual the combination switch, the hazard warning
lamp starts flashing again. Transporting the vehicle
4MATIC vehicles/vehicles with auto-
matic transmission !
When the vehicle is loaded for transport, the
f
