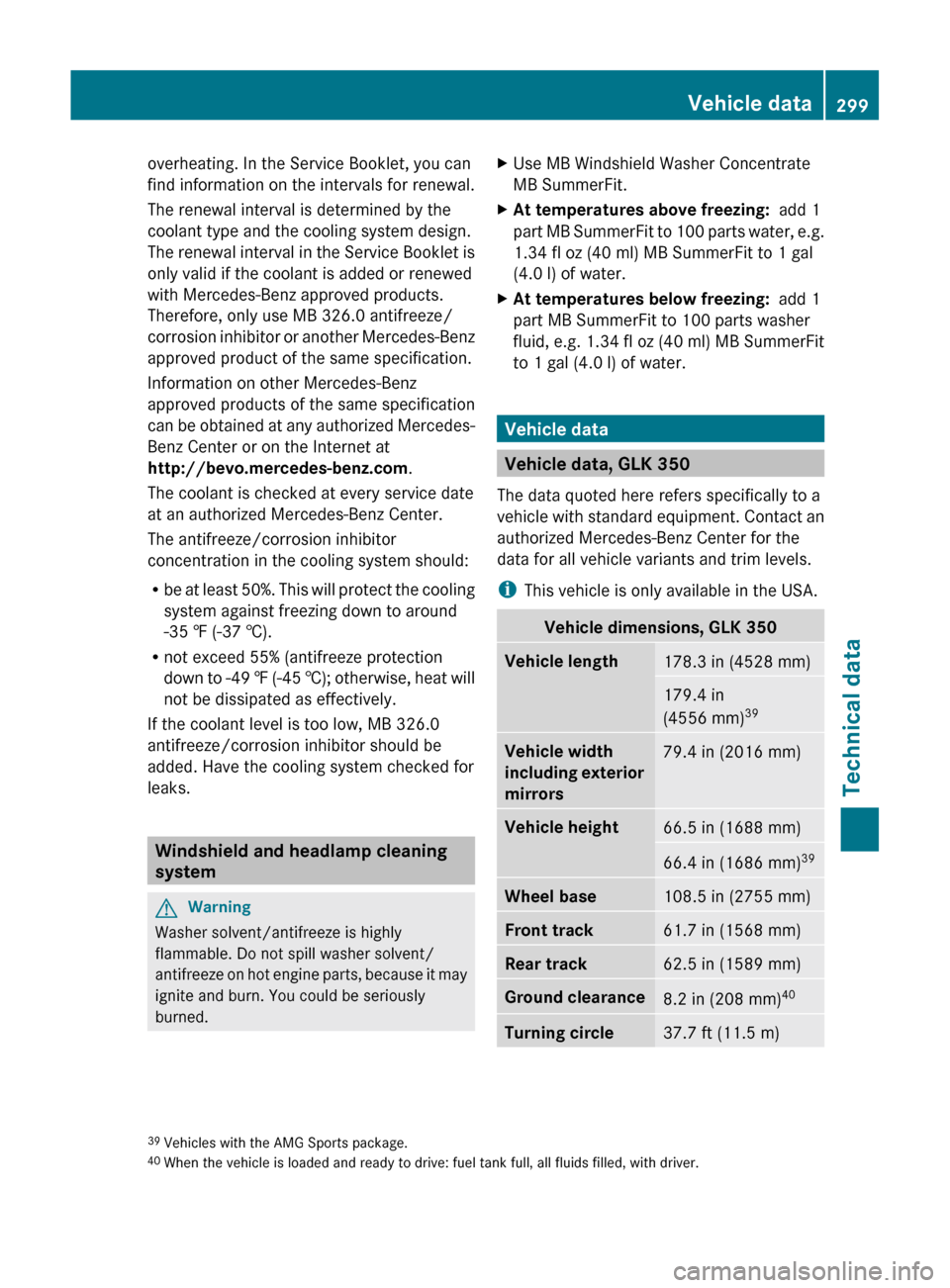

overheating. In the Service Booklet, you can
find information on the intervals for renewal.
The renewal interval is determined by the
coolant type and the cooling system design.
The renewal interval in the Service Booklet is
only valid if the coolant is added or renewed
with Mercedes-Benz approved products.
Therefore, only use MB 326.0 antifreeze/
corrosion inhibitor or another Mercedes-Benz
approved product of the same specification.
Information on other Mercedes-Benz
approved products of the same specification
can be obtained at any authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com .
The coolant is checked at every service date
at an authorized Mercedes-Benz Center.
The antifreeze/corrosion inhibitor
concentration in the cooling system should:
R be at least 50%. This will protect the cooling
system against freezing down to around
-35 ‡ (-37 †).
R not exceed 55% (antifreeze protection
down to -49 ‡ (-45 †); otherwise, heat will
not be dissipated as effectively.
If the coolant level is too low, MB 326.0
antifreeze/corrosion inhibitor should be
added. Have the cooling system checked for
leaks.
Windshield and headlamp cleaning
system
GWarning
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
XUse MB Windshield Washer Concentrate
MB SummerFit.XAt temperatures above freezing: add 1
part MB SummerFit to 100 parts water, e.g.
1.34 fl oz (40 ml) MB SummerFit to 1 gal
(4.0 l) of water.XAt temperatures below freezing: add 1
part MB SummerFit to 100 parts washer
fluid, e.g. 1.34 fl oz (40 ml) MB SummerFit
to 1 gal (4.0 l) of water.
Vehicle data
Vehicle data, GLK 350
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
i This vehicle is only available in the USA.
Vehicle dimensions, GLK 350Vehicle length178.3 in (4528 mm)179.4 in
(4556 mm) 39Vehicle width
including exterior
mirrors79.4 in (2016 mm)Vehicle height66.5 in (1688 mm)66.4 in (1686 mm) 39Wheel base108.5 in (2755 mm)Front track61.7 in (1568 mm)Rear track62.5 in (1589 mm)Ground clearance8.2 in (208 mm)40Turning circle37.7 ft (11.5 m)39
Vehicles with the AMG Sports package.
40 When the vehicle is loaded and ready to drive: fuel tank full, all fluids filled, with driver.Vehicle data299Technical dataBA 204.9 USA, CA Edition A 2011; 1; 6, en-USd2mwentsVersion: 3.0.3.62010-06-15T08:58:39+02:00 - Seite 299Z

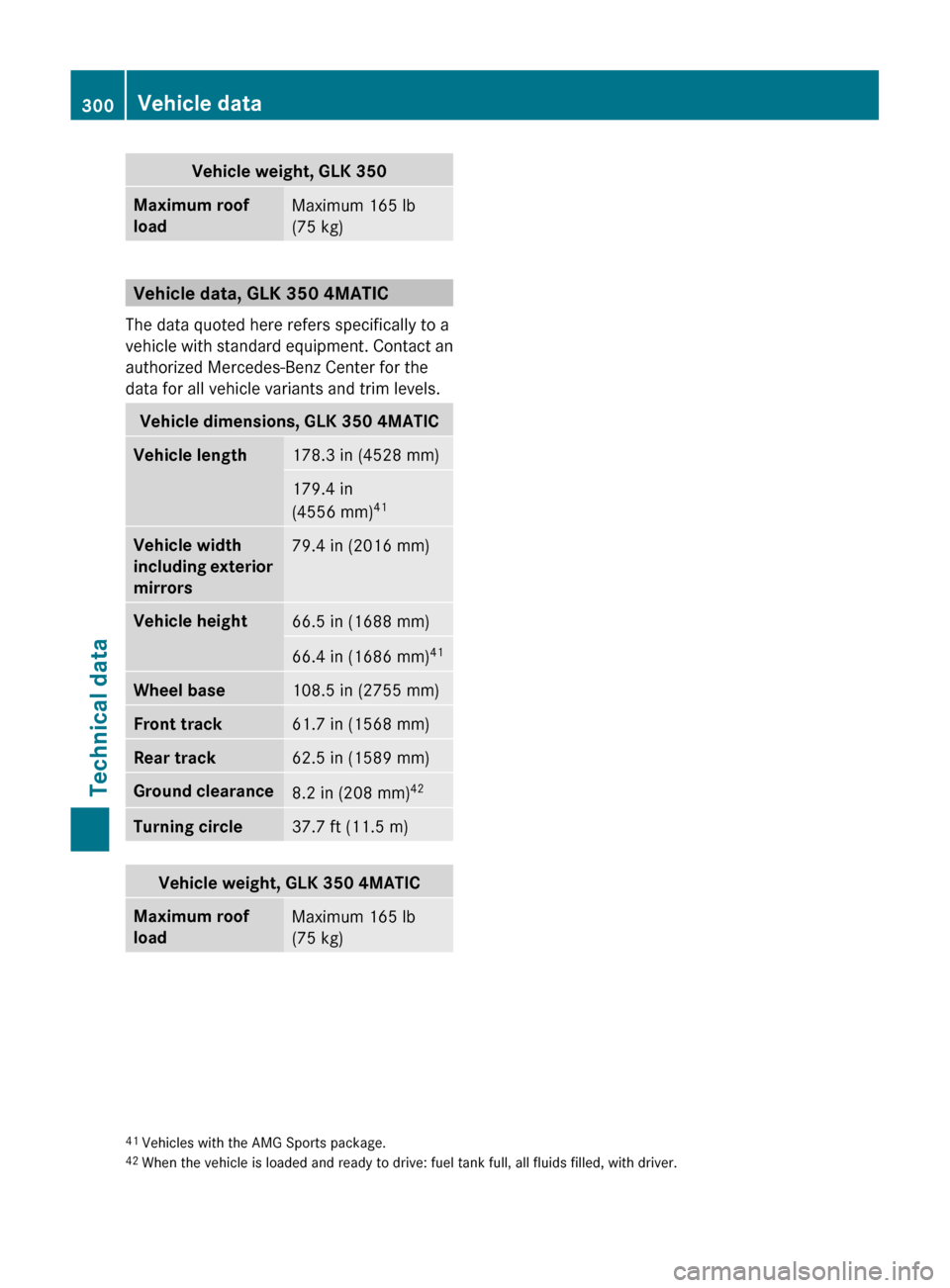

Vehicle weight, GLK 350Maximum roof
loadMaximum 165 lb
(75 kg)
Vehicle data, GLK 350 4MATIC
The data quoted here refers specifically to a
vehicle with standard equipment. Contact an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle dimensions, GLK 350 4MATICVehicle length178.3 in (4528 mm)179.4 in
(4556 mm) 41Vehicle width
including exterior
mirrors79.4 in (2016 mm)Vehicle height66.5 in (1688 mm)66.4 in (1686 mm) 41Wheel base108.5 in (2755 mm)Front track61.7 in (1568 mm)Rear track62.5 in (1589 mm)Ground clearance8.2 in (208 mm)42Turning circle37.7 ft (11.5 m)Vehicle weight, GLK 350 4MATICMaximum roof
loadMaximum 165 lb
(75 kg)41 Vehicles with the AMG Sports package.
42 When the vehicle is loaded and ready to drive: fuel tank full, all fluids filled, with driver.300Vehicle dataTechnical data
BA 204.9 USA, CA Edition A 2011; 1; 6, en-USd2mwentsVersion: 3.0.3.62010-06-15T08:58:39+02:00 - Seite 300

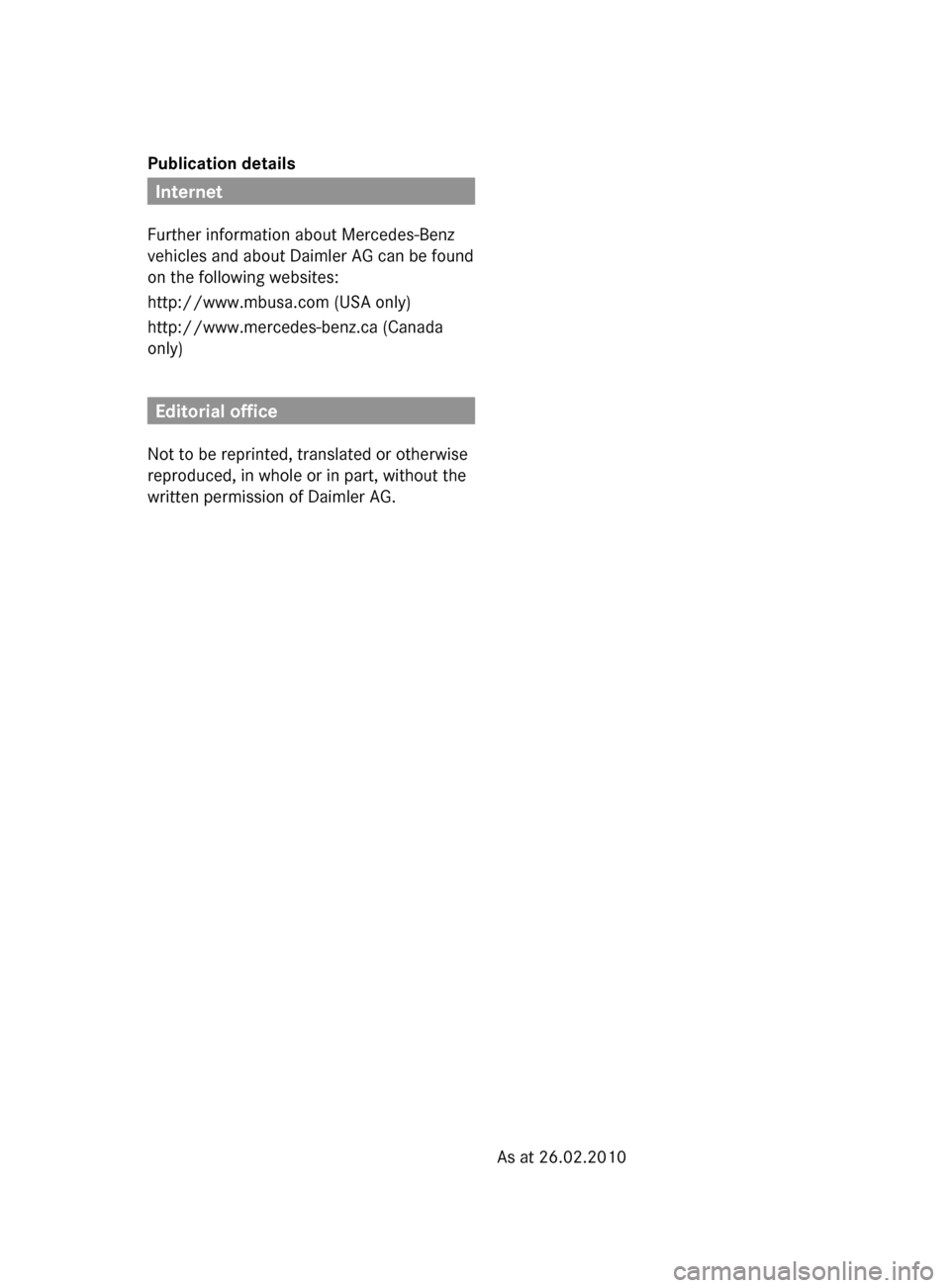

Publication details
Internet
Further information about Mercedes-Benz
vehicles and about Daimler AG can be found
on the following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca (Canada
only)
Editorial office
Not to be reprinted, translated or otherwise
reproduced, in whole or in part, without the
written permission of Daimler AG.
As at 26.02.2010BA 204.9 USA, CA Edition A 2011; 1; 6, en-USd2mwentsVersion: 3.0.3.62010-06-15T08:58:39+02:00 - Seite 301

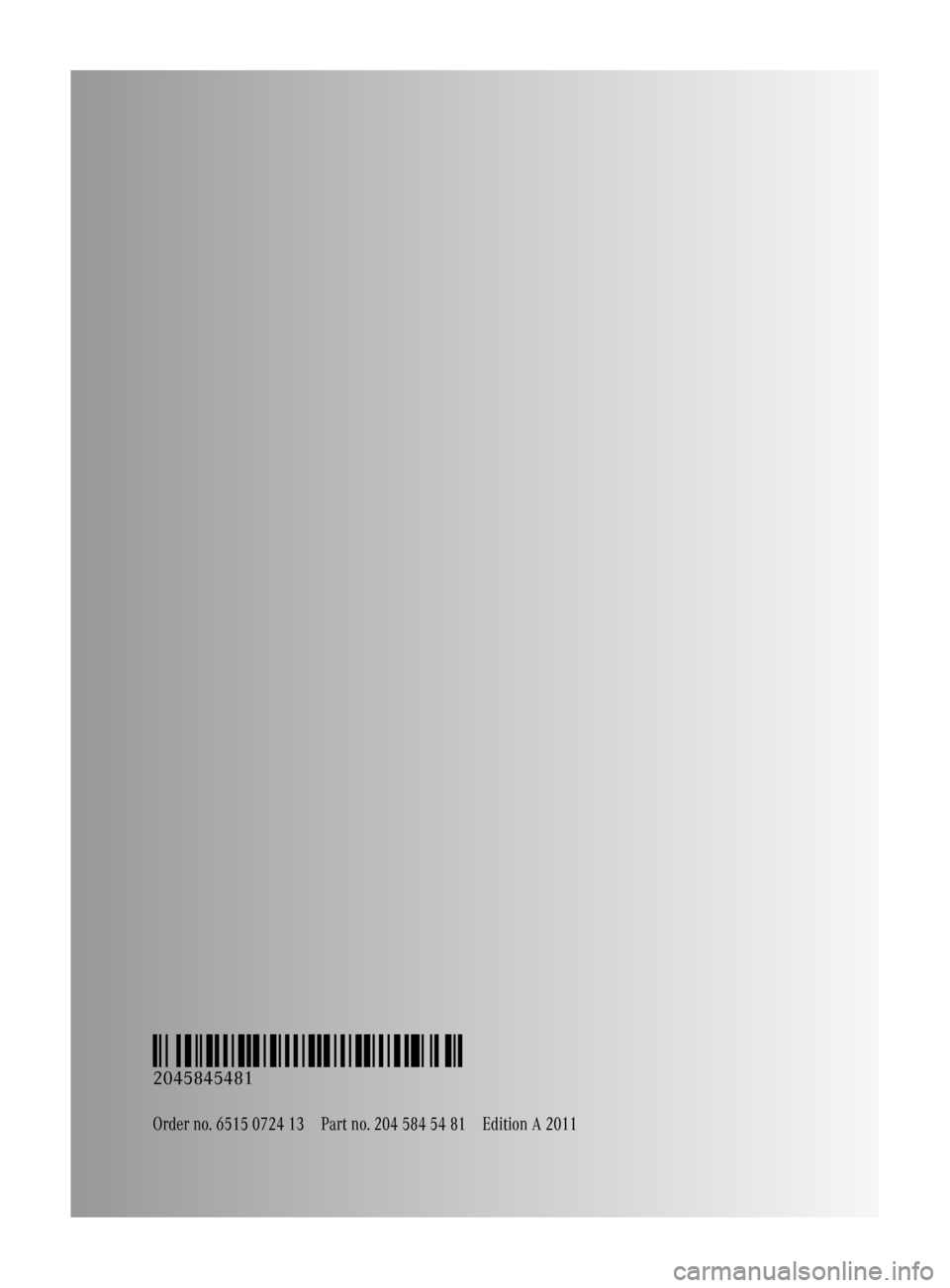

Order no. 6515 0724 13Part no. 204 584 54 81Edition A 2011
