Instrument cluster
Displays and controls
FunctionPage:Fuel gauge;Coolant temperature166=Speedometer167?Segments167AMultifunction display168BTachometer167COutside temperature167DOutside temperature167Additional speedometer175FunctionPageETransmission position and
drive program
136
FClock176GInstrument cluster lighting
brightness control: turn
clockwise or counter-
clockwiseInstrument cluster29At a glance

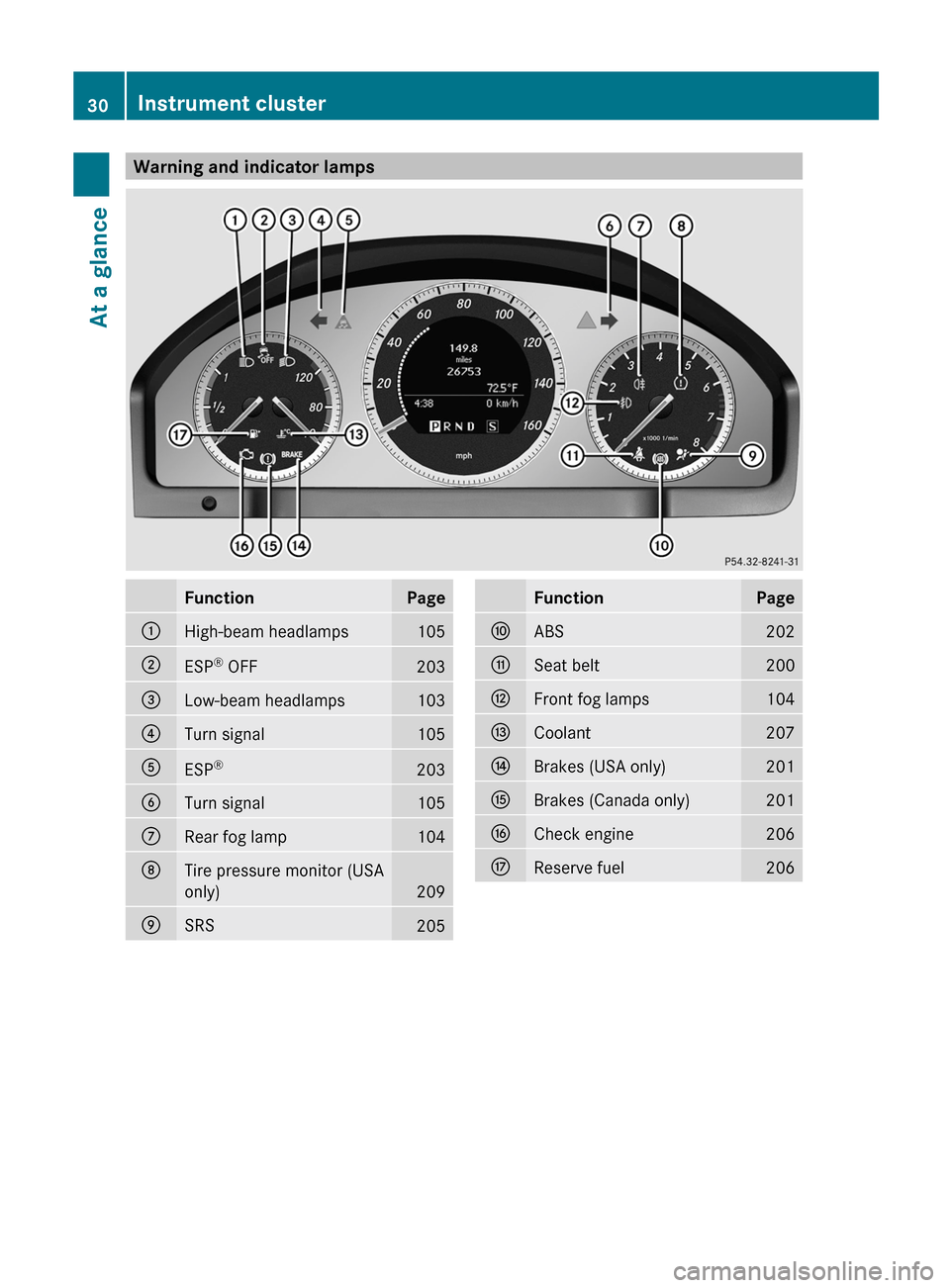

Warning and indicator lampsFunctionPage:High-beam headlamps105;ESP®
OFF203=Low-beam headlamps103?Turn signal105AESP ®203BTurn signal105CRear fog lamp104DTire pressure monitor (USA
only)
209
ESRS205FunctionPageFABS202GSeat belt200HFront fog lamps104ICoolant207JBrakes (USA only)201KBrakes (Canada only)201LCheck engine206MReserve fuel20630Instrument clusterAt a glance

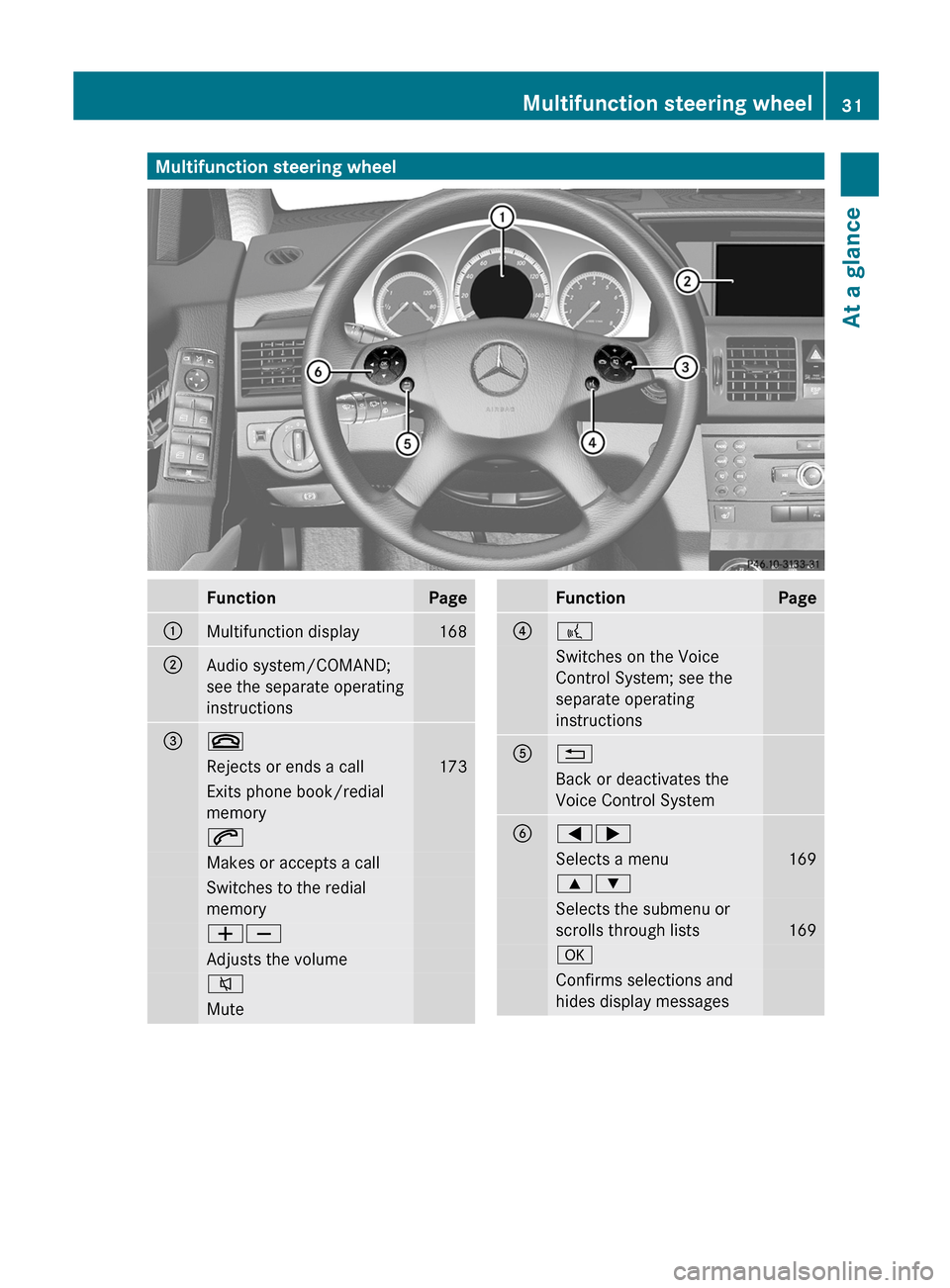

Multifunction steering wheelFunctionPage:Multifunction display168;Audio system/COMAND;
see the separate operating
instructions=~Rejects or ends a call173Exits phone book/redial
memory6Makes or accepts a callSwitches to the redial
memoryWXAdjusts the volume8MuteFunctionPage??Switches on the Voice
Control System; see the
separate operating
instructionsA%Back or deactivates the
Voice Control SystemB=;Selects a menu1699:Selects the submenu or
scrolls through lists
169
aConfirms selections and
hides display messagesMultifunction steering wheel31At a glance

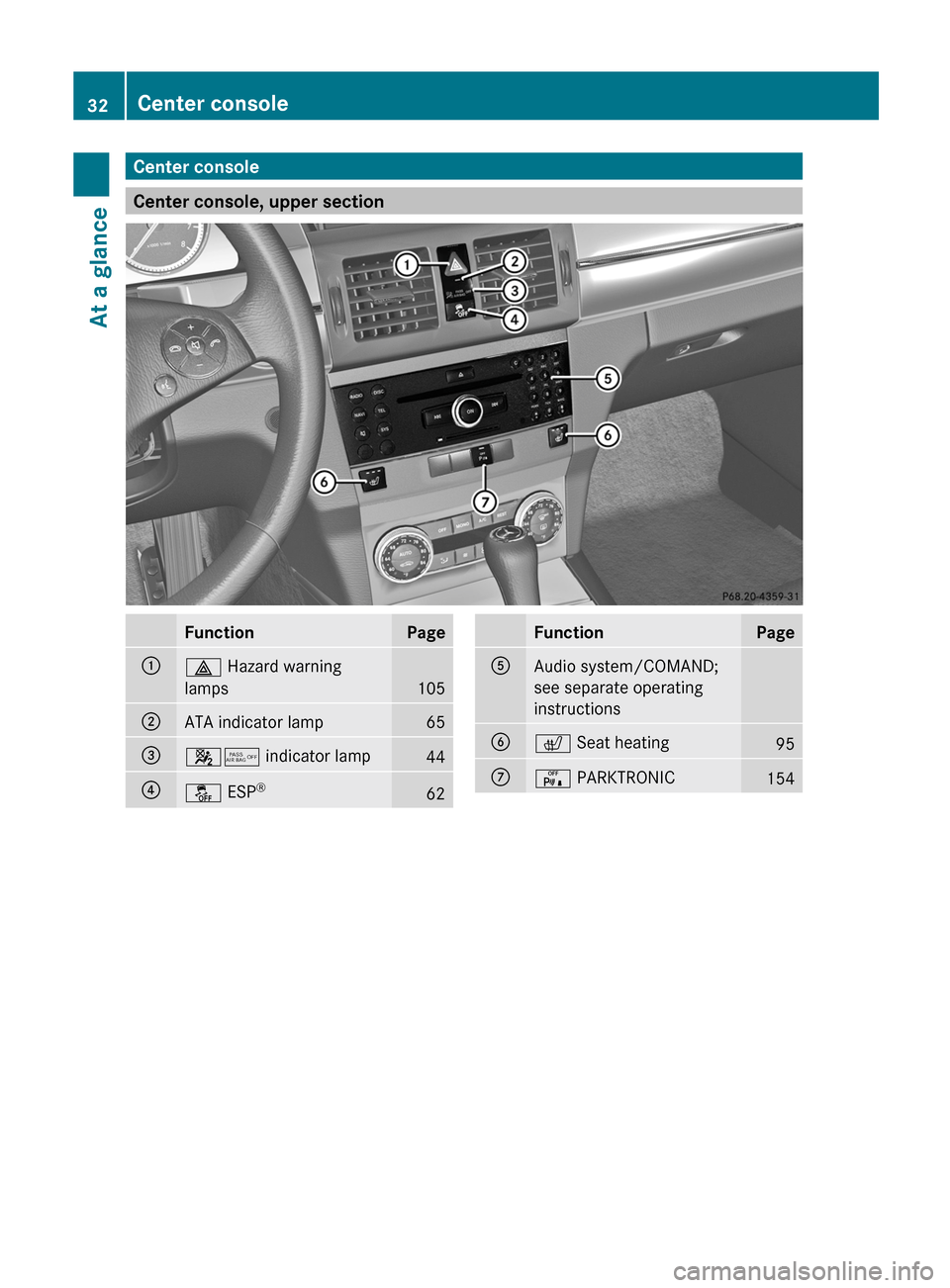

Center console
Center console, upper section
FunctionPage:£ Hazard warning
lamps
105
;ATA indicator lamp65=45 indicator lamp44?å ESP®62FunctionPageAAudio system/COMAND;
see separate operating
instructionsBc Seat heating95Cc PARKTRONIC15432Center consoleAt a glance

Center console, lower sectionFunctionPageDStowage compartment212Ashtray222Cigarette lighter222Power socket223ESelector lever135FunctionPageFCup holder220GStowage compartment212HAudio/COMAND controllerISelects the drive program137Center console33At a glance

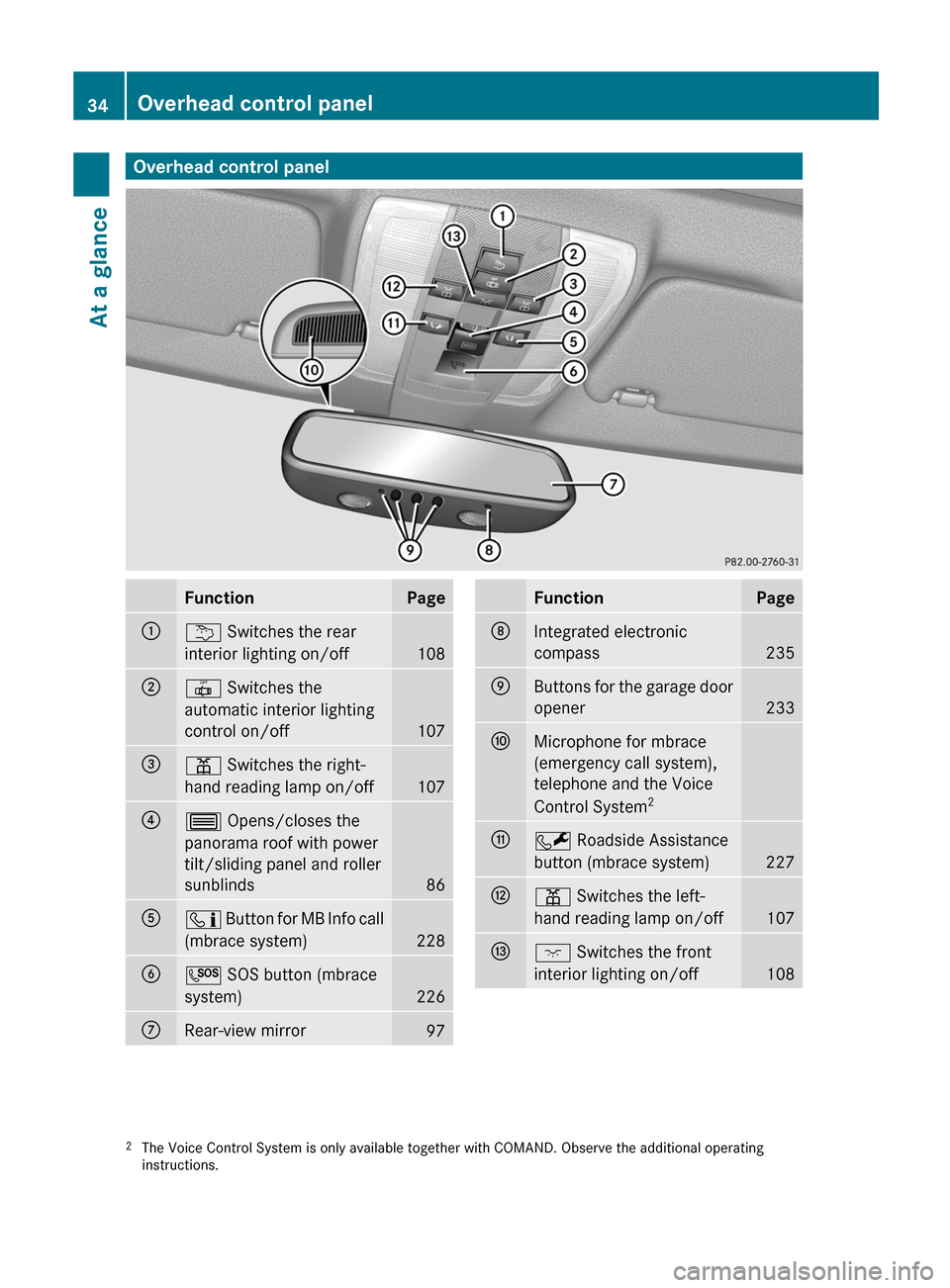

Overhead control panelFunctionPage:u Switches the rear
interior lighting on/off
108
;| Switches the
automatic interior lighting
control on/off
107
=p Switches the right-
hand reading lamp on/off
107
?3 Opens/closes the
panorama roof with power
tilt/sliding panel and roller
sunblinds
86
Aï Button for MB Info call
(mbrace system)
228
BG SOS button (mbrace
system)
226
CRear-view mirror97FunctionPageDIntegrated electronic
compass
235
EButtons for the garage door
opener
233
FMicrophone for mbrace
(emergency call system),
telephone and the Voice
Control System 2GF
Roadside Assistance
button (mbrace system)
227
Hp Switches the left-
hand reading lamp on/off
107
Ic Switches the front
interior lighting on/off
1082 The Voice Control System is only available together with COMAND. Observe the additional operating
instructions.34Overhead control panelAt a glance

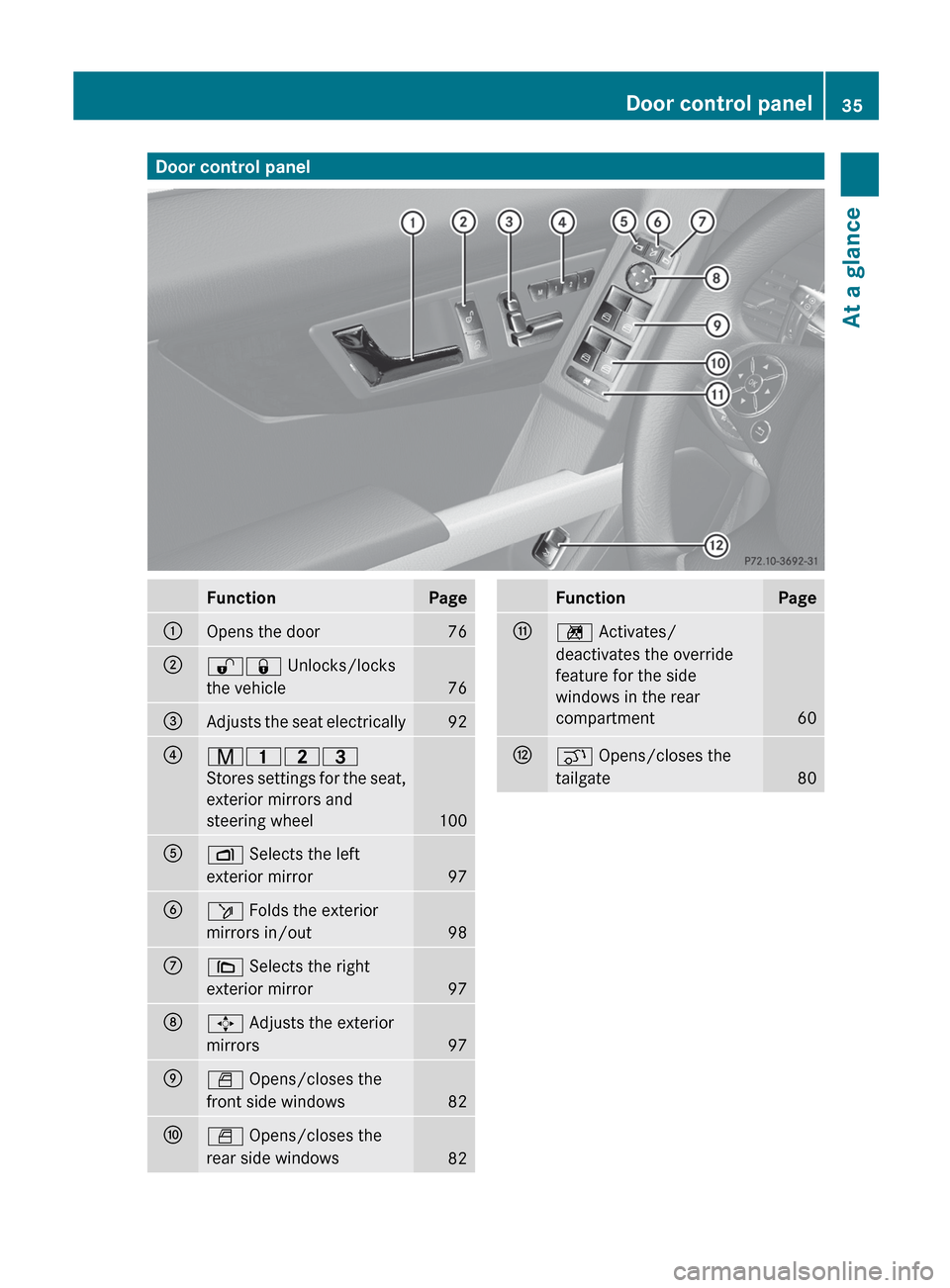

Door control panelFunctionPage:Opens the door76;%& Unlocks/locks
the vehicle
76
=Adjusts the seat electrically92?r 45=
Stores settings for the seat,
exterior mirrors and
steering wheel
100
AZ Selects the left
exterior mirror
97
Bö Folds the exterior
mirrors in/out
98
C\ Selects the right
exterior mirror
97
D7 Adjusts the exterior
mirrors
97
EW Opens/closes the
front side windows
82
FW Opens/closes the
rear side windows
82
FunctionPageGn Activates/
deactivates the override
feature for the side
windows in the rear
compartment
60
Hq Opens/closes the
tailgate
80
Door control panel35At a glance

36

Useful information ..............................38
Occupant safety .................................. 38
Children in the vehicle ........................55
Panic alarm .......................................... 60
Driving safety systems .......................61
Theft deterrent locking systems .......6537Safety

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops ( Y page 23).
Occupant safety
Overview of occupant safety
In this section, you will learn the most
important facts about the restraint system
components of the vehicle.
The restraint system consists of:
R seat belts
R child restraint systems
R LATCH-type (ISOFIX) child seat anchors
Additional protection is provided by:
R SRS (Supplemental Restraint System)
R NECK-PRO head restraints
R Air bag system components with:
- PASSENGER AIR BAG OFF indicator lamp
- front-passenger seat with Occupant
Classification System (OCS)
The different air bag systems work
independently of each other. The protective
functions of the system work in conjunction
with each other. Not all air bags are deployed
in an accident.
GWARNING
Modifications to or work improperly
conducted on restraint system components
or their wiring, as well as tampering with
interconnected electronic systems, can lead
to the restraint systems no longer functioning
as intended.
Air bags or Emergency Tensioning Devices
(ETDs), for example, could deploy
inadvertently or fail to deploy in accidents
although the deceleration threshold for air
bag deployment is exceeded. Therefore,
never modify the restraint systems. Do not
tamper with electronic components or their
software.
i See "Children in the vehicle"
( Y page 55) for more information on
infants and children traveling with you in
the vehicle and restraints for infants and
children.
SRS (Supplemental Restraint System)
Introduction
SRS consists of:
R the 6 SRS warning lamp
R air bags
R air bag control unit (with crash sensors)
R Emergency Tensioning Devices
R belt force limiters
SRS reduces the risk of occupants coming
into contact with the vehicle's interior in the
event of an accident. It can also reduce the
effect of the forces to which occupants are
subjected during an accident.
SRS warning lamp
SRS functions are checked regularly when
you switch on the ignition and when the
engine is running. Therefore, malfunctions
can be detected in good time.
The 6 SRS warning lamp in the instrument
cluster lights up when the ignition is switched
on. It goes out no later than a few seconds
after the engine is started.
The SRS components are in operational
readiness when the 6 SRS warning lamp
is not lit while the engine is running .
