MERCEDES-BENZ GLK-CLASS SUV 2015 Owners Manual

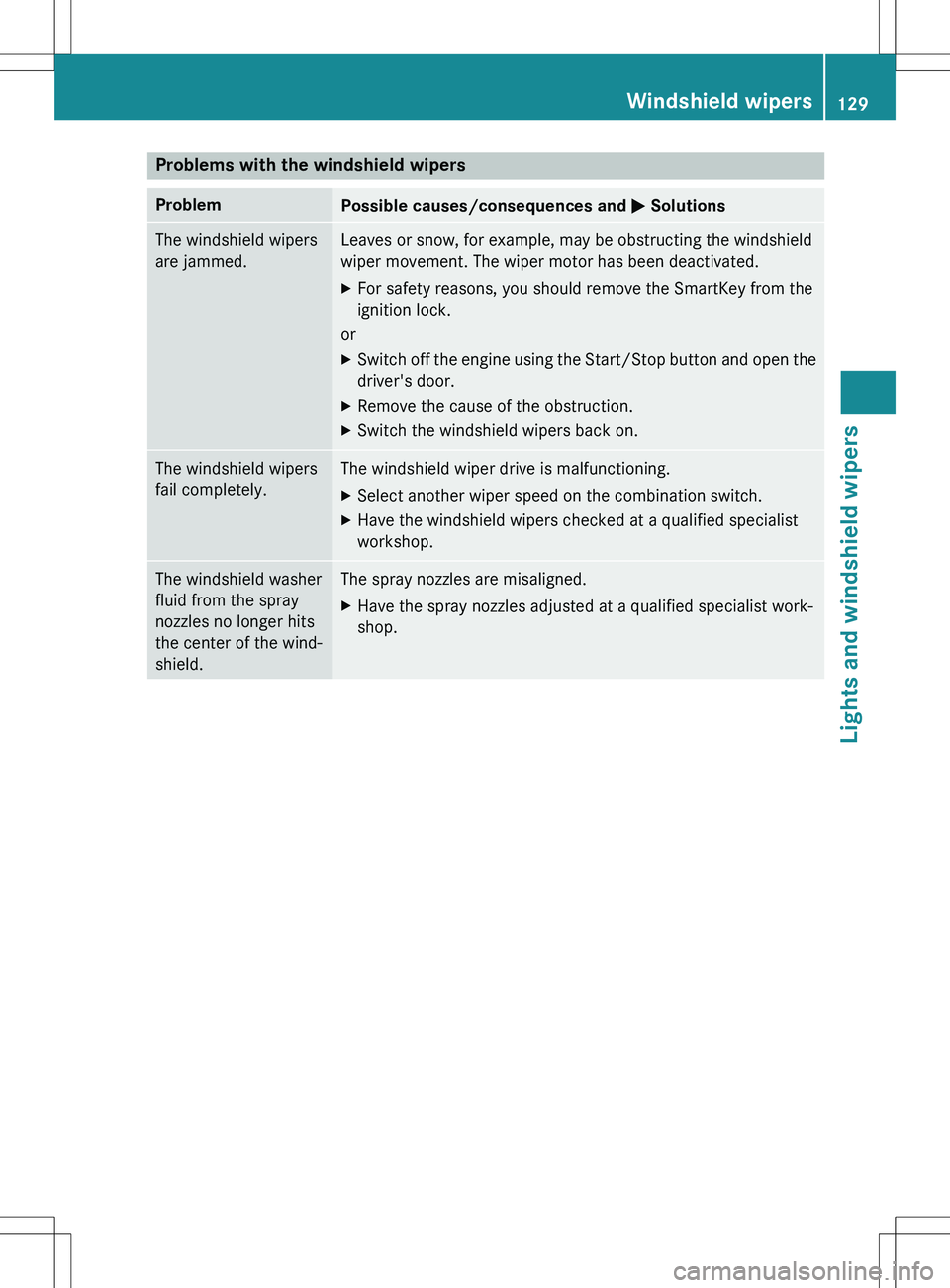

Problems with the windshield wipers
ProblemPossible causes/consequences and M Solutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated. X
For safety reasons, you should remove the SmartKey from the
ignition lock.
or X Switch off the engine using the Start/Stop button and o pen the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop.
The windshield washer
fluid from the spray
nozzles no longer hits
the center of the wind-
shield.The spray nozzles are misaligned.
X Have the spray nozzles adjusted at a qualified specialist work-
shop.
Windshield wipers129
Lights and windshield wipers
Z

130

Useful information............................132
Overview of climate control sys-
tems ................................................... 132
Operating the climate control sys-
tems ................................................... 137
Setting the air vents .........................144
131
Climate control

Useful information
iThis Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops ( Y page 27).
Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off ( Y page 143).
iVentilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature ( Y page 93). This
will speed up the cooling process and the
desired interior temperature will be
reached more quickly.
iThe integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces the amount of air supplied to the vehicle
interior. For this reason, you should alwaysobserve the interval for replacing the filter, which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
iIt is possible that the dehumidification
function of the climate control system may
be activated automatically an hour after the
SmartKey has been removed. The vehicle is then ventilated for 30 minutes.
132Overview of climate control systems
Climate control

Control panel for dual-zone automatic climate control
Canada only :
Sets the temperature, left (Y page 140)
;Defrosts the windshield ( Y page 141)
=Switches the ZONE function on/off ( Y page 141)
?Switches cooling with air dehumidification on/off ( Y page 137)
ASwitches the rear window defroster on/off ( Y page 142)
BSets the temperature, right ( Y page 140)
CActivates/deactivates air-recirculation mode ( Y page 143)
DSets the air distribution ( Y page 140)
EIncreases the airflow ( Y page 141)
FReduces the airflow ( Y page 141)
GSwitches climate control on/off ( Y page 137)
HSets climate control to automatic ( Y page 139)
Overview of climate control systems133
Climate control

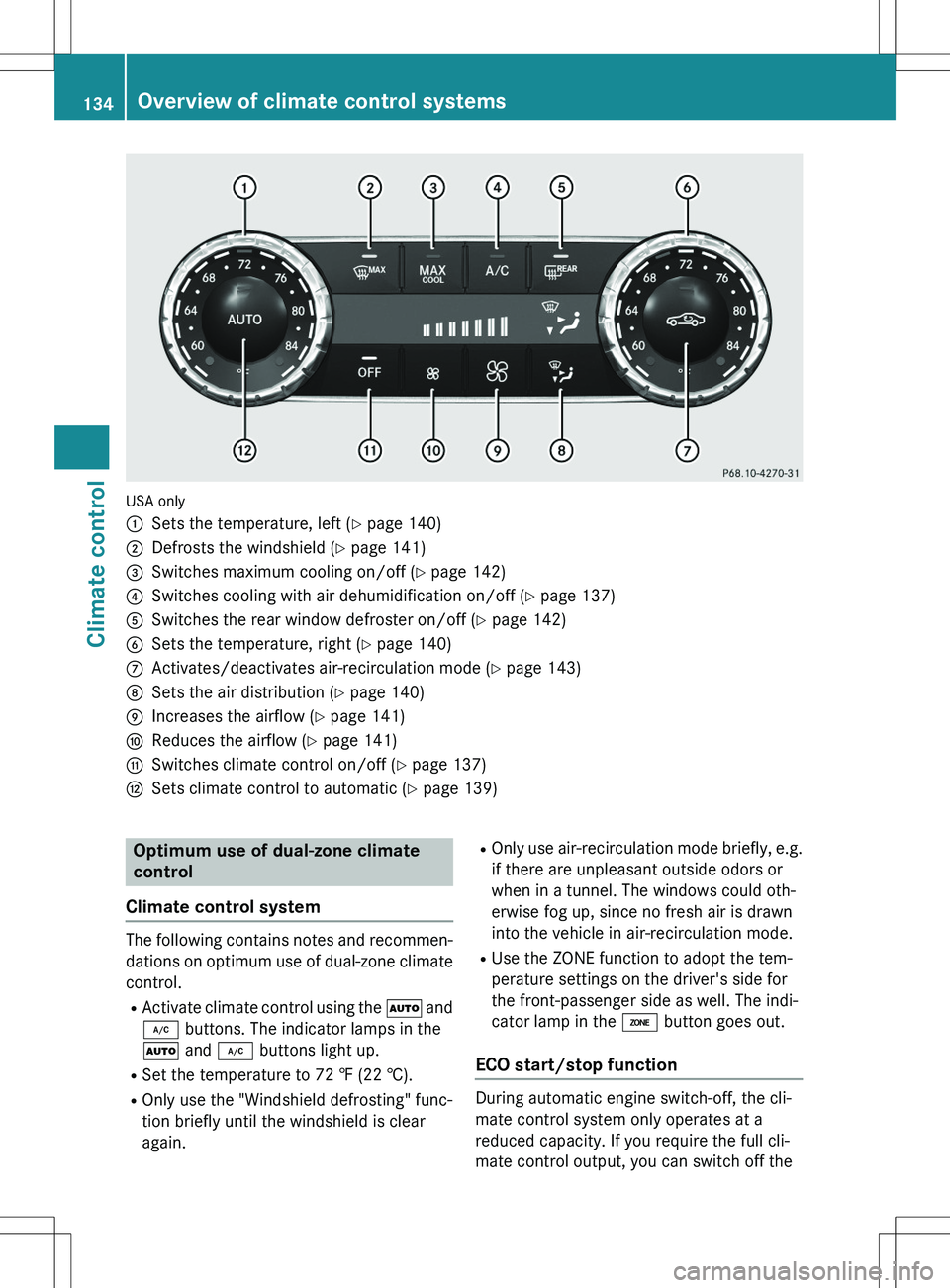

USA only :
Sets the temperature, left (Y page 140)
;Defrosts the windshield ( Y page 141)
=Switches maximum cooling on/off ( Y page 142)
?Switches cooling with air dehumidification on/off ( Y page 137)
ASwitches the rear window defroster on/off ( Y page 142)
BSets the temperature, right ( Y page 140)
CActivates/deactivates air-recirculation mode ( Y page 143)
DSets the air distribution ( Y page 140)
EIncreases the airflow ( Y page 141)
FReduces the airflow ( Y page 141)
GSwitches climate control on/off ( Y page 137)
HSets climate control to automatic ( Y page 139)
Optimum use of dual-zone climate
control
Climate control system
The following contains notes and recommen-
dations on optimum use of dual-zone climate control.
R Activate climate control using the à and
¿ buttons. The indicator lamps in the
à and ¿ buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again. R
Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp in the á button goes out.
ECO start/stop function
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
134Overview of climate control systems
Climate control

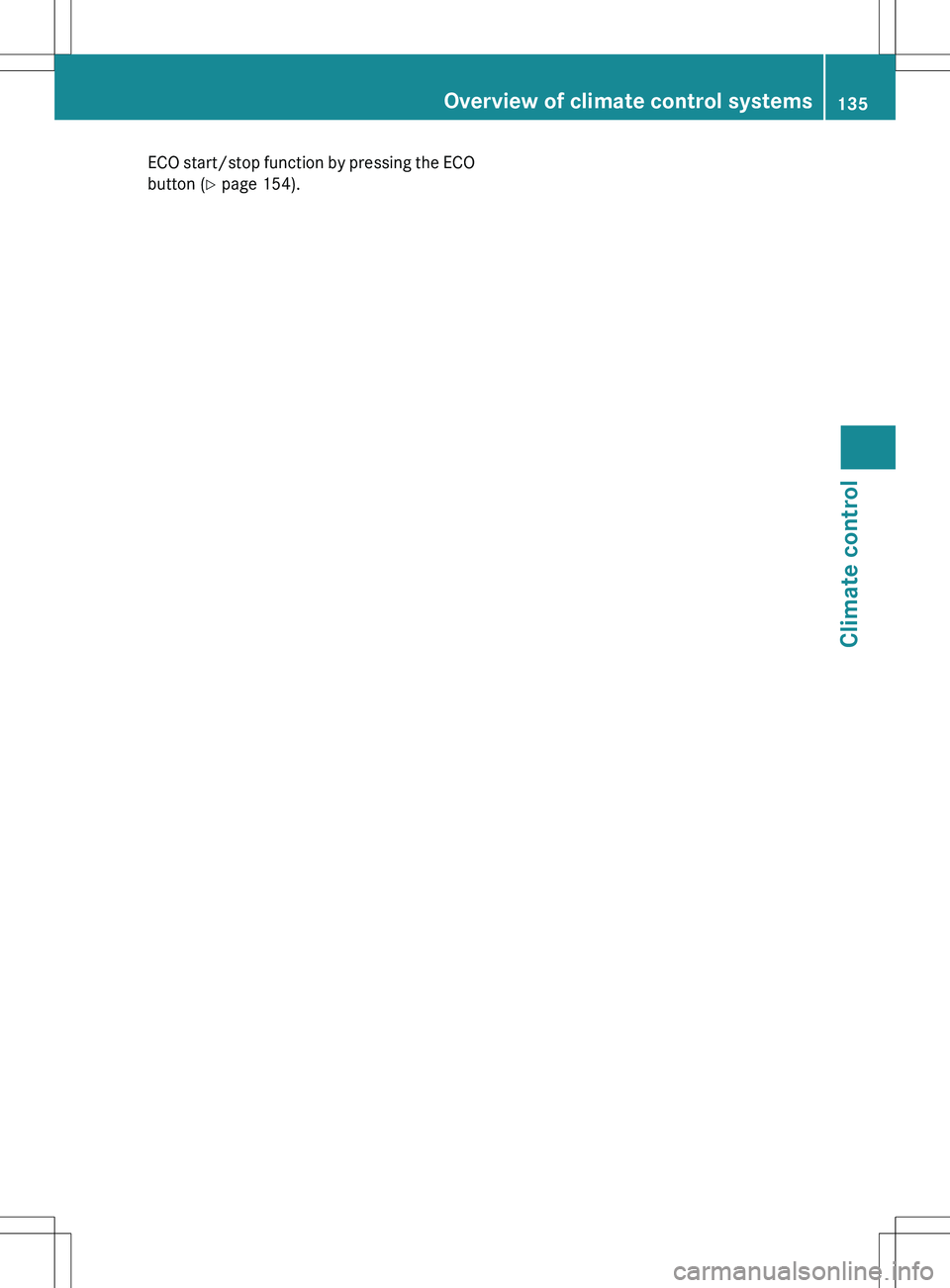

ECO start/stop function by pressing the ECObutton ( Y page 154).
Overview of climate control systems135
Climate control

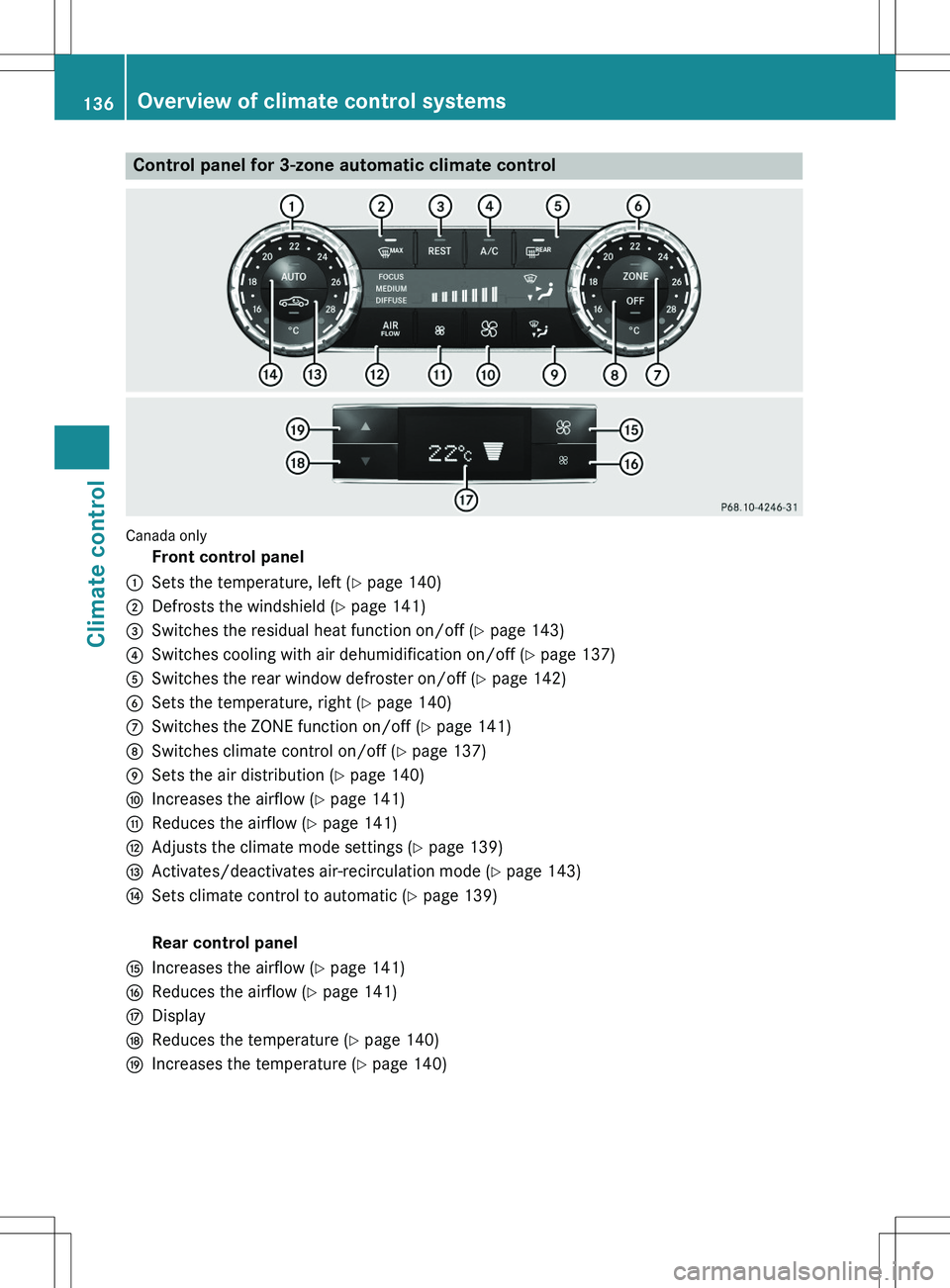

Control panel for 3-zone automatic climate control
Canada only
Front control panel
:Sets the temperature, left (Y page 140)
;Defrosts the windshield ( Y page 141)
=Switches the residual heat function on/off ( Y page 143)
?Switches cooling with air dehumidification on/off ( Y page 137)
ASwitches the rear window defroster on/off ( Y page 142)
BSets the temperature, right ( Y page 140)
CSwitches the ZONE function on/off ( Y page 141)
DSwitches climate control on/off ( Y page 137)
ESets the air distribution ( Y page 140)
FIncreases the airflow ( Y page 141)
GReduces the airflow ( Y page 141)
HAdjusts the climate mode settings ( Y page 139)
IActivates/deactivates air-recirculation mode ( Y page 143)
JSets climate control to automatic ( Y page 139)

Rear control panel
KIncreases the airflow ( Y page 141)
LReduces the airflow ( Y page 141)
MDisplay
NReduces the temperature ( Y page 140)
OIncreases the temperature ( Y page 140)
136Overview of climate control systems
Climate control

Optimum use of dual-zone climate
control
Climate control system
The following contains instructions and rec-
ommendations to enable you to get the most
out of your 3-zone automatic climate control.
R Activate climate control using the à and
¿ buttons. The indicator lamps in the
à and ¿ buttons light up.
R In automatic mode, you can also use theñ button to set the climate mode
(FOCUS/MEDIUM/DIFFUSE). The
MEDIUM level is recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side and the rear com-
partment as well. The indicator lamp in the
á button goes out.
R Use the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual
heat function can only be activated or deac- tivated with the ignition switched off.
ECO start/stop function
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECObutton ( Y page 154).
Operating the climate control sys-
tems
Switching climate control on/off
General notes
When the climate control is switched off, the air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
iSwitch on climate control primarily using
the à button ( Y page 139).
Switching on/off
X
Turn the SmartKey to position 2 in the igni-
tion lock ( Y page 149).
X To activate: press the à button.
The indicator lamp in the à button lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^ button.
The indicator lamp in the ^ button goes
out. The previously selected settings are
restored.
X To deactivate: press the ^ button.
The indicator lamp in the ^ button lights
up.
Activating/deactivating cooling with
air dehumidification
General notes
If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi- cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore,
deactivate the cooling with air-dehumidifica-
tion function only briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
Operating the climate control systems137
Climate control

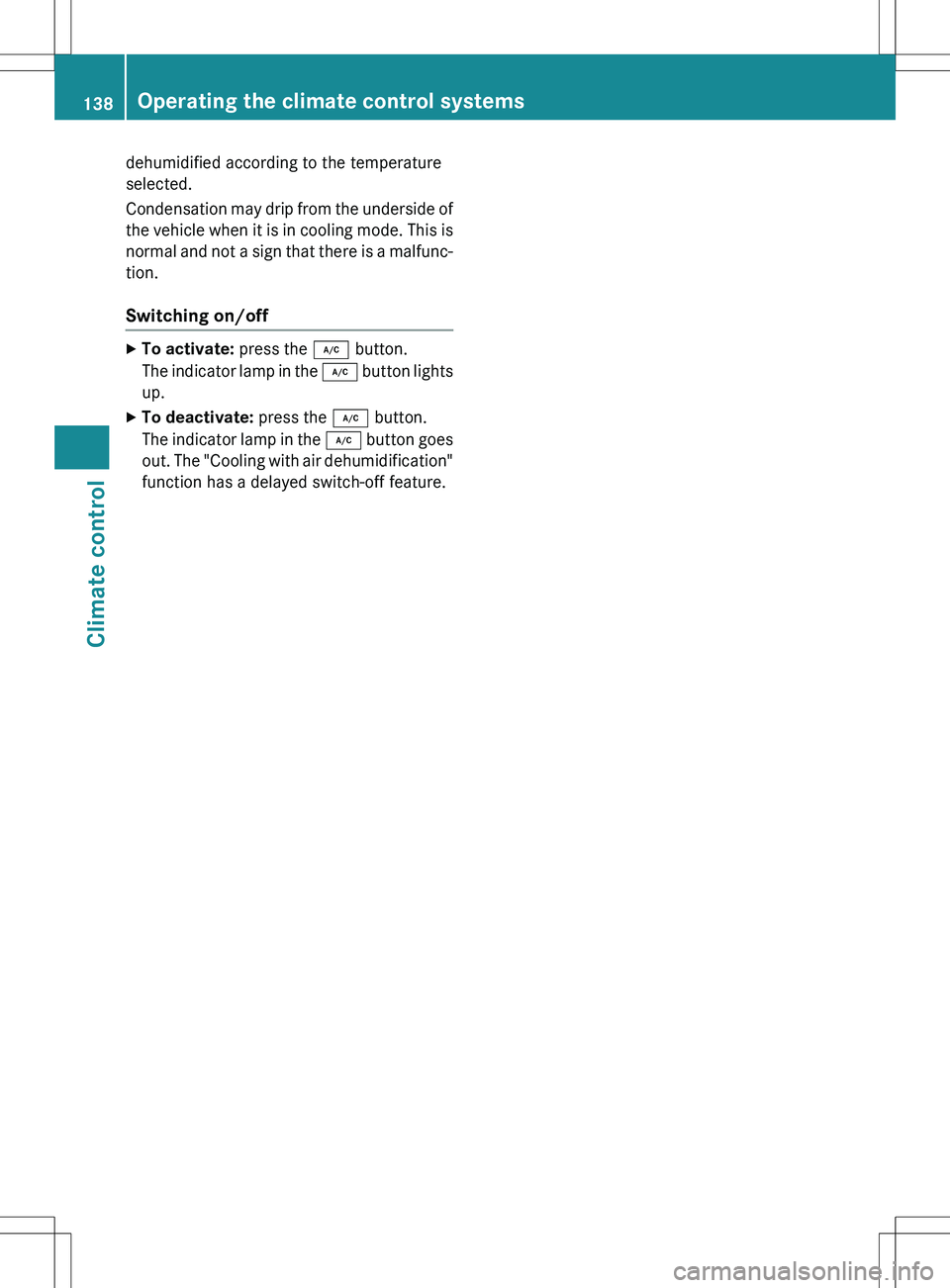

dehumidified according to the temperature
selected.
Condensation may drip from the underside ofthe vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunc- tion.
Switching on/off
X To activate: press the ¿ button.
The indicator lamp in the ¿ button lights
up.
X To deactivate: press the ¿ button.
The indicator lamp in the ¿ button goes
out. The "Cooling with air dehumidification" function has a delayed switch-off feature.
138Operating the climate control systems
Climate control
