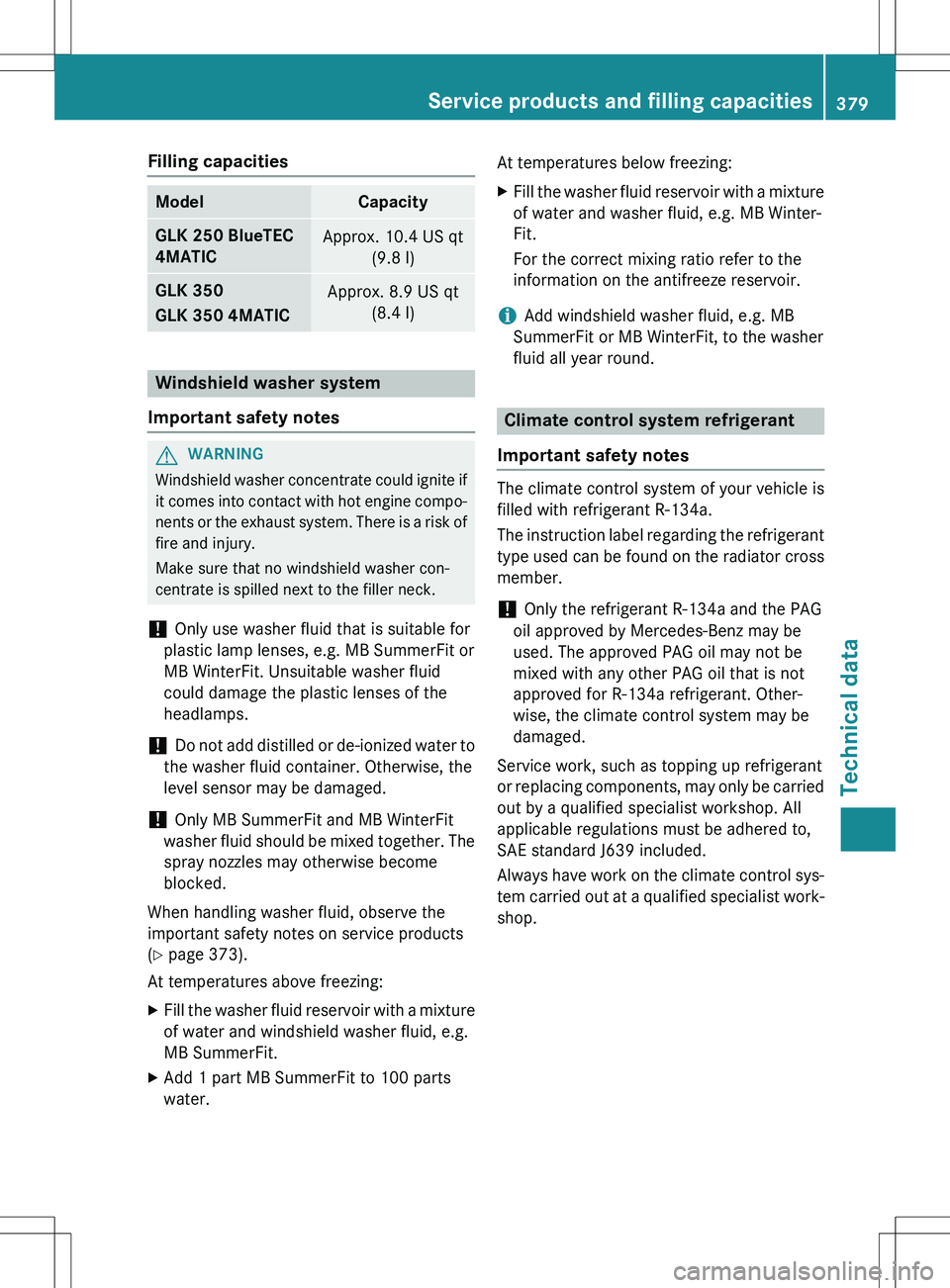

Filling capacities
ModelCapacity
GLK 250 BlueTEC
4MATICApprox. 10.4 US qt(9.8 l)
GLK 350
GLK 350 4MATICApprox. 8.9 US qt(8.4 l)
Windshield washer system
Important safety notes
GWARNING
Windshield washer concentrate could ignite if it comes into contact with hot engine compo-
nents or the exhaust system. There is a risk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
! Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
! Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The spray nozzles may otherwise become
blocked.
When handling washer fluid, observe the
important safety notes on service products
( Y page 373).
At temperatures above freezing:
X Fill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB SummerFit.
X Add 1 part MB SummerFit to 100 parts
water. At temperatures below freezing:
X Fill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB Winter-
Fit.
For the correct mixing ratio refer to the
information on the antifreeze reservoir.
iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is
filled with refrigerant R

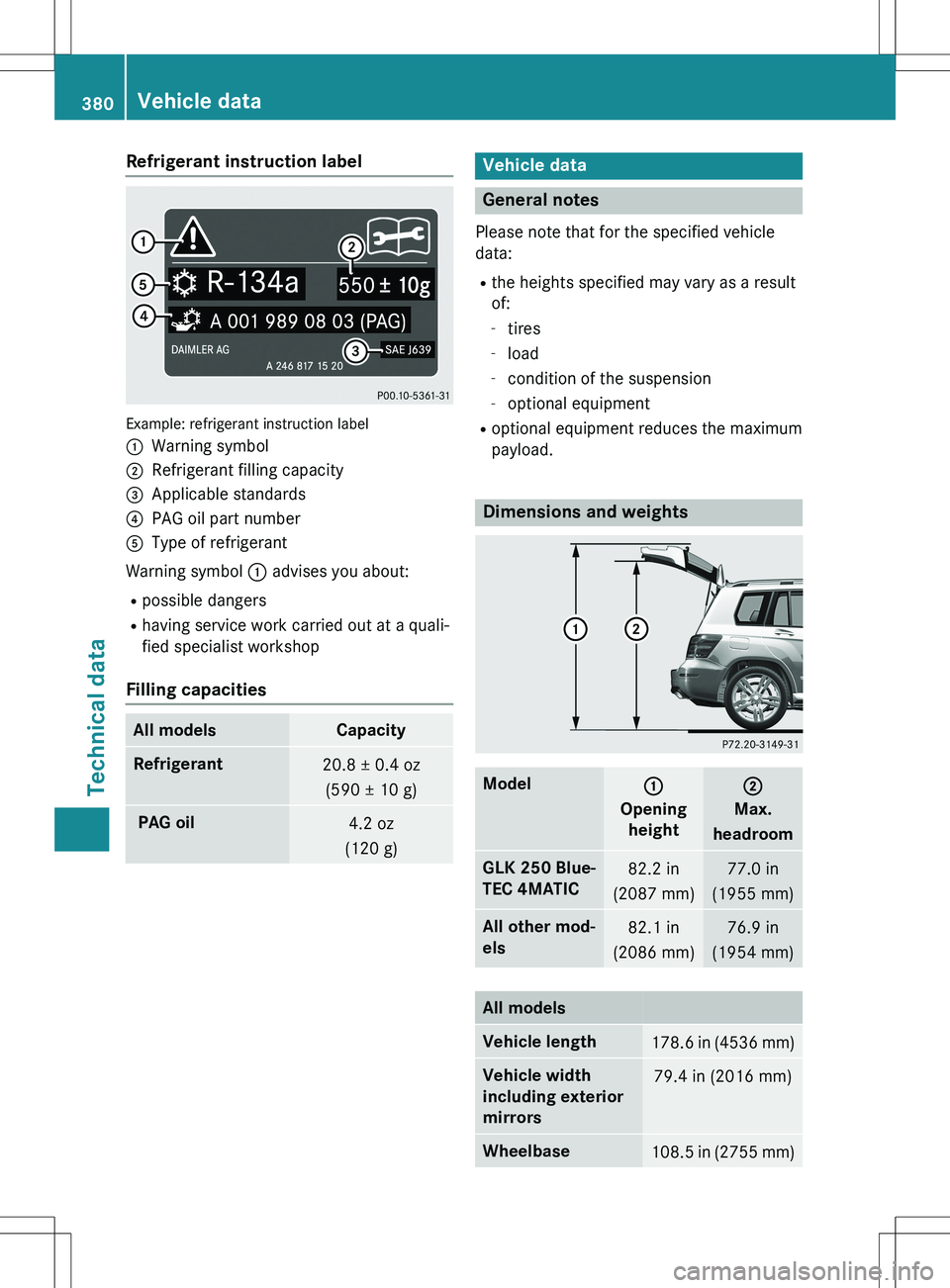

Refrigerant instruction label
Example: refrigerant instruction label :
Warning symbol
;Refrigerant filling capacity
=Applicable standards
?PAG oil part number
AType of refrigerant
Warning symbol : advises you about:
R possible dangers
R having service work carried out at a quali-
fied specialist workshop
Filling capacities
All modelsCapacity
Refrigerant20.8 ± 0.4 oz
(590 ± 10 g)
PAG oil4.2 oz
(120 g)
Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
- tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload.
Dimensions and weights
Model:
Opening
height
;
Max.
headroom
GLK 250 Blue-
TEC 4MATIC82.2 in
(2087 mm)77.0 in
(1955 mm)
All other mod-
els82.1 in
(2086 mm)76.9 in
(1954 mm)
All models
Vehicle length178.6 in (4536 mm)
Vehicle width
including exterior
mirrors79.4 in (2016 mm)
Wheelbase108.5 in (2755 mm)
380Vehicle data

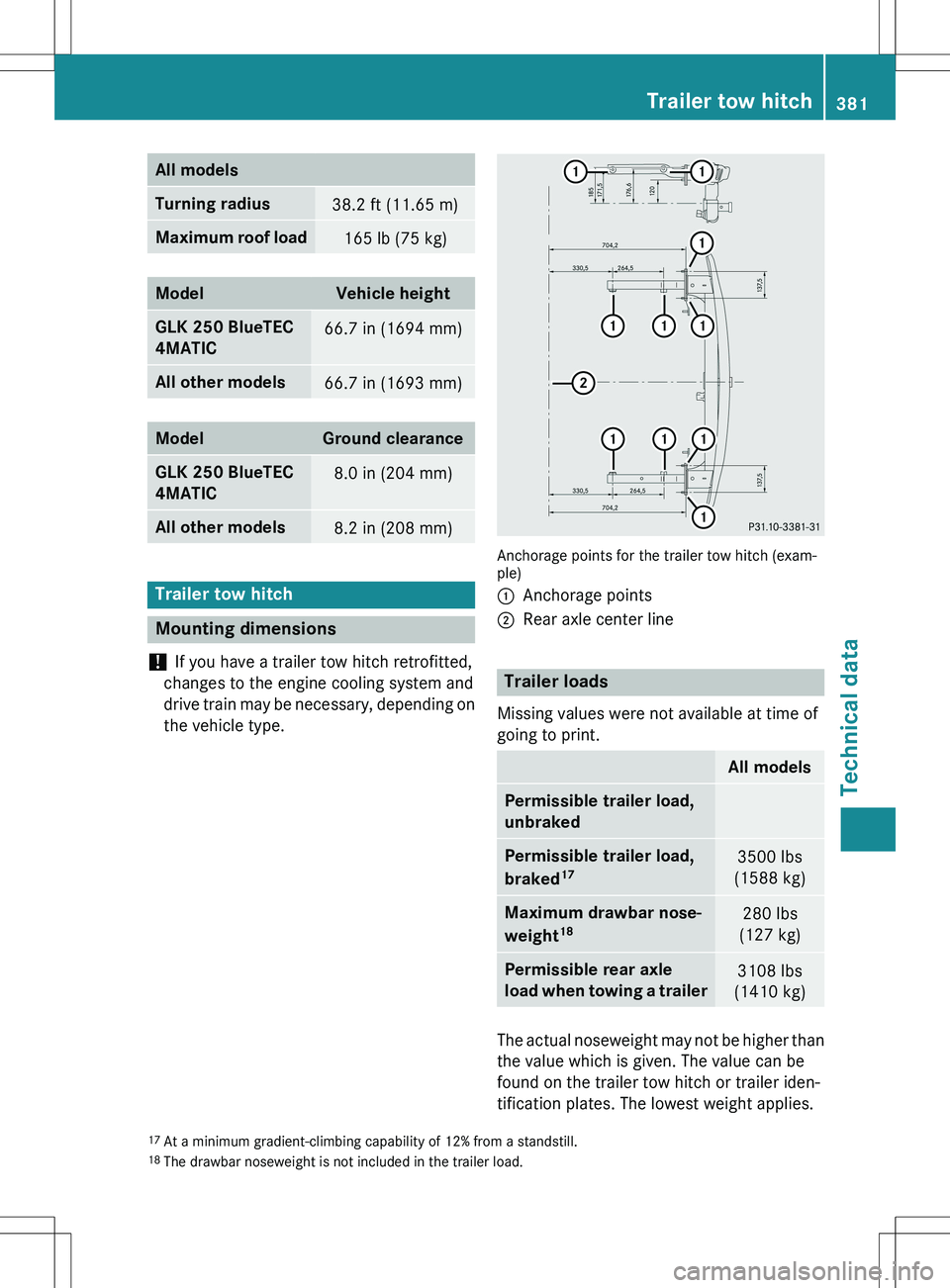

Technical data

All models
Turning radius38.2 ft (11.65 m)
Maximum roof load165 lb (75 kg)
ModelVehicle height
GLK 250 BlueTEC
4MATIC66.7 in (1694 mm)
All other models66.7 in (1693 mm)
ModelGround clearance
GLK 250 BlueTEC
4MATIC8.0 in (204 mm)
All other models8.2 in (208 mm)
Trailer tow hitch
Mounting dimensions
!
If you have a trailer tow hitch retrofitted,
changes to the engine cooling system and
drive train may be necessary, depending on
the vehicle type.
Anchorage points for the trailer tow hitch (exam-
ple) :
Anchorage points
;Rear axle center line
Trailer loads
Missing values were not available at time of
going to print.
All models
Permissible trailer load,
unbraked
Permissible trailer load,
braked 173500 lbs
(1588 kg)
Maximum drawbar nose-
weight 18280 lbs
(127 kg)
Permissible rear axle
load when towing a trailer3108 lbs
(1410 kg)
The actual noseweight may not be higher than
the value which is given. The value can be
found on the trailer tow hitch or trailer iden-
tification plates. The lowest weight applies.
17 At a minimum gradient-climbing capability of 12% from a stan dstill.
18 The drawbar noseweight is not included in the trailer load.
Trailer tow hitch381
Technical data
Z

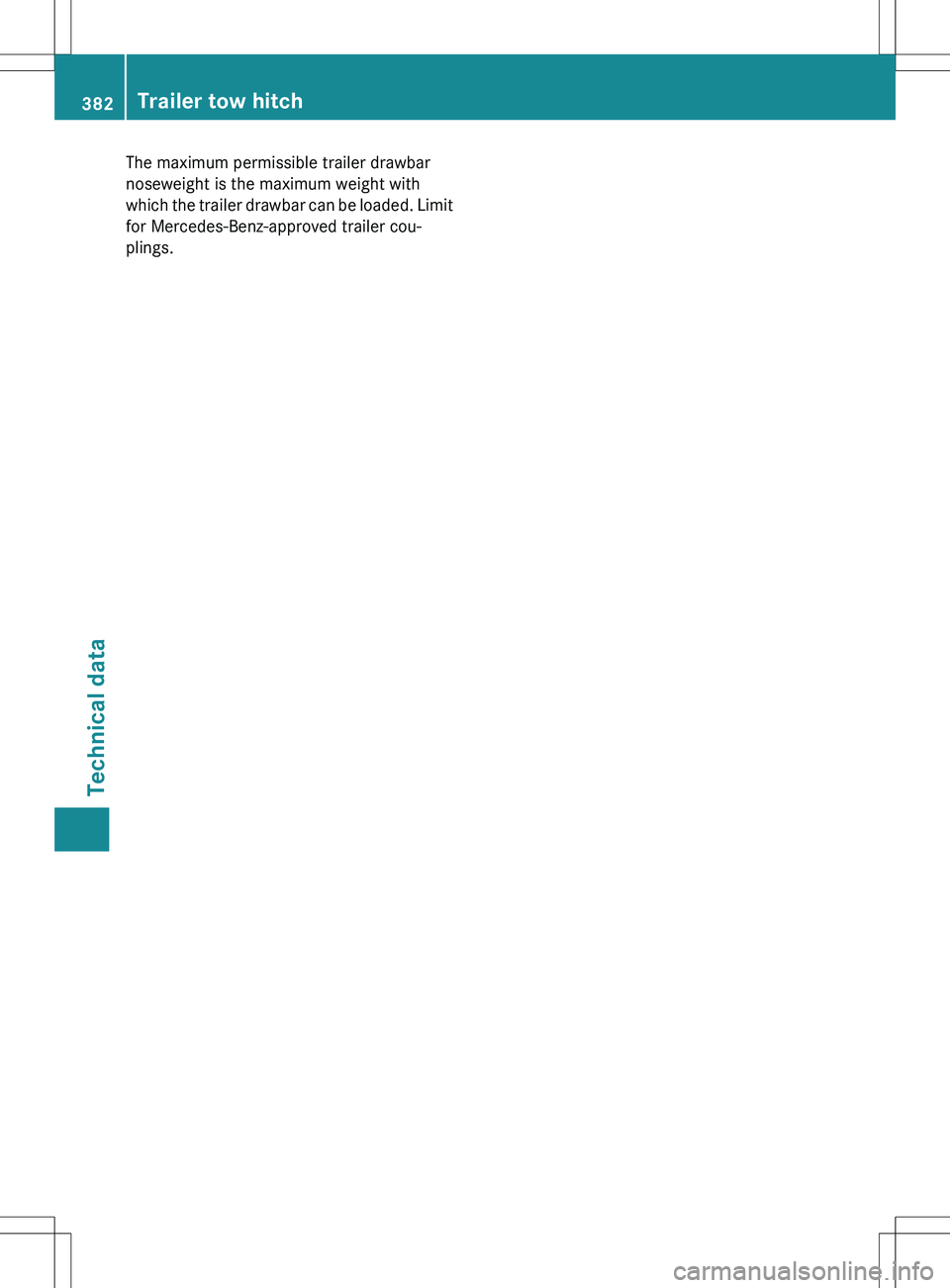

The maximum permissible trailer drawbar
noseweight is the maximum weight with
which the trailer drawbar can be loaded. Limit
for Mercedes-Benz-approved trailer cou-
plings.
