MERCEDES-BENZ GLK-CLASS SUV 2015 Owners Manual

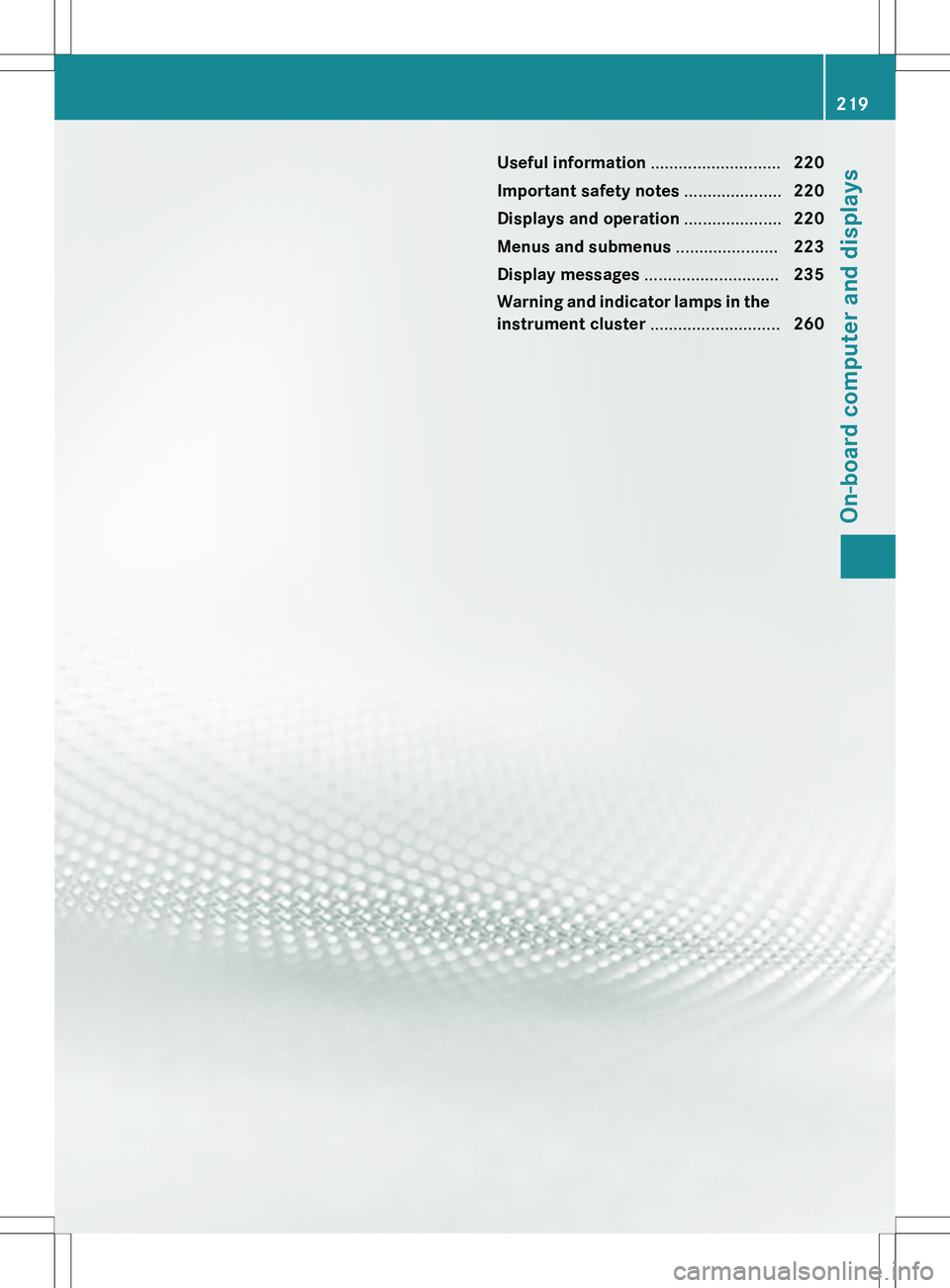

Useful information............................220
Important safety notes .....................220
Displays and operation .....................220
Menus and submenus ......................223
Display messages ............................. 235
Warning and indicator lamps in the instrument cluster ............................260
219
On-board computer and displays

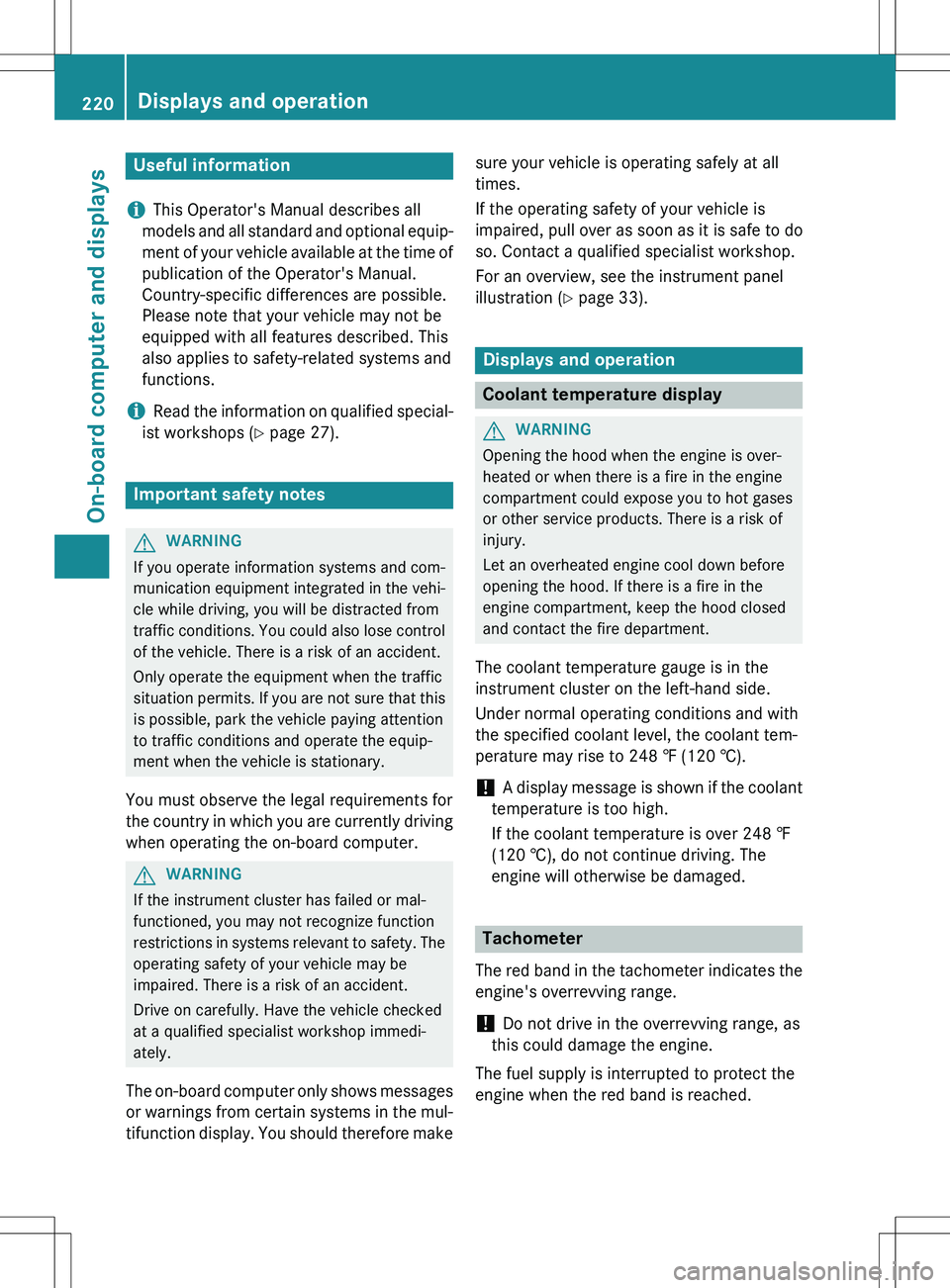

Useful information
iThis Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops ( Y page 27).
Important safety notes
GWARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle while driving, you will be distracted from
traffic conditions. You could also lose controlof the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
You must observe the legal requirements for
the country in which you are currently driving when operating the on-board computer.
GWARNING
If the instrument cluster has failed or mal-
functioned, you may not recognize function
restrictions in systems relevant to safety. The operating safety of your vehicle may be
impaired. There is a risk of an accident.
Drive on carefully. Have the vehicle checked
at a qualified specialist workshop immedi-
ately.
The on-board computer only shows messages
or warnings from certain systems in the mul- tifunction display. You should therefore make sure your vehicle is operating safely at all
times.
If the operating safety of your vehicle is
impaired, pull over as soon as it is safe to do
so. Contact a qualified specialist workshop.
For an overview, see the instrument panel
illustration (
Y page 33).
Displays and operation
Coolant temperature display
GWARNING
Opening the hood when the engine is over-
heated or when there is a fire in the engine
compartment could expose you to hot gases
or other service products. There is a risk of
injury.
Let an overheated engine cool down before
opening the hood. If there is a fire in the
engine compartment, keep the hood closed
and contact the fire department.
The coolant temperature gauge is in the
instrument cluster on the left-hand side.
Under normal operating conditions and with
the specified coolant level, the coolant tem-
perature may rise to 248 ‡ (120 †).
! A display message is shown if the coolant
temperature is too high.
If the coolant temperature is over 248 ‡
(120 †), do not continue driving. The
engine will otherwise be damaged.
Tachometer
The red band in the tachometer indicates the
engine's overrevving range.
! Do not drive in the overrevving range, as
this could damage the engine.
The fuel supply is interrupted to protect the
engine when the red band is reached.
220Displays and operation
On-board computer and displays

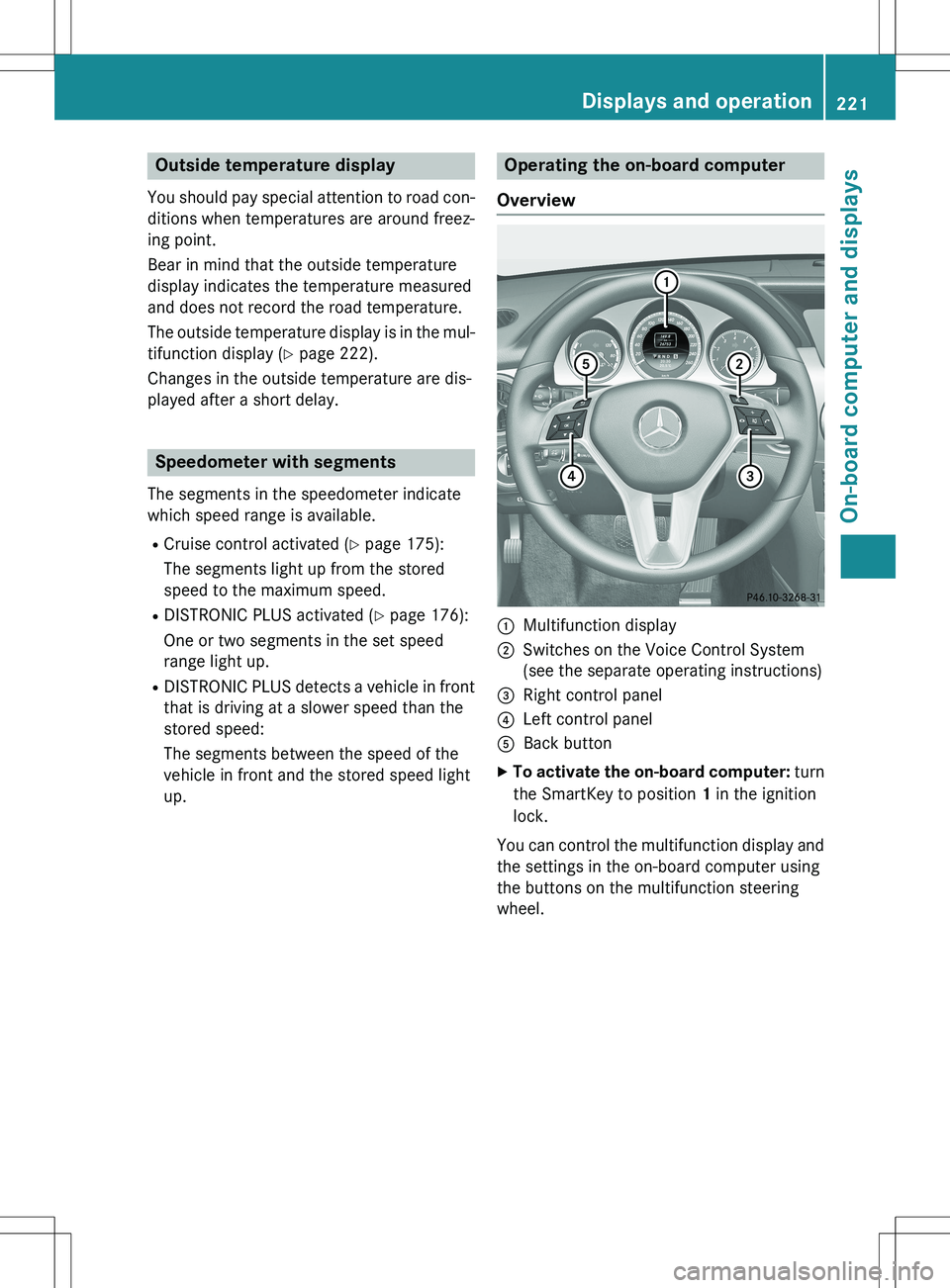

Outside temperature display
You should pay special attention to road con-
ditions when temperatures are around freez-
ing point.
Bear in mind that the outside temperature
display indicates the temperature measured
and does not record the road temperature.
The outside temperature display is in the mul- tifunction display ( Y page 222).
Changes in the outside temperature are dis-
played after a short delay.
Speedometer with segments
The segments in the speedometer indicate
which speed range is available.
R Cruise control activated ( Y page 175):
The segments light up from the stored
speed to the maximum speed.
R DISTRONIC PLUS activated ( Y page 176):
One or two segments in the set speed
range light up.
R DISTRONIC PLUS detects a vehicle in front
that is driving at a slower speed than the
stored speed:
The segments between the speed of the
vehicle in front and the stored speed light
up.
Operating the on-board computer
Overview
:Multifunction display
;Switches on the Voice Control System
(see the separate operating instructions)
=Right control panel
?Left control panel
ABack button
X To activate the on-board computer: turn
the SmartKey to position 1 in the ignition
lock.
You can control the multifunction display and
the settings in the on-board computer using
the buttons on the multifunction steering
wheel.
Displays and operation221
On-board computer and displays
Z

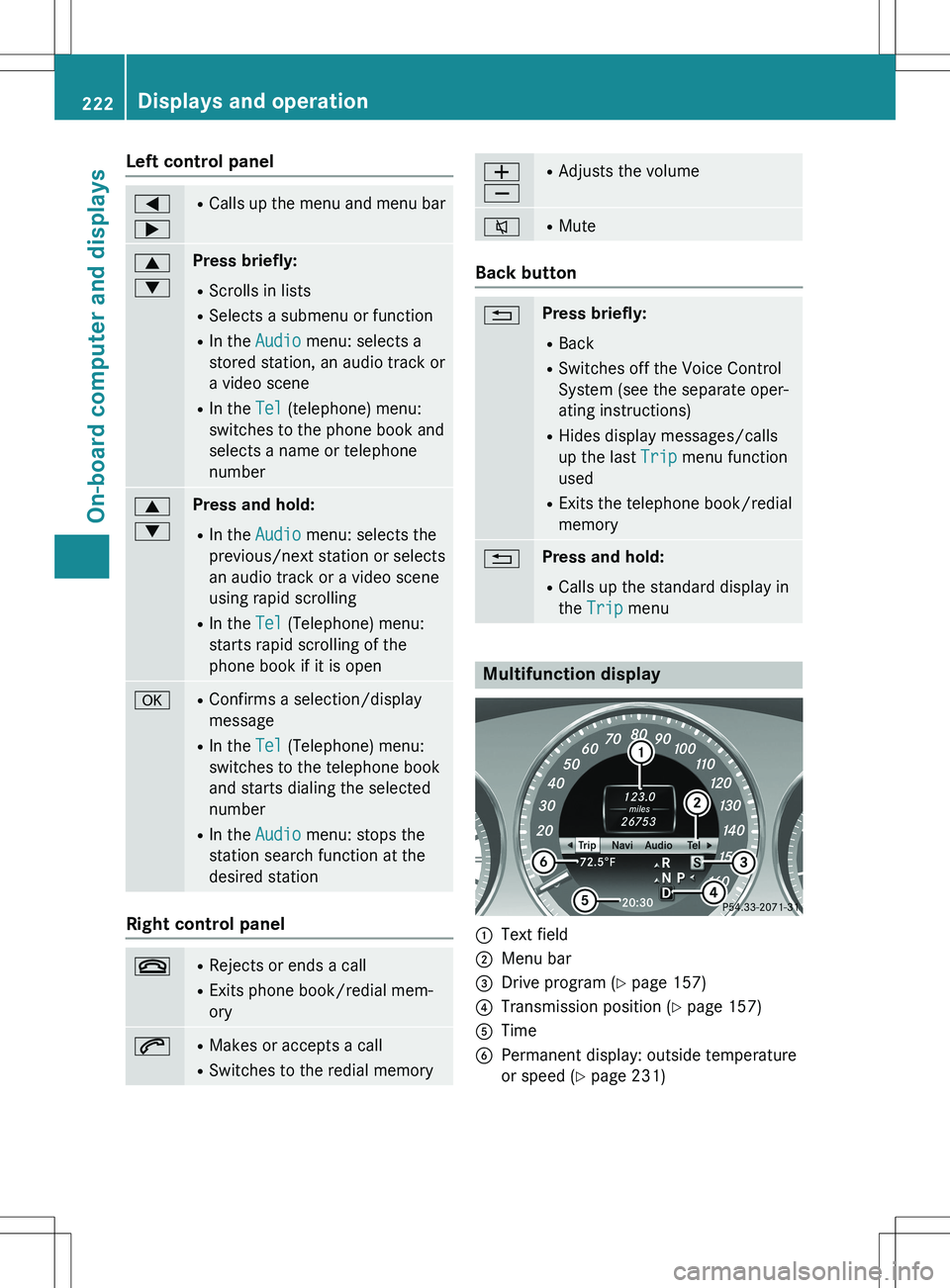

Left control panel
= ;RCalls up the menu and menu bar
9 :Press briefly:
R Scrolls in lists
R Selects a submenu or function
R In the
Audio menu: selects a
stored station, an audio track or
a video scene
R In the
Tel (telephone) menu:
switches to the phone book and
selects a name or telephone
number
9 :Press and hold:
R In the
Audio menu: selects the
previous/next station or selects
an audio track or a video scene
using rapid scrolling
R In the
Tel (Telephone) menu:
starts rapid scrolling of the
phone book if it is open
aR Confirms a selection/display
message
R In the
Tel (Telephone) menu:
switches to the telephone book
and starts dialing the selected
number
R In the
Audio menu: stops the
station search function at the
desired station
Right control panel
~R Rejects or ends a call
R Exits phone book/redial mem-
ory
6RMakes or accepts a call
R Switches to the redial memory
W XRAdjusts the volume
8RMute
Back button
%Press briefly:
R Back
R Switches off the Voice Control
System (see the separate oper-
ating instructions)
R Hides display messages/calls
up the last
Trip menu function
used
R Exits the telephone book/redial
memory
%Press and hold:
R Calls up the standard display in
the
Trip menu
Multifunction display
:Text field
;Menu bar
=Drive program ( Y page 157)
?Transmission position ( Y page 157)
ATime
BPermanent display: outside temperature
or speed ( Y page 231)
222Displays and operation
On-board computer and displays

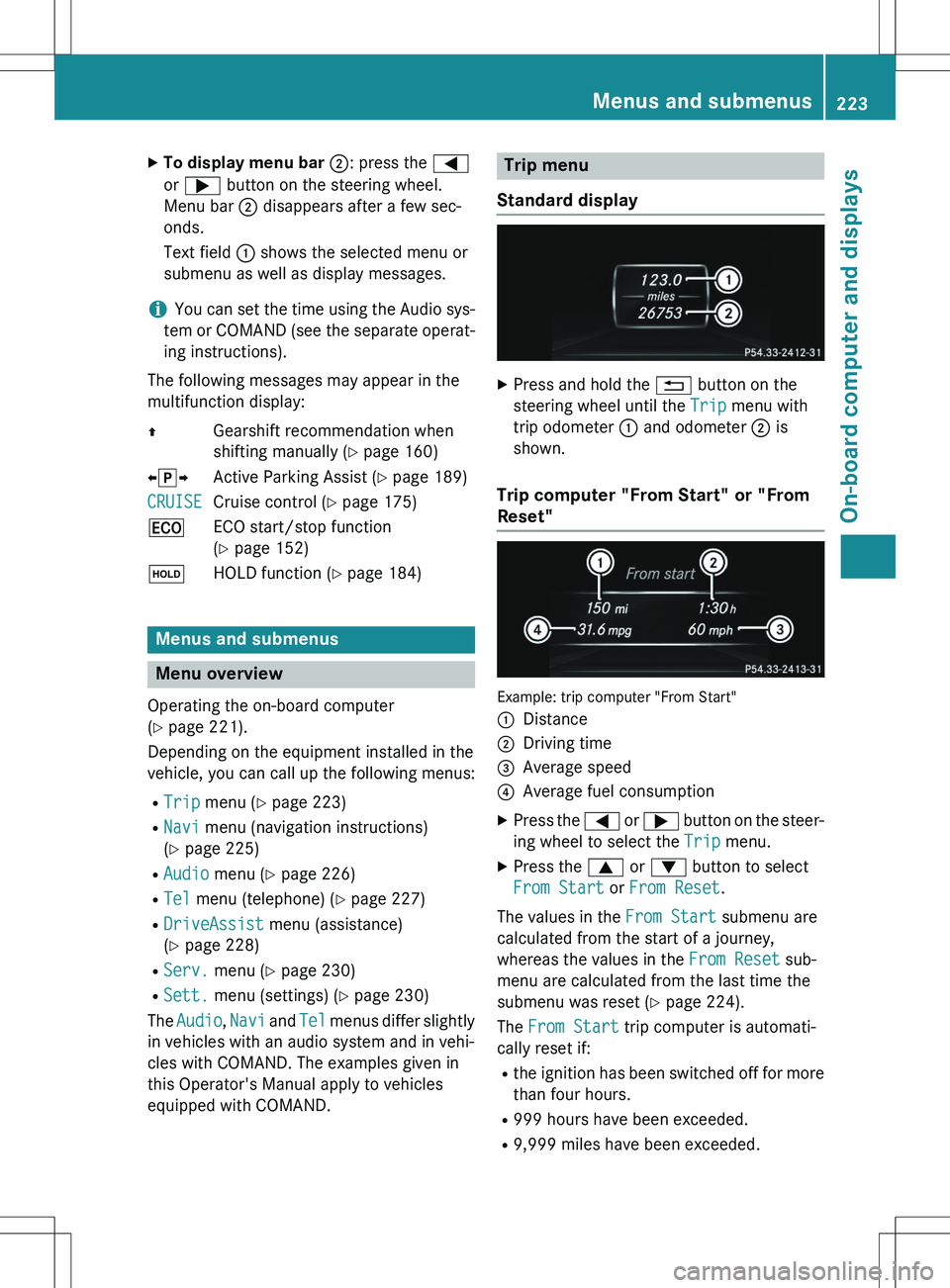

XTo display menu bar ;: press the =
or ; button on the steering wheel.
Menu bar ; disappears after a few sec-
onds.
Text field : shows the selected menu or
submenu as well as display messages.
iYou can set the time using the Audio sys-
tem or COMAND (see the separate operat-
ing instructions).
The following messages may appear in the
multifunction display: Z Gearshift recommendation when
shifting manually ( Y page 160)
X j Y
Active Parking Assist ( Y page 189)
CRUISECruise control ( Y page 175)
¤ ECO start/stop function
(Y page 152)
ë HOLD function ( Y page 184)
Menus and submenus
Menu overview
Operating the on-board computer
(Y page 221).
Depending on the equipment installed in the
vehicle, you can call up the following menus:
R
Trip menu ( Y page 223)
R
Navi menu (navigation instructions)
( Y page 225)
R
Audio menu ( Y page 226)
R
Tel menu (telephone) ( Y page 227)
R
DriveAssist menu (assistance)
( Y page 228)
R
Serv. menu ( Y page 230)
R
Sett. menu (settings) ( Y page 230)
The
Audio, Navi and Tel menus differ slightly
in vehicles with an audio system and in vehi-
cles with COMAND. The examples given in
this Operator's Manual apply to vehicles
equipped with COMAND.
Trip menu
Standard display
X Press and hold the % button on the
steering wheel until the
Trip menu with
trip odometer : and odometer ; is
shown.
Trip computer "From Start" or "From
Reset"
Example: trip computer "From Start" :
Distance
;Driving time
=Average speed
?Average fuel consumption
X Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select
From Start or From Reset.
The values in the
From Start submenu are
calculated from the start of a journey,
whereas the values in the
From Reset sub-
menu are calculated from the last time the
submenu was reset ( Y page 224).
The
From Start trip computer is automati-
cally reset if:
R the ignition has been switched off for more
than four hours.
R 999 hours have been exceeded.
R 9,999 miles have been exceeded.
Menus and submenus223
On-board computer and displays
Z

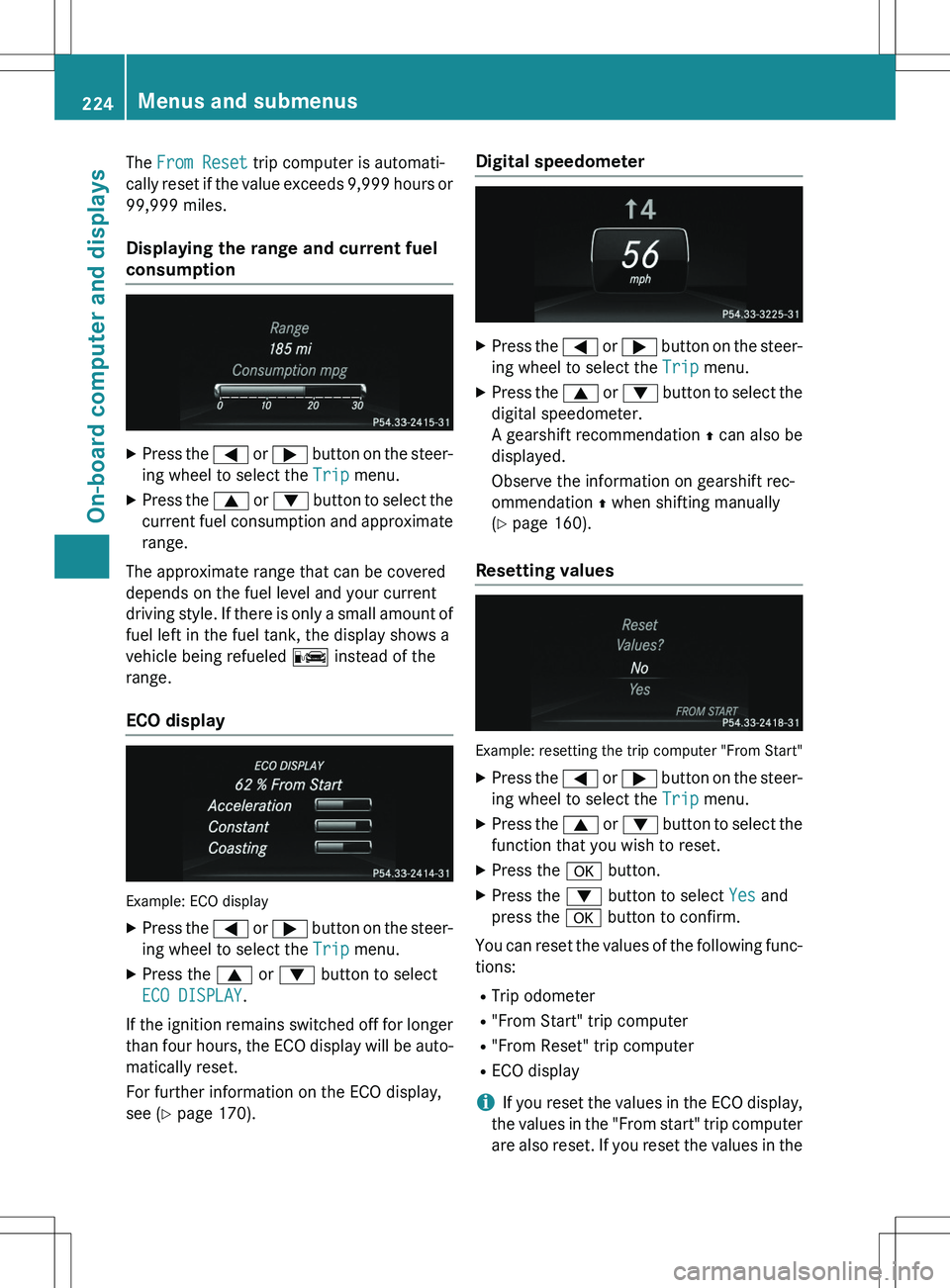

The From Reset trip computer is automati-
cally reset if the value exceeds 9,999 hours or
99,999 miles.
Displaying the range and current fuel
consumption
X Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select the
current fuel consumption and approximate
range.
The approximate range that can be covered
depends on the fuel level and your current
driving style. If there is only a small amount of
fuel left in the fuel tank, the display shows a
vehicle being refueled C instead of the
range.
ECO display
Example: ECO display
X Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select
ECO DISPLAY.
If the ignition remains switched off for longer than four hours, the ECO display will be auto- matically reset.
For further information on the ECO display,
see ( Y page 170).
Digital speedometer
X
Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select the
digital speedometer.
A gearshift recommendation Z can also be
displayed.
Observe the information on gearshift rec-
ommendation Z when shifting manually
( Y page 160).
Resetting values
Example: resetting the trip computer "From Start"
X
Press the = or ; button on the steer-
ing wheel to select the
Trip menu.
X Press the 9 or : button to select the
function that you wish to reset.
X Press the a button.
X Press the : button to select
Yes and
press the a button to confirm.
You can reset the values of the following func-
tions:
R Trip odometer
R "From Start" trip computer
R "From Reset" trip computer
R ECO display
iIf you reset the values in the ECO display,
the values in the "From start" trip computer are also reset. If you reset the values in the
224Menus and submenus
On-board computer and displays

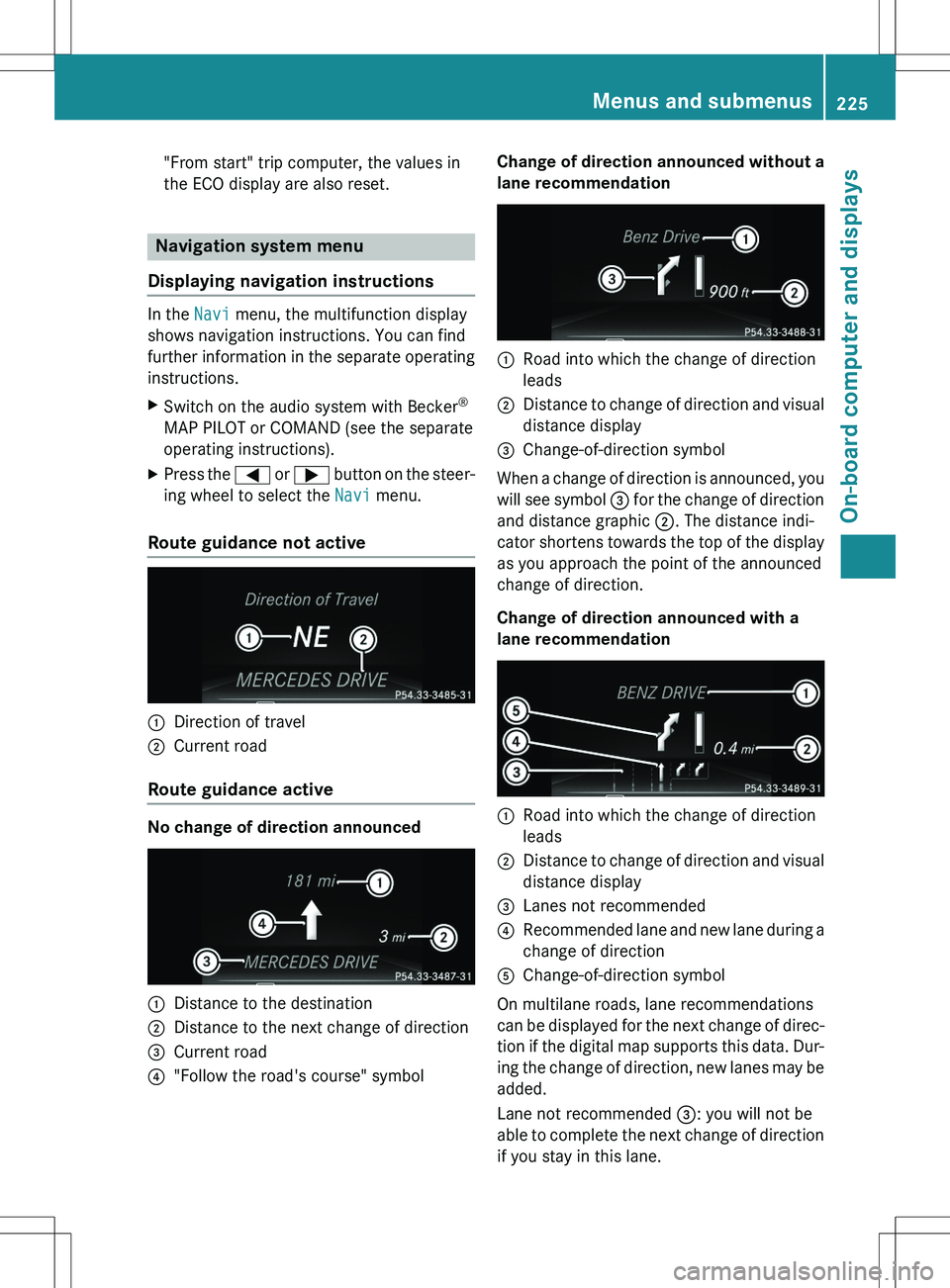

"From start" trip computer, the values in
the ECO display are also reset.
Navigation system menu
Displaying navigation instructions
In the Navi menu, the multifunction display
shows navigation instructions. You can find
further information in the separate operating
instructions.
X Switch on the audio system with Becker ®
MAP PILOT or COMAND (see the separate
operating instructions).
X Press the = or ; button on the steer-
ing wheel to select the
Navi menu.
Route guidance not active
:Direction of travel
;Current road
Route guidance active
No change of direction announced
:Distance to the destination
;Distance to the next change of direction
=Current road
?"Follow the road's course" symbol Change of direction announced without a
lane recommendation
:Road into which the change of direction
leads
;Distance to change of direction and visual
distance display
=Change-of-direction symbol
When a change of direction is announced, you
will see symbol = for the change of direction
and distance graphic ;. The distance indi-
cator shortens towards the top of the display
as you approach the point of the announced
change of direction.
Change of direction announced with a
lane recommendation
:Road into which the change of direction
leads
;Distance to change of direction and visual
distance display
=Lanes not recommended
?Recommended lane and new lane during a
change of direction
AChange-of-direction symbol
On multilane roads, lane recommendations
can be displayed for the next change of direc- tion if the digital map supports this data. Dur-
ing the change of direction, new lanes may be added.
Lane not recommended =: you will not be
able to complete the next change of direction
if you stay in this lane.
Menus and submenus225
On-board computer and displays
Z

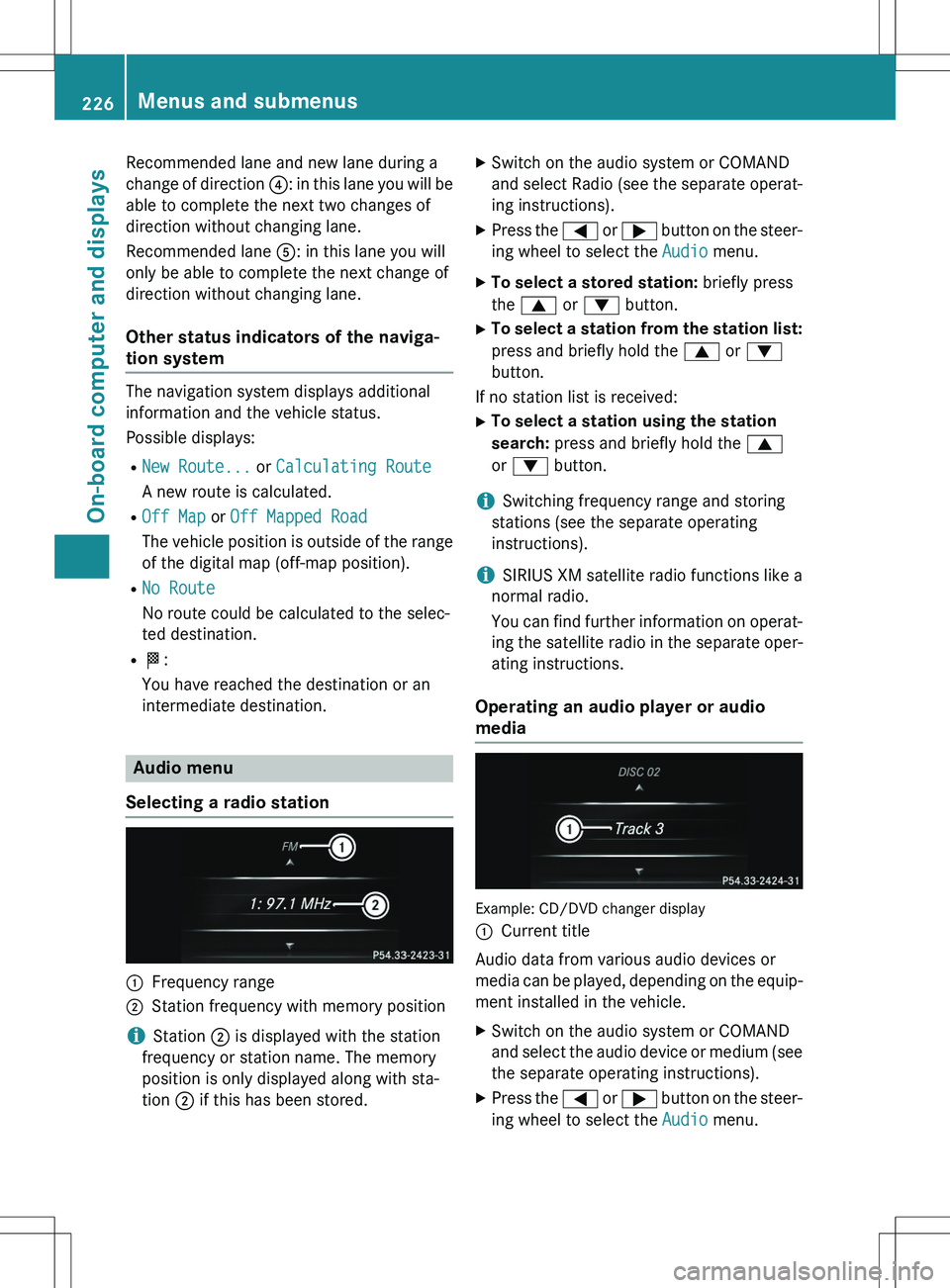

Recommended lane and new lane during a
change of direction ?: in this lane you will be
able to complete the next two changes of
direction without changing lane.
Recommended lane A: in this lane you will
only be able to complete the next change of
direction without changing lane.
Other status indicators of the naviga-
tion system
The navigation system displays additional
information and the vehicle status.
Possible displays:
R
New Route... or Calculating Route
A new route is calculated.
R
Off Map or Off Mapped Road
The vehicle position is outside of the range of the digital map (off-map position).
R
No Route
No route could be calculated to the selec-
ted destination.
R O :
You have reached the destination or an
intermediate destination.
Audio menu
Selecting a radio station
:Frequency range
;Station frequency with memory position
iStation ; is displayed with the station
frequency or station name. The memory
position is only displayed along with sta-
tion ; if this has been stored. X
Switch on the audio system or COMAND
and select Radio (see the separate operat-
ing instructions).
X Press the = or ; button on the steer-
ing wheel to select the
Audio menu.
X To select a stored station: briefly press
the 9 or : button.
X To select a station from the station list:
press and briefly hold the 9 or :
button.
If no station list is received: X To select a station using the station
search: press and briefly hold the 9
or : button.
iSwitching frequency range and storing
stations (see the separate operating
instructions).
iSIRIUS XM satellite radio functions like a
normal radio.
You can find further information on operat-
ing the satellite radio in the separate oper- ating instructions.
Operating an audio player or audio
media
Example: CD/DVD changer display :
Current title
Audio data from various audio devices or
media can be played, depending on the equip- ment installed in the vehicle.
X Switch on the audio system or COMAND
and select the audio device or medium (see
the separate operating instructions).
X Press the = or ; button on the steer-
ing wheel to select the
Audio menu.
226Menus and submenus
On-board computer and displays

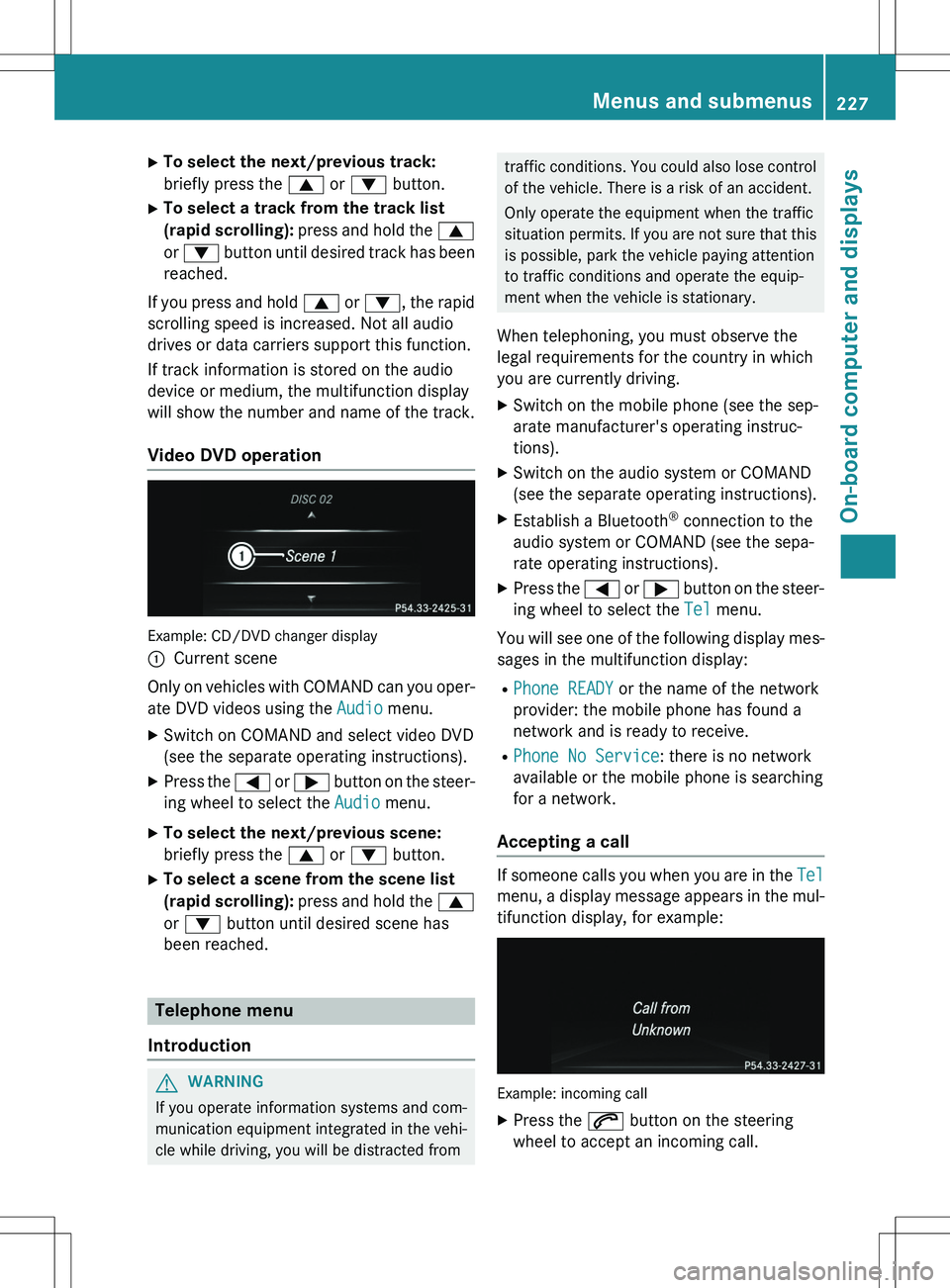

XTo select the next/previous track:
briefly press the 9 or : button.
X To select a track from the track list
(rapid scrolling): press and hold the 9
or : button until desired track has been
reached.
If you press and hold 9 or : , the rapid
scrolling speed is increased. Not all audio
drives or data carriers support this function.
If track information is stored on the audio
device or medium, the multifunction display
will show the number and name of the track.
Video DVD operation
Example: CD/DVD changer display :
Current scene
Only on vehicles with COMAND can you oper-
ate DVD videos using the
Audio menu.
X Switch on COMAND and select video DVD
(see the separate operating instructions).
X Press the = or ; button on the steer-
ing wheel to select the
Audio menu.
X To select the next/previous scene:
briefly press the 9 or : button.
X To select a scene from the scene list
(rapid scrolling): press and hold the 9
or : button until desired scene has
been reached.
Telephone menu
Introduction
GWARNING
If you operate information systems and com-
munication equipment integrated in the vehi- cle while driving, you will be distracted from
traffic conditions. You could also lose controlof the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
When telephoning, you must observe the
legal requirements for the country in which
you are currently driving.
X Switch on the mobile phone (see the sep-
arate manufacturer's operating instruc-
tions).
X Switch on the audio system or COMAND
(see the separate operating instructions).
X Establish a Bluetooth ®
connection to the
audio system or COMAND (see the sepa-
rate operating instructions).
X Press the = or ; button on the steer-
ing wheel to select the
Tel menu.
You will see one of the following display mes-
sages in the multifunction display: R
Phone READY or the name of the network
provider: the mobile phone has found a
network and is ready to receive.
R
Phone No Service: there is no network
available or the mobile phone is searching
for a network.
Accepting a call
If someone calls you when you are in the Tel
menu, a display message appears in the mul- tifunction display, for example:
Example: incoming call
X Press the 6 button on the steering
wheel to accept an incoming call.
Menus and submenus227
On-board computer and displays
Z

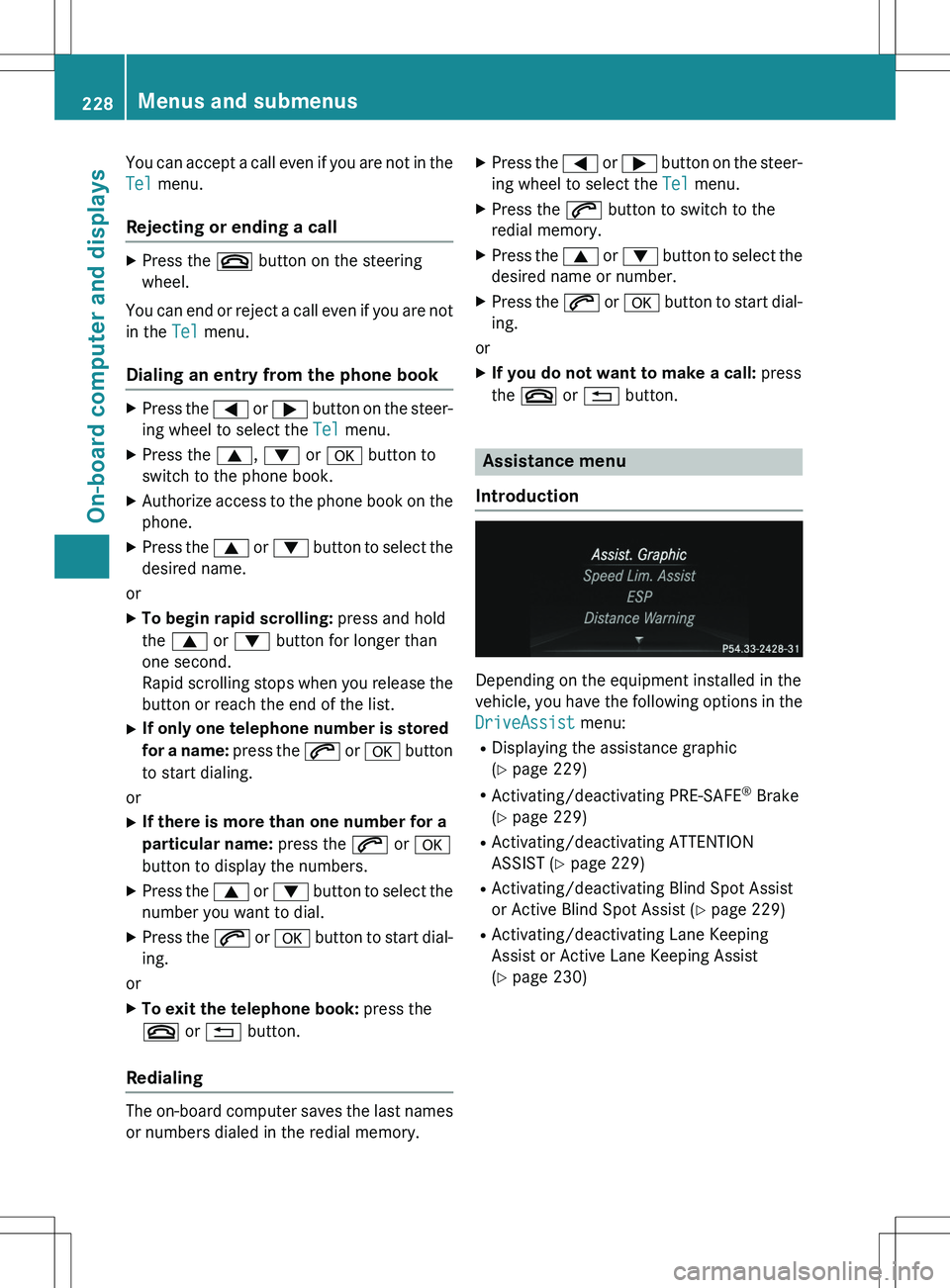

You can accept a call even if you are not in the
Tel menu.
Rejecting or ending a call
XPress the ~ button on the steering
wheel.
You can end or reject a call even if you are not
in the
Tel menu.
Dialing an entry from the phone book
X Press the = or ; button on the steer-
ing wheel to select the
Tel menu.
X Press the 9, : or a button to
switch to the phone book.
X Authorize access to the phone book on the
phone.
X Press the 9 or : button to select the
desired name.
or
X To begin rapid scrolling: press and hold
the 9 or : button for longer than
one second.
Rapid scrolling stops when you release the
button or reach the end of the list.
X If only one telephone number is stored
for a name: press the 6 or a button
to start dialing.
or
X If there is more than one number for a
particular name: press the 6 or a
button to display the numbers.
X Press the 9 or : button to select the
number you want to dial.
X Press the 6 or a button to start dial-
ing.
or X To exit the telephone book: press the
~ or % button.
Redialing
The on-board computer saves the last names
or numbers dialed in the redial memory. X
Press the = or ; button on the steer-
ing wheel to select the
Tel menu.
X Press the 6 button to switch to the
redial memory.
X Press the 9 or : button to select the
desired name or number.
X Press the 6 or a button to start dial-
ing.
or X If you do not want to make a call: press
the ~ or % button.
Assistance menu
Introduction
Depending on the equipment installed in the
vehicle, you have the following options in the
DriveAssist menu:
R Displaying the assistance graphic
(Y page 229)
R Activating/deactivating PRE-SAFE ®
Brake
( Y page 229)
R Activating/deactivating ATTENTION
ASSIST ( Y page 229)
R Activating/deactivating Blind Spot Assist
or Active Blind Spot Assist ( Y page 229)
R Activating/deactivating Lane Keeping
Assist or Active Lane Keeping Assist
(Y page 230)
228Menus and submenus
On-board computer and displays
