470 Practical hintsWhere will I find ...?3Securing hook
Release securing hook3 (located be-
low the floor handle) from holder.3Securing hook
4Cargo compartment floor, raised
5Upper cargo compartment lip

Engage securing hook3 on upper
cargo compartment lip5.

Remove the Minispare wheel
(page 473).
orML 63 AMG:

Remove the collapsible tire
(page 474).
You can now access the vehicle tool kit.

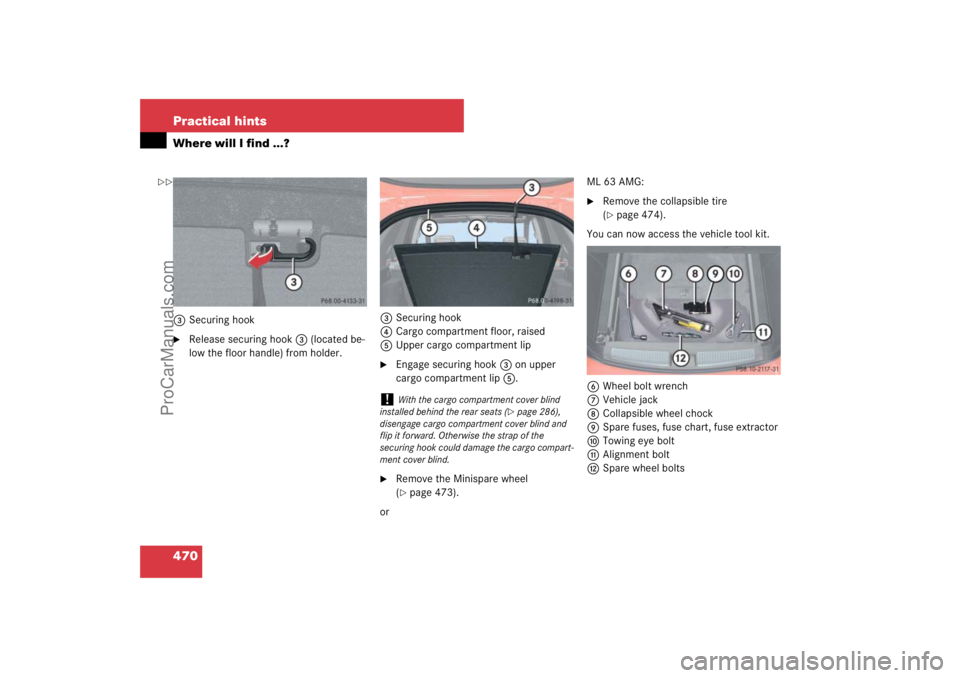

6Wheel bolt wrench
7Vehicle jack
8Collapsible wheel chock
9Spare fuses, fuse chart, fuse extractor
aTowing eye bolt
bAlignment bolt
cSpare wheel bolts
!
With the cargo compartment cover blind
installed behind the rear seats (
page 286),
disengage cargo compartment cover blind and
flip it forward. Otherwise the strap of the
securing hook could damage the cargo compart-
ment cover blind.

ProCarManuals.com

471 Practical hints
Where will I find ...?

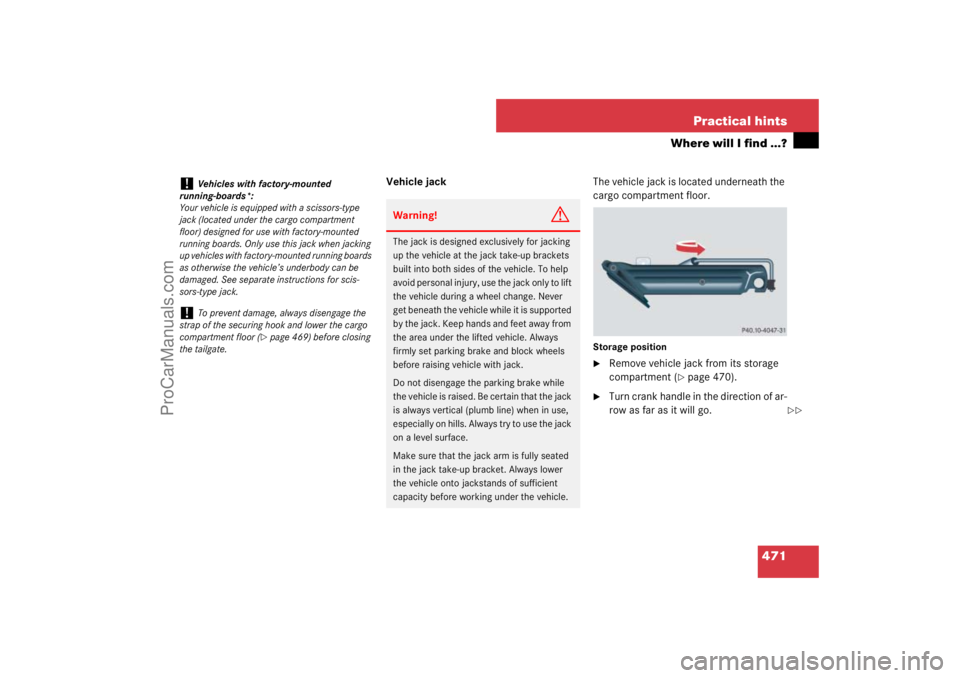

Vehicle jackThe vehicle jack is located underneath the
cargo compartment floor.
Storage position
Remove vehicle jack from its storage
compartment (
page 470).

Turn crank handle in the direction of ar-
row as far as it will go.
!
Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment
floor) designed for use with factory-mounted
running boards. Only use this jack when jacking
up vehicles with factory-mounted running boards
as otherwise the vehicle’s underbody can be
damaged. See separate instructions for scis-
sors-type jack.
!
To prevent damage, always disengage the
strap of the securing hook and lower the cargo
compartment floor (
page 469) before closing
the tailgate.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage the parking brake while
the vehicle is raised. Be certain that the jack
is always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on a level surface.
Make sure that the jack arm is fully seated
in the jack take-up bracket. Always lower
the vehicle onto jackstands of sufficient
capacity before working under the vehicle.

ProCarManuals.com

472 Practical hintsWhere will I find ...?Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its stor-
age compartment:


The vehicle jack should be fully col-
lapsed.


The handle must be folded in (storage
position).Setting up the collapsible wheel chock
The collapsible wheel chock serves to ad-
ditionally secure the vehicle, e.g. while
changing the wheel.

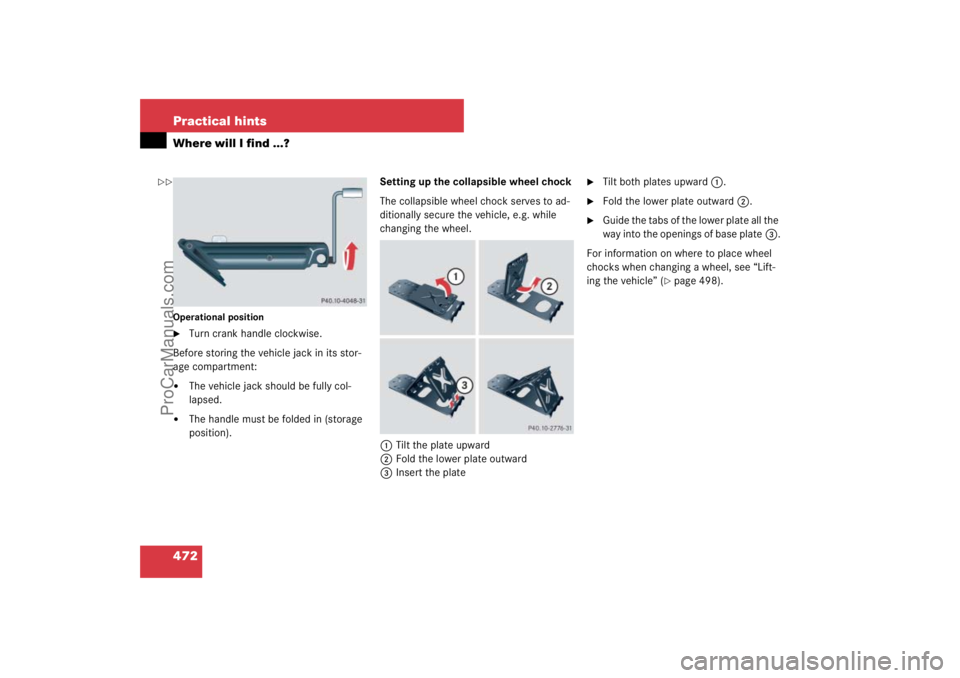

1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of base plate3.
For information on where to place wheel
chocks when changing a wheel, see “Lift-
ing the vehicle” (
page 498).

ProCarManuals.com

473 Practical hints
Where will I find ...?
Minispare wheel (except ML 63 AMG)The Minispare wheel is located underneath
the cargo compartment floor
(
page 469).
Removing Minispare wheel

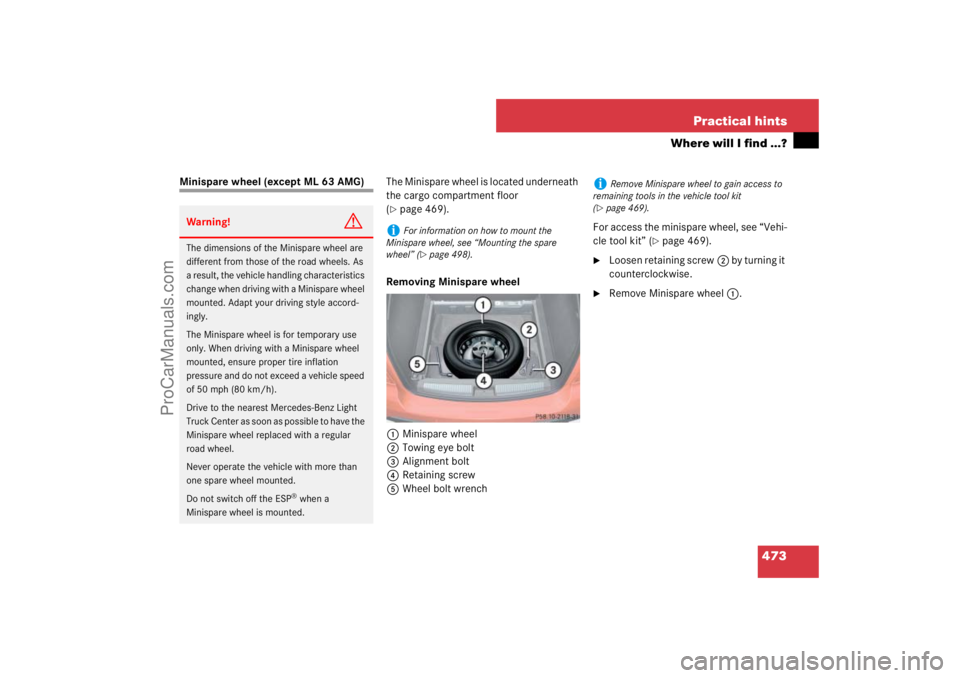

1Minispare wheel
2Towing eye bolt
3Alignment bolt
4Retaining screw
5Wheel bolt wrenchFor access the minispare wheel, see “Vehi-
cle tool kit” (
page 469).

Loosen retaining screw2 by turning it
counterclockwise.

Remove Minispare wheel1.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style accord-
ingly.
The Minispare wheel is for temporary use
only. When driving with a Minispare wheel
mounted, ensure proper tire inflation
pressure and do not exceed a vehicle speed
of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
Minispare wheel replaced with a regular
road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel is mounted.
i
For information on how to mount the
Minispare wheel, see “Mounting the spare
wheel” (
page 498).
i
Remove Minispare wheel to gain access to
remaining tools in the vehicle tool kit
(
page 469).
ProCarManuals.com

474 Practical hintsWhere will I find ...?Collapsible tire (ML 63 AMG only)The collapsible tire is located underneath
the cargo compartment floor
(
page 469).
Removing the collapsible tire

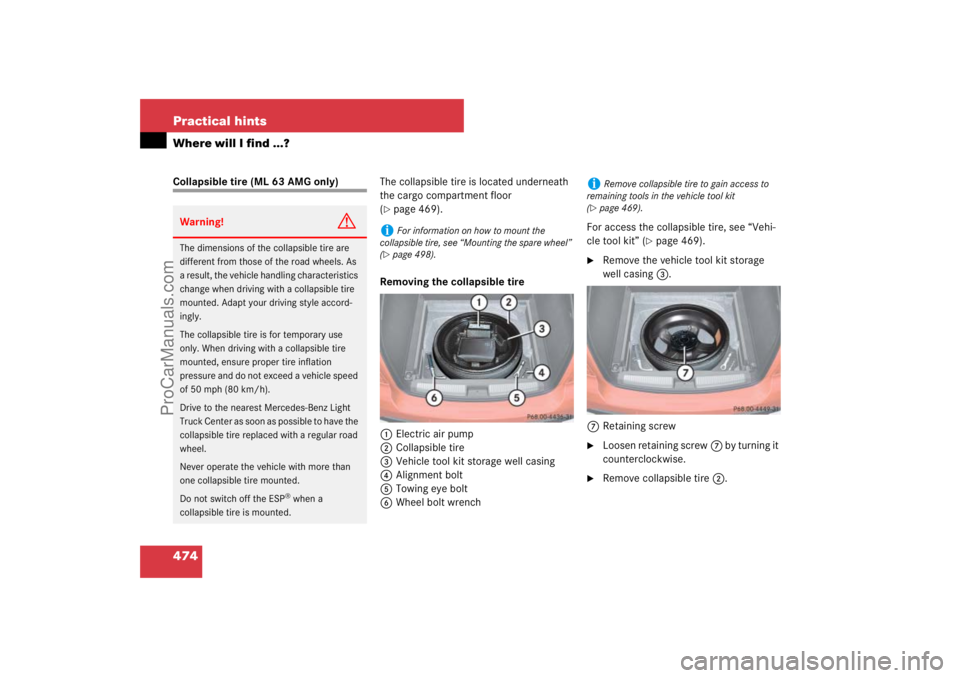

1Electric air pump
2Collapsible tire
3Vehicle tool kit storage well casing
4Alignment bolt
5Towing eye bolt
6Wheel bolt wrenchFor access the collapsible tire, see “Vehi-
cle tool kit” (
page 469).

Remove the vehicle tool kit storage
well casing3.
7Retaining screw

Loosen retaining screw7 by turning it
counterclockwise.

Remove collapsible tire2.
Warning!
G
The dimensions of the collapsible tire are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a collapsible tire
mounted. Adapt your driving style accord-
ingly.
The collapsible tire is for temporary use
only. When driving with a collapsible tire
mounted, ensure proper tire inflation
pressure and do not exceed a vehicle speed
of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
collapsible tire replaced with a regular road
wheel.
Never operate the vehicle with more than
one collapsible tire mounted.
Do not switch off the ESP
® when a
collapsible tire is mounted.
i
For information on how to mount the
collapsible tire, see “Mounting the spare wheel”
(
page 498).
i
Remove collapsible tire to gain access to
remaining tools in the vehicle tool kit
(
page 469).
ProCarManuals.com

475 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, open the driv-
er’s door using the mechanical key.Removing the mechanical key

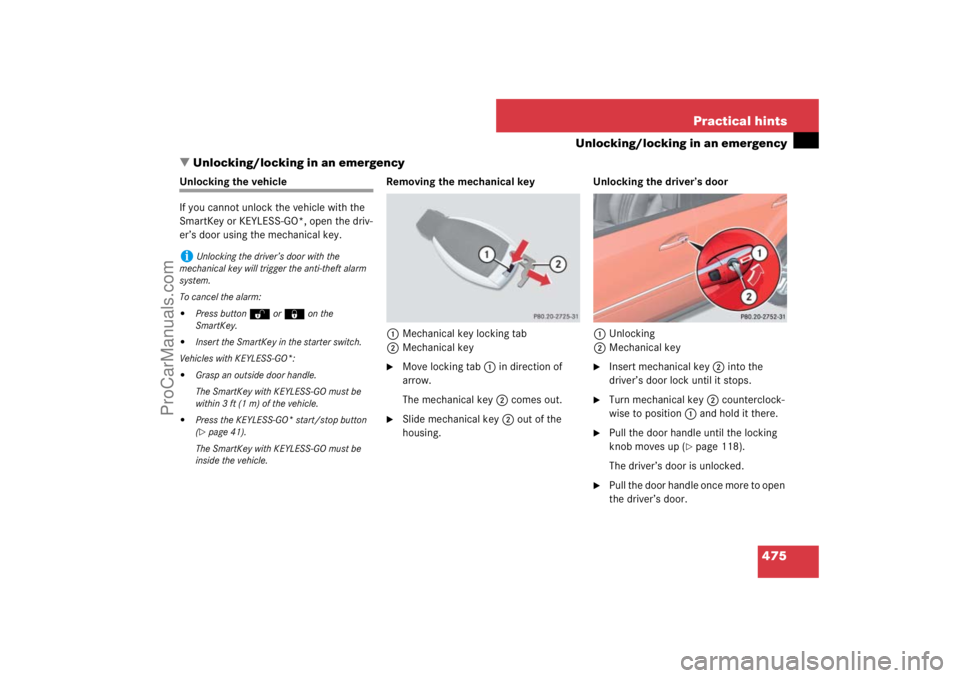

1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of
arrow.
The mechanical key2 comes out.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking
2Mechanical key

Insert mechanical key2 into the
driver’s door lock until it stops.

Turn mechanical key2 counterclock-
wise to position1 and hold it there.

Pull the door handle until the locking
knob moves up (
page 118).
The driver’s door is unlocked.

Pull the door handle once more to open
the driver’s door.
i
Unlocking the driver’s door with the
mechanical key will trigger the anti-theft alarm
system.
To cancel the alarm:


Press buttonŒ or‹on the
SmartKey.


Insert the SmartKey in the starter switch.
Vehicles with KEYLESS-GO*:


Grasp an outside door handle.
The SmartKey with KEYLESS-GO must be
within 3 ft (1 m) of the vehicle.


Press the KEYLESS-GO* start/stop button
(page 41).
The SmartKey with KEYLESS-GO must be
inside the vehicle.
ProCarManuals.com

476 Practical hintsUnlocking/locking in an emergencyLocking the vehicle
If you cannot lock the vehicle with the
SmartKey or KEYLESS-GO*, lock the vehi-
cle carrying out the following steps.
Close the front passenger door, the
rear right door and the tailgate.

Open the driver’s door and the rear left
door.

Press the central locking switch on the
driver’s door (
page 126).
The locking knobs of the front passen-
ger door and the rear doors move
down.
If the vehicle battery is disconnected or
drained:

Press down the locking knobs of
the front passenger door and the
rear doors manually.

Exit the vehicle.

Close the driver’s door.

Enter the vehicle through the rear left
door.

Press down the locking knob of the
driver’s door.

Exit the vehicle.

Close the rear left door.
The vehicle is locked.
Unlocking and opening the tailgate
A minimum height clearance of 7.2 ft
(2.20 m) is required to open the tailgate.If the tailgate can no longer be unlocked
and opened using the Œbutton on the
SmartKey or the KEYLESS-GO* function,
use the manual release to unlock and open
the tailgate.
The manual release is located on the inside
of the tailgate.

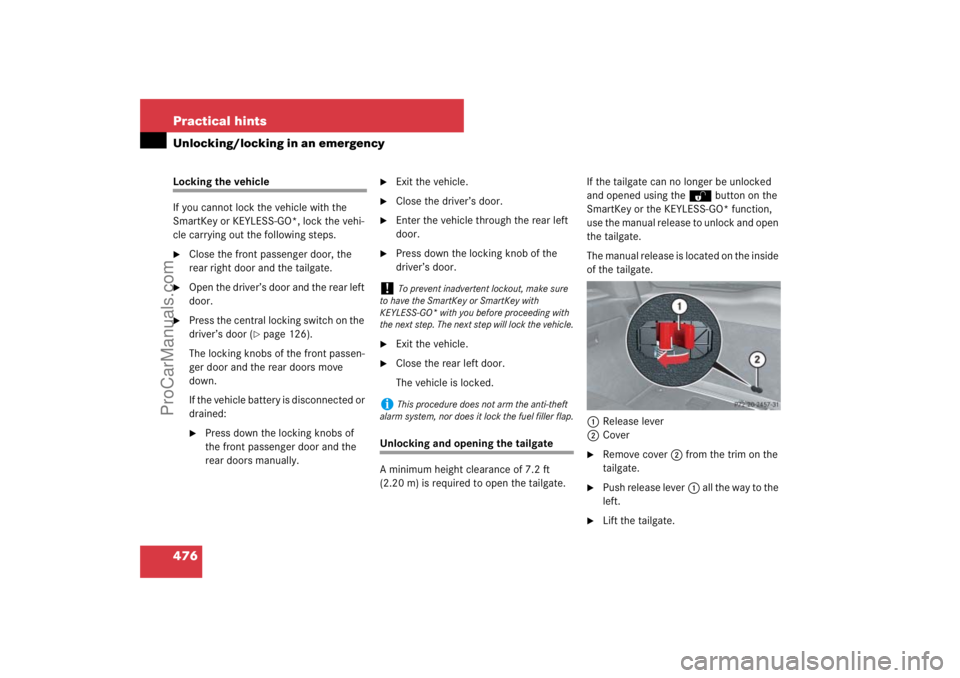

1Release lever
2Cover

Remove cover2 from the trim on the
tailgate.

Push release lever1 all the way to the
left.

Lift the tailgate.
!
To prevent inadvertent lockout, make sure
to have the SmartKey or SmartKey with
KEYLESS-GO* with you before proceeding with
the next step. The next step will lock the vehicle.
i
This procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.
ProCarManuals.com

477 Practical hints
Unlocking/locking in an emergency
Fuel filler flap
Open the tailgate (
page 119).
The fuel filler flap release is located behind
a cover in the right side trim panel of the
cargo compartment.

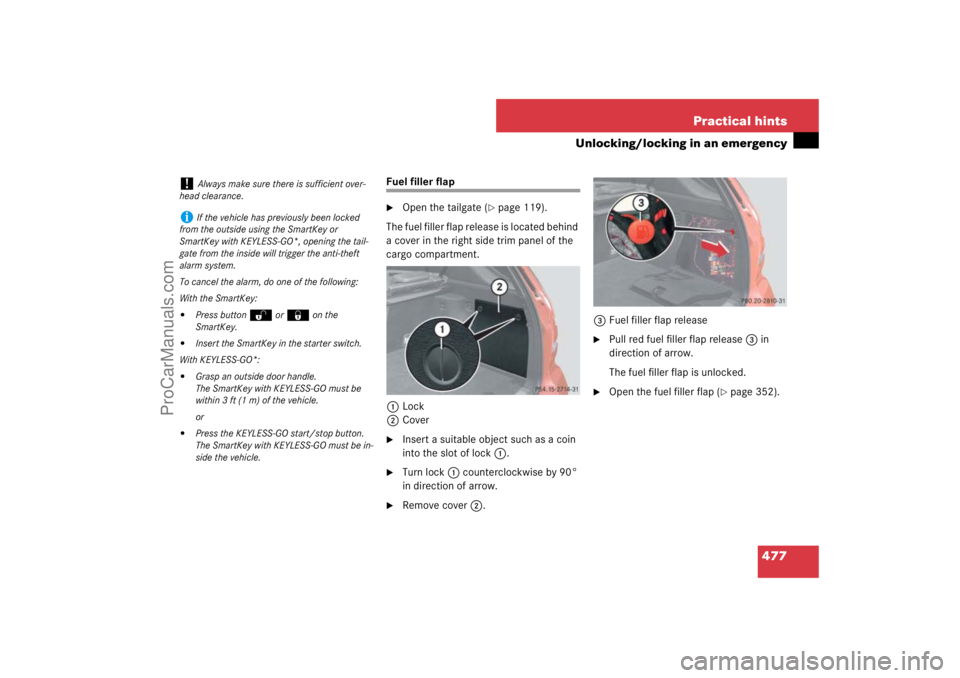

1Lock
2Cover

Insert a suitable object such as a coin
into the slot of lock1.

Turn lock1 counterclockwise by 90°
in direction of arrow.

Remove cover2.3Fuel filler flap release

Pull red fuel filler flap release3 in
direction of arrow.
The fuel filler flap is unlocked.

Open the fuel filler flap (
page 352).
!
Always make sure there is sufficient over-
head clearance.
i
If the vehicle has previously been locked
from the outside using the SmartKey or
SmartKey with KEYLESS-GO*, opening the tail-
gate from the inside will trigger the anti-theft
alarm system.
To cancel the alarm, do one of the following:
With the SmartKey:


Press button
Œ
or
‹
on the
SmartKey.


Insert the SmartKey in the starter switch.
With KEYLESS-GO*:


Grasp an outside door handle.
The SmartKey with KEYLESS-GO must be
within 3 ft (1 m) of the vehicle.
or


Press the KEYLESS-GO start/stop button.
The SmartKey with KEYLESS-GO must be in-
side the vehicle.
ProCarManuals.com

478 Practical hintsOpening/closing in an emergencyPower tilt/sliding sunroof*

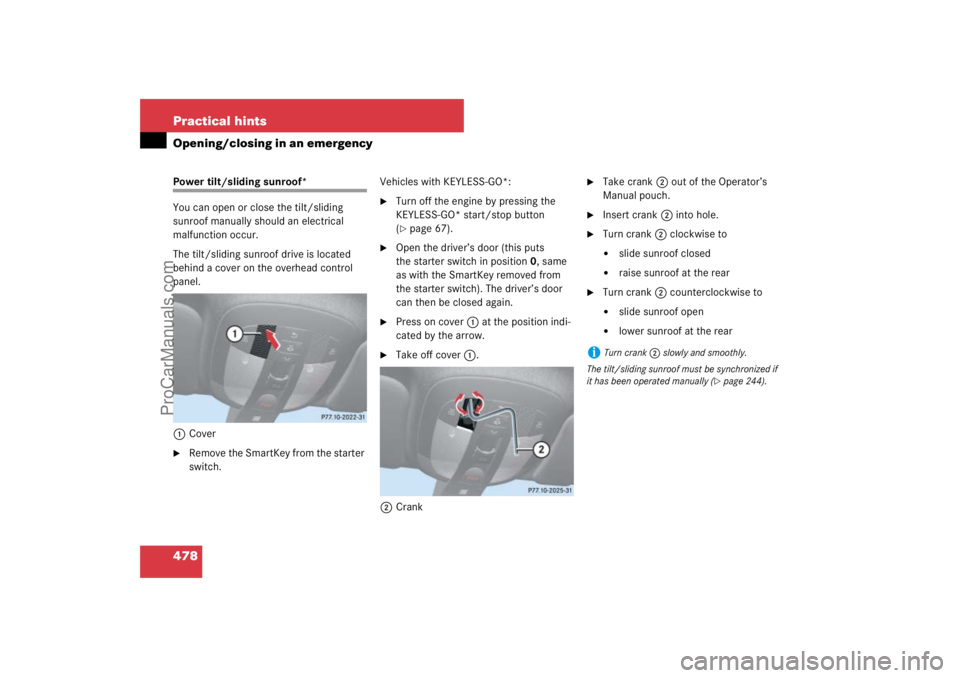

You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located
behind a cover on the overhead control
panel.
1Cover
Remove the SmartKey from the starter
switch.Vehicles with KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO* start/stop button
(page 67).

Open the driver’s door (this puts
the starter switch in position 0, same
as with the SmartKey removed from
the starter switch). The driver’s door
can then be closed again.

Press on cover1 at the position indi-
cated by the arrow.

Take off cover1.
2Crank

Take crank2 out of the Operator’s
Manual pouch.

Insert crank2 into hole.

Turn crank2 clockwise to

slide sunroof closed


raise sunroof at the rear

Turn crank2 counterclockwise to

slide sunroof open


lower sunroof at the rear
i
Turn crank2 slowly and smoothly.
The tilt/sliding sunroof must be synchronized if
it has been operated manually (
page 244).
ProCarManuals.com

479 Practical hints
Resetting activated head restraints
Resetting activated head restraints
If the active head restraints have been trig-
gered in a rear-end collision, the active
head restraints must be reset. Otherwise,
the active head restraints cannot offer any
additional protection in the event of anoth-
er rear-end collision.
You can tell that the head restraints have
been activated when they have been
moved forward and cannot be adjusted.

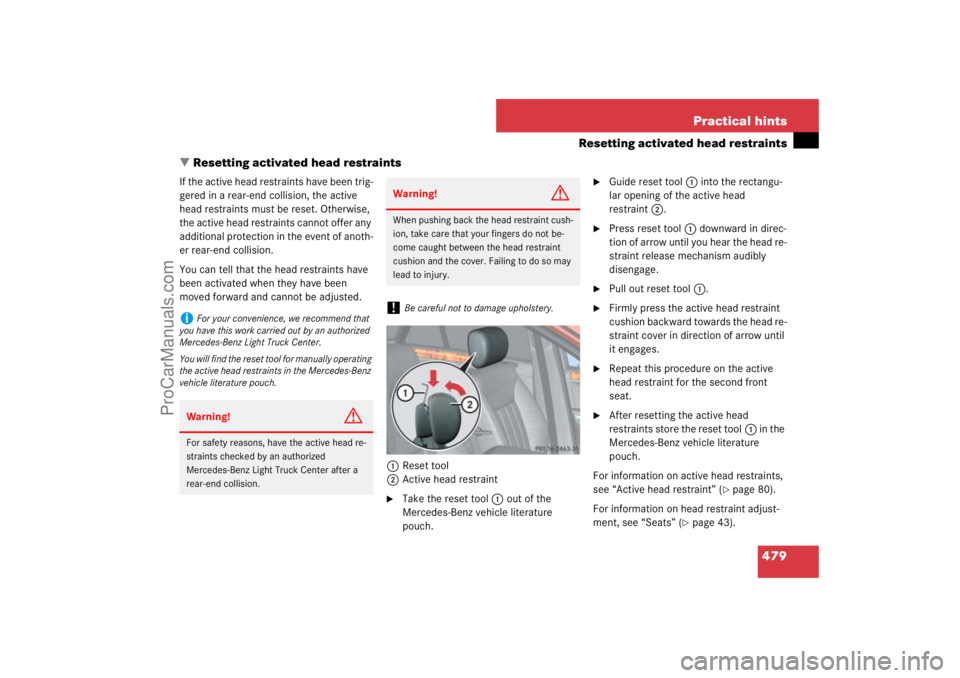

1Reset tool
2Active head restraint

Take the reset tool1 out of the
Mercedes-Benz vehicle literature
pouch.

Guide reset tool1 into the rectangu-
lar opening of the active head
restraint2.

Press reset tool1 downward in direc-
tion of arrow until you hear the head re-
straint release mechanism audibly
disengage.

Pull out reset tool1.

Firmly press the active head restraint
cushion backward towards the head re-
straint cover in direction of arrow until
it engages.

Repeat this procedure on the active
head restraint for the second front
seat.

After resetting the active head
restraints store the reset tool1 in the
Mercedes-Benz vehicle literature
pouch.
For information on active head restraints,
see “Active head restraint” (
page 80).
For information on head restraint adjust-
ment, see “Seats” (
page 43).
i
For your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
You will find the reset tool for manually operating
the active head restraints in the Mercedes-Benz
vehicle literature pouch.Warning!
G
For safety reasons, have the active head re-
straints checked by an authorized
Mercedes-Benz Light Truck Center after a
rear-end collision.
Warning!
G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.!
Be careful not to damage upholstery.
ProCarManuals.com
