MERCEDES-BENZ M-CLASS 2007 Owners Manual

490 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 136).
Tail lamp unit

Open the tailgate (
page 119).Opening the side trim panels

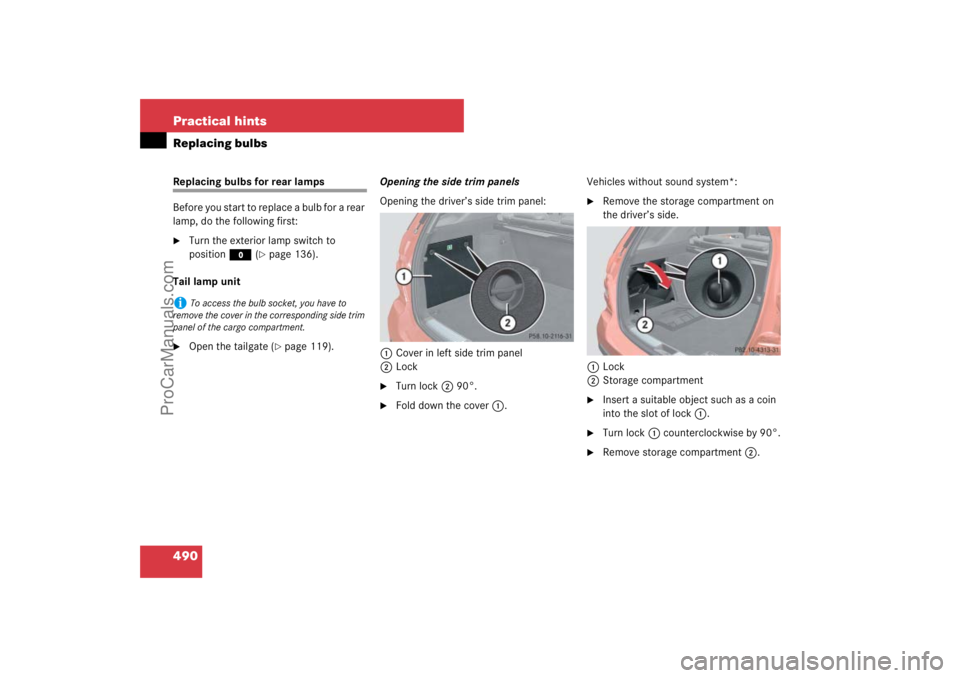

Opening the driver’s side trim panel:
1Cover in left side trim panel
2Lock

Turn lock2 90°.

Fold down the cover1.Vehicles without sound system*:

Remove the storage compartment on
the driver’s side.
1Lock
2Storage compartment

Insert a suitable object such as a coin
into the slot of lock1.

Turn lock1 counterclockwise by 90°.

Remove storage compartment2.
i
To access the bulb socket, you have to
remove the cover in the corresponding side trim
panel of the cargo compartment.
ProCarManuals.com

491 Practical hints
Replacing bulbs

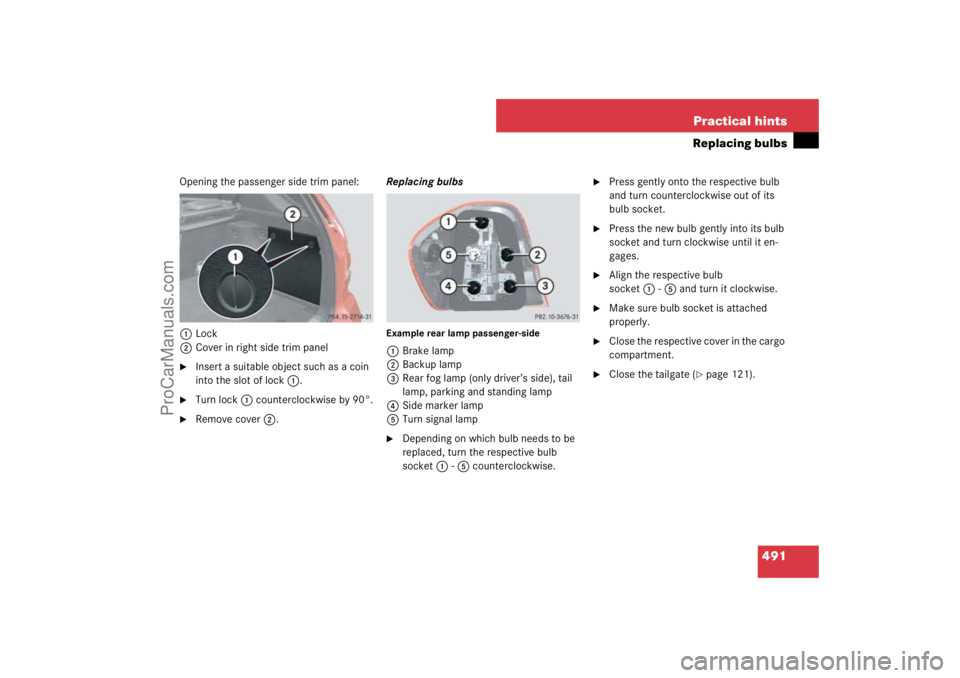

Opening the passenger side trim panel:
1Lock
2Cover in right side trim panel
Insert a suitable object such as a coin
into the slot of lock1.

Turn lock1 counterclockwise by 90°.

Remove cover2.Replacing bulbs
Example rear lamp passenger-side1Brake lamp
2Backup lamp
3Rear fog lamp (only driver’s side), tail
lamp, parking and standing lamp
4Side marker lamp
5Turn signal lamp
Depending on which bulb needs to be
replaced, turn the respective bulb
socket1-5 counterclockwise.

Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.

Press the new bulb gently into its bulb
socket and turn clockwise until it en-
gages.

Align the respective bulb
socket1-5 and turn it clockwise.

Make sure bulb socket is attached
properly.

Close the respective cover in the cargo
compartment.

Close the tailgate (
page 121).
ProCarManuals.com

492 Practical hintsReplacing bulbsLicense plate lamp

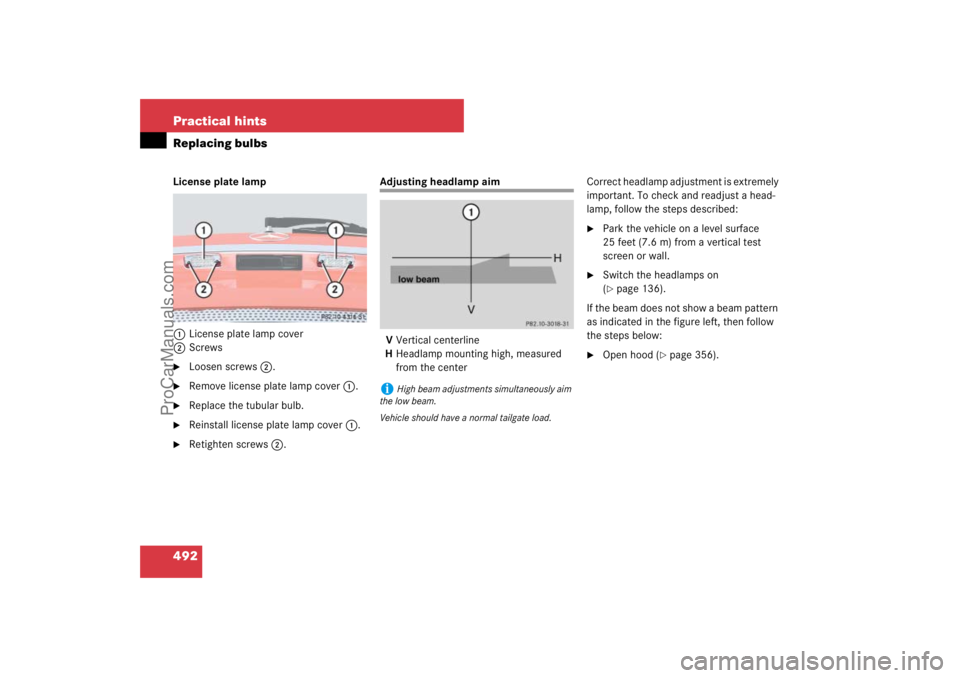

1License plate lamp cover
2Screws
Loosen screws2.

Remove license plate lamp cover1.

Replace the tubular bulb.

Reinstall license plate lamp cover1.

Retighten screws2.
Adjusting headlamp aim
VVertical centerline
HHeadlamp mounting high, measured
from the centerCorrect headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:

Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.

Switch the headlamps on
(page 136).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:

Open hood (
page 356).
i
High beam adjustments simultaneously aim
the low beam.
Vehicle should have a normal tailgate load.
ProCarManuals.com

493 Practical hints
Replacing bulbs

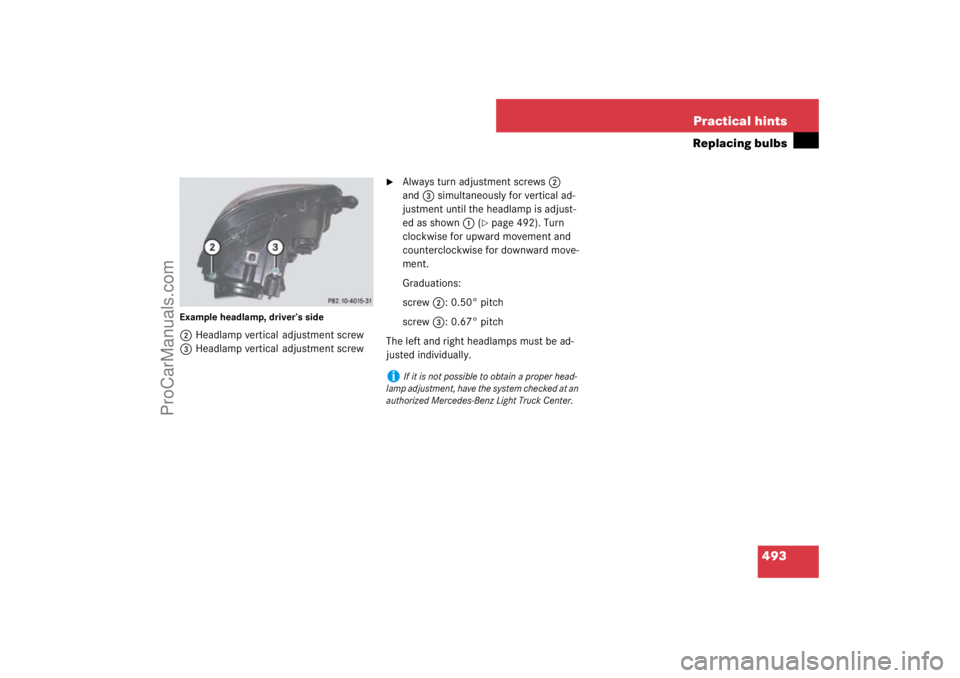

Example headlamp, driver’s side2Headlamp vertical adjustment screw
3Headlamp vertical adjustment screw

Always turn adjustment screws2
and3 simultaneously for vertical ad-
justment until the headlamp is adjust-
ed as shown1 (
page 492). Turn
clockwise for upward movement and
counterclockwise for downward move-
ment.
Graduations:
screw2: 0.50° pitch
screw3: 0.67° pitch
The left and right headlamps must be ad-
justed individually.
i
If it is not possible to obtain a proper head-
lamp adjustment, have the system checked at an
authorized Mercedes-Benz Light Truck Center.
ProCarManuals.com

494 Practical hintsReplacing wiper bladesFront wiper blades
Removing

Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(page 42).

Fold the wiper arms forward until they
engage.

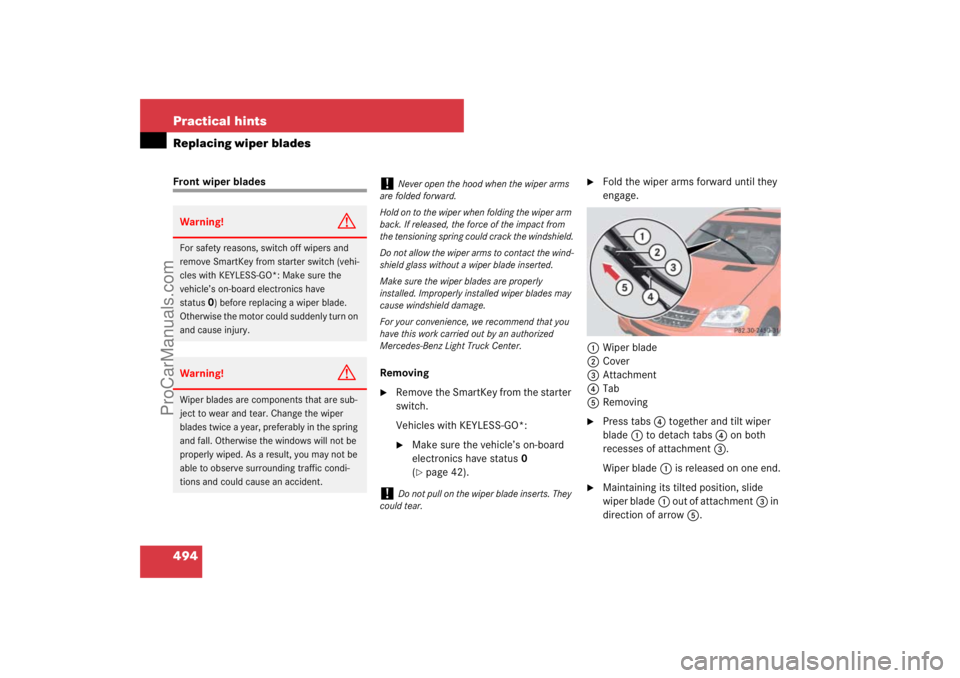

1Wiper blade
2Cover
3Attachment
4Tab
5Removing

Press tabs4 together and tilt wiper
blade1 to detach tabs4 on both
recesses of attachment3.
Wiper blade1 is released on one end.

Maintaining its tilted position, slide
wiper blade1 out of attachment3 in
direction of arrow5.

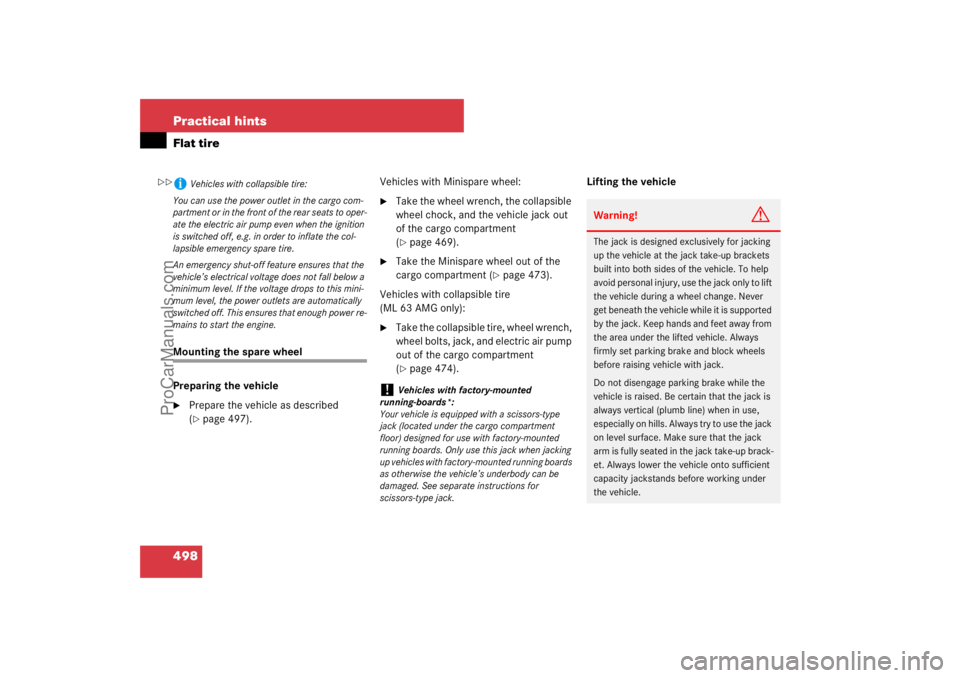

Warning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
Warning!
G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!
Never open the hood when the wiper arms
are folded forward.
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make sure the wiper blades are properly
installed. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
!
Do not pull on the wiper blade inserts. They
could tear.
ProCarManuals.com

495 Practical hints
Replacing wiper blades

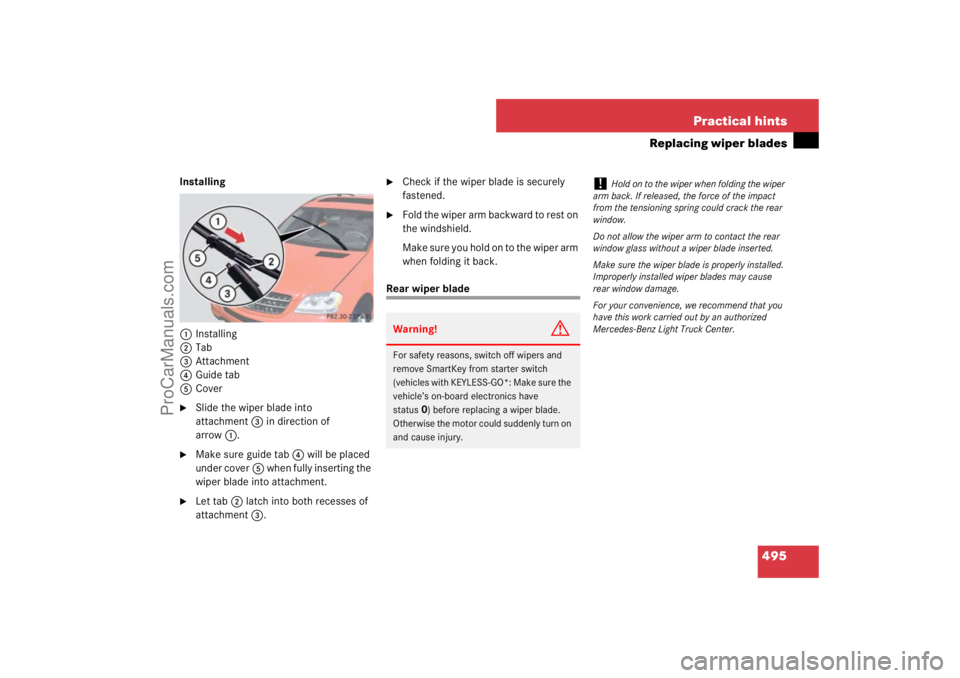

Installing
1Installing
2Tab
3Attachment
4Guide tab
5Cover
Slide the wiper blade into
attachment3 in direction of
arrow1.

Make sure guide tab4 will be placed
under cover5 when fully inserting the
wiper blade into attachment.

Let tab2 latch into both recesses of
attachment3.

Check if the wiper blade is securely
fastened.

Fold the wiper arm backward to rest on
the windshield.
Make sure you hold on to the wiper arm
when folding it back.
Rear wiper bladeWarning!
G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
!
Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the rear
window.
Do not allow the wiper arm to contact the rear
window glass without a wiper blade inserted.
Make sure the wiper blade is properly installed.
Improperly installed wiper blades may cause
rear window damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
ProCarManuals.com

496 Practical hintsReplacing wiper bladesRemoving
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(page 42).

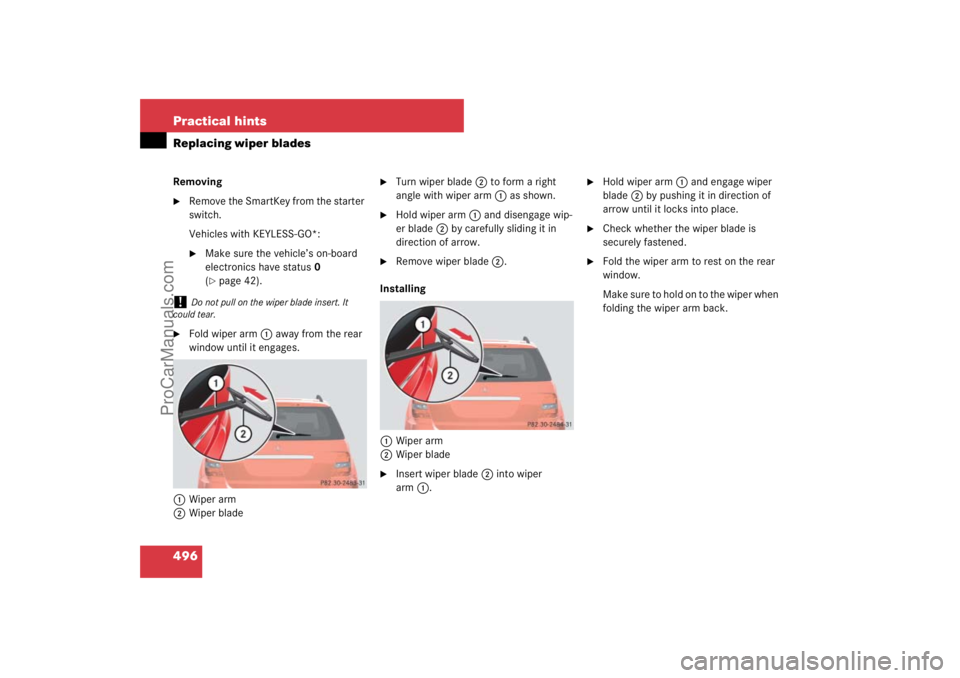

Fold wiper arm1 away from the rear
window until it engages.
1Wiper arm
2Wiper blade

Turn wiper blade2 to form a right
angle with wiper arm1 as shown.

Hold wiper arm1 and disengage wip-
er blade2 by carefully sliding it in
direction of arrow.

Remove wiper blade2.
Installing
1Wiper arm
2Wiper blade

Insert wiper blade2 into wiper
arm1.

Hold wiper arm1 and engage wiper
blade2 by pushing it in direction of
arrow until it locks into place.

Check whether the wiper blade is
securely fastened.

Fold the wiper arm to rest on the rear
window.
Make sure to hold on to the wiper when
folding the wiper arm back.
!
Do not pull on the wiper blade insert. It
could tear.
ProCarManuals.com

497 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flasher
(page 142).

Turn the steering wheel so that the
front wheels are in a straight-ahead
position.

Set the parking brake (
page 57).

Set the automatic transmission to park
positionP (
page 187).

Turn off the engine (
page 39).

Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO* button once
(page 67).

Open the driver’s door (this puts
the starter switch in position0,
same as with the SmartKey re-
moved from the starter switch). The
driver’s door then can be closed
again.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Warning!
G
The dimensions of the spare wheel
(Minispare wheel or collapsible tire) are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a spare wheel
mounted. Adapt your driving style accord-
ingly.
The spare wheel is for temporary use only.
When driving with a spare wheel mounted,
ensure proper tire pressure and do not ex-
ceed a vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
spare wheel replaced with a regular road
wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel is mounted.
Warning!
G
Vehicles with air suspension package*:
Do not open or close any doors or the
tailgate while mounting a spare wheel. The
vehicle could rise or lower to a previously
selected level. You or others could be
injured as a result.
i
Open door only when conditions are safe to
do so.

ProCarManuals.com

498 Practical hintsFlat tireMounting the spare wheel
Preparing the vehicle
Prepare the vehicle as described
(page 497).Vehicles with Minispare wheel:

Take the wheel wrench, the collapsible
wheel chock, and the vehicle jack out
of the cargo compartment
(page 469).

Take the Minispare wheel out of the
cargo compartment (
page 473).
Vehicles with collapsible tire
(ML 63 AMG only):

Take the collapsible tire, wheel wrench,
wheel bolts, jack, and electric air pump
out of the cargo compartment
(page 474).Lifting the vehicle
i
Vehicles with collapsible tire:
You can use the power outlet in the cargo com-
partment or in the front of the rear seats to oper-
ate the electric air pump even when the ignition
is switched off, e.g. in order to inflate the col-
lapsible emergency spare tire.
An emergency shut-off feature ensures that the
vehicle’s electrical voltage does not fall below a
minimum level. If the voltage drops to this mini-
mum level, the power outlets are automatically
switched off. This ensures that enough power re-
mains to start the engine.
!
Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment
floor) designed for use with factory-mounted
running boards. Only use this jack when jacking
up vehicles with factory-mounted running boards
as otherwise the vehicle’s underbody can be
damaged. See separate instructions for
scissors-type jack.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure that the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

ProCarManuals.com

499 Practical hints
Flat tire

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizable objects.
One collapsible wheel chock is includ-
ed with the vehicle tool kit
(page 469). For information on set-
ting up the collapsible wheel chock,
see (page 472).
When changing wheel on a level surface:

Place one wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
hill, place the wheel chock and another
sizeable object as follows:

Place the wheel chock and another
sizable object on the downhill side
blocking both wheels of the axle not

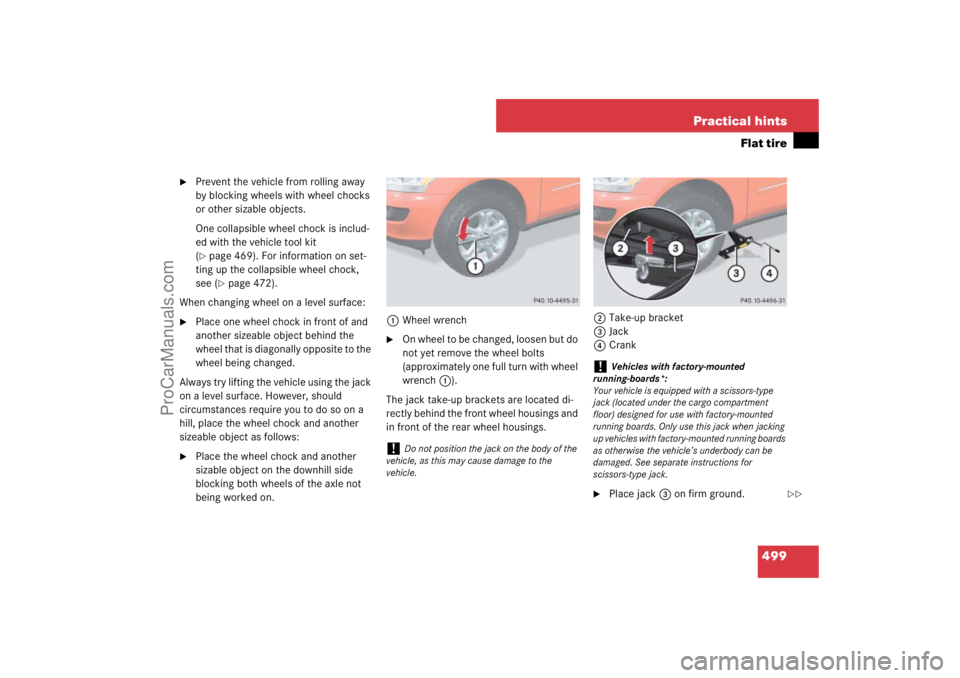

being worked on.1Wheel wrench

On wheel to be changed, loosen but do
not yet remove the wheel bolts
(approximately one full turn with wheel
wrench1).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.2Take-up bracket
3Jack
4Crank

Place jack3 on firm ground.
!
Do not position the jack on the body of the
vehicle, as this may cause damage to the
vehicle.
!
Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment
floor) designed for use with factory-mounted
running boards. Only use this jack when jacking
up vehicles with factory-mounted running boards
as otherwise the vehicle’s underbody can be
damaged. See separate instructions for
scissors-type jack.

ProCarManuals.com
