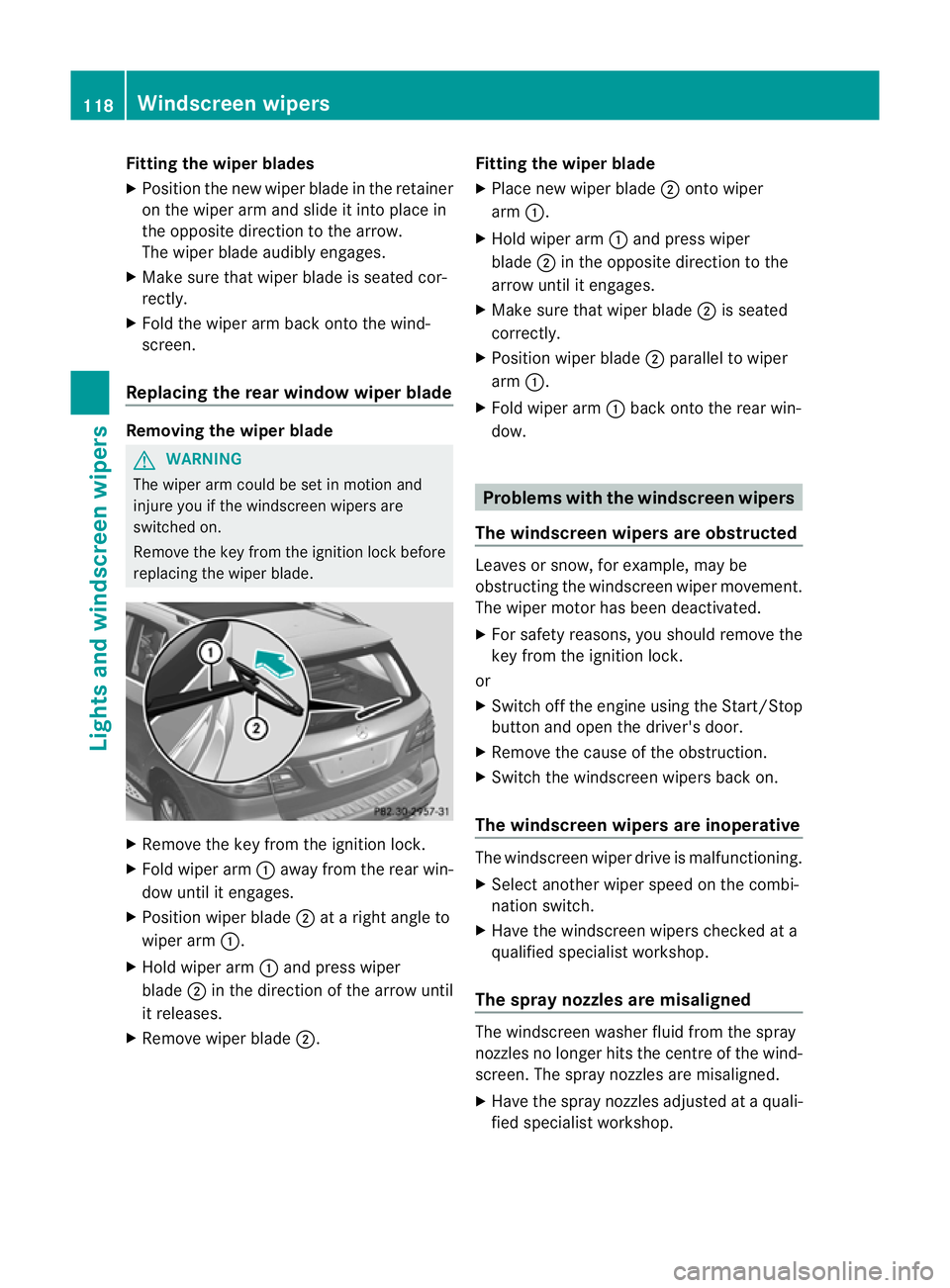

Fitting th
ewiper blades
X Positio nthe new wiper blade in the retainer
on the wiper ar mand slide it into place in
the opposite direction to the arrow.
The wipe rblade audibly engages.
X Make sure that wiper blade is seated cor-
rectly.
X Fold the wiper arm back onto the wind-
screen.
Replacing the rear window wiper blade Removing the wiper blade
G
WARNING
The wiper arm could be set in motion and
injur eyou if the windscreen wiper sare
switched on.
Remove th ekey from the ignition lock before
replacing the wiper blade. X
Remov ethe key from the ignition lock.
X Fold wiper arm :away from the rea rwin-
dow until it engages.
X Position wiper blade ;atar ight angle to
wiper arm :.
X Hold wiper arm :and press wiper
blade ;in the direction of the arrow until
it releases.
X Remove wiper blade ;. Fitting the wiper blade
X
Place new wiper blade ;onto wiper
arm :.
X Hold wiper arm :and press wiper
blade ;in the opposite direction to the
arrow until it engages.
X Make sure that wiper blade ;is seated
correctly.
X Position wiper blade ;parallel to wiper
arm :.
X Fold wiper arm :back onto the rear win-
dow. Problems with the windscreen wipers
The windscreen wipers are obstructed Leaves or snow, for example, may be
obstructing the windscreen wiper movement.
The wiper motor has been deactivated.
X
For safety reasons, you should remov ethe
key from the ignition lock.
or
X Switc hoff th eengine using the Start/Stop
butto nand ope nthe driver's door.
X Remove the cause of the obstruction.
X Switc hthe windscreen wiper sback on.
The windscreen wipers are inoperative The windscreen wiper drive is malfunctioning.
X
Select another wiper spee donthe combi-
nation switch.
X Hav ethe windscreen wiper schecked at a
qualified specialist workshop.
Th es pra ynozzles are misaligned The windscreen washer fluid from the spray
nozzles no longer hits the centre of the wind-
screen. The spray nozzles are misaligned.
X Have the spray nozzles adjusted at aquali-
fied specialist workshop. 118
Windscreen wipersLights and windscreen wipers

Usefu
linfor mation ............................ 120
Overvie wofclimatecontrol sys-
tems ................................................... 120
Operating the clima tecontrol sys-
tem ..................................................... 124
Adjusting the air vents .....................135 119Climat
econtrol

Usefu
linfor mati on
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviation sare possible .Please
not ethat your vehicle ma ynot be equipped
with all featur es described. This also
applies to safety-releva ntsystems and
functions.

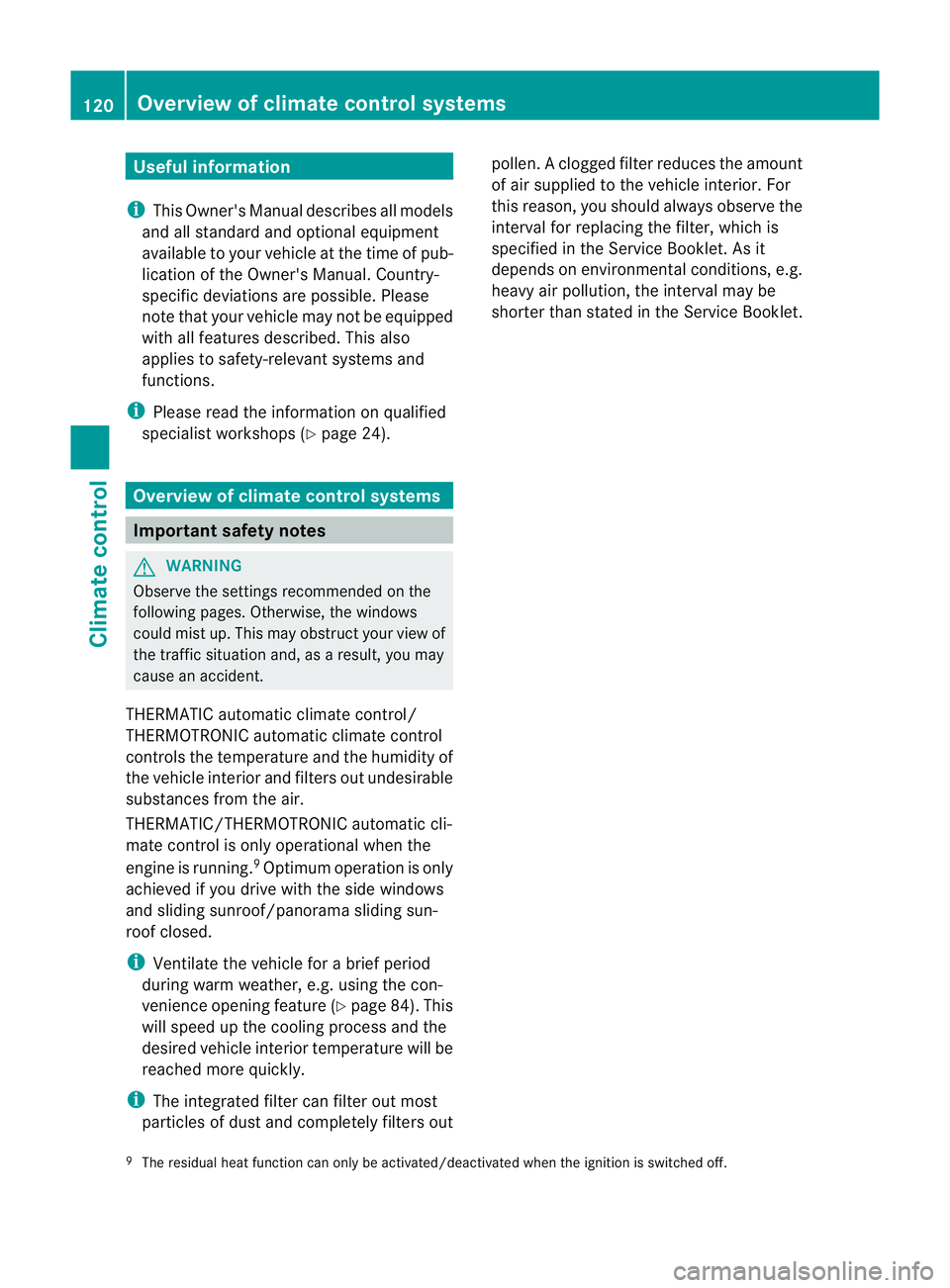

i Please read the information on qualified
specialist workshops (Y page 24).Ove
rview of climat econtro lsystems Im
portan tsafety notes G
WA
RNING
Observ ethe setting srecommended on the
following pages. Otherwise ,the wind ows
coul dmist up. This may obstruct your view of
the traffic situation and, as aresult ,you may
cause an accident.
THERMATI Cautomatic climat econtrol/
THERMOTRON ICautomatic climat econtrol
controls the tempera tureand the humidit yof
the vehicle interior and filters out undesirable
subs tances fro mthe air.
THERMATIC/T HERMOTRONIC automatic cli-
mate control is only operational when the
engine is running. 9
Optimum operatio nisonly
achieved if you drive with the sid ewindows
and sliding sunroof/panoram asliding sun-
roof closed.
i Ventilate the vehicle for abriefp eriod
during war mweather ,e.g. using the con-
venience opening feature (Y page84). This
wil lspeed up the cooling process and the
desired vehicle interior temperatur ewill be
reached more quickly.
i The integrated filter can filter out most
particles of dust and completely filter sout pollen.
Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observ ethe
interval for replacing the filter ,which is
specifie dinthe Servic eBooklet .Asit
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Servic eBooklet.
9 The residual heat function can only be activated/deactivate dwhen the ignition is switched off. 120
Overview of climat
econtrol systemsClimate control

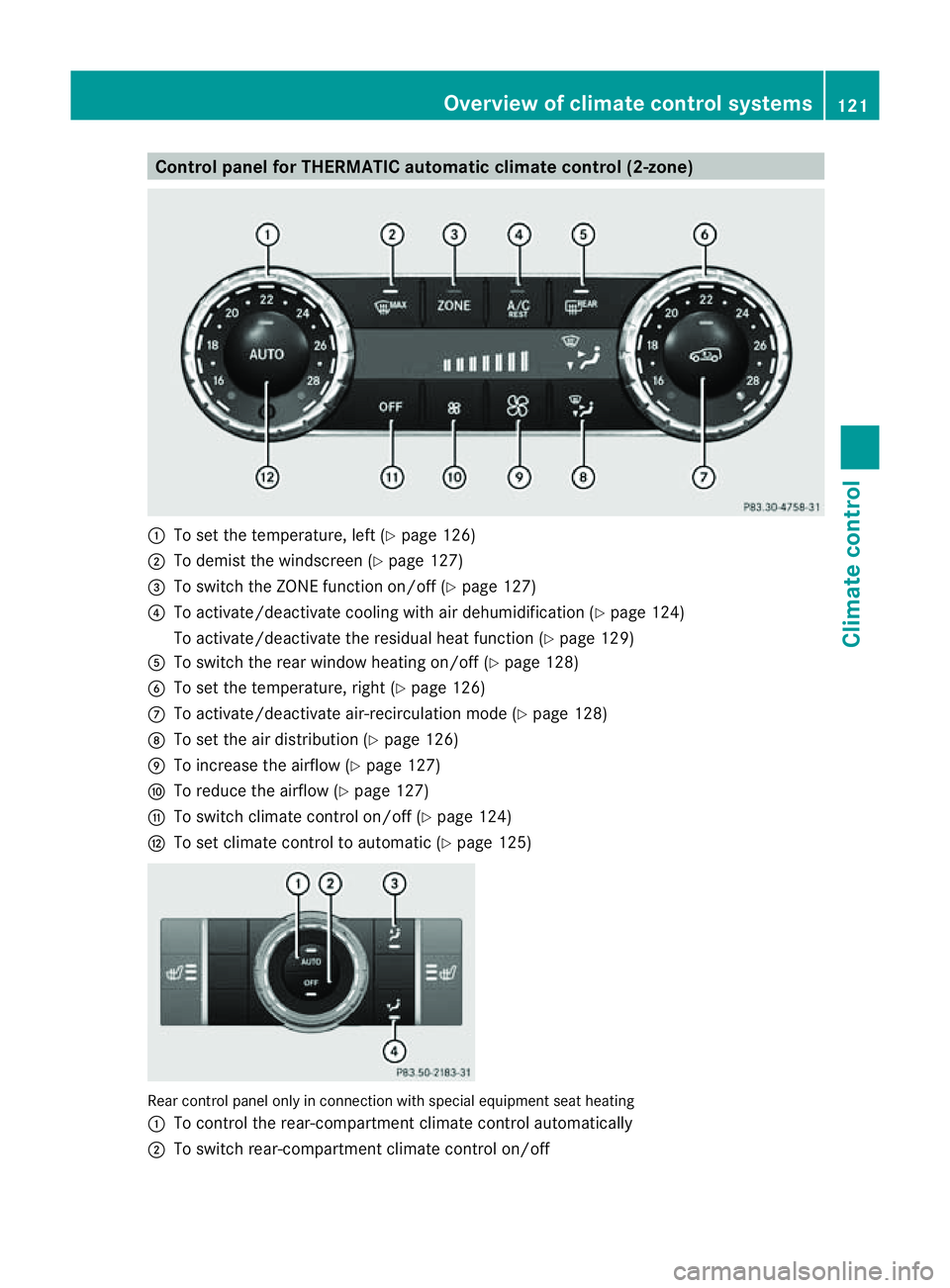

Control panel for THERMATIC automatic clima
tecontrol (2-zone) :
To set the temperature, left (Y page 126)
; To demist the windscreen (Y page 127)
= To switc hthe ZON Efunction on/off (Y page 127)
? To activate/deactivat ecoolin gwith air dehumidifica tion (Y page 12 4)
To activate/deactivat ethe residual heat function (Y page 129)
A To switc hthe rea rwindow heatin gon/off (Y page128)
B To se tthe temperature, right (Y page 126)
C To activate/deactivat eair-recirculation mode (Y page 128)
D To set the air distribution (Y page 126)
E To increase the airflow (Y page 127)
F To reduce the airflow (Y page 127)
G To switc hclimat econtr olon/off (Y page 124)
H To set climat econtr ol to aut omatic (Y page 125) Rear control panel only in connection with special equipment seat heating
: To control the rear-compartment climate control automatically
; To switch rear-compartment climate control on/off Overview of climat
econtrol systems
121Climatecontrol Z

=
To direct the airflow through the rea rair vents
? To direct the airflow through the footwell vents Notes on using THER
MATIC automatic
climate control

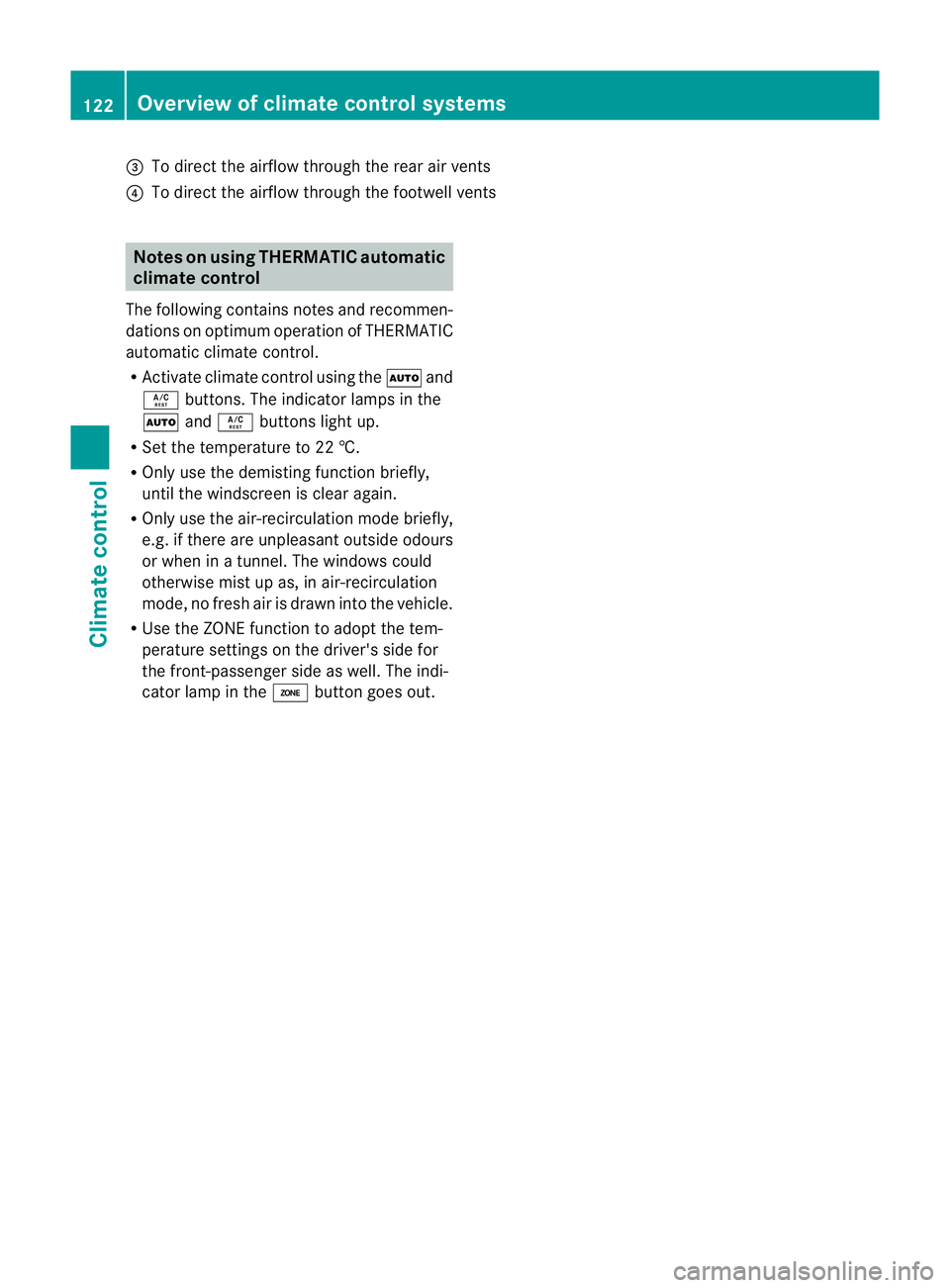

The following contains notes and recommen-
dations on optimum operation of THERMATIC
automatic climate control.
R Activate climate control using the Ãand
Á buttons. The indicato rlamps in the
à andÁ button slight up.
R Set the tempera tureto 22 †.
R Only use the demisting function briefly,
until the windscreen is clear again.
R Only use the air-recirculatio nmode briefly,
e.g. if ther eare unpleasant outsid eodours
or when in atunnel. The windows could
otherwis emist up as, in air-recirculation
mode, no fresh air is drawn into the vehicle.
R Use the ZONE func tion to adopt the tem-
peratur esettings on the driver' sside for
the front-passenger side as well. The indi-
cator lamp in the ábutton goes out. 122
Overview of climate control systemsClimate control

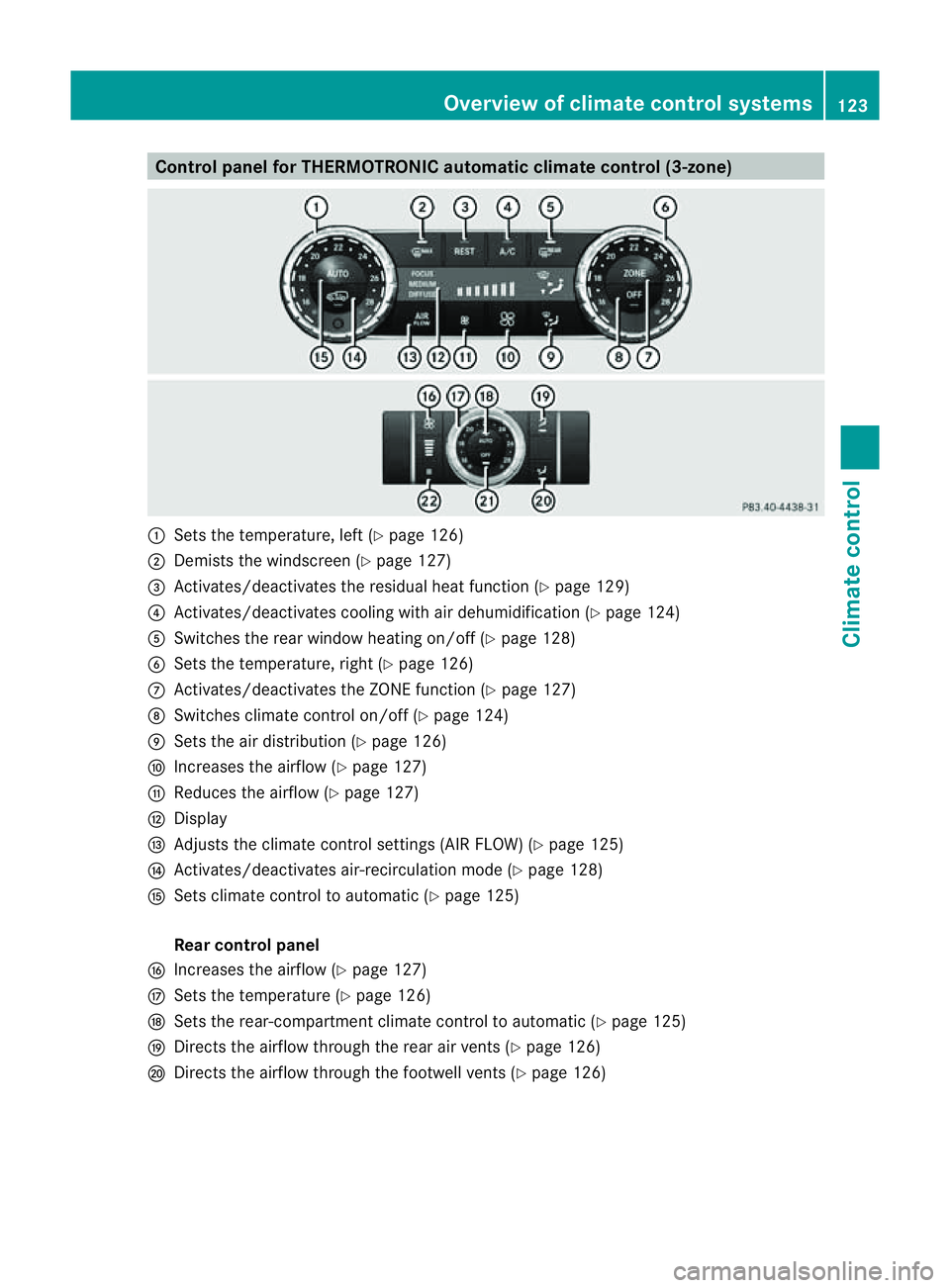

Control panel for THERMOTRONIC automatic clima
tecontrol (3-zone) :
Setsthe tem perature, left (Y page 126)
; Demists th ewindscree n(Ypage 127)
= Activates/deactivate sthe resi dual heat function (Y page 129)
? Activates/deactivate scooling with ai rdehumidi fication (Y page124)
A Switches the rea rwindow heatin gon/off (Y page128)
B Sets the tempera ture,right (Y page 126)
C Activates/deactivates the ZONE function (Y page 127)
D Switches climate control on/off (Y page 124)
E Setsthe air distribution (Y page 126)
F Increase sthe airflo w(Ypage 12 7)
G Reduces the airflow (Y page 127)
H Display
I Adjusts the climate control settings (AI RFLOW) (Y page 125)
J Activates/dea ctivates air-recirculation mode (Y page 128)
K Setsclimate control to automatic (Y page 125)
Rea rcontrol panel
L Increases the airflow (Y page 127)
M Setsthe temperatur e(Ypage 12 6)
N Sets the rear-compartment climate control to auto matic (Y page 125)
O Direct sthe airflo wthrough the rea rair vents (Y page 126)
P Direct sthe airflo wthrough the footwell vents (Y page 126) Overview of clim
atec ontrol systems
123Climate control Z

Q
Switche srear-com partment climate contro lon/of f(Y page 124)
R Reduces the airflow (Y page 127)Notes on using THERMOTRONIC auto-
matic climat econtrol
The following contains notes and recommen-
dations on optimum operation of
THERMO TRONIC automatic climate contro l.
R Activate climate control using the Ãand
¿ buttons .The indicator lamps in the
à and¿ buttons light up.
R In automatic mode, you can also use the
ñ button to set aclimate mode
(FOCUS/MEDIUM/DIFFUSE). The
MEDIU Mlevel is rec ommended.
R Set th etemperature to 22 †.
R Only use the demisting function briefly,
unt ilthe windscreen is clear again.
R Only us ethe air-recircu lation mod ebriefly,
e.g .ift here ar eunpleasant outsid eodours
or when in atunnel. The window scould
otherwise mist up as ,inair-recirculation
mode, no fresh air is drawn int othe vehicle.
R Use the ZON Efunction to adopt the tem-
perature settings on the driver' sside for
the front-passenger side and the rear com-
partment as well. The indicator lamp in the
á button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The resid-
ual heat function can only be activated or
deactivated with the ignition switched off. Operating the climat
econtrol system Switching climat
econtrol on/off
Importan tinfor mation i
Whe nclimate contro lisswitched off, the
air supply and air circulation are also
switched off. Only select this setting briefly. Otherwise, the windows may mist
up.
i Switc honc limatecontr ol primaril yusing
the à button( Ypage 12 5).
In th erear compartmen t,you can also switch
climat econtr olon and off using the Ãand
^ buttons.
Switching on/off X
Tur nthe key to position 2in the igni tion
lock.
X To switch on: press theÃbutton.
The indicator lam pintheà button lights
up. Air flow and air distribution ar eset to
automatic mode.
or
X Press button ^.
The indicator lam pinthe^ button goes
out. The previously selec teds ettings come
int oe ffect again.
X To switch off: press the^button.
Th eindicator lamp in the ^button lights
up. Activating/deactiv
ating the cooling
with air deh umidification function
Importan tinfor mation The cooling with air dehumidification function
is only availabl
ewhen the engin eisrunning.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selec-

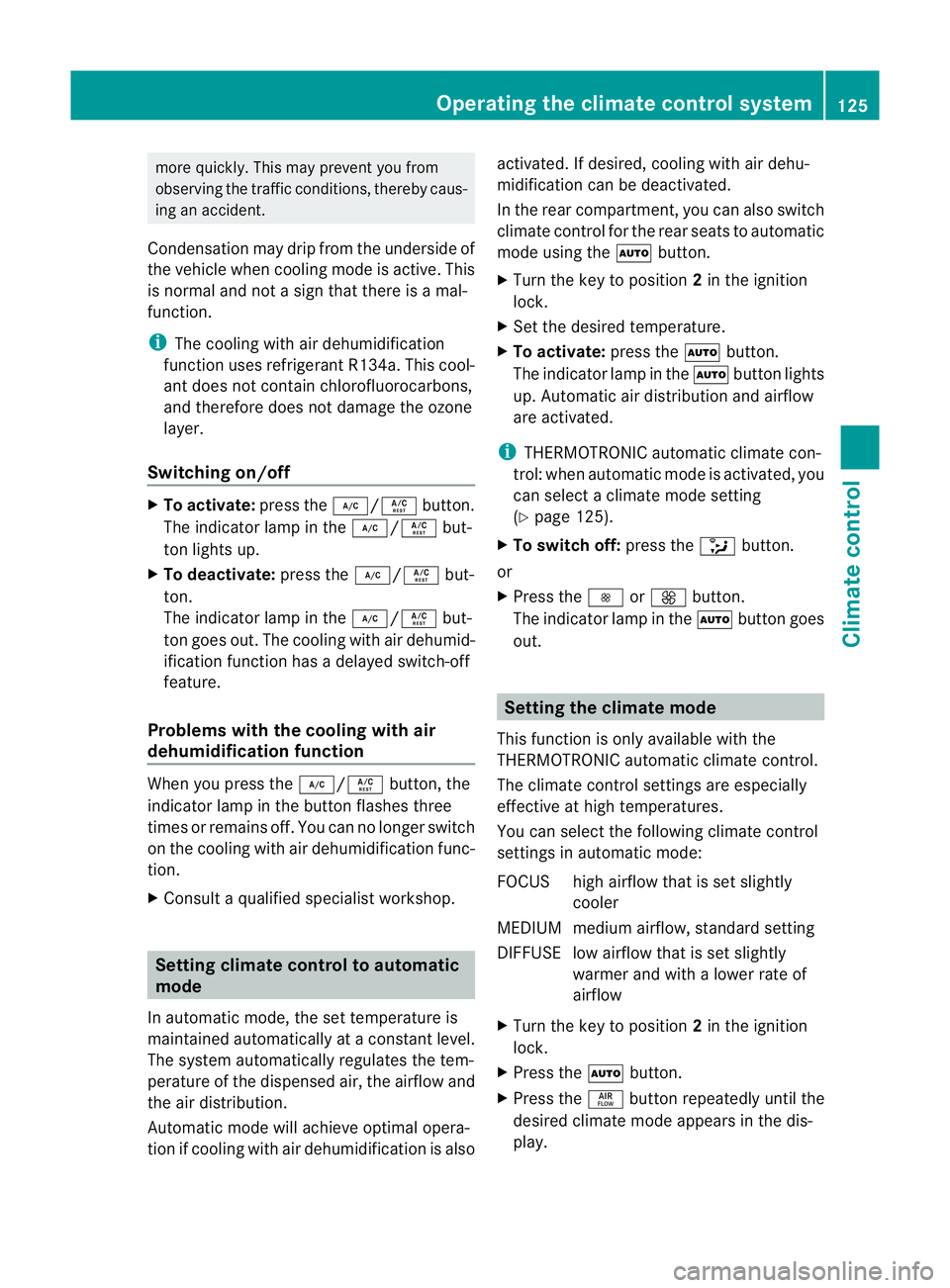

ted. G
WARNING
If the "cooling with air dehumidification" func-
tion is deactivated, the air inside the vehicle
will not be cooled (during warm weather) or
dehumidified. The windows could mist up 124
Operating th
eclimat econtrol systemClimat econtrol

more quickly
.This ma yprevent you from
observing th etraffic conditions, thereby caus-
ing an accident.
Condensation may dri pfrom th eunders ideof
the vehicl ewhen cooling mode is active .This
is norma land not asign that there is amal-
function.
i The cooling with air dehumidification
function uses refrigerant R134a. This cool-
ant does not contain chlorofluorocarbons,
and therefore does not damage the ozone
layer.
Switching on/off X
To activate: press the¿/Á button.
The indicator lamp in the ¿/Ábut-
ton lights up.
X To deactivate: press the¿/Á but-
ton.
The indicator lamp in the ¿/Ábut-
ton goes out. The cooling with air dehumid-
ification function has adelayed switch-off
feature.
Problems with the cooling with air
dehumidification function When you press the
¿/Ábutton ,the
indicator lam pint he button fla shes three
times or remains off .You can no longer switch
on the cooling with air dehumidification func-
tion.
X Consult aqualified specialist worksho p.Setting climat
econt rol to automatic
mode
In automatic mode, the set temperature is
maintained automatically at aconstant leve l.
The system automatically regulates the tem-
peratur eofthe dispensed air ,the airflow and
the air distribution.
Automatic mode will achi eveo ptimal opera-
tion if cooling with air dehumidification is also activated
.Ifdesired, coolin gwith air dehu-
midification can be deactiva ted.
In the rear compartment ,you can also switch
climate control for the rea rseats to automatic
mode using the Ãbutton.
X Turn the key to position 2in the ignition
lock.
X Set the desired temperature.
X To activate: press theÃbutton.
The indicator lam pintheà button lights
up. Automati cair distribution and airflow
are activated.
i THERMOTRONIC automatic climate con-
trol: when automatic mode is activated, you
can select aclimate mode setting
(Y page 125).
X To switch off: press the_button.
or
X Press the IorK button.
The indicator lamp in the Ãbutton goes
out. Setting the climat
emode
This function is only available with the
THERMOTRONIC automatic climat econtrol.
The climate control settings ar eespecially
effectiv eathigh temperatures.
You can select the following climat econtrol
settings in automatic mode:
FOCU Shigh airflow that is set slightly
cooler
MEDIU Mmedium airflow, standard setting
DI FFUS Elow airflow that is set slightly
warmer and with alower rate of
airflow
X Tur nthe key to position 2in the ignition
lock.
X Press the Ãbutton.
X Press the ñbutton repeatedly until the
desired climate mode appears in the dis-
play. Operating th
eclimat econtrol system
125Climate control Z

Setting th
etemperature

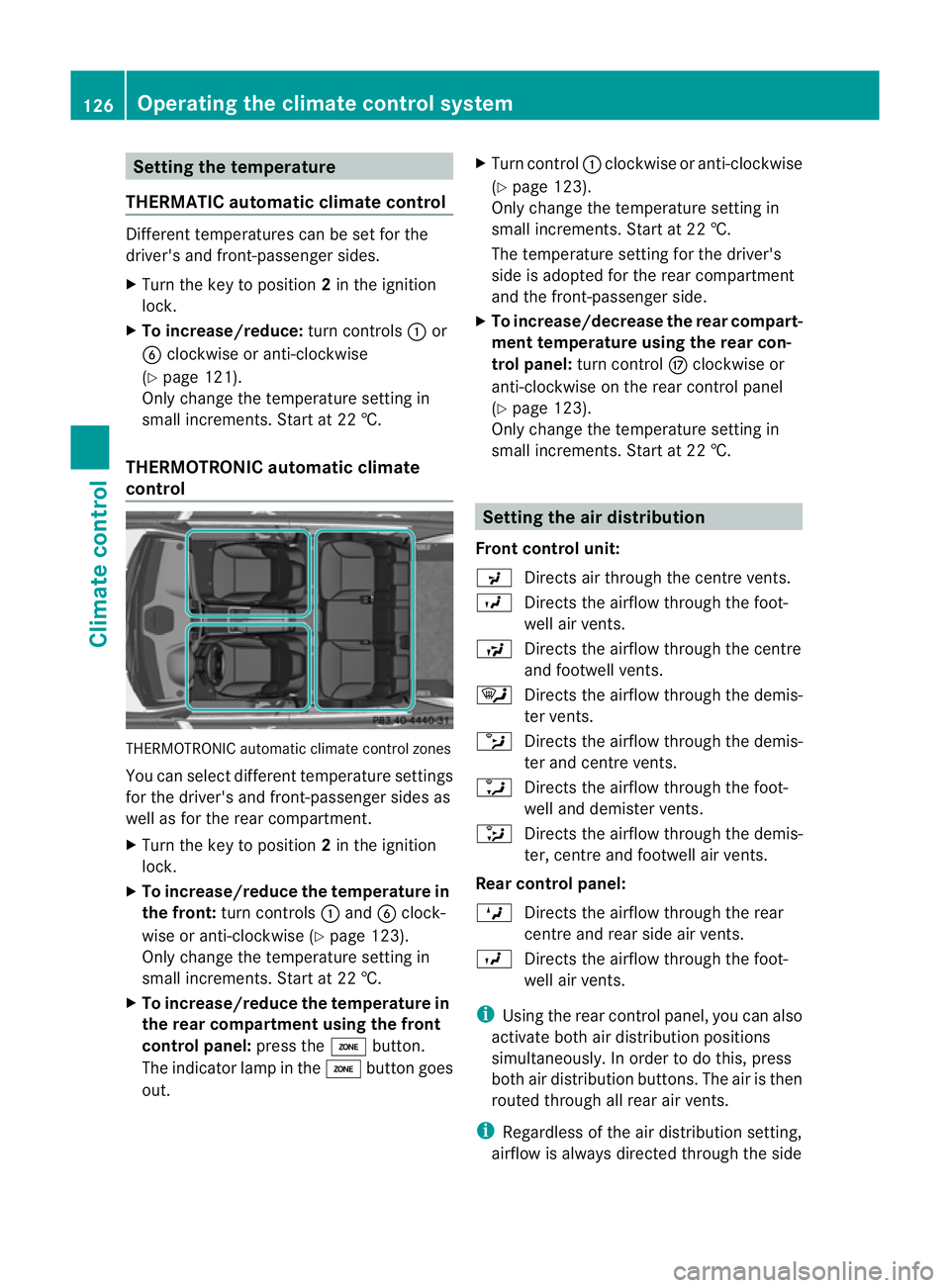

THERMATIC automatic climate control Differen
ttemperatures can be set for the
driver' sand front-passenger sides.
X Turn the key to position 2in the ignition
lock.
X To increase/reduce: turn controls:or
B clockwise or anti-clockwise
(Y pag e121).
Onl ychange the temperature setti ngin
small increments. Star tat2 2†.
THERMOTRONIC automatic climate
control THERMOTRONIC automatic climate control zones
You can select different temperature setti ngs
fo rt he driver's and front-passenger sides as
well as for the rea rcompartment.
X Tur nthe key to position 2in the ignition
lock.
X To increase/reduce th etemperature in
the front: turn controls :and Bclock-
wise or anti-clockwise (Y page 123).
Only change the temperatur esettin gin
small increments. Star tat2 2†.
X To increase/reduce the temperature in
the rear compartment using the front
contro lpanel: press the ábutton.
Th eindicato rlamp in the ábutton goes
out. X
Turn control :clockwise or anti-clockwise
(Y page 123).
Only change the temperature setting in
small increments. Start at 22 †.
The temperature setting for the driver's
side is adopted for the rear compartment
and the front-passenger side.
X To increase/decrease the rear compart-
ment temperature using the rear con-
trol panel: turn control Mclockwise or
anti-clockwise on the rear control panel
(Y page 123).
Only change the temperature setting in
small increments. Start at 22 †. Setting the air distribution
Front control unit:
P Directsair through the centre vents.
O Directsthe airflo wthrough the foot-
well air ven ts.
S Directsthe airflo wthrough the cen tre
and footwell vents.
¯ Directsthe airflo wthrough the demis-
ter ven ts.
b Directsthe airflo wthrough the demis-
ter and cen tre vents.
a Directs the airflow throug hthe foot-
well and demister ven ts.
_ Directsthe airflo wthrough the demis-
ter ,centre and footwell air ven ts.
Rear control panel:
M Directsthe airflo wthrough the rear
cen treand rear side air vents.
O Directsthe airflo wthrough the foot-
well air ven ts.
i Using the rear control panel, you can also
activate both air distribution positions
simultaneously .Inordertodot his, press
both air distribution buttons. The air is then
routed through all rea rair vents.
i Regardles softhe air distributio nsetting,
airflow is always directed through the side 126
Operating th
eclimat econtrol systemClimat econtrol

air vents. The side air ven
ts canonly be
closed whe nthe con trols on the side air
vent sare turne ddownwards.
X Tur nthe key to position 2in the ignition
lock.
X Front control panel: press the_but-
ton repeatedly until the desired symbol
appears in the display.
X Rea rcontrol panel: press theMand/

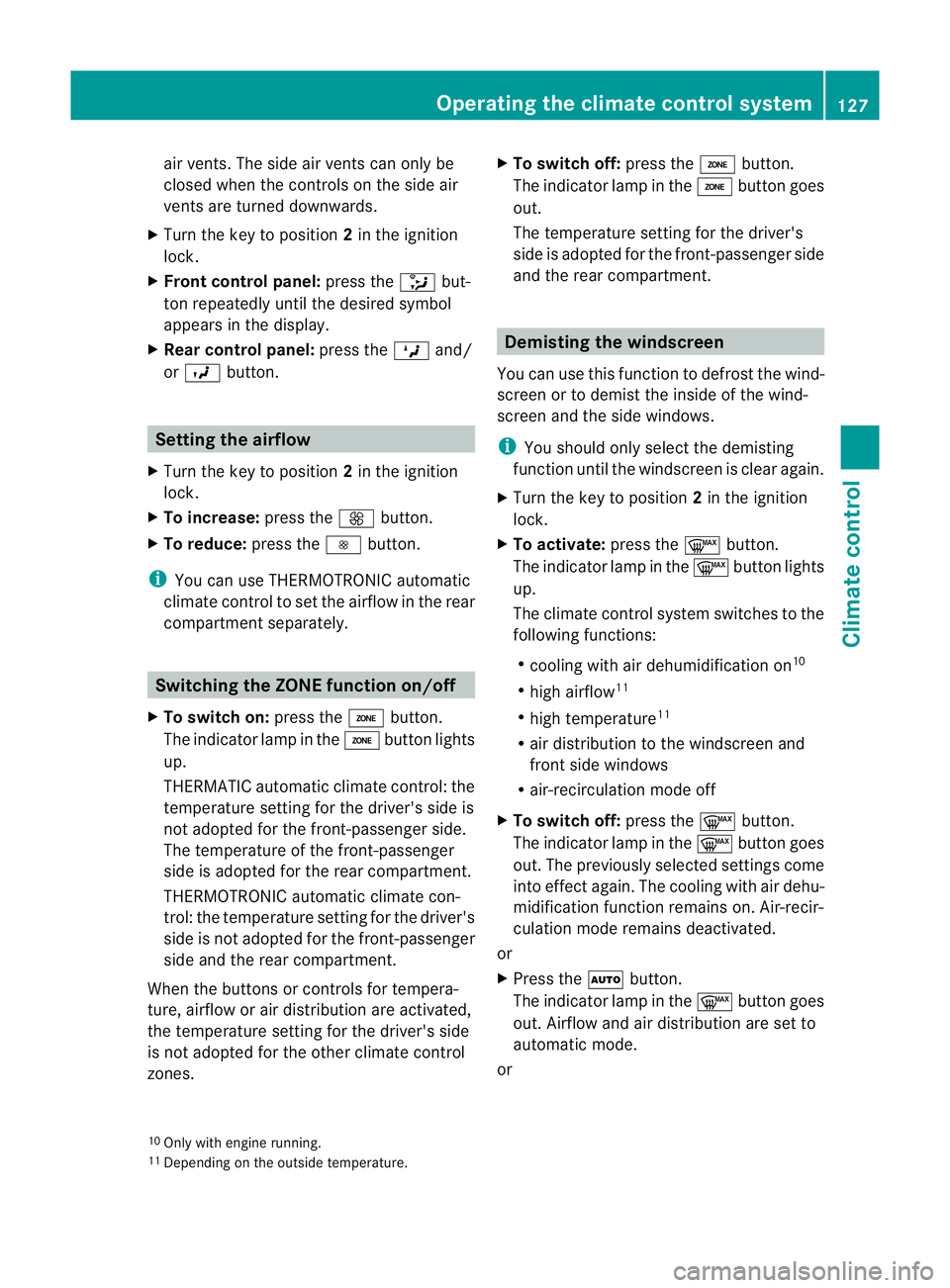

or O button. Setting the airflow
X Turn the key to position 2in the ignition
lock.
X To increase: press theKbutton.
X To reduce: press theIbutton.
i You can use THERMOTRONIC automatic
climate control to set the airflow in the rear
compartmen tseparately. Switching the ZONE function on/off
X To switc hon:press the ábutton.
The indicator lam pintheá button lights
up.
THERMATI Cautomatic climate control: the
temperature setting for the driver' sside is
not adopted for the front-passenger side.
The temperature of the front-passenger
side is adopted for the rear compar tment.
THERMOTRONI Cautomatic climate con-
trol: the temperature setting for the driver's
side is not adopte dfor the front-passenger
side and the rea rcompartmen t.
When the button sorcontrols for tempera-
ture, airflow or air distribution ar eactivated,
the tempe rature setting for the driver's side
is not adopted for the othe rclimate control
zones. X
To switch off: press theábutton.
The indicator lamp in the ábutton goes
out.
The temperature setting for the driver's
side is adopted for the front-passenger side
and the rear compar tment. Demisting the windscreen
You can use this fun ction to defrost the wind-
screen or to demist the inside of the wind-
screen and the side windows.
i You should only select the demisting
function until the windscreen is clear again.
X Turn the key to position 2in the ignition
lock.
X To activate: press the¬button.
The indicator lamp in the ¬button lights
up.
The climat econtrol system switche stothe
followin gfunctions:
R cooling with air dehumidification on 10
R high airflow 11
R high temperature 11
R air distribution to the windscreen and
fron tside windows
R air-recirculation mode off
X To switch off: press the¬button.
The indicator lamp in the ¬button goes
out. The previously selected settings come
int oe ffect again .The cooli ngwith air dehu-
midification function remain son. Air-recir-
culation mode remain sdeactiva ted.
or
X Press the Ãbutton.
The indicator lamp in the ¬button goes
out. Airflow and air distribution are set to
automatic mode.
or
10 Only with engine run ning.
11 Depending on the outside temperature. Ope
rating th eclimate control system
127Climate control Z
