MERCEDES-BENZ M-CLASS SUV 2011 Owners Manual

All models
Wheelbase
2915 mm
Unladen weight
Maximu
mroofload 10
0kg Vehicle height
178
8mm Ground clearance
191 mm
1796 mm
Ground clearance
202 mm
Tailg
ateo pening dimensions Models with: :
Opening
height ;
Maximum
headroom Stee
lsuspen-
sion 2195 mm 1987 mm
Steel suspen-
sion
33 2187 mm 1980 mm
AIRMATIC
package
34 2140 –
2215 mm 1931 –
2006 mm Traile
rtow hitch Mounting dimensions
G
WARNING
Only have atrailer tow hitch retrofit tedata
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use aMercedes-Benz
Ser vice Centre for thi spurpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at aqualified
specialist workshop.
! If you have atrailer to whitchr etrofit ted,
changes to the cooling system and drive
train may be necessary, depending on the
vehicle type.
observe the anchorage points on th echas-
sis frame.
! trailer tow hitc hfitted retrospectively with-
out changing the engine cooling system
and the drive train ,the braked and
unbraked tota ltowing weight (trailer
weight plus load weight) is reduced. Miss-
ing values wer enot available at tim eof
going to print. If higher towin gweight sare
used ,this can result in damage to your
vehi cle's engine. An ydamage that may
33
34 On vehicles with the ON&OFFROAD package, the value increases by 30 mm. 378
Trailer tow hitchTechnica
ldata
ML 250 BlueTEC 4MATIC
ML 350 4MATIC
Vehicle height
ML
350 BlueTEC 4MATICC
ML 250 BlueTEC 4MATIC:if you have a
If you have
atrailer to whitchr etrofit ted,
ML 25 0BlueTE C4MATIC.

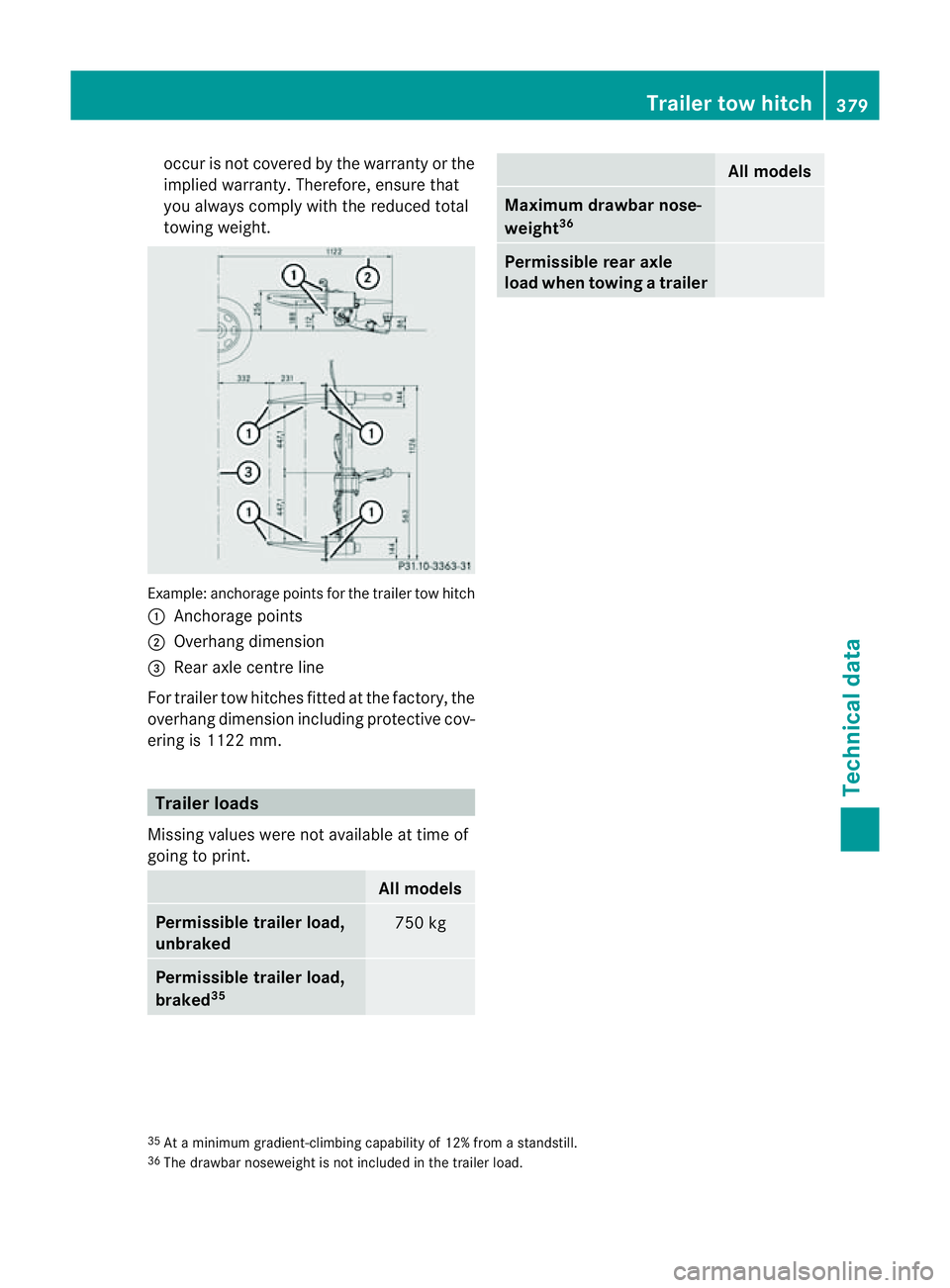

occur is not covered by the warranty or the
implied warranty .Therefore, ensur ethat
you always comply with the reduce dtotal
towin gweight. Example
:anchorag epoints for the trailer tow hitch
: Anchorage points
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fit tedatt he factory, the
overhang dimension includin gprotective cov-
ering is 1122 mm. Traile
rloads
Missing values were not available at time of
going to print. All models
Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked
35 All models
Maximu
mdrawbar nose-
weight 36 Permissibl
erear axle
load when towing atrailer 35
At am inimum gradient-climbing capability of 12% from astandstill.
36 The drawba rnoseweight is not included in the trailer load. Trailer tow hitch
379Technicaldata Z

24-G
Hzradar sensor system (country overview)
The 24 GHz radar sensor sys temr equir esseparat eapproval fo reach coun try. Whe nyou are
dri ving in acoun tryinw hichthe ra dar sensor system is no tapproved, you must deacti vate
the syste musing the on-boar dcompu ter( Ypage 24 9).T he curren tcountry over view can be
obtain ed fromaMercedes-Benz Ser vice Centre.
Vehicles with anavigation system: the radar sensor system is deactivated automatically
near radio tele scope facilities.
The currently active systems ar eautom atically deactivated:
R DISTRONIC PLUS (Y page174)
R Blind Spo tAssist (Y page 208)
R Activ eBlind Spot Assist(Y page212)
R PRE-SAFE ®
Brake (Y page45)
Ad isplay message appears in the multifunction display to tell you that the radar sensor system
is being switched off (Y page 272).
BA SP LUS (Y page 62) is then also unavailable.
If th edeactiva tion does not occur automatically ,you must deactiva tethe radar sensor system
using the on-board computer (Y page 249).
Vehicles withou tnavi gation and vehicles for Australia: you must deactivate the radar
sensor system using the on-bo ardc omputer when you are near aradio telescop efacility
(Y page 249). Country Radio telescope
facilities Geographical latitude and
longitude Distance to be
maintained
from the facility Egypt – – –
Andorra – – –
Australia Parkes 32°59'59
"S,14 8°1 5'44" E 10 km
Narrabri 30°18'52" S,149°32'56" E 10 km
Canberra 35°23'54" S,148°58'40" E 3km
Western Australia 26°3
7'13"S,117°30'40" E 10 km
Bahrain – – –
Belgium – – –
Bosnia-Herzego-
vina – – –
Bulgaria – – –
Den
mark – – –
Germany Effelsberg 50°31'32" N, 06°53'00" E 6.5 km380
24-GHz radar sensor syste
m(countr yoverview)Technica ldata

Country Radio telescope
facilities Geographica
llatitud eand
longitude Distance to be
maintained
from th efacility Estonia – – –
Finl
and Me
tsähovi 60°13'04
"N,24°23'37" E 7km
Tuorla 60°24'56
"N,22°26'31" E 5km
France Plateau de Bure 44°38'01" N, 05°54'26" E 35 km
Floirac 44°50'10" N, 00°31'37" W 35 km
Gibraltar – – –
Greece – – –
United Kingdom Cambridge 52°09'59" N, 00°02'20" E 9km
Darnhall 53°09'22
"N,02°32'03" W 5km
Jodrell Bank 53°14'10" N, 02°18'26" W 9km
Knockin 52°47'24" N, 02°59'45" W 5km
Pickmere 53°17'18
"N,02°26'38" W 5km
Irel
and – – –
Icel
and – – –
Italy Medicina 44°31'14" N,11°38'49
"E 20 km
Noto 36°52'34" N, 14°59'21" E 8km
Sardinia 39°29'50" N, 09°14'40" E 15 km
Yemen – – –
Jordan – – –
Canada – – –
Qatar – – –
Croatia – – –
Kuwait – – –
Latvia Ventsp
ils 57°33'12" N, 21°51'17" E 8.5 km
Leb
anon – – –
Lithuania – – –
Luxem
bourg – – –
Malaysia – – –24-GHz radar sensor syste
m(country ov erview)
381Technicaldata Z

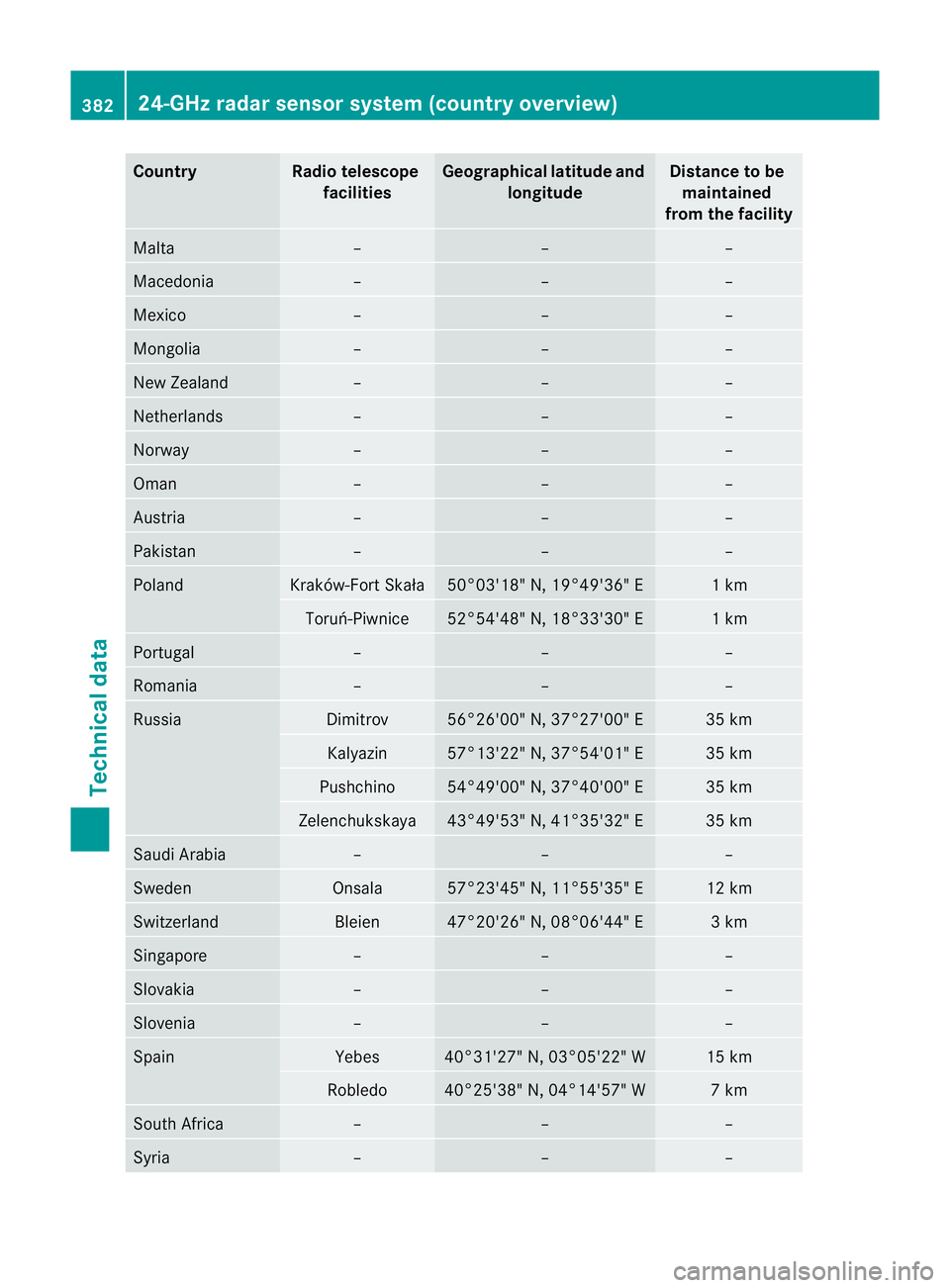

Country Radio telescope
facilities Geographica
llatitud eand
longitude Distance to be
maintained
from th efacility Ma
lta – – –
Macedonia – – –
Mexico – – –
Mongolia – – –
New Zealand – – –
Netherlands – – –
Norway – – –
Oman – – –
Austria – – –
Pakistan – – –
Poland Kraków-For
tSkała 50°03'18
"N,19°49'36" E 1km
Toruń-Piwnice 52°54'48
"N,18°33'30" E 1km
Portugal – – –
Romania – – –
Russia Dimitrov 56°26'00
"N,37°27'00" E 35 km
Kalyazin 57°13'22" N, 37°54'01" E 35 km
Pushchino 54°49'00" N, 37°40'00" E 35 km
Ze
lenchukskaya 43°49'53
"N,41°35'32" E 35 km
Saudi Arab
ia – – –
Sweden Onsala 57°23'45" N, 11°55'35" E 12 km
Switzerland Bleien 47°20'26" N, 08°06'44" E 3km
Singapore – – –
Slovakia – – –
Slovenia – – –
Spain Yebes 40°31'27" N, 03°05'22" W 15 km
Robledo 40°25'38" N, 04°14'57" W 7km
South Africa – – –
Syria – – –382
24-GHz radar se
nsor system (country overview)Technical data

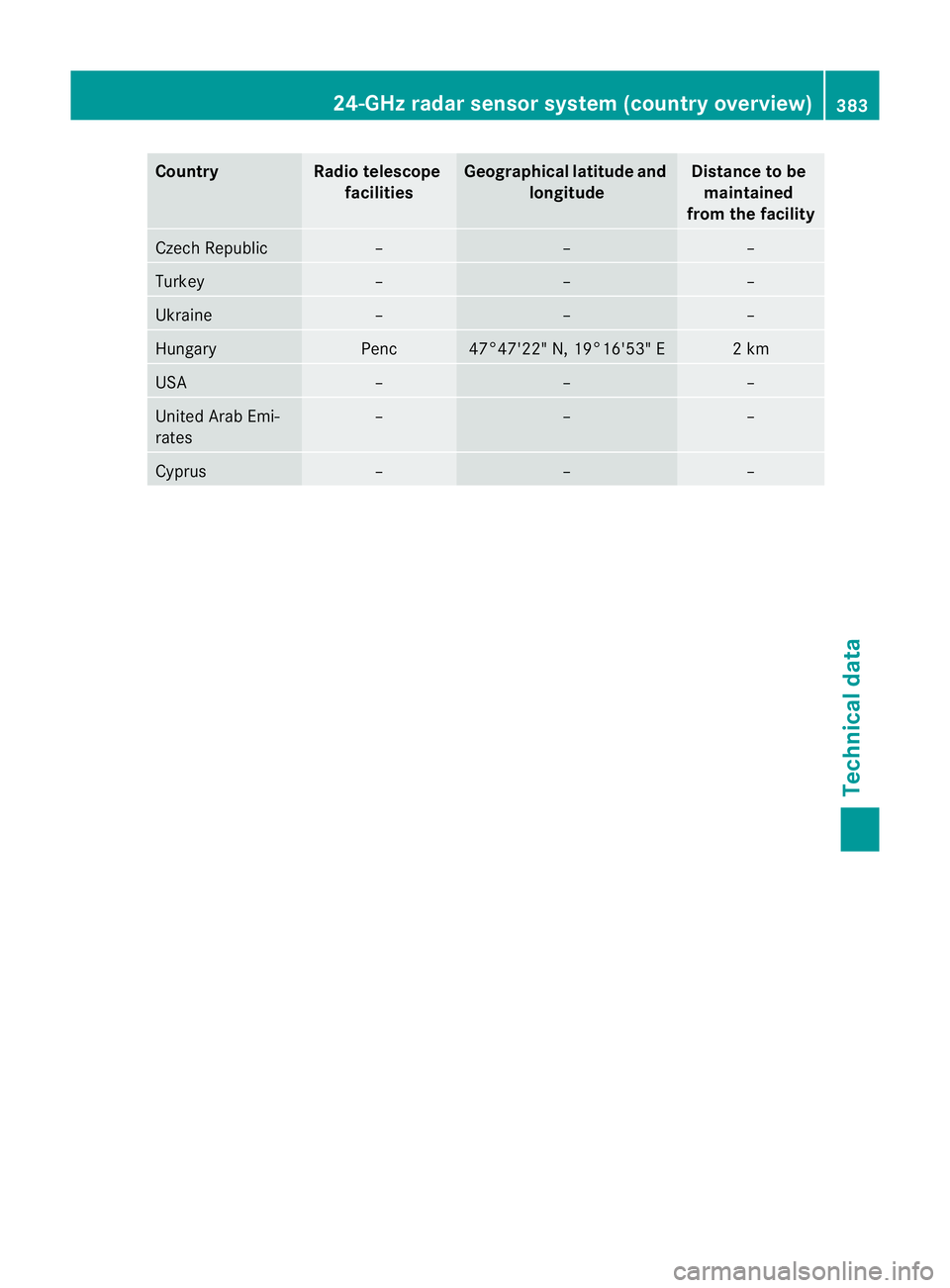

Country Radio telescope
facilities Geographica
llatitud eand
longitude Distance to be
maintained
from th efacility Czech Republic – – –
Turk
ey – – –
Ukra
ine – – –
Hung
ary Pe
nc 47°47'22
"N,19°16'53" E 2km
USA – – –
Unite
dArab Emi-
rates – – –
Cyprus – – –24-GHz radar se
nsor system (country overview)
383Technical data Z
