MERCEDES-BENZ M-CLASS SUV 2011 Owners Manual

368

Usefu
linfor mation ............................ 370
Notes on the technical data .............370
Genuine Mercedes-Benz parts .........370
Vehicle electronics ...........................371
Vehicle identification pla tes............ 372
Service products and capacities .....373
Vehicle da ta...................................... 377
Tailgate opening dimensions ...........378
Trailer tow hitch ................................ 378
24-GHz radar sensor system (coun-
tr yo verview) ..................................... 380 369Technical
data

Usefu
linfor mati on
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviation sare possible .Please
not ethat your vehicle ma ynot be equipped
with all featur es described. This also
applies to safety-releva ntsystems and
functions.
i Please read the information on qualified
specialist workshops (Y page 24).Note
sont hetechnical data
You can fin dtechnica ldatao nthe Internet at:
http://www.mercedes-benz.com
i The technical dat awas determined in
accordance wit hECDirectives. All data
applies to th evehicle's standard equip-
ment. Therefore, th edatam ay differ for
vehicles wit hoptional equipment. You can
obtain further information from a
Mercedes- BenzService Centre. Genuine Mercedes-Ben
zparts
Mercedes-Ben ztests genuin eparts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes -Benz is
unabl etoe valuat eother parts. Mercedes-
Benz therefore accepts no responsibility for
the use of such parts in Mercedes-Ben zvehi-
cles, even if they have been independently or
officially approved.
In Germany and some other coun tries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement .The use of non- approved parts ma
yinvalidat ethe vehicle's
general operating permit. This is the case if:
R they cause achange of the vehicle type
from that for whic hthe vehicle' sgeneral
operating permit was granted.
R other road users could be endangered.
R the emission or noise levels are adversely
affected. G
WARNING
Drivin gsafety may be impaired if non-
approved parts, tyres and wheels or safety-
relevant accessories are used.
This could lead to malfunctions in safety-rel-
evant systems, e.g. the brake system. This
could cause you to lose control of your vehicle
and cause an accident.
For this reason, Mercedes-Benz recommends
that you use genuine Mercedes-Benz parts or
parts of equal quality. Only use tyres, wheels
and accessories that have been specifically
approved for your vehicle.
! Airbags and sea tbelt tensioners, as well
as control unit sand sensors for these
restraint systems may be installed in the
following areas of your vehicle:
R doors
R doo rpillars
R door sills
R seats
R dashboard
R instrument cluster
R centre console
Do not install accessories such as audio
systems in these areas. Do not carr yout
repairs or welding .You coul dimpair the
operating efficie ncyoft he restraint sys-
tems.
Hav eaftermarket accessories installe dat
aq ualified specialist workshop. Mercedes-
Benz recommends that you use a
Mercedes -Benz Ser vice Centre for thi spur-
pose. 370
Genuine Mercedes-Benz partsTechnical data

H
Environmenta
lnote
Daimler AG also supplies reconditioned
assemblies and part swhicha re of the same
quality as new parts. For these, the same war-
ranty applie sasfor new par ts.
Always spe cify the vehicle identificatio nnum-
ber (VIN )(Y page 372) and th eengine num-
ber (Y page373)w hen orderi nggenuine
Mercedes-Ben zparts. Vehicle electronics
Tampering with th
eengine electron-
ics G
WA
RNING
Only have work on the engin eelectronics and
related component scarried out at aqualified
specialist workshop which has the necessary
specialist knowledge and tools to carry out
the work required .Mercedes-Ben zrecom-
mends that you use aMercedes-Ben zService
Centr efor this purpose. In particular ,work
relevant to safet yoronsafety-related sys-
tems must be carried out at aqualified spe-
cialist workshop .Otherwise, the vehicle's
roadworthiness could be affected.
! Only have maintenanc ework on the
engin eelectronics and its associated parts,
such as control units, sensor sand connec-
tor leads, carried out at aqualified special-
ist workshop, e.g. aMercedes-Benz Ser vice
Centre. Vehicle compo nentsm ay other-
wise wear mor equickly and the vehicle's
operatin gpermit may be invalidated. Retrofitting of two-way radios and
mobile phones (RF transmitters)
Use th eTechnical Specification
ISO/TS 21609 30
implementation regulation
when retrofitting RF (radi ofrequency) trans-
mitters. If your vehicle has fittings for two-way radio
equipment, use th
epower supply or aerial
connection sintended for use with the basic
wiring. Be sure to obser vethe manufacturer's
additional instructions when installing the fit-
tings.
! Hav eaftermarket radi ofrequency trans-
mittin gequipmen tinstalled at aquali fied
sp ec ialist worksho p. Mercedes-Benz rec-
ommends that you use aMercedes-Benz
Ser vice Centre for thi spurpose.
The transmission output at the aerial base
must not exceed the maximum values below. Waveband Maximum trans-
mission output
(PEAK)
Short wave
(f
<54M Hz) 100 W
4mw
aveband 30 W
2mw
aveband 50 W
Trunked radio/Tetra 35 W
70 cm waveband 35 W
GSM 900/AMPS 10 W
GSM 1800 10 W
UMTS 10 W
The following aerial positions may be used if
RF transmitters have been properly installed:
30 ISO/TS 216 09–Technical Specification for Road Vehicles (EMC) guidelines for installation of aftermarket
radio frequenc ytransmitting equipment. Vehicle electronics
371Technicaldata Z

:
Rear roof area
; Rear wing 31 G
WAR
NING
Incorrec tretrofitting of RF transmitters can
cause the vehicle electronics to malfunction.
The vehicle's operating safet yand thus your
own safety are impaired.
Have aftermarket radio frequenc ytransmit-
tin ge quipmen tinstalled at aqualified spe-
cialist workshop .Mercedes-Benz recom-
mends that you use aMercedes-Benz Ser vice
Centre for thi spurpose. G
WARNING
Incorrec tretrofitting of RF tra nsmitters can
lead to increase delectromagnetic radiation in
the vehicle interior. Using an exterior aerial
takes into account curren tscientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.
Have aftermarket radio frequenc ytransmit-
tin ge quipmen tinstalled at aqualified spe-
cialist workshop .Mercedes-Benz recom-
mends that you use aMercedes-Benz Ser vice
Centre for thi spurpose.
Deviations with respect to aerial locations,
output and frequencies must be approved by
Mercedes-Benz.
There is no restriction for aerial positions in
the outer area of the vehicle for thes ewave-
bands: trunked radio/Tetra, 70 cm wave-
band, GSM 900/AMPS, GSM 180 0and
UMTS. Legal provisions for fittings must be
observed.
RF transmitters with amaximum transmis-
sion output of 100 mW (PEAK )may be used
in the vehicle without restrictions.
! The operating permit may be invalidated
if the instructions for installation and use of
RF transmitters are not observed, e.g.
approved wavebands, maximum output
and aerial positions on the vehicle. Vehicle identification plates
Vehicle identification plat
ewith vehi-
cle identification number (VIN) and
paint code number X
Open the fron tright-han ddoor.
You will see vehicle identifi cation plate :. Vehicle identification plate (example)
:
Vehicle identification plate
; Vehicle manufacturer
= EU type approval number
31 Recommended installation position: on the side which face sthe centr eofthe road. 372
Vehicle identification platesTechnical data

?
Vehicl eidentification number (VIN)
A Maximum permissible gross vehicle
weight
B Gross combination mass
C Maximum permissible front axle load
D Maximum permissible rear axle load

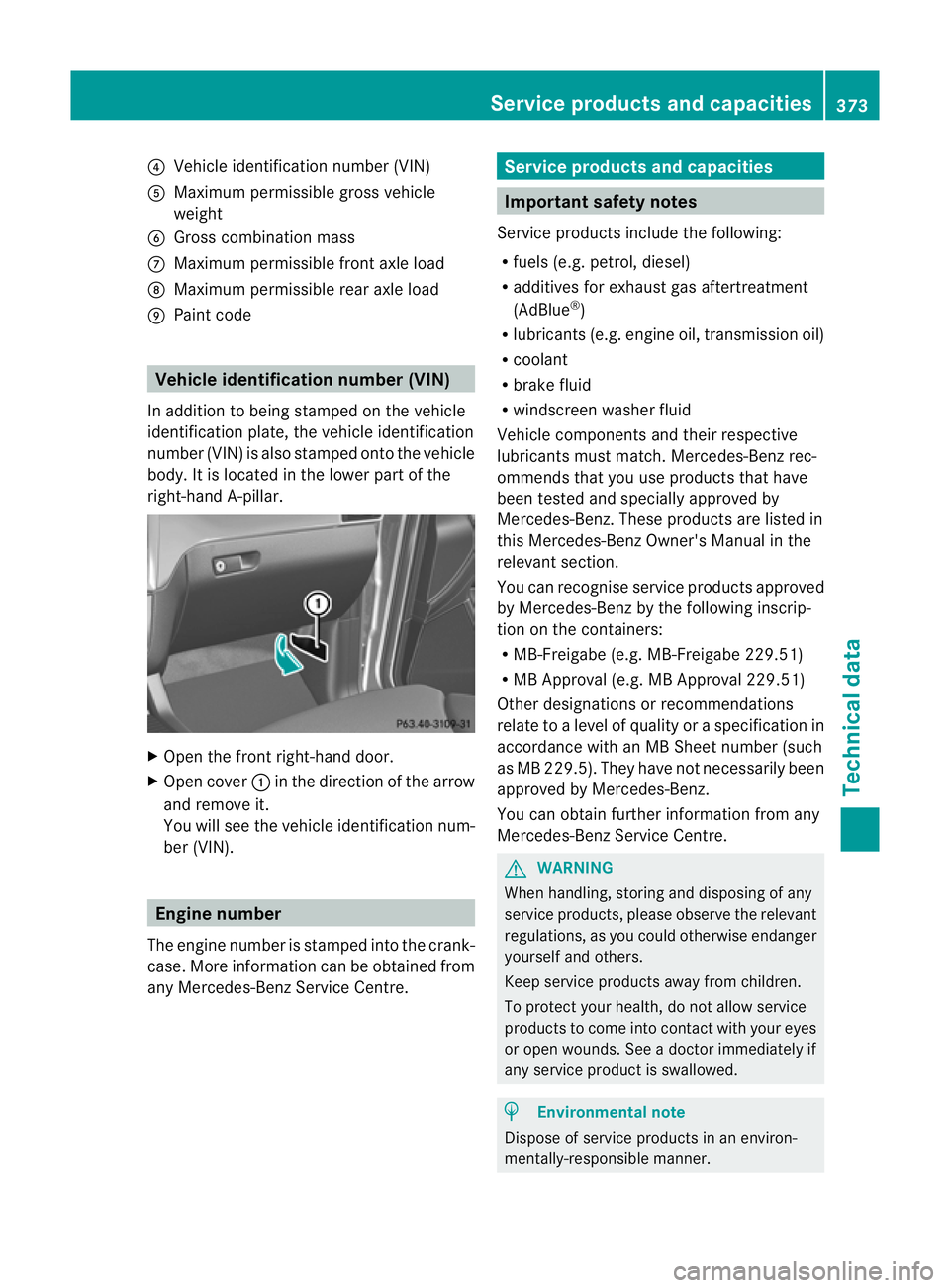

E Paint code Vehicle identification number (VIN)
In addition to being stamped on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the vehicle
body. It is located in the lower part of the
right-han dA-pillar. X
Ope nthe front right-hand door.
X Open cover :in the direction of the arrow
and remove it.
You will see the vehicle identification num-
ber (VIN). Engine number
The engin enumber is stamped into the crank-
case. More information can be obtained from
any Mercedes-Benz Service Centre. Service products and capacities
Important safety notes
Service products include the following:
R fuels (e.g. petrol, diesel)
R additives for exhaust gas aftertreatment
(AdBlue ®
)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washe rfluid
Vehicle component sand thei rrespective
lubricants must match. Mercedes-Ben zrec-
ommends that you use products that have
been tested and specially approved by
Mercedes-Ben z.These product sare listed in
this Mercedes-Be nzOwner's Manual in the
relevant section.
You can recognise service product sapproved
by Mercedes-Ben zbythe fol lowinginscrip-
tion on the cont ainers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approva l(e.g. MB Approval 229.51)
Other designation sorrecommendations
relat etoal evel of qualit yoras pecification in
accordance wit hanMBSheet number (such
as MB 229.5). They hav enot necessaril ybeen
approved by Mercedes-Benz.
You can obtain further information from any
Mercedes-Benz Ser vice Centre. G
WARNING
Whe nhandling, storing and disposing of any
servic eproducts, please observe th erelevant
regulations, as you could otherwise endanger
yourself and others.
Keep servic eproducts awa yfrom children.
To protect your health ,donot allow service
products to com einto contact with your eyes
or ope nwounds. See adoctor immediately if
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
men tally-responsible manner. Service products and capacities
373Technicaldata Z

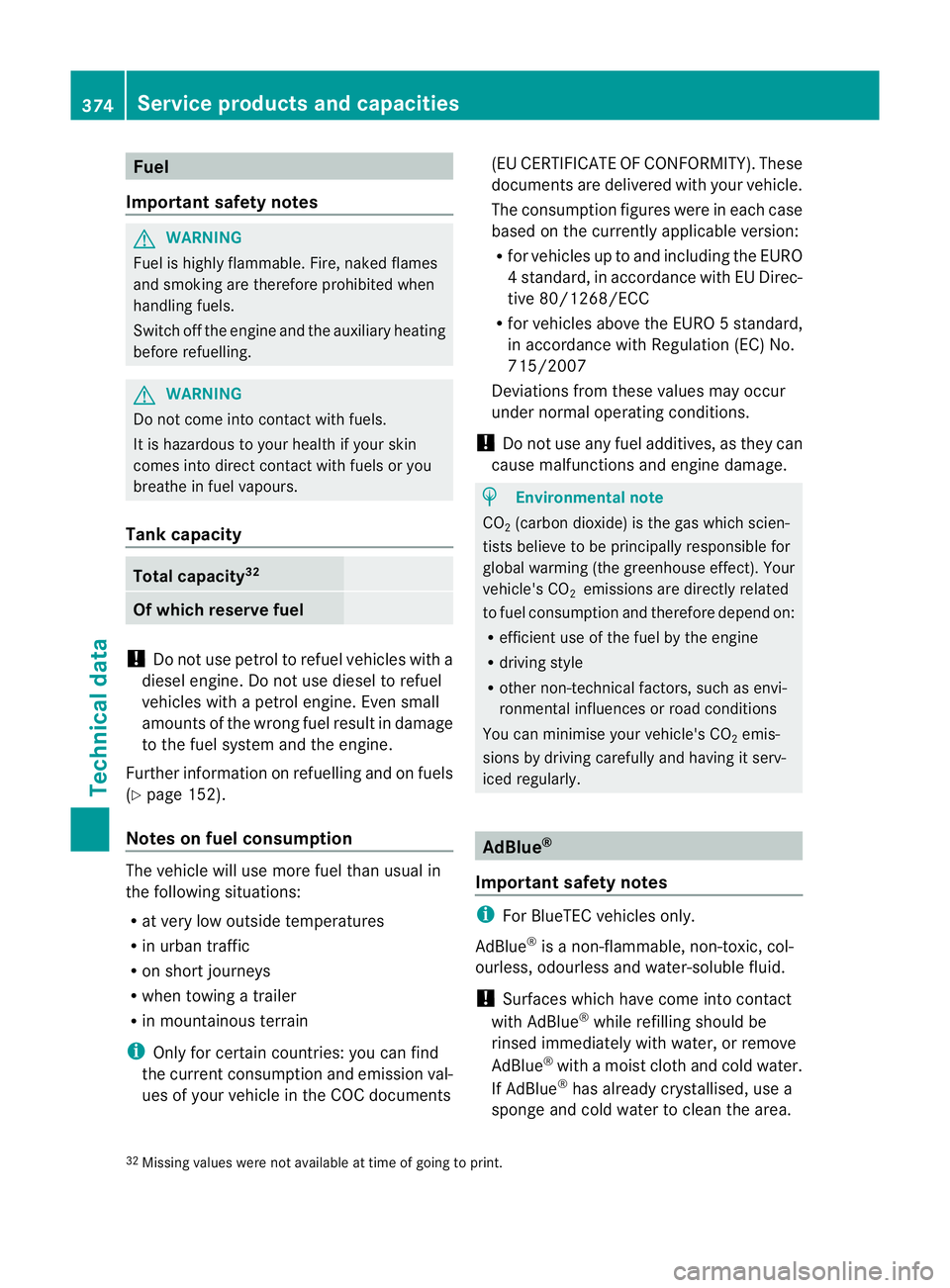

Fuel
Important safety notes G
WARNING
Fuel is highly flammable. Fire, naked flames
and smokin gare therefore prohibi tedw hen
handlin gfuels.
Swit choff th eenginea nd the auxiliary hea ting
before refuelling. G
WARNING
Do not come int ocontact with fu els.
It is hazardous to your healt hifyour skin
comes int odirect contact wit hfuels or you
breathe in fuel vapours.
Tank capacity Total capacity
32 Of whic
hreserv efuel !
Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with apetrol engine. Even small
amounts of the wron gfuel result in damage
to the fuel system and the engine.
Further information on refuelling and on fuels
(Y page 152).
Notes on fuel consumption The vehicle will use more fuel than usua
lin
the follow ings ituations:
R at very low outside temperatures
R in urban traffic
R on short journeys
R when towing atrailer
R in mountainou sterrain
i Only for certain countries: you can find
the curren tconsumption and emission val-
ues of your vehicle in the COC documents (EU CERTIFICATE OF CONFORMITY). These
documents ar
edelivered with your vehicle.
The consumption figures were in each case
based on the currently applicable version:
R for vehicles up to and including the EURO
4s tandard ,inaccordanc ewithEUD irec-
tive 80/1268/ECC
R for vehicles above the EURO 5standard,
in accordance with Regulatio n(EC) No.
715/2007
Deviations from these value smay occur
under normal operating conditions.
! Do not use any fuel additives, as they can
cause malfunctions and engine damage. H
Environmental note
CO 2(carbon dioxide) is the gas which scien-
tists believe to be principally responsibl efor
global warmin g(the greenhouse effect). Your
vehicle's CO 2emissions are directly related
to fuel consumptio nand therefore depend on:
R efficient use of the fuel by the engine
R driving style
R othe rnon-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle' sCO
2emis-
sions by driving carefull yand having it serv-
iced regularly. AdBlue
®
Important safety notes i
For BlueTEC vehicles only.
AdBlue ®
is an on-flammable, non-toxic, col-
ourless, odourless and water-soluble fluid.
! Surfaces which have com einto contact
with AdBlue ®
whil erefilling should be
rinsed immediately with water ,orremove
AdBlue ®
with amoist clot hand cold water.
If AdBlue ®
has alread ycrystallised, us ea
sponge and cold water to clean the area.
32 Missing value swere not available at time of going to print. 374
Service products and capacitiesTechnical data

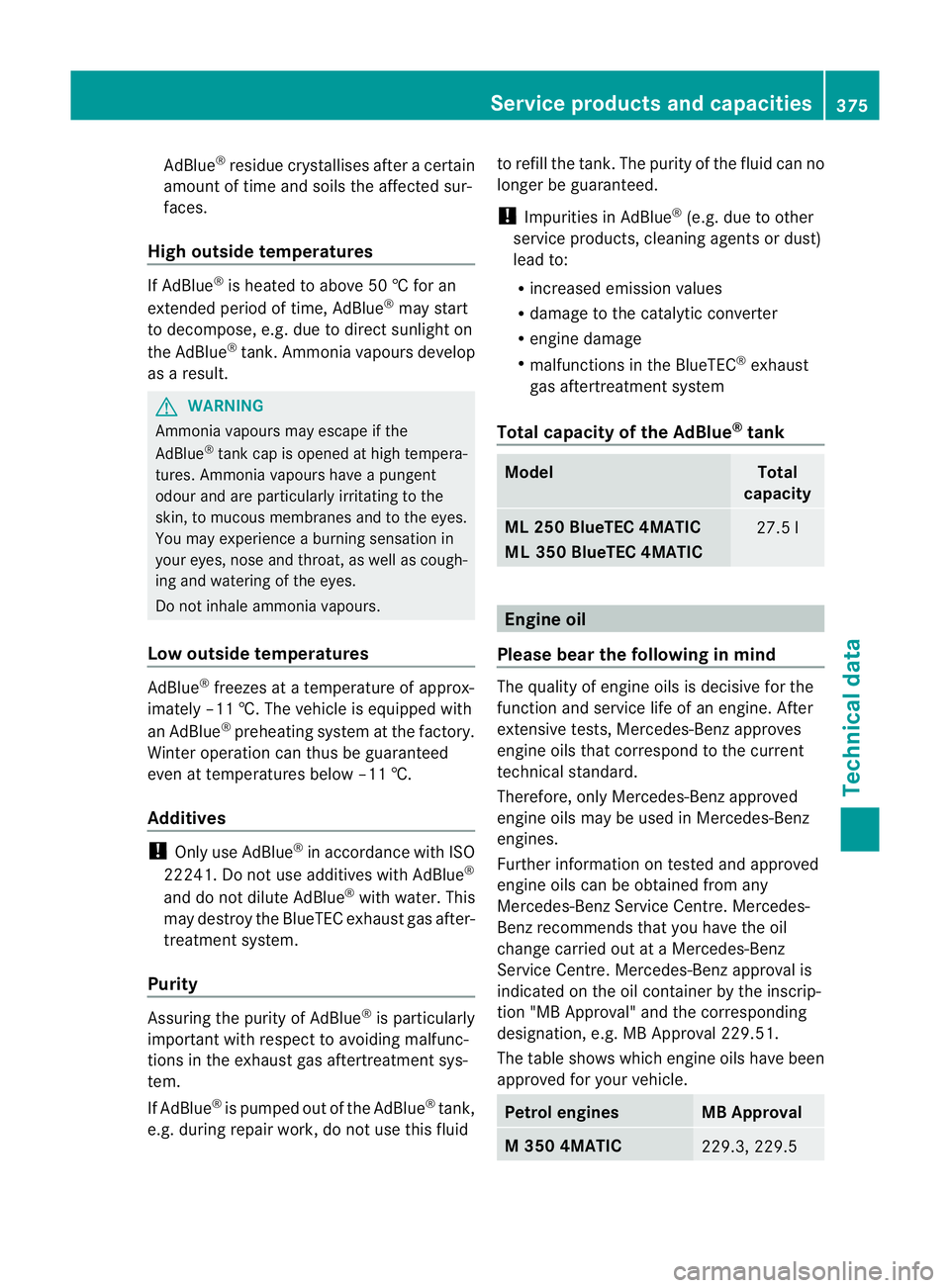

AdBlue
®
residue crystallises afte racertain
amount of time and soils the affecte dsur-
faces.
Hig houtside temperatures If AdBlue
®
is heate dtoabove 50 †for an
extended perio doftime,AdBlue ®
may start
to decom pose,e .g.d ue to direc tsunlight on
the AdBlue ®
tank. Ammonia vapour sdevelop
as aresult. G
WARNING
Ammonia vapours may escape if the
AdBlue ®
tan kcap is opened at high tempera-
tures. Ammonia vapours have apungent
odour and are particularly irritating to the
skin, to mucous membranes and to the eyes.
You may experienc eaburning sensation in
your eyes, nose and throat ,aswell as cough-
ing and waterin goftheeyes.
Do no tinhale ammoni avapours.
Lo wo utside temperatures AdBlue
®
freezes at atemperatur eofapp rox-
imatel y–11 †. Th evehicle is equip pedw ith
an AdBlue ®
preheating system at the factory.
Winter operatio ncan thus be guaranteed
even at temperatures below –11 †.
Additives !
Only use AdBlue ®
in accordan cewit hISO
22241. Do not us eadditives wit hAdBlue ®
an ddon ot dilute AdBlue ®
with water. This
may destroy th eBlueTEC exhaust gas after-
treatmen tsystem.
Purity Assuring the purity of AdBlue
®
is particularly
important with respect to avoiding malfunc-
tions in the exhaus tgas aftertreatment sys-
tem.
If AdBlue ®
is pumped out of the AdBlue ®
tank,
e.g. during repair work, do not use this fluid to refill the tank
.The purity of the fluid can no
longer be guaranteed.
! Impuritie sinAdBlue ®
(e.g. due to other
service products, cleaning agents or dust)
lead to:
R increased emission values
R damage to the catalytic converter
R engine damage
R ®
exhaust
Tota lcapacity of the AdBlue ®
tank Model Total
capacity 27.5 l
Engine oil
Th
eq uality of engine oils is decisive for the
function and service life of an engine. After
extensive tests, Mercedes-Benz approves
engine oils that correspond to the current
technical standard.
Therefore, only Mercedes-Benz approved
engine oils may be used in Mercedes-Benz
engines.
Further information on tested and approved
engine oils can be obtained from any
Mercedes-Benz Service Centre. Mercedes-
Benz recommends that you have the oil
change carried out at aMercedes-Benz
Ser vice Centre. Mercedes-Ben zapproval is
indicated on the oil container by the inscrip-
tion "MB Approval" and the cor respondi ng
designation, e.g. MB Approval 22 9.51.
Th et able shows which engine oils have been
approved for your vehicle. Petrol engines MB Approval
M3
50 4MATIC 22
9.3, 229.5 Servic
eproducts and capacities
375Technicaldata Z
malfunctions in the BlueTEC
gas aftertreatment system
ML 250 BlueTEC 4MATIC
Please bear the following in mind ML
350 BlueTEC 4MATIC

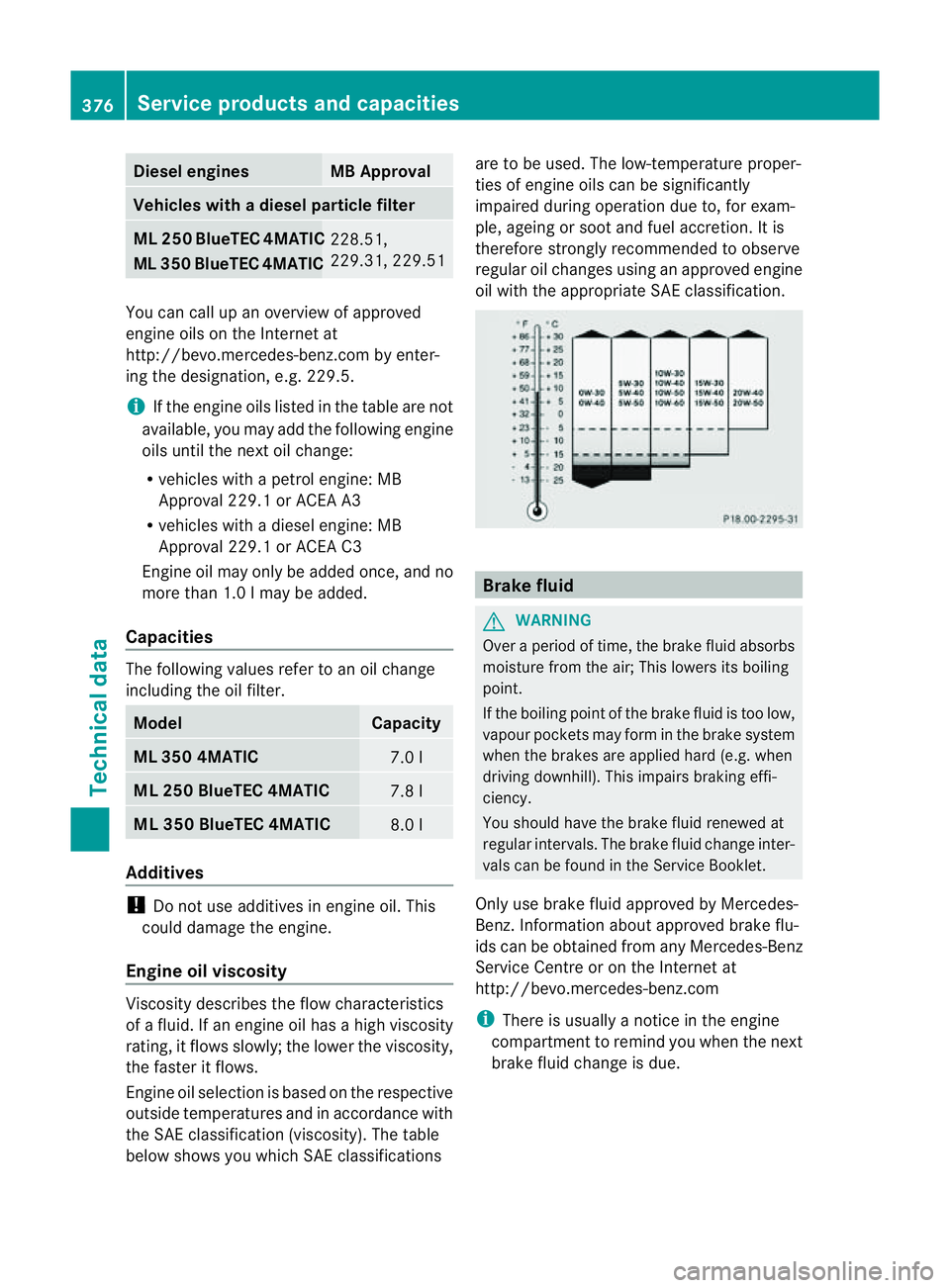

Diesel engines MB Approval
228.51,
229.31 ,229.51 engine oils on the Interne
tat
http:/ /bevo. mercedes -benz.com by enter-
ing the designation, e.g. 22 9.5.
i If the engine oils listed in the table are not
available ,you ma yadd the followin gengine
oil su ntil the next oil change:
R vehi cles with apetrol engine: MB
Approval 22 9.1orA CEAA3
R vehicles wit hadiesel engine: MB
Approval 229.1 or ACE AC3
Engine oil may only be adde donce, and no
mor ethan 1. 0lmay be added.
Capacities The following values refer to an oil change
including the oil filter. Model Capacity
7.0 l
7.8 l
8.0 l
Additives
!
Do not use additive sinengine oil .This
could damage the engine.
Engine oil viscosity Viscosit
ydescribes the flow characteristi cs
of afluid. If an engin eoil has ahigh viscosity
rating, it flows slowly; the lower the viscosity,
the faster it flows.
Engine oil selection is based on the respective
outside temperatures and in accordance with
the SA Eclassification (viscosity). The table
below shows you which SA Eclassifications are to be used. The low-temperature proper-
ties of engin eoils can be significantly
impaired durin goperation due to, for exam-
ple, ageing or soot and fuel accretion. It is
therefore strongly recommende dtoobserve
regula roil changes using an approved engine
oil with the appropriate SA Eclassification. Brake fluid
G
WAR
NING
Over aperiod of time, the brak efluid absorbs
moisture fro mthe air ;This lower sits boiling
point.
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). Thi simpairs brakin geffi-
ciency.
Yo us hould hav ethe brake fluid renewed at
regular intervals. The brake fluid change inter-
vals can be found in the Servic eBooklet.
Only use brak efluid approved by Mercedes-
Benz .Information abou tapproved brak eflu-
ids can be obtained from any Mercedes-Benz
Service Centr eoronthe Internet at
http://bevo. mercedes-benz.com
i There is usuall yanoticeint he engine
compartmen ttoremin dyou when the next
brake fluid change is due. 376
Service products and capacitiesTechnical data
You can cal
lupanoverview of ap proved
ML
350 BlueTEC 4MATIC
Vehicles wit
hadiesel particle filter
ML 250 BlueTEC 4MATIC
ML 350 4MATIC
ML 350 BlueTEC 4MATIC
ML
250 BlueTEC 4MATIC

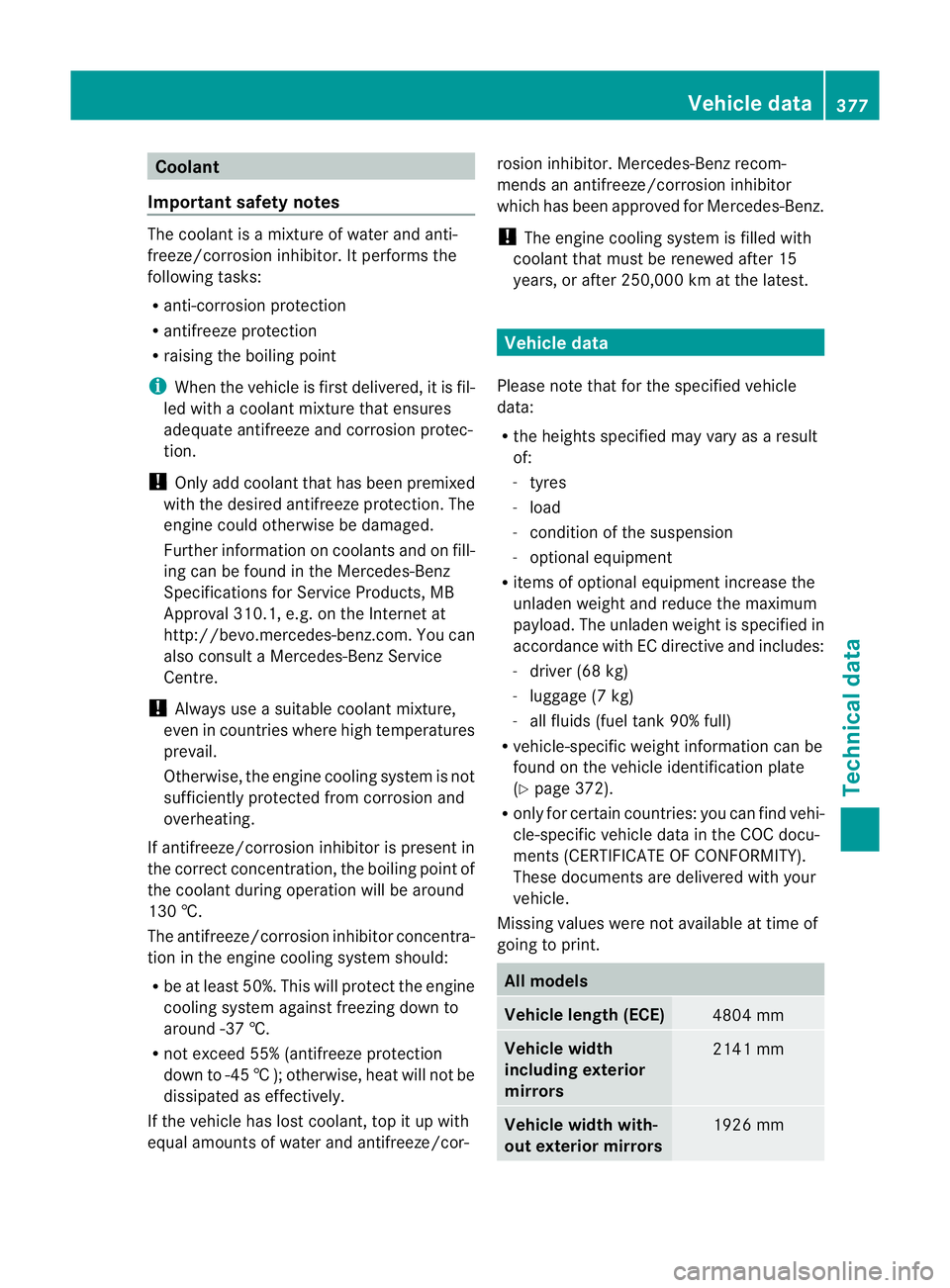

Coolant
Important safety notes The coolan
tisamixture of water and anti-
freeze/corrosio ninhibitor. It performs the
following tasks:
R anti-corrosio nprotection
R antifreeze protection
R raising th eboiling point
i When the vehicle is first delivered, it is fil-
led with acoolant mixtur ethat ensures
adequate antifreeze and corrosion protec-
tion.
! Only add coolant that has been premixed
with the desired antifreeze protection. The
engin ecould otherwise be damaged.
Further information on coolants and on fill-
ing can be found in the Mercedes-Benz
Specifications for Servic eProducts ,MB
Approval 310.1 ,e.g. on the Internet at
http ://bevo.mercedes-benz.com .You can
also consult aMercedes-Benz Service
Centre.
! Alway suseasuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
If antifreeze/corrosio ninhibitor is present in
the correc tconcentration, the boilin gpoint of
the coolant during operation will be around
13 0†.
The antifreeze/ corrosion inhibitor con centra-
tion in the engine cooling system should:
R be at leas t50%. This wil lprotect the engine
coolin gsystem agains tfreezin gdown to
around -3 7†.
R not excee d55% (antifreeze protection
down to -45 †);otherwise, heat will not be
dissipated as effectively.
If the vehicle has los tcoolant, top it up with
equal amount sofwater and antifreeze/cor- rosion inhibitor. Mercedes-Benz recom-
mends an antifreeze/corrosion inhibitor
which has been approved for Mercedes-Benz.
! The engin ecoolin gsystem is filled with
coolant that must be renewed after 15
years, or after 250,000 km at the lates t. Vehicl
edata
Pleas enotet hat for the speci fied vehicle
data:
R the height sspecified may var yasaresult
of:
- tyres
- load
- conditio nofthe suspen sion
- optional equipment
R item sofo ptional equipmen tincrease the
unlade nweight and reduc ethe maximum
payload. The unladen weight is speci fied in
accordanc ewith EC directive and includes:
- driver (68 kg)
- luggage (7 kg)
- all fluids (fuel tan k90% full)
R veh icle-specific weigh tinformation can be
found on the vehicl eidentification plate
(Y page 37 2).
R only for cer tain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ment s(CERTIFICATE OF CONFORMITY).
Thes edocuments ar edelivered with your
vehicle.
Missing values were not available at tim eof
going to print. All models
Vehicle lengt
h(ECE) 480
4mm Vehicle width
including exterior
mirrors
214
1mm Vehicle width with-
out exterior mirrors 192
6mm Vehicl
edata
377Techni caldata Z
