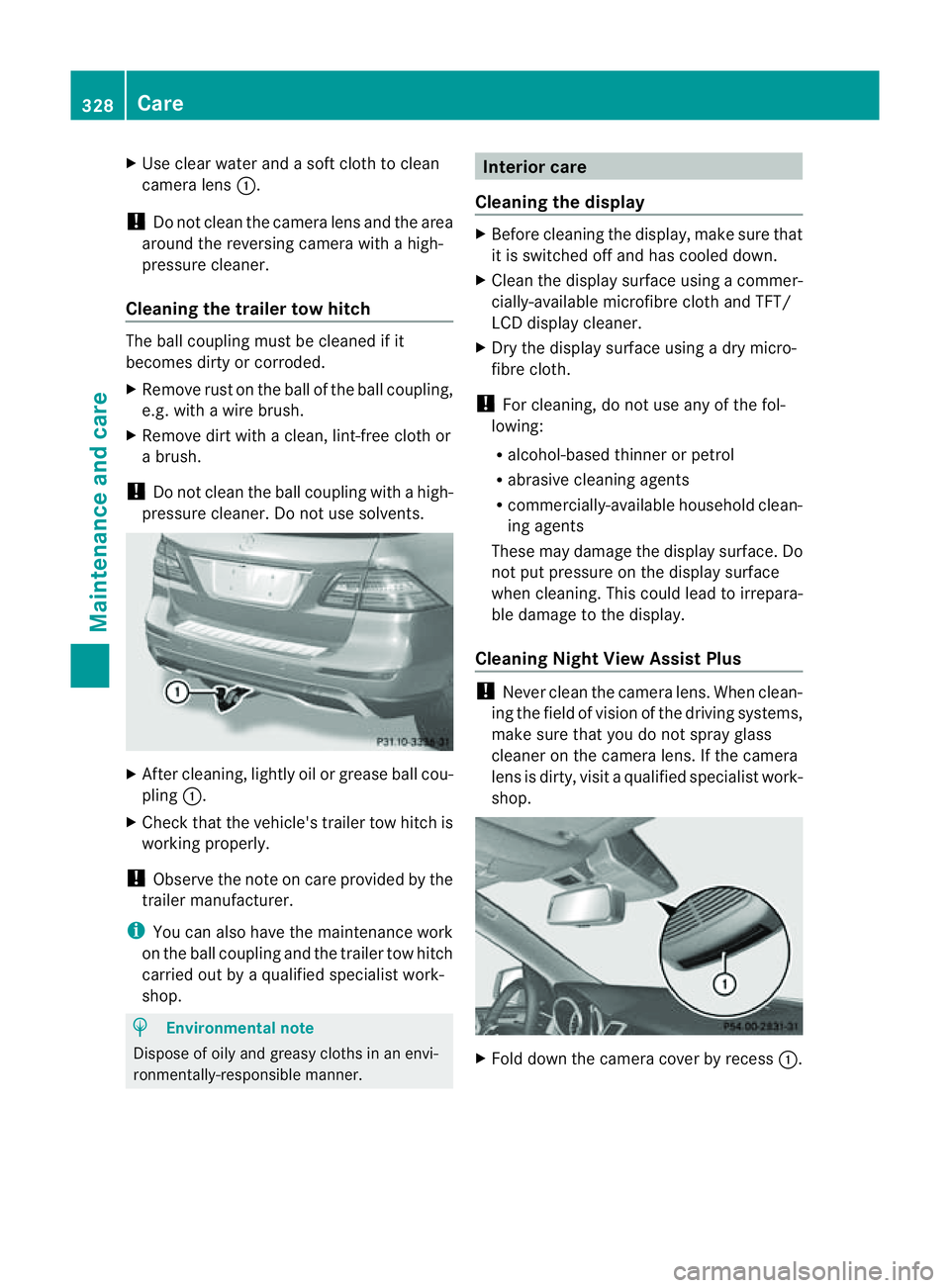

Page 331 of 389
X
Use clear wate rand asoft clot htoclean
camera lens :.
! Do not clean the camera lens and the area
around the reversing camera with ahigh-
pressure cleaner.
Cleaning the trailer tow hitch The ball coupling must be cleaned if it
becomes dirty or corroded.
X Remove rust on the ball of the ball coupling,
e.g. with awire brush.
X Remove dirt with aclean, lint-free cloth or
ab rush.
! Do not clean th eball coupling with ahigh-
pressure cleaner .Donot use solvents. X
Afterc leaning, lightly oil or grease ball cou-
pling :.
X Check that the vehicle' strailer to whitch is
working properly.
! Observe the note on care provided by the
trailer manufacturer.
i You can also have the maintenance work
on the ball coupling and the trailer tow hitch
carried out by aqualified special istw ork-
shop. H
Environmenta
lnote
Dispose of oily and greasy cloths in an envi-
ronmentally-responsible manner. Interior care
Cleaning the display X
Before cleaning the display, make sure that
it is switched off and has cooled down.
X Clea nthe display surface usin gacommer-
cially-available microfibr ecloth and TFT/
LCD displa ycleaner.
X Dry the displa ysurface using adry micro-
fibre cloth.
! For cleaning, do not us eany of the fol-
lowing:
R alcohol-base dthinner or petrol
R abrasiv ecleaning agents
R commercially-available household clean-
ing agents
These may damage the displa ysurface. Do
not put pressure on the displa ysurface
when cleaning. This could lead to irrepara-
ble damage to the display.
Cleanin gNight View Assist Plus !
Never clean the camera lens. When clean-
ing the field of vision of the driving systems,
mak esure that you do not spray glass
cleaner on the camera lens. If the camera
lens is dirty, visit aqualified specialist work-
shop. X
Fold down the camera cover by recess :.328
CareMaintenance and care

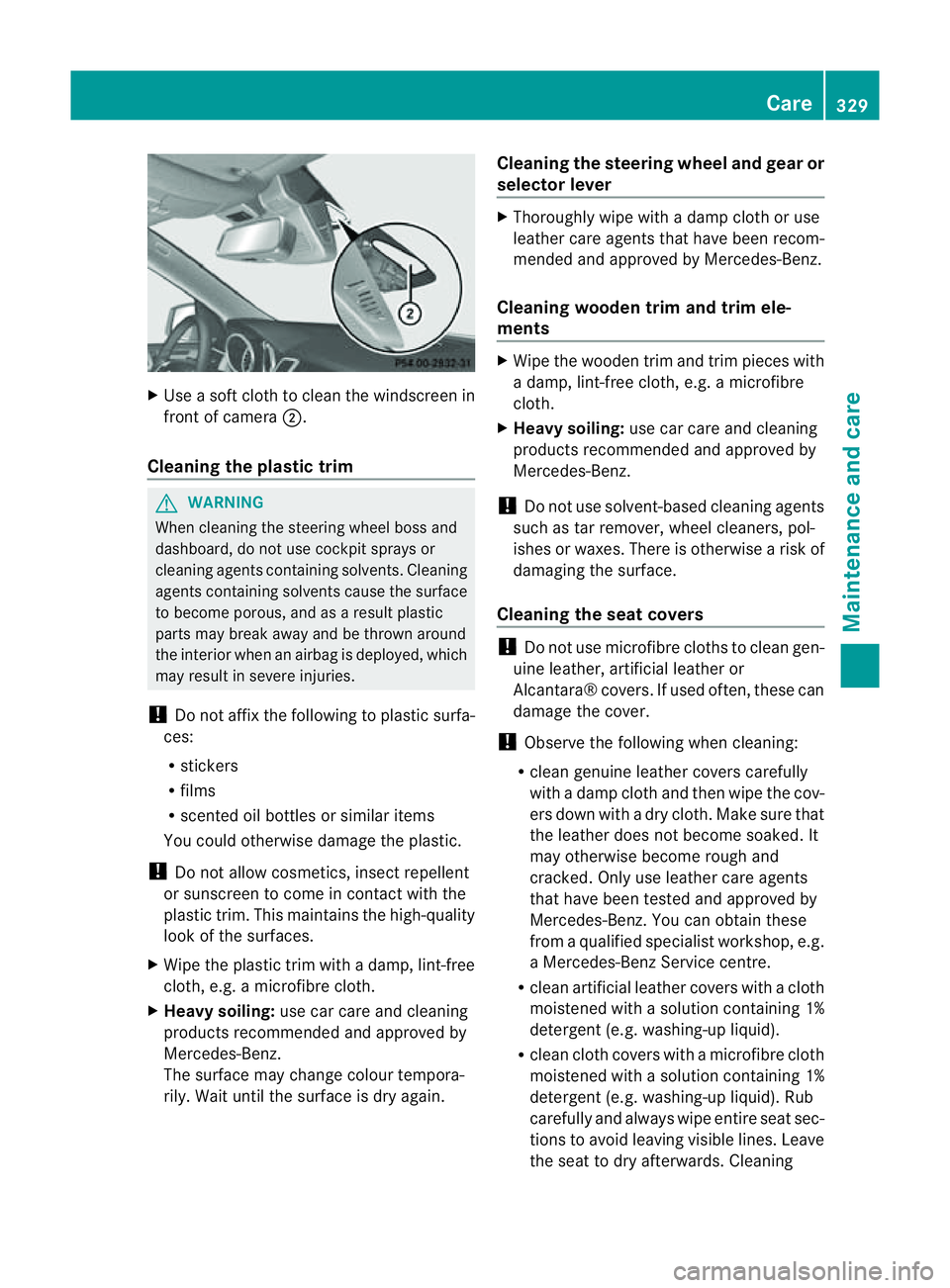

Page 332 of 389
X
Use asoft clot htoclean the windscreen in
front of camera ;.
Cleaning the plastic trim G
WARNING
When cleanin gthe steering wheel boss and
dashboard, do not use cockpit sprays or
cleanin gagents containing solvents. Cleaning
agent scontaining solvents cause the surface
to becom eporous, and as aresult plastic
part smay break away and be thrown around
the interior when an airbag is deployed, which
may result in severe injuries.
! Do not affix the following to plastic surfa-
ces:
R stickers
R films
R scented oil bottles or similar items
You could otherwise damage the plastic.
! Do not allow cosmetics, insect repellent
or sunscreen to come in contact with the
plastic trim .This maintain sthe high-quality
look of the surfaces.
X Wipe the plastic trim with adamp, lint-free
cloth, e.g. amicrofibre cloth.
X Heavy soiling: use car care and cleaning
products recommended and approved by
Mercedes-Benz.
The surface may change colour tempora-
rily. Wait until the surface is dry again. Cleanin
gthe steering whee land gear or
selector lever X
Thoroughl ywipe with adamp cloth or use
leather care agents that have been recom-
mended and approved by Mercedes-Benz.
Cleanin gwooden trim and trim ele-
ments X
Wipe the wooden trim and trim pieces with
ad amp, lint-free cloth, e.g. amicrofibre
cloth.
X Heavy soiling: use car care and cleaning
products recommended and approved by
Mercedes-Benz.
! Do not use solvent-based cleaning agents
such as tar remover, wheel cleaners, pol-
ishes or waxes. There is otherwise arisk of
damaging the surface.
Cleanin gthe seat covers !
Do not us emicrofibre cloths to clean gen-
uine leather, artificial leather or
Alcantara® covers. If used often, these can
damage the cover.
! Observe the following when cleaning:
R clean genuine leather cover scarefully
with adamp cloth and then wipe the cov-
ers down with adry cloth .Make sure that
the leather does not become soaked .It
may otherwise become rough and
cracked .Only use leather care agents
that have bee ntested and approved by
Mercedes-Benz. You can obtain these
from aqualified specialist workshop, e.g.
aM ercedes-Ben zService centre.
R clean artificial leather covers with acloth
moistened with asolution con taining 1%
detergent (e.g. washing-up liquid).
R clean cloth cover switham icrofibre cloth
moistened with asolution con taining 1%
detergent (e.g. washing-up liquid). Rub
carefully and always wipe entire seat sec-
tions to avoid leaving visible lines. Leave
the seat to dry afterwards. Cleaning Care
329Maintenance andcare Z

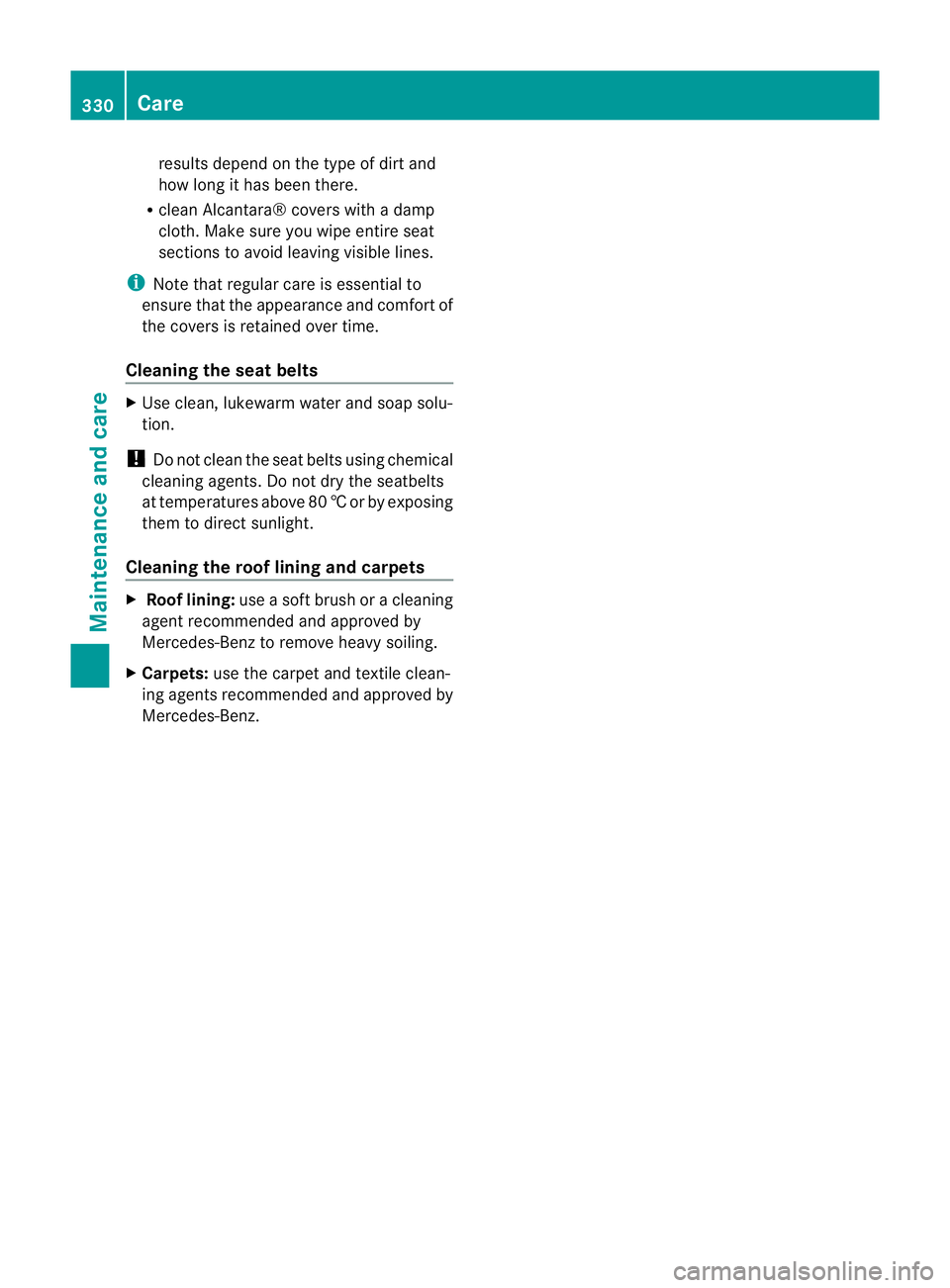

Page 333 of 389
res
ultsd epend on the type of dirt and
how long it has been there.
R clean Alcantara® covers with adamp
cloth. Make sure you wipe entire seat
sections to avoid leavin gvisible lines.
i Notethat regular car eisessentia lto
ensure that the appearance and comfor tof
the covers is retaine dovertime.
Cleaning th eseat belts X
Use clean ,lukewarm water and soap solu-
tion.
! Do not clean the seat belts using chemical
cleaning agents. Do not dry the seatbelts
at temperatures above 80 †orbyexposing
them to direc tsunlight.
Cleaning th erooflining and carpets X
Roof lining: useasoft brush or acleaning
agent recommended and approve dby
Mercedes-Ben ztoremov eheavy soiling.
X Carpets: use the carpet and textile clean-
ing agents recommended and approved by
Mercedes-Benz. 330
CareMaintenance and care

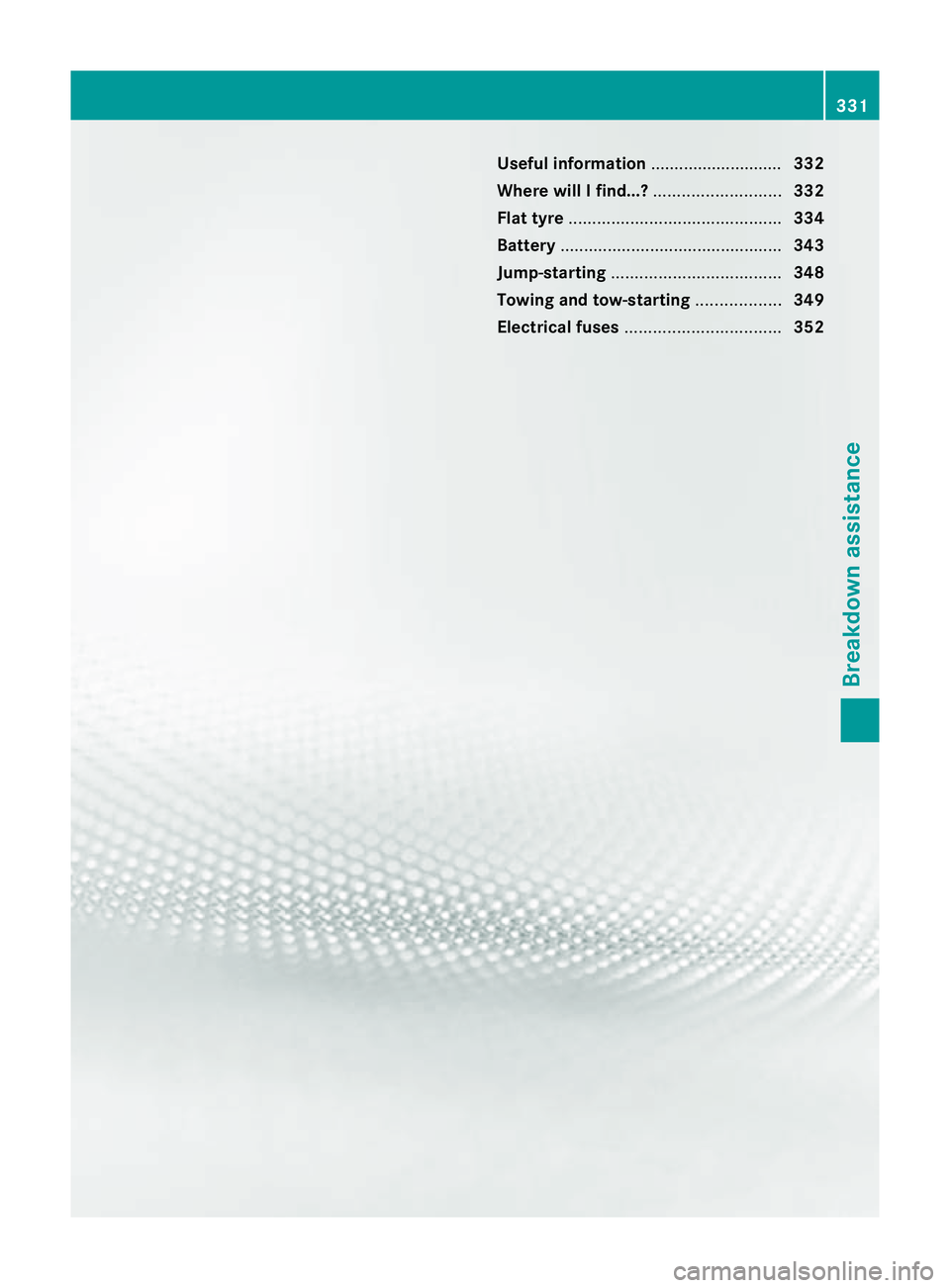

Page 334 of 389
Usefu
linfor mation ............................ 332
Wher ewillIfind...? ........................... 332
Flat ty re............................................. 334
Ba ttery ............................................... 343
Jump-starting .................................... 348
Towing and tow-starting ..................349
Electrica lfuses ................................. 352 331Break
down assista nce
Page 335 of 389
Usefu
linfor mati on
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviation sare possible .Please
not ethat your vehicle ma ynot be equipped
with all featur es described. This also
applies to safety-releva ntsystems and
functions.
i Please read the information on qualified
specialist workshops (Y page 24).Where will
Ifind...? Warning triangle
Removing th ewarning triangle Th
ew arnin gtriangle is located in th estowage
well under th eluggage compartmen tfloor.
X Open the tailgate.
X Lif tthe luggage compar tment floor up
(Y page 30 5).
i Dependin gonthe vehi cle's equipment,
the warnin gtriangle may also be located in
other places under the luggag ecompar t-
ment fl oor. Examples: storage loca
tions of the warnin gtriangle
X Remove warnin gtriangle :. Setting up th
ewarnin gtriangle X
Fol dfeet =down and out to the side.
X Pull side reflectors ;upwards to for ma
triangle and lock them at thet op using
upper press-stud :. First-aid kit
X Open the tailgate. X
Remove first-aid kit :from the luggage
net.
i Check the expir ydate on the first-aid kit
at least once ayear. Replace the contents
if necessary, and replace missin gcontents. Fire extinguisher
The fir eextinguisher is locate dunderneath
the front of the driver's seat. 332
Where wil
lIfind...?Breakdown assistance

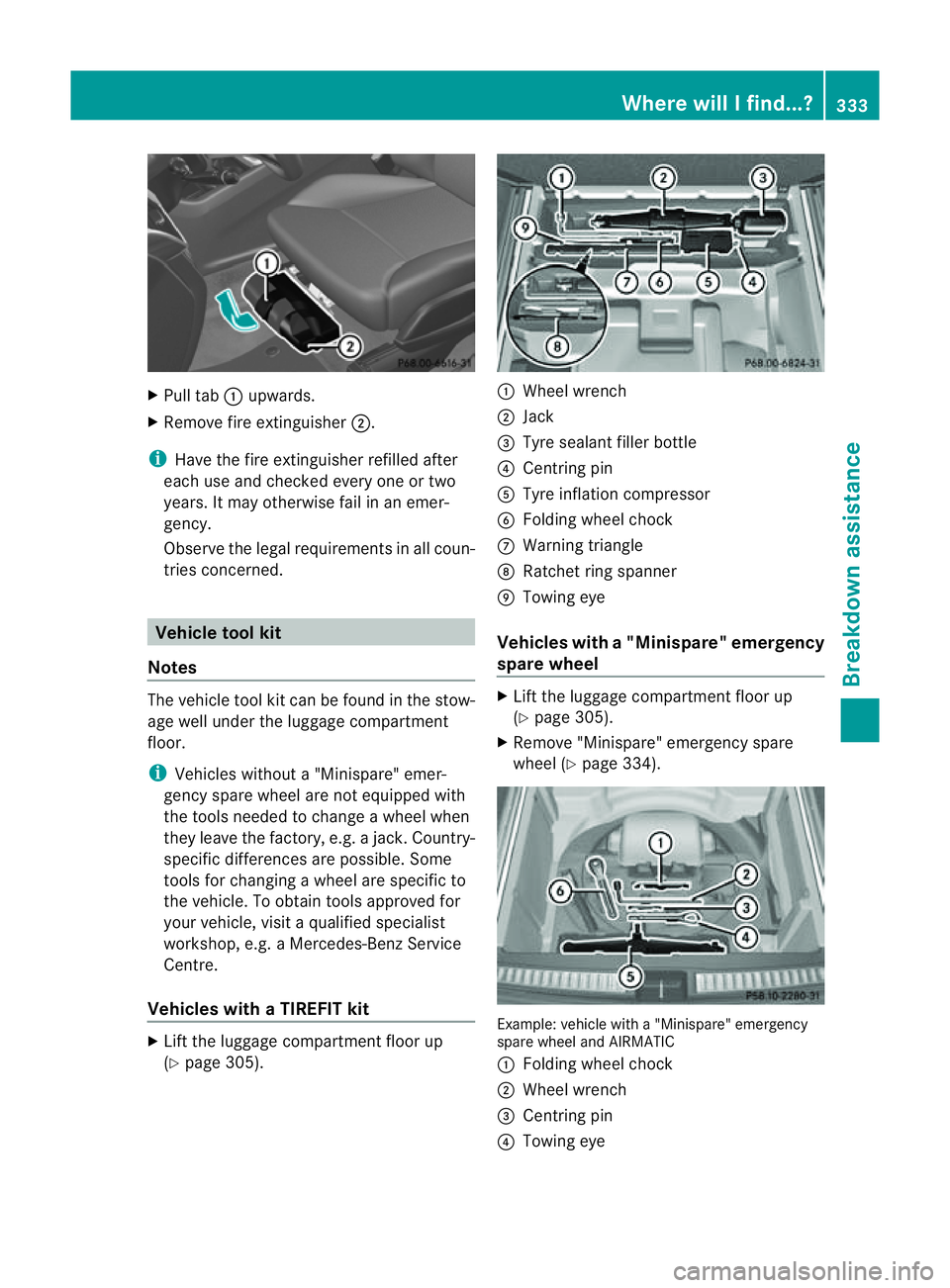

Page 336 of 389
X
Pull tab :upwards.
X Remove fir eextinguisher ;.
i Have the fire extinguisher refille dafter
each us eand checked every one or two
years. It may otherwis efail in an emer-
gency.
Observe the legal requirement sinall coun-
tries concerned. Vehicle tool kit
Notes The vehicle tool kit can be foun
dinthe stow-
age well under the luggage compar tment
fl oor.
i Vehi cles without a"Minispare" emer-
gency spar ewheel ar enot equipped with
the tools needed to change awheel when
the yleave the fac tory, e.g .ajack. Country-
spe cificd ifferences are possible. Some
tools for changing awheel ar especific to
the vehicle. To obtain tools approved for
your vehicle, visit aqualified specialist
workshop, e.g. aMercedes-Benz Service
Centre.
Vehicles with aTIREFIT kit X
Lif tthe luggage compartmen tfloor up
(Y page 305). :
Wheel wrench
; Jack
= Tyre sealant filler bottle
? Centrin gpin
A Tyre inflation compressor
B Foldin gwheel chock
C War ning triangle
D Ratchet rin gspanner
E Towing eye
Vehicles with a"Min ispare" emerg ency
spare wheel X
Lift the luggage compartm entfloor up
(Y pag e305).
X Remove "M inispare" emergency spare
whee l(Ypag e334). Example
:vehicle with a"Minispare" emergency
spar ewheel and AIRMATIC
: Foldin gwheel chock
; Wheel wrench
= Cent ring pin
? Towing eye Where wil
lIfind...?
333Breakdownassista nce

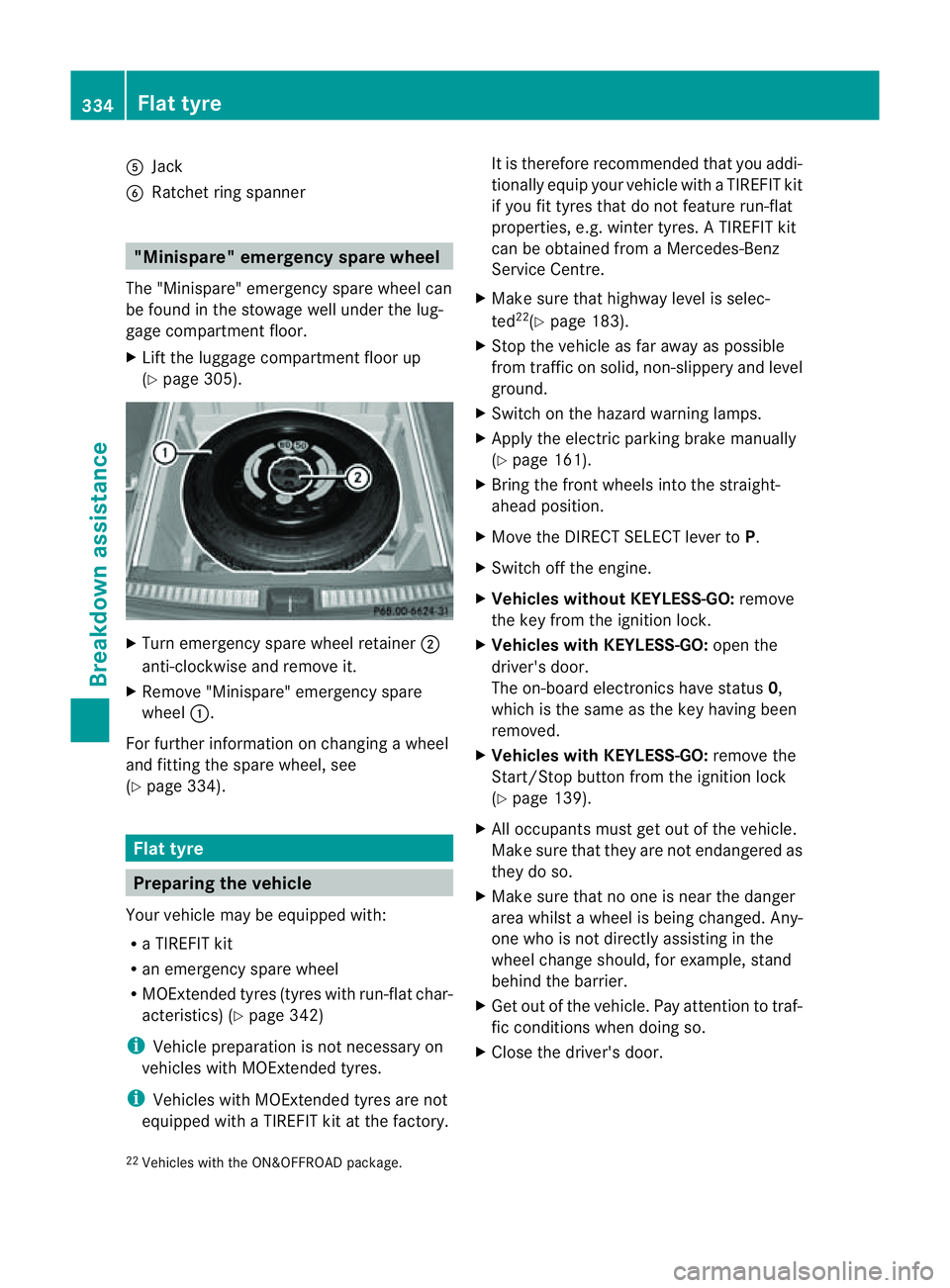

Page 337 of 389
A
Jack
B Ratchet rin gspanner "M
inispare" emergency spare wheel
The "Minispare" emergency spar ewheel can
be fou ndin th estowage well unde rthe lug-
gage compartmen tfloor.
X Lif tthe luggage compar tment floor up
(Y page 30 5). X
Tur nemergency spare whee lretainer ;
anti-clockwise and rem ove it.
X Remove "Minis pare" emergency spare
wheel :.
For fur ther information on changing awheel
and fittin gthe spar ewheel, see
(Y page 33 4). Flat tyre
Preparing th
evehicle
Your vehicle may be equipped with:
R aT IREFIT kit
R an eme rgency spare wheel
R MOExtende dtyre s(tyres with run-flat char-
acteristics) (Y page 342)
i Vehicle preparation is not necessary on
vehicles with MOExtended tyres.
i Vehicles with MOExtended tyre sare not
equippe dwithaTIREFIT kit at th efactory. It is therefore recommended that you addi-
tionally equip your vehicle with
aTIREFIT kit
if yo ufit tyre sthat do not fea ture run-flat
prope rties, e.g. winter tyres. ATIREFIT kit
can be obtaine dfrom aMercedes-Benz
Servic eCentre.
X Make sure that highway level is selec-
ted 22
(Y page 183).
X Stop the vehicle as far away as possible
from traffic on solid, non-slippery and level
ground.
X Switch on the hazar dwarning lamps.
X Apply the electric parking brake manually
(Y page 161).
X Bring the front wheels into the straight-
ahead position.
X Move the DIRECT SELECT lever to P.
X Switch off the engine.
X Vehicles without KEYLESS-GO: remove
the key from the ignition lock.
X Vehicles with KEYLESS-GO: open the
driver' sdoor.
The on-boar delectronics have status 0,
which is the same as the key having been
removed.
X Vehicles with KEYLESS-GO: removethe
Star t/Stop butto nfrom th eignition lock
(Y page 139).
X All occupants must get out of the vehicle.
Make sure that they ar enot endangered as
they do so.
X Make sure that no one is near the danger
area whilst awheel is being changed. Any-
one who is not directly assisting in the
wheel change should, for example, stand
behind the barrier.
X Get out of the vehicle. Pay attention to traf-
fic condition swhen doing so.
X Close the driver's door.
22 Vehicles wit hthe ON&OFFROAD package. 334
Flat tyreBreakdown assistance
Page 338 of 389
X
Place the warnin gtriangl e(Ypage 332) a
suitable distanc eaway. Observe legal
requirements.
X Unload heavy luggage.
i Only operate the tyre inflation compres-
sor using a12Vsocket (Y page 309), even
if the ignition is turned off.
An emergenc ycut-off ensures that the on-
board voltage does not drop too low. If the
on-board voltage is too low, the power to
the sockets is automatically cut. This
ensures that there is sufficient power to
start the engine. TIREFIT kit
Usin gthe TIREFIT kit Yo
uc an use the TIREFI Tkit to seal small
punctures, particularly those in the tyre tread.
You can use TIREFIT at outside temperatures
down to Ò20†. G
WARNING
In the followin gsituations, your safety is at
particular risk as tyre sealant is unable to pro-
vide sufficient breakdown assistance:
R there are cuts or punctures in the tyre
greater than 4mm.
R thew heel rim is damaged.
R you hav edrive natv ery low tyr epressures
or on aflat tyre.
Do not drive any further. Consult aqualified
specialist workshop which has the necessary
specialist knowledg eand tool stocarry out
the work required.
Mercedes-Benz recommends that you use a
Mercedes-Benz Servic eCentr efor this pur-
pose. In particular ,work relevant to safet yor
on safety-related system smust be carried out
at aq ualified specialist workshop. X
Do not remove any foreign objects which
have penetrated the tyre, e.g. screws or
nails.
X Remove the tyre sealant bottle, the accom-
panying "max. 80 km/h" sticker and the
tyre inflation compresso rfrom th estowage
well underneath the luggage compartment
floor (Y page 333). X
Affix part :of the sticker withi nthe driv-
er' sfield of vision.
X Affix part ;of the sticker near the valve
on the wheel with the defectiv etyre. G
WARNING
TIREFIT must not come into contact with your
skin, eyes or clothing.
R If TIREFIT comes into contact with your
eyes or skin, immediately rinse thoroughly
with clean water.
R Change out of clothing which has come into
contact with TIREFIT immediately.
R If an allergic reaction occurs, consult adoc-
tor immediately.
Keep TIREFI Taway from children.
R If TIREFI Tiss wallowed, immediately rinse
your mouth out thoroughly and drink plenty
of water.
R Do not induce vomiting. Consult adoctor
immediately.
R Do not inhal eTIREFIT fumes.
i If TIREFIT leaks out, allo wittod ry. It can
then be removed like alayer of film. Flat tyre
335Breakdown assistanc e Z
Page 339 of 389
If yo
uget TIREFI Tonyour clothing, have it
cleaned as soo naspossible with perchloro-
ethylene. X
Pull plug ?with the cabl eand hose Aout
of the housing.
X Screw hose Aontoflange Bof tyre seal-
ant bottle :.
X Place tyre sealant bottle :head down-
wards int orecess ;of the tyr einflation
compressor. X
Remove the cap fro mvalve Con the faulty
tyre.
X Screw filler hose Dontovalve C.
X Insert plug ?into the 12 Vsocket
(Y page 309).
X Tur nthe key to position 1(Y page 139) in
the ignition lock.
X Press on/of fswitch =on the tyr einflation
compressor to I.
The tyr einflation compressor is switched
on. The tyre is inflated. i
First ,TIREFIT is pumpe dinto the tyre. The
pressure can briefly rise to approximately
500 kPa (5 bar/73 psi).
Do not switch off the tyr einflation com-
pressor du ring this phase.
X Allow the tyr einflation compresso rtor un
for five minutes. The tyre should then have
attained apressure of at leas t180 kPa
(1.8 bar/26 psi).
! Do not operat ethe tyr einflation com-
presso rfor longer than eight minutes at a
tim ew ithout abreak. It may otherwise
overheat.
Th et yre inflation compressor can be oper-
ated again once it has coole ddown.
If ap ressure of 180 kPa (1.8 bar/26 psi) has
been achieved afte rfive minutes, see
(Y page 337).
If ap ressure of 180 kPa (1.8 bar/26 psi) has
not been achieved afte rfive minutes, see
(Y page 336).
Tyr epressure of at least 180 kPa
(1.8 bar/26 psi) not reached If, after five minutes,
apressure of 180 kPa
(1.8 bar/26 psi) ha snot been achieved:
X Switch off the tyr einflation compresso r.
X Un screw the filler hose from the valv eof
the faulty tyre.
X Very slowly drive forwards or reverse
approximately 10 m.
X Pump up the tyre again. G
WARNING
If after five minutes apressure of 180 kPa
(1.8 bar/26 psi) cannot be achieved ,the tyre
is too severel ydamaged.
Do not drive any further. Consult aqualified
specialist workshop which has the necessary
specialist knowledge and tools to carry out
the work required. Mercedes-Benz recom-
mends that you use aMercedes-Ben zService
Centr efor this pur pose.Inp articular, work
relevant to safety or on safety-related sys- 336
Flat tyreBreakdown assistance
Page 340 of 389
tems mus
tbec arrie dout at aquali fieds pe-
cialist workshop.
Ty re pressure of 180 kPa (1.8 bar/
26 psi) is reached X
Switch off the tyre inflation compressor.
X Unscrew the fille rhose from the valve of
the faulty tyre.
! Afteru se, excess TIREFIT ma yrun out of
the filler hose. This may cause stains.
Therefore, place the filler hos einthe plastic
bag whic hcontained the TIREFIT kit.
X Stow the tyr esealan tbottle, the tyr einfla-
tion compresso rand the warning triangle.
X Pull away immediately. G
WARNING
Do not exceed the maximum speed of
80 km/h.
The "max. 80 km/h" labe lmust be affixed in
the driver's field of vision.
The vehicle's handling characteristic smay be
affected.
X Stop after driving for approximately ten
minutes and check the tyre pressure with
the tyre inflation compressor. G
WARNING
If the tyre pressure is less than 130 kPa
(1.3 bar/2 0psi), the tyr eistoo severely dam-
aged. Do not driv eany further. Consult a
qualified specialis tworkshop which has the
necessary specialist knowledge and tools to
carry out the work required .Mercedes-Benz
recommends that you use aMercedes-Benz
Ser vice Centre for thi spurpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at aqualified
specialist workshop.
X Correct the tyre pressure if it is still at least
130 kPa (1.3 bar/20 psi) (for the values,
see the fuel filler flap). X
To increase the tyr epressure: switchon
the tyre inflation compressor. E
Pressure releas ebutton
F Pressure gauge
X To reduce the tyr epressur e:press pres-
sure release button Eon the filler hose.
X Stow the tyr esealan tbottle, the tyr einfla-
tion compresso rand the warning triangle.
X Drive to the neares tworkshop and have the
tyr ec hange dthere.
X Hav ethe tyr esealan tbottle replaced as
soon as possible at aqualified specialist
workshop, e.g. at aMercedes-Benz Ser vice
Centre. H
Environmental note
Have the use dtyre sealant bottle dispose dof
professionally, e.g. at aMercedes-Benz
Ser vice Centre.
X Have the tyre sealant bottle replaced every
four years at aqualified specialist work-
shop, e.g. aMercedes-Benz Ser vice
Centre. Changing
awhee land fitting th espare
wheel
Preparing the vehicle G
WARNING
The wheel and tyre size of the emergency
spare wheel/s pare wh eelm ay differ to tha tof
the damaged wheel. Whe nusing an emer- Flat ty
re
337Breakd ownassistance
Z
