MERCEDES-BENZ ML SUV 2008 Owners Manual

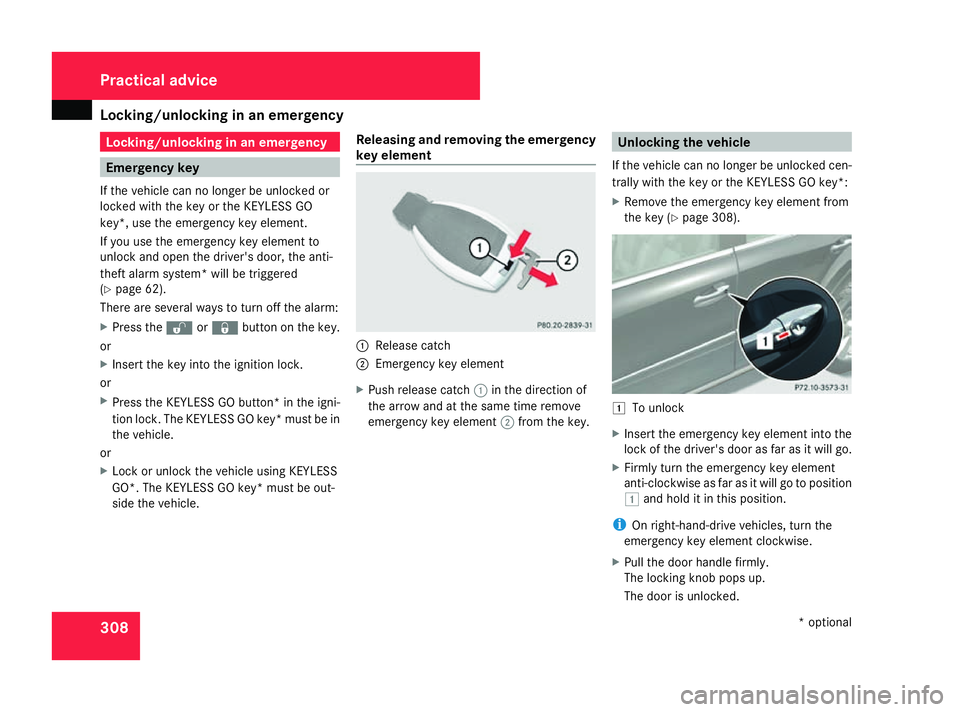

Locking/unlocking in an emergency
308 Locking/unlocking in an emergency
Emergency key
If the vehicle can no longer be unlocked or
locked with the key or the KEYLESS GO
key*, use the emergency key element.
If you use the emergency key element to
unlock and open the driver's door, the anti-
theft alarm system* will be triggered
(Y page 62).
There are several ways to turn off the alarm:
X Press the korj button on the key.
or
X Insert the key into the ignition lock.
or
X Press the KEYLESS GO button* in the igni-
tion lock. The KEYLESS GO key* must be in
the vehicle.
or
X Lock or unlock the vehicle using KEYLESS
GO*. The KEYLESS GO key* must be out-
side the vehicle. Releasing and removing the emergency
key element
1
Release catch
2 Emergency key element
X Push release catch 1in the direction of
the arrow and at the same time remove
emergency key element 2from the key. Unlocking the vehicle
If the vehicle can no longer be unlocked cen-
trally with the key or the KEYLESS GO key*:
X Remove the emergency key element from
the key (Y page 308). $
To unlock
X Insert the emergency key element into the
lock of the driver's door as far as it will go.
X Firmly turn the emergency key element
anti-clockwise as far as it will go to position
$ and hold it in this position.
i On right-hand-drive vehicles, turn the
emergency key element clockwise.
X Pull the door handle firmly.
The locking knob pops up.
The door is unlocked. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh, Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 308Dateiname: 6515_4293_02_buchblock.pdf; preflight

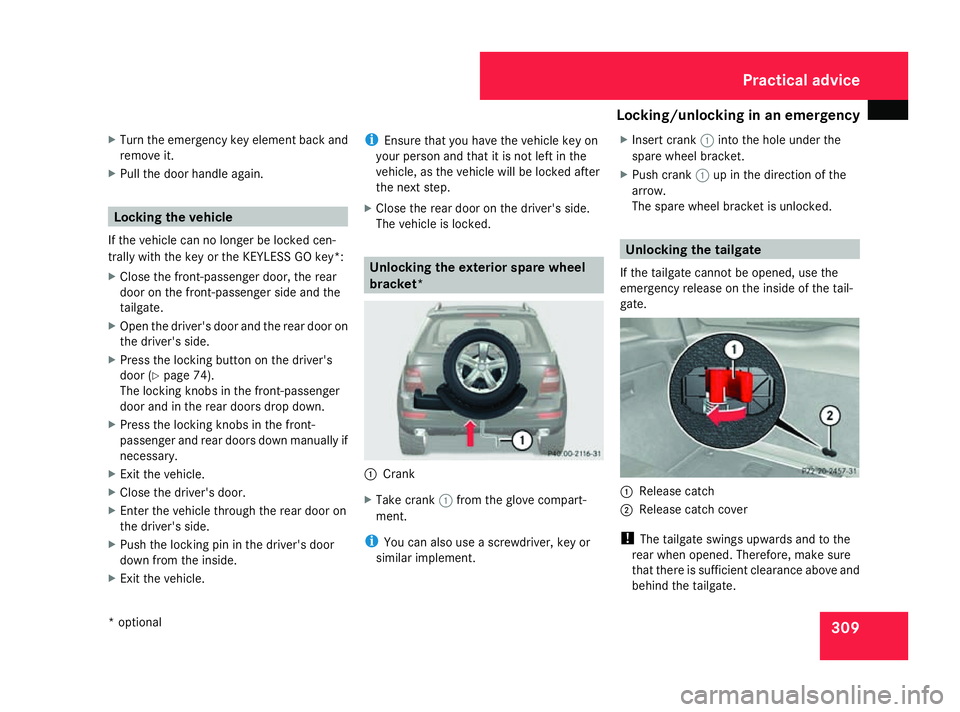

Locking/unlocking in an emergency
309
X
Turn the emergency key element back and
remove it.
X Pull the door handle again. Locking the vehicle
If the vehicle can no longer be locked cen-
trally with the key or the KEYLESS GO key*:
X Close the front-passenger door, the rear
door on the front-passenger side and the
tailgate.
X Open the driver's door and the rear door on
the driver's side.
X Press the locking button on the driver's
door (Y page 74).
The locking knobs in the front-passenger
door and in the rear doors drop down.
X Press the locking knobs in the front-
passenger and rear doors down manually if
necessary.
X Exit the vehicle.
X Close the driver's door.
X Enter the vehicle through the rear door on
the driver's side.
X Push the locking pin in the driver's door
down from the inside.
X Exit the vehicle. i
Ensure that you have the vehicle key on
your person and that it is not left in the
vehicle, as the vehicle will be locked after
the next step.
X Close the rear door on the driver's side.
The vehicle is locked. Unlocking the exterior spare wheel
bracket*
1
Crank
X Take crank 1from the glove compart-
ment.
i You can also use a screwdriver, key or
similar implement. X
Insert crank 1into the hole under the
spare wheel bracket.
X Push crank 1up in the direction of the
arrow.
The spare wheel bracket is unlocked. Unlocking the tailgate
If the tailgate cannot be opened, use the
emergency release on the inside of the tail-
gate. 1
Release catch
2 Release catch cover
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 309 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

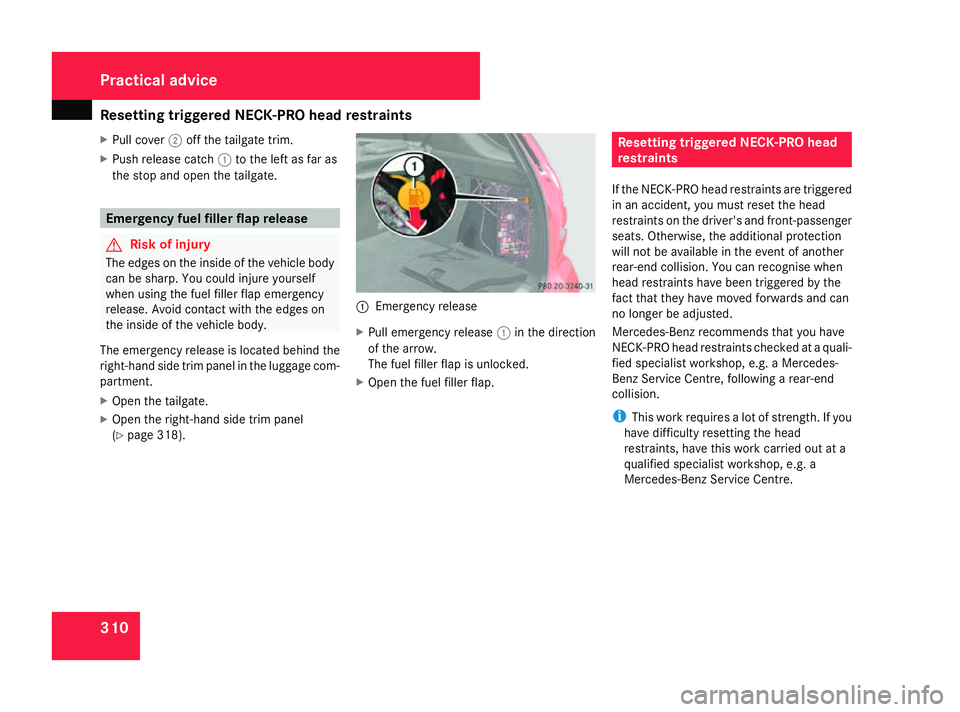

Resetting triggered NECK-PRO head restraints
310
X
Pull cover 2off the tailgate trim.
X Push release catch 1to the left as far as
the stop and open the tailgate. Emergency fuel filler flap release
G
Risk of injury
The edges on the inside of the vehicle body
can be sharp. You could injure yourself
when using the fuel filler flap emergency
release. Avoid contact with the edges on
the inside of the vehicle body.
The emergency release is located behind the
right-hand side trim panel in the luggage com-
partment.
X Open the tailgate.
X Open the right-hand side trim panel
(Y page 318). 1
Emergency release
X Pull emergency release 1in the direction
of the arrow.
The fuel filler flap is unlocked.
X Open the fuel filler flap. Resetting triggered NECK-PRO head
restraints
If the NECK-PRO head restraints are triggered
in an accident, you must reset the head
restraints on the driver's and front-passenger
seats. Otherwise, the additional protection
will not be available in the event of another
rear-end collision. You can recognise when
head restraints have been triggered by the
fact that they have moved forwards and can
no longer be adjusted.
Mercedes-Benz recommends that you have
NECK-PRO head restraints checked at a quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre, following a rear-end
collision.
i This work requires a lot of strength. If you
have difficulty resetting the head
restraints, have this work carried out at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre. Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 310Dateiname: 6515_4293_02_buchblock.pdf; preflight

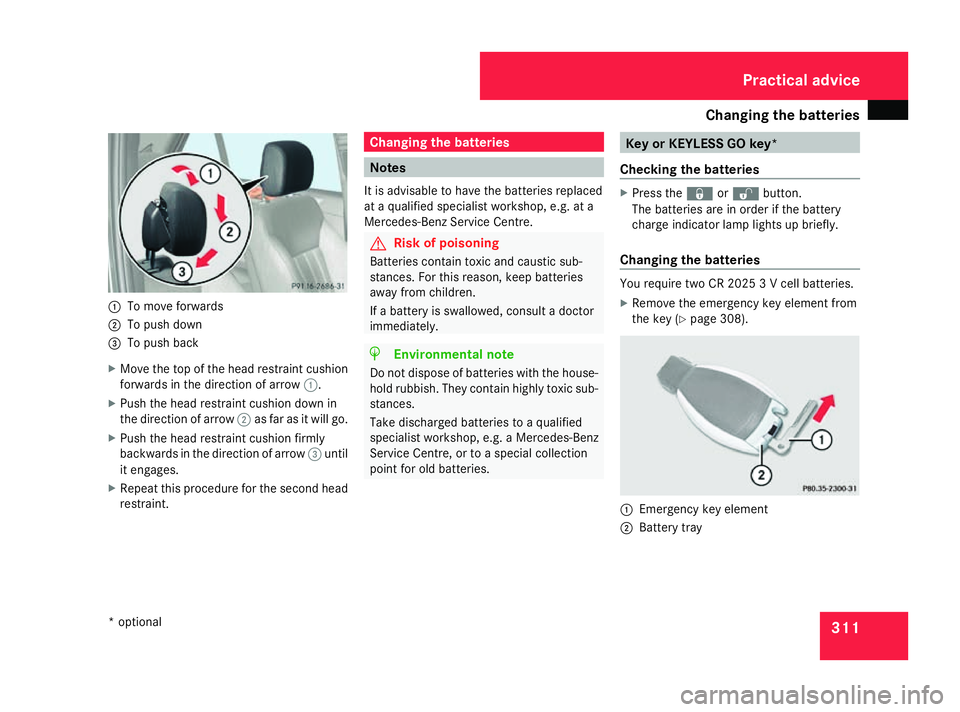

Changing the batteries
3111
To move forwards
2 To push down
3 To push back
X Move the top of the head restraint cushion
forwards in the direction of arrow 1.
X Push the head restraint cushion down in
the direction of arrow 2as far as it will go.
X Push the head restraint cushion firmly
backwards in the direction of arrow 3until
it engages.
X Repeat this procedure for the second head
restraint. Changing the batteries
Notes
It is advisable to have the batteries replaced
at a qualified specialist workshop, e.g. at a
Mercedes-Benz Service Centre. G
Risk of poisoning
Batteries contain toxic and caustic sub-
stances. For this reason, keep batteries
away from children.
If a battery is swallowed, consult a doctor
immediately. H
Environmental note
Do not dispose of batteries with the house-
hold rubbish. They contain highly toxic sub-
stances.
Take discharged batteries to a qualified
specialist workshop, e.g. a Mercedes-Benz
Service Centre, or to a special collection
point for old batteries. Key or KEYLESS GO key*
Checking the batteries X
Press the jork button.
The batteries are in order if the battery
charge indicator lamp lights up briefly.
Changing the batteries You require two CR 2025 3 V cell batteries.
X
Remove the emergency key element from
the key (Y page 308). 1
Emergency key element
2 Battery tray Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 311 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

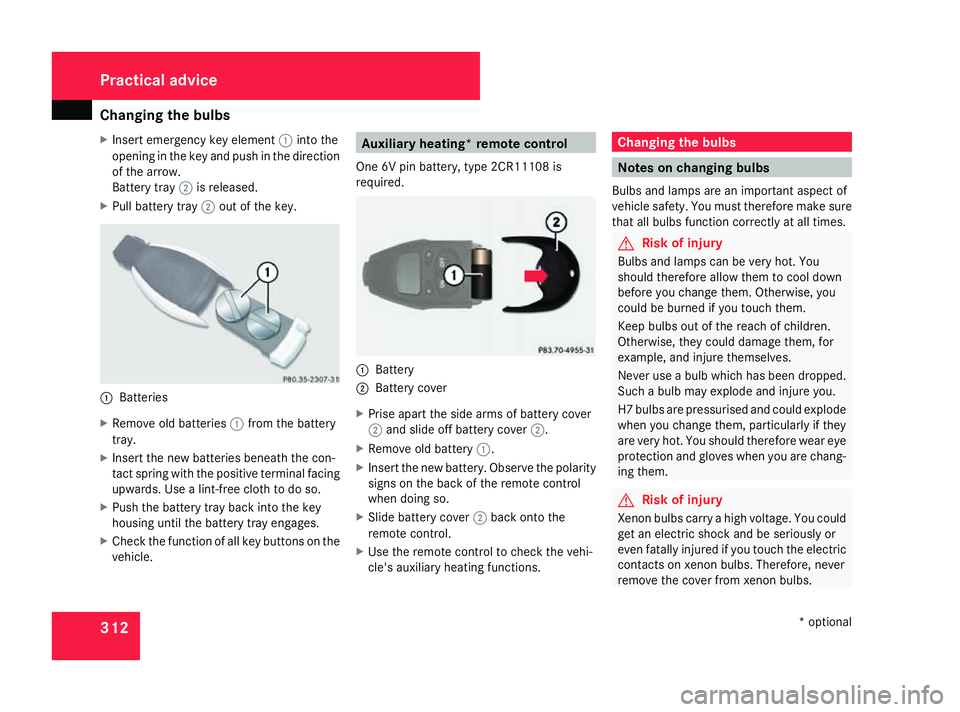

Changing the bulbs
312
X
Insert emergency key element 1into the
opening in the key and push in the direction
of the arrow.
Battery tray 2is released.
X Pull battery tray 2out of the key. 1
Batteries
X Remove old batteries 1from the battery
tray.
X Insert the new batteries beneath the con-
tact spring with the positive terminal facing
upwards. Use a lint-free cloth to do so.
X Push the battery tray back into the key
housing until the battery tray engages.
X Check the function of all key buttons on the
vehicle. Auxiliary heating* remote control
One 6V pin battery, type 2CR11108 is
required. 1
Battery
2 Battery cover
X Prise apart the side arms of battery cover
2 and slide off battery cover 2.
X Remove old battery 1.
X Insert the new battery. Observe the polarity
signs on the back of the remote control
when doing so.
X Slide battery cover 2back onto the
remote control.
X Use the remote control to check the vehi-
cle's auxiliary heating functions. Changing the bulbs
Notes on changing bulbs
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that all bulbs function correctly at all times. G
Risk of injury
Bulbs and lamps can be very hot. You
should therefore allow them to cool down
before you change them. Otherwise, you
could be burned if you touch them.
Keep bulbs out of the reach of children.
Otherwise, they could damage them, for
example, and injure themselves.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurised and could explode
when you change them, particularly if they
are very hot. You should therefore wear eye
protection and gloves when you are chang-
ing them. G
Risk of injury
Xenon bulbs carry a high voltage. You could
get an electric shock and be seriously or
even fatally injured if you touch the electric
contacts on xenon bulbs. Therefore, never
remove the cover from xenon bulbs. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 312 Dateiname: 6515_4293_02_buchblock.pdf; preflight

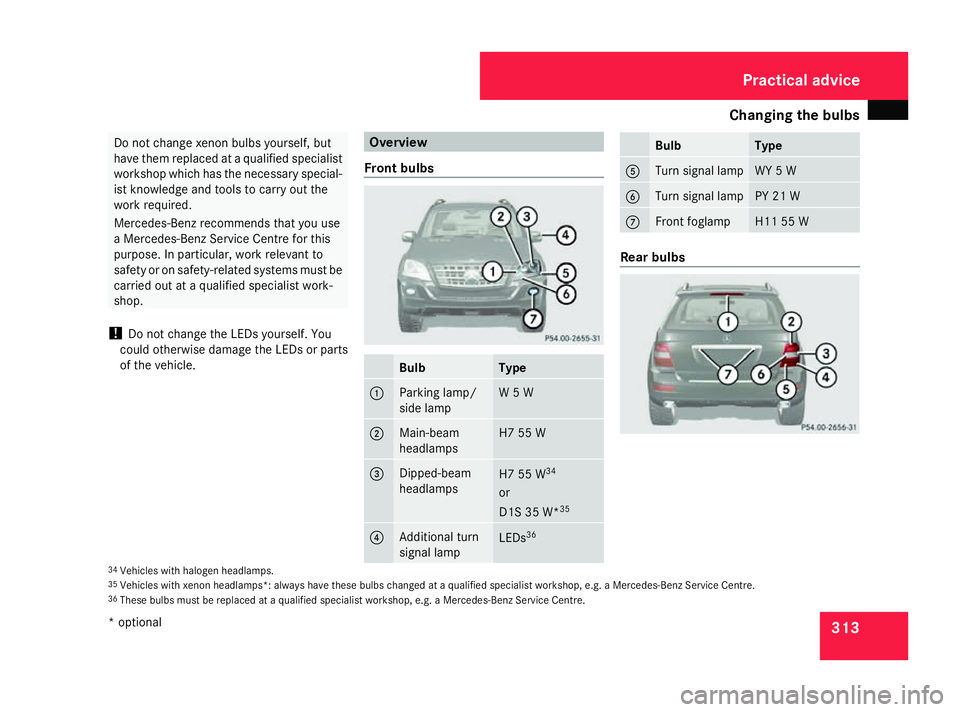

Changing the bulbs
313Do not change xenon bulbs yourself, but
have them replaced at a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required.
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre for this
purpose. In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop.
! Do not change the LEDs yourself. You
could otherwise damage the LEDs or parts
of the vehicle. Overview
Front bulbs Bulb Type
1 Parking lamp/
side lamp W 5 W
2 Main-beam
headlamps H7 55 W
3 Dipped-beam
headlamps
H7 55 W
34
or
D1S 35 W* 35 4 Additional turn
signal lamp
LEDs
36 Bulb Type
5 Turn signal lamp WY 5 W
6 Turn signal lamp PY 21 W
7 Front foglamp H11 55 W
Rear bulbs
34
Vehicles with halogen headlamps.
35 Vehicles with xenon headlamps*: always have these bulbs changed at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre.
36 These bulbs must be replaced at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 313 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

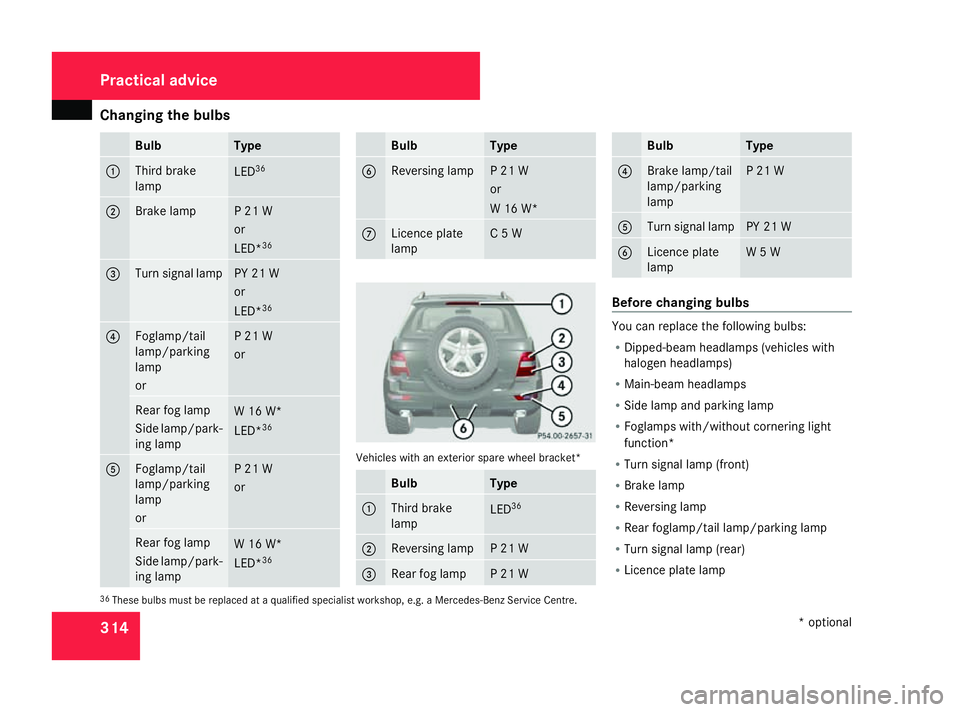

Changing the bulbs
314 Bulb Type
1 Third brake
lamp LED
36 2 Brake lamp P 21 W
or
LED*
36 3 Turn signal lamp PY 21 W
or
LED*
36 4 Foglamp/tail
lamp/parking
lamp
or P 21 W
or
Rear fog lamp
Side lamp/park-
ing lamp
W 16 W*
LED*
36 5 Foglamp/tail
lamp/parking
lamp
or P 21 W
or
Rear fog lamp
Side lamp/park-
ing lamp
W 16 W*
LED*
36 Bulb Type
6 Reversing lamp P 21 W
or
W 16 W*
7 Licence plate
lamp C 5 W
Vehicles with an exterior spare wheel bracket*
Bulb Type
1 Third brake
lamp
LED
36 2 Reversing lamp P 21 W
3 Rear fog lamp P 21 W Bulb Type
4 Brake lamp/tail
lamp/parking
lamp P 21 W
5 Turn signal lamp PY 21 W
6 Licence plate
lamp W 5 W
Before changing bulbs
You can replace the following bulbs:
R
Dipped-beam headlamps (vehicles with
halogen headlamps)
R Main-beam headlamps
R Side lamp and parking lamp
R Foglamps with/without cornering light
function*
R Turn signal lamp (front)
R Brake lamp
R Reversing lamp
R Rear foglamp/tail lamp/parking lamp
R Turn signal lamp (rear)
R Licence plate lamp
36 These bulbs must be replaced at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 314Dateiname: 6515_4293_02_buchblock.pdf; preflight

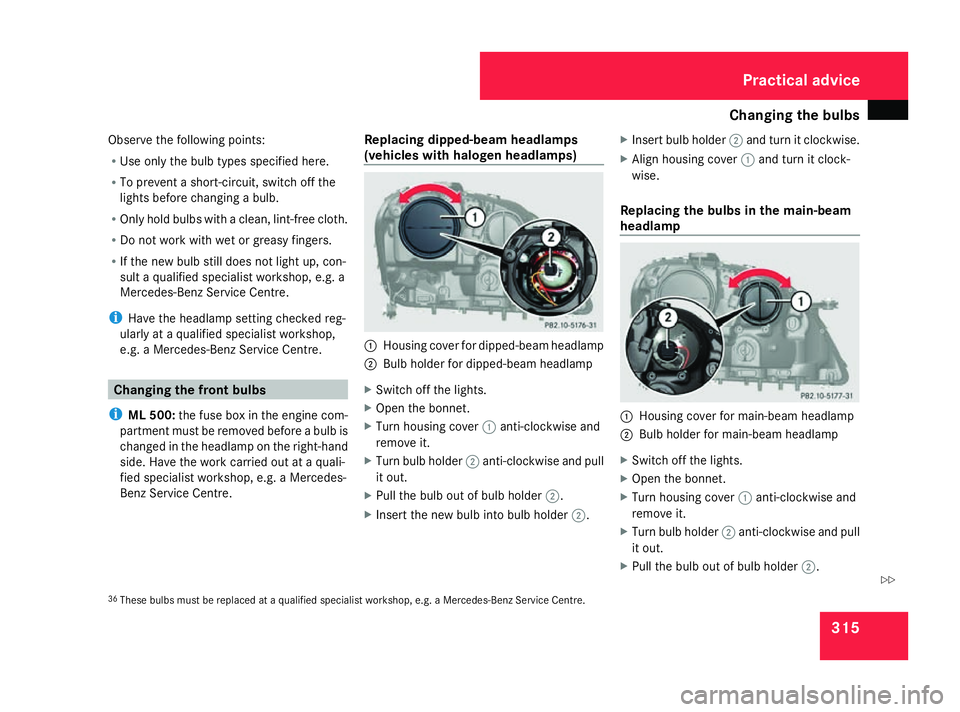

Changing the bulbs
315
Observe the following points:
R
Use only the bulb types specified here.
R To prevent a short-circuit, switch off the
lights before changing a bulb.
R Only hold bulbs with a clean, lint-free cloth.
R Do not work with wet or greasy fingers.
R If the new bulb still does not light up, con-
sult a qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
i Have the headlamp setting checked reg-
ularly at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. Changing the front bulbs
i ML 500: the fuse box in the engine com-
partment must be removed before a bulb is
changed in the headlamp on the right-hand
side. Have the work carried out at a quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre. Replacing dipped-beam headlamps
(vehicles with halogen headlamps) 1
Housing cover for dipped-beam headlamp
2 Bulb holder for dipped-beam headlamp
X Switch off the lights.
X Open the bonnet.
X Turn housing cover 1anti-clockwise and
remove it.
X Turn bulb holder 2anti-clockwise and pull
it out.
X Pull the bulb out of bulb holder 2.
X Insert the new bulb into bulb holder 2.X
Insert bulb holder 2and turn it clockwise.
X Align housing cover 1and turn it clock-
wise.
Replacing the bulbs in the main-beam
headlamp 1
Housing cover for main-beam headlamp
2 Bulb holder for main-beam headlamp
X Switch off the lights.
X Open the bonnet.
X Turn housing cover 1anti-clockwise and
remove it.
X Turn bulb holder 2anti-clockwise and pull
it out.
X Pull the bulb out of bulb holder 2.
36 These bulbs must be replaced at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 315 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Changing the bulbs
316

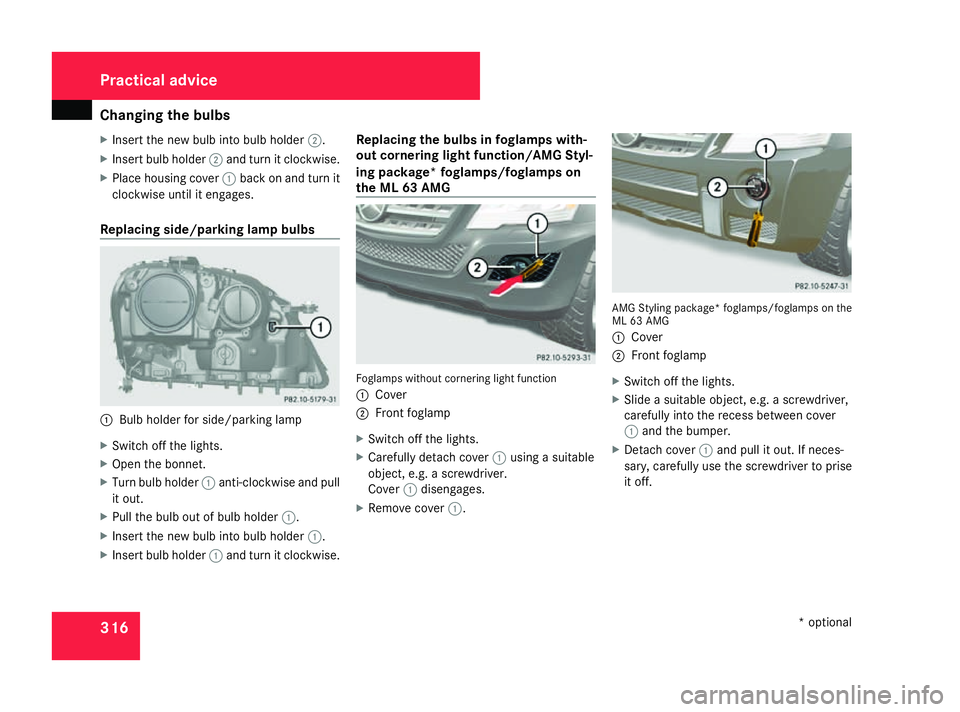

X
Insert the new bulb into bulb holder 2.
X Insert bulb holder 2and turn it clockwise.
X Place housing cover 1back on and turn it
clockwise until it engages.
Replacing side/parking lamp bulbs 1
Bulb holder for side/parking lamp
X Switch off the lights.
X Open the bonnet.
X Turn bulb holder 1anti-clockwise and pull
it out.
X Pull the bulb out of bulb holder 1.
X Insert the new bulb into bulb holder 1.
X Insert bulb holder 1and turn it clockwise. Replacing the bulbs in foglamps with-
out cornering light function/AMG Styl-
ing package* foglamps/foglamps on
the ML 63 AMG
Foglamps without cornering light function
1
Cover
2 Front foglamp
X Switch off the lights.
X Carefully detach cover 1using a suitable
object, e.g. a screwdriver.
Cover 1disengages.
X Remove cover 1. AMG Styling package* foglamps/foglamps on the
ML 63 AMG
1
Cover
2 Front foglamp
X Switch off the lights.
X Slide a suitable object, e.g. a screwdriver,
carefully into the recess between cover
1 and the bumper.
X Detach cover 1and pull it out. If neces-
sary, carefully use the screwdriver to prise
it off. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 316Dateiname: 6515_4293_02_buchblock.pdf; preflight

Changing the bulbs

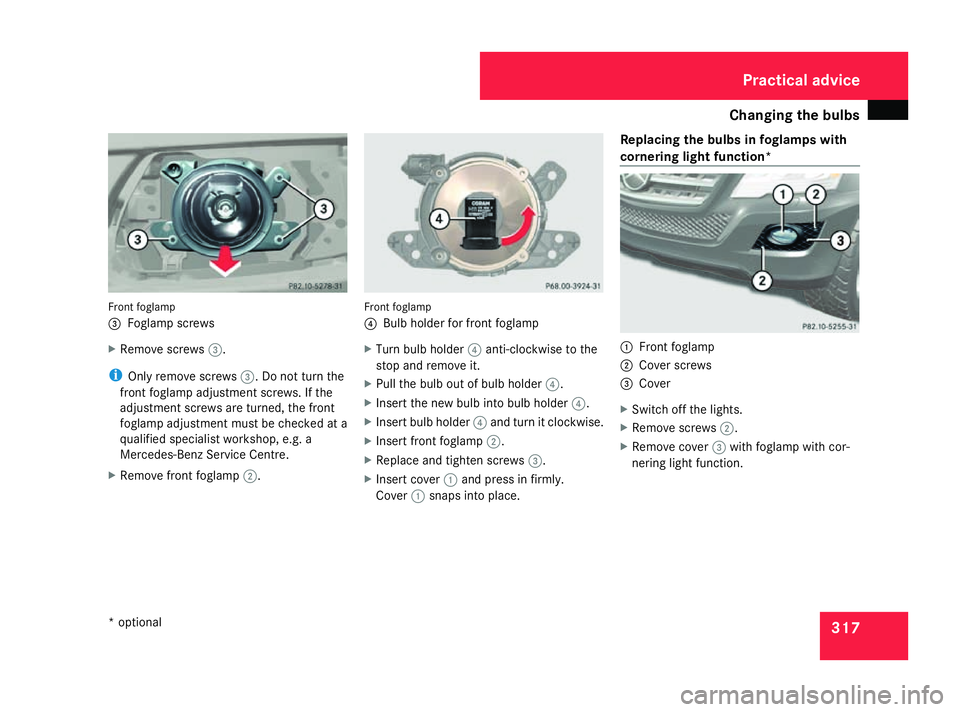

317Front foglamp
3
Foglamp screws
X Remove screws 3.
i Only remove screws 3. Do not turn the
front foglamp adjustment screws. If the
adjustment screws are turned, the front
foglamp adjustment must be checked at a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
X Remove front foglamp 2. Front foglamp
4 Bulb holder for front foglamp
X Turn bulb holder 4anti-clockwise to the
stop and remove it.
X Pull the bulb out of bulb holder 4.
X Insert the new bulb into bulb holder 4.
X Insert bulb holder 4and turn it clockwise.
X Insert front foglamp 2.
X Replace and tighten screws 3.
X Insert cover 1and press in firmly.
Cover 1snaps into place. Replacing the bulbs in foglamps with
cornering light function* 1
Front foglamp
2 Cover screws
3 Cover
X Switch off the lights.
X Remove screws 2.
X Remove cover 3with foglamp with cor-
nering light function. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 317 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
