Flat tyre
328
Spare wheel* or the "Minispare" emer-
gency spare wheel*
X Remove the spare wheel from the exterior
bracket (Y page 256).
or
X Remove the "Minispare" emergency spare
wheel from the stowage compartment
under the luggage compartment floor
(Y page 256).
Raising the vehicle G
Risk of injury
The jack is designed only to raise the vehi-
cle for a short time while a wheel is being
changed.
If you intend to work under the vehicle, it
must be placed on stands.
Make sure that the jack is placed on a firm,
non-slip, level surface. Do not use wooden
blocks or similar items as jacking supports.
Otherwise, the jack will not be able to ach-
ieve its load-bearing capacity due to the
restricted height.
Do not start the engine at any time while
the wheel is being changed.
Do not lie under the vehicle when it is being
supported by the jack. If you do not raise the vehicle as described, it could slip off the
jack (e.g. if the engine is started or a door
or the tailgate is opened or closed) and you
could be seriously injured.
G
Risk of accident
If you fail to position the jack correctly, the
vehicle may:
R slip off the jack
R injure you or others
R be damaged
It is thus important to ensure that the jack
is positioned correctly in the respective
jacking points. Before positioning the jack,
remove any dirt that may have collected in
the jacking points. 1
Wheel wrench X
Using wheel wrench 1, loosen the bolts on
the wheel you wish to change by about one
full turn. Do not unscrew the bolts com-
pletely.

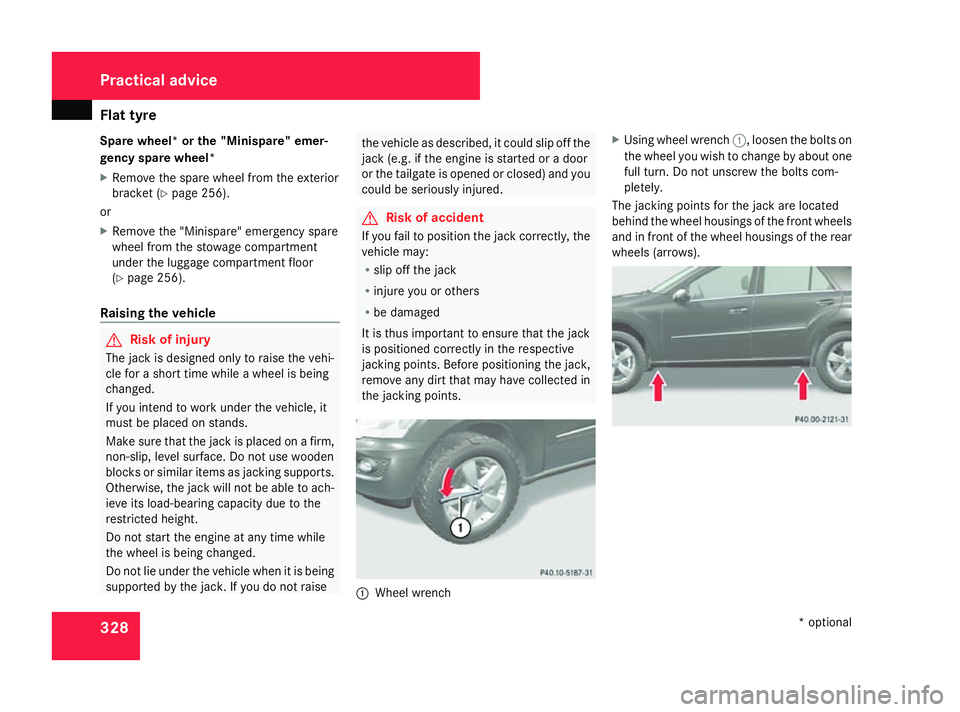

The jacking points for the jack are located
behind the wheel housings of the front wheels
and in front of the wheel housings of the rear
wheels (arrows). Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 328Dateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
3291

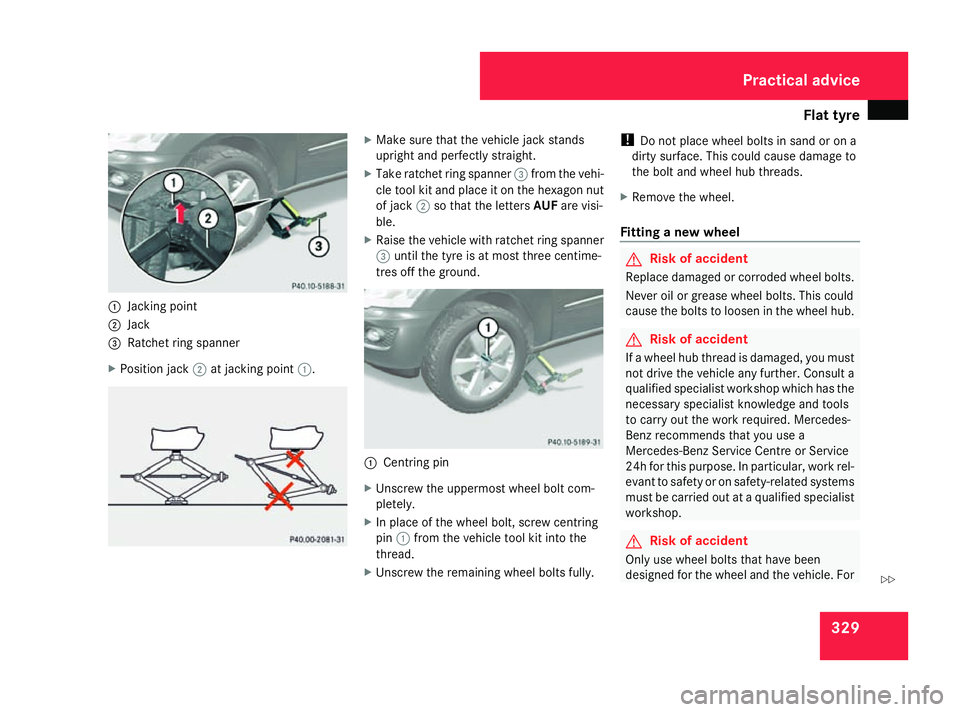

Jacking point
2 Jack
3 Ratchet ring spanner
X Position jack 2at jacking point 1. X
Make sure that the vehicle jack stands
upright and perfectly straight.
X Take ratchet ring spanner 3from the vehi-
cle tool kit and place it on the hexagon nut
of jack 2so that the letters AUFare visi-
ble.
X Raise the vehicle with ratchet ring spanner
3 until the tyre is at most three centime-
tres off the ground. 1
Centring pin
X Unscrew the uppermost wheel bolt com-
pletely.
X In place of the wheel bolt, screw centring
pin 1from the vehicle tool kit into the
thread.
X Unscrew the remaining wheel bolts fully. !
Do not place wheel bolts in sand or on a
dirty surface. This could cause damage to
the bolt and wheel hub threads.
X Remove the wheel.
Fitting a new wheel G
Risk of accident
Replace damaged or corroded wheel bolts.
Never oil or grease wheel bolts. This could
cause the bolts to loosen in the wheel hub. G
Risk of accident
If a wheel hub thread is damaged, you must
not drive the vehicle any further. Consult a
qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre or Service
24h for this purpose. In particular, work rel-
evant to safety or on safety-related systems
must be carried out at a qualified specialist
workshop. G
Risk of accident
Only use wheel bolts that have been
designed for the wheel and the vehicle. For Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 329 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
330 safety reasons, Mercedes-Benz recom-
mends that you only use wheel bolts which
have been approved for Mercedes-Benz
vehicles. Other bolts could work loose.
Do not tighten the wheel bolts completely
while the vehicle is still jacked up. The vehi-
cle could topple off the jack. 1
Wheel bolts for 18", 19" and 20" wheels
2 Wheel bolts for 17" wheels or the
"Minispare" emergency spare wheel*
! Always use wheel bolts 2to fit 17"
wheels or the "Minispare" emergency spare
wheel*. Using other wheel bolts when fit-
ting 17" wheels or the "Minispare" emer-
gency spare wheel* could damage the
brake system. i
Wheel bolts 2can be found together
with the "Minispare" emergency spare
wheel* (not with 17" tyres).
X Clean the wheel and wheel hub contact
surfaces. X
Slide the emergency spare wheel* or the
spare wheel onto the centring pin and push
it on. X
Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
Inflating the "Minispare" emergency
spare wheel* (ML 63 AMG only) G
Risk of accident
Pump up the collapsible emergency spare
wheel before lowering the vehicle, as you
could otherwise damage the wheel rim.
X Take the electric air pump out of the stow-
age well under the luggage compartment
floor (Y page 258). Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 330Dateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
331G
Risk of injury
Comply with the manufacturer’s safety
instructions on the sticker on the electric
air pump.
Your vehicle is equipped with one of the fol-
lowing two electric air pumps:
R Version 1: electric air pump with a pres-
sure gauge on the hose.
R Version 2: electric air pump with an inte-
grated pressure gauge.
The following description applies to both
types. Differences in the way they are used

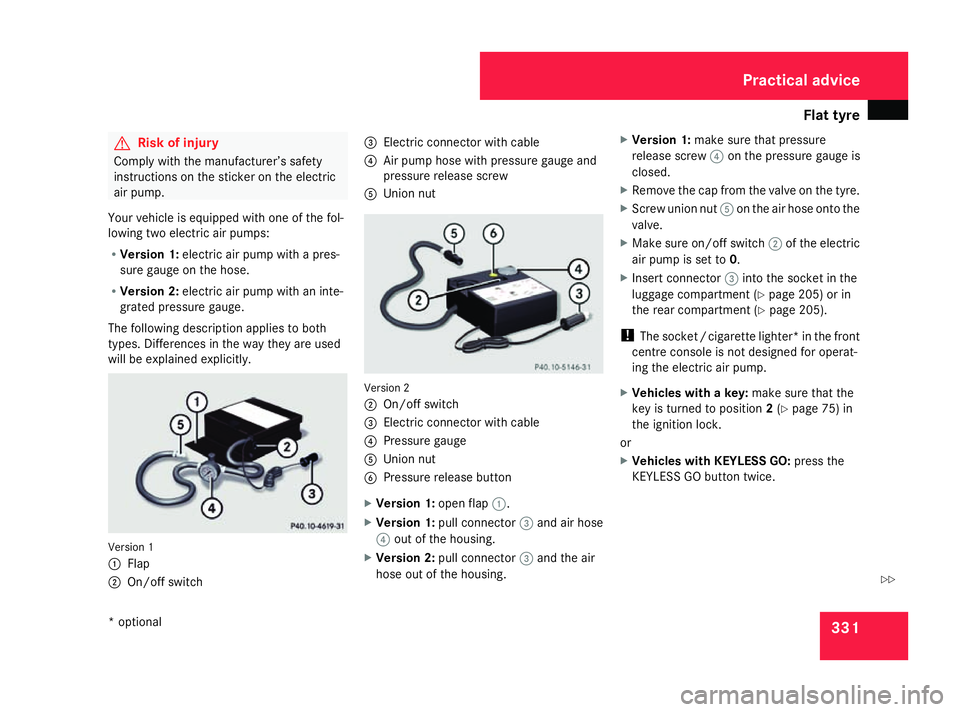

will be explained explicitly. Version 1
1
Flap
2 On/off switch 3
Electric connector with cable
4 Air pump hose with pressure gauge and
pressure release screw
5 Union nut Version 2
2
On/off switch
3 Electric connector with cable
4 Pressure gauge
5 Union nut
6 Pressure release button
X Version 1: open flap1.
X Version 1: pull connector 3and air hose
4 out of the housing.
X Version 2: pull connector 3and the air
hose out of the housing. X
Version 1: make sure that pressure
release screw 4on the pressure gauge is
closed.
X Remove the cap from the valve on the tyre.
X Screw union nut 5on the air hose onto the
valve.
X Make sure on/off switch 2of the electric
air pump is set to 0.
X Insert connector 3into the socket in the
luggage compartment (Y page 205) or in
the rear compartment (Y page 205).
! The socket /cigarette lighter *in the front
centre console is not designed for operat-
ing the electric air pump.
X Vehicles with a key: make sure that the
key is turned to position 2(Y page 75) in
the ignition lock.
or
X Vehicles with KEYLESS GO: press the
KEYLESS GO button twice. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh
, Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 331 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
332
X
Press on/off switch 2on the electric air
pump to I.
The electric air pump is switched on. The
tyre is inflated.
X When a tyre pressure of 3.5 bar has been
reached, press 0on electric air pump on/
off switch 2.
The electric air pump is switched off.
! Do not operate the electric air pump for
longer than eight minutes at a time without
a break. Otherwise, it may overheat.
The air pump can be operated again once
it has cooled down.
If the tyre pressure is higher than 3.5 bar:
X Version 1: open pressure release
screw 4on the pressure gauge until the
tyre pressure is correct.
X Version 2: press pressure release button
6 until the tyre pressure is correct.
X Switch off the electric air pump with on/off
switch 2, remove from the tyre valve and
stow it away. Lowering the vehicle X
Place the ratchet ring spanner onto the
hexagon nut of the jack so that the lettering
AB is visible.
X Lower the vehicle by turning the ratchet
ring spanner until the vehicle is once again
standing firmly on the ground.
X Place the jack to one side. 1

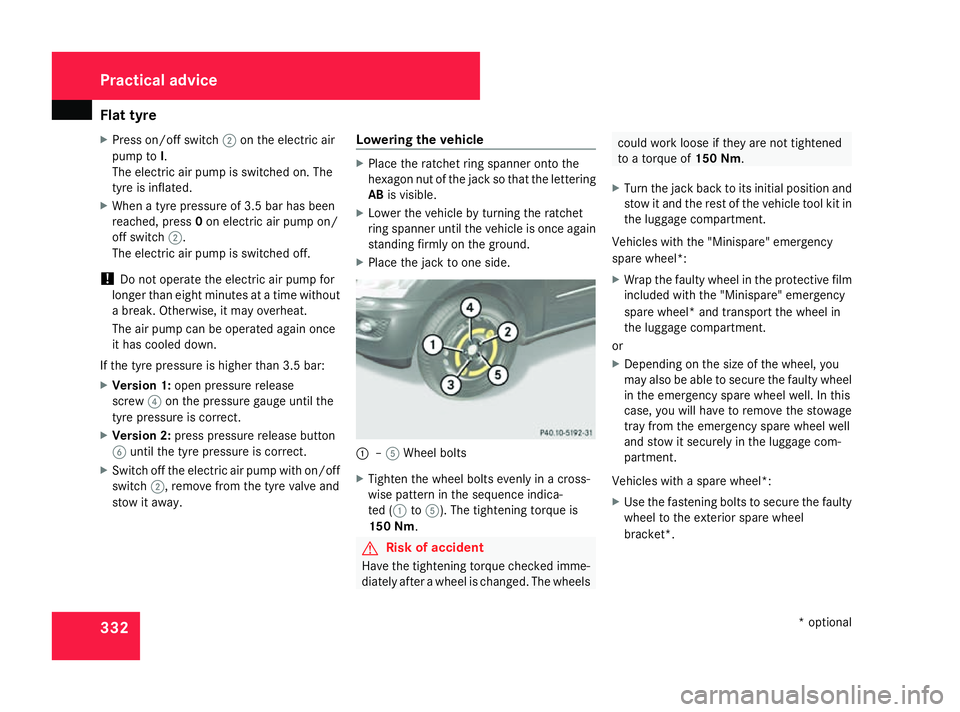

–5 Wheel bolts
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indica-
ted (1 to5). The tightening torque is
150 Nm . G
Risk of accident
Have the tightening torque checked imme-
diately after a wheel is changed. The wheels could work loose if they are not tightened
to a torque of
150 Nm.
X Turn the jack back to its initial position and
stow it and the rest of the vehicle tool kit in
the luggage compartment.
Vehicles with the "Minispare" emergency
spare wheel*:
X Wrap the faulty wheel in the protective film
included with the "Minispare" emergency
spare wheel* and transport the wheel in
the luggage compartment.
or
X Depending on the size of the wheel, you
may also be able to secure the faulty wheel
in the emergency spare wheel well. In this
case, you will have to remove the stowage
tray from the emergency spare wheel well
and stow it securely in the luggage com-
partment.
Vehicles with a spare wheel*:
X Use the fastening bolts to secure the faulty
wheel to the exterior spare wheel
bracket*. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 332Dateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
333
i
Do not activate the tyre pressure moni-
tor* until the deflated tyre has been
removed from the vehicle. MOExtended run-flat system*

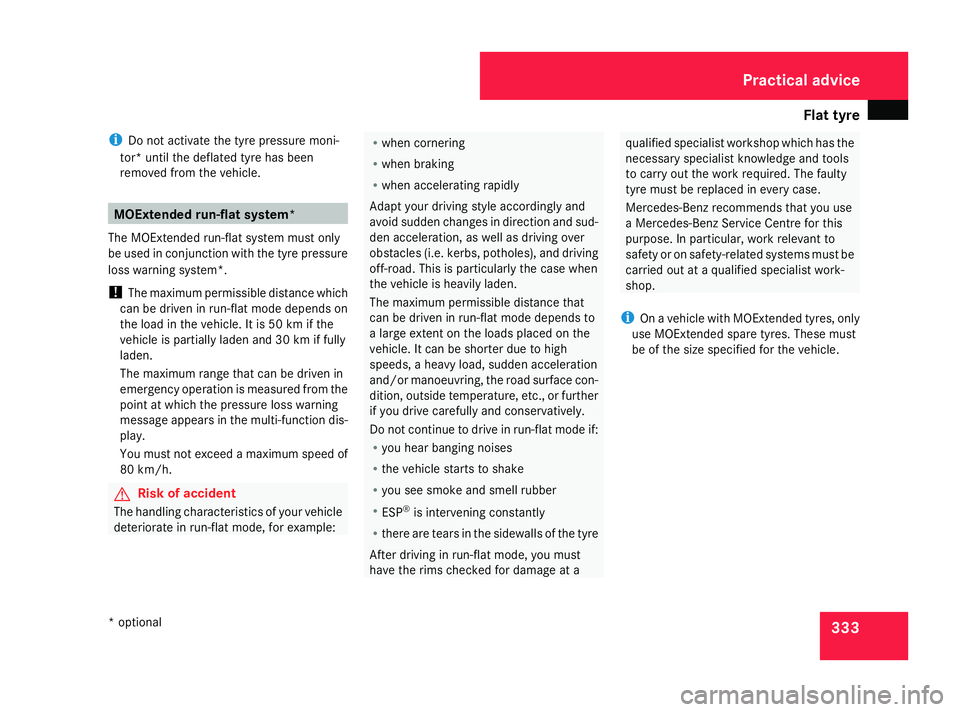

The MOExtended run-flat system must only
be used in conjunction with the tyre pressure
loss warning system*.
! The maximum permissible distance which
can be driven in run-flat mode depends on
the load in the vehicle. It is 50 km if the
vehicle is partially laden and 30 km if fully
laden.
The maximum range that can be driven in
emergency operation is measured from the
point at which the pressure loss warning
message appears in the multi-function dis-
play.
You must not exceed a maximum speed of
80 km/h. G
Risk of accident
The handling characteristics of your vehicle
deteriorate in run-flat mode, for example: R
when cornering
R when braking
R when accelerating rapidly
Adapt your driving style accordingly and
avoid sudden changes in direction and sud-
den acceleration, as well as driving over
obstacles (i.e. kerbs, potholes), and driving
off-road. This is particularly the case when
the vehicle is heavily laden.
The maximum permissible distance that
can be driven in run-flat mode depends to
a large extent on the loads placed on the
vehicle. It can be shorter due to high
speeds, a heavy load, sudden acceleration
and/or manoeuvring, the road surface con-
dition, outside temperature, etc., or further
if you drive carefully and conservatively.
Do not continue to drive in run-flat mode if:
R you hear banging noises
R the vehicle starts to shake
R you see smoke and smell rubber
R ESP ®
is intervening constantly
R there are tears in the sidewalls of the tyre
After driving in run-flat mode, you must
have the rims checked for damage at a qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. The faulty
tyre must be replaced in every case.
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre for this
purpose. In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop.
i On a vehicle with MOExtended tyres, only
use MOExtended spare tyres. These must
be of the size specified for the vehicle. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 333 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Battery
334 Battery

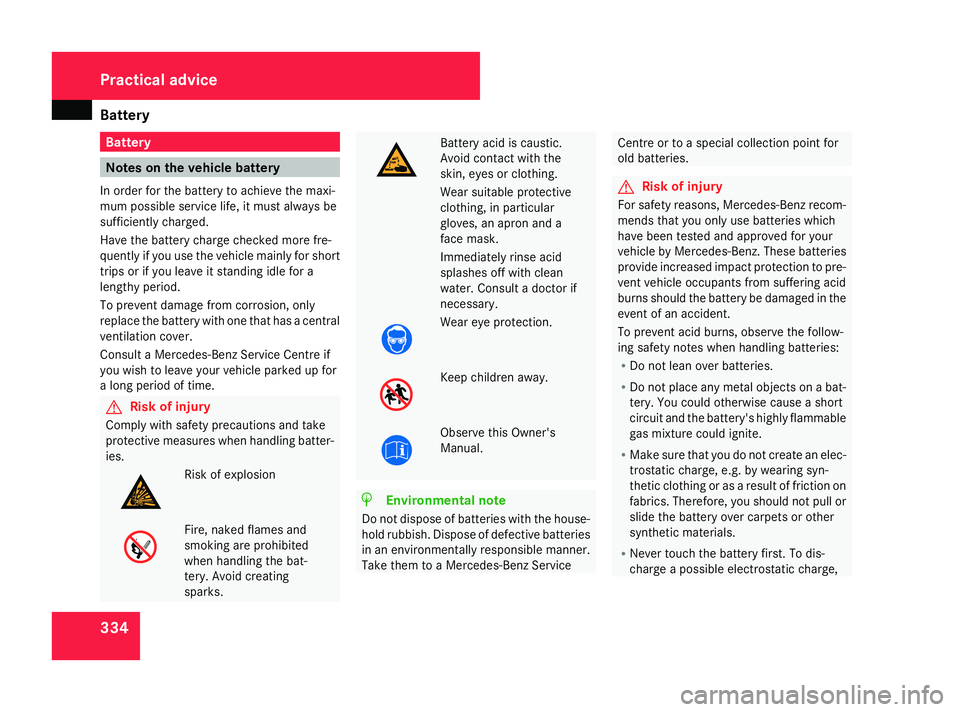

Notes on the vehicle battery
In order for the battery to achieve the maxi-
mum possible service life, it must always be
sufficiently charged.
Have the battery charge checked more fre-
quently if you use the vehicle mainly for short
trips or if you leave it standing idle for a
lengthy period.
To prevent damage from corrosion, only
replace the battery with one that has a central
ventilation cover.
Consult a Mercedes-Benz Service Centre if
you wish to leave your vehicle parked up for
a long period of time. G
Risk of injury
Comply with safety precautions and take
protective measures when handling batter-
ies. Risk of explosion
Fire, naked flames and
smoking are prohibited
when handling the bat-
tery. Avoid creating
sparks. Battery acid is caustic.
Avoid contact with the
skin, eyes or clothing.
Wear suitable protective
clothing, in particular
gloves, an apron and a
face mask.
Immediately rinse acid
splashes off with clean
water. Consult a doctor if
necessary. Wear eye protection.
Keep children away.
Observe this Owner's
Manual.
H
Environmental note
Do not dispose of batteries with the house-
hold rubbish. Dispose of defective batteries
in an environmentally responsible manner.
Take them to a Mercedes-Benz Service Centre or to a special collection point for
old batteries.
G
Risk of injury
For safety reasons, Mercedes-Benz recom-
mends that you only use batteries which
have been tested and approved for your
vehicle by Mercedes-Benz. These batteries
provide increased impact protection to pre-
vent vehicle occupants from suffering acid
burns should the battery be damaged in the
event of an accident.
To prevent acid burns, observe the follow-
ing safety notes when handling batteries:
R Do not lean over batteries.
R Do not place any metal objects on a bat-
tery. You could otherwise cause a short
circuit and the battery's highly flammable
gas mixture could ignite.
R Make sure that you do not create an elec-
trostatic charge, e.g. by wearing syn-
thetic clothing or as a result of friction on
fabrics. Therefore, you should not pull or
slide the battery over carpets or other
synthetic materials.
R Never touch the battery first. To dis-
charge a possible electrostatic charge, Practical advice
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 334 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Battery
335step out of the vehicle first and touch the
bodywork.
R Do not wipe the battery using a cloth. The
battery may explode as a result of elec-
trostatic charge or due to flying sparks.
! Switch off the engine and remove the
key/KEYLESS GO * button before loosen-
ing or removing the battery terminal
clamps. You may otherwise destroy elec-
tronic components such as the alternator.
i Mercedes-Benz recommends that you
have all work involving the battery, e.g.
removing, charging and replacing, carried
out at a qualified specialist workshop, e.g.
a Mercedes-Benz Service Centre.
The battery is located under the front seat on
the right-hand side when viewed in the direc-
tion of travel. Disconnecting the battery

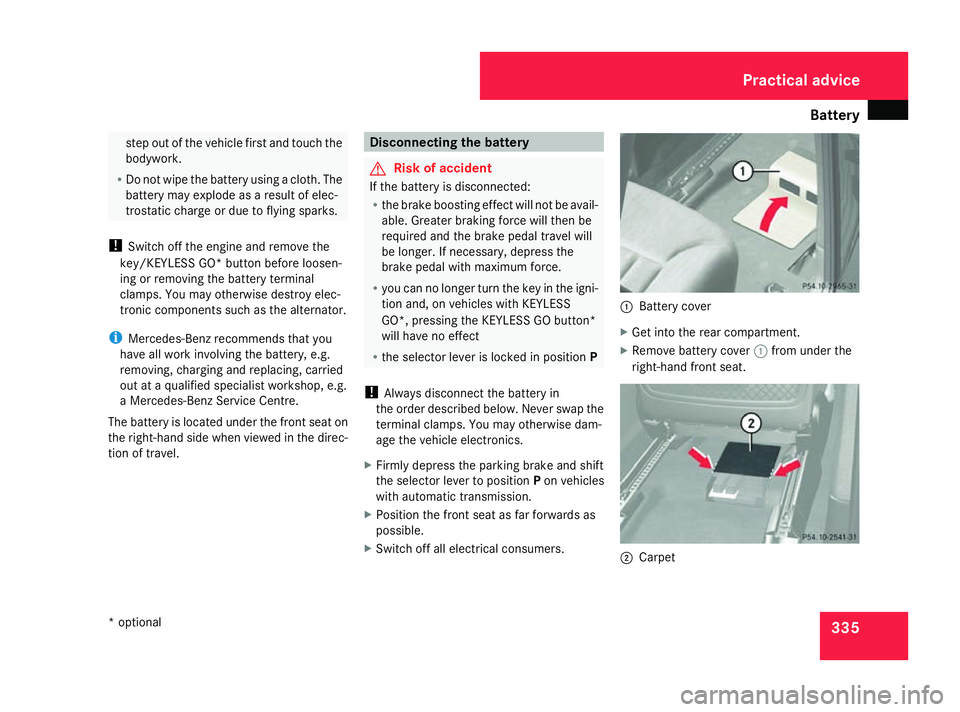

G
Risk of accident
If the battery is disconnected:
R the brake boosting effect will not be avail-
able. Greater braking force will then be
required and the brake pedal travel will
be longer. If necessary, depress the
brake pedal with maximum force.
R you can no longer turn the key in the igni-
tion and, on vehicles with KEYLESS
GO*, pressing the KEYLESS GO button*
will have no effect
R the selector lever is locked in position P
! Always disconnect the battery in
the order described below. Never swap the
terminal clamps. You may otherwise dam-
age the vehicle electronics.
X Firmly depress the parking brake and shift
the selector lever to position Pon vehicles
with automatic transmission.
X Position the front seat as far forwards as
possible.
X Switch off all electrical consumers. 1
Battery cover
X Get into the rear compartment.
X Remove battery cover 1from under the
right-hand front seat. 2
Carpet Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 335 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Battery
336
X

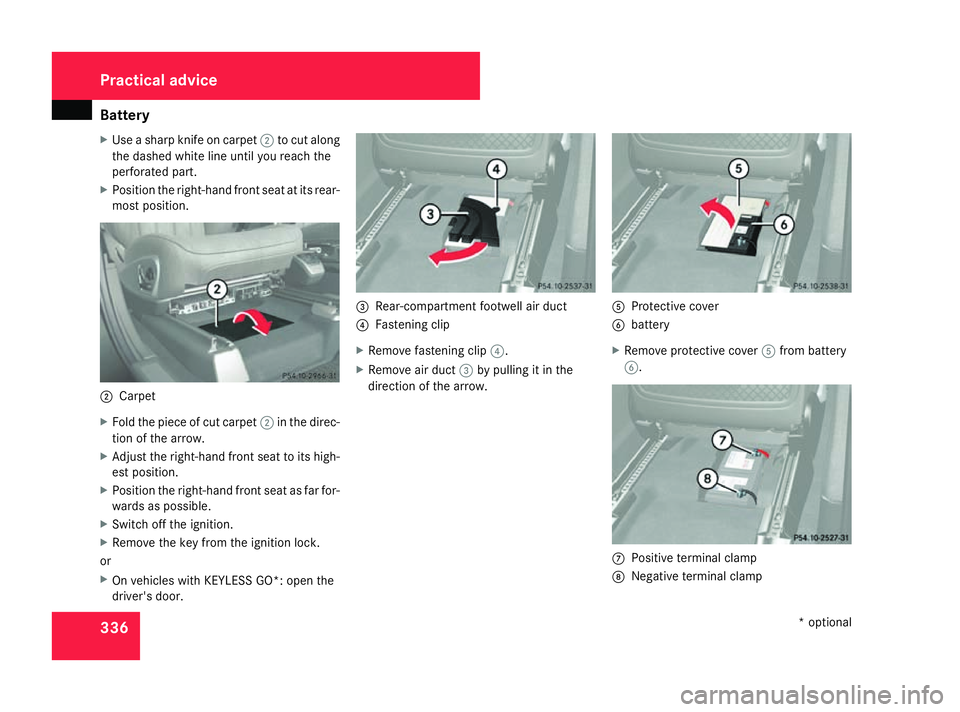

Use a sharp knife on carpet 2to cut along
the dashed white line until you reach the
perforated part.
X Position the right-hand front seat at its rear-
most position. 2
Carpet
X Fold the piece of cut carpet 2in the direc-
tion of the arrow.
X Adjust the right-hand front seat to its high-
est position.
X Position the right-hand front seat as far for-
wards as possible.
X Switch off the ignition.
X Remove the key from the ignition lock.
or
X On vehicles with KEYLESS GO*: open the
driver's door. 3
Rear-compartment footwell air duct
4 Fastening clip
X Remove fastening clip 4.
X Remove air duct 3by pulling it in the
direction of the arrow. 5
Protective cover
6 battery
X Remove protective cover 5from battery
6. 7
Positive terminal clamp
8 Negative terminal clamp Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 336 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Battery
337
X
Disconnect negative terminal clamp 8
from the battery and put it down so that it
does not touch positive terminal clamp
7.
X Remove the cover from positive terminal
clamp 7.
X Remove positive terminal clamp 7from
the battery. Removing the battery

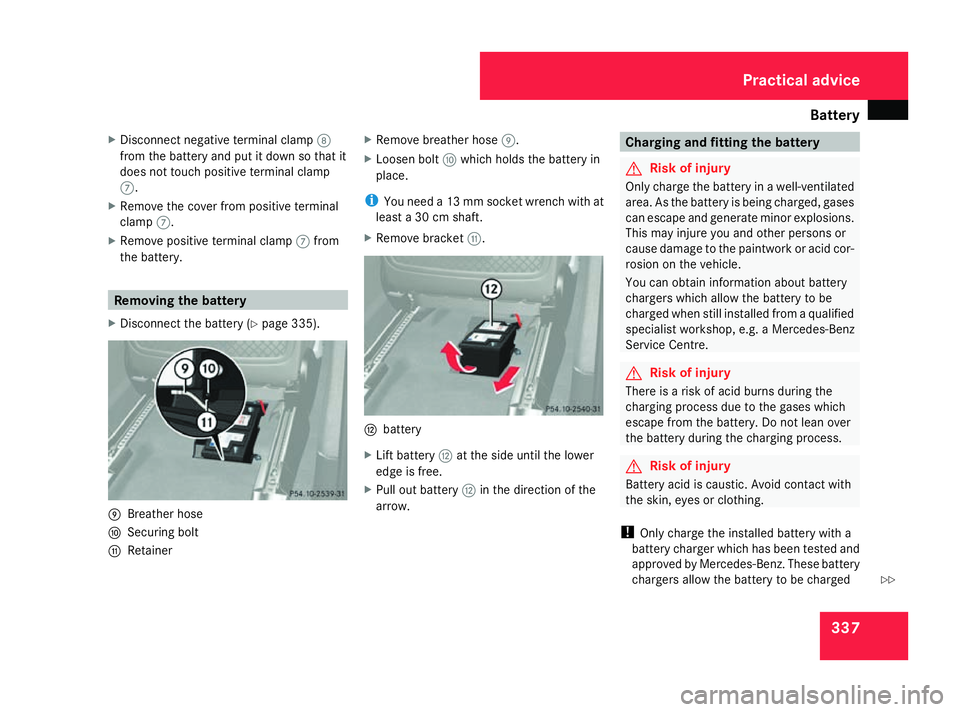

X Disconnect the battery ( Ypage 335). 9
Breather hose
a Securing bolt
b Retainer X
Remove breather hose 9.
X Loosen bolt awhich holds the battery in
place.
i You need a 13 mm socket wrench with at
least a 30 cm shaft.
X Remove bracket b. c
battery
X Lift battery cat the side until the lower
edge is free.
X Pull out battery cin the direction of the
arrow. Charging and fitting the battery
G
Risk of injury
Only charge the battery in a well-ventilated
area. As the battery is being charged, gases
can escape and generate minor explosions.
This may injure you and other persons or
cause damage to the paintwork or acid cor-
rosion on the vehicle.
You can obtain information about battery
chargers which allow the battery to be
charged when still installed from a qualified
specialist workshop, e.g. a Mercedes-Benz
Service Centre. G
Risk of injury
There is a risk of acid burns during the
charging process due to the gases which
escape from the battery. Do not lean over
the battery during the charging process. G
Risk of injury
Battery acid is caustic. Avoid contact with
the skin, eyes or clothing.
! Only charge the installed battery with a
battery charger which has been tested and
approved by Mercedes-Benz. These battery
chargers allow the battery to be charged Practical advice
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 337 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
