MERCEDES-BENZ ML SUV 2008 Owners Manual

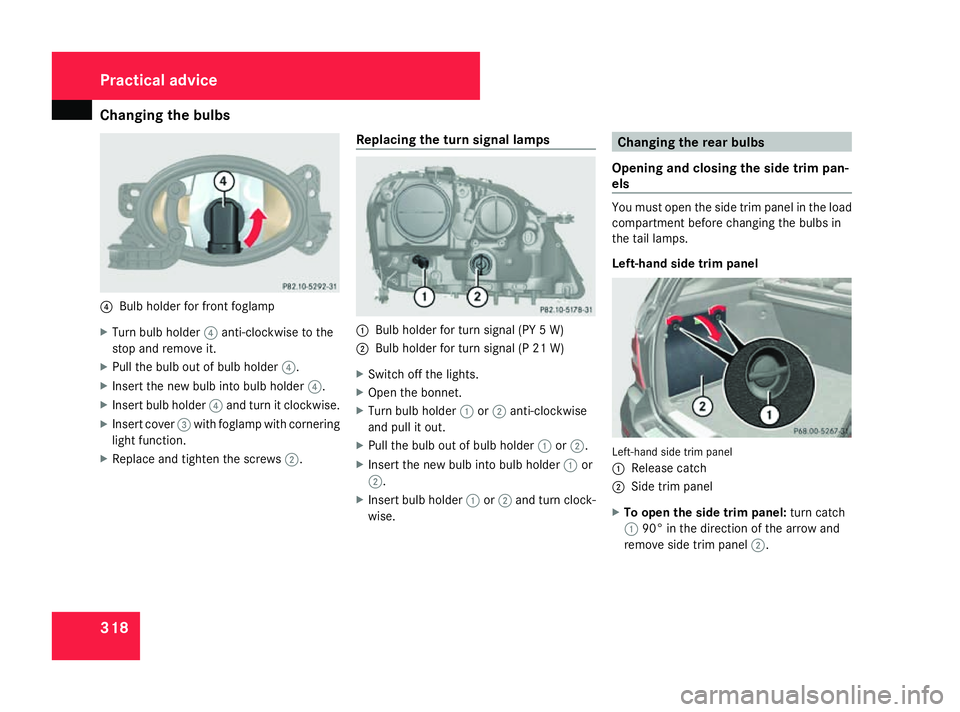

Changing the bulbs
3184
Bulb holder for front foglamp
X Turn bulb holder 4anti-clockwise to the
stop and remove it.
X Pull the bulb out of bulb holder 4.
X Insert the new bulb into bulb holder 4.
X Insert bulb holder 4and turn it clockwise.
X Insert cover 3with foglamp with cornering
light function.
X Replace and tighten the screws 2.Replacing the turn signal lamps 1
Bulb holder for turn signal (PY 5 W)
2 Bulb holder for turn signal (P 21 W)
X Switch off the lights.
X Open the bonnet.
X Turn bulb holder 1or2 anti-clockwise
and pull it out.
X Pull the bulb out of bulb holder 1or2.
X Insert the new bulb into bulb holder 1or
2.
X Insert bulb holder 1or2 and turn clock-
wise. Changing the rear bulbs
Opening and closing the side trim pan-
els You must open the side trim panel in the load
compartment before changing the bulbs in
the tail lamps.
Left-hand side trim panel
Left-hand side trim panel
1
Release catch
2 Side trim panel
X To open the side trim panel: turn catch
1 90° in the direction of the arrow and
remove side trim panel 2.Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 318Dateiname: 6515_4293_02_buchblock.pdf; preflight

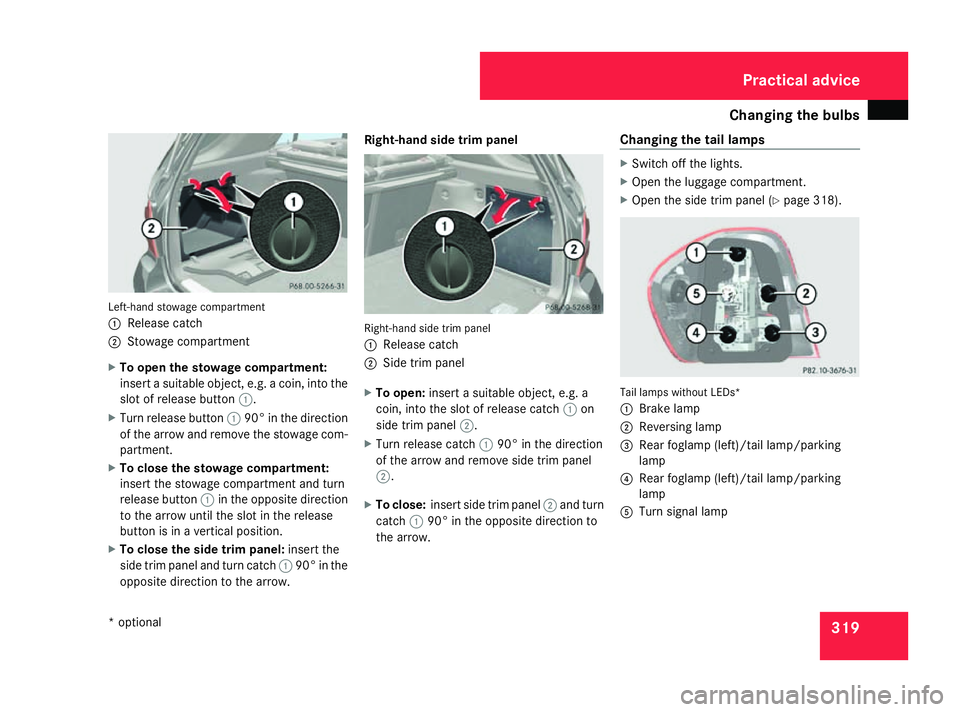

Changing the bulbs
319Left-hand stowage compartment
1
Release catch
2 Stowage compartment
X To open the stowage compartment:
insert a suitable object, e.g. a coin, into the
slot of release button 1.
X Turn release button 190°in the direction
of the arrow and remove the stowage com-
partment.
X To close the stowage compartment:
insert the stowage compartment and turn
release button 1in the opposite direction
to the arrow until the slot in the release
button is in a vertical position.
X To close the side trim panel: insert the
side trim panel and turn catch 190° in the
opposite direction to the arrow. Right-hand side trim panel
Right-hand side trim panel
1
Release catch
2 Side trim panel
X To open: insert a suitable object, e.g. a
coin, into the slot of release catch 1on
side trim panel 2.
X Turn release catch 190° in the direction
of the arrow and remove side trim panel
2.
X To close: insert side trim panel 2and turn
catch 190° in the opposite direction to
the arrow. Changing the tail lamps X
Switch off the lights.
X Open the luggage compartment.
X Open the side trim panel (Y page 318). Tail lamps without LEDs*
1
Brake lamp
2 Reversing lamp
3 Rear foglamp (left)/tail lamp/parking
lamp
4 Rear foglamp (left)/tail lamp/parking
lamp
5 Turn signal lamp Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 319 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Changing the bulbs

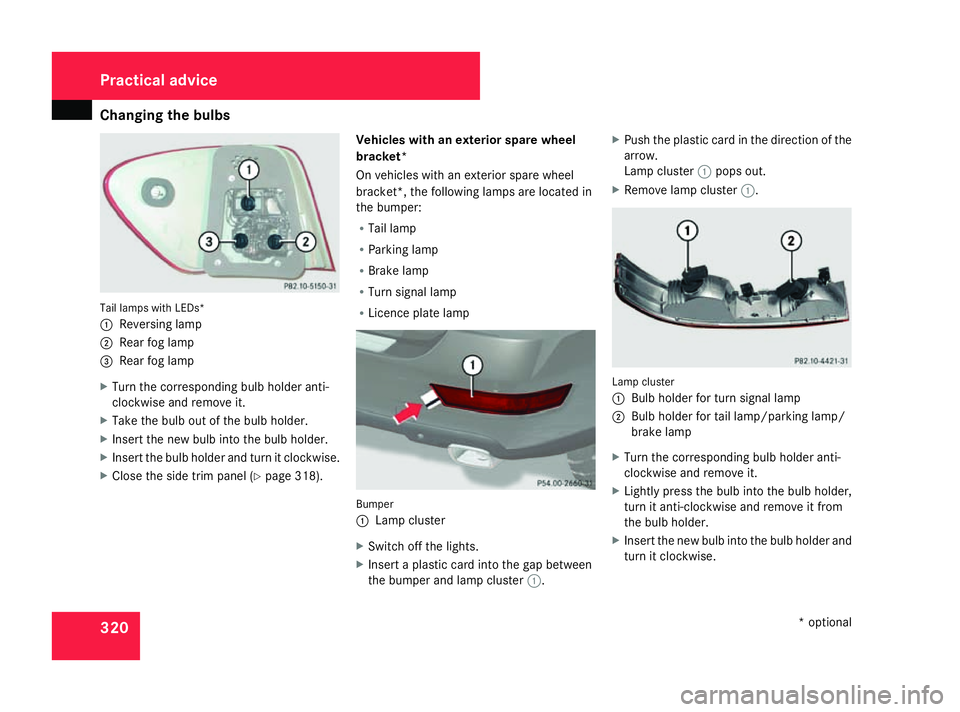

320Tail lamps with LEDs*
1
Reversing lamp
2 Rear fog lamp
3 Rear fog lamp
X Turn the corresponding bulb holder anti-
clockwise and remove it.
X Take the bulb out of the bulb holder.
X Insert the new bulb into the bulb holder.
X Insert the bulb holder and turn it clockwise.
X Close the side trim panel (Y page 318).Vehicles with an exterior spare wheel
bracket*
On vehicles with an exterior spare wheel
bracket*, the following lamps are located in
the bumper:
R
Tail lamp
R Parking lamp
R Brake lamp
R Turn signal lamp
R Licence plate lamp Bumper
1
Lamp cluster
X Switch off the lights.
X Insert a plastic card into the gap between
the bumper and lamp cluster 1.X
Push the plastic card in the direction of the
arrow.
Lamp cluster 1pops out.
X Remove lamp cluster 1. Lamp cluster
1
Bulb holder for turn signal lamp
2 Bulb holder for tail lamp/parking lamp/
brake lamp
X Turn the corresponding bulb holder anti-
clockwise and remove it.
X Lightly press the bulb into the bulb holder,
turn it anti-clockwise and remove it from
the bulb holder.
X Insert the new bulb into the bulb holder and
turn it clockwise. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 320Dateiname: 6515_4293_02_buchblock.pdf; preflight

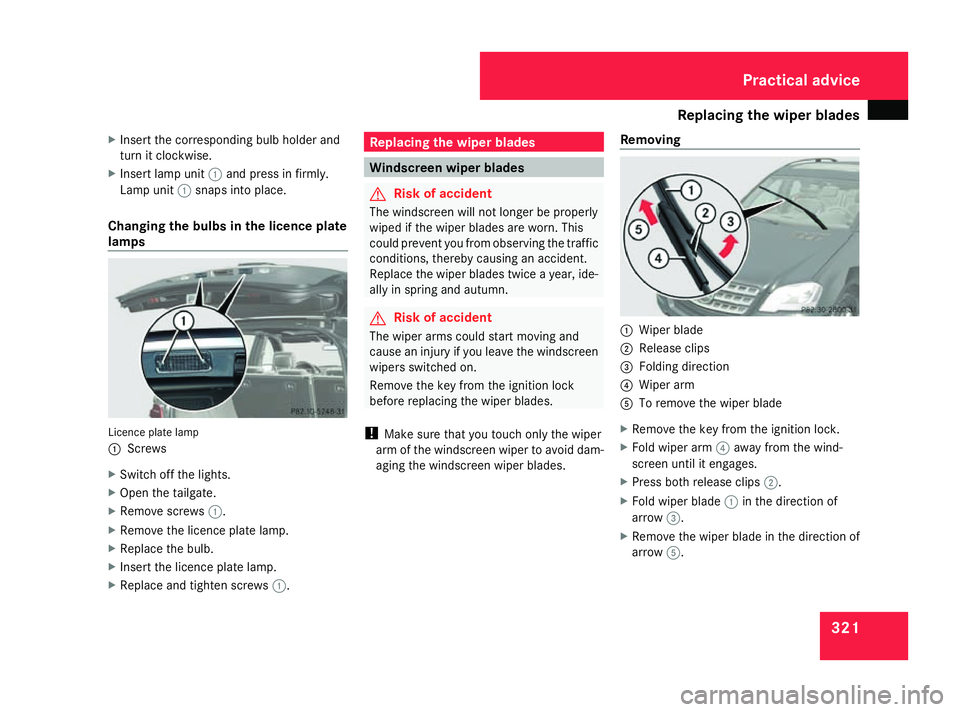

Replacing the wiper blades
321
X
Insert the corresponding bulb holder and
turn it clockwise.
X Insert lamp unit 1and press in firmly.
Lamp unit 1snaps into place.
Changing the bulbs in the licence plate
lamps Licence plate lamp
1
Screws
X Switch off the lights.
X Open the tailgate.
X Remove screws 1.
X Remove the licence plate lamp.
X Replace the bulb.
X Insert the licence plate lamp.
X Replace and tighten screws 1. Replacing the wiper blades
Windscreen wiper blades
G
Risk of accident
The windscreen will not longer be properly
wiped if the wiper blades are worn. This
could prevent you from observing the traffic
conditions, thereby causing an accident.
Replace the wiper blades twice a year, ide-
ally in spring and autumn. G
Risk of accident
The wiper arms could start moving and
cause an injury if you leave the windscreen
wipers switched on.
Remove the key from the ignition lock
before replacing the wiper blades.
! Make sure that you touch only the wiper
arm of the windscreen wiper to avoid dam-
aging the windscreen wiper blades. Removing 1
Wiper blade
2 Release clips
3 Folding direction
4 Wiper arm
5 To remove the wiper blade
X Remove the key from the ignition lock.
X Fold wiper arm 4away from the wind-
screen until it engages.
X Press both release clips 2.
X Fold wiper blade 1in the direction of
arrow 3.
X Remove the wiper blade in the direction of
arrow 5. Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 321 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

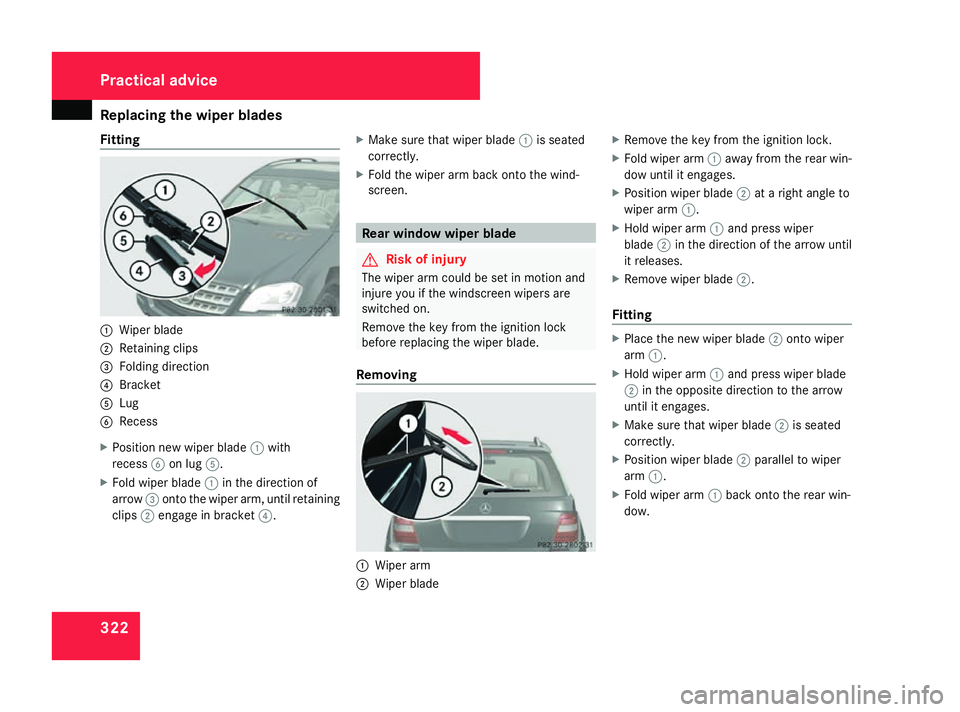

Replacing the wiper blades
322
Fitting
1
Wiper blade
2 Retaining clips
3 Folding direction
4 Bracket
5 Lug
6 Recess
X Position new wiper blade 1with
recess 6on lug 5.
X Fold wiper blade 1in the direction of
arrow 3onto the wiper arm, until retaining
clips 2engage in bracket 4.X
Make sure that wiper blade 1is seated
correctly.
X Fold the wiper arm back onto the wind-
screen. Rear window wiper blade
G
Risk of injury
The wiper arm could be set in motion and
injure you if the windscreen wipers are
switched on.
Remove the key from the ignition lock
before replacing the wiper blade.
Removing 1
Wiper arm
2 Wiper blade X
Remove the key from the ignition lock.
X Fold wiper arm 1away from the rear win-
dow until it engages.
X Position wiper blade 2at a right angle to
wiper arm 1.
X Hold wiper arm 1and press wiper
blade 2in the direction of the arrow until
it releases.
X Remove wiper blade 2.
Fitting X
Place the new wiper blade 2onto wiper
arm 1.
X Hold wiper arm 1and press wiper blade
2 in the opposite direction to the arrow
until it engages.
X Make sure that wiper blade 2is seated
correctly.
X Position wiper blade 2parallel to wiper
arm 1.
X Fold wiper arm 1back onto the rear win-
dow. Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 322Dateiname: 6515_4293_02_buchblock.pdf; preflight

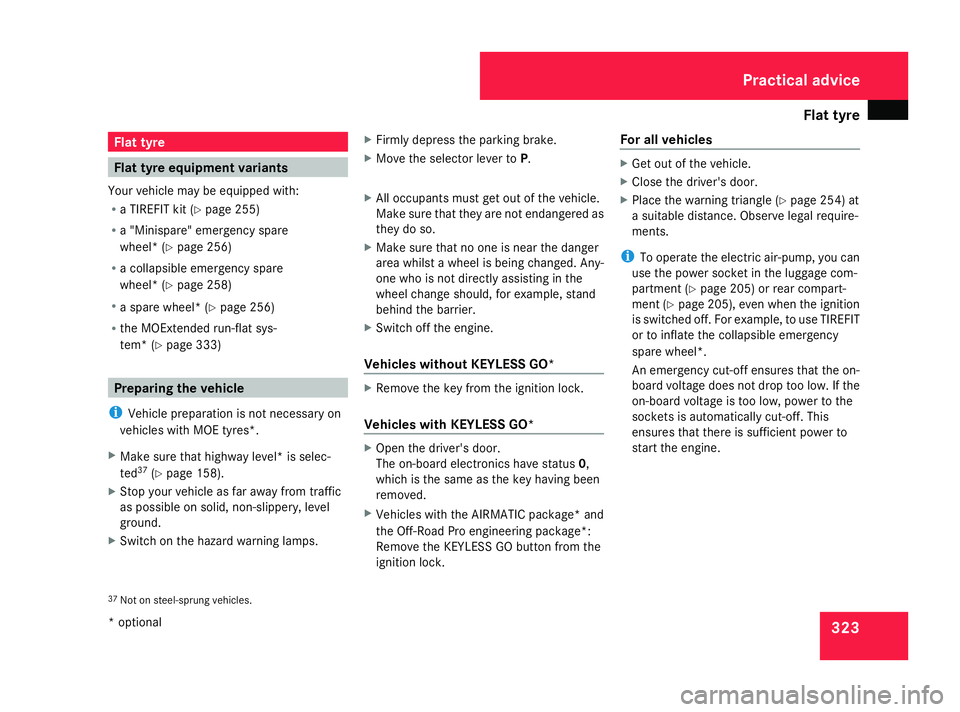

Flat tyre
323Flat tyre
Flat tyre equipment variants
Your vehicle may be equipped with:
R a TIREFIT kit (Y page 255)
R a "Minispare" emergency spare
wheel* (Y page 256)
R a collapsible emergency spare
wheel* (Y page 258)
R a spare wheel* (Y page 256)
R the MOExtended run-flat sys-
tem* (Y page 333) Preparing the vehicle
i Vehicle preparation is not necessary on
vehicles with MOE tyres*.
X Make sure that highway level* is selec-
ted 37
(Y page 158).
X Stop your vehicle as far away from traffic
as possible on solid, non-slippery, level
ground.
X Switch on the hazard warning lamps. X
Firmly depress the parking brake.
X Move the selector lever to P.
X All occupants must get out of the vehicle.
Make sure that they are not endangered as
they do so.
X Make sure that no one is near the danger
area whilst a wheel is being changed. Any-
one who is not directly assisting in the
wheel change should, for example, stand
behind the barrier.
X Switch off the engine.
Vehicles without KEYLESS GO* X
Remove the key from the ignition lock.
Vehicles with KEYLESS GO* X
Open the driver's door.
The on-board electronics have status 0,
which is the same as the key having been
removed.
X Vehicles with the AIRMATIC package* and
the Off-Road Pro engineering package*:
Remove the KEYLESS GO button from the
ignition lock. For all vehicles X
Get out of the vehicle.
X Close the driver's door.
X Place the warning triangle ( Ypage 254) at
a suitable distance. Observe legal require-
ments.
i To operate the electric air-pump, you can
use the power socket in the luggage com-
partment (Y page 205) or rear compart-
ment (Y page 205), even when the ignition
is switched off. For example, to use TIREFIT
or to inflate the collapsible emergency
spare wheel*.
An emergency cut-off ensures that the on-
board voltage does not drop too low. If the
on-board voltage is too low, power to the
sockets is automatically cut-off. This
ensures that there is sufficient power to
start the engine.
37 Not on steel-sprung vehicles. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 323 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre

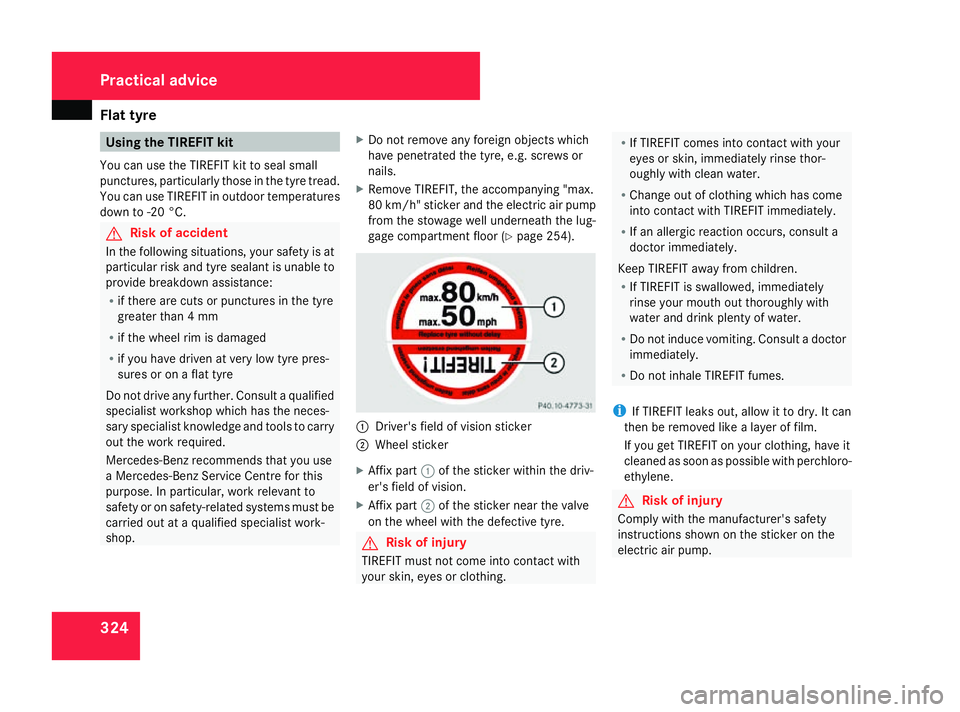

324 Using the TIREFIT kit
You can use the TIREFIT kit to seal small
punctures, particularly those in the tyre tread.
You can use TIREFIT in outdoor temperatures
down to -20 °C. G
Risk of accident
In the following situations, your safety is at
particular risk and tyre sealant is unable to
provide breakdown assistance:
R if there are cuts or punctures in the tyre
greater than 4 mm
R if the wheel rim is damaged
R if you have driven at very low tyre pres-
sures or on a flat tyre
Do not drive any further. Consult a qualified
specialist workshop which has the neces-
sary specialist knowledge and tools to carry
out the work required.
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre for this
purpose. In particular, work relevant to
safety or on safety-related systems must be
carried out at a qualified specialist work-
shop. X
Do not remove any foreign objects which
have penetrated the tyre, e.g. screws or
nails.
X Remove TIREFIT, the accompanying "max.
80 km/h "sticker and the electric air pump
from the stowage well underneath the lug-
gage compartment floor (Y page 254). 1
Driver's field of vision sticker
2 Wheel sticker
X Affix part 1of the sticker within the driv-
er's field of vision.
X Affix part 2of the sticker near the valve
on the wheel with the defective tyre. G
Risk of injury
TIREFIT must not come into contact with
your skin, eyes or clothing. R
If TIREFIT comes into contact with your
eyes or skin, immediately rinse thor-
oughly with clean water.
R Change out of clothing which has come
into contact with TIREFIT immediately.
R If an allergic reaction occurs, consult a
doctor immediately.
Keep TIREFIT away from children.
R If TIREFIT is swallowed, immediately
rinse your mouth out thoroughly with
water and drink plenty of water.
R Do not induce vomiting. Consult a doctor
immediately.
R Do not inhale TIREFIT fumes.
i If TIREFIT leaks out, allow it to dry. It can
then be removed like a layer of film.
If you get TIREFIT on your clothing, have it
cleaned as soon as possible with perchloro-
ethylene. G
Risk of injury
Comply with the manufacturer's safety
instructions shown on the sticker on the
electric air pump. Practical advice
164_AKB; 5; 5, en-GB
wobuchh
, Version: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 324 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
3251

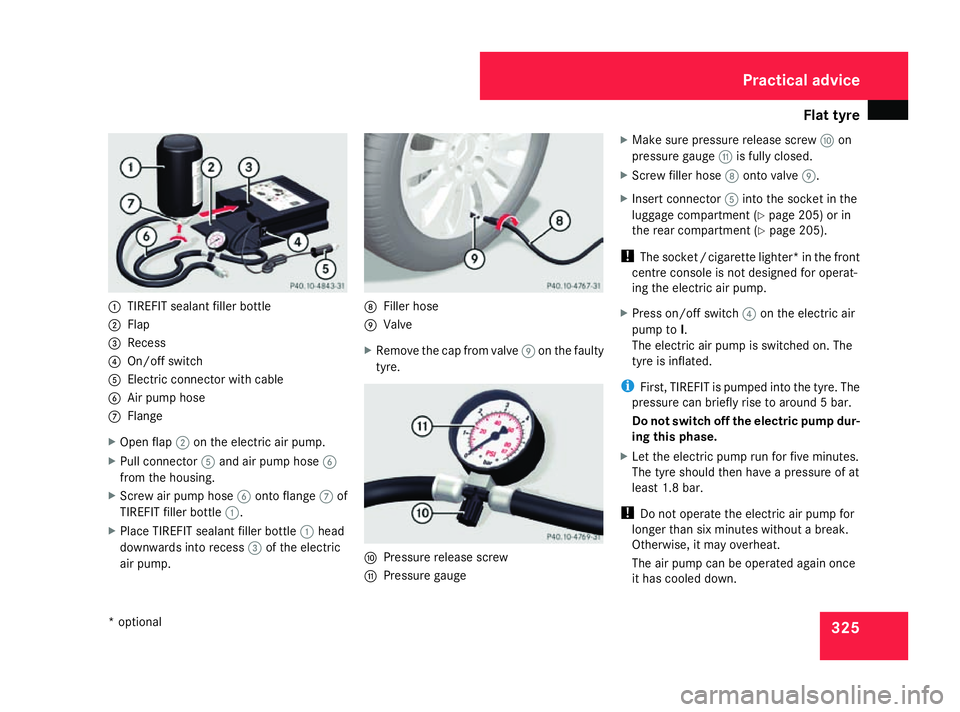

TIREFIT sealant filler bottle
2 Flap
3 Recess
4 On/off switch
5 Electric connector with cable
6 Air pump hose
7 Flange
X Open flap 2on the electric air pump.
X Pull connector 5and air pump hose 6
from the housing.
X Screw air pump hose 6onto flange 7of
TIREFIT filler bottle 1.
X Place TIREFIT sealant filler bottle 1head
downwards into recess 3of the electric
air pump. 8
Filler hose
9 Valve
X Remove the cap from valve 9on the faulty
tyre. a
Pressure release screw
b Pressure gauge X
Make sure pressure release screw aon
pressure gauge bis fully closed.
X Screw filler hose 8onto valve 9.
X Insert connector 5into the socket in the
luggage compartment (Y page 205) or in
the rear compartment (Y page 205).
! The socket /cigarette lighter *in the front
centre console is not designed for operat-
ing the electric air pump.
X Press on/off switch 4on the electric air
pump to I.
The electric air pump is switched on. The
tyre is inflated.
i First, TIREFIT is pumped into the tyre. The
pressure can briefly rise to around 5 bar.
Do not switch off the electric pump dur-
ing this phase.
X Let the electric pump run for five minutes.
The tyre should then have a pressure of at
least 1.8 bar.
! Do not operate the electric air pump for
longer than six minutes without a break.
Otherwise, it may overheat.
The air pump can be operated again once
it has cooled down. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh , Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 325 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre
326

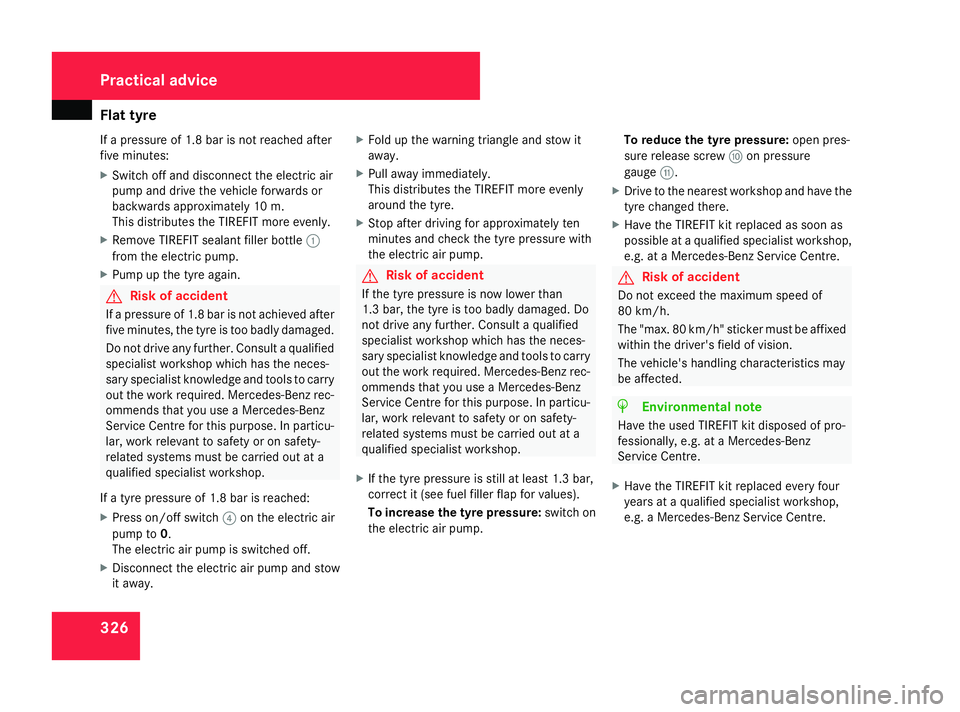

If a pressure of 1.8 bar is not reached after
five minutes:
X Switch off and disconnect the electric air
pump and drive the vehicle forwards or
backwards approximately 10 m.
This distributes the TIREFIT more evenly.
X Remove TIREFIT sealant filler bottle 1
from the electric pump.
X Pump up the tyre again. G
Risk of accident
If a pressure of 1.8 bar is not achieved after
five minutes, the tyre is too badly damaged.
Do not drive any further. Consult a qualified
specialist workshop which has the neces-
sary specialist knowledge and tools to carry
out the work required. Mercedes-Benz rec-
ommends that you use a Mercedes-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety-
related systems must be carried out at a
qualified specialist workshop.
If a tyre pressure of 1.8 bar is reached:
X Press on/off switch 4on the electric air
pump to 0.
The electric air pump is switched off.
X Disconnect the electric air pump and stow
it away. X
Fold up the warning triangle and stow it
away.
X Pull away immediately.
This distributes the TIREFIT more evenly
around the tyre.
X Stop after driving for approximately ten
minutes and check the tyre pressure with
the electric air pump. G
Risk of accident
If the tyre pressure is now lower than
1.3 bar, the tyre is too badly damaged. Do
not drive any further. Consult a qualified
specialist workshop which has the neces-
sary specialist knowledge and tools to carry
out the work required. Mercedes-Benz rec-
ommends that you use a Mercedes-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety-
related systems must be carried out at a
qualified specialist workshop.
X If the tyre pressure is still at least 1.3 bar,
correct it (see fuel filler flap for values).
To increase the tyre pressure: switch on
the electric air pump. To reduce the tyre pressure:
open pres-
sure release screw aon pressure
gauge b.
X Drive to the nearest workshop and have the
tyre changed there.
X Have the TIREFIT kit replaced as soon as
possible at a qualified specialist workshop,
e.g. at a Mercedes-Benz Service Centre. G
Risk of accident
Do not exceed the maximum speed of
80 km/h.
The "max. 80 km/h" sticker must be affixed
within the driver's field of vision.
The vehicle's handling characteristics may
be affected. H
Environmental note
Have the used TIREFIT kit disposed of pro-
fessionally, e.g. at a Mercedes-Benz
Service Centre.
X Have the TIREFIT kit replaced every four
years at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre. Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 326Dateiname: 6515_4293_02_buchblock.pdf; preflight

Flat tyre

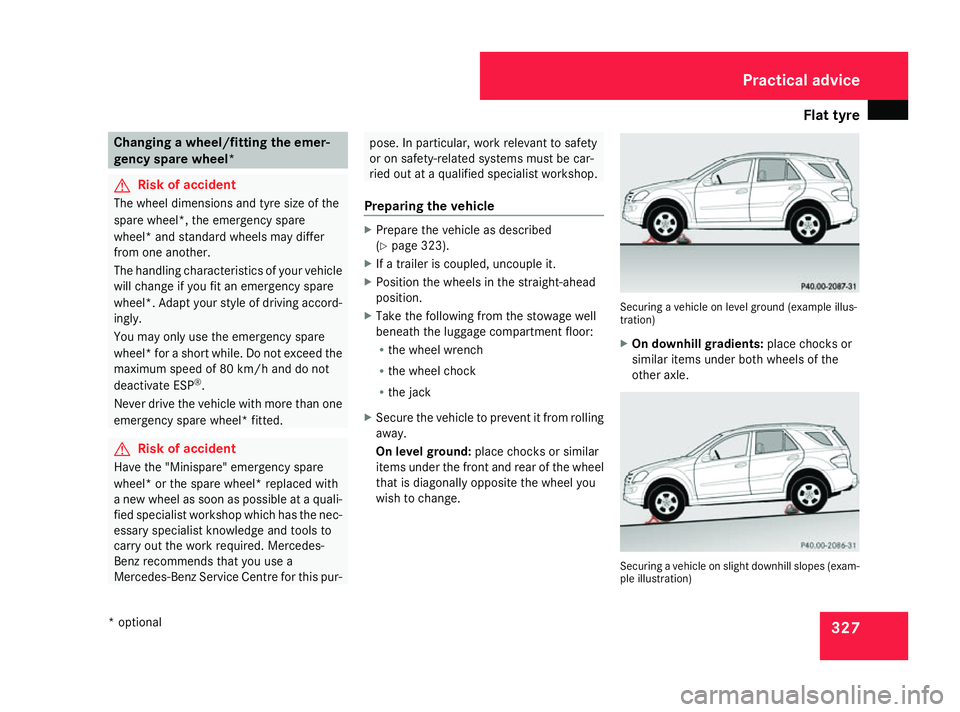

327Changing a wheel/fitting the emer-
gency spare wheel*
G
Risk of accident
The wheel dimensions and tyre size of the
spare wheel*, the emergency spare
wheel* and standard wheels may differ
from one another.
The handling characteristics of your vehicle
will change if you fit an emergency spare
wheel*. Adapt your style of driving accord-
ingly.
You may only use the emergency spare
wheel* for a short while. Do not exceed the
maximum speed of 80 km/h and do not
deactivate ESP ®
.
Never drive the vehicle with more than one
emergency spare wheel* fitted. G
Risk of accident
Have the "Minispare" emergency spare
wheel* or the spare wheel* replaced with
a new wheel as soon as possible at a quali-
fied specialist workshop which has the nec-
essary specialist knowledge and tools to
carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur- pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
Preparing the vehicle X
Prepare the vehicle as described
(Y page 323).
X If a trailer is coupled, uncouple it.
X Position the wheels in the straight-ahead
position.
X Take the following from the stowage well
beneath the luggage compartment floor:
R
the wheel wrench
R the wheel chock
R the jack
X Secure the vehicle to prevent it from rolling
away.
On level ground: place chocks or similar
items under the front and rear of the wheel
that is diagonally opposite the wheel you
wish to change. Securing a vehicle on level ground (example illus-
tration)
X
On downhill gradients: place chocks or
similar items under both wheels of the
other axle. Securing a vehicle on slight downhill slopes (exam-
ple illustration) Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 327 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
