290 Controls in detailLoadingCargo management system*
Your vehicle may be equipped with a cargo
management system and accompanying
accessories which enables you to utilize
your cargo compartment in a variety of
ways. You can store the cargo manage-
ment system in the pouch that comes with
the vehicle.
1Cargo railsInserting the mounting elements into
the cargo rails
1Cargo rail
2Mounting element
You can move the mounting element2 to
various engaging points on the
cargo rail1 and fix it in place.
These engaging points are located
2 inches apart from one another on the
cargo rail and are indicated by markings.

Turn mounting element2 toL.

Insert mounting element2 in cargo
rail1.

Turn mounting element2 until it en-
gages in the ‹position.
You should be able to feel the mounting
element engage in the cargo rail.
i
The pouch and the telescoping rod are locat-
ed under the cargo compartment floor.
i
You can turn the mounting element in the
cargo rail to four positions:
‹
To lock the mounting element.
N
To insert or remove the cargo tie-down
ring, the belt reel or the telescoping rod.
L
To insert or remove the mounting ele-
ment.
S
To move the mounting element to the
next engaging point.

291 Controls in detail
Loading
Inserting the cargo tie-down ring in the
mounting element
1Cargo tie-down ring
2Mounting element
Turn mounting element2 in the cargo
rail toN.

Insert cargo tie-down ring1 into
mounting element2.

Turn mounting element2 until it en-
gages in the ‹position.
You should be able to feel the mounting
element engage in the cargo rail.
Belt reel
1Belt reel
2Mounting element
3Locking button

Insert two mounting elements2 into a
cargo rail.

Turn mounting element2 in the cargo
rail toN.

Insert belt reel1 into mounting
element2.

Turn mounting element2 in the cargo
rail until it engages in the‹ posi-
tion.
You should be able to feel the mounting
element engage in the cargo rail.

Press locking button3 on the belt
reel1 and pull cargo net out in direc-
tion of arrow.
Warning!
G
The cargo tie-down rings should be subject
to equal loads. Make sure to comply with
the information provided in the loading in-
structions (
page 281).
i
The belt reel can be used to tighten
light-weight loads against the side wall of the
cargo compartment, thus securing them from
slipping.


292 Controls in detailLoading
Place load between the cargo net and
the side wall of the cargo compart-
ment.

Press locking button3 on belt
reel1. With the other hand, slowly
pull net over load until it is taut.
Telescoping rod
1Telescoping rod
2Mounting element

Insert one mounting element2 into
each cargo rail.

Turn mounting element2 in cargo rail
toN.

Insert telescoping rod1 into mount-
ing element2.

Turn mounting element2 in cargo rail
until it engages in the‹ position.
You should be able to feel the mounting
element engage in the cargo rail.Removing rear seat cushions
If your vehicle is equipped with the cargo
management system* you can remove the
rear seat cushions.
Removing the rear seat cushions will pro-
vide you with a larger cargo compartment.

Fold the seat cushions forward
(page 285).
1Release lever

Pull seat cushion release lever1 and
remove the seat cushion by pulling it
upward.

Remove the head restraints
(page 129).
i
The telescoping rod can be used to tighten
the load against the rear seats so as to secure it
from slipping.


293 Controls in detail
Loading

Fold the seat backrest forward
(page 285).
!
Leave the seat cushion hinge in this posi-
tion. The upholstery could be damaged if you fold
the hinge back.

294 Controls in detailUseful featuresStorage compartments Glove box/CD changer*
1Glove box lid release
2Glove box lid
Opening the glove box

Pull lid release1 in direction of arrow.
Glove box lid2 opens downward.
Closing the glove box

Push glove box lid2 up to close.Releasing CD changer*
1Release button
2AUX-socket (Vehicles without Rear
Seat Entertainment System*)
3CD changer

Open the glove box (
page 294).

Press release button1.
CD changer3 is released and swings
down automatically.
For information on CD changer operation,
see separate COMAND system operating
instructions.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Always use partition net* when transporting
cargo. Partition net* cannot secure hard or
heavy objects.
Parcel nets cannot secure hard or heavy ob-
jects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during

braking


vehicle maneuvers


an accident
i
Depending on vehicle equipment, a
CD changer* and an AUX-socket are located in
the glove box.

295 Controls in detail
Useful features
Closing CD changer*
1CD changer
Gent ly push CD c ha ng er1 up in direc-
tion of arrow until it engages.
For information on CD changer operation,
see separate COMAND system operating
instructions.Locking and unlocking the glove box
separately
You can lock the glove box separately, e.g.
when the vehicle is in the shop for service.

Take the mechanical key out of the
SmartKey or SmartKey with
KEYLESS-GO* (
page 475).
1Unlocking glove box
2Locking glove box

Insert mechanical key into glove box
lock.

Turn mechanical key to position2 to
lock the glove box.

Turn mechanical key to position1 to
unlock the glove box.
i
The glove box can only be locked or
unlocked with the mechanical key.

296 Controls in detailUseful featuresStorage compartment in front center
console
Vehicles without ashtray*
Briefly press the front of the cover.
The cover opens automatically.Storage compartment* (depending on
vehicle configuration)

Briefly press the front of the cover.
The cover opens automatically.Front armrest storage compartments
A flat storage tray with a deeper storage
compartment underneath is located below
the armrest. Both can be opened
separately.
1Button to open storage tray/tele-
phone* compartment
2Button to open storage compartment
i
The Roadside Assistance button•
(
page 312) and the information button¡
(page 313) are located in the storage tray.

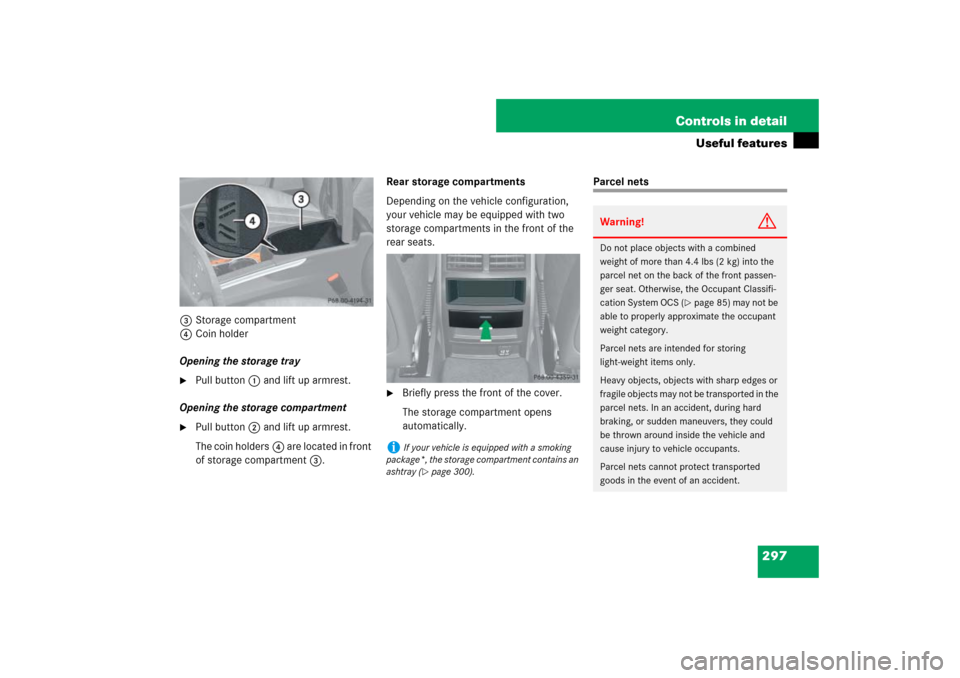

297 Controls in detail
Useful features
3Storage compartment
4Coin holder
Opening the storage tray
Pull button1 and lift up armrest.
Opening the storage compartment

Pull button2 and lift up armrest.
The coin holders4 are located in front
of storage compartment3.Rear storage compartments
Depending on the vehicle configuration,
your vehicle may be equipped with two
storage compartments in the front of the
rear seats.

Briefly press the front of the cover.
The storage compartment opens
automatically.
Parcel nets
i
If your vehicle is equipped with a smoking
package*, the storage compartment contains an
ashtray (
page 300).
Warning!
G
Do not place objects with a combined
weight of more than 4.4 lbs (2 kg) into the
parcel net on the back of the front passen-
ger seat. Otherwise, the Occupant Classifi-
cation System OCS (
page 85) may not be
able to properly approximate the occupant
weight category.
Parcel nets are intended for storing
light-weight items only.
Heavy objects, objects with sharp edges or
fragile objects may not be transported in the
parcel nets. In an accident, during hard
braking, or sudden maneuvers, they could
be thrown around inside the vehicle and
cause injury to vehicle occupants.
Parcel nets cannot protect transported
goods in the event of an accident.

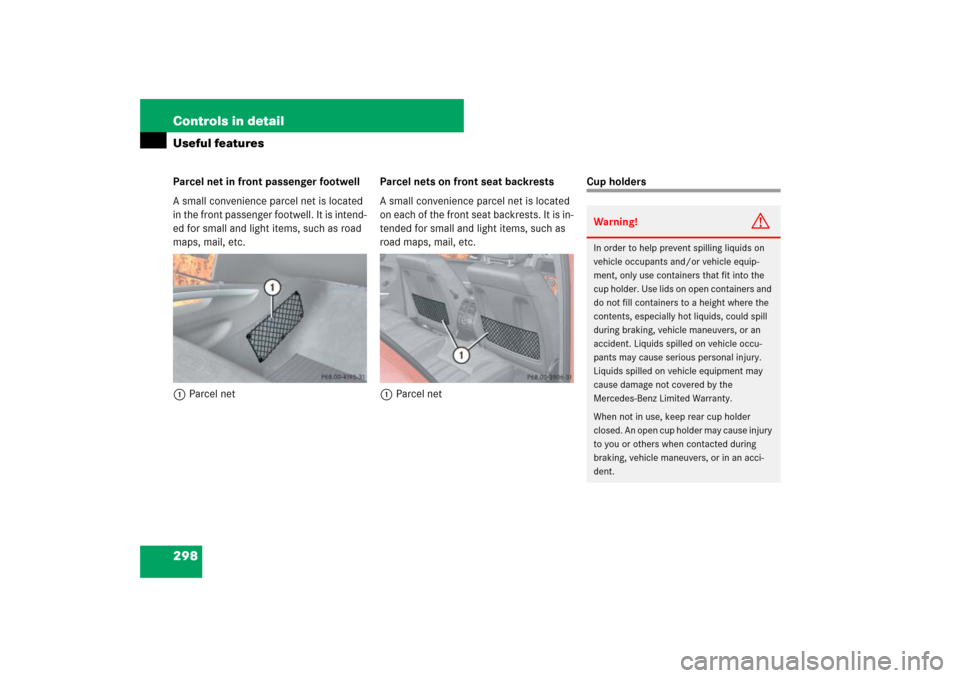

298 Controls in detailUseful featuresParcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is intend-
ed for small and light items, such as road
maps, mail, etc.
1Parcel netParcel nets on front seat backrests
A small convenience parcel net is located
on each of the front seat backrests. It is in-
tended for small and light items, such as
road maps, mail, etc.
1Parcel net
Cup holdersWarning!
G
In order to help prevent spilling liquids on
vehicle occupants and/or vehicle equip-
ment, only use containers that fit into the
cup holder. Use lids on open containers and
do not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or an
accident. Liquids spilled on vehicle occu-
pants may cause serious personal injury.
Liquids spilled on vehicle equipment may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
When not in use, keep rear cup holder
closed. An open cup holder may cause injury
to you or others when contacted during
braking, vehicle maneuvers, or in an acci-
dent.

299 Controls in detail
Useful features
Cup holder in front of armrest
A cup holder and a card/ticket holder are
located in the front center console.
1Cup holderCup holder in rear armrest
1Cup holder

Pull the armrest down by its top.Removing and reinstalling cup holder
The front cup holder can be removed for
cleaning purposes.
1Cup holder
2Bridge with card, ticket holder

Hold cup holder at its bridge2 and
pull out bridge in direction of arrow.

Pull cup holder1 out in direction of
arrow.

First, insert the cup holder1 and then
insert bridge2.
Keep in mind that objects placed in a cup
holder may come loose during braking,
vehicle maneuvers, or an accident and be
thrown around in the vehicle interior.
Objects thrown around in the vehicle interi-
or may cause an accident and/or serious
personal injury.i
The front cup holder can be removed for
cleaning purposes (
page 299).
!
Close the cup holder before folding the arm-
rest upwards.
