320 Controls in detailUseful featuresOperation of integrated remote control
Switch on the ignition (
page 40).

Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 40).

Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.Programming tips
If you are having difficulty programming
the integrated remote control, here are
some helpful tips:


Check the frequency of hand-held
remote control5 (typically located on
the reverse side of the remote). The in-
tegrated remote control is compatible
with radio-frequency devices operating
between 280-390 MHz.


Put a new battery in hand-held remote
control5. This will increase the likeli-
hood of the hand-held remote control
sending a faster and more accurate sig-
nal to the integrated remote control.


While performing step 3, hold
hand-held remote control5 at differ-
ent lengths and angles from the signal
transmitter button (2, 3 or4) you
are programming. Attempt varying an-
gles at the distance of 2 to 5 inches
(5 to 12 cm) away or the same angle at
varying distances.


If another hand-held remote control is
available for the same device, try the
programming steps again using that
other hand-held remote control. Make
sure new batteries are in the hand-held
remote control before beginning the
procedure.


Straighten the antenna wire from the
garage door opener assembly. This
may help improve transmitting and/or
receiving signals.
i
If you sell your vehicle, erase the codes of all
three channels.
i
Certain types of garage door openers are in-
compatible with the integrated remote control. If
you should experience further difficulties with
programming the integrated remote control,
contact an authorized Mercedes-Benz Center, or
call Mercedes-Benz Customer Assistance
Center (in the USA only) at 1-800-FOR-MER-
Cedes, or Customer Service (in Canada) at
1-800-387-0100.

321 Controls in detail
Useful features
Compass
Calling up the compass
Press buttonè orÿ repeatedly
until the
AIRMATIC/Compass
menu
appears in the multifunction display.
The compass displays the direction
into which the vehicle is currently trav-
eling:
N, NE, E, SE, S, SW, W, or
NW.To make sure the display is correct, the
compass must be set to the proper geo-
graphic zone (
page 174). It may also be
necessary to calibrate the compass
(
page 175).
i
USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
If your vehicle is not equipped with the air
suspension package*, the multifunction display
will show the compass only.
i
The presence of buildings, bridges, power
lines and large antenna masts can influence the
displayed values. Metallic or magnetic objects in
or on the vehicle can influence the accuracy of
the compass.
i
If the compass is not calibrated or its
function is impaired by outside influences, the
message
Compass - - -
appears in the
multifunction display.

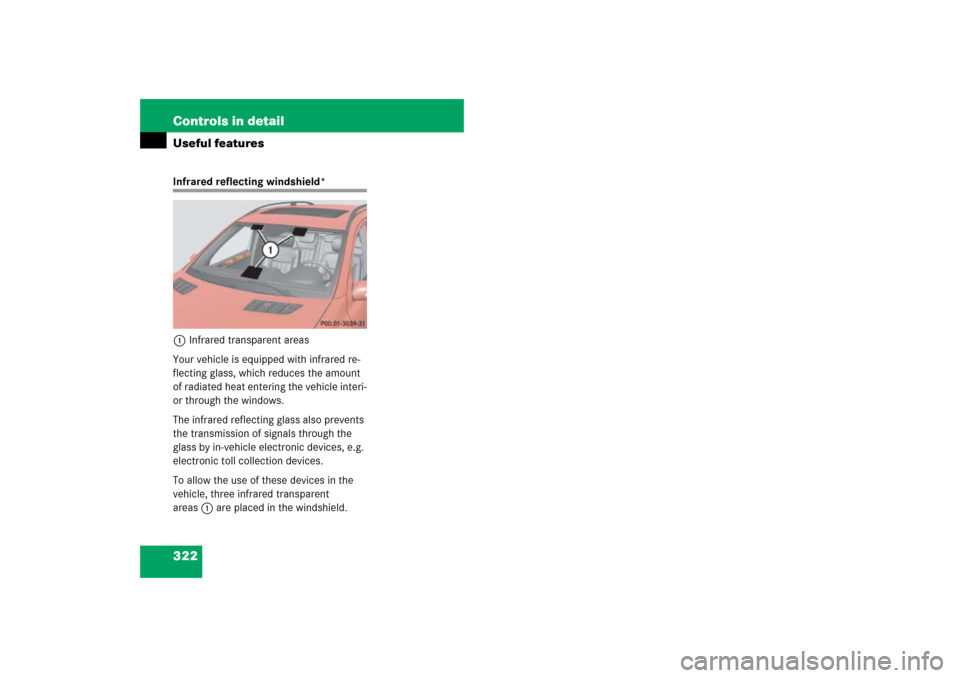

322 Controls in detailUseful featuresInfrared reflecting windshield*
1Infrared transparent areas
Your vehicle is equipped with infrared re-
flecting glass, which reduces the amount
of radiated heat entering the vehicle interi-
or through the windows.
The infrared reflecting glass also prevents
the transmission of signals through the
glass by in-vehicle electronic devices, e.g.
electronic toll collection devices.
To allow the use of these devices in the
vehicle, three infrared transparent
areas1 are placed in the windshield.

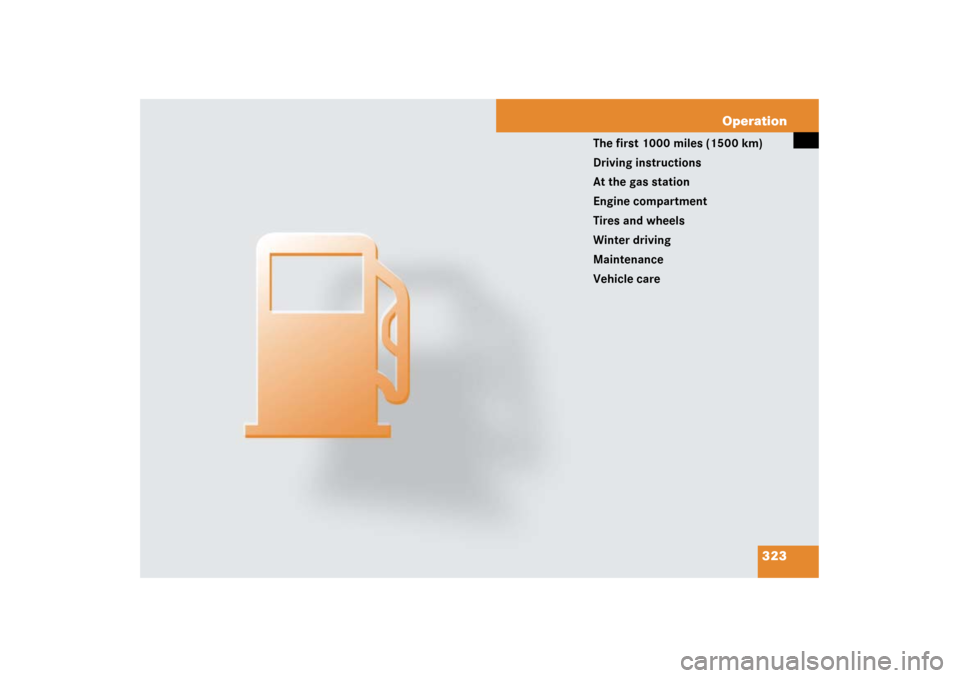

323 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

324 OperationIn the “Operation” section you will find
detailed information on operating, main-
taining and caring for your vehicle.The first 1000 miles (1500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1000 miles (1500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive
engine speeds (no more than
2/3 of
maximum rpm in each gear).


Shift gears in a timely manner.


Avoid accelerating by kick-down.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.


Select gear ranges3, 2 or1
(page 193) only when driving at
moderate speeds (for hill driving).After 1000 miles (1500 km) you may
gradually increase vehicle and engine
speeds to the permissible maximum.
All of the above instructions, as may apply
to your vehicle type, also apply when driv-
ing the first 1000 miles (1500 km) after
the engine, the transfer case, the front dif-
ferential or the rear differential has been
replaced.
!
Additional instructions for ML 63 AMG:


During the first 1000 miles (1500 km), do
not exceed a speed of 85 mph (140 km/h).


During this period, avoid engine speeds
above 4500 rpm in each gear.


Shift gears at the correct time.


SelectC as the preferred shift program
(page 195) for the first 1000 miles
(1500 km).
i
Always obey applicable speed limits.

325 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.


Remove unnecessary loads.


Remove carriers* when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System (U.S. vehi-
cles) or FSS PLUS (Canada vehicles).
Contact an authorized Mercedes-Benz
Light Truck Center.Fuel consumption is also increased by
driving in cold weather, in stop-and-go traf-
fic, on short trips and in hilly areas.
Drinking and driving
Pedals
Warning!
G
Drinking and driving and/or taking drugs
and driving are a very dangerous combina-
tion. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.

326 OperationDriving instructionsPower assistance
Brakes
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
!
Operational or performance test must only
be conducted on a two-axle dynanometer. If
such tests are necessary, contact an authorized
Mercedes-Benz Light Truck Center. You could
otherwise seriously damage the brake system or
the transfer case which is not covered by the
Mercedes-Benz Limited Warranty.
!
Because the ESP
® operates automatically,
the engine and ignition must be shut off
(SmartKey in starter switch position0 or1 or
KEYLESS-GO* start/stop button in
position0or1) when testing the brakes on a
brake test dynamometer and such testing should
be no longer than 10 seconds.
Active braking action through the ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty.

327 Operation
Driving instructions
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
Refer to the description of the Brake Assist
System (BAS) (
page 97).Brake pad wear or a leak in the system may
be the reason for low brake fluid in the
reservoir.
The brake fluid level in the reservoir may
be too low if the brake warning lamp in the
instrument cluster comes on and an
acoustic warning sounds although the
parking brake is released (
page 415).
Observe additional messages in the multi-
function display that may appear
(
page 449).
Have the brake system inspected
immediately. Contact an authorized
Mercedes-Benz Light Truck Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Light Truck Center.
Only install brake pads and brake fluid
recommended by Mercedes-Benz.
After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream will cool down
the brakes faster.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!
When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
When using the engine’s braking power, a drive
wheel may not spin for an extended period of
time, e.g. on slippery road surfaces. This may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited
Warranty.

328 OperationDriving instructionsHigh-performance brake system
(ML 63 AMG only)
The high-performance brake system is de-
signed to operate under the extremely high
operating demands required to accommo-
date the performance capabilities of the
vehicle. The brakes may produce a squeak-
ing-type noise depending on the

vehicle speed


brake force applied


ambient conditions, e.g. temperature
and humidity
As with any brake system, the wear of indi-
vidual brake system components such as
brake pads or disks strongly depends on
your driving style and the conditions under
which you operate the vehicle. Thus, a driv-
ing style calling for high demand braking
will cause your vehicle’s brakes to wear
more quickly.Parking brake
When driving on wet roads or dirt covered
surfaces, road salt and/or dirt can get into
the parking brake. To prevent corrosion
and a reduction in the braking power of the
parking brake, observe the following:

From time to time, lightly engage the
parking brake before driving off.

Drive a distance of approximately
110 yds (100 m) at a maximum speed
of 12 mph (20 km/h).
Warning!
G
New vehicle brake pads and discs, and
replacement brake pads and discs may take
several hundred miles of driving until they
provide optimum braking efficiency. Until
that time, you may need to use increased
brake pedal pressure while braking. Please
be aware of this and adjust your driving and
braking accordingly during this break-in
period.
Excessive high demand braking will cause
correspondingly high brake wear. Please be
attentive to the brake warning lamp in the
instrument cluster and brake condition mes-
sages in the multifunction display. Especial-
ly for high performance driving, it is
important to maintain and have the brake
system checked regularly.
Warning!
G
While performing this procedure please
assure that the vehicle is stopped before
applying the parking brake. Otherwise the
rear wheels could lock up. You could lose
control of the vehicle and cause an accident.
In addition, the vehicle’s brake lights do not
light up when the parking brake is engaged.
Make sure not to endanger any other road
users when you engage the parking brake.

329 Operation
Driving instructions
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
Parking
Tires
!
When driving off on a slippery surface, do
not allow a drive wheel to spin for an extended
period with the ESP
® switched off. Doing so may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited
Warranty.
!
Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury, or
damage to the vehicle drivetrain, as a result
of vehicle movement, before turning off the
engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Set the automatic transmission to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
KEYLESS-GO* start/stop button (vehi-
cles with KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* with you and lock vehicle
when leaving.
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tion to an area which is a safe distance from
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to
the nearest Mercedes-Benz Light Truck
Center or tire dealer for repairs.
