81 Safety and Security
Anti-theft systems

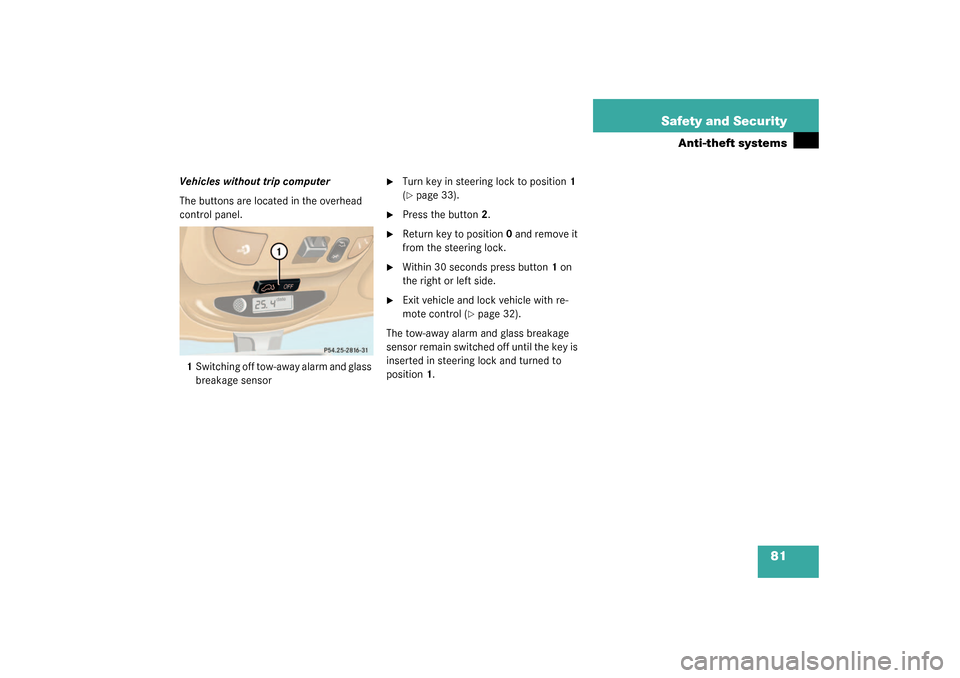

Vehicles without trip computer
The buttons are located in the overhead
control panel.
1Switching off tow-away alarm and glass
breakage sensor

Turn key in steering lock to position1
(page 33).

Press the button2.

Return key to position0 and remove it
from the steering lock.

Within 30 seconds press button1 on
the right or left side.

Exit vehicle and lock vehicle with re-
mote control (
page 32).
The tow-away alarm and glass breakage
sensor remain switched off until the key is
inserted in steering lock and turned to
position1.

82

83 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Automatic transmission
Transmission control – LOW RANGE mode
Good visibility
Automatic climate control
Power windows
Sliding/pop-up roof*
Loading
Driving systems
Useful features

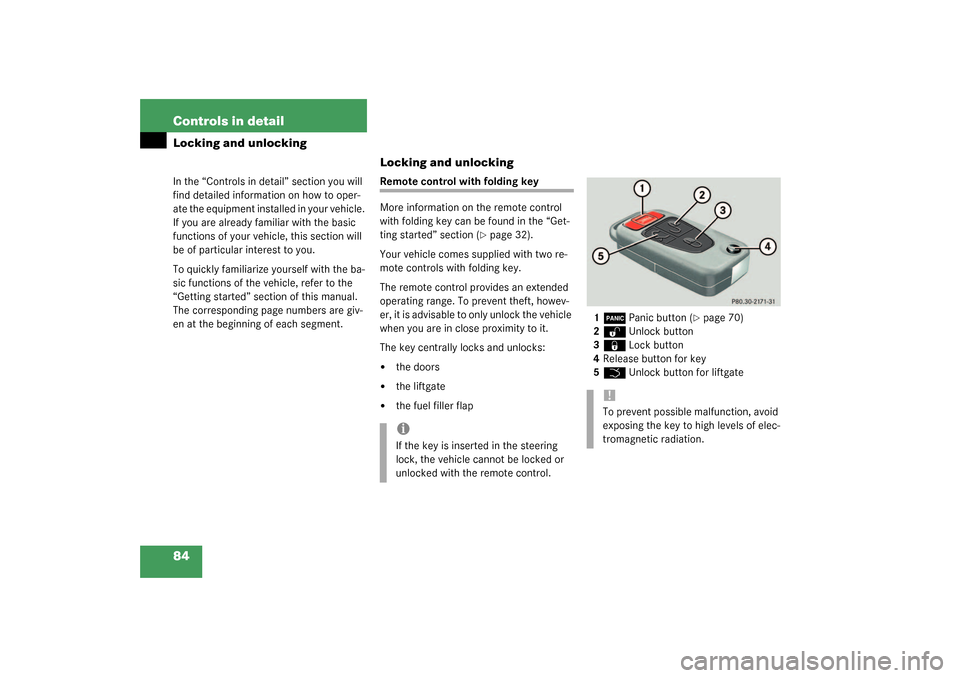

84 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingRemote control with folding key
More information on the remote control
with folding key can be found in the “Get-
ting started” section (
page 32).
Your vehicle comes supplied with two re-
mote controls with folding key.
The remote control provides an extended
operating range. To prevent theft, howev-
e r , i t i s a d v i s a b l e t o o n l y u n l o ck t he v e h i cl e
when you are in close proximity to it.
The key centrally locks and unlocks:


the doors


the liftgate


the fuel filler flap1
Â
Panic button (
page 70)
2
Œ
Unlock button
3
‹
Lock button
4Release button for key
5
Š
Unlock button for liftgate
iIf the key is inserted in the steering
lock, the vehicle cannot be locked or
unlocked with the remote control.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.

85 Controls in detail
Locking and unlocking

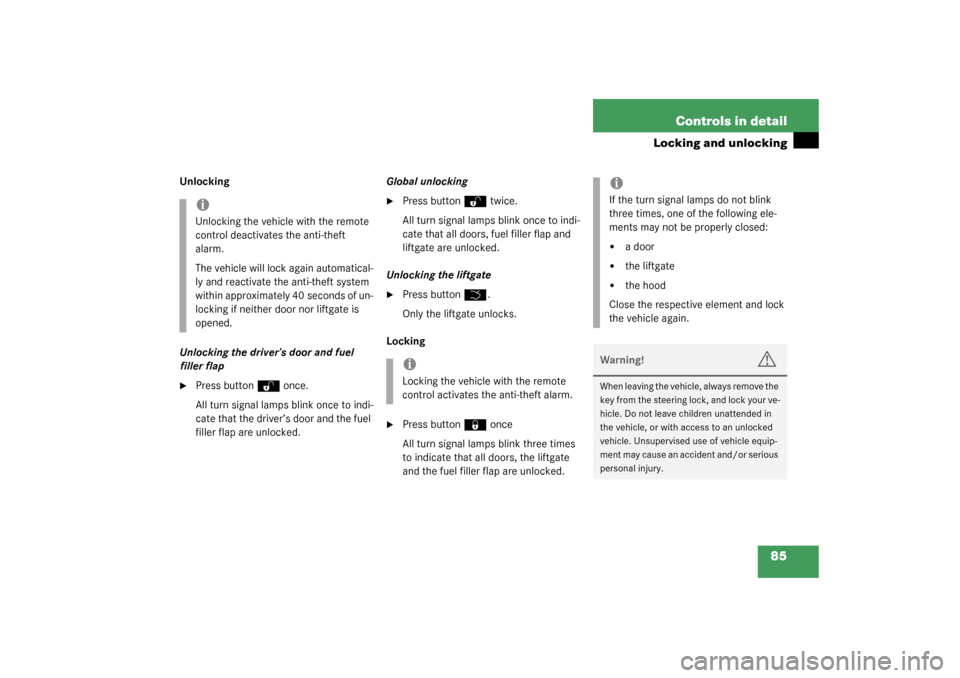

Unlocking
Unlocking the driver’s door and fuel
filler flap
Press button
Œ
once.
All turn signal lamps blink once to indi-
cate that the driver’s door and the fuel
filler flap are unlocked.Global unlocking

Press button
Œ
twice.
All turn signal lamps blink once to indi-
cate that all doors, fuel filler flap and
liftgate are unlocked.
Unlocking the liftgate

Press button
Š
.
Only the liftgate unlocks.
Locking

Press button
‹
once
All turn signal lamps blink three times
to indicate that all doors, the liftgate
and the fuel filler flap are unlocked.
iUnlocking the vehicle with the remote
control deactivates the anti-theft
alarm.
The vehicle will lock again automatical-
ly and reactivate the anti-theft system
within approximately 40 seconds of un-
locking if neither door nor liftgate is
opened.
iLocking the vehicle with the remote
control activates the anti-theft alarm.
iIf the turn signal lamps do not blink
three times, one of the following ele-
ments may not be properly closed:

a door


the liftgate


the hood
Close the respective element and lock
the vehicle again.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock, and lock your ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

86 Controls in detailLocking and unlocking

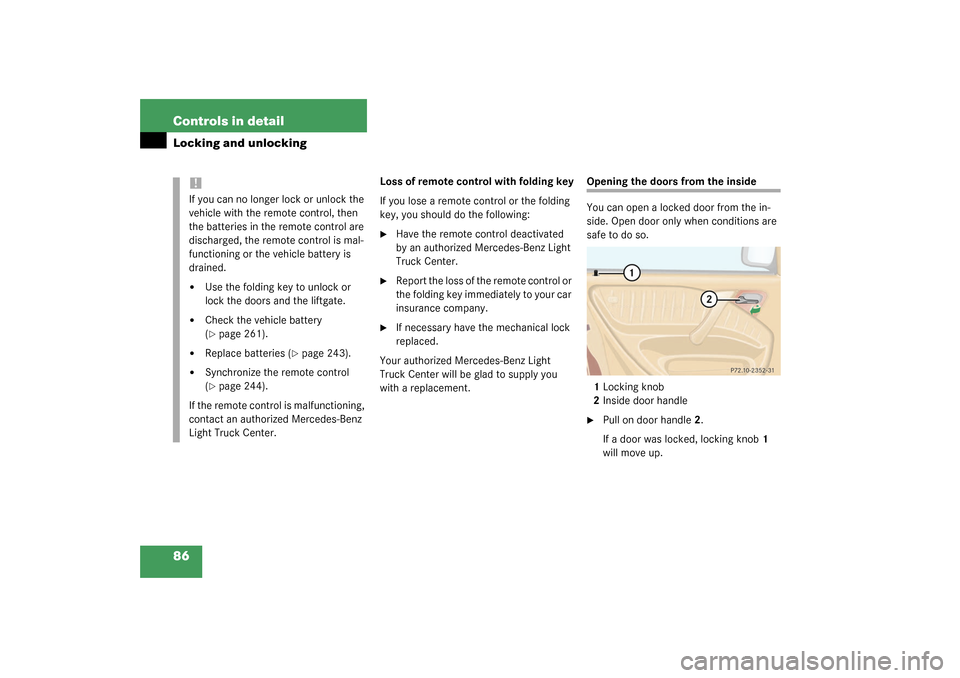

Loss of remote control with folding key
If you lose a remote control or the folding
key, you should do the following:
Have the remote control deactivated
by an authorized Mercedes-Benz Light
Truck Center.

Report the loss of the remote control or
the folding key immediately to your car
insurance company.

If necessary have the mechanical lock
replaced.
Your authorized Mercedes-Benz Light
Truck Center will be glad to supply you
with a replacement.
Opening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door handle
Pull on door handle2.
If a door was locked, locking knob1
will move up.
!If you can no longer lock or unlock the
vehicle with the remote control, then
the batteries in the remote control are
discharged, the remote control is mal-
functioning or the vehicle battery is
drained.

Use the folding key to unlock or
lock the doors and the liftgate.


Check the vehicle battery
(page 261).


Replace batteries (
page 243).


Synchronize the remote control
(page 244).
If the remote control is malfunctioning,
contact an authorized Mercedes-Benz
Light Truck Center.

87 Controls in detail
Locking and unlocking

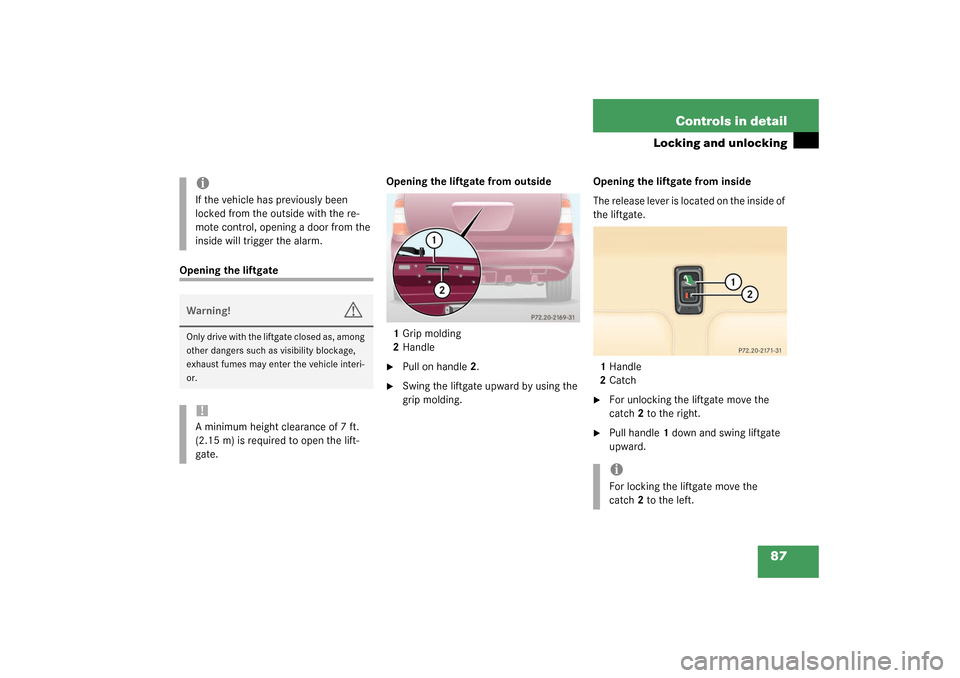

Opening the liftgateOpening the liftgate from outside
1Grip molding
2Handle

Pull on handle2.

Swing the liftgate upward by using the
grip molding.Opening the liftgate from inside
The release lever is located on the inside of
the liftgate.
1Handle
2Catch

For unlocking the liftgate move the
catch2 to the right.

Pull handle1 down and swing liftgate
upward.
iIf the vehicle has previously been
locked from the outside with the re-
mote control, opening a door from the
inside will trigger the alarm. Warning!
G
Only drive with the liftgate closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle interi-
or.!A minimum height clearance of 7 ft.
(2.15 m) is required to open the lift-
gate.
iFor locking the liftgate move the
catch2 to the left.

88 Controls in detailLocking and unlocking

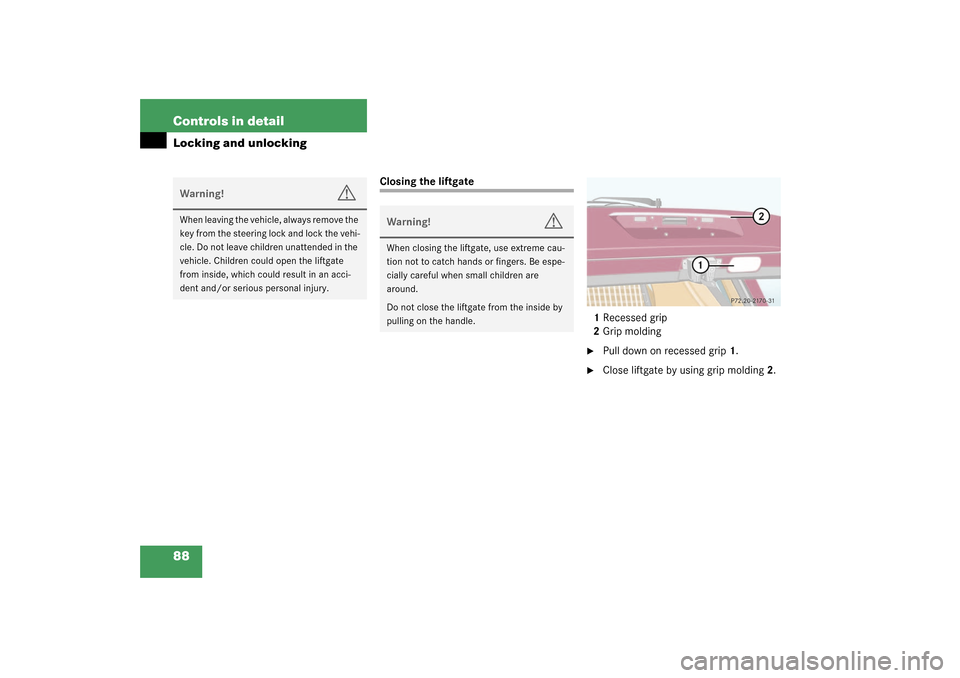

Closing the liftgate
1Recessed grip
2Grip molding

Pull down on recessed grip1.

Close liftgate by using grip molding2.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle. Children could open the liftgate
from inside, which could result in an acci-
dent and/or serious personal injury.
Warning!
G
When closing the liftgate, use extreme cau-
tion not to catch hands or fingers. Be espe-
cially careful when small children are
around.
Do not close the liftgate from the inside by
pulling on the handle.

89 Controls in detail
Locking and unlocking

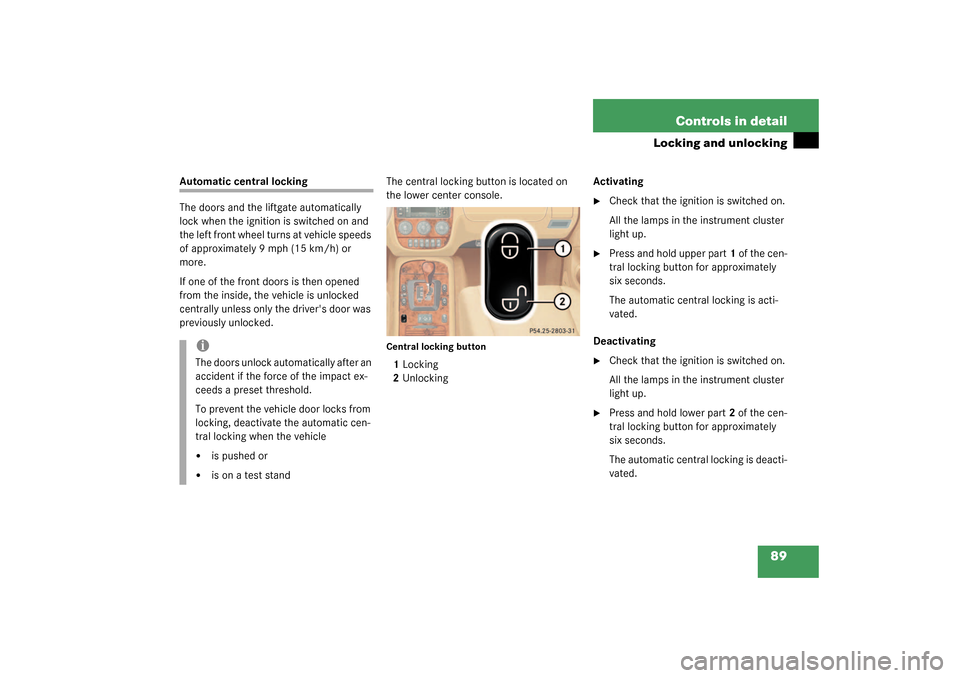

Automatic central locking
The doors and the liftgate automatically
lock when the ignition is switched on and
the left front wheel turns at vehicle speeds
of approximately 9 mph (15 km/h) or
more.
If one of the front doors is then opened
from the inside, the vehicle is unlocked
centrally unless only the driver's door was
previously unlocked. The central locking button is located on
the lower center console.
Central locking button1Locking
2UnlockingActivating

Check that the ignition is switched on.
All the lamps in the instrument cluster
light up.

Press and hold upper part1 of the cen-
tral locking button for approximately
six seconds.
The automatic central locking is acti-
vated.
Deactivating

Check that the ignition is switched on.
All the lamps in the instrument cluster
light up.

Press and hold lower part2 of the cen-
tral locking button for approximately
six seconds.
The automatic central locking is deacti-
vated.
iThe doors unlock automatically after an
accident if the force of the impact ex-
ceeds a preset threshold.
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking when the vehicle

is pushed or


is on a test stand

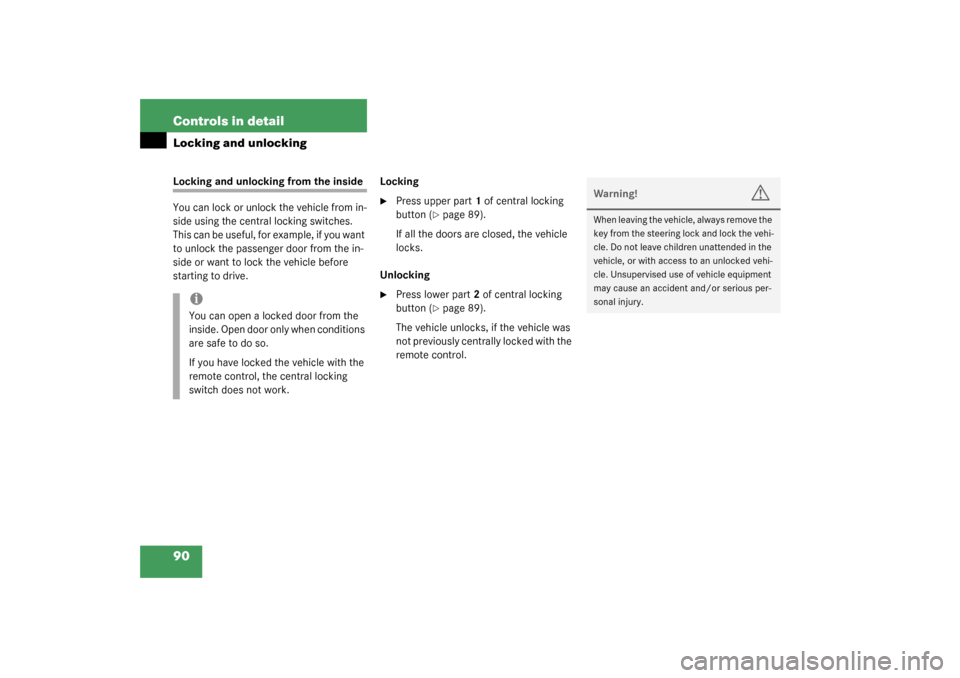

90 Controls in detailLocking and unlockingLocking and unlocking from the inside
You can lock or unlock the vehicle from in-
side using the central locking switches.
This can be useful, for example, if you want
to unlock the passenger door from the in-
side or want to lock the vehicle before
starting to drive.Locking

Press upper part1 of central locking
button (
page 89).
If all the doors are closed, the vehicle
locks.
Unlocking

Press lower part2 of central locking
button (
page 89).
The vehicle unlocks, if the vehicle was
not previously centrally locked with the
remote control.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
If you have locked the vehicle with the
remote control, the central locking
switch does not work.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and/or serious per-
sonal injury.
