MERCEDES-BENZ ML350 2003 W163 Owner's Manual

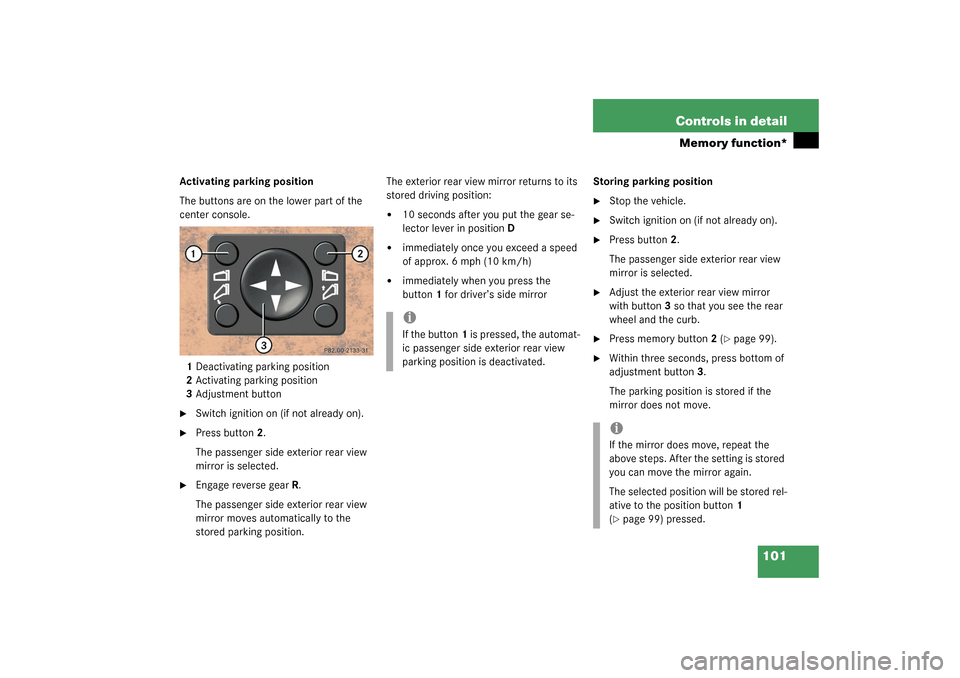

101 Controls in detail
Memory function*
Activating parking position
The buttons are on the lower part of the
center console.
1Deactivating parking position
2Activating parking position
3Adjustment button
Switch ignition on (if not already on).

Press button2.
The passenger side exterior rear view
mirror is selected.

Engage reverse gearR.
The passenger side exterior rear view
mirror moves automatically to the
stored parking position. The exterior rear view mirror returns to its
stored driving position:


10 seconds after you put the gear se-
lector lever in positionD


immediately once you exceed a speed
of approx. 6 mph (10 km/h)


immediately when you press the
button1 for driver’s side mirrorStoring parking position

Stop the vehicle.

Switch ignition on (if not already on).

Press button2.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button3 so that you see the rear
wheel and the curb.

Press memory button2 (
page 99).

Within three seconds, press bottom of
adjustment button3.
The parking position is stored if the
mirror does not move.
iIf the button1 is pressed, the automat-
ic passenger side exterior rear view
parking position is deactivated.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.
The selected position will be stored rel-
ative to the position button1
(page 99) pressed.

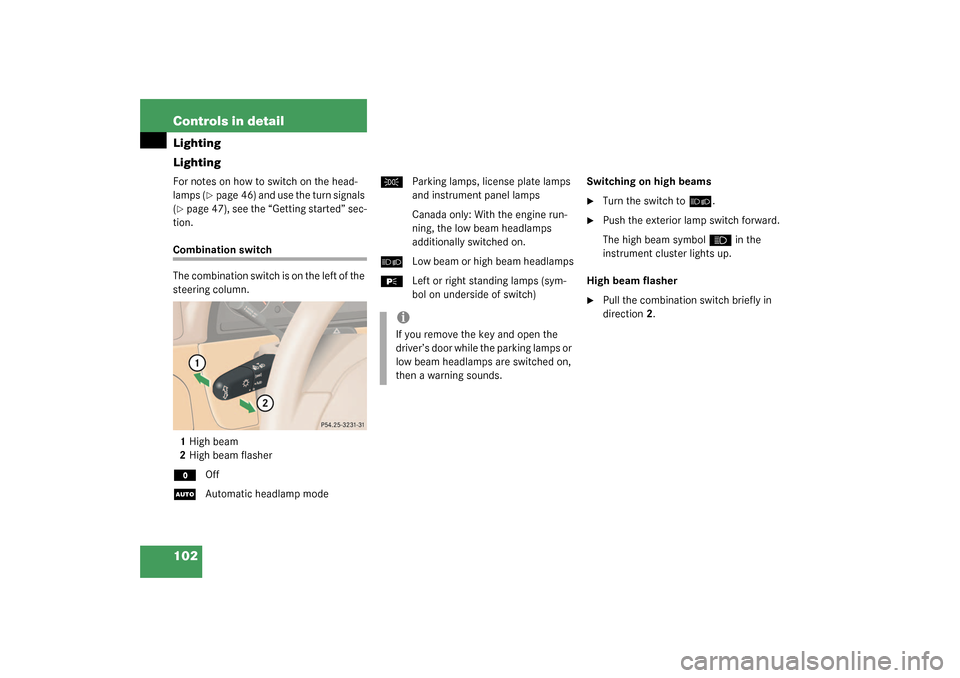

102 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps (
page 46) and use the turn signals
(
page 47), see the “Getting started” sec-
tion.
Combination switch
The combination switch is on the left of the
steering column.
1High beam
2High beam flasherM
Off
U
Automatic headlamp mode
C
Parking lamps, license plate lamps
and instrument panel lamps
Canada only: With the engine run-
ning, the low beam headlamps
additionally switched on.
õ
Low beam or high beam headlamps
ƒ
Left or right standing lamps (sym-
bol on underside of switch)Switching on high beams

Turn the switch to
õ
.

Push the exterior lamp switch forward.
The high beam symbol
A
in the
instrument cluster lights up.
High beam flasher

Pull the combination switch briefly in
direction2.
iIf you remove the key and open the
driver’s door while the parking lamps or
low beam headlamps are switched on,
then a warning sounds.

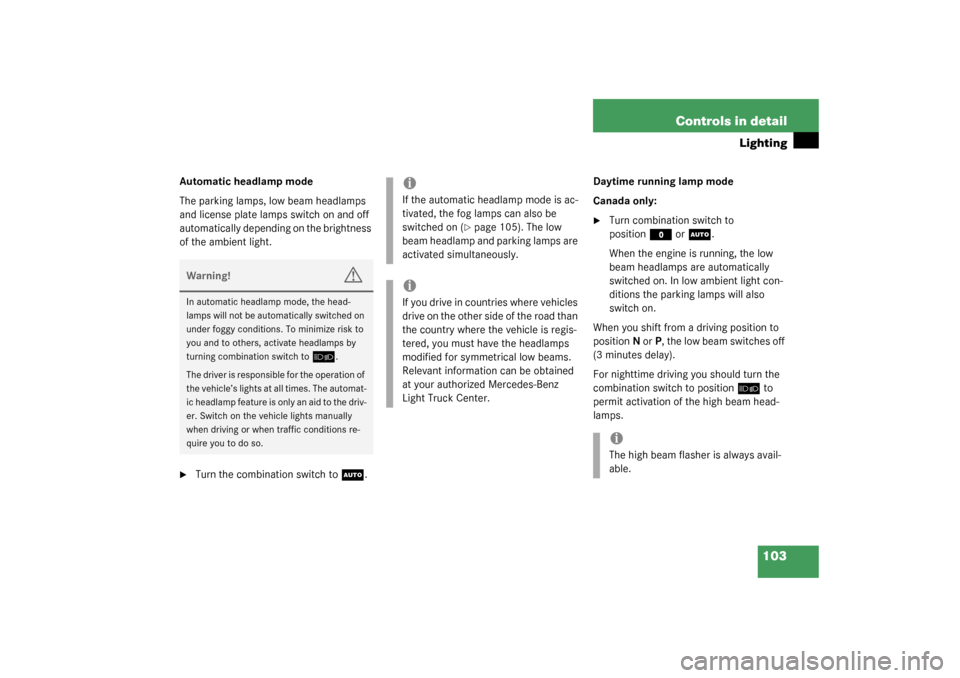

103 Controls in detail
Lighting
Automatic headlamp mode
The parking lamps, low beam headlamps
and license plate lamps switch on and off
automatically depending on the brightness
of the ambient light.
Turn the combination switch to
U
.Daytime running lamp mode
Canada only:

Turn combination switch to
position
M
or
U
.
When the engine is running, the low
beam headlamps are automatically
switched on. In low ambient light con-
ditions the parking lamps will also
switch on.
When you shift from a driving position to
positionN orP, the low beam switches off
(3 minutes delay).
For nighttime driving you should turn the
combination switch to position
õ
to
permit activation of the high beam head-
lamps.
Warning!
G
In automatic headlamp mode, the head-
lamps will not be automatically switched on
under foggy conditions. To minimize risk to
you and to others, activate headlamps by
turning combination switch to
õ
.
The driver is responsible for the operation of
the vehicle’s lights at all times. The automat-
ic headlamp feature is only an aid to the driv-
er. Switch on the vehicle lights manually
when driving or when traffic conditions re-
quire you to do so.
iIf the automatic headlamp mode is ac-
tivated, the fog lamps can also be
switched on (
page 105). The low
beam headlamp and parking lamps are
activated simultaneously.
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Light Truck Center.
iThe high beam flasher is always avail-
able.

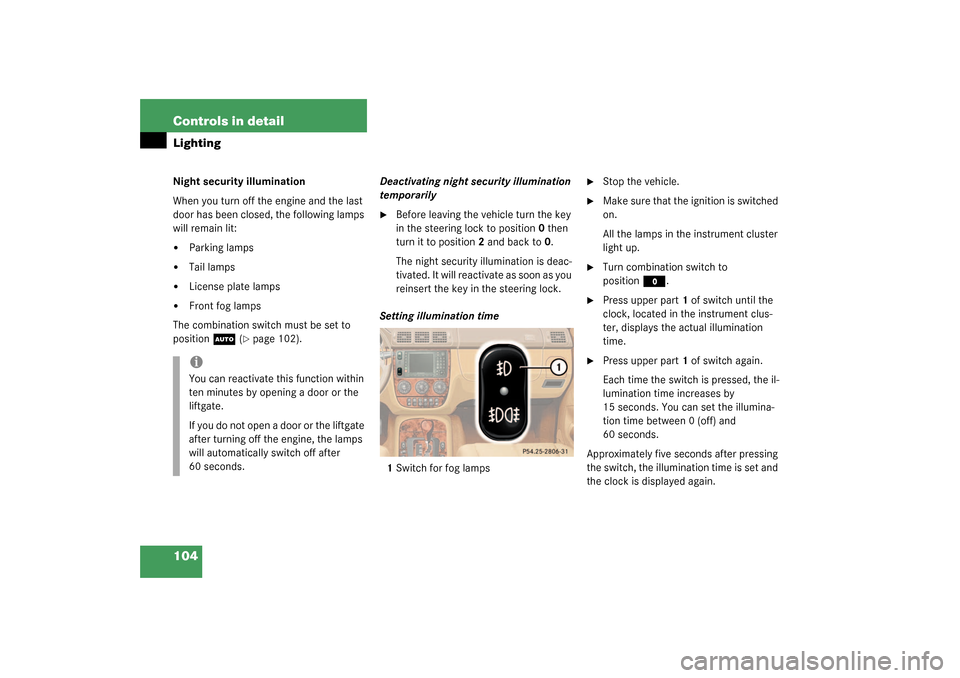

104 Controls in detailLightingNight security illumination
When you turn off the engine and the last
door has been closed, the following lamps
will remain lit:

Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The combination switch must be set to
position
U
(page 102).Deactivating night security illumination
temporarily

Before leaving the vehicle turn the key
in the steering lock to position0 then
turn it to position2 and back to0.
The night security illumination is deac-
tivated. It will reactivate as soon as you
reinsert the key in the steering lock.
Setting illumination time
1Switch for fog lamps

Stop the vehicle.

Make sure that the ignition is switched
on.
All the lamps in the instrument cluster
light up.

Turn combination switch to
position
M
.

Press upper part1 of switch until the
clock, located in the instrument clus-
ter, displays the actual illumination
time.

Press upper part1 of switch again.
Each time the switch is pressed, the il-
lumination time increases by
15 seconds. You can set the illumina-
tion time between 0 (off) and
60 seconds.
Approximately five seconds after pressing
the switch, the illumination time is set and
the clock is displayed again.
iYou can reactivate this function within
ten minutes by opening a door or the
liftgate.
If you do not open a door or the liftgate
after turning off the engine, the lamps
will automatically switch off after
60 seconds.

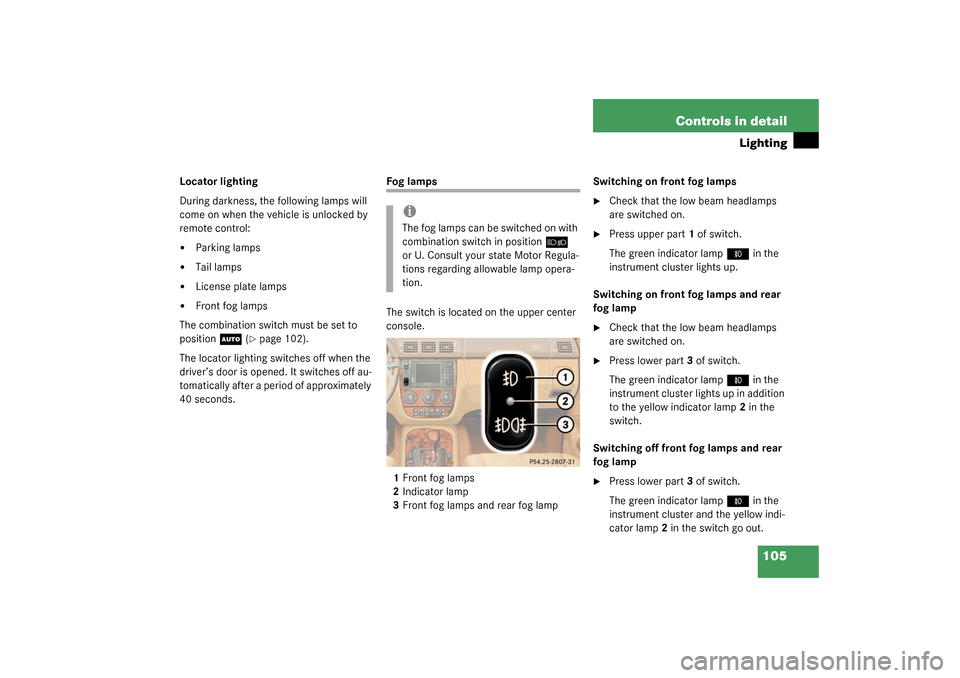

105 Controls in detail
Lighting
Locator lighting
During darkness, the following lamps will
come on when the vehicle is unlocked by
remote control:

Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The combination switch must be set to
position
U
(page 102).
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.
Fog lamps
The switch is located on the upper center
console.
1Front fog lamps
2Indicator lamp
3Front fog lamps and rear fog lampSwitching on front fog lamps

Check that the low beam headlamps
are switched on.

Press upper part1 of switch.
The green indicator lamp
‡
in the
instrument cluster lights up.
Switching on front fog lamps and rear
fog lamp

Check that the low beam headlamps
are switched on.

Press lower part3 of switch.
The green indicator lamp
‡
in the
instrument cluster lights up in addition
to the yellow indicator lamp2 in the
switch.
Switching off front fog lamps and rear
fog lamp

Press lower part3 of switch.
The green indicator lamp
‡
in the
instrument cluster and the yellow indi-
cator lamp2 in the switch go out.
iThe fog lamps can be switched on with
combination switch in position
õ

or U. Consult your state Motor Regula-
tions regarding allowable lamp opera-
tion.

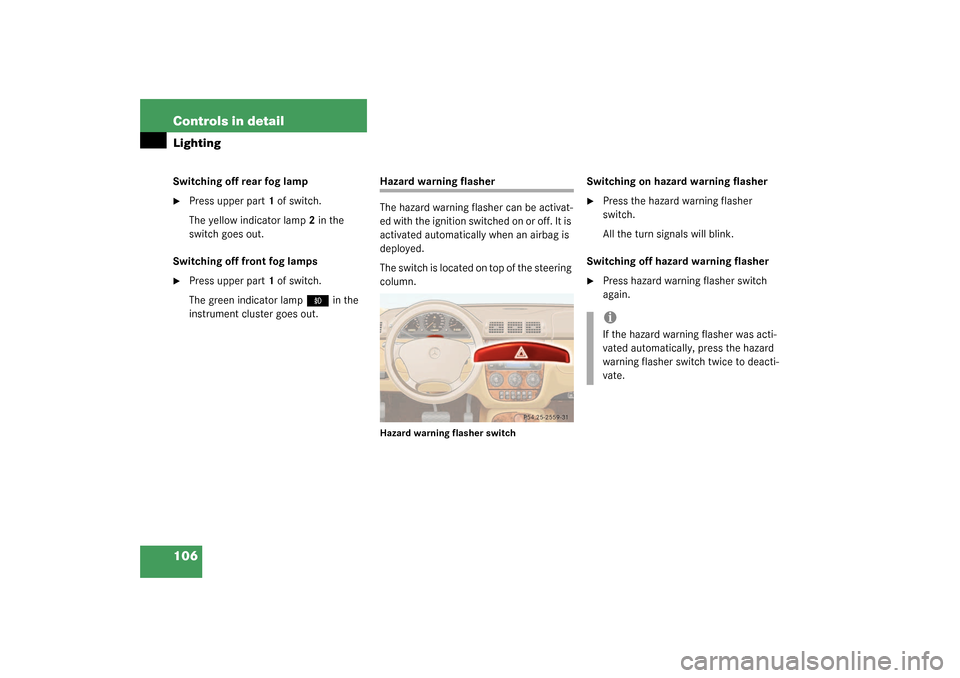

106 Controls in detailLightingSwitching off rear fog lamp
Press upper part1 of switch.
The yellow indicator lamp2 in the
switch goes out.
Switching off front fog lamps

Press upper part1 of switch.
The green indicator lamp
‡
in the
instrument cluster goes out.
Hazard warning flasher
The hazard warning flasher can be activat-
ed with the ignition switched on or off. It is
activated automatically when an airbag is
deployed.
The switch is located on top of the steering
column.Hazard warning flasher switch
Switching on hazard warning flasher
Press the hazard warning flasher
switch.
All the turn signals will blink.
Switching off hazard warning flasher

Press hazard warning flasher switch
again.iIf the hazard warning flasher was acti-
vated automatically, press the hazard
warning flasher switch twice to deacti-
vate.

107 Controls in detail
Lighting
Interior lighting
1Left front interior lamp
2Right front interior lamp
3Automatic function off
4Automatic function on
5Rear interior lightingAutomatic control
Activating

Bring the rocker switch in center
position4.
Interior lamps (except cargo compart-
ment lamp) are switched on in dark-
ness when you

unlock the vehicle


open a door


remove the key from the steering
lock
In addition, the entry/exit lamps in the
d oor tra ys wi ll com e on when y ou ope n
a door.
When all doors are closed and no key is
inserted in the steering lock, the interi-
or lamps are switched off after a brief
delay.Deactivating

Press lower part3 of rocker switch .
The interior lighting and the entry/exit
lamps remain switched off in darkness,
even when you

unlock the vehicle


open a door


remove the key from the steering
lock
iIf the door remains open, the interior
lamps (except cargo compartment
lamp) switch off automatically after ap-
proximately 30 minutes.

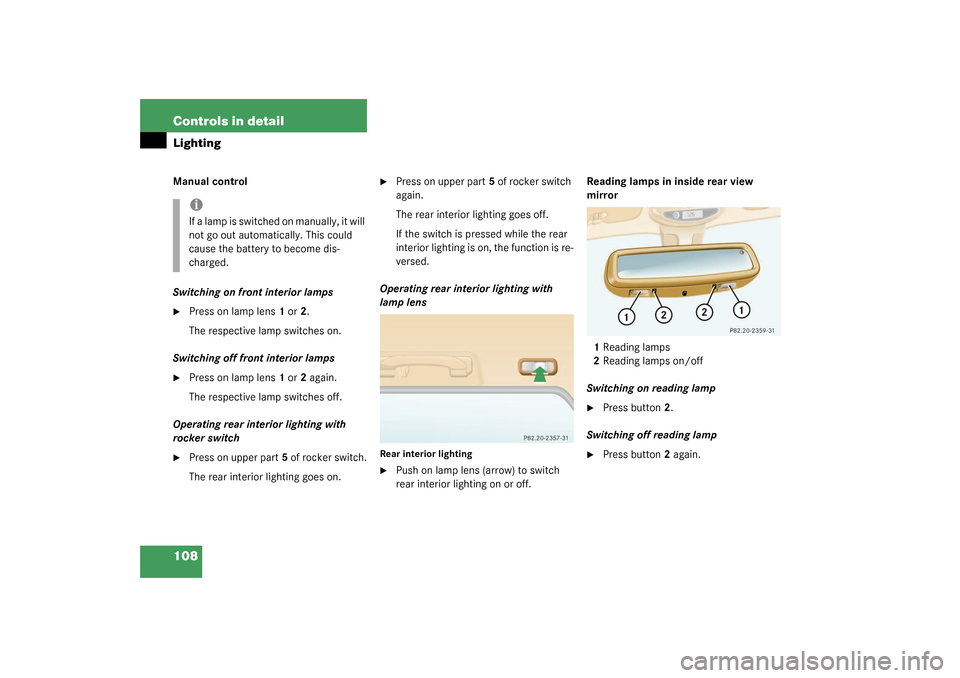

108 Controls in detailLightingManual control
Switching on front interior lamps
Press on lamp lens1 or2.
The respective lamp switches on.
Switching off front interior lamps

Press on lamp lens1 or2 again.
The respective lamp switches off.
Operating rear interior lighting with
rocker switch

Press on upper part5 of rocker switch.
The rear interior lighting goes on.

Press on upper part5 of rocker switch
again.
The rear interior lighting goes off.
If the switch is pressed while the rear
interior lighting is on, the function is re-
versed.
Operating rear interior lighting with
lamp lens
Rear interior lighting
Push on lamp lens (arrow) to switch
rear interior lighting on or off.Reading lamps in inside rear view
mirror
1Reading lamps
2Reading lamps on/off
Switching on reading lamp

Press button2.
Switching off reading lamp

Press button2 again.
iIf a lamp is switched on manually, it will
not go out automatically. This could
cause the battery to become dis-
charged.

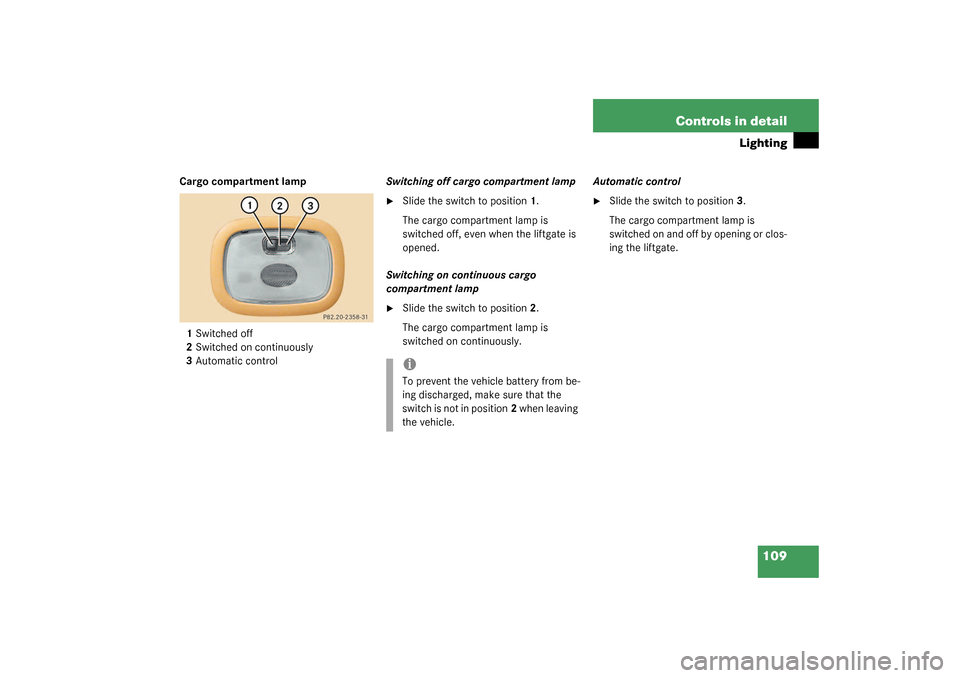

109 Controls in detail
Lighting
Cargo compartment lamp
1Switched off
2Switched on continuously
3Automatic controlSwitching off cargo compartment lamp

Slide the switch to position1.
The cargo compartment lamp is
switched off, even when the liftgate is
opened.
Switching on continuous cargo
compartment lamp

Slide the switch to position2.
The cargo compartment lamp is
switched on continuously.Automatic control

Slide the switch to position3.
The cargo compartment lamp is
switched on and off by opening or clos-
ing the liftgate.
iTo prevent the vehicle battery from be-
ing discharged, make sure that the
switch is not in position2 when leaving
the vehicle.

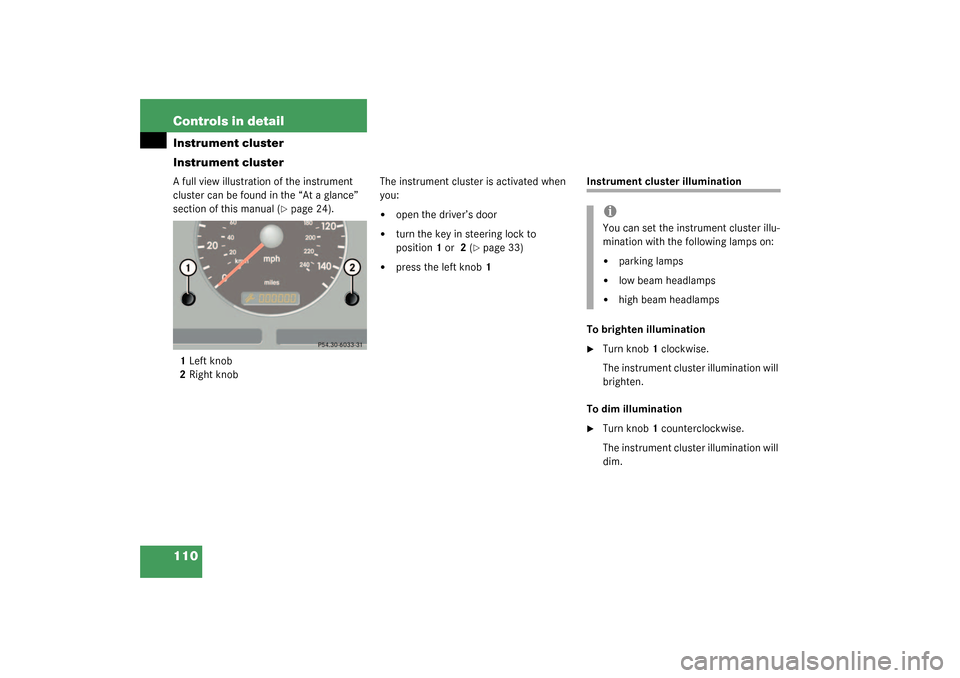

110 Controls in detailInstrument cluster
Instrument clusterA full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 24).
1Left knob
2Right knobThe instrument cluster is activated when
you:


open the driver’s door


turn the key in steering lock to
position1 or 2 (
page 33)


press the left knob1
Instrument cluster illumination
To brighten illumination
Turn knob1 clockwise.
The instrument cluster illumination will
brighten.
To dim illumination

Turn knob1 counterclockwise.
The instrument cluster illumination will
dim.iYou can set the instrument cluster illu-
mination with the following lamps on:

parking lamps


low beam headlamps


high beam headlamps
