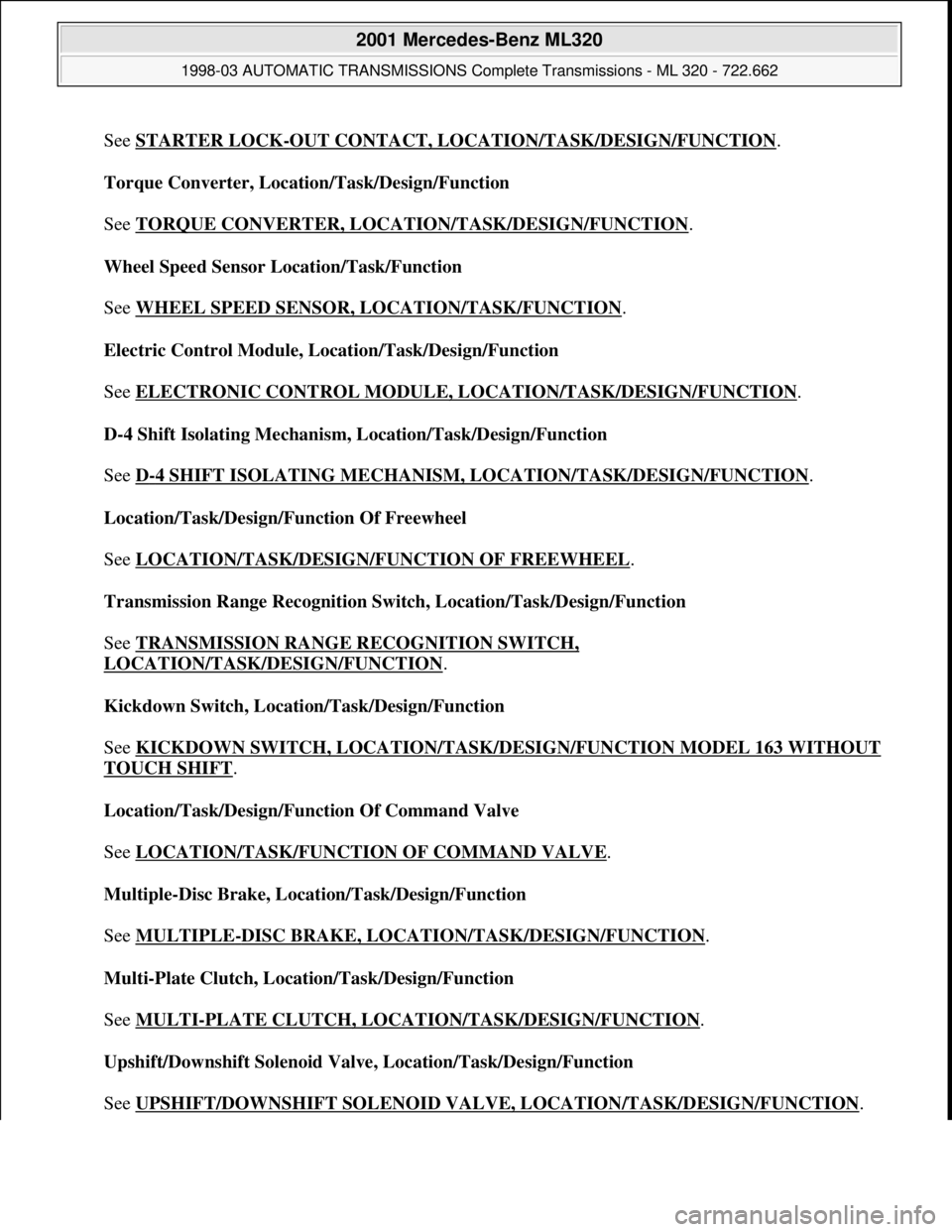

MERCEDES-BENZ ML430 1997 Complete Repair Manual

See STARTER LOCK-OUT CONTACT, LOCATION/TASK/DESIGN/FUNCTION.
Torque Converter, Location/Task/Design/Function

See TORQUE CONVERTER, LOCATION/TASK/DESIGN/FUNCTION
.
Wheel Speed Sensor Location/Task/Function

See WHEEL SPEED SENSOR, LOCATION/TASK/FUNCTION
.
Electric Control Module, Location/Task/Design/Function

See ELECTRONIC CONTROL MODULE, LOCATION/TASK/DESIGN/FUNCTION
.
D-4 Shift Isolating Mechanism, Location/Task/Design/Function

See D
-4 SHIFT ISOLATING MECHANISM, LOCATION/TASK/DESIGN/FUNCTION.
Location/Task/Design/Function Of Freewheel

See LOCATION/TASK/DESIGN/FUNCTION OF FREEWHEEL
.
Transmission Range Recognition Switch, Location/Task/Design/Function

See TRANSMISSION RANGE RECOGNITION SWITCH,
LOCATION/TASK/DESIGN/FUNCTION.
Kickdown Switch, Location/Task/Design/Function

See KICKDOWN SWITCH, LOCATION/TASK/DESIGN/FUNCTION MODEL 163 WITHOUT
TOUCH SHIFT.
Location/Task/Design/Function Of Command Valve

See LOCATION/TASK/FUNCTION OF COMMAND VALVE
.
Multiple-Disc Brake, Location/Task/Design/Function

See MULTIPLE
-DISC BRAKE, LOCATION/TASK/DESIGN/FUNCTION.
Multi-Plate Clutch, Location/Task/Design/Function

See MULTI
-PLATE CLUTCH, LOCATION/TASK/DESIGN/FUNCTION.
Upshift/Downshift Solenoid Valve, Location/Task/Design/Function

See UPSHIFT/DOWNSHIFT SOLENOID VALVE, LOCATION/TASK/DESIGN/FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 42 © 2006 Mitchell Repair Information Company, LLC.

Floor Shift, Location/Task/Design/Function

See FLOOR SHIFT, LOCATION/TASK/DESIGN/FUNCTION
.
Location/Task/Design/Function Of Oil Pump

See LOCATION/TASK/DESIGN/FUNCTION OF OIL PUMP
.
Parking Lock, Location/Task/Design/Function

See PARK PAWL, LOCATION/TASK/DESIGN/FUNCTION
.
Planetary Gear Set, Location/Task/Design/Function

See PLANETARY GEAR SET, LOCATION/TASK/DESIGN/FUNCTION
.
Position Sensor, Location/Task/Function

See POSITION SENSOR, LOCATION/TASK/FUNCTION
.
Location/Task/Design/Function Of PWM Solenoid Valve, Torque Converter Lockup Clutch

See LOCATION/TASK/DESIGN/FUNCTION OF PWM SOLENOID VALVE, TORQUE
CONVERTER LOCKUP CLUTCH.
Modulating Pressure Regulating Solenoid Valve, Location/Task/Design/Function

See MODULATING PRESSURE REGULATING SOLENOID VALVE,
LOCATION/TASK/DESIGN/FUNCTION.
Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function

See SHIFT PRESSURE REGULATING SOLENOID VALVE,
LOCATION/TASK/DESIGN/FUNCTION.
Working Pressure Regulating Valve, Location/Task/Function

See WORKING PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.
Regulating Valve Pressure Regulating Valve

See REGULATING VALVE PRESSURE REGULATING VALVE,
LOCATION/TASK/FUNCTION.
Shift Pressure Regulating Valve, Location/Task/Function

See SHIFT PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 43 © 2006 Mitchell Repair Information Company, LLC.

Shift Valve Pressure Regulating Valve, Location/Task/Function

See SHIFT VALVE PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.
Lubrication Pressure Regulating Valve, Location/Task/Function

See LUBRICATION PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.
Overlap Regulating Valve, Location/Task/Function

See OVERLAP REGULATING VALVE, LOCATION/TASK/FUNCTION
.
Torque Converter Lockup Clutch Regulating Valve, Location/Task/Function

See TORQUE CONVERTER LOCKUP CLUTCH REGULATING VALVE,
LOCATION/TASK/FUNCTION.
Location/Task/Design Function Of R/P Lock

See R/P LOCK, LOCATION/TASK/DESIGN/FUNCTION
.
Reverse Lamp Switch, Location/Task/Function

See REVERSE LAMP SWITCH, LOCATION/TASK/FUNCTION
.
Shift Detent Mechanism, Location/Task/Design/Function

See SHIFT DETENT MECHANISM, LOCATION/TASK/DESIGN/FUNCTION
.
Holding Pressure Shift Valve, Location/Task/Function

See HOLDING PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION
.
Shift Pressure Shift Valve, Location/Task/Function

SeeSHIFT PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION
.
Float, Location/Design/Function

See SHIFT PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.
ETC Control Module, Location/Task

See ETC CONTROL UNIT, LOCATION/TASK
.
Temperature Sensor, Location/Task/Design/Function


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 44 © 2006 Mitchell Repair Information Company, LLC.

See TEMPERATURE SENSOR, LOCATION/TASK/DESIGN/FUNCTION.
Selector Valve, Location/Task

See SELECTOR VALVE, LOCATION/TASK
.
Torque Converter Lock-Up Clutch, Location/Task/Design/Function

See TORQUE CONVERTER LOCK
-UP CLUTCH, LOCATION/TASK/DESIGN/FUNCTION.
Automatic Transmission, Contents, Function Description

See AUTOMATIC TRANSMISSION, CONTENTS, FUNCTION DESCRIPTION
.
D-4 Shift Isolating Mechanism, Location/Task/Design/Function
NOTE: Transmission Without Touch Shift. 722.6 In Model 163

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 45 © 2006 Mitchell Repair Information Company, LLC.

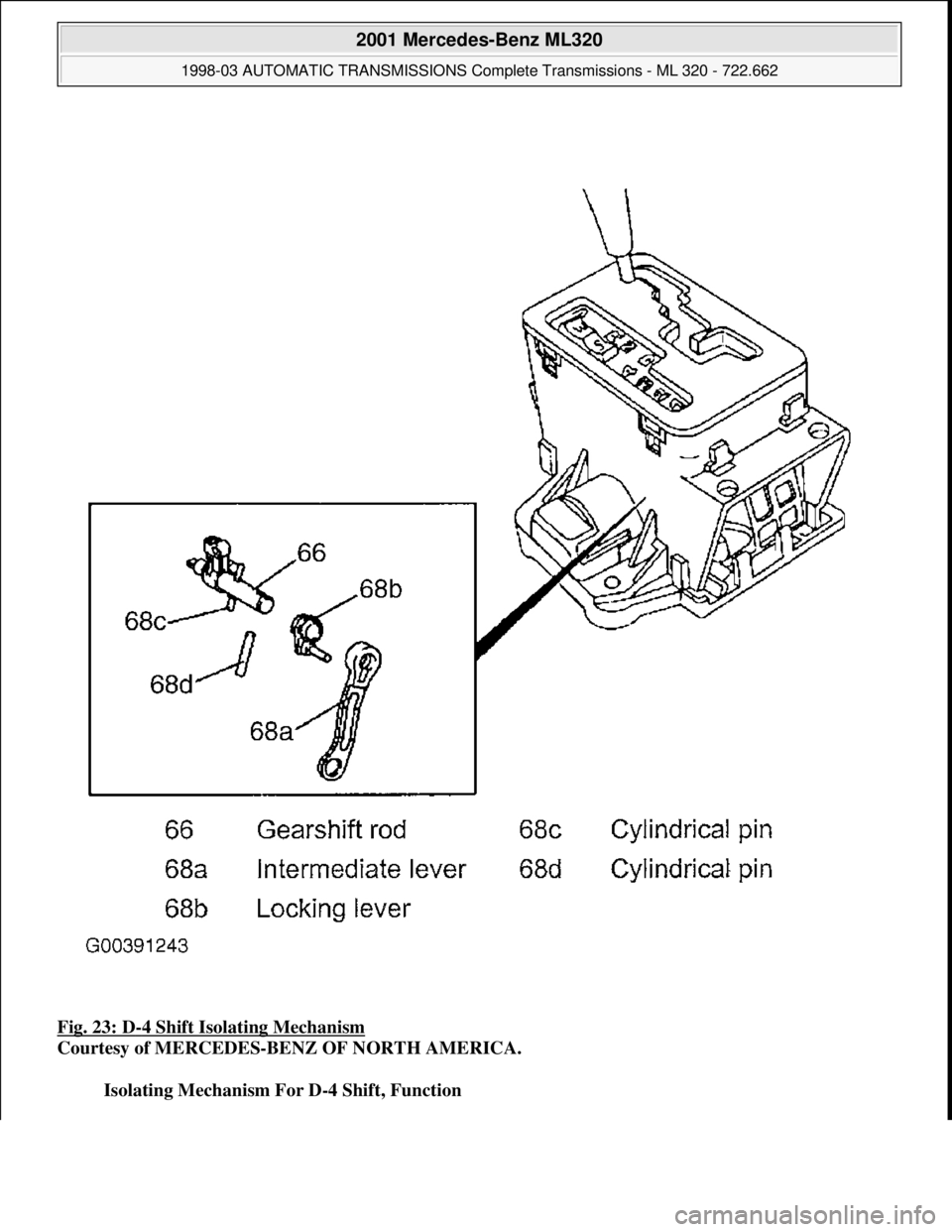

Fig. 23: D-4 Shift Isolating Mechanism
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Isolating Mechanism For D-4 Shift, Function


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 46 © 2006 Mitchell Repair Information Company, LLC.

The D-4 shift isolating mechanism is integrated into the floor shift. See Fig. 23.
Isolating Mechanism For D-4 Shift, Task

Isolates the shift rod to the transmission from the floor shift.
Isolating Mechanism For D-4 Shift, Design

The isolating mechanism for D-4 shift consists of:
A Recess In The Intermediate Lever (68A)
The Lock Lever (68B)
Two Straight Pins (68C, 68D)
Isolating Mechanism For D-4 Shift, Function

See ISOLATING MECHANISM FOR D
-4 SHIFT, FUNCTION.
Isolating Mechanism For D-4 Shift, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 47 © 2006 Mitchell Repair Information Company, LLC.

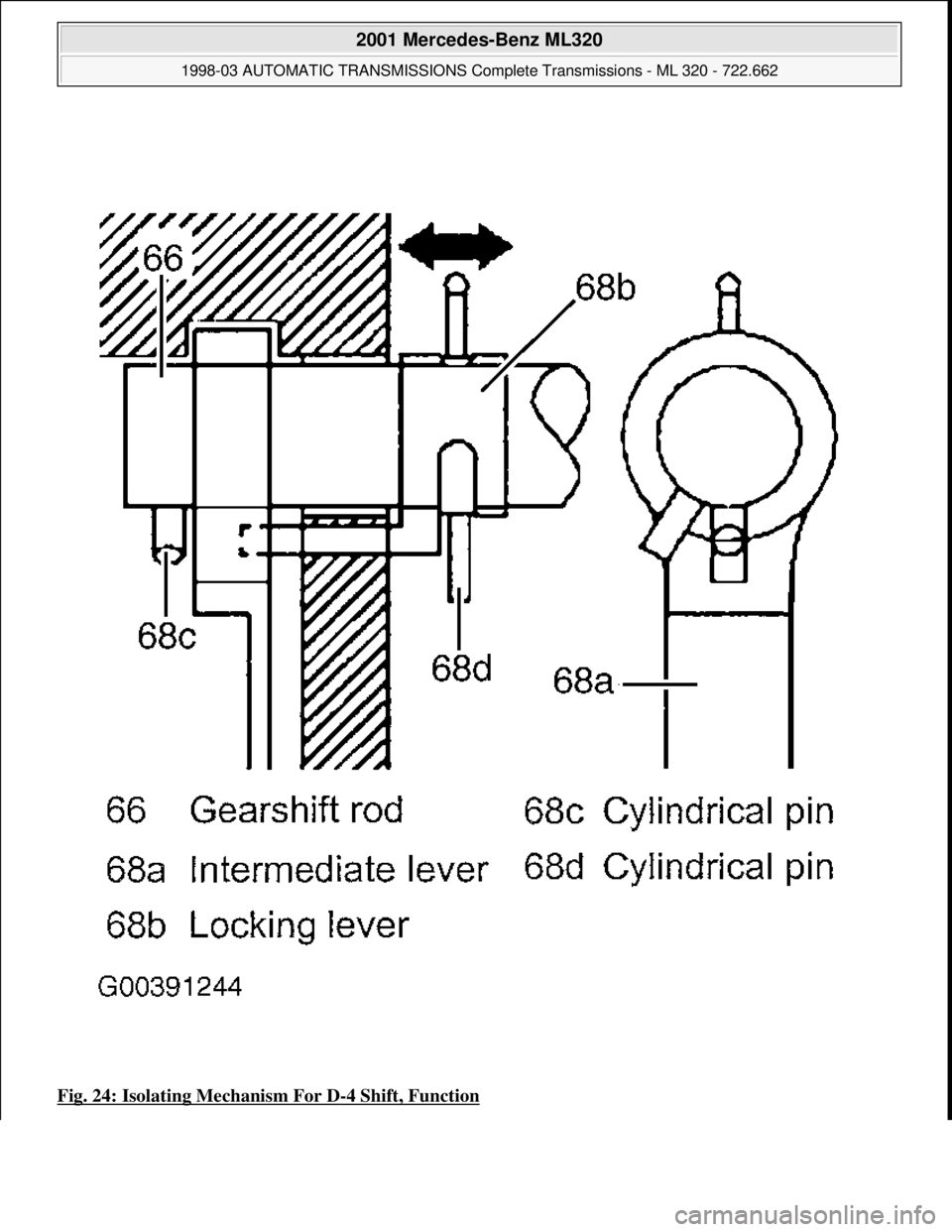

Fig. 24: Isolating Mechanism For D-4 Shift, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 48 © 2006 Mitchell Repair Information Company, LLC.

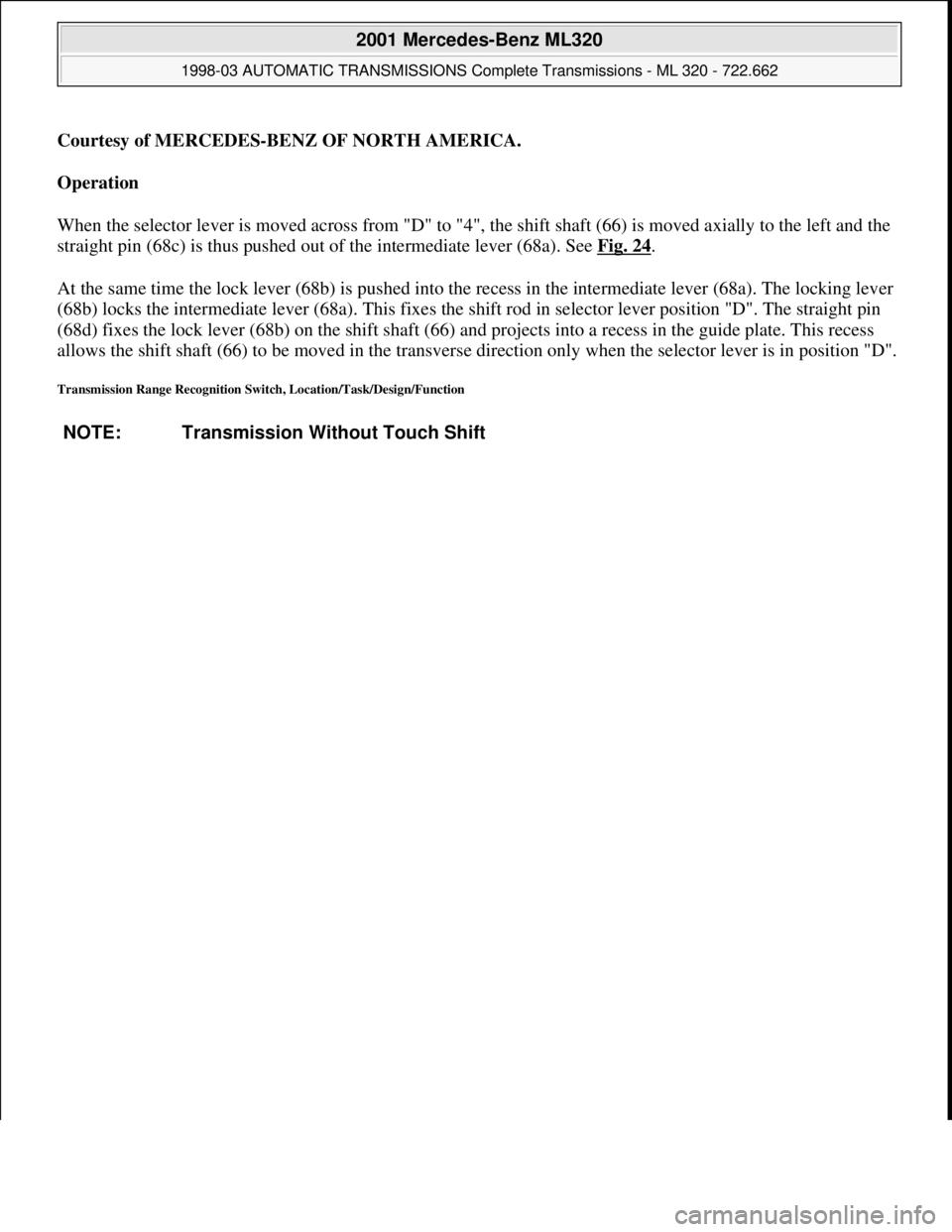

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
When the selector lever is moved across from "D" to "4", the shift shaft (66) is moved axially to the left and the
straight pin (68c) is thus pushed out of the intermediate lever (68a). See Fig. 24
.
At the same time the lock lever (68b) is pushed into the recess in the intermediate lever (68a). The locking lever
(68b) locks the intermediate lever (68a). This fixes the shift rod in selector lever position "D". The straight pin
(68d) fixes the lock lever (68b) on the shift shaft (66) and projects into a recess in the guide plate. This recess
allows the shift shaft (66) to be moved in the transverse direction only when the selector lever is in position "D".
Transmission Range Recognition Switch, Location/Task/Design/Function
NOTE: Transmission Without Touch Shift

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 49 © 2006 Mitchell Repair Information Company, LLC.

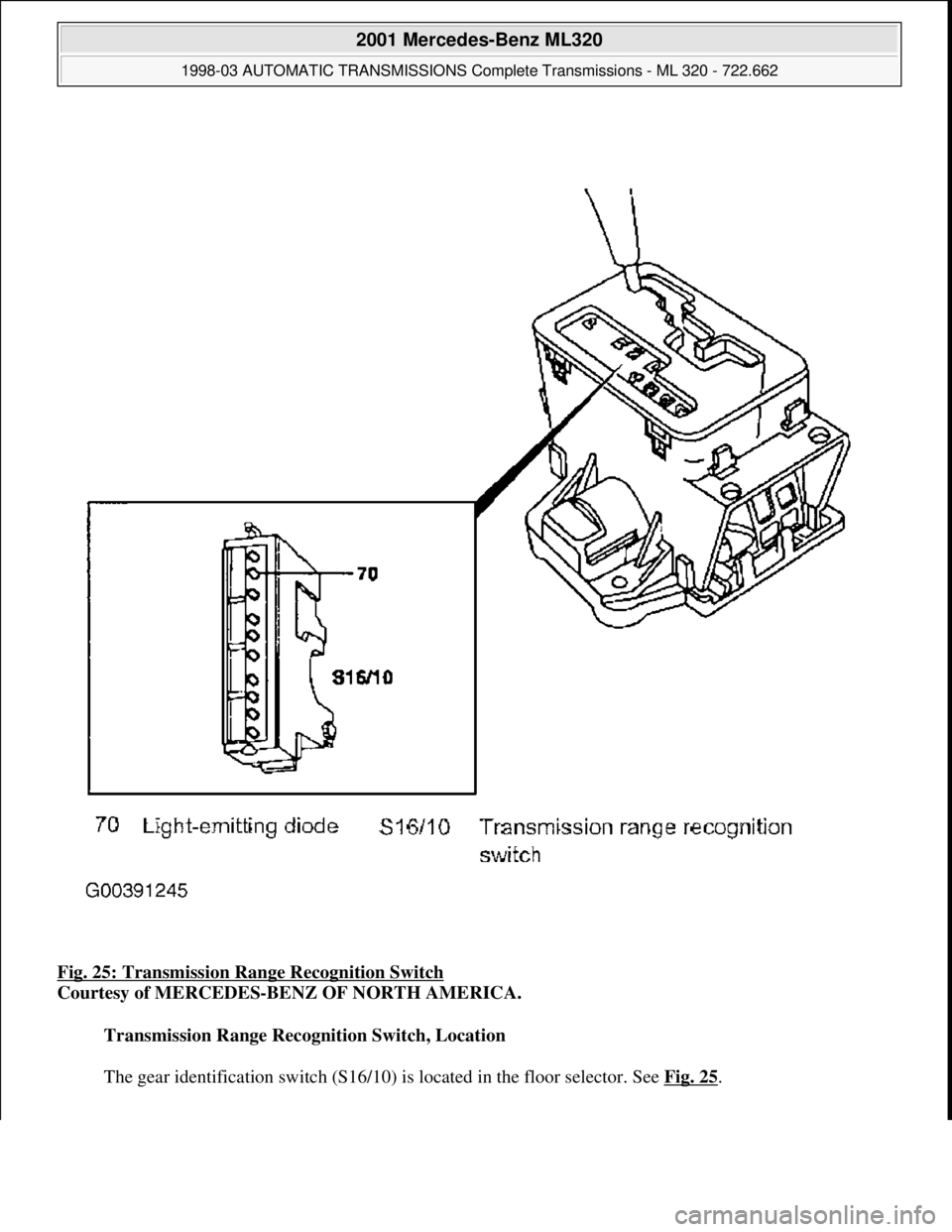

Fig. 25: Transmission Ra nge Recognition Switch
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Transmission Range Recognition Switch, Location

The
gear identification switch (S16/10) is located in the floor selector. See Fig. 25.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 50 © 2006 Mitchell Repair Information Company, LLC.

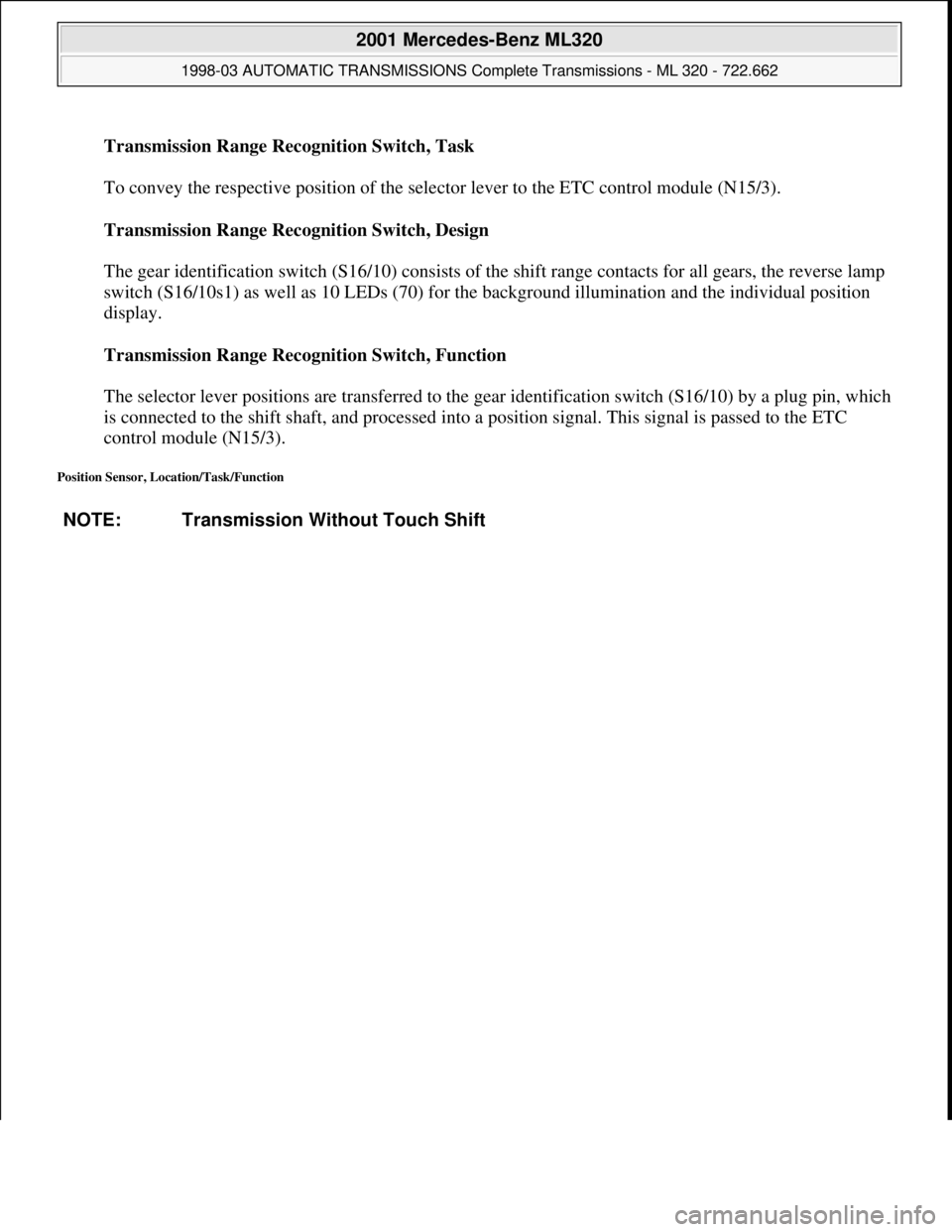

Transmission Range Recognition Switch, Task

To convey the respective position of the selector lever to the ETC control module (N15/3).
Transmission Range Recognition Switch, Design

The gear identification switch (S16/10) consists of the shift range contacts for all gears, the reverse lamp
switch (S16/10s1) as well as 10 LEDs (70) for the background illumination and the individual position
display.
Transmission Range Recognition Switch, Function

The selector lever positions are transferred to the gear identification switch (S16/10) by a plug pin, which
is connected to the shift shaft, and processed into a position signal. This signal is passed to the ETC
control module (N15/3).
Position Sensor, Location/Task/Function
NOTE: Transmission Without Touch Shift

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 51 © 2006 Mitchell Repair Information Company, LLC.
