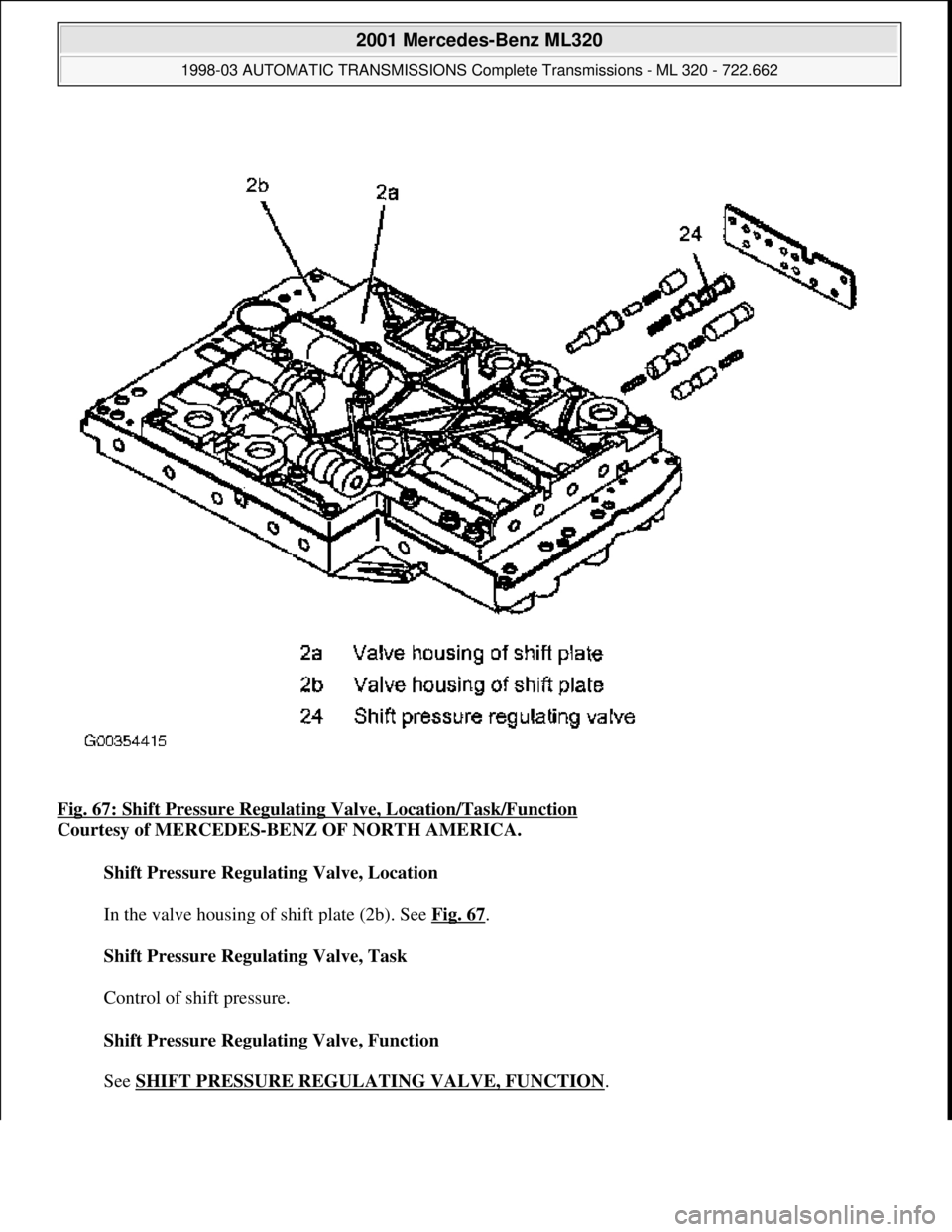

Fig. 67: Shift Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shift Pressure Regulating Valve, Location

In the valve housing of shift plate (2b). See Fig. 67
.
Shift Pressure Regulating Valve, Task

Control of shift pressure.
Shift Pressure Regulating Valve, Function

See SHIFT PRESSURE REGULA TING VALVE, FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 122 © 2006 Mitchell Repair Information Company, LLC.

Shift Pressure Regulating Valve, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 123 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 124 © 2006 Mitchell Repair Information Company, LLC.

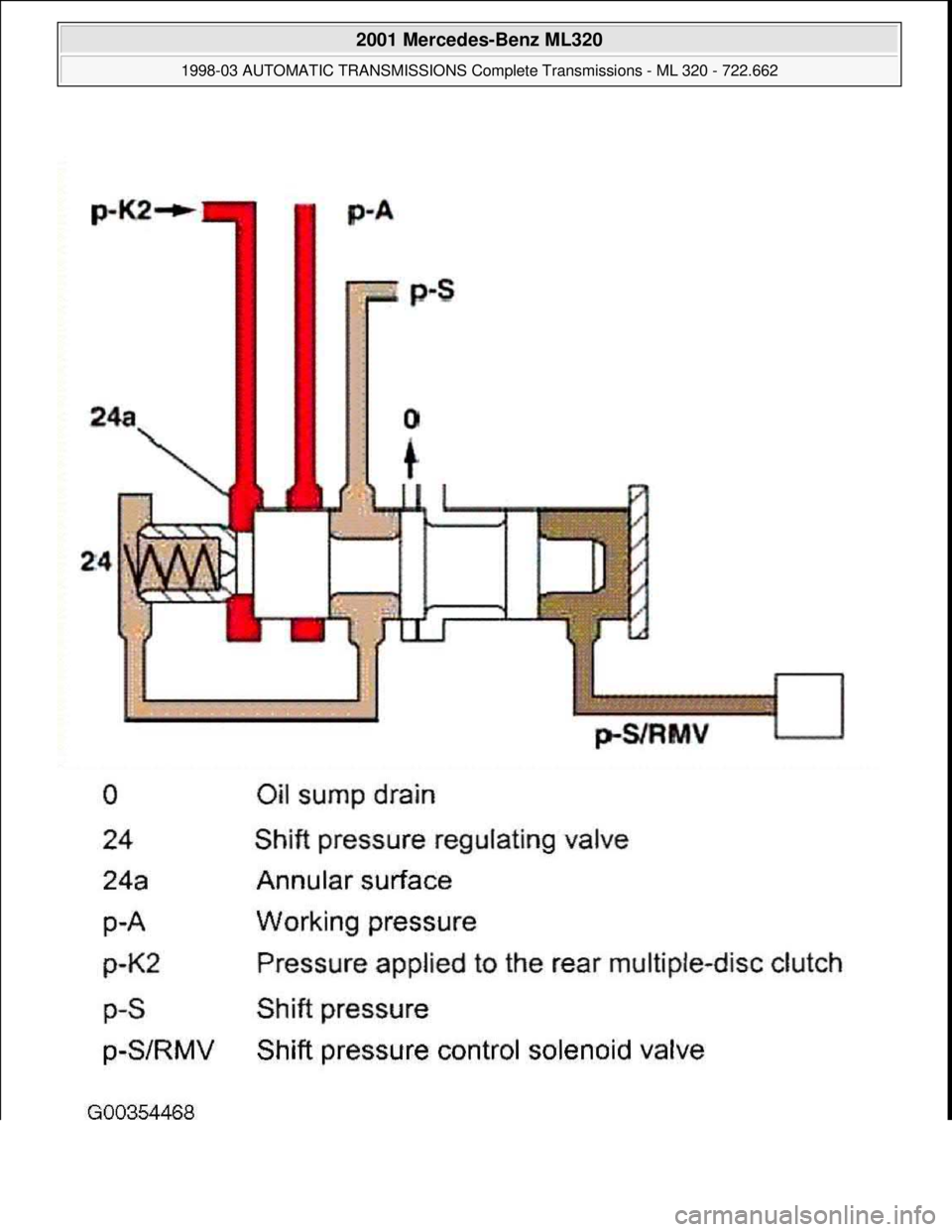

Fig. 68: Shift Pressure Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

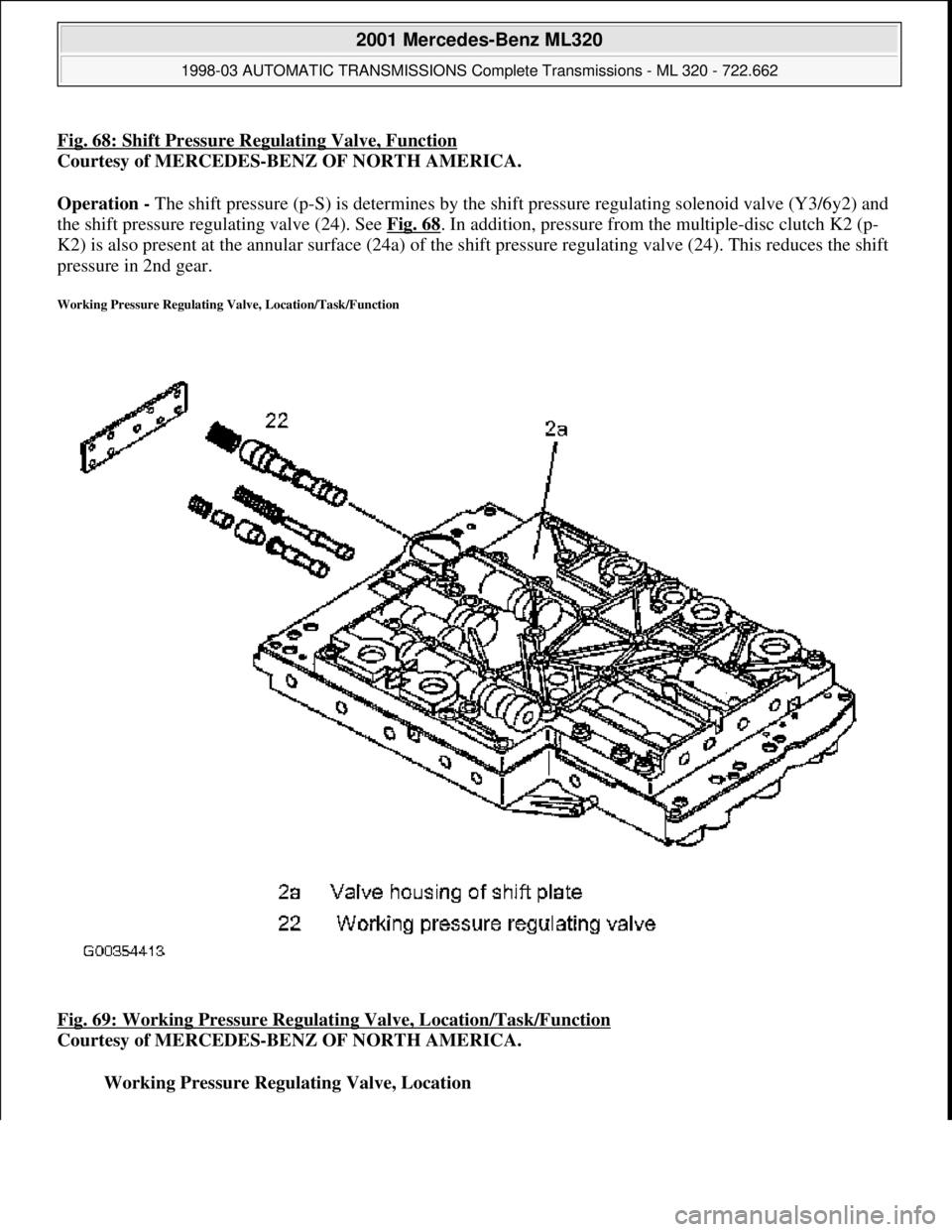

Operation - The shift pressure (p-S) is determines by the sh ift pressure regulating solenoid valve (Y3/6y2) and
the shift pressure regulating valve (24). See Fig. 68
. In addition, pressure from the multiple-disc clutch K2 (p-
K2) is also present at the annular surface (24a) of the sh ift pressure regulating valve (24). This reduces the shift
pressure in 2nd gear.
Working Pressure Regulating Valve, Location/Task/Function
Fig. 69: Working Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Working Pressure Regulating Valve, Location


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 125 © 2006 Mitchell Repair Information Company, LLC.

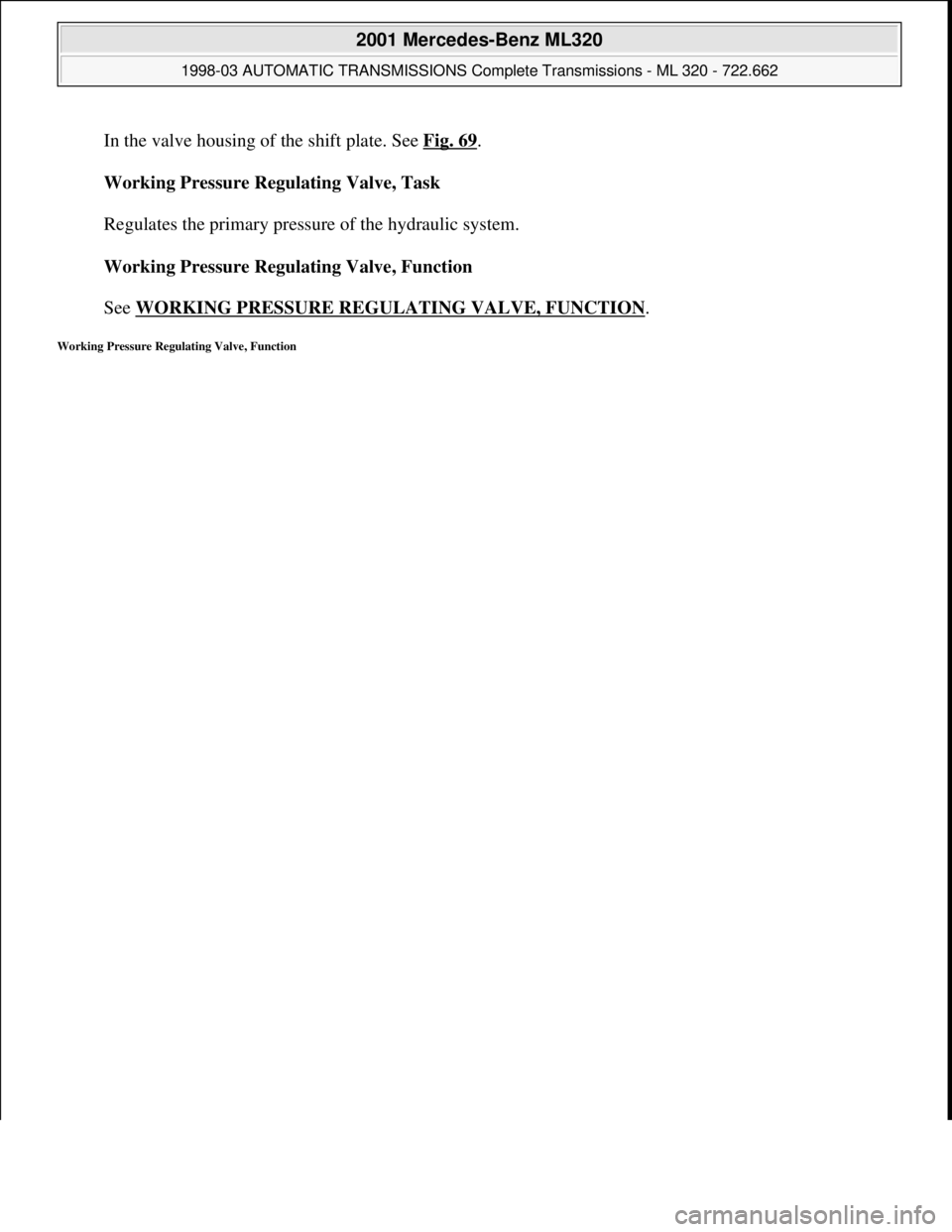

In the valve housing of the shift plate. See Fig. 69.
Working Pressure Regulating Valve, Task

Regulates the primary pressure of the hydraulic system.
Working Pressure Regulating Valve, Function

See WORKING PRESSURE REGULATING VALVE, FUNCTION
.
Working Pressure Regulating Valve, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 126 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 127 © 2006 Mitchell Repair Information Company, LLC.

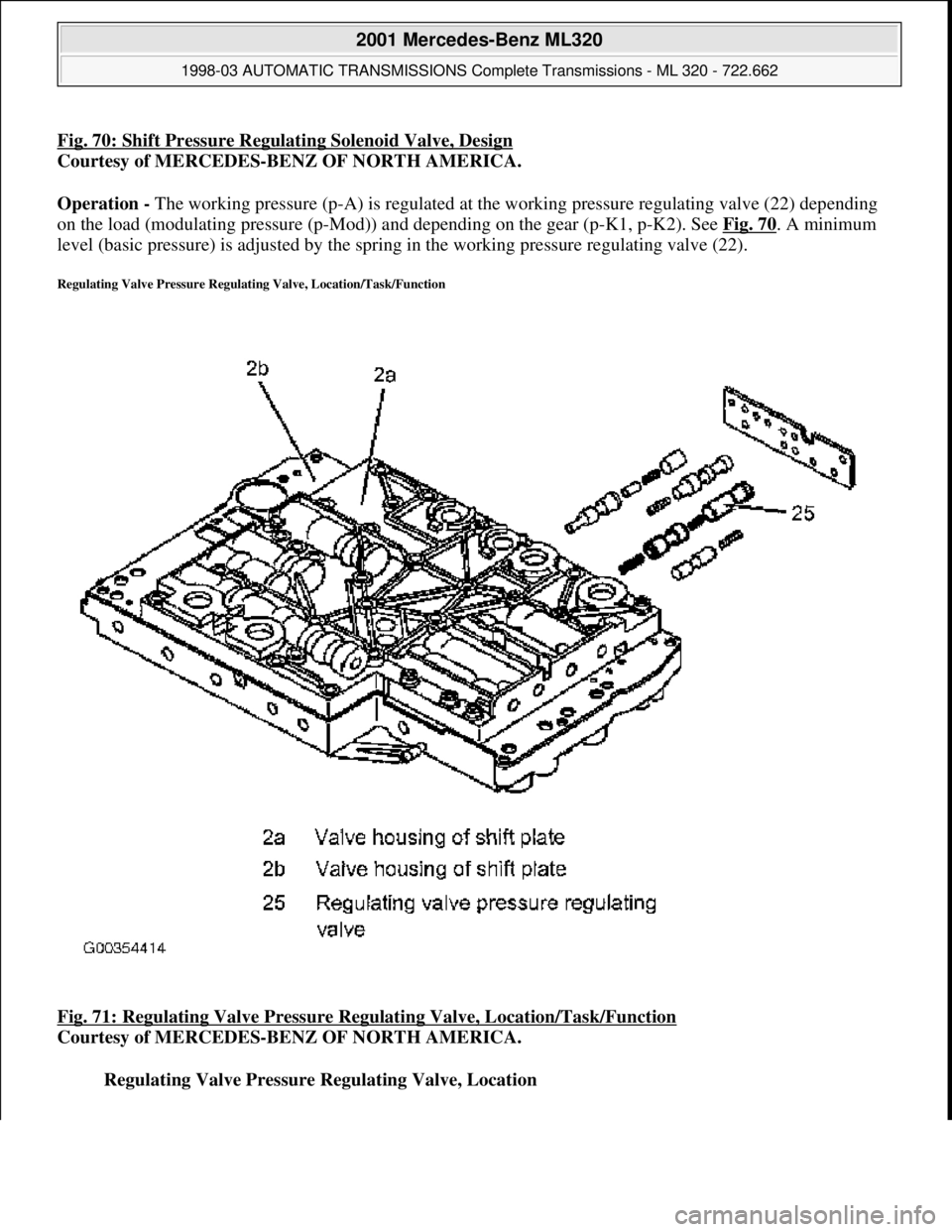

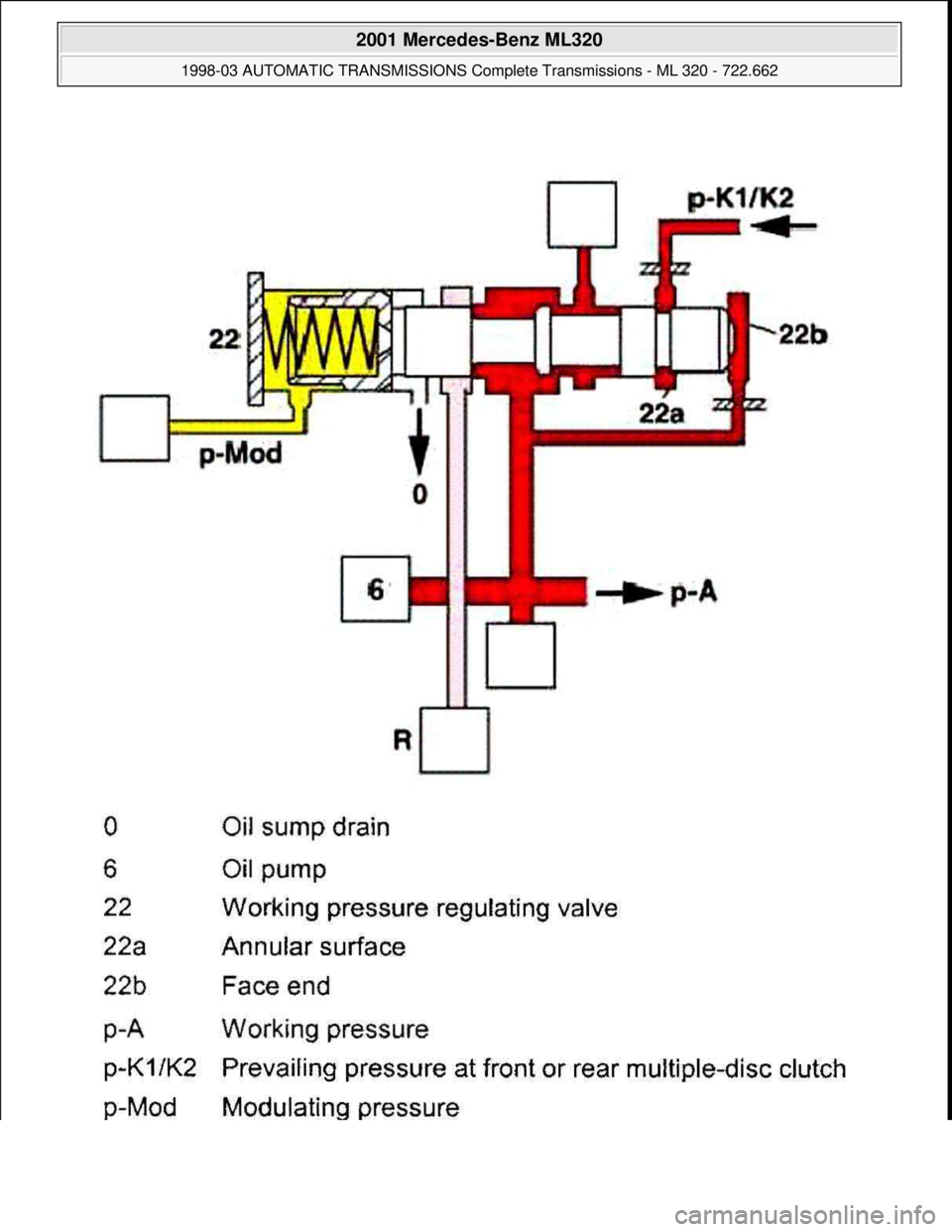

Fig. 70: Shift Pressure Regulating Solenoid Valve, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation - The working pressure (p-A) is regulated at th e working pressure regulating valve (22) depending
on the load (modulating pressure (p-Mod)) a nd depending on the gear (p-K1, p-K2). See Fig. 70
. A minimum
level (basic pressure) is adjusted by the spring in the working pressure regulating valve (22).
Regulating Valve Pressure Regulating Valve, Location/Task/Function
Fig. 71: Regulating Valve Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Regulating Valve Pressure Regulating Valve, Location


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 128 © 2006 Mitchell Repair Information Company, LLC.

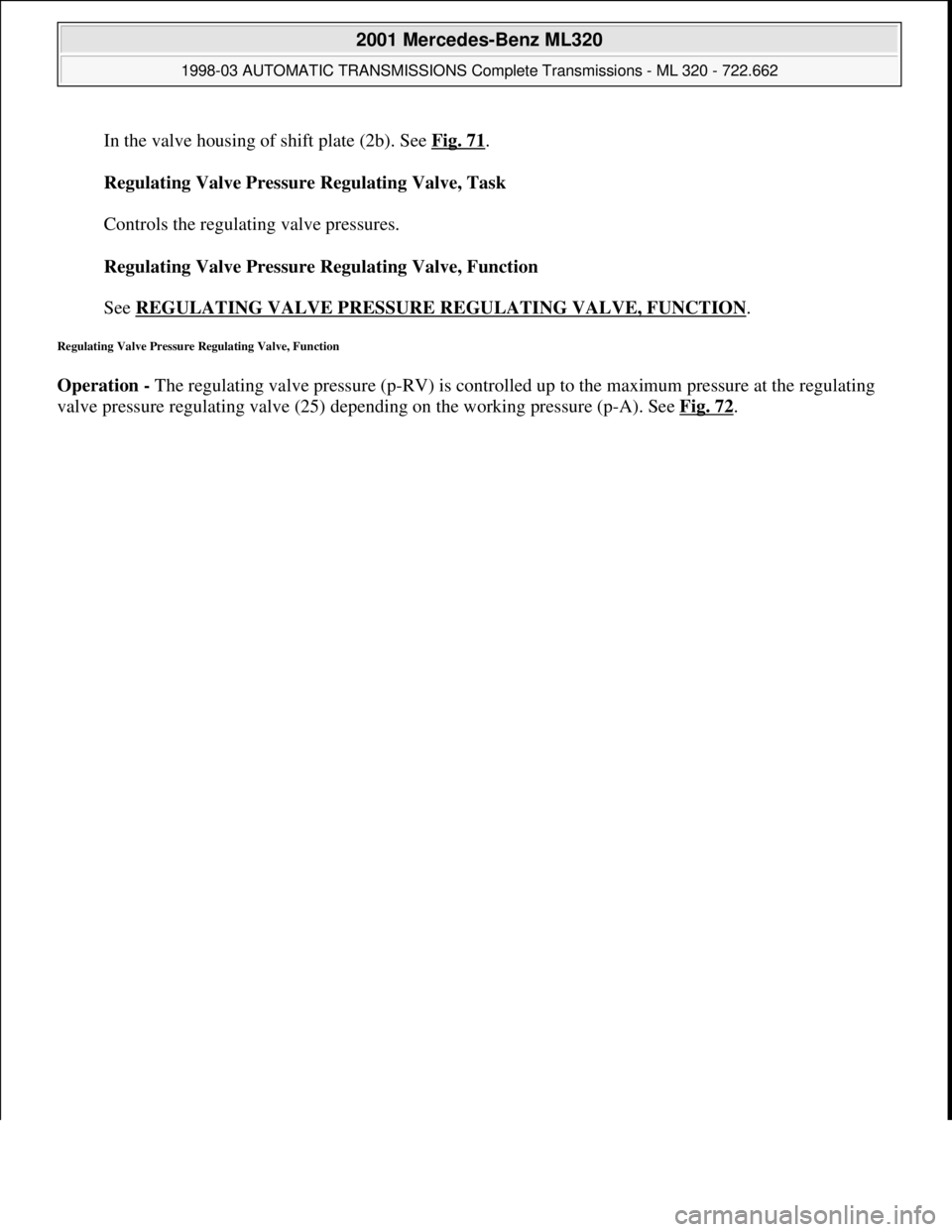

In the valve housing of shift plate (2b). See Fig. 71.
Regulating Valve Pressure Regulating Valve, Task

Controls the regulating valve pressures.
Regulating Valve Pressure Regulating Valve, Function

See REGULATING VALVE PRESSURE REGULATING VALVE, FUNCTION
.
Regulating Valve Pressure Regulating Valve, Function
Operation - The regulating valve pressure (p-RV) is controlled up to the maximum pressure at the regulating
valve pressure re
gulating valve (25) depending on the working pressure (p-A). See Fig. 72.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 129 © 2006 Mitchell Repair Information Company, LLC.

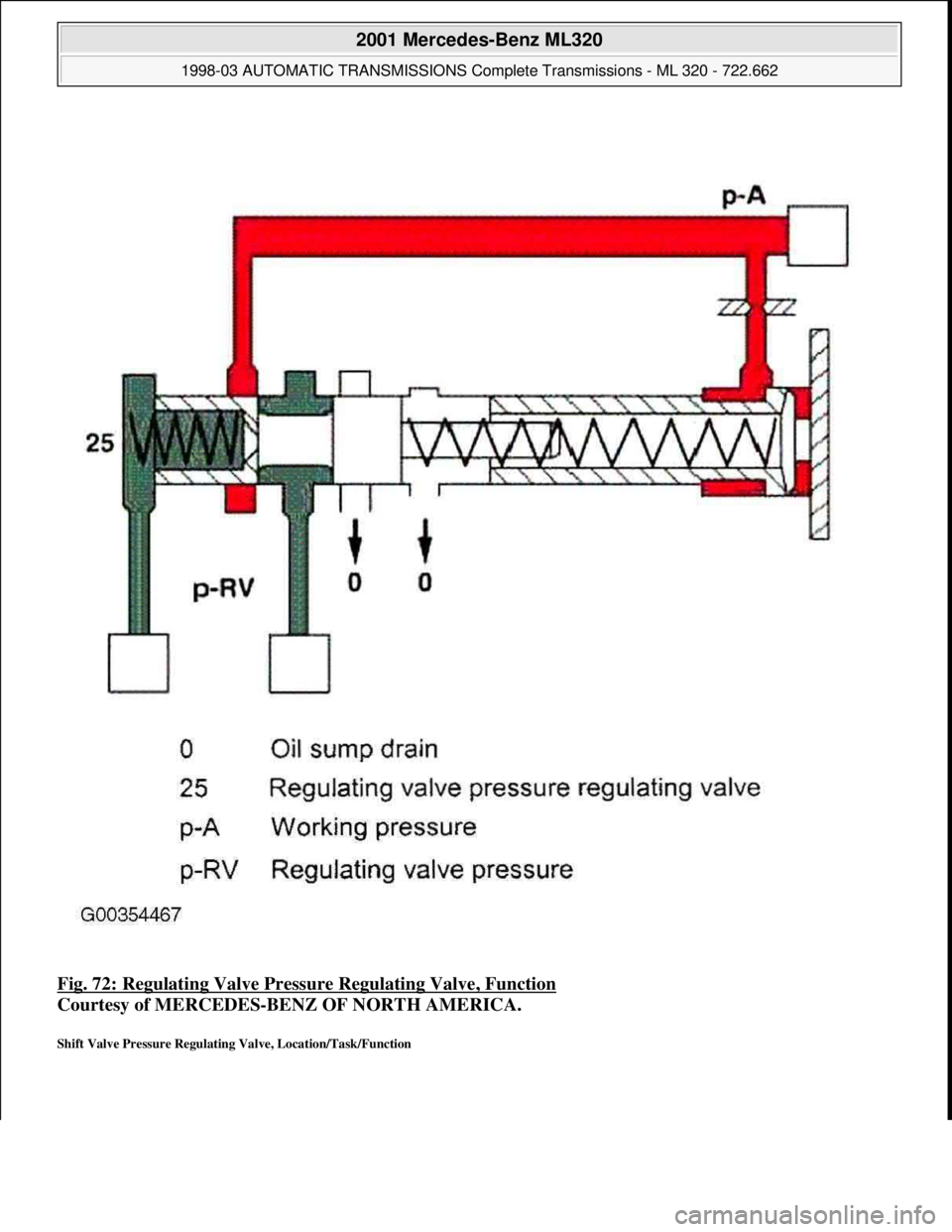

Fig. 72: Regulating Valve Pressu re Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shift Valve Pressure Regulating Valve, Location/Task/Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 130 © 2006 Mitchell Repair Information Company, LLC.

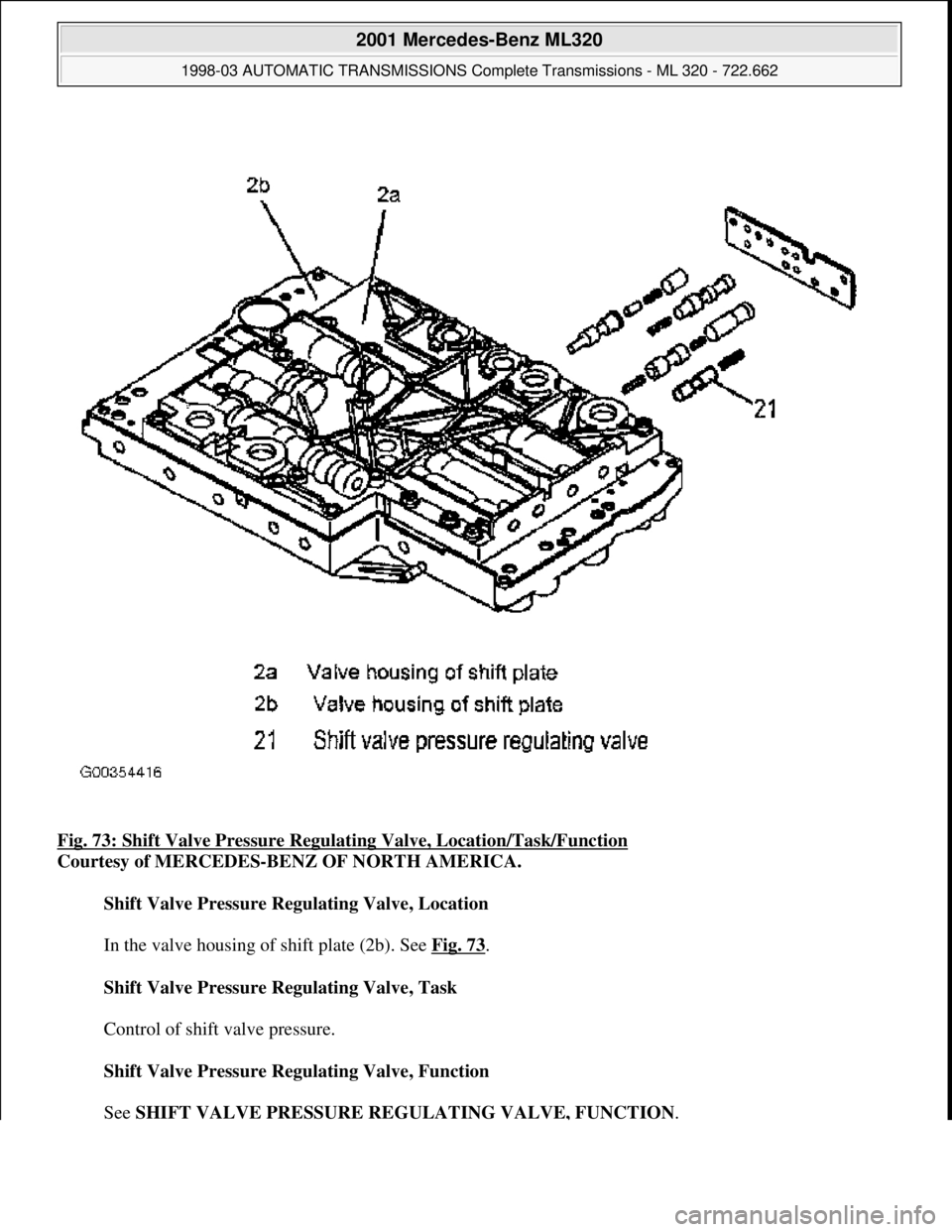

Fig. 73: Shift Valve Pressure Regulati ng Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shift Valve Pressure Regulating Valve, Location

In the valve housing of shift plate (2b). See Fig. 73
.
Shift Valve Pressure Regulating Valve, Task

Control of shift valve pressure.
Shift Valve Pressure Regulating Valve, Function

See SHIFT VALVE PRESSURE REGU LATING VALVE, FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
