Shift Valve Pressure Regulating Valve, Function
Operation - The variable regulating valve pressure (p-RV) is controlled to a constant shift valve pressure (p-
SV) at the shift valve pressure regulating valve (21) and is used to supply the solenoid valves for 1-2 and 4-5
shift, 3-4 shift, 2-3 shift (Y3/6y3, Y3/6y4, Y3/6y5) as well as the PWM solenoid valve for the converter lockup
(Y3/6y6). See Fig. 74
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 132 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 133 © 2006 Mitchell Repair Information Company, LLC.

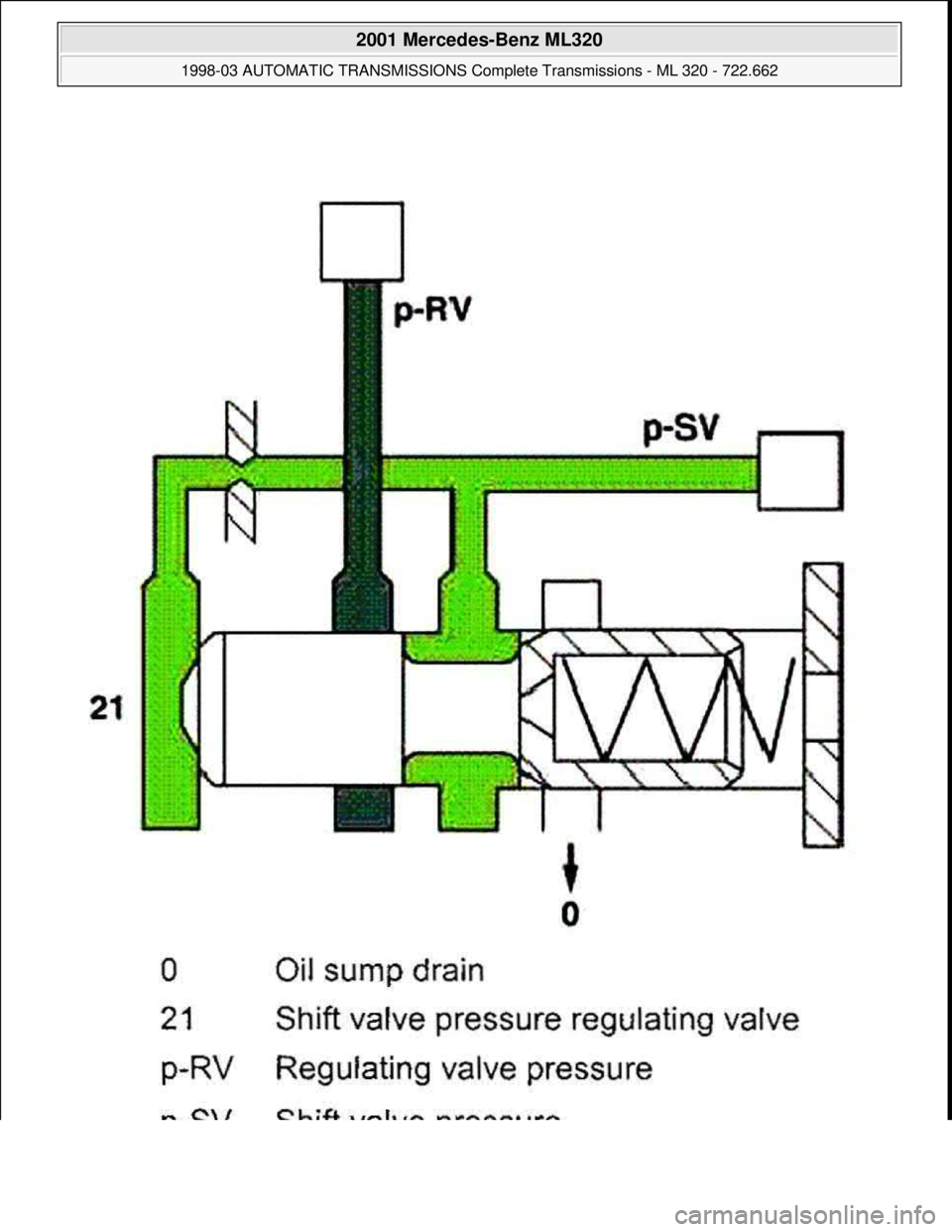

Fig. 74: Shift Valve Pressure Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Lubrication Pressure Regulating Valve, Location/Task/Function

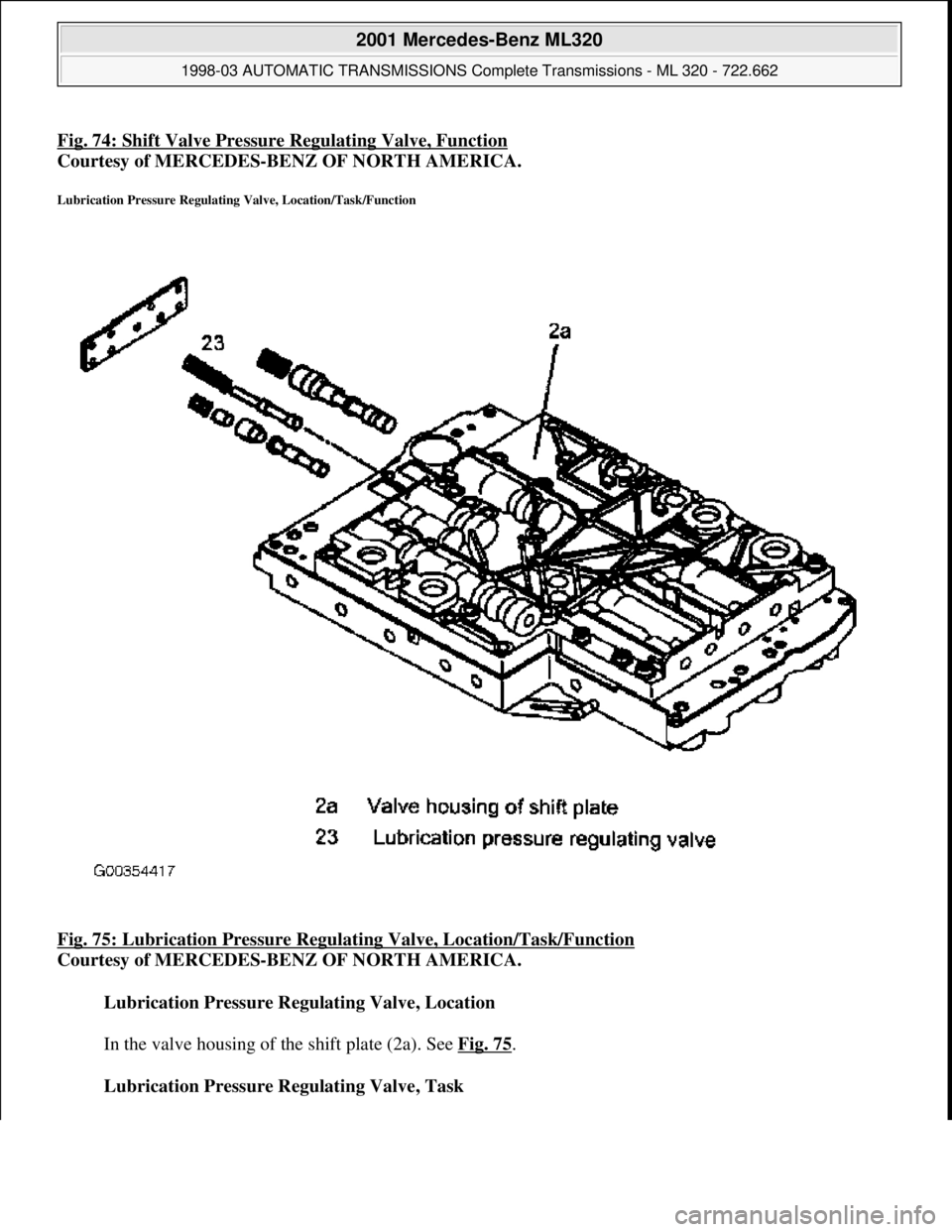

Fig. 75: Lubrication Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Lubrication Pressure Regulating Valve, Location

In the valve housing of the shift plate (2a). See Fig. 75
.
Lubrication Pressure Regulating Valve, Task


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 134 © 2006 Mitchell Repair Information Company, LLC.

Lubricates and cools the mechanical part of the transmission, and limits the pressure in the torque
converter.
Lubrication Pressure Regulating Valve, Function

See LUBRICATION PRESSURE REGULATING VALVE, FUNCTION
.
Lubrication Pressure Regulating Valve, Function
Operation - At the working pressure regulating valve (22) surplus oil is diverted to the lubrication pressure
regulating valve (23), from were the lubrication pressure (p-Sm) is used in regulating amounts to supply the
transmission lubrication system including the torque converter. See Fig. 76
.
Fig. 76: Lubrication Pressure Regulating Valve, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 135 © 2006 Mitchell Repair Information Company, LLC.

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Overlap Regulating Valve, Location/Task/Function

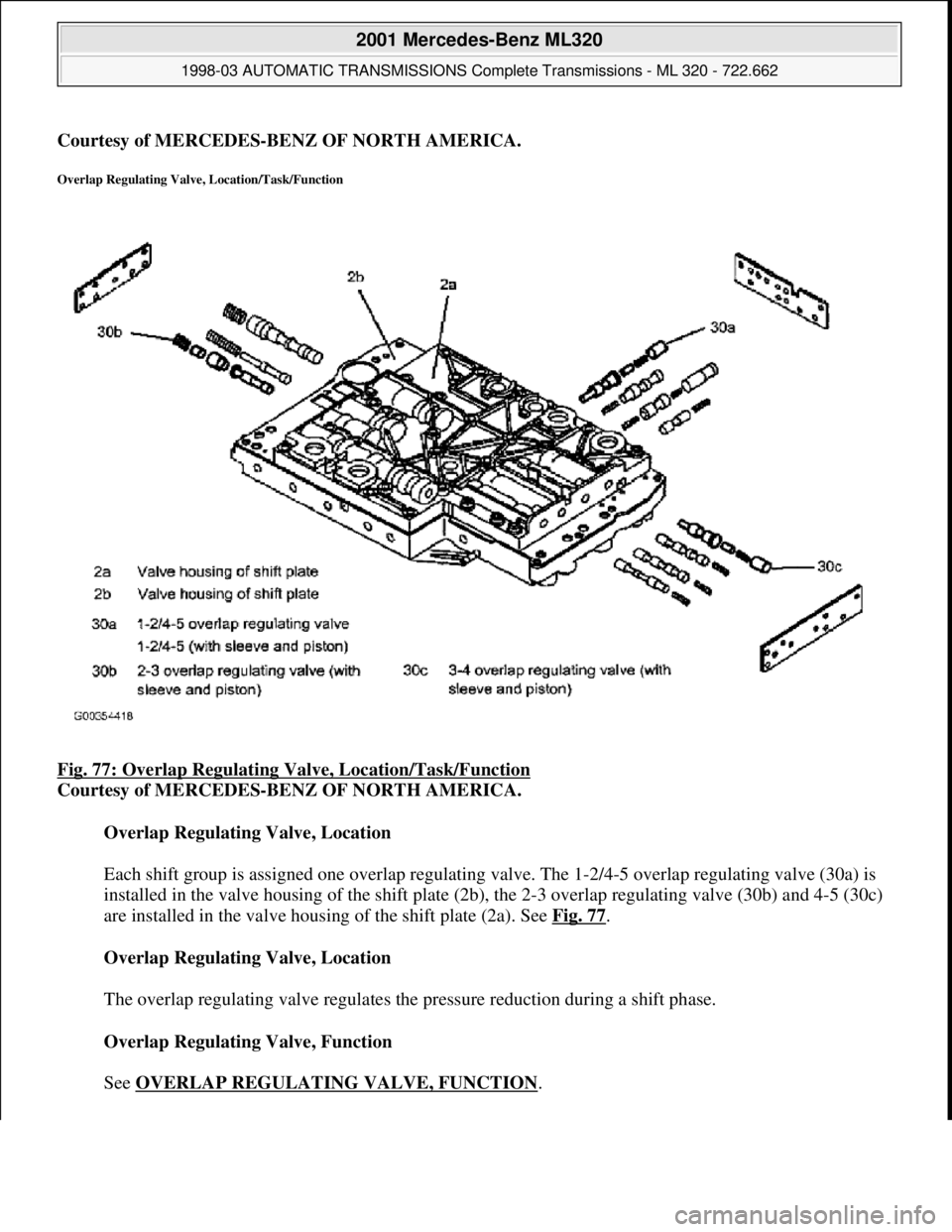

Fig. 77: Overlap Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Overlap Regulating Valve, Location

Each shift group is assigned one overlap regulating va lve. The 1-2/4-5 overlap regulating valve (30a) is
installed in the valve housing of the shift plate (2b) , the 2-3 overlap regulating valve (30b) and 4-5 (30c)
are installed in the valve housin g of the shift plate (2a). See Fig. 77
.
Overlap Regulating Valve, Location

The overlap regulating valve regulates th e pressure reduction during a shift phase.
Overlap Regulating Valve, Function

See OVERLAP REGULATING VALVE, FUNCTION
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 136 © 2006 Mitchell Repair Information Company, LLC.

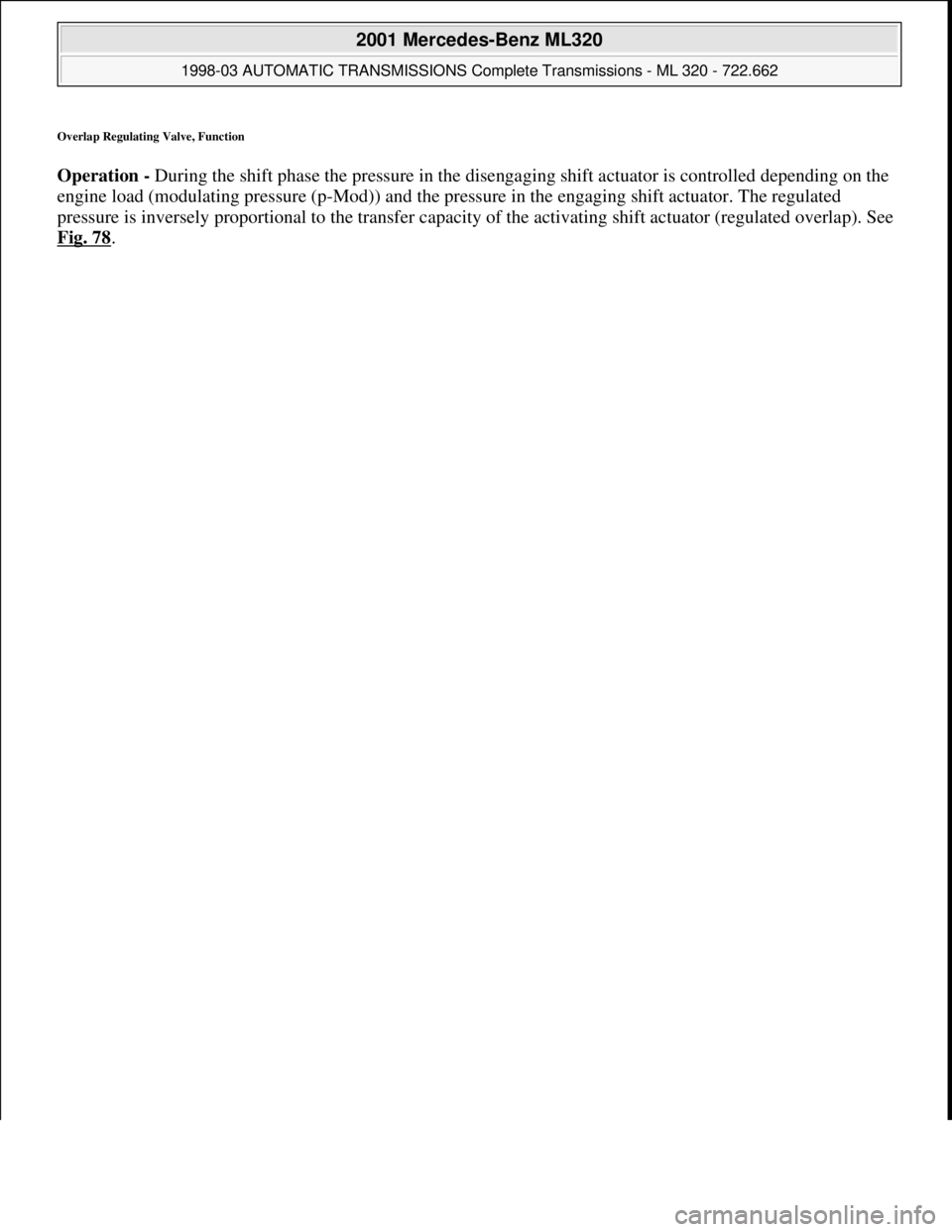

Overlap Regulating Valve, Function
Operation - During the shift phase the pressure in the disengaging shift actuator is controlled depending on the
engine load (modulating pressure (p-Mod)) and the pressure in the engaging shift actuator. The regulated
pressure is inversely proportional to the transfer capacity of the activating shift actuator (regulated overlap). See
Fig. 78
.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 137 © 2006 Mitchell Repair Information Company, LLC.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 138 © 2006 Mitchell Repair Information Company, LLC.

Fig. 78: Overlap Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Torque Converter Lockup Clutch Regulating Valve, Location/Task/Function

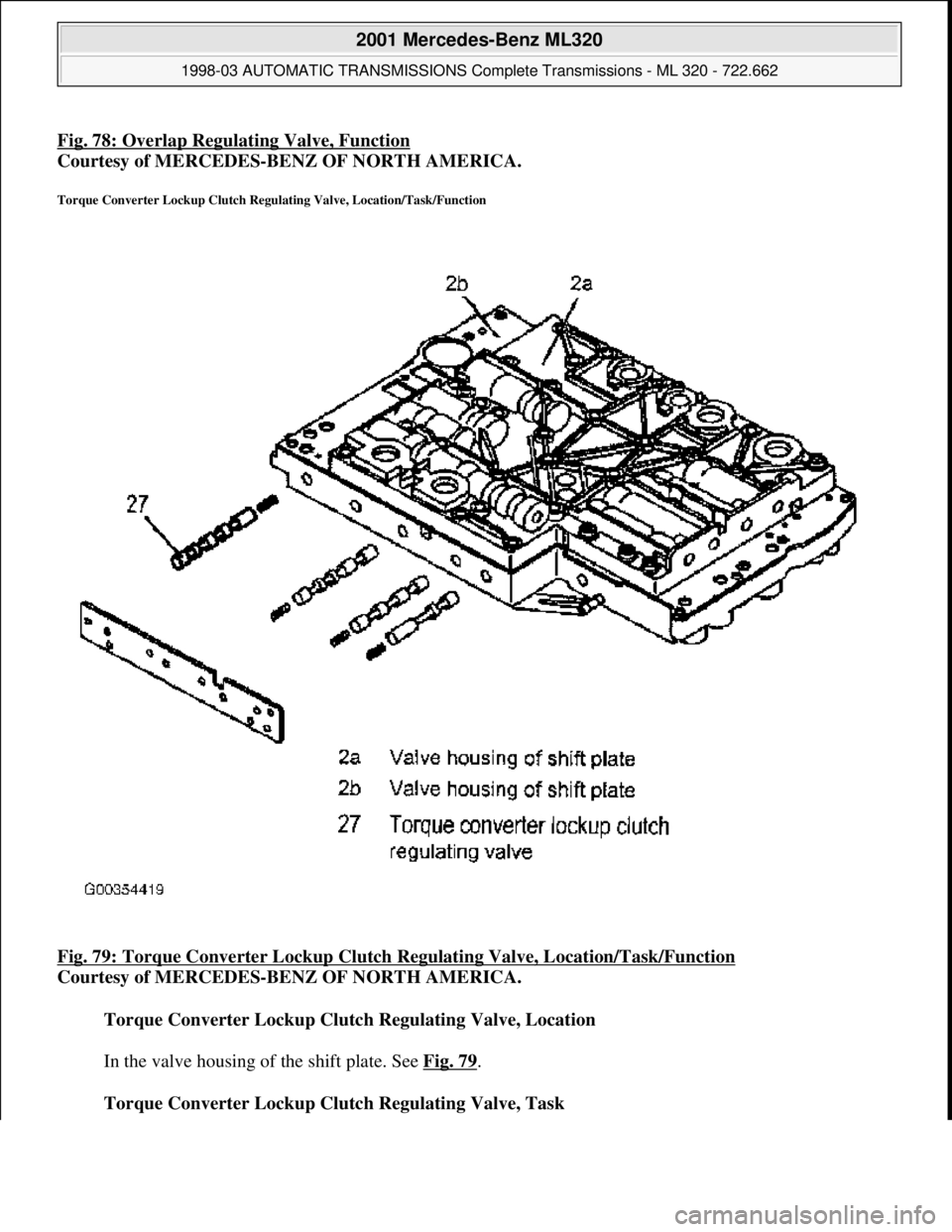

Fig. 79: Torque Converter Lockup Clutch Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Torque Converter Lockup Clutch Regulating Valve, Location

In the valve housing of the shift plate. See Fig. 79
.
Torque Converter Lockup Clutch Regulating Valve, Task

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 139 © 2006 Mitchell Repair Information Company, LLC.

Hydraulic control of the torque converter lockup clutch and distribution of the lubricating oil.
Torque Converter Lockup Clutch Regulating Valve, Function

See TORQUE CONVERTER LOCKUP CLUTCH REGULATING VALVE, FUNCTION
.
Torque Converter Lockup Clutch Regulating Valve, Function

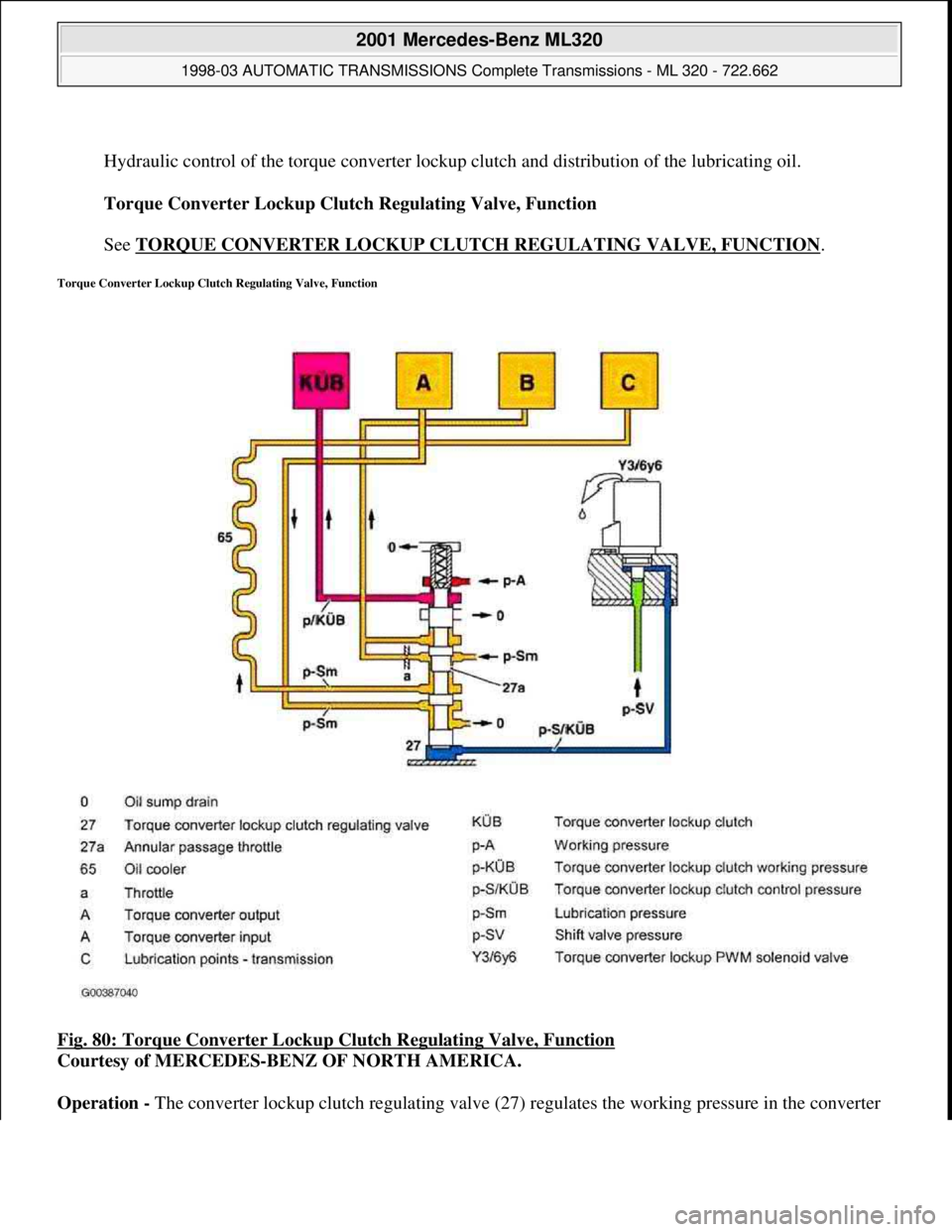

Fig. 80: Torque Converter Lockup Clutch Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation - The converter lockup clutch regulating valve (27) regulates the working pressure in the converter

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:27 PMPage 140 © 2006 Mitchell Repair Information Company, LLC.

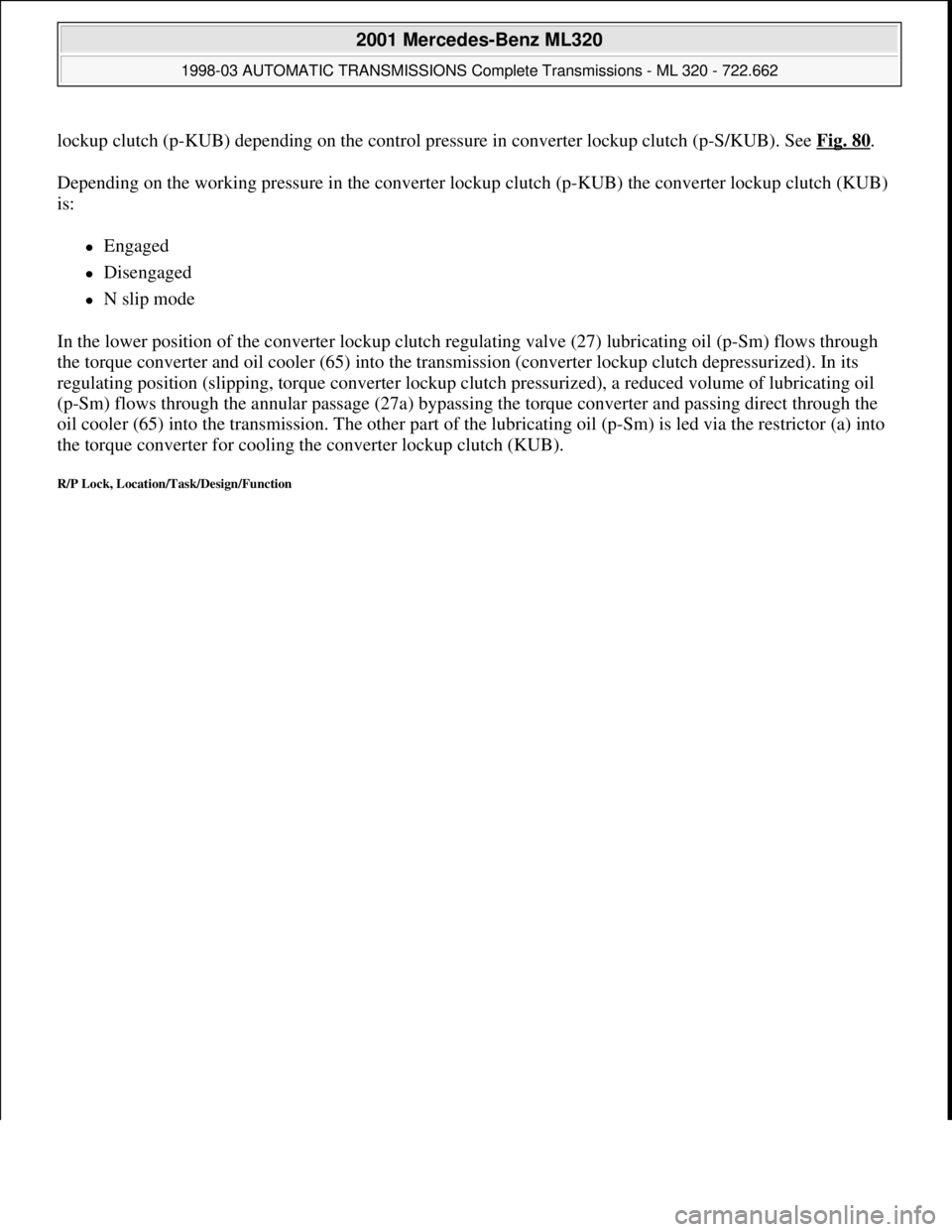

lockup clutch (p-KUB) depending on the control pressure in converter lockup clutch (p-S/KUB). See Fig. 80.
Depending on the working pressure in the converter lockup clutch (p-KUB) the converter lockup clutch (KUB)
is:
Engaged
Disengaged
N slip mode
In the lower position of the converter lockup clutch regulating valve (27) lubricating oil (p-Sm) flows through
the torque converter and oil cooler (65) into the transmission (converter lockup clutch depressurized). In its
regulating position (slipping, torque converter lockup clutch pressurized), a reduced volume of lubricating oil
(p-Sm) flows through the annular passage (27a) bypassing the torque converter and passing direct through the
oil cooler (65) into the transmission. The other part of the lubricating oil (p-Sm) is led via the restrictor (a) into
the torque converter for cooling the converter lockup clutch (KUB).
R/P Lock, Location/Task/Design/Function
